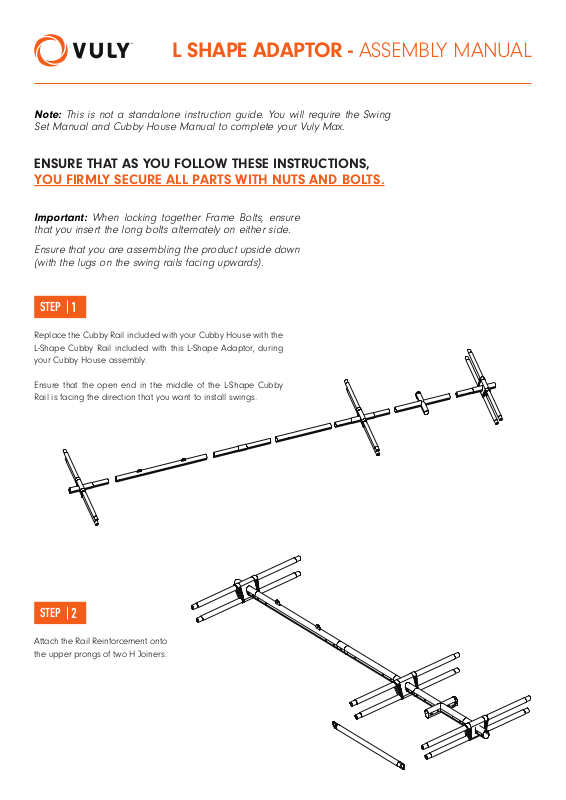

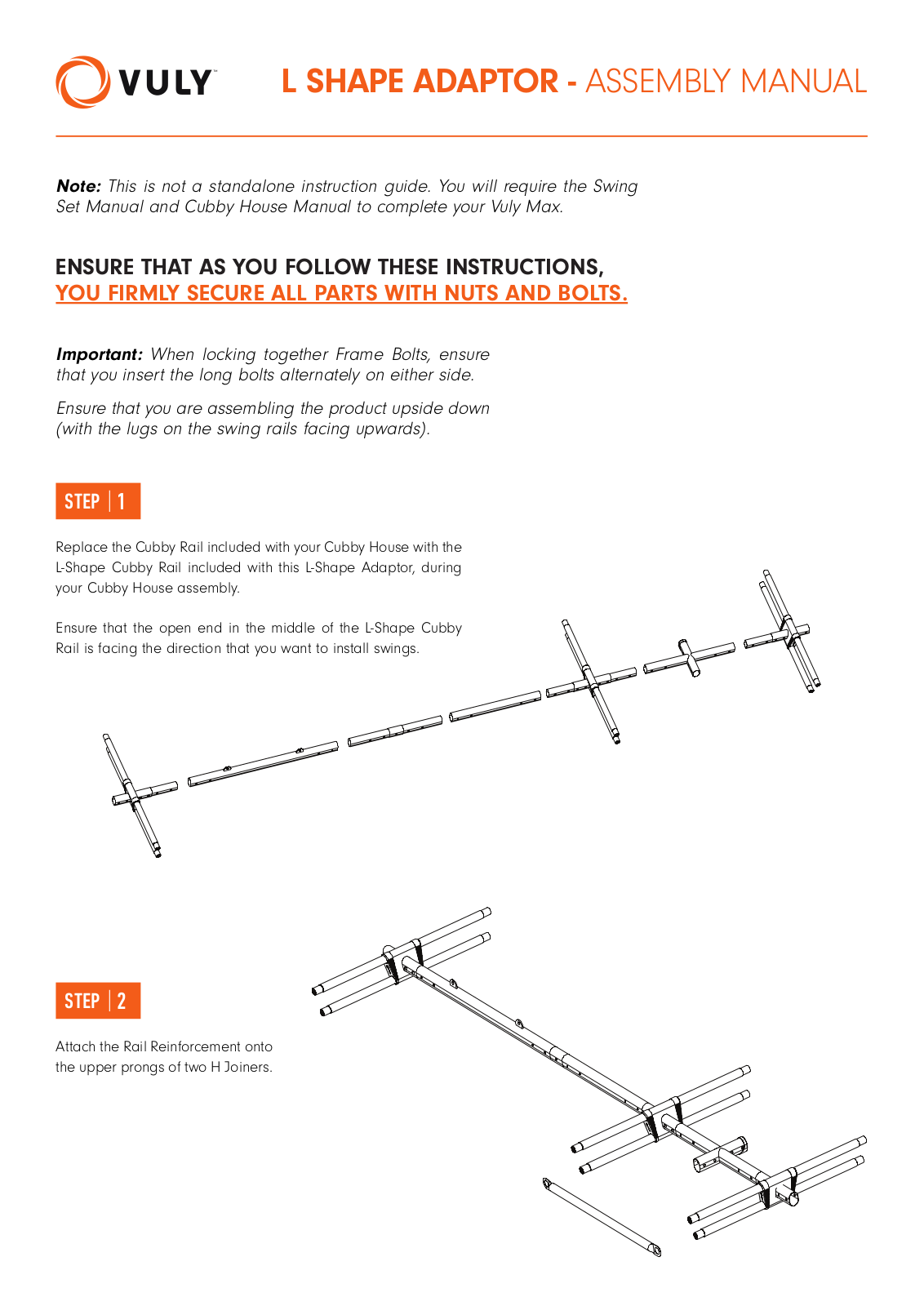

L SHAPE ADAPTOR - ASSEMBLY MANUAL

Note: This is not a standalone instruction guide. You will require the Swing

Set Manual and Cubby House Manual to complete your Vuly Max.

ENSURE THAT AS YOU FOLLOW THESE INSTRUCTIONS,

YOU FIRMLY SECURE ALL PARTS WITH NUTS AND BOLTS.

Important: When locking together Frame Bolts, ensure

that you insert the long bolts alternately on either side.

Ensure that you are assembling the product upside down
(with the lugs on the swing rails facing upwards).

STEP

Replace the Cubby Rail included with your Cubby House with the
L-Shape Cubby Rail included with this L-Shape Adaptor, during
your Cubby House assembly.

Ensure that the open end in the middle of the L-Shape Cubby
Rail is facing the direction that you want to install swings.

1

STEP

Attach the Rail Reinforcement onto
the upper prongs of two H Joiners.

2

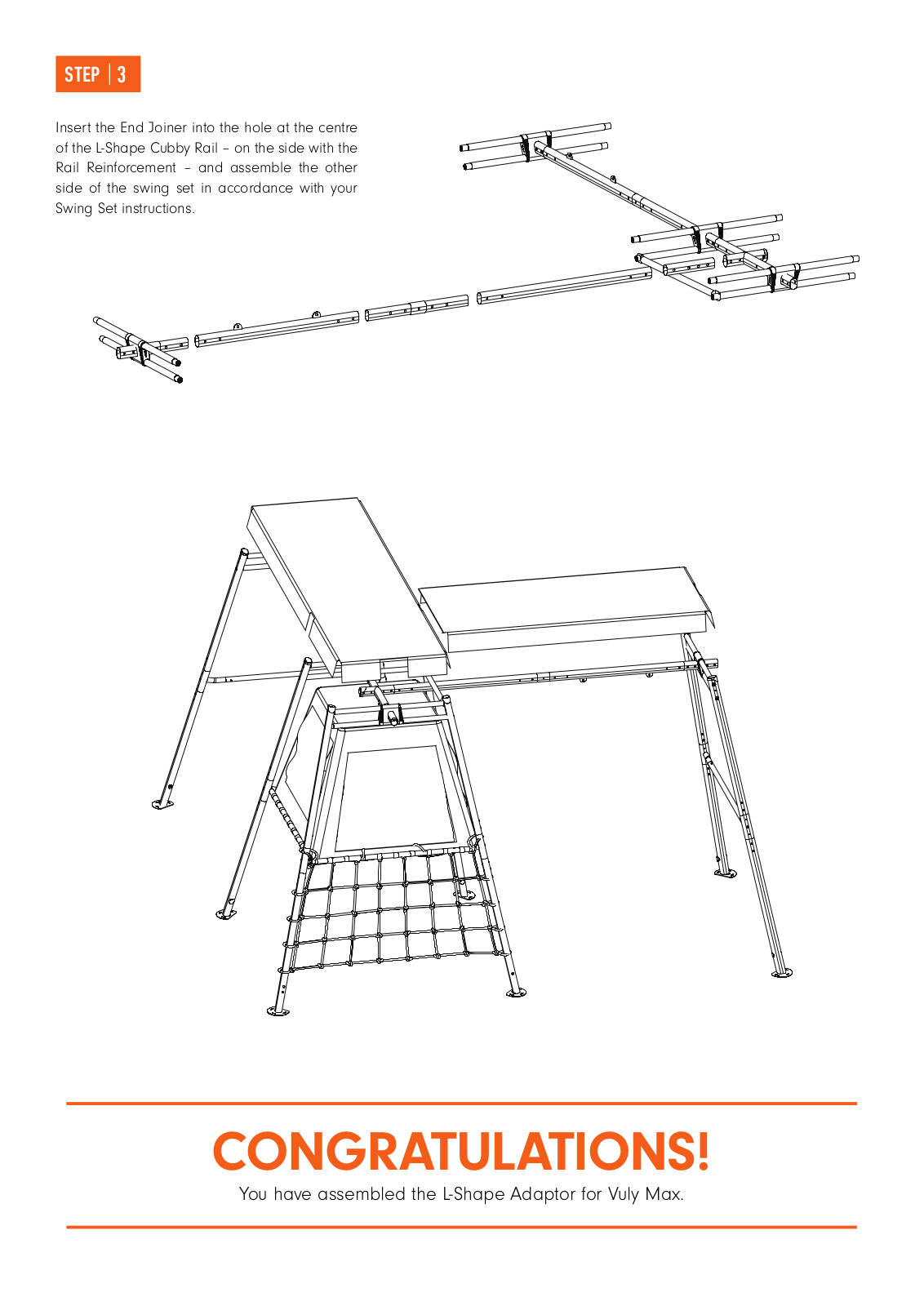

STEP

Insert the End Joiner into the hole at the centre
of the L-Shape Cubby Rail – on the side with the
Rail Reinforcement – and assemble the other
side of the swing set in accordance with your
Swing Set instructions.

3

CONGRATULATIONS!

You have assembled the L-Shape Adaptor for Vuly Max.
