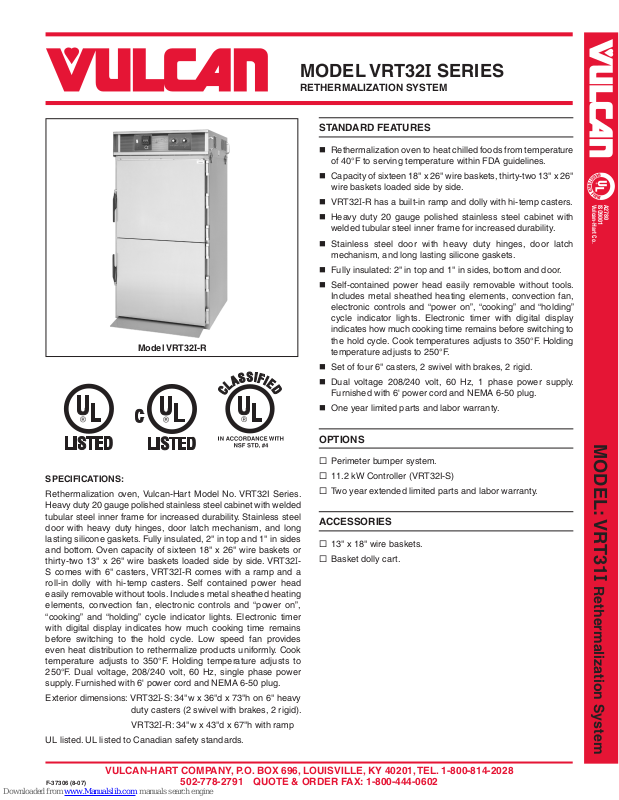

Vulcan-Hart VRT32I SERIES, VRT32I-R, VRT32I-S Specifications

Model VRT32I-R

MODEL VRT32I SERIES

RETHERMALIZATION SYSTEM

STANDARD FEATURES

n Rethermalization oven to heat chilled foods from temperature

of 40°F to serving temperature within FDA guidelines.

n Capacity of sixteen 18" x 26" wire baskets, thirty-two 13" x 26"

wire baskets loaded side by side.

n VRT32I-R has a built-in ramp and dolly with hi-temp casters.

n Heavy duty 20 gauge polished stainless steel cabinet with

welded tubular steel inner frame for increased durability.

n Stainless steel door with heavy duty hinges, door latch

mechanism, and long lasting silicone gaskets.

n Fully insulated: 2" in top and 1" in sides, bottom and door.

n Self-contained power head easily removable without tools.

Includes metal sheathed heating elements, convection fan,
electronic controls and “power on”, “cooking” and “holding”
cycle indicator lights. Electronic timer with digital display
indicates how much cooking time remains before switching to
the hold cycle. Cook temperatures adjusts to 350°F. Holding
temperature adjusts to 250°F.

n Set of four 6" casters, 2 swivel with brakes, 2 rigid.

n Dual voltage 208/240 volt, 60 Hz, 1 phase power supply.

Furnished with 6' power cord and NEMA 6-50 plug.

n One year limited parts and labor warranty.

A2780

ISO9001

Vulcan-Hart Co.

SPECIFICATIONS:

Rethermalization oven, Vulcan-Hart Model No. VRT32I Series.
Heavy duty 20 gauge polished stainless steel cabinet with welded
tubular steel inner frame for increased durability. Stainless steel
door with heavy duty hinges, door latch mechanism, and long
lasting silicone gaskets. Fully insulated, 2" in top and 1" in sides
and bottom. Oven capacity of sixteen 18" x 26" wire baskets or
thirty-two 13" x 26" wire baskets loaded side by side. VRT32
S comes with 6" casters, VRT32
roll-in dolly with hi-temp casters. Self contained power head
easily removable without tools. Includes metal sheathed heating
elements, convection fan, electronic controls and “power on”,
“cooking” and “holding” cycle indicator lights. Electronic timer
with digital display indicates how much cooking time remains
before switching to the hold cycle. Low speed fan provides
even heat distribution to rethermalize products uniformly. Cook
temperature adjusts to 350°F. Holding temperature adjusts to
250°F. Dual voltage, 208/240 volt, 60 Hz, single phase power
supply. Furnished with 6' power cord and NEMA 6-50 plug.

Exterior dimensions: VRT32

duty casters (2 swivel with brakes, 2 rigid).

VRT32I-R: 34"w x 43"d x 67"h with ramp

UL listed. UL listed to Canadian safety standards.

I-R comes with a ramp and a

I-S: 34"w x 36"d x 73"h on 6" heavy

I-

OPTIONS

® Perimeter bumper system.

® 11.2 kW Controller (VRT32I-S)

® Two year extended limited parts and labor warranty.

ACCESSORIES

® 13" x 18" wire baskets.

® Basket dolly cart.

MODEL: VRT31I Rethermalization System

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]

F-37306 (8-07)

502-778-2791 QUOTE & ORDER FAX: [phone]

MODEL VRT32I SERIES

RETHERMALIZATION SYSTEM

W

H

W

W

H

Capacity
13" × 26" Shipping
Model No. Wire Baskets High Deep Wide Weight Volts Watts Amps

VRT32

1126 mm 914 mm 870 mm 186 kg

73" 36" 34" 410#

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.

I-R 16 each

VRT32I-S 32 each

67" 43" 34" 410#

1854 mm 914 mm 870 mm 186 kg

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]

F-37306 (8-07)

502-778-2791 QUOTE & ORDER FAX: [phone]

D

208 7600 36.5

208 7600 36.5
