REPLACEMENT PARTS
S
A
CMJ AND VCM SERIES
GAS CHEESEMELTER
CATALOG OF
MODEL
CMJ24
CMJ34
CMJ36
CMJ48
CMJ60 ML-135128
CMJ72 ML-135129
www.wolfrange.com
ML-135124
ML-135123
ML-135126
ML-135127
CMJ48
MODEL
VCM24
VCM34
VCM36
VCM48
VCM60
VCM72
www.vulcanhart.com
ML-135124
ML-135123
ML-135126
ML-135127
ML-135128
ML-135129
VCM48
For additional information on Vulcan-Hart or to locate an authorized parts
nd service provider in your area, visit our website at www.vulcanhart.com
ITW Food Equipment Group, LLC
3600 North Point Blvd.
Baltimore, MD 21222
FORM F-36991 (2-09)
24
CMJ And VCM Series Gas Cheesemelters Catalog Of Replacement Parts
HOUSING AND COMPONENTS
23
22
20
21
25
19
18
1
2
4
5
3
17
16
CMJ60 SHOWN
15
6
7
8
9
10
11
12
13
14
-
2 -
CMJ And VCM Series Gas Cheesemelters Catalog Of Replacement Parts
HOUSING AND COMPONENTS
ILLUS. PART NO. NAME OF PART AMT.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
00-764251
00-788482-00001
00-764252
00-764253
00-764254
00-764255
00-730228
00-712378-00001
00-723284
00-762526
00-764992
00-764995-00001
00-788479
00-764996-00001
00-764997-00001
00-764998-00001
00-764999-00001
00-719259-00012
00-420560-00001
00-426745-00001
00-417700-00003
00-723204
00-712300-00001
00-712301-00002
00-712301-00001
00-712302-00001
00-712303-00001
00-712304-00001
00-788486
00-765031
00-765030
00-765050
00-788481-00001
00-765051
00-765052
00-765053
00-765054
00-719260
00-709214-000A2
00-730022
00-765034
00-765035
00-762518
00-764991
PANEL,24” TOP…………………………………………………………………..
PANEL,34” TOP…………………………………………………………………...
PANEL,36” TOP…………………………………...………………………………
PANEL,48” TOP……………………………………………………….…………..
PANEL,60” TOP……………………………………………………………..…….
PANEL,72” TOP………………………………………….………………….…….
SCREW,10-24 X ½” SELF TAP PHILLIPS………………….………………….
BODY PANEL – NOT FIELD SERVICEABLE………………………………….
BRACKET,RACK SUPPORT……………………..……………………………..
¾” PIPE CLAMP HANGER………………………...……………………………
PANEL,RIGHT SIDE INSULATION…...………...………………………………
PANEL,RIGHT SIDE………………………………………………………..……
PANEL,24” FRONT……………………………………………………………….
PANEL,34” FRONT……………………………………………………………….
PANEL,36” FRONT…………………………….…………………………………
PANEL,48” FRONT…………………………….…………………………………
PANEL,60” FRONT……………………………...………………………………..
PANEL,72” FRONT………………………………...……………………………..
KNOB,RED WOLF…………………………...……………………………………
KNOB,RED VULCAN……………………………………………………………..
KNOB,BLACK VULCAN………………………………………...………………..
LOGO, VULCAN………………..…………………………………………………
LOGO,WOLF………………………………………………………………………
24” RACK…………………………………………………………………...……...
34” RACK…………………………………………………………………...……...
36” RACK…………………………………………………………………………..
48” RACK………………………………………….……………………………….
60” RACK………………………………………….……………………………….
72” RACK………………………………………….……………………………….
TRAY,34” CRUMB(34 MODELS ONLY)……….……………………………….
TRAY,36” CRUMB(36,60 AND 72 MODELS)…….……………………………
TRAY,24” CRUMB(24,48 AND 60 MODELS)………………………………….
BOTTOM INSULATION PANEL – NOT FIELD SERVICEABLE…………….
PANEL,24” BOTTOM……………………………………………………………..
PANEL,34” BOTTOM……………………………………………………………..
PANEL,36” BOTTOM……………………………………………………………..
PANEL,48” BOTTOM……………………………………………………………..
PANEL,60” BOTTOM……………………………………………………………..
PANEL,72” BOTTOM……………………………………………………………..
6” ADJUSTABLE LEG……………………………………………………......…..
CENTER RACK SUPPORT ASSEMBLY(60 AND 72 MODELS)……….…...
SCREW,1/4”-20 x 1.75”(60 AND 72 MODELS)..………………………………
CENTER DRIP PAN GUIDE TOP………..……………………………………..
CENTER DRIP PAN GUIDE BOTTOM….………………………………..…….
PANEL,LEFT SIDE INSULATION….………………….………………….…….
PANEL,LEFT SIDE…………………………………………….………………….
1
1
1
1
1
1
AR
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
AR
AR
1
1
1
1
1
1
1
AR
1
3
1
1
1
1
-
3 -
CMJ And VCM Series Gas Cheesemelters Catalog Of Replacement Parts
HOUSING AND COMPONENTS(CONT.)
ILLUS. PART NO. NAME OF PART AMT.
23
24
25
00-712066
00-765002
00-765003-00001
00-765003
00-765004
00-765005
00-765006
00-730022
NOT SHOWN
00-714471
SIDE INSULATION….…………………….……………………………………...
PANEL,24” BACK…………………………………………………………………
PANEL,34” BACK…………………………………………………………………
PANEL,36” BACK………………………….……………………………………...
PANEL,48” BACK……………………………...………………………………….
PANEL,60” BACK…………………………………..…………………………….
PANEL,72” BACK…………………………………..……………………………..
1/4-20 X 1.75” SCREW……………………………...……………………………
3/8-16 CAGE NUT………………………………………………………………..
2
1
1
1
1
1
1
3
AR
-
4 -
14
CMJ And VCM Series Gas Cheesemelters Catalog Of Replacement Parts
GAS TRAIN
2
3
7
8
15
16
18
17
13
19
12
1
10
20
11
CMJ60 SHOWN
9
4
5
6
-
5 -
CMJ And VCM Series Gas Cheesemelters Catalog Of Replacement Parts
GAS TRAIN
ILLUS. PART NO. NAME OF PART AMT.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
00-712380
00-408279-25
00-408279-21
00-712379
00-722425
00-713944-43
00-713944-53
00-723392
00-723393
00-723394
00-764971
00-730228
00-722227
00-722228
00-719221
00-719363
00-719179
00-722228
00-730229
00-712398
00-713944-48
00-713944-55
00-719393
00-722425
00-764977-00001
00-788478
00-764978-00001
00-764979-00001
00-764980-00001
00-764981-00001
00-718327
00-715007
00-764987
FLUE SPACER………………………………………………………..……..…..
PRESSURE REGULATOR NATURAL…………………………………..……
PRESSURE REGULATOR L.P…………………………………………………
36 IR BURNER (34,36,60 AND 72 MODELS)……………..…………………
3/8” X 8” FLEX TUBING…………………..……………………………………..
NAT. GAS ORIFICE FOR 36 IR BURNER(34,36,60 AND 72 MODELS)….
LP. GAS ORIFICE FOR 36 IR BURNER(34,36,60 AND 72 MODELS)……
MANIFOLD W/A(24,34 AND 36 MODELS….………………………………...
MANIFOLD W/A(48 AND 60 MODELS)..……………………………………...
MANIFOLD W/A(72 MODELS)………….……………………………………...
IR BURNER RETAINING CLIP…………..…………………………………….
10-24 X ½” SELF TAP SCREW………..……………………………………….
¼” X 6” FLEX TUBING (48 and 60 MODELS)…………………….…….……
¼” X 12” FLEX TUBING (24, 34,36,60 AND 72 MODELS)..………….…….
ADJUSTABLE BURNER VALVE……………………………………………….
1/8 NPT COUNTERSINK PLUG………………………………………………..
SINGLE PILOT VALVE………………………………………………………….
¼” X 12” FLEX TUBING (48 AND 60 MODELS)....…………………………..
10-24 X 1.25” SELF TAP SCREW……………......……………………………
24 IR BURNER (24,48 AND 60 MODELS)…………………..………………..
NAT. GAS ORIFICE FOR 24 IR BURNER (24, 48 AND 60 MODELS)........
LP. GAS ORIFICE FOR 24 IR BURNER (24, 48 AND 60 MODELS)….......
3/8 MPT X 3/8-27 X 3/8 CC ELBOW…………………………………………..
3/8” X 8” FLEX TUBING…………………..……………………………………..
24” BURNER PANEL…………………………….……………………………...
34” BURNER PANEL…………………………….……………………………...
36” BURNER PANEL…………………………….……………………………...
48” BURNER PANEL…………………………….……………………………...
60” BURNER PANEL…………………………….……………………………...
72” BURNER PANEL…………………………….……………………………...
BASO PILOT BURNER (NATURAL GAS)…………………………………….
LP ORIFICE FOR PILOT BURNER…..………………………………………..
PILOT BURNER BRACKET……………..……………………………..............
AR
1
1
AR
AR
AR
AR
1
1
1
AR
AR
AR
AR
AR
AR
AR
AR
AR
AR
AR
AR
AR
AR
1
1
1
1
1
AR
AR
AR
AR
-
6 -
CMJ And VCM Series Gas Cheesemelters Catalog Of Replacement Parts
RECOMMENDED SPARE PARTS
PART NO. NAME OF PART AMT.
00-719259-00012
00-420560-00001
00-426745-00001
00-408279-25
00-408279-21
00-712379
00-712398
00-718327
00-715007
00-713944-43
00-713944-48
00-713944-53
00-713944-55
00-719221
00-719179
KNOB,RED WOLF…………………………...………………………………………….…
KNOB,RED VULCAN……………………………………………………………..,……....
KNOB,BLACK VULCAN………………………………………...…………………………
PRESSURE REGULATOR NATURAL…………………………………..………………
PRESSURE REGULATOR L.P……………………………………………………………
36 IR BURNER (34,36,60 AND 72 MODELS)……………..……………………………
24 IR BURNER (24,48 AND 60 MODELS)…………………..………………………….
BASO PILOT BURNER (NATURAL GAS)……………………………………………….
LP ORIFICE FOR PILOT BURNER……………………………………………………….
NAT. GAS ORIFICE FOR 36 IR BURNER(34,36,60 AND 72 MODELS)…………….
NAT. GAS ORIFICE FOR 24 IR BURNER (24, 48 AND 60 MODELS)......................
LP. GAS ORIFICE FOR 36 IR BURNER(34,36,60 AND 72 MODELS)………………
LP. GAS ORIFICE FOR 24 IR BURNER (24, 48 AND 60 MODELS)…......................
ADJUSTABLE BURNER VALVE………………………………………………………….
SINGLE PILOT VALVE…………………………………………………………………….
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
7 -
CMJ And VCM Series Gas Cheesemelters Catalog Of Replacement Parts

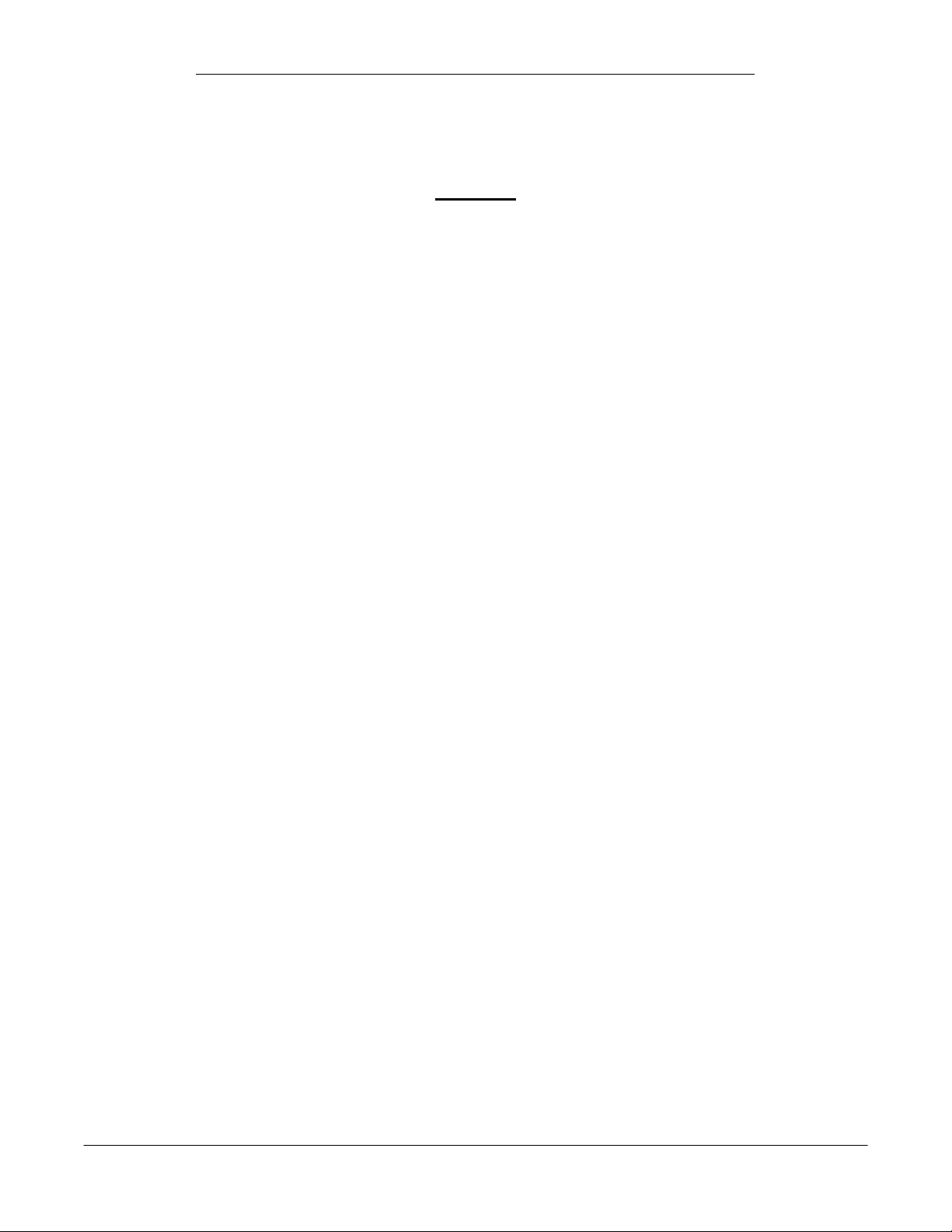

NOTES
-
8 -
