REPLACEMENT PARTS
ELECTRIC COMBI OVENS
MODEL
VCE6H ML-126177
VCE10H ML-126178
VCE10F ML-126179
VCE20H ML-126172
VCE20F ML-126173
CATALOG OF
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. (800) 814-2028
FORM 43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
F-43005 Rev. A (November 2006)
- 2 -
© VULCAN-HART COMPANY
ELECTRIC COMBI OVENS REPLACEMENT PARTS
Table of Contents
Page Description
5 Frame And Panels (6 & 10 Racks)
7 Frame And Panels (20 Racks)
11 Door Assembly (6 Racks)
13 Door Assembly (10 Racks)
15 Door Assembly (20 Racks)
17 Cavity And Heating Element (6 & 10 Racks)
19 Cavity And Heating Element (20 Racks)
21 Boiler Assembly (6 & 10 Racks)
23 Boiler Assembly (20 Half Racks)
25 Boiler Assembly (20 Full Racks)
27 Convection Unit
29 Pipework And Drain (6 & 10 Racks)
31 Pipework And Drain (20 Racks)
33 Cavity Vent
35 Electrical Connection Assembly (6 Levels)
37 Electrical Connection Assembly (10 Levels)
39 Electrical Connection Assembly (20 Levels)
41 Door Interlock
43 Electronic Control Unit (6 & 10 Levels)
45 Electronic Control Unit (20 Levels)
47 Filter And Carriage (6 & 10 Levels)
49 Filter And Carriage (20 Racks)
51 Trolley Assembly (20 Racks)
52 Table Assembly (6 Racks & 10 Half Racks)
- 3 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
6
1-2-3
4-5
7
8-9
20-21
18-19
10
17
11
12
13
14
15
16
PL-55043
F-43005 Rev. A (November 2006)
FRAME AND PANELS (6 & 10 RACKS)
- 4 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
FRAME AND PANELS (6 & 10 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55043 NO.
1 00-845036-00001 Panel – Left Side (6 Half) ...........................................................................................................1
2 00-845036-00002 Panel – Left Side (10 Half) .........................................................................................................1
3 00-845036-00003 Panel – Left Side (10 Full) ......................................................................................................... 1
4 00-844964-00001 Panel – Top (6 Half & 10 Half) ................................................................................................... 1
5 00-844964-00002 Panel – Top (10 Full) ..................................................................................................................1
6 00-492183 Grommet – Cavity Vent Tube .....................................................................................................1
7 00-492110 Grommet – Drain Vent Tube ......................................................................................................1
8 00-845448-00001 Panel – Back (6 Half) ................................................................................................................. 1
9 00-845448-00002 Panel – Back (10 Half & 10 Full) ................................................................................................1
10 00-845450-00001 Bracket – Electric & Water ......................................................................................................... 1
11 00-845041-00001 Panel – Right Side (6 Half) ........................................................................................................ 1
12 00-845041-00002 Panel – Right Side (10 Half) ...................................................................................................... 1
13 00-845041-00003 Panel – Right Side (10 Full) ....................................................................................................... 1
14 00-845038-00001 Panel – Bottom (6 Half & 10 Half) ..............................................................................................1
15 00-845038-00002 Panel – Bottom (10 Full) ............................................................................................................1
16 00-480245 Tray – Drip .................................................................................................................................1
17 00-845475 Thumb Screw .............................................................................................................................2
18 00-851220-00007 Leg – (4 In.) Flanged .................................................................................................................4
19 00-851220-00005 Leg – (6 In.) Flanged .................................................................................................................4
20 00-851794-00001 Caster – (6 In.) Locking .............................................................................................................2
21 00-851794-00002 Caster – (6 In.) Non-Locking ......................................................................................................2
- 5 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1-2
3
4
5-6
7
8-9
15 THRU 18
13-14
PL-55044
F-43005 Rev. A (November 2006)
10
11-12
FRAME AND PANELS (20 RACKS)
- 6 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
FRAME AND PANELS (20 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55044 NO.
1 00-844963-00001 Panel – Left Side (20 Half) .........................................................................................................1
2 00-844963-00002 Panel – Left Side (20 Full) ......................................................................................................... 1
3 00-492110 Grommet – Drain Vent Tube ......................................................................................................1
4 00-492183 Grommet – Cavity Vent Tube .....................................................................................................1
5 00-844964-00001 Panel – Top (20 Half) .................................................................................................................1
6 00-844964-00002 Panel – Top (20 Full) ..................................................................................................................1
7 00-845448-00003 Panel – Back (20 Half & 20 Full) ................................................................................................1
8 00-844966-00001 Panel – Right Side (20 Half) ...................................................................................................... 1
9 00-844966-00002 Panel – Right Side (20 Full) ....................................................................................................... 1
10 00-845450-00002 Bracket .......................................................................................................................................1
11 00-845038-00001 Panel – Bottom (20 Half) ...........................................................................................................1
12 00-845038-00002 Panel – Bottom (20 Full) ............................................................................................................1
13 00-851220-00003 Leg – 7 In. (With Flange) (20 Half) ............................................................................................4
14 00-851220-00001 Leg – (8 1/2 In.) (With Flange) (20 Full) .......................................................................................4
15 00-851220-00009 Caster – (7 1/4 In.) (Locking) (20 Half) ........................................................................................2
16 00-851220-00010 Caster – (7 1/4 In.) (Non-Locking) (20 Half).................................................................................2
17 00-851221-00013 Caster – (7 1/4 In.) (Locking) (20 Half) ........................................................................................2
18 00-851221-00014 Caster – (8 5/8 In.) (Non-Locking) (20 Full) .................................................................................2
- 7 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
2
PL-55045
3
4
7
8
9
5
6
FRAME AND PANELS (20 RACKS) (Cont.)
F-43005 Rev. A (November 2006)
- 8 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
FRAME AND PANELS (20 RACKS) (Cont.)
ILLUS. PART NAME OF PART AMT.
PL-55045 NO.
1 00-845458-00002 Tube - Vent ................................................................................................................................1
2 00-492201 Funnel - Drain ............................................................................................................................1
3 00-322258 Trolley Guide (LH) ...................................................................................................................... 1
4 00-322259 Trolley Guide (RH) ..................................................................................................................... 1
5 00-602307 Lockwasher ................................................................................................................................8
6 00-602491 Nut .............................................................................................................................................8
7 00-492964 Drip Pan (Center) .......................................................................................................................1
8 00-492965 Drip Pan (Left) ...........................................................................................................................1
9 00-492966 Drip Pan (Right) .........................................................................................................................1
- 9 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
2
3
9
8
13
60
61
50
59
51
52
5
4
53
7
6
10
11
58
55
54
56
57
12
16
14
17
15
18
22
23
19
21
20
48
49
F-43005 Rev. A (November 2006)
47
42
43
OR
44
45
46
41
40
39
38
37
36
35
DOOR ASSEMBLY (6 RACKS)
- 10 -
30
34
33
29
32
26
24
25
27
28
31
PL-55047
ELECTRIC COMBI OVENS REPLACEMENT PARTS
DOOR ASSEMBLY (6 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55047 NO.
1 00-602287 Washer .......................................................................................................................................4
2 00-492145-00001 Pin – Hinge ................................................................................................................................ 1
3 00-602884 Cotter Pin ................................................................................................................................... 4
4 00-492148 Spacer – Door ............................................................................................................................2
5 00-492043 Plate ...........................................................................................................................................2
6 00-602307 Lockwasher ................................................................................................................................2
7 SC-200-15 Cap Screw M4 x 0.7 x 10 mm Soc. Hex Hd. ............................................................................. 4
8 00-492147 Hinge ......................................................................................................................................... 2
9 00-844766 Plate – Spacer ........................................................................................................................... 2
10 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 3
11 RR-010-18 Retaining Ring ........................................................................................................................... 1
12 00-492155 Spring ........................................................................................................................................4
13 00-845199 Stud ...........................................................................................................................................2
14 00-491760 Gasket .......................................................................................................................................4
15 00-844986 Thumb Screw .............................................................................................................................4
16 00-492438 Inner Door Glass ........................................................................................................................ 1
17 00-845375 Shaft ..........................................................................................................................................2
18 00-845377 Washer .......................................................................................................................................2
19 00-845392-00001 Shaft – Pivot .............................................................................................................................. 2
20 00-844986 Thumb Screw .............................................................................................................................4
21 00-491760 Gasket .......................................................................................................................................1
22 WS-030-57 Washer .......................................................................................................................................2
23 00-492155 Spring ........................................................................................................................................4
24 NS-047-29 Acorn Nut M8 x 1.25 .................................................................................................................. 2
25 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
26 WS-004-18 Washer .......................................................................................................................................2
27 00-844941 Bushing ......................................................................................................................................1
28 00-844940 Screw .........................................................................................................................................1
29 00-845044 Catch – Door .............................................................................................................................. 1
30 NS-047-34 Acorn Nut M6 x 1 ....................................................................................................................... 1
31 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 2
32 00-494058 Door Lamp Glass ....................................................................................................................... 1
33 00-845453 Door Lamp Cover ...................................................................................................................... 1
34 00-494059 Gasket – Door Light ................................................................................................................... 1
35 NS-048-68 Nut M6 x 1 Hex .......................................................................................................................... 3
36 WS-030-01 Washer .......................................................................................................................................3
37 00-494045 Socket ........................................................................................................................................1
38 00-844952 Lamp (20W/12VAC) ...................................................................................................................1
39 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 3
40 00-492053 Tray – Drip .................................................................................................................................1
41 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
42 00-149926-00005 Nut Plate ....................................................................................................................................2
43 00-494203-00001 Handle – Door ............................................................................................................................1
44 00-170016 Magnet .......................................................................................................................................1
45 00-480074 Door Handle (For Stacked Unit)(Lower Machine Only) ............................................................. 1
46 00-170016 Magnet .......................................................................................................................................1
47 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 1
48 00-844729 Bracket .......................................................................................................................................1
49 00-492440 Drip Tray Diverter .......................................................................................................................1
50 00-845452-00001 Panel – Door Outer .................................................................................................................... 1
51 00-150444-00018 Gasket ....................................................................................................................................... 1
52 00-492917 Window – External ..................................................................................................................... 1
53 00-492497 Outer Door Gasket ..................................................................................................................... 1
54 00-845451-00001 Panel – Door Inner .....................................................................................................................1
55 RR-010-18 Retaining Ring ........................................................................................................................... 2
56 WS-004-18 Washer .......................................................................................................................................2
57 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
58 00-492439 Inner Door Gasket ..................................................................................................................... 1
59 00-492215 Bushing ......................................................................................................................................2
60 SC-117-35 Set Screw M6 x 1 x 10 mm Hex Hdls. Cup Pt. ..........................................................................1
61 00-492146 Hinge .........................................................................................................................................2
- 11 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
2
3
9
8
13
60
61
50
59
51
52
5
4
53
7
6
10
11
58
55
54
56
57
12
16
14
17
15
18
22
23
19
21
20
48
49
F-43005 Rev. A (November 2006)
47
42
41
40
43
OR
44
45
46
39
38
37
36
35
DOOR ASSEMBLY (10 RACKS)
- 12 -
30
34
33
29
32
26
24
25
27
28
31
PL-55049
ELECTRIC COMBI OVENS REPLACEMENT PARTS
DOOR ASSEMBLY (10 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55049 NO.
1 00-602287 Washer .......................................................................................................................................4
2 00-492145-00002 Pin – Hinge ................................................................................................................................ 1
3 00-602884 Cotter Pin ................................................................................................................................... 4
4 00-492148 Spacer – Door ............................................................................................................................2
5 00-492043 Plate ...........................................................................................................................................2
6 00-602307 Lockwasher ................................................................................................................................2
7 SC-200-15 Cap Screw M4 x 0.7 x 10 mm Soc. Hex Hd. ............................................................................. 2
8 00-492147 Hinge ......................................................................................................................................... 2
9 00-844766 Plate – Spacer ........................................................................................................................... 1
10 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 3
11 RR-010-18 Retaining Ring ........................................................................................................................... 1
12 00-492155 Spring ........................................................................................................................................4
13 00-845199 Stud ...........................................................................................................................................4
14 00-491760 Gasket .......................................................................................................................................2
15 00-844986 Thumb Screw .............................................................................................................................2
16 00-492465 Inner Door Glass ........................................................................................................................ 1
17 00-845375 Shaft ..........................................................................................................................................2
18 00-845377 Washer .......................................................................................................................................2
19 00-845392-00001 Shaft – Pivot .............................................................................................................................. 2
20 00-844986 Thumb Screw .............................................................................................................................2
21 00-491760 Gasket .......................................................................................................................................2
22 WS-030-57 Washer .......................................................................................................................................2
23 00-492155 Spring ........................................................................................................................................2
24 NS-047-29 Acorn Nut M8 x 1.25 .................................................................................................................. 2
25 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
26 WS-004-18 Washer .......................................................................................................................................2
27 00-844941 Bushing ......................................................................................................................................1
28 00-844940 Screw .........................................................................................................................................1
29 00-845044 Catch – Door .............................................................................................................................. 1
30 NS-047-34 Acorn Nut M6 x 1 ....................................................................................................................... 1
31 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 2
32 00-494058 Door Lamp Glass ....................................................................................................................... 1
33 00-845453 Door Lamp Cover ...................................................................................................................... 1
34 00-494059 Gasket – Door Light ................................................................................................................... 1
35 NS-048-68 Nut M6 x 1 Hex .......................................................................................................................... 3
36 WS-030-01 Washer .......................................................................................................................................3
37 00-494045 Socket ........................................................................................................................................1
38 00-844952 Lamp (20W/12VAC) ...................................................................................................................1
39 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 3
40 00-492053 Tray – Drip .................................................................................................................................1
41 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
42 00-149926-00005 Nut Plate ....................................................................................................................................2
43 00-494203-00001 Handle – Door ............................................................................................................................1
44 00-170016 Magnet .......................................................................................................................................1
45 00-480074 Door Handle (For Stacked Units)(Lower Machine Only) ...........................................................1
46 00-170016 Magnet .......................................................................................................................................1
47 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 1
48 00-844729 Bracket .......................................................................................................................................1
49 00-492440 Drip Tray Diverter .......................................................................................................................1
50 00-845452-00002 Panel – Door Outer .................................................................................................................... 1
51 00-492462 Gasket .......................................................................................................................................1
52 00-492937 Window – External ..................................................................................................................... 1
53 00-149915-00002 Outer Door Gasket .....................................................................................................................1
54 00-845451-00002 Panel – Door Inner .....................................................................................................................1
55 RR-010-18 Retaining Ring ........................................................................................................................... 2
56 WS-004-18 Washer .......................................................................................................................................2
57 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
58 00-492466 Inner Door Gasket ..................................................................................................................... 1
59 00-492215 Bushing ......................................................................................................................................1
60 SC-117-35 Set Screw M6 x 1 x 10 mm Hex Hdls. Cup Pt. ..........................................................................1
61 00-492146 Hinge .........................................................................................................................................2
- 13 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
2
3
13
9
8
12
58
59
48
57
49
50
5
4
51
7
6
55
54
52
10
53
11
56
14
16
15
17
18
22
23
19
26
20
21
24
25
27
46
47
F-43005 Rev. A (November 2006)
45
42
44
43
41
40
39
38
37
36
35
DOOR ASSEMBLY (20 RACKS)
- 14 -
34
30
33
28
29
31
32
PL-55051
ELECTRIC COMBI OVENS REPLACEMENT PARTS
DOOR ASSEMBLY (20 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55051 NO.
1 00-602287 Washer .......................................................................................................................................6
2 00-492145-00003 Pin – Hinge ................................................................................................................................ 1
3 00-602884 Cotter Pin ................................................................................................................................... 6
4 00-492148 Spacer – Door ............................................................................................................................3
5 00-492043 Plate ...........................................................................................................................................3
6 00-602307 Lockwasher ................................................................................................................................2
7 SC-200-15 Cap Screw M4 x 0.7 x 10 mm Soc. Hex Hd. ............................................................................. 2
8 00-492147 Hinge ......................................................................................................................................... 3
9 00-844766 Plate – Spacer ........................................................................................................................... 1
10 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 3
11 RR-010-18 Retaining Ring ........................................................................................................................... 2
12 00-153294-00001 Spring ........................................................................................................................................ 5
13 00-845199 Stud ...........................................................................................................................................3
14 00-491760 Gasket .......................................................................................................................................5
15 00-844986 Thumb Screw .............................................................................................................................5
16 00-491756 Inner Door Glass ........................................................................................................................ 1
17 00-845375 Shaft ..........................................................................................................................................2
18 00-845377 Washer .......................................................................................................................................2
19 00-845392-00001 Shaft – Pivot .............................................................................................................................. 2
20 00-844986 Thumb Screw .............................................................................................................................3
21 00-491760 Gasket .......................................................................................................................................3
22 WS-030-57 Washer .......................................................................................................................................3
23 00-153294-00001 Spring ........................................................................................................................................ 3
24 NS-047-29 Acorn Nut M8 x 1.25 .................................................................................................................. 2
25 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
26 WS-004-18 Washer .......................................................................................................................................2
27 00-844941 Bushing ......................................................................................................................................2
28 00-844940 Screw .........................................................................................................................................2
29 00-845016 Catch – Door .............................................................................................................................. 2
30 NS-048-68 Nut M6 x 1 Hex .......................................................................................................................... 1
31 WS-030-01 Screw .........................................................................................................................................2
32 00-494058 Door Lamp Glass ....................................................................................................................... 2
33 00-845453 Door Lamp Cover ...................................................................................................................... 2
34 00-494059 Gasket – Door Light ................................................................................................................... 2
35 NS-048-68 Nut M6 x 1 Hex .......................................................................................................................... 3
36 WS-030-01 Washer .......................................................................................................................................3
37 00-494045 Socket ........................................................................................................................................2
38 00-844952 Lamp (20W/12VAC) ...................................................................................................................2
39 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 3
40 00-492053 Tray – Drip .................................................................................................................................1
41 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
42 00-494203-00001 Handle – Door ............................................................................................................................1
43 00-170016 Magnet .......................................................................................................................................1
44 00-149926-00005 Nut Plate ....................................................................................................................................3
45 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 1
46 00-844729 Bracket .......................................................................................................................................1
47 00-492440 Drip Tray Diverter .......................................................................................................................1
48 00-845452-00003 Panel – Door Outer .................................................................................................................... 1
49 00-492462 Gasket .......................................................................................................................................2
50 00-492937 Window – External ..................................................................................................................... 2
51 00-149915-00002 Outer Door Gasket .....................................................................................................................2
52 00-845451-00003 Panel – Door Inner .....................................................................................................................1
53 RR-010-18 Retaining Ring ........................................................................................................................... 2
54 WS-004-18 Washer .......................................................................................................................................2
55 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
56 00-491759 Inner Door Gasket ..................................................................................................................... 1
57 00-492215 Bushing ......................................................................................................................................3
58 SC-117-35 Set Screw M6 x 1 x 10 mm Hex Hdls. Cup Pt. ..........................................................................1
59 00-492146 Hinge .........................................................................................................................................3
- 15 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
4
3
2
1
5
6
7
10 Level 6 Level
8
9
10
14
15
16
17
11
12
13
CAVITY AND HEATING ELEMENT (6 & 10 RACKS)
F-43005 Rev. A (November 2006)
27
28
24
25
26
21
22
23
20
19
18
PL-58183
- 16 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
CAVITY AND HEATING ELEMENT (6 & 10 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-58183 NO.
1 00-492997 Thermocouple ............................................................................................................................ 1
2 00-322270 Bracket .......................................................................................................................................1
3 WL-019-70 Lockwasher M8 Helical ..............................................................................................................1
4 NS-048-83 Jam Nut M10 x 1.5 ..................................................................................................................... 1
5 00-844947-00004 Element Inner – Heating (10 Racks – 208 V.) ............................................................................1
6 00-844947-00002 Element Inner – Heating (10 Racks – 240 V.) ............................................................................1
7 00-844947-00003 Element Inner – Heating (10 Racks – 480 V.) ............................................................................1
9 00-844948-00004 Element Outer – Heating (10 Racks – 208 V.) ........................................................................... 1
9 00-844948-00002 Element Outer – Heating (10 Racks – 240 V.) ........................................................................... 1
10 00-844948-00003 Element Outer – Heating (10 Racks – 480 V.) ........................................................................... 1
11 00-845389-00001 Element – Heating (6 Racks – 208 V.) ....................................................................................... 1
12 00-844954-00001 Element – Heating (6 Racks – 240 V.) ....................................................................................... 1
13 00-845389-00003 Element – Heating (6 Racks – 480 V.) ....................................................................................... 1
14 00-153333 Insulator – High Limit Bulb ......................................................................................................... 1
15 NS-048-83 Jam Nut M10 x 1.5 ..................................................................................................................... 2
16 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
17 00-322194 Bracket – High Limit Probe ........................................................................................................1
18 00-844919-00004 Probe – Thermocouple Meat (J 4 mm) ......................................................................................1
19 00-845404 Gasket .......................................................................................................................................1
20 NS-048-83 Jam Nut M10 x 1.5 ..................................................................................................................... 1
21 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 1
22 WL-019-70 Lockwasher M8 Helical ..............................................................................................................1
23 00-845365-00002 Clip – Meat Probe Holder ..........................................................................................................1
24 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 1
25 WL-019-70 Lockwasher ................................................................................................................................ 1
26 00-845365-00001 Clip – Meat Probe Holder .........................................................................................................1
27 00-492418 Gasket – Cavity Face Seal (6 Racks) ........................................................................................ 1
28 00-492455 Gasket – Cavity Face Seal (10 Racks) ...................................................................................... 1
- 17 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
5
6
7
2
3
4
29
26
27
28
23
24
17
18
19
14
15
16
25
20
22
21
11
12
13
8
9
10
CAVITY AND HEATING ELEMENT (20 RACKS)
PL-55053
F-43005 Rev. A (November 2006)
- 18 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
CAVITY AND HEATING ELEMENT (20 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55053 NO.
1 00-492997 Thermocouple ............................................................................................................................ 2
2 NS-048-83 Jam Nut M10 x 1 1/2 .................................................................................................................. 1
3 WL-019-70 Lockwasher M8 Helical ..............................................................................................................1
4 00-322270 Bracket .......................................................................................................................................1
5 00-153333 Insulator – High Limit Bulb ......................................................................................................... 2
6 00-322194 Bracket – High Limit Probe ........................................................................................................1
7 00-148271 Humidifi er Nozzle .......................................................................................................................2
8 00-844948-00005 Element – Heating (20H Rack – 208 V.) .................................................................................... 2
9 00-844948-00001 Element – Heating (20H Rack – 240 V.) .................................................................................... 2
10 00-844948-00006 Element – Heating (20H Rack – 480 V.) .................................................................................... 2
11 00-844948-00004 Element – Heating (20F Rack – 208 V.) ....................................................................................2
12 00-844948-00002 Element – Heating (20F Rack – 240 V.) ....................................................................................2
13 00-844948-00003 Element – Heating (20F Rack – 480 V.) ....................................................................................2
14 00-844947-00005 Element – Heating (20H Rack – 208 V.) ....................................................................................2
15 00-844947-00001 Element – Heating (20H Rack – 240 V.) .................................................................................... 2
16 00-844947-00006 Element – Heating (20H Rack – 480 V.) .................................................................................... 2
17 00-844947-00004 Element – Heating (20F Rack – 208 V.) ....................................................................................2
18 00-844947-00002 Element – Heating (20F Rack – 240 V.) ....................................................................................2
19 00-844947-00003 Element – Heating (20F Rack – 480 V.) ....................................................................................2
20 00-844919-00004 Probe – Thermocouple Meat (J 4 mm) ......................................................................................1
21 00-845404 Gasket .......................................................................................................................................1
22 NS-048-83 Jam Nut M10 x 1 1/2 .................................................................................................................. 1
23 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 1
24 WL-019-70 Lockwasher M8 Helical ..............................................................................................................1
25 00-845365-00002 Clip – Meat Probe Holder .........................................................................................................1
26 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 1
27 WL-019-70 Lockwasher M8 Helical ..............................................................................................................1
28 00-845365-00001 Clip – Meat Probe Holder .........................................................................................................1
29 00-491770 Gasket – Cavity Face Seal ........................................................................................................ 1
00-491751 Valve – Water Check Humidifi er ................................................................................................1
- 19 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
10 Level
30
3
2
31
6
5
4
28
27
26
32
7
8
9
25
29
24
10
6 Level
11
12
13
14
15
16
23
34
35
33
36
37
38
39
40
22
44
43
42
41

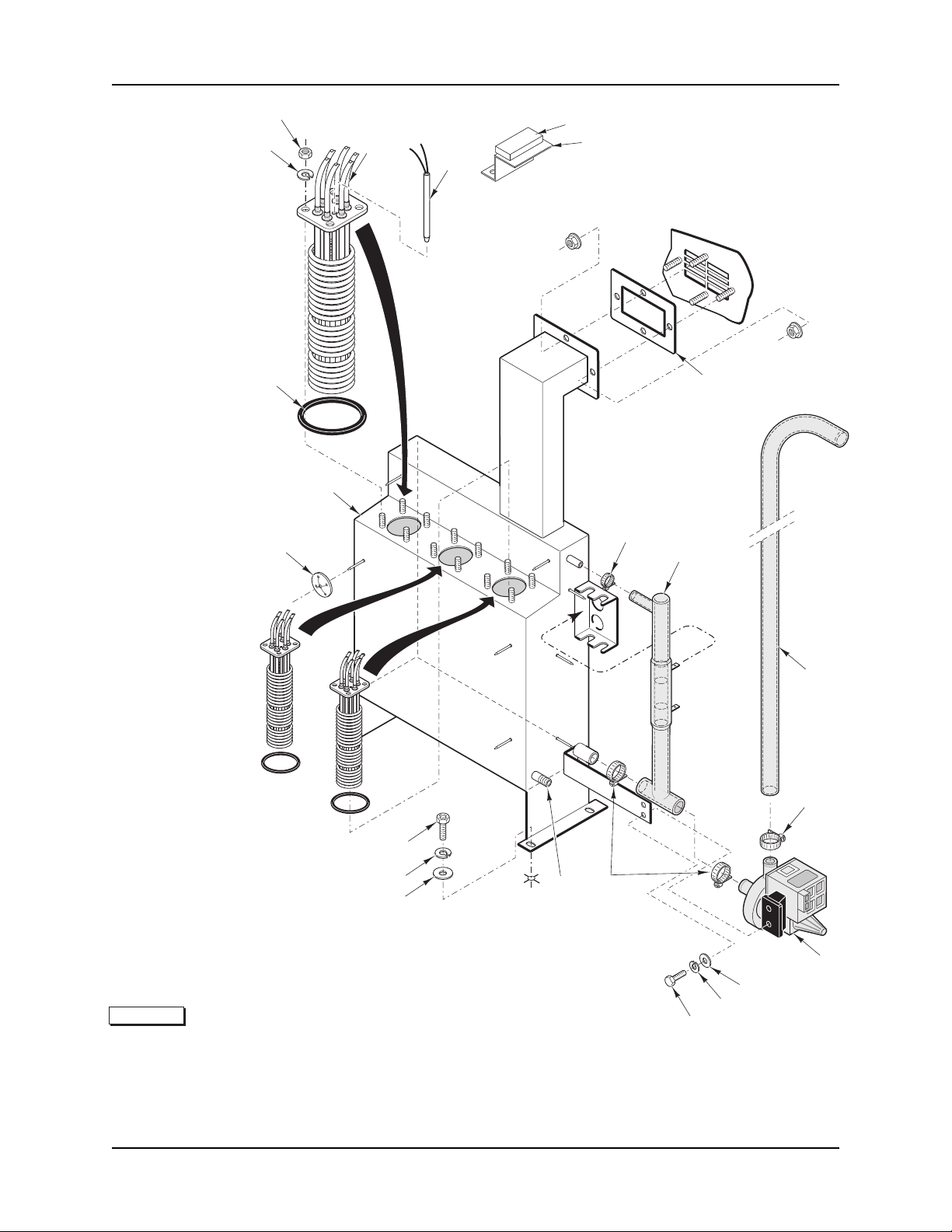

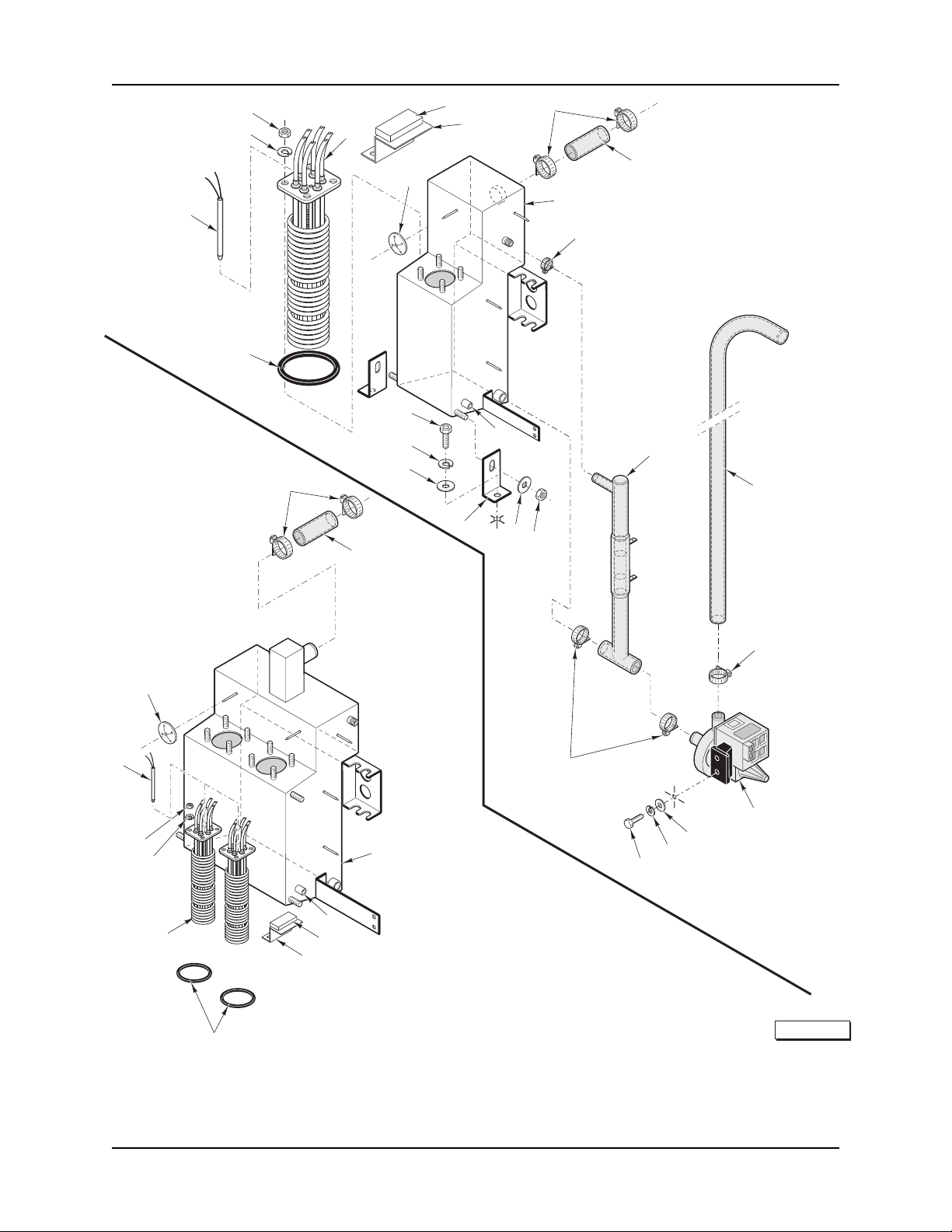

BOILER ASSEMBLY (6 & 10 RACKS)
21
20
17
18
19
PL-55054
F-43005 Rev. A (November 2006)
- 20 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
BOILER ASSEMBLY (6 & 10 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55054 NO.
Half Full
1 00-845525-00001 Thermal Fuse ..................................................................................................................1 -
2 00-602305 Lockwasher .....................................................................................................................4 8
3 00-602492 Nut ..................................................................................................................................4 8
4 00-845370-00009 Element – Heating (208 V.) .............................................................................................1 -
5 00-845370-00011 Element – Heating (240 V.) .............................................................................................1 -
6 00-845370-00013 Element – Heating (480 V.) .............................................................................................1 -
7 00-845532 Terminal Block ................................................................................................................1 -
8 00-845529 Terminal Bracket .............................................................................................................1 -
9 00-233924-00001 Clip ................................................................................................................................ AR AR
10 00-149978-00001 Clamp – Hose .................................................................................................................2 2
11 00-492144-00007 Hose ...............................................................................................................................1 1
12 00-845047-00001 Steam Generator (6 Level) .............................................................................................1 1
13 00-844983-00002 Clamp – Hose .................................................................................................................1 1
14 00-845004 Water Level Probe Tube .................................................................................................1 1
15 00-845185-00004 Drain Tube (6 Level) .......................................................................................................1 1
16 00-845185-00006 Drain Tube (10 Level) ..................................................................................................... 1 1
17 00-149978-00001 Clamp – Hose .................................................................................................................1 1
18 00-845455-00001 Drain Pump ..................................................................................................................... 1 1
19 WS-004-18 Washer ............................................................................................................................ 2 2
20 WL-019-70 Lockwasher M8 Helical ...................................................................................................2 2
21 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ................................................................2 2
22 00-844983-00001 Clamp – Hose .................................................................................................................2 2
23 NS-048-83 Jam Nut M10 x 1.5 .......................................................................................................... 1 1
24 WS-004-18 Washer ............................................................................................................................ 1 1
25 00-492806 Bracket ............................................................................................................................2 2
26 WS-004-18 Washer ............................................................................................................................ 1 1
27 WL-019-70 Lockwasher M8 Helical ..................................................................................................1 1
28 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ................................................................1 -
29 00-845378 Connector – Water Inlet ..................................................................................................1 1
30 00-233982-00001 Gasket ............................................................................................................................ 1 -
31 00-149978-00001 Clamp – Hose .................................................................................................................2 2
32 00-492144-00009 Hose ............................................................................................................................... 1 1
33 00-233924-00001 Clip ..................................................................................................................................1 1
34 00-845525-00001 Thermal Fuse ..................................................................................................................2 2
35 00-602492 Nut ..................................................................................................................................4 8
36 00-602305 Lockwasher .....................................................................................................................4 8
37 00-845370-00009 Element – Heating (208 V.) .............................................................................................2 2
38 00-845370-00011 Element – Heating (240 V.) .............................................................................................2 2
39 00-845370-00013 Element – Heating (480 V.) .............................................................................................2 2
40 00-233982-00001 Gasket ............................................................................................................................ 2 2
41 00-845529 Terminal Bracket .............................................................................................................2 2
42 00-845532 Terminal Block ................................................................................................................2 2
43 00-845378 Connector – Water Inlet ..................................................................................................1 1
44 00-845047-00003 Steam Generator (10 Level) ...........................................................................................1 1
- 21 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
2
25
23
1
24
5
4
3
7
8
6
9
10
11
PL-55055
22
21
20
19
18

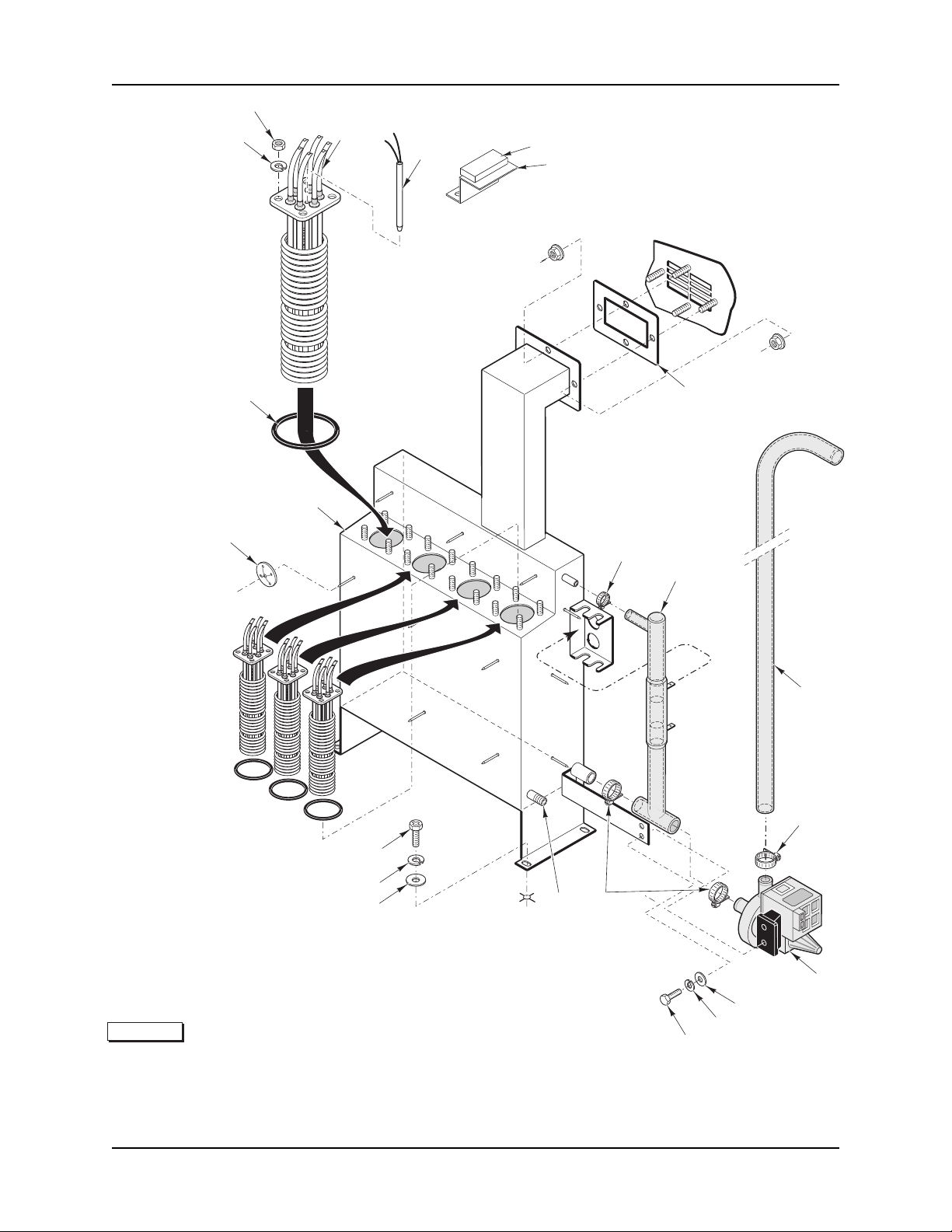

BOILER ASSEMBLY (20 HALF RACKS)
12
13
14
15
16
17
F-43005 Rev. A (November 2006)
- 22 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
BOILER ASSEMBLY (20 HALF RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55055 NO.
1 00-602492 Nut ............................................................................................................................................12
2 00-602305 Lockwasher ...............................................................................................................................12
3 00-845370-00009 Element – Heating (208 V.) ........................................................................................................ 3
4 00-845370-00011 Element – Heating (240 V.) ........................................................................................................ 3
5 00-845370-00013 Element – Heating (480 V.) ........................................................................................................ 3
6 00-845525-00001 Thermal Fuse ............................................................................................................................. 3
7 00-845532 Terminal Block ...........................................................................................................................3
8 00-845529 Terminal Bracket ........................................................................................................................3
9 00-492087 Gasket ....................................................................................................................................... 1
10 00-844983-00002 Clamp – Hose ............................................................................................................................1
11 00-845004 Probe – Water Level ..................................................................................................................1
12 00-844672-00003 Hose .......................................................................................................................................... 1
13 00-149978-00001 Clamp – Hose ............................................................................................................................1
14 00-845455-00001 Pump – Valve ............................................................................................................................. 1
15 WS-004-18 Washer .......................................................................................................................................2
16 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
17 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
18 00-149978-00001 Clamp – Hose ............................................................................................................................2
19 00-845378 Connector – Water Inlet ............................................................................................................. 1
20 WS-004-18 Washer .......................................................................................................................................2
21 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
22 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
23 00-233924-00001 Clip ............................................................................................................................................AR
24 00-844974-00001 Steam Generator (20H) ............................................................................................................. 1
25 00-233982-00001 Gasket ....................................................................................................................................... 3
- 23 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
23
2
25
24
5
4
3
6
7
8
9
10
11
1
PL-55056
22
21
20
19
18
BOILER ASSEMBLY (20 FULL RACKS)
12
13
14
15
16
17
F-43005 Rev. A (November 2006)
- 24 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
BOILER ASSEMBLY (20 FULL RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55056 NO.
1 00-602492 Nut ............................................................................................................................................16
2 00-602305 Lockwasher ...............................................................................................................................16
3 00-845370-00009 Element – Heating (208 V.) ........................................................................................................ 4
4 00-845370-00011 Element – Heating (240 V.) ........................................................................................................ 4
5 00-845370-00013 Element – Heating (480 V.) ........................................................................................................ 4
6 00-845525-00001 Thermal Fuse ............................................................................................................................. 4
7 00-845532 Terminal Block ...........................................................................................................................4
8 00-845529 Terminal Bracket ........................................................................................................................4
9 00-492087 Gasket ....................................................................................................................................... 1
10 00-844983-00002 Clamp – Hose ............................................................................................................................1
11 00-845004 Probe – Water Level ..................................................................................................................1
12 00-845185-00005 Hose .......................................................................................................................................... 1
13 00-149978-00001 Clamp – Hose ............................................................................................................................1
14 00-845455-00001 Pump – Valve ............................................................................................................................. 1
15 WS-004-18 Washer .......................................................................................................................................2
16 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
17 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
18 00-149978-00001 Clamp – Hose ............................................................................................................................2
19 00-845378 Connector – Water Inlet ............................................................................................................. 1
20 WS-004-18 Washer .......................................................................................................................................2
21 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
22 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 2
23 00-233924-00001 Clip ............................................................................................................................................AR
24 00-844974-00002 Steam Generator (20F) ..............................................................................................................1
25 00-233982-00001 Gasket ....................................................................................................................................... 4
- 25 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
2
1
15
14
5
6
4
3
12
13
8
7
9
10
11
PL-55057
F-43005 Rev. A (November 2006)
CONVECTION UNIT
- 26 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
CONVECTION UNIT
ILLUS. PART NAME OF PART AMT.
PL-55057 NO.
1 00-233978-00001 Air Rotor – Convection (6 Levels) .............................................................................................. 1
2 00-233978-00002 Air Rotor – Convection (10 and 20 Levels) ................................................................................ 1
3 00-322190-00001 Seal – Convection ......................................................................................................................1
4 00-844984 Bracket – Capacitor ................................................................................................................... 1
5 00-845388 Capacitor (8 UF) ........................................................................................................................ 1
6 00-480250 Resistor (470K) .......................................................................................................................... 1
7 00-149940-00024 Washer ....................................................................................................................................... 1
8 NS-048-83 Jam Nut M10 x 1.5 ..................................................................................................................... 1
9 00-844955-00001 Motor .......................................................................................................................................... 1
10 NS-048-83 Jam Nut M10 x 1.5 ..................................................................................................................... 3
11 00-149940-00024 Washer ....................................................................................................................................... 3
12 00-492108 Cover – Convection Fan Seal .................................................................................................... 1
13 SC-120-54 Cap Screw M8 x 1.25 x 10 mm Soc. Hex Hd. ........................................................................... 4
14 00-602295 Lockwasher ................................................................................................................................ 1
15 00-602586 Screw .........................................................................................................................................1
- 27 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
2
1
24
25
22
23
20
21
18
19
4
6
5
3
7
8
9
14
13
17
16
15
10
12
PIPEWORK AND DRAIN (6 & 10 RACKS)
11
PL-55058
F-43005 Rev. A (November 2006)
- 28 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
PIPEWORK AND DRAIN (6 & 10 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55058 NO.
1 00-845185-00004 Drain Tube (6 Level) ..................................................................................................................1
2 00-845185-00006 Drain Tube (10 Level) ................................................................................................................1
3 00-149978-00001 Clamp ........................................................................................................................................1
4 00-492110 Grommet .................................................................................................................................... 1
5 00-845456-00001 Drain Vent (6 Level) ................................................................................................................... 1
6 00-845456-00002 Drain Vent (10 Level) ................................................................................................................. 1
7 00-148271 Humidifi er Nozzle .......................................................................................................................1
8 00-521690 Clamp – Hose ............................................................................................................................1
9 00-845457-00001 Coupling ..................................................................................................................................... 1
10 00-845399-00001 Hose .......................................................................................................................................... 1
11 00-492117-00004 Hose ..........................................................................................................................................1
12 00-845447-00001 Solenoid Valve ...........................................................................................................................1
13 00-845447-00002 Solenoid Valve ...........................................................................................................................1
14 00-149978-00001 Clamp .......................................................................................................................................AR
15 00-845187-00001 Hose (6 Half) ..............................................................................................................................1
16 00-845187-00004 Hose (10 Half) ............................................................................................................................1
17 00-845187-00003 Hose (10 Full) ............................................................................................................................ 1
18 00-845454-00001 Drain Tube Assy. (Half) ..............................................................................................................1
19 00-845454-00002 Drain Tube Assy. (Full) ............................................................................................................... 1
20 00-233982-00006 O-Ring (Half) .............................................................................................................................. 1
21 00-233982-00007 O-Ring (Full) .............................................................................................................................. 1
22 00-493544 Bracket – Interior Drain Strain (Half) ..........................................................................................1
23 00-493545 Bracket – Interior Drain Strain (Full) .......................................................................................... 1
24 00-493542 Drain Strainer (Half) ................................................................................................................... 1
25 00-493543 Drain Strainer (Full) ...................................................................................................................1
00-853027 Hose Bib – 3/4 Water Connection .............................................................................................. 1
- 29 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
2
1
30
29
28
27
4
5
3
6
7
26
25
24
22
23
19
20
19
21
18
17
8
9
10
16
11
12
15
14
F-43005 Rev. A (November 2006)
13
PIPEWORK AND DRAIN (20 RACKS)
- 30 -
PL-55059
ELECTRIC COMBI OVENS REPLACEMENT PARTS
PIPEWORK AND DRAIN (20 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55059 NO.
1 00-844672-00003 Hose (Half) ................................................................................................................................. 1
2 00-845185-00005 Hose (Full) ................................................................................................................................. 1
3 00-149978-00001 Clamp – Hose ............................................................................................................................1
4 00-492110 Grommet .................................................................................................................................... 1
5 00-845456-00003 Tube ........................................................................................................................................... 1
6 00-148271 Humidifi er Nozzle .......................................................................................................................1
7 00-322137-00005 Hose ..........................................................................................................................................1
8 00-521690 Clamp – Hose ............................................................................................................................1
9 00-845457-00001 Coupling ..................................................................................................................................... 1
10 00-148271 Humidifi er Nozzle .......................................................................................................................1
11 00-492117-00001 Hose ..........................................................................................................................................1
12 00-492117-00004 Hose .......................................................................................................................................... 1
13 00-845447-00001 Solenoid Valve ...........................................................................................................................1
14 00-845447-00002 Solenoid Valve ...........................................................................................................................1
15 00-149978-00001 Clamp – Hose ...........................................................................................................................AR
16 00-322137-00004 Hose .......................................................................................................................................... 1
17 00-149978-00001 Clamp – Hose ............................................................................................................................1
18 00-492117-00004 Hose – Cold Water Condenser .................................................................................................. 1
19 00-149978-00001 Clamp – Hose ............................................................................................................................2
20 00-492116 Tee ............................................................................................................................................. 1
21 00-492117-00003 Hose .......................................................................................................................................... 1
22 00-845454-00001 Drain Tube Assy. (Half) ..............................................................................................................1
23 00-845454-00002 Drain Tube Assy. (Full) ............................................................................................................... 1
24 00-491751 Valve – Check ............................................................................................................................1
25 00-233982-00006 O-Ring (Half) .............................................................................................................................. 1
26 00-233982-00007 O-Ring (Full) .............................................................................................................................. 1
27 00-493544 Bracket (Half) ............................................................................................................................. 1
28 00-493545 Bracket (Full) ............................................................................................................................. 1
29 00-493542 Drain Strainer (Half) ................................................................................................................... 1
30 00-493543 Drain Strainer (Full) ...................................................................................................................1
00-853027 Hose Bib – 3/4 Water Connection .............................................................................................. 1
- 31 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
11
2
1
3
4
5
6
7
PL-58293
F-43005 Rev. A (November 2006)
10
9
8
CAVITY VENT
- 32 -
CAVITY VENT
ELECTRIC COMBI OVENS REPLACEMENT PARTS
ILLUS. PART NAME OF PART AMT.
PL-58293 NO.
1 00-494120 Washer ....................................................................................................................................... 2
2 00-492958 Washer ....................................................................................................................................... 1
3 00-845218 Shutter – Top..............................................................................................................................1
4 00-844617 Disc ............................................................................................................................................ 1
5 00-845218 Shutter – Bottom ........................................................................................................................ 1
6 00-494120 Washer ....................................................................................................................................... 1
7 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 1
8 00-845371 Cavity Vent Motor ...................................................................................................................... 1
9 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................1
10 WS-004-18 Washer .......................................................................................................................................1
11 00-844616 Shaft (300 mm Lg.) ....................................................................................................................1
- 33 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
3
21
19
20
2
5
6
7
8
4
PL-55061
18
10
11
12
16
17
ELECTRICAL CONNECTION ASSEMBLY (6 LEVELS)
9
13
14
15
F-43005 Rev. A (November 2006)
- 34 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
ELECTRICAL CONNECTION ASSEMBLY (6 LEVELS)
ILLUS. PART NAME OF PART AMT.
PL-55061 NO.
1 00-154344 Thermostat .................................................................................................................................2
2 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................2
3 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 2
4 00-492994 Fan – Compartment Cooling ......................................................................................................1
5 00-844980 Bracket .......................................................................................................................................1
6 00-844943-00001 Relay Board ...............................................................................................................................1
7 00-845188-00004 Fuse Holder ..............................................................................................................................AR
8 00-845188-00002 Fuse (5 Amp.) ...........................................................................................................................AR
9 00-855786-00001 Contactor ................................................................................................................................... 4
10 00-844995 Switch – Auxiliary ....................................................................................................................... 1
11 00-845049-00001 Terminal Block ...........................................................................................................................3
12 00-845049-00002 Terminal Block (Ground Only) ....................................................................................................1
13 00-844944-00003 Transformer Board ....................................................................................................................1
14 00-845188-00004 Fuse Holder ..............................................................................................................................AR
15 00-845188-00002 Fuse (5 Amp.) ...........................................................................................................................AR
16 00-844996-00005 Power Bar (480 V. Only) ............................................................................................................ 1
17 00-844996-00006 Power Bar (480 V. Only) ............................................................................................................ 2
18 00-845446 Jumper Bar (480 V. Only) ..........................................................................................................2
19 00-844996-00008 Power Bar (208/240 V.) ..............................................................................................................2
20 00-844996-00007 Power Bar (208/240 V.) ..............................................................................................................1
21 00-844978-00003 Ribbon Cable Bracket ................................................................................................................ 1
- 35 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
3
21
22
19
20
2
5
6
8
9
4
7
10
11
12
13
14
15
18
16
17
ELECTRICAL CONNECTION ASSEMBLY (10 LEVELS)
PL-58184
F-43005 Rev. A (November 2006)
- 36 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
ELECTRICAL CONNECTION ASSEMBLY (10 LEVELS)
ILLUS. PART NAME OF PART AMT.
PL-58184 NO.
1 00-154344 Thermostat .................................................................................................................................2
2 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................2
3 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 2
4 00-492994 Fan – Compartment Cooling ......................................................................................................1
5 00-844980 Bracket .......................................................................................................................................1
6 00-844943-00001 Relay Board ...............................................................................................................................1
7 00-845188-00004 Fuse Holder ..............................................................................................................................AR
8 00-845188-00002 Fuse (5 Amp.) ...........................................................................................................................AR
9 00-855786-00001 Contactor ................................................................................................................................... 3
10 00-844995 Auxiliary Switch ..........................................................................................................................1
11 00-855786-00001 Contactor ................................................................................................................................... 2
12 00-844995 Auxiliary Switch ..........................................................................................................................1
13 00-150443-00049 Terminal Block ........................................................................................................................... 3
14 00-150443-00050 Terminal Block (Ground Only) ....................................................................................................1
15 00-844944-00003 Transformer Board ..................................................................................................................... 1
16 00-845188-00004 Fuse Holder ..............................................................................................................................AR
17 00-845188-00002 Fuse (5 Amp.) ...........................................................................................................................AR
18 00-844996-00003 Power Bar (480 V. Only) ............................................................................................................ 3
19 00-845446 Jumper Bar (480 V. Only) ..........................................................................................................3
20 00-844996-00004 Power Bar (208/240 V.) ..............................................................................................................3
21 00-844978-00001 Bracket (Half) .............................................................................................................................1
22 00-844978-00002 Bracket (Full) ............................................................................................................................. 1
- 37 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
3
24
25
22
23
2
5
6
7
8
4
9-10
11
12
13
14
15
16
17
18
21
19
20
ELECTRICAL CONNECTION ASSEMBLY (20 LEVELS)
PL-58185
F-43005 Rev. A (November 2006)
- 38 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
ELECTRICAL CONNECTION ASSEMBLY (20 LEVELS)
ILLUS. PART NAME OF PART AMT.
PL-58185 NO.
1 00-154344 Thermostat .................................................................................................................................2
2 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................2
3 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 2
4 00-492994 Fan – Compartment Cooling ......................................................................................................1
5 00-844980 Bracket .......................................................................................................................................1
6 00-844943-00001 Relay Board ...............................................................................................................................1
7 00-845188-00004 Fuse Holder ..............................................................................................................................AR
8 00-845188-00002 Fuse (5 Amp.) ...........................................................................................................................AR
9 00-855786-00002 Contactor ................................................................................................................................... 3
10 00-855776-00002 Contactor ................................................................................................................................... 1
11 00-845434-00001 Auxiliary Switch ..........................................................................................................................1
12 00-845492-00001 Auxiliary Switch .......................................................................................................................... 1
13 00-855786-00002 Contactor ................................................................................................................................... 2
14 00-855776-00002 Contactor ................................................................................................................................... 1
15 00-844995 Auxiliary Switch ..........................................................................................................................1
16 00-229612-00002 Terminal Block ........................................................................................................................... 3
17 00-229613-00002 Terminal Block (Ground Only) ....................................................................................................1
18 00-844944-00003 Transformer Board ..................................................................................................................... 1
19 00-845188-00004 Fuse Holder ..............................................................................................................................AR
20 00-845188-00002 Fuse (5 Amp.) ...........................................................................................................................AR
21 00-844996-00010 Power Bar (480 V. Only) ............................................................................................................ 3
22 00-844996-00001 Jumper Bar (480 V. Only) ..........................................................................................................4
23 00-844996-00009 Power Bar (208/240 V.) ..............................................................................................................3
24 00-844978-00001 Bracket (Half) .............................................................................................................................1
25 00-844978-00002 Bracket (Full) ............................................................................................................................. 1
00-855408-00001 Transformer – 1KVA ....................................................................................................................
00-855409-00001 Bracket – Transformer ...............................................................................................................1
SC-008-41 Mach. Screw 10-32 x 1/2 Slotted Rd. Hd. .................................................................................. 4
WS-028-21 Washer (SST) ............................................................................................................................4
NS-048-37 Lock Nut – Special 10-32 ........................................................................................................... 4
- 39 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
17
18-19
20
21
4
3
1
2
5
6
7
8
9
10
16
F-43005 Rev. A (November 2006)
15
14

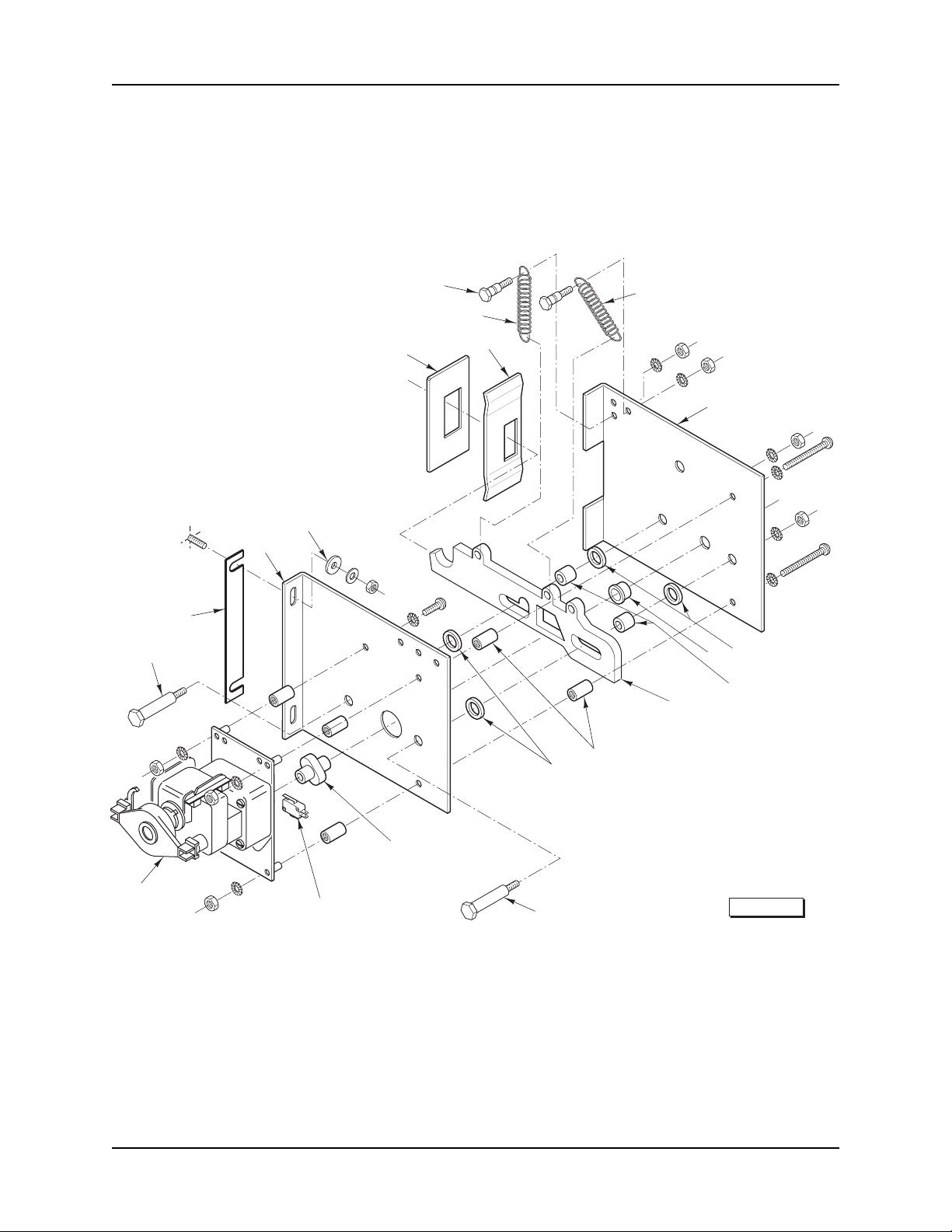

DOOR INTERLOCK
- 40 -
13
11
12
PL-55064
ELECTRIC COMBI OVENS REPLACEMENT PARTS
DOOR INTERLOCK
ILLUS. PART NAME OF PART AMT.
PL-55064 NO.
1 00-492916 Plate ...........................................................................................................................................1
2 00-492968 Plate ...........................................................................................................................................1
3 00-491985 Spring – Tension ........................................................................................................................2
4 00-492419 Screw ......................................................................................................................................... 2
5 00-491985 Spring – Tension ........................................................................................................................1
6 00-844918 Plate – Rear Door Latch Assy. ................................................................................................... 1
7 00-492423 Washer ....................................................................................................................................... 4
8 00-492114 Bushing ...................................................................................................................................... 1
9 00-492424 Spacer ....................................................................................................................................... 2
10 00-492420 Hook .......................................................................................................................................... 1
11 00-492425 Spacer .......................................................................................................................................2
12 00-492423 Washer .......................................................................................................................................2
13 00-492422 Screw .........................................................................................................................................2
14 00-492427 Cam (6 mm Hole) ......................................................................................................................1
15 00-480016 Switch – Miniature ..................................................................................................................... 2
16 00-480028-00002 Door Motor .................................................................................................................................1
17 00-492422 Screw .........................................................................................................................................2
18 00-845402-00002 Spacer Plate (1 mm) .................................................................................................................. 1
19 00-845402-00001 Spacer Plate (0.4 mm) ............................................................................................................... 2
20 00-492366 Plate ...........................................................................................................................................1
21 00-149940-00024 Washer ....................................................................................................................................... 2
00-844960-00011 Complete Door Assembly (Incls. Items 1 thru 21) ..................................................................... 2
- 41 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
8-9
32
1 THRU 7
24
25
10-11
8
8
8
8
8
8
8
8
8
16
13
14-15
12
18
19
17
20
21
22
23
26
27
33-34
35
36
F-43005 Rev. A (November 2006)
28
29
30
31
ELECTRONIC CONTROL UNIT (6 & 10 LEVELS)
- 42 -
PL-58277
ELECTRIC COMBI OVENS REPLACEMENT PARTS
ELECTRONIC CONTROL UNIT (6 & 10 LEVELS)
ILLUS. PART NAME OF PART AMT.
PL-58277 NO.
1 00-845050-00001 Control – Panel (Programmable) (6 Full) ................................................................................... 1
2 00-480309-00001 Control – Panel (Manual Control) (6 Half) .................................................................................1
3 00-480310-00001 Control – Panel (Manual Control) (6 Full) .................................................................................. 1
4 00-845440-00001 Control – Panel (Programmable Ele) (6 Half) ............................................................................ 1
5 00-845050-00002 Control – Panel (Programmable) (10 Full & Half) ...................................................................... 1
6 00-845440-00002 Control – Panel (Programmable Ele) (10 Full & Half) ................................................................ 1
7 00-480309-00002 Control – Panel (Manual Control) (10 Full & Half) ..................................................................... 1
8 00-845190-00003 Ribbon Cable (6 & 10 Half) ........................................................................................................ 1
9 00-845190-00002 Ribbon Cable (10 Full) ............................................................................................................... 1
10 00-845419 Battery Backup (Programmable) ............................................................................................... 1
11 00-845486 Battery Backup (Manual Control) ...............................................................................................1
12 00-844982 Cover (Programmable) .............................................................................................................. 1
13 00-844993-00003 Stand-off .................................................................................................................................... 4
14 00-844950-00047 EPROM (Ver. 669, Programmable) ...........................................................................................1
15 00-844950-00049 EPROM (Ver. A69, Manual Control) .......................................................................................... 1
16 00-480961-00002 CPU Board (Principal Control) ................................................................................................... 1
17 00-844993-00002 Stand-off .................................................................................................................................... 4
18 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................4
19 WL-019-70 Lockwasher M8 Helical ..............................................................................................................4
20 WL-019-70 Lockwasher M8 Helical ..............................................................................................................4
21 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 4
22 00-844945-00002 Keypad – Control Board (Programmable) .................................................................................1
23 00-845433-00001 Keypad and CPU Board (Manual Control) .................................................................................1
24 00-492444 Gasket – Front Panel (6 Levels) ................................................................................................ 1
25 00-492472 Gasket – Front Panel (10 Levels) .............................................................................................. 1
26 00-844993-00001 Stand-off .................................................................................................................................... 4
27 00-845051 Bracket .......................................................................................................................................1
28 00-844951-00001 Switch – Reed Interlock .............................................................................................................1
29 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
30 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................2
31 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................2
32 00-853128-00001 Overlay (Programmable) ........................................................................................................... 1
33 00-853041 Overlay (Standard Manual) ........................................................................................................1
34 00-853040 Overlay (Deluxe Manual) ........................................................................................................... 1
35 00-853154-00001 Knob – with Indicating Line ........................................................................................................ 1
36 00-853155-00001 Knob – without Indicating Line ................................................................................................... 1
00-845433-00001 Display – Board (Manual Control) ..............................................................................................2
- 43 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
5-6
29
1-4
21
22
23
19
20
18
16
17
7-8
9
10
11-12
13
15
14
25
30-31
32
33
F-43005 Rev. A (November 2006)
24
26
27
28
PL-58280
ELECTRONIC CONTROL UNIT (20 LEVELS)
- 44 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
ELECTRONIC CONTROL UNIT (20 LEVELS)
ILLUS. PART NAME OF PART AMT.
PL- 58280 NO.
1 00-844981 Control – Panel (Programmable) ...............................................................................................1
2 00-845440-00003 Control – Panel (Programmable Ele) ......................................................................................... 1
3 00-480310-00003 Control – Panel (Manual Control) .............................................................................................. 1
4 00-480309-00003 Control – Panel (Manual Control) .............................................................................................. 1
5 00-845190-00004 Ribbon Cable (Half) ................................................................................................................... 1
6 00-845190-00002 Ribbon Cable (Full) .................................................................................................................... 1
7 00-845419 Battery Backup (Programmable) ...............................................................................................1
8 00-845486 Battery Backup (Manual Control) ...............................................................................................1
9 00-844982 Cover .........................................................................................................................................1
10 00-844993-00003 Stand-off .................................................................................................................................... 4
11 00-844950-00048 EPROM (Ver. 769, Programmable) ...........................................................................................1
12 00-844950-00050 EPROM (Ver. B69, Manual Control) .......................................................................................... 1
13 00-480961-00001 Board – (Principal Control) ........................................................................................................1
14 00-844993-00002 Stand-off .................................................................................................................................... 4
15 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................4
16 WL-019-70 Lockwasher M8 Helical ..............................................................................................................4
17 WL-019-70 Lockwasher M8 Helical ..............................................................................................................4
18 SC-200-17 Cap Screw M4 x 0.7 x 12 mm Soc. Hex Hd. ............................................................................. 4
19 00-844945-00002 Keypad – Control Board (Programmable) .................................................................................1
20 00-845433-00001 Keypad and CPU Board (Manual Control) .................................................................................1
21 00-149926-00005 Bracket .......................................................................................................................................1
22 00-844993-00001 Stand-off .................................................................................................................................... 4
23 00-492198 Gasket – Front Panel ................................................................................................................. 1
24 00-149926-00005 Bracket .......................................................................................................................................1
25 00-844951-00001 Switch – Reed Interlock .............................................................................................................1
26 WL-019-70 Lockwasher M8 Helical ..............................................................................................................2
27 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................2
28 NS-048-82 Jam Nut M4 x 0.7 Hex (SST) .....................................................................................................2
29 00-853128-00001 Overlay (Programmable) ........................................................................................................... 1
30 00-853041 Overlay (Standard Manual) ........................................................................................................ 1
31 00-853040 Overlay (Deluxe Manual) ........................................................................................................... 1
32 00-853154-00001 Knob – with Indicating Line ........................................................................................................ 1
33 00-853155-00001 Knob – without Indicating Line ................................................................................................... 1
00-845433-00001 Display – Board (Manual Control) ..............................................................................................1
- 45 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
2
4
3
5
11
10
6
13
12
7
PL-58189
F-43005 Rev. A (November 2006)
8
9
FILTER AND CARRIAGE (6 & 10 LEVELS)
- 46 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
FILTER AND CARRIAGE (6 & 10 LEVELS)
ILLUS. PART NAME OF PART AMT.
PL-58189 NO.
1 00-850502 Wire Rack (6 Half & 10 Half) .....................................................................................................AR
2 00-844722 Rack – Insert (6 Half) ................................................................................................................. 1
3 00-233836-00001 Filter – Flat (6 Half) ....................................................................................................................1
4 00-492397 Panel – Fan Guard (6 Half) ........................................................................................................1
5 00-492784 Retainer Rack ............................................................................................................................1
6 00-492075 Fan Guard (10 Levels) ............................................................................................................... 1
7 00-492784 Retainer Rack ............................................................................................................................1
8 00-844723 Rack – Insert (10 Half Racks) .................................................................................................... 1
9 00-844725 Rack – Insert (10 Full Racks) ....................................................................................................1
10 00-850502 Wire Rack (6 Half & 10 Half) .....................................................................................................AR
11 00-850503 Wire Rack (10 Full) ...................................................................................................................AR
12 00-233836-00002 Filter – Flat (10 Levels) ..............................................................................................................1
13 00-850575-00001 Rack – Chicken ..........................................................................................................................1
- 47 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
1
3
2
F-43005 Rev. A (November 2006)
6-7
4
5
8
PL-58188
FILTER AND CARRIAGE (20 RACKS)
- 48 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
FILTER AND CARRIAGE (20 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-58188 NO.
1 00-233836-00002 Filter – Flat ................................................................................................................................. 2
2 00-844977 Fan Guard (20 Half) ................................................................................................................... 1
3 00-844977-00003 Fan Guard (20 Full) ...................................................................................................................1
4 00-844724 Rack – Insert (20 Half) ............................................................................................................... 1
5 00-844726 Rack – Insert (20 Full) ...............................................................................................................1
6 00-850502 Wire Rack (20 Half) ..................................................................................................................AR
7 00-850503 Wire Rack (20 Full) ...................................................................................................................AR
8 00-850575-00001 Rack – Chicken ..........................................................................................................................1
- 49 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
5
4
1-2
3
6
7
9
8
10
11
11
24
20
23
22
21
12-13
14
15
19
PL-55072
F-43005 Rev. A (November 2006)
16
18
17
TROLLEY ASSEMBLY (20 RACKS)
- 50 -
ELECTRIC COMBI OVENS REPLACEMENT PARTS
TROLLEY ASSEMBLY (20 RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55072 NO.
1 00-492754 Catch – Interlock (Left) ..............................................................................................................1
2 00-492755 Catch – Interlock (Right) ............................................................................................................1
3 RR-010-18 Retaining Ring ...........................................................................................................................2
4 00-492756 Linkage – Hook (Left) ................................................................................................................1
5 00-492757 Linkage – Hook (Right) ..............................................................................................................1
6 00-602586 Screw ......................................................................................................................................... 1
7 00-602295 Lockwasher ................................................................................................................................1
8 00-492758 Brace (Left) ................................................................................................................................1
9 00-492759 Brace (Right) .............................................................................................................................. 1
10 00-492762 Brace ......................................................................................................................................... 1
11 RR-010-18 Retaining Ring ........................................................................................................................... 3
12 00-492763 Cover (Left) ................................................................................................................................ 1
13 00-492764 Cover (Right) ............................................................................................................................. 1
14 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 2
15 SC-118-67 Cap Screw M6 x 1 x 10 mm Soc. Hex Hd. ................................................................................ 2
16 00-492770 Caster ........................................................................................................................................4
17 00-844834 Plug & Chain ..............................................................................................................................1
18 00-492769 Caster W/Brake ......................................................................................................................... 4
19 NS-047-34 Acorn Nut M6 x 1 ....................................................................................................................... 1
20 00-492767 Handle ....................................................................................................................................... 1
21 RR-010-18 Retaining Ring ........................................................................................................................... 2
22 00-492760 Linkage – Handle (Left) .............................................................................................................1
23 00-492761 Linkage – Handle (Right) ........................................................................................................... 1
24 00-322083 Spring ........................................................................................................................................ 2
00-850240 Trolley (Half) ..............................................................................................................................1
00-850243 Trolley (Full) ...............................................................................................................................1
- 51 -
F-43005 Rev. A (November 2006)
ELECTRIC COMBI OVENS REPLACEMENT PARTS
5
3
11
4
2
1
10
9
6
7
8
PL-55071
TABLE ASSEMBLY (6 RACKS & 10 HALF RACKS)
ILLUS. PART NAME OF PART AMT.
PL-55071 NO.
1 00-322279 Rod ............................................................................................................................................1
2 00-602283 Washer ....................................................................................................................................... 2
3 RR-010-18 Retaining Ring ...........................................................................................................................2
4 00-322277 Cover .........................................................................................................................................1
5 00-603991 Screw ......................................................................................................................................... 1
6 00-602283 Washer ....................................................................................................................................... 1
7 00-322290 Plate ...........................................................................................................................................1
8 00-322228-00003 Caster Assy. ............................................................................................................................... 2
9 00-322228-00004 Caster Assy. ............................................................................................................................... 2
10 00-322385 Frame ........................................................................................................................................ 1
11 00-322388 Handle .......................................................................................................................................1
00-850021 Table – Landing .........................................................................................................................1
FORM 43005 Rev. A NOVEMBER 2006 PRINTED IN U.S.A.
Loading...
