ELECTRIC COUNTER
CONVECTION
STEAMERS
MODELS
C24EA3
ML – 136037 208/240V 8.5KW PRO
ML – 136043 208/240V 8.5KW BASIC
ML – 136044 480V 9.25KW PRO
ML – 136045 480V 9.25KW BASIC
INSTALLATION &
OPERA TION MANUAL
C24EA5
ML – 136038 208/240V 15.75KW PRO
ML – 136046 208/240V 15KW BASIC
ML – 136047 480V 15.75KW PRO
ML – 136048 480V 15KW BASIC
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www .vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
F-35428 (2-06)
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
IMPORTANT FOR YOUR SAFETY
THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL THIS
EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND
ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL.
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLA TION,
OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHL Y BEFORE INST ALLING OR SERVICING
THIS EQUIPMENT .
© VULCAN-HART, 2006
IN THE EVENT OF A POWER FAILURE, DO NOT
A TTEMPT TO OPERA TE THIS DEVICE.
— 2 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
TABLE OF CONTENTS
IMPORTANT FOR YOUR SAFETY....................................................................................................... 2
INTRODUCTION.................................................................................................................................... 5
GENERAL......................................................................................................................................... 5
INSTALLATION................................................................................................................................. 5
UNPACKING..................................................................................................................................... 5
INSTALLATION CODES AND STANDARDS ................................................................................. 5
LOCATION........................................................................................................................................ 6
LEVELING FEET .............................................................................................................................. 6
LEVELING......................................................................................................................................... 6
ANCHORING STEAMER ................................................................................................................. 6
STACKING STAND .......................................................................................................................... 6
ELECTRICAL CONNECTION ......................................................................................................... 7
PLUMBING CONNECTIONS ........................................................................................................... 8
Water Requirements ................................................................................................................. 8
Water Treatment ........................................................................................................................ 8
Water Supply Connection .......................................................................................................... 8
DRAIN CONNECTIONS .................................................................................................................. 8
VENT HOOD .................................................................................................................................... 9
OPERATION .........................................................................................................................................10

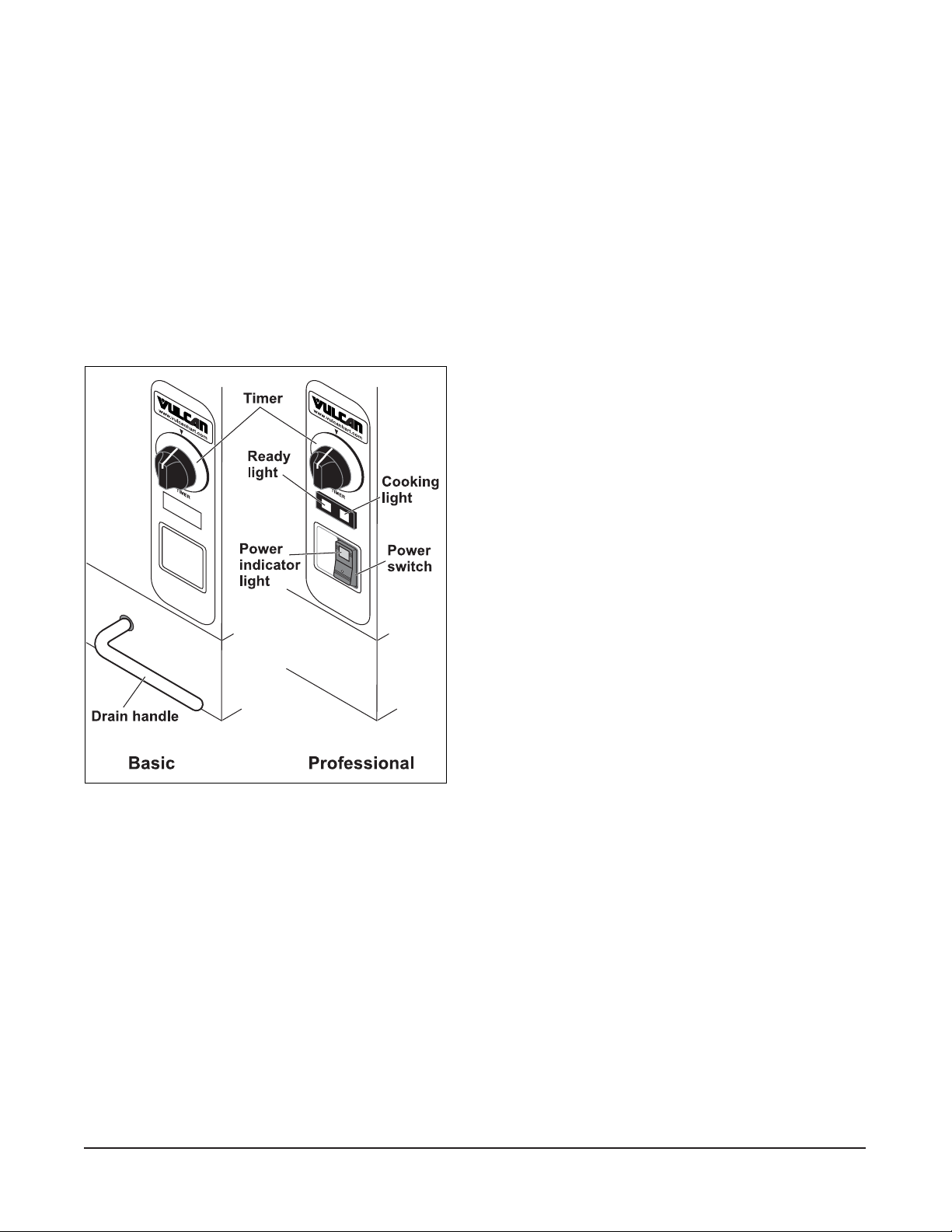

CONTROLS ....................................................................................................................................10
Drain Handle (Basic model) .....................................................................................................10
Main Power Switch Light (Professional model) ......................................................................10
Ready Light (Professional model)............................................................................................10
Cooking Light (Professional model).........................................................................................10
Timer..........................................................................................................................................10
START UP (BASIC MODEL) ..........................................................................................................10
OPERATION .............................................................................................................................11
Drain Handle ........................................................................................................................11
Timer ....................................................................................................................................11
PREHEATING............................................................................................................................11
STEAMING .................................................................................................................................11
SHUTDOWN .............................................................................................................................11
EXTENDED SHUTDOWN ........................................................................................................11
— 3 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
TABLE OF CONTENTS (CONTINUED)
START UP (PROFESSIONAL MODEL)........................................................................................11
OPERATION .............................................................................................................................12
Main Power Switch Light (Professional model).................................................................12
Timer ....................................................................................................................................12
Ready Light ..........................................................................................................................12
Cooking Light .......................................................................................................................12
PREHEATING............................................................................................................................12
STEAMING .................................................................................................................................12
SHUTDOWN .............................................................................................................................12
EXTENDED SHUTDOWN ........................................................................................................12
CLEANING .............................................................................................................................................13
COOKING COMPARTMENT DRAIN..............................................................................................13
DRAINING GENERATOR ...............................................................................................................13
COMPARTMENT.............................................................................................................................13
DOOR GASKET ..............................................................................................................................13
LEAVE COMPARTMENT DOOR OPEN .......................................................................................13
GUIDELINES FOR MAINTAINING STAINLESS STEEL SURFACES...........................................13
MAINTENANCE .....................................................................................................................................15
WATER TREATMENT SYSTEM ....................................................................................................15
REMOVAL OF LIME SCALE DEPOSITS ......................................................................................15
Professional model ...................................................................................................................15
Basic model ...............................................................................................................................16
DOOR GASKET ..............................................................................................................................17
DRAINING THE BOILER.................................................................................................................17
COOKING HINTS..................................................................................................................................18
PREPARATION...............................................................................................................................18
Frozen Food Items....................................................................................................................18
Acceptable Pan Sizes ..............................................................................................................18
COOKING GUIDELINES.................................................................................................................18
PRODUCTS TO BE COOKED IN SOLID PANS..........................................................................19
PRODUCTS TO BE COOKED IN PERFORATED PANS ...........................................................20
TROUBLESHOOTING..........................................................................................................................22
SERVICE AND PARTS INFORMATION ..............................................................................................23
— 4 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
INTRODUCTION
GENERAL
Vulcan convection steamers are produced with
quality workmanship and material. Proper
installation, usage and maintenance will result
in many years of satisfactory performance. It is
suggested that you thoroughly read this entire
manual and carefully follow all of the instructions
provided.
The C24EA3 and C24EA5 convection steamers
are single compartment, electric, pressureless
steam cookers with an internal electric steam
generator that maintains water temperature at
approximately 195°F. The C24EA3 is rated 8.5
KW (Basic model), and 9.25 KW (Professional
model). The C24EA5 is rated 15 KW (Basic)
and 15.75 KW (Professional).
Model C24EA3 can accommodate three 2 1/2"
deep (6.4 cm) steam pans. Model C24EA5 can
accommodate five 2 1/2"deep (6.4 cm) steam
pans. The C24EA3 and C24EA5 electric
convection steamers are designed for cooking
vegetables, eggs, and other foods, in commercial
kitchens. The steamer has a 0 to 60 minute timer.
The steamers are designed for countertop
installation.
UNPACKING
This steamer was inspected before leaving the
factory. The transportation company assumes
full responsibility for safe delivery upon
acceptance of the shipment. Immediately after
unpacking, check for possible shipping damage.
If steamer damage is found, save the packaging
material and contact the carrier within 15 days
of delivery.
INSTALLATION CODES AND
STANDARDS
In the United States, the Vulcan steamer must
be installed in accordance with:
1. State and local codes.
2. National Electrical Code (ANSI/NFPA No.70,
latest edition) available from the National
Fire Protection Association, Batterymarch
Park, Quincy, MA 02269.
3. Vapor Removal from Cooking Equipment,
(NFPA-96, latest edition) available from
NFPA.
In Canada, the Vulcan steamer must be installed
in accordance with:
INSTALLATION
Before installing, verify that the electrical supply
agrees with the specifications on the data plate
located on the back panel. If the supply and
equipment requirements do not agree, do not
proceed with the installation. Contact your dealer
or Vulcan-Hart immediately
This unit is shipped pre wired for 208/60/3.
240v & single phase operation require changes
to the heater connection 240/60/3, 240/60/1
and 208/60/1. This unit will operate at 60Hz or
50Hz.
1. Local codes.
2. Canadian Electrical Code (CSA C22.2 No.3,
latest edition) available from the Canadian
Standards Association, 5060 Spectrum Way,
Mississauga, Ontario, Canada L4W 5N6.
— 5 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
LOCATION
Allow space for plumbing and electrical
connections. Minimum clearance is 6" (15.2
cm) on the back for proper air circulation. Allow
adequate access for operating and servicing
the steamer (36" at the front of the steamer, 15"
(38 cm) above the steamer and 18" (45.7 cm)
on right side of steamer).
LEVELING FEET
This steamer is shipped with four 2" leveling
feet. Optional 4" leveling feet are available. The
2" feet can be removed and the optional 4" feet
can be threaded into holes on the bottom of the
unit.
LEVELING
Using a spirit level or pan of water in the bottom
of the steamer, adjust the leveling feet or the
feet on the adjustable legs to level the steamer
side to side with a slight tilt front to back to allow
for proper cavity draining. After the drain is
connected, check for level by pouring water
onto the floor of the compartment. All water
should drain through the opening at the back of
the compartment cavity.
ANCHORING STEAMER
1. Place steamer in the desired location on the
countertop and mark four corners. Remove
the steamer and drill 1/2" holes as indicated in
Figure 1.
2. Apply a bead of RTV or other NSF approved
sealant around the bottom edge of the
steamer. If anchoring the steamer, this
bottom seal is necessary to meet NSF
requirements.
3. Set steamer on countertop and bolt down
securely with 3/8 -16 bolts (not supplied).
Note: Steamer must be installed level side to
side with a slight tilt front to back to allow
for proper draining.
Figure 1.
STACKING STAND
Instruction to install convection steamers on
stacking stand are included with the stacking
stand.
— 6 —
ELECTRICAL CONNECTION
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
WARNING: ELECTRICAL AND GROUNDING
CONNECTIONS MUST COMPLY
WITH APPLICABLE PORTIONS
The wiring diagram is located on the right side
panel as you face the steamer. This steamer is
hard wired.
OF THE NATIONAL ELECTRICAL
CODE AND/OR OTHER LOCAL
ELECTRICAL CODES.
Total Volts Hz Ph KW Per Phase Rated Amps Circuit Fuse 90°C
KW
L1-L2 L2-L3 L3-L1 L1 L2 L3
8.5 208 50/60 1 40.87 60 60 8
8.5 240 50/60 1 35.42 50 50 8
8.5 208 50/60 3 4.25 2.12 2.12 26.54 26.54 17.70 35 35 10
8.5 240 50/60 3 2.83 2.83 2.83 20.50 20.50 20.50 30 25 10
8.5 480 50/60 3 2.83 2.83 2.83 10.30 10.30 10.30 15 15 16
9.25 208 50/60 1 43.57 60 60 6
3-Phase Amps Per Line
Single Size Size Copper
Phase Amps or Min.
Circuit Wire
Breaker Size
Size*
(Amps)
9.25 240 50/60 1 38.54 50 50 8
9.25 208 50/60 3 4.25 2.69 2.12 26.54 28.88 20.04 35 35 10
9.25 240 50/60 3 2.83 3.58 2.83 20.45 23.15 23.15 30 30 10
9.25 480 50/60 3 2.83 3.58 2.83 10.21 11.57 11.57 15 15 16
15 208 50/60 1 72.12 90 9 0 4
15 240 50/60 1 62.50 75 7 5 6
15 208 50/60 3 7.50 3.75 3.75 46.84 46.84 31.23 60 60 6
15 240 50/60 3 5.00 5.00 5.00 36.08 36.08 36.08 50 50 8
15 480 50/60 3 5.00 5.00 5.00 18.04 18.04 18.04 25 25 14
15.75 208 50/60 1 74.82 90 90 4
15.75 240 50/60 1 65.63 80 80 4
15.75 208 50/60 3 7.50 4.31 3.75 46.84 49.18 33.57 60 60 6
15.75 240 50/60 3 5.00 5.75 5.00 36.08 38.79 38.79 50 50 8
15.75 480 50/60 3 5.00 5.75 5.00 18.04 19.40 19.40 25 25 14
2002 National Electric Code
*Dual Element Time-Delay Fuse or Inverse Time Circuit Breaker
Circuit Size (minimum) & Fuse/Circuit Breaker Size (maximum) compiled in accordance with the
National Electrical Code (ANSI/NFPA 70), 2002 Edition.
— 7 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
PLUMBING CONNECTIONS
WARNING: PLUMBING CONNECTIONS MUST
COMPLY WITH APPLICABLE
SANITARY, SAFETY AND
PLUMBING CODES.
Water Requirements
Proper water quality can improve the taste of
the food prepared in the steamer, reduce liming
in the steam generator and extend equipment
life. Water conditions vary from one location to
another. Ask your municipal water supplier for
details about your local water supply prior to
installation. Presence of sediment, silica, excess
chlorides or other dissolved solids may lead to
a recommendation for alternate form(s) of water
treatment. Test the water with the test strip
included with the steamer. Other factors
affecting steam generation are iron content,
amount of chloridation and dissolved gases.
If the water supply fails to meet these standards,
it will be necessary to install a water conditioner
on the generator water feed. The use of strainers
or filters will not remove minerals from the
water.
Water Supply Connection
Connect the treated cold water supply line to the
3/4" (19 mm) (male hose thread) inlet. Connect
the untreated cold water supply line to the 3/4"
(19 mm) (male hose thread) inlet marked
UNTREATED WATER.
A water filter system is recommended for the
water supply line going to the treated water inlet.
Follow the recommendations for use and
installation instructions shipped with the water
filter. If a water filter is not installed, the steam
generator warranty may be limited.
A manual shutoff valve must be provided in a
convenient location near the steamer.
Water Treatment
A local water treatment specialist should be
consulted before installation of steam generating
equipment.
Supply Pressure 20 - 60 psig
Hardness* No more than 3 grains
Silica less than 13 ppm
Total Chlorine less than 4.0 ppm
PH range 6.5 - 8
Undissolved Solids less than 5 microns
*17.1 ppm = 1 grain of hardness
DRAIN CONNECTIONS
The drain connection (Figure 2) must be 1 1/2"
(38 mm) down, preferably with one elbow only,
maximum length of 6' and piped to an open gap
type drain.
CAUTION: In order to avoid any back
pressure in the steamer, do
not make a solid connection to
any drain. FAILURE TO DO SO
CAN DAMAGE THE STEAMER
AND VOIDS THE WARRANTY.
A vent must be installed to avoid creating a
vacuum or pressure in the cooking chamber.
— 8 —
Figure 2
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
VENT HOOD
Local codes may require the steamer to be
located under an exhaust hood. Information on
the construction and installation of ventilating
hoods may be obtained from Vapor Removal
from Cooking Equipment, NFPA standard No.
96 (latest edition).
— 9 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
OPERATION
CONTROLS
Drain Handle (Basic model only)
Push the handle in to turn on the steamer. Pull
the handle out to turn off and drain the steamer.
Note: Controls for the Basic and Professional
models are shown in Figure 3.
Cooking Light (Professional model only)
The cooking light indicates that the steamer is in
the cooking cycle.
Timer
Set the cooking time (0 to 60 minutes). Steam
cooking will begin when the door is closed. The
cooking cycle will be interrupted if the door is
open during the cooking cycle; resume cooking
by closing the door.
When done, a buzzer sounds and steam stops
being supplied to the cooking chamber. Turn
the timer OFF to stop the buzzer.
START UP (BASIC MODEL)
WARNING:
THE STEAMER AND ITS PARTS
ARE HOT. USE CARE WHEN
OPERATING, CLEANING OR
SERVICING THE STEAMER. THE
COOKING COMPARTMENT CONTAINS LIVE STEAM. STAY CLEAR
WHILE OPENING THE DOOR.
Figure 3
Main Power Switch Light (Professional
model only)
ON The boiler will automatically fill and begin
heating to the preset temperature.
OFF The boiler will drain, switch power light
will turn off.
Ready Light (Professional model only)
The ready light indicates that the steamer is
ready for the cooking cycle.
Once the steamer is installed and all mechanical
connections have been made, thoroughly test
the steamer before operation.
1. Check that proper water, drain, and electrical
connections have been made.
2. Open water valve.
3. Push handle in to turn the steamer on. Wait
approximately 15-20 minutes.
4. Open the door and observe that no steam is
entering the compartment.
5. Set the timer to the 5 minute position. Close
the compartment door. Steam should be
heard entering the compartment. Wait
approximately 2-3 minutes.
6. Check drain line to ensure that water from
the cold-water condensate valve is flowing
through the drain line.
7. Open the compartment door and observe
that steam supply to the compartment stops.
— 10 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
8. Close compartment door and let cooking
cycle finish. When timer returns to 0, the
buzzer will sound, signaling the end of the
cooking cycle. To silence the buzzer, turn
the timer dial to OFF.
To shut down the steamer, pull the handle to turn
9.
off and drain. Leave the compartment doors
slightly open to allow the inside to dry out.
OPERATION
Drain Handle
Push the handle in to turn the steamer on. Pull
the handle out to turn off and drain the steamer.
Timer
Set to the desired cooking time. Timer range is
0-60 minutes.
When the timer reaches 0, the buzzer sounds
and steam stops entering the cooking
compartment. Turn the timer to the off position
to stop the buzzer.
PREHEATING
SHUTDOWN
Pull drain handle until it stops. The power light
will turn off before the handle stops. Leave the
compartment door open to allow the inside to
dry out.
EXTENDED SHUTDOWN
To shut down for an extended period:
1. Pull drain handle to the OFF/DRAIN position.
2. Turn off the water and the main power supply.
3. Clean the compartment.
4. Disconnect power.
START UP
(PROFESSIONAL MODEL)
WARNING: THE STEAMER AND ITS PARTS
ARE HOT. USE CARE WHEN
OPERATING, CLEANING OR
SERVICING THE STEAMER.
THE COOKING COMPARTMENT
CONTAINS LIVE STEAM. STAY
CLEAR WHILE OPENING THE
DOOR.
Preheat the cooking compartment when the
steamer is first used for the day, or whenever
the compartment is cold.
Set the timer to 5 minutes. When the buzzer
sounds, turn the timer to the OFF position. The
steamer is ready to cook.
STEAMING
When the compartment is preheated, place
pans of food into the cooking compartment and
close the door.
Set the timer to the desired cooking time. At this
point, the cooking cycle begins. Opening the
door interrupts the cooking cycle. Close the
door to resume cooking.
The buzzer will sound when the cooking cycle ends.
Turn the timer to the OFF position to silence the
buzzer. Open the door and remove the cooked food.
Once the steamer is installed and all mechanical
connections have been made, thoroughly test
the steamer before operation.
1. Check that proper water, drain, and electrical
connections have been made.
2. Open water valve.
3. Press the power switch to the ON position.
Wait approximately 8-10 minutes.
4. Open the door and observe that no steam is
entering the compartment, and that the ready
light is ON and the cooking light is OFF.
5. Set the timer to the 5 minute position. Close
the compartment door. The cooking light should
now be lit and steam should be heard entering
the compartment. Wait approximately 2-3
minutes.
6. Check drain line to ensure that water from
the cold-water condensate valve is flowing
through the drain line.
— 11 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
7. Open the compartment door and observe
that steam supply to the compartment stops
and that the cooking light is OFF.
8. Close compartment door and let cooking
cycle finish. When timer returns to 0, the
buzzer will sound, signaling the end of the
cooking cycle. To silence the buzzer, turn
the timer dial to OFF.
9. To shut down the steamer, turn off the power
switch. Leave the compartment doors slightly
open to allow the inside to dry out.
OPERATION
Main Power Switch
ON The power light will illuminate, and the
generator will automatically fill and begin
heating to the preset temperature.
OFF The power light will turn off, and the
generator will drain.
Timer
When the ready light is on, set the timer to 5
minutes. The cooking light will illuminate. When
the buzzer sounds, turn the timer to the OFF
position. The steamer is ready to cook.
STEAMING
When the compartment is preheated, place
pans of food into the cooking compartment and
close the door.
Set the timer to the desired cooking time. At this
point, the cooking cycle begins. Opening the
door interrupts the cooking cycle. Close the
door to resume cooking.
The buzzer will sound when the cooking cycle
ends.
Turn the timer to the OFF position to silence the
buzzer. Open the door and remove the cooked
food.
If the timer is set to constant steam, the steamer
will steam continuously and the buzzer will not
sound.
Set to the desired cooking time, or set to the
constant position. Timer range is 0-60 minutes.
When the timer reaches 0, the buzzer sounds
and steam stops entering the cooking
compartment. Turn the timer to the off position
to stop the buzzer. If constant steam is selected,
the steamer will steam continuously, and the
timer will not time out.
Ready Light
The ready light indicates that the steamer is
ready to cook.
Cooking Light
The cooking light indicates that the steamer is
cooking.
PREHEATING
Preheat the cooking compartment when the
steamer is first used for the day, or whenever
the compartment is cold.
SHUTDOWN
Set the main power switch to the OFF position.
The boiler will automatically blow down. Leave
the compartment door open to allow the inside
to dry out.
Note: Power supplied to the steamer must
remain on for 15 minutes after the main
power switch is set to the OFF position.
This will allow the blowdown cycle to
complete.
EXTENDED SHUTDOWN
To shut down for an extended period:
1. Press the power switch to the OFF position.
2. Turn off the water and the main power supply.
3. Clean the compartment.
4. Disconnect power.
— 12 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
CLEANING
WARNING: DISCONNECT THE
ELECTRICAL POWER TO THE
MACHINE AND FOLLOW LOCKOUT /
TAGOUT PROCEDURES BEFORE
CLEANING.
COOKING COMPARTMENT DRAIN
Keep compartment drain running freely. Inspect
compartment drains daily for blockage. Remove
any particles or debris from the perforated
strainer daily (or more often if needed).
After cooking greasy foods or seafood, close
the doors and operate each compartment for 25
to 30 minutes to flush any residual grease and
oils down the compartment drain. Make a
solution of warm water and non-chloride
detergent and pour 1/2 gallon (1.9 liters) of it
down the compartment drain. Rinse by pouring
1/2 gallon (1.9 liters) of hot water down the
compartment drain.
COMPARTMENT
Wash the inside of the compartment with a
solution of warm water and non-chloride
detergent. Rinse with warm water.
Once a week, thoroughly clean the exposed
surfaces (sides, front, door and top) with a
damp cloth and polish with a clean cloth. To
remove discolorations, use a nonabrasive
cleaner.
DOOR GASKET
Clean the gasket sealing surface of the
compartment door to remove food acids for
maximum gasket life. Do not use any solvents
or sharp instruments. Wash with a cloth
moistened in a solution of mild detergent and
warm water. Rinse with a fresh cloth moistened
with warm water to remove all traces of
detergent.
DRAINING GENERATOR
To prevent malfunction of controls and clogging,
it is essential to drain the generator every day.
This will flush out any accumulated minerals
from the feed water. It will also aid in preventing
internal scale buildup which would interfere with
proper generator operation. Failure to drain the
generator every day will void the steamer
warranty. The presence of minerals in
suspension is indicated by a murky or milky
condition in the first portion of the water drained.
WARNING:
After the generator has been in operation, turn
the unit off with the power switch located on
cooking compartment to drain the generator.
The generator will drain for approximately 15
minutes, removing sediment, scale and lime
buildup in the generator.
THE WATER BEING DRAINED IS
HOT AND UNDER PRESSURE.
USE CARE WHEN CLEANING OR
SERVICING THE GENERATOR.
Wipe dry with a clean cloth. Never apply food
oils or petroleum lubricants directly to the door
gasket. Petroleum-based solvents and
lubricants will reduce gasket life.
LEAVE COMPARTMENT DOOR OPEN
Leave the compartment door slightly open when
the steamer is not in use. When the compartment
is idle, never latch the door and apply pressure
to the door gasket. Leaving the gasket under
pressure can cause permanent deformation
and reduce gasket life.
GUIDELINES FOR MAINTAINING
STAINLESS STEEL SURFACES
There are four things that will break down
stainless steel and allow corrosion to develop:
1) Abrasion
2) Deposits
3) Water
— 13 —
4) Chlorides
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
Avoid rubbing with steel pads, wire brushes or
scrapers that can leave iron deposits on stainless
steel. Instead, use plastic scouring pads or soft
cloths. For stubborn stains, use products such
as Cameo, Talc or Zud First Impression. Always
rub parallel to the polish lines or with the grain.
Hard water will leave deposits that promote rust
on stainless steel. Treated water from softeners
or certain filters can eliminate these mineral
deposits. Other deposits from food or lubrication
must be properly removed by cleaning. Use
mild detergent and non-chloride cleaners. Rinse
thoroughly. Wipe dry. Where appropriate, apply
a polish recommended for stainless steel (such
as Benefit or Super Sheen) for extra protection
and luster.
— 14 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
MAINTENANCE
WARNING: THE STEAMER AND ITS PARTS
ARE HOT. USE CARE WHEN
OPERATING, CLEANING OR
SERVICING THE STEAMER. THE
COOKING COMPARTMENT
CONTAINS LIVE STEAM. STAY
CLEAR WHEN OPENING DOOR.
WATER TREATMENT SYSTEM
A water treatment system is recommended for
the steamer. Refer to your supplier's manual for
normal maintenance procedures for proper
scale-free operation.
REMOVAL OF LIME SCALE DEPOSITS
The steamer should be delimed when symptoms
occur (see Troubleshooting Chart). This is in
accordance with the minimum preventive
maintenance schedule required by the
Warranty.
Items Required (not provided)
• Deliming material
• Funnel
• Plastic or rubber gloves
• Safety goggles or face shield
• Measuring cup
• 1-gallon container for mixing deliming
solution
• Petrol-Gel Lubricant or equivalent foodgrade grease for coating deliming port
threads
Note: Deliming solution may cause the surface
of aluminum measuring tools to tarnish or
etch.
Professional Unit (Automatic Drain)
Note: This procedure is not intended to take
the place of a water treatment program.
WARNING: READ AND FOLLOW THE IN-
STRUCTIONS ON THE DELIMING
MATERIAL PACKAGE. AVOID
CONTACT WITH SKIN AND
EYES. WEAR PLASTIC OR
RUBBER GLOVES AND SAFETY
GOGGLES WHEN HANDLING.
WASH THOROUGHLY AFTER
HANDLING. IF DELIMING
SOLUTION COMES IN CONTACT
WITH THE SKIN OR EYES,
RINSE THOROUGHLY WITH
CLEAN WATER.
WARNING: THE STEAMER AND ITS PARTS
ARE HOT. USE CARE WHEN
OPERATING, CLEANING OR
SERVICING THE STEAMER.
THE COOKING COMPARTMENT
CONTAINS LIVE STEAM. STAY
CLEAR WHEN OPENING DOOR.
1. Turn power switch OFF. Wait 5 minutes for
steam generator to completely drain and the
drain valve to close.
2. Turn cooking timers to OFF.
3. Prepare deliming solution according to the
instructions on the deliming material
package. Follow all manufacturer's
instructions.
4. Remove delime port cap on top of unit and
insert funnel into delime port (Figure 4).
— 15 —
Figure 4
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
5. Pour deliming solution into the steam
generator slowly to avoid spillage.
6. Remove funnel from delime port then rinse
port with clean water.
7. Lightly coat delime port threads with PetrolGel then install delime port cap. Cap must
be installed and tightened securely at all
times.
8. Turn power switch ON.
9. When ready light comes on, turn cooking
timer on for 3 minutes to delime the steam
tubes and nozzles.
10. After 40 minutes, turn power switch OFF
and allow steam generator to completely
drain, 5 minutes.
11.Rinse steam generator with clean water:
A . Turn power switch ON. When ready light
comes on, turn cooking timer on for 3
minutes to rinse the steam tubes and
nozzles.
3. Prepare deliming solution according to the
instructions on the deliming material
package. Follow all manufacturer's
instructions.
4. Remove delime port cap on top of unit and
insert funnel into delime port.
5. Lightly coat delime port threads with PetrolGel.
6. Push drain lever in to close the drain valve
and turn the unit on.
7. Pour deliming solution into the steam
generator slowly to avoid spillage.
8. Immediately remove funnel from delime port
then rinse port with clean water.
9. Immediately install delime port cap. Cap
must be installed and tightened securely at
all times.
Note: Steps 6, 7, 8 and 9 must be completed
within a 5-minute time period.
B. Turn power switch OFF and allow steam
generator to completely drain.
C. Turn cooking timer to OFF.
D. Repeat steam generator rinse one time.
12.Clean exterior and interior using a mild
solution of soap and water. Rinse with clean
water then dry with a soft cloth.
13.Leave compartment door open when not in
use.
14.The steamer is ready for operation or
shutdown.
Basic Unit (Manual Drain Lever)
Note: This procedure is not intended to take
the place of a water treatment program.
1. Pull drain lever out to open generator drain
and turn unit off. Wait 5 minutes for steam
generator to completely drain.
2. Turn cooking timer to OFF.
10.After 30 minutes, turn cooking timer on for
3 minutes to delime the steam tubes and
nozzles.
11.After 50 minutes, pull drain lever out to turn
the unit off and allow steam generator to
completely drain, 5 minutes.
12.Rinse steam generator with clean water:
A. Push drain lever in to close drain and
turn power on. Wait 20 minutes then turn
cooking timer on for 30 seconds to rinse
the steam tubes and nozzles.
B. Pull drain lever in and allow steam
generator to completely drain.
C. Turn cooking timer to OFF.
D. Repeat steam generator rinse one time.
13.Clean exterior and interior using a mild
solution of soap and water. Rinse with clean
water then dry with a soft cloth.
14.Leave compartment door open when not in
use.
15.The steamer is ready for operation or
shutdown.
— 16 —
DOOR GASKET
If the door gasket is leaking due to a nick or cut,
it must be replaced. Damage to the gasket
sealing surface will cause steam leakage.
DRAINING THE BOILER
Drain the boiler at the end of each day to flush
out minerals and minimize scale build-up. The
generator drains automatically for approximately
15 minutes after the power switch is turned
OFF on the Professional model, or the drain
handle is pulled on the Basic model.
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
— 17 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
COOKING HINTS
The steamer efficiently cooks vegetables and
other foods for immediate serving. Steam cooking
should be carefully time controlled. Keep hot food
holding-time to a minimum to produce the most
appetizing results. Prepare small batches. Cook
only enough to start serving, then cook additional
amounts to meet demand.
PREPARATION
Prepare vegetables, fruits, meats, seafood and
poultry normally by cleaning, separating, cutting,
removing stems, etc. Cook root vegetables in a
perforated pan. Other vegetables may be cooked
in a perforated pan unless juices are being saved.
Liquids can be collected in a solid 12" x 20" pan
placed under a perforated pan.
Perforated pans are used for frankfurters, wieners
and similar items when juices do not need to be
preserved. Solid pans are good for cooking
puddings, rice, and hot breakfast cereals.
Vegetables and fruits are cooked in solid pans in
their own juice. Meats and poultry are cooked in
solid pans to preserve their juice or retain broth.
Canned foods can be heated in their opened
cans (cans placed in 12" x 20" solid pans) or the
contents may be poured into solid pans. DO
NOT place unopened cans in the steamer.
than 15 minutes of cooking time. When a cover
is used, approximately one-third additional
cooking time is necessary.
Cooking time for frozen foods depends on the
amount of defrosting required. If time permits,
allow frozen foods to partially thaw overnight in a
refrigerator. This will reduce their cooking time.
Acceptable Pan Sizes
The steamer accommodates combinations of
full, half and one-third size pans, solid or
perforated.
Model Number of Pans Accommodated
Depth of Pan
1" 2 1/2" 4" 6"
C24EA3 6321
C24EA5 10 5 3 2
COOKING GUIDELINES
The steamer cooks vegetables, frankfurters,
eggs in their shells, and certain other meats or
food items at atmospheric pressure.
Frozen Food Items
Separate frozen foods into smaller pieces to
allow more efficient cooking.
Use a pan cover for precooked frozen dishes
that cannot be cooked in the covered containers
in which they are packed if they require more
These cooking guidelines are suggestions only.
You should experiment with your food products
to determine the cooking times that will give you
the best results. Variables which affect cooking
time include size, weight, thickness of foods,
temperature, density, previous condition of the
foods (fresh, pre-blanched or frozen) and degree
of doneness desired.
— 18 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
PRODUCTS TO BE COOKED IN SOLID PANS
PRODUCT TIME (MINUTES) WEIGHT PER PAN
Eggs, Scrambled 9 - 12 8 Doz.
Rice, Long Grain (Cover with 4 cups water/lb.) 23 - 25 2 Lb.
Pasta (Place perforated pan inside solid pan,
cover with cold water)
Sp aghetti – Regular/Vermicelli 10 - 15
Macaroni - Shells/Elbows 13 - 18
Noodles - 1/2" Wide 10 - 15
Lasagna Noodles 13 - 18
Frozen Casseroles, Lasagna 33 - 35 Full Pan
Meat Loaf, 3-5 Lb. Each 38 - 40 15 Lb.
Beef
Ground Chuck 19 - 25 10 Lb
Sliced as Purchased 33 - 40 10 Lb.
Shrimp, Frozen, 10 Shrimp per Lb. 4 - 5 4 Lb.
Beans
Baked 8 - 9 10 Lb. Can
Refried 8 - 9 10 Lb. Can
Canned Vegetables 5 - 6 10 Lb. Can
Prunes, Dried 11 - 15
— 19 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
PRODUCTS TO BE COOKED IN PERFORATED PANS
PRODUCT TIME (MINUTES) WEIGHT PER PAN
SEAFOOD
Clams
Frozen 9 - 12 3 Doz.
Fresh, Cherrystone 4 - 6 3 Doz.
King Crab, Frozen
Claws 3 - 4 2 1/2 Lb.
Legs 3 - 6 4 1/2 Lb.
Lobster Tail, Frozen 5 - 6 10 Lb.
Lobster, Live, 10" - 12" 4 - 5 4 Per Pan
Salmon Fillets, Frozen, 8 ounce each 4 - 5 7 1/2 Lb.
Scallops, Fresh 3 - 4 3 Lb.
Scrod Fillets, Fresh 3 - 5 4 Lb.
EGGS
Hard Cooked 14 - 15 4 Doz.
Soft Cooked 8 - 10 4 Doz.
Soft Yoke for Caesar Salad 5 - 8 4 Doz.
MEATS
Chicken — Breasts, Legs, Thighs 19 - 20 15 Lb.
Turkey, Frozen
Breasts (2) 86 - 90 6 to 7 Lb. Each
Cut Lengthwise 53 - 55 20 to 25 Lb.
Corned Beef 40 - 75 6 to 8 Lb.
Hot Dogs and Wieners 2 - 3 80 to 100 Count
VEGETABLES
Asparagus Spears
Frozen 10 - 12 3 Lb.
Fresh 4 - 5 5 Lb.
Beans
Green 2" Cut, Frozen/Fresh 5 - 6 5 Lb.
Lima, Frozen 7 - 8 5 Lb.
Baby Lima, Frozen 4 - 5 5 Lb.
Brussel Sprouts, Frozen 5 - 6 5 Lb.
— 20 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
PRODUCT TIME (MINUTES) WEIGHT PER PAN
VEGETABLES (Cont’d.)
Broccoli
Spears, Frozen 6 - 8 4 Lb.
Spears, Fresh 4 - 6 5 Lb.
Flowerettes, Frozen 4 - 6 5 Lb.
Cabbage, Fresh, 1/6 Cut 6 - 8 5 Lb.
Carrots
Baby Whole, Frozen 6 - 8 7 Lb.
Crinkle Cut, Frozen 7 - 8 4 Lb.
Sliced, Fresh 9 - 11 9 Lb.
Cauliflower , Flowerettes
Frozen 4 - 6 4 Lb.
Fresh 7 - 8 5 Lb.
Celery , 1" Diagonal Cut 5 - 7 5 Lb.
Corn
Yellow Whole Kernel, Frozen 3 - 5 5 Lb.
Cobbettes, Frozen 6 - 8 27 Ears
Corn-On-Cob, Fresh 16 - 18 80 Ears
16 - 18 54 Ears
10 - 12 18 Ears
Peas, Green 4 - 6 5 Lb.
Potatoes, Whole Russet 50 - 55 40 Lb.
Spinach
Chopped, Frozen 15 - 17 6 Lb.
Defrosted 4 - 5 6 Lb.
Fresh Cut 2 - 3 2 Lb.
Squash, Acorn Halves 22 - 25 10 Halves
Zucchini, Slices 6 - 8 10 Lb.
Frozen Mixed V egetables 6 - 7 5 Lb.
FRUIT
Fruit, Blanch for Peeling
Grapefruit, Oranges 2 - 3
Pineapple, Whole for Cutting 2 - 4
— 21 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
TROUBLESHOOTING
SYMPTOMS
Steamer not steaming
Steamer not heating/
steaming properly
Door leaks
POSSIBLE CAUSES
No main power source
Power switch in OFF position
(Professional)
Handle out (OFF) position (Basic)
Water not being supplied to
steamer
Excessive lime build up in the
steamer
Damaged door gasket
Improper drain
Plugged drain
REMEDY
Check the power source.
Set power switch to the ON
position.
Push handle in.
Refer to symptom WATER NOT
BEING SUPPLIED TO STEAMER.
Descale the steamer (see
REMOV AL OF LIME SCALE
DEPOSITS).
Check door gasket for damage.
If adjustment is needed, contact
your Authorized Vulcan-Hart
Servicer.
Water accumulates in
compartment
Water not being supplied
to steamer
Damage to gasket sealing surface
Plugged drain or screen
Unit not leveled properly
Drain clogged
Water supply valve is off
Water pressure low
Water filter is plugged
Valve inlet screen clogged
Clear compartment cavity
screen. If symptom persists,
contact your Authorized V ulcanHart Servicer .
See leveling instructions in the
installation section of this
manual.
Unclog drain.
Turn valve on.
Check water supply pressure.
Refer to water filter manual. If
symptom persists, contact your
Authorized Vulcan-Hart Servicer .
Contact your Authorized VulcanHart Servicer .
— 22 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
SERVICE AND P ARTS INFORMATION
To obtain service and parts information concerning this steamer, contact the Vulcan-Hart Service
Agency in your area (refer to listing supplied with the steamer), or contact the Vulcan-Hart Service
Department at the address or phone number shown on the front cover of this manual. Parts and service
are also available at www.vulcanhart.com.
— 23 —
C24EA SERIES ELECTRIC COUNTER CONVECTION STEAMERS
F-35428 (2-06)
— 24 —
PRINTED IN U.S.A.
Loading...
