Vulcan Hart M7806, M7809 Operators Manual

INSTALLATION, SERVICE &

PARTS MANUAL FOR

M7806 & M7809 MAGIC-FIN

HEAVY DUTY GAS

CHAR BROILERS

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. [phone]

FORM 114587 (03-89)

INSTALLATION, SERVICE & PARTS M7806/M7809

OPERATING, INSTALLATION AND SERVICE PERSONNEL

Operating information for this equipment has been prepared for use by qualified and/or authorized
operating personnel.

All installation and service on this equipment is to be performed by qualified, certified, licensed and/or
authorized installation or service personnel, with the exception of any marked with a in front of
the part number.

Service may be obtained by contacting the Factory Service Department, Factory Representative or
Local Service Agency.

QUALIFIED AND/OR AUTHORIZED OPERATING PERSONNEL

Qualified or authorized operating personnel are those who have carefully read the information in this
manual and are familiar with the equipment’s functions or have had previous experience with the
operation of the equipment covered in this manual.

QUALIFIED INSTALLATION PERSONNEL

Qualified installation personnel are individuals, a firm, corporation or company which either in person
or through a representative are engaged in, and are responsible for:

1. The installation of gas piping from the outlet side of the gas meter, or the service regulator when

the meter is not provided, and the connection and installation of the gas appliance. Qualified
installation personnel must be experienced in such work, be familiar with all precautions required,
and have complied with all requirements of state or local authorities having jurisdiction. Reference
in the United States of America - National Fuel Gas code ANSI Z223.1 (Latest Edition) In Canada­Canadian Standard CAN1-B149.1 NAT. GAS (Latest Edition) or CAN1-B149.2 PROPANE (Latest
Edition).

2. The installation of electrical wiring from the electric meter, main control box or service outlet to the

electric appliance. Qualified installation personnel must be experienced in such work, be familiar
with all precautions required, and have complied with all requirements of state or local authorities
having jurisdiction. Reference: In the United States of America-National Electrical Code ANSI
NFPA No. 70 (Latest Edition). In Canada-Canadian Electrical Code Part 1 CSA-C22.1 (Latest
Edition).

QUALIFIED SERVICE PERSONNEL

Qualified service personnel are those who are familiar with Vulcan equipment who have been endorsed
by the Vulcan-Hart Corporation. All authorized service personnel are required to be equipped with a
complete set of service parts manuals and stock a minimum amount of parts for Vulcan equipment.

!

IMPORTANT

DEFINITIONS

SHIPPING DAMAGE CLAIM PROCEDURE

For your protection, please note that equipment in this shipment was carefully inspected and packed by
skilled personnel before leaving the factory. The transportation company assumes full responsibility for
safe delivery upon acceptance of this shipment.

If shipment arrives damaged:

1. VISIBLE LOSS OR DAMAGE — Be certain this is noted on freight bill or express receipt and signed

by person making delivery.

2. FILE CLAIM FOR DAMAGES IMMEDIATELY — Regardless of extent of damage.

3. CONCEALED LOSS OR DAMAGE — If damage is unnoticed until merchandise is unpacked, notify

transportation company or carrier immediately, and file “concealed damage” claim with them. This
should be done within (15) days of date of delivery is made to you. Be sure to retain container for
inspection.

We cannot assume responsibility for damage or loss incurred in transit. We will, however, be glad to
furnish you with necessary documents to support your claim.

PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE

– 2 –

INSTALLATION, SERVICE & PARTS M7806/M7809

IMPORTANT NOTES FOR ALL VULCAN APPLIANCES

1. These units are produced with the best possible workmanship and material. Proper installation is vital if best
performance and appearance are to be achieved. Installer must follow the installation instructions carefully.

2. Information on the construction and installation of ventilating hoods may be obtained from the “Standard for the
installation of equipment for the removal of smoke and grease laden vapors from commercial cooking equipment,”
NFPA No 96 (latest edition) available from the National Fire Protection Association, Battery March Park, Quincy
MA 02269.

3. For an appliance equipped with a flexible electric supply cord, the cord is equipped with a three prong (grounding)
plug. This grounding plug is for your protection against shock hazard and should be plugged directly into a properly
grounded three prong recepticle. Do not cut or remove the grounding prong from this plug If the appliance is not
equipped with a grounding plug, and electric supply is needed, ground the appliance by using the ground lug
provided (refer to the wiring diagram).

(FOR GAS APPLIANCES ONLY)

4. Do not obstruct the air flow into and around the appliance. This air flow is necessary for proper combustion of
gases and for ventilation of the appliance. Provisions for ventilation of incoming air supply for the equipment in
the room must be in accordance with National Fuel Gas Code ANSI Z223.1 (latest edition).

5. Do not obstruct the flow of flue gases from the flue duct (when so equipped) located on the rear (or sides) of the
appliance. It is recommended that the flue gases be ventilated to the outside of the building through a ventilation
system installed by qualified personnel.

6. For an appliance equipped with casters, (1) the installation shall be made with a connector that complies with the
Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 (latest edition), and Addenda, Z21.69a (latest
edition), and a quick-disconnect device that complies with the Standard for Quick-Disconnect Devices for Use
With Gas Fuel, ANSI Z21.41 (latest edition), and Addenda, Z21.41a (latest edition) and Z21.41b (latest edition),
and (2) adequate means must be provided to limit the movement of the appliance without depending on the
connector and the quick-disconnect device or its associated piping to limit the appliance movement.

If disconnection of the restraint is necessary, reconnect this restraint after the appliance has been returned to its
originally installed position.

7. The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1⁄2 psig (3.45 k Pa).

8. The appliance must be isolated from the gas supply system by closing its individual manual shutoff valve during
any pressure testing of the gas supply system at test pressures equal to or less than 1⁄2 psig (3.45 k Pa).

CAUTIONS

FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS EQUIPMENT OR ANY OTHER
APPLIANCE.

1. KEEP THE APPLIANCE FREE AND CLEAR FROM ALL COMBUSTIBLE
SUBSTANCES.

2. IN THE EVENT A GAS ODOR IS DETECTED, SHUT UNIT(S) DOWN AT
THE MAIN SHUTOFF VALVE AND CONTACT THE LOCAL GAS COMPANY
OR GAS SUPPLIER FOR SERVICE.

3. POST IN A PROMINENT LOCATION, INSTRUCTIONS TO BE FOLLOWED
IN THE EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION
MAY BE OBTAINED FROM A LOCAL GAS SUPPLIER.

– 3 –

INSTALLATION, SERVICE & PARTS M7806/M7809

INDEX

Your Vulcan heavy duty gas char broiler is produced with
the best possible workmanship and material. Proper
usage and maintenance will result in many years of
satisfactory performance.

The manufacturer suggests that you thoroughly read this
entire manual and carefully follow all of the instructions
provided.

DESCRIPTION PAGE

DEFINITIONS OF PERSONNEL (Operating, Installation And Service) and
SHIPPING DAMAGE CLAIM PROCEDURES (Inside Front Cover)

CAUTIONS 114587-3 & -4
INDEX PAGE 114587-4
INSTALLATION INSTRUCTIONS I 114587-5

UNCRATING 114587-5
INSTALLING UNIT 1145877-5

SERVICE INSTRUCTIONS II 114587-5

LIGHTING UNIT 114587-5
ADJUSTMENTS 114587-6
RATING & ORIFICE DATE 114587-6

TROUBLE SHOOTING 1145878-6

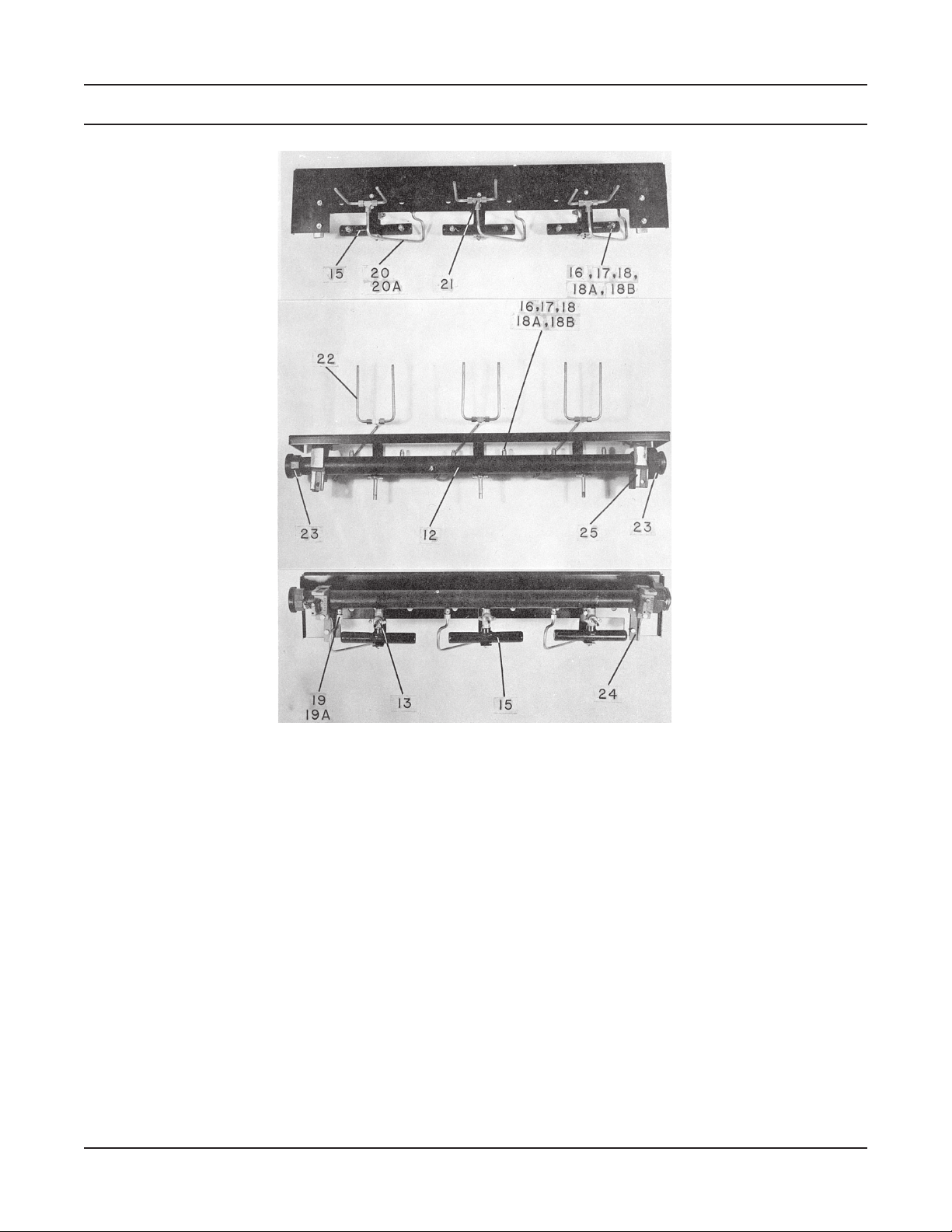

PARTS III 114587-7 thru -13
REVISION BLOCK (Inside Back Cover)

A rating plate is located on the lower front panel of this unit
stating the model number, serial number, type of gas.

For use in Fire-Resistive locations.

CAUTION

From the termination of the appliance flue vent to the
fitters of the hood venting system, an 18 inch minimum
clearance must be maintained.

Reference: ANSI/NFPA 96 (Latest Edition) of the
National Fire Protection Association, Inc., Batterymarch
Park, Quincy, MA 02269, and National Building Code
1976 Sec. 1015.7b (2) of The American Insurance
Association. Engineering and Safety Service, 85 John
Street, New York, NY 10038

– 4 –

INSTALLATION, SERVICE & PARTS M7806/M7809

INSTALLATION INSTRUCTION I - UNCRATING

Carefully uncrate unit as close to final resting place as
possible. Remove all shipping wire, wood blocking, top

INSTALLING UNIT

Place appliance in exact position it is to occupy. If unit is
to be used in battery, it is recommended that it be
installed on either end of the battery due to the intense
heat and adequate ventilation. Using a carpenter’s level,
even up appliances from front to rear, also from side to
side. This operation is one of the most important installa­tion practices. No floor is level and variations of from one
to three inches in a room is common. Unless appliances
are level, difficulty will be encountered in lining up the
manifold pipe and appliances will not butt tightly.

Move next appliance into position and level up as above
(when used on end of battery or when two or more units
are being installed). Engage union nut on manifold pipe
with male fitting on next appliance and draw union hand
tight. Be sure appliances butt both front and rear. If
manifolds do not line up, units are not level. Do not adjust
manifold brackets to make manifold line up, except in
extreme cases because this will cause gas valves not to
line up properly with manifold cover holes.

If unit is installed on end of battery and top of front top
does not line up with adjacent unit, adjust front tops by
means of bolts on the underside before replacing the
manifold cover and installing the valve handles.

The gas manifold of this appliance or battery of which it
is a part must be connected to a pressure regulator with
a pre-set outlet pressure of 6 in. W.C. (water column) for
natural gas and 10" W.C. for propane gas.

The pressure regulator must be A.G.A. design certified.
The regulator must have a maximum regulation capacity
to handle the total connected load and must have an
adjustment range for manifold pressure marked on the
rating plate, if the manifold pressure of the connected

grid grates, burner radiants, burners, manifold cover.
Grease collector and lower panel.

appliances are not the same, a separate regulator must
be supplied for units operating under different manifold
pressures.

NOTE: The unit and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 PSIG (3.45 K Pa.).

The appliance must also be isolated from the gas supply
piping system by closing it’s individual manual shut-off
valves during any pressure testing of the gas supply
piping system at test pressures equal to or less than

1

⁄2 PSIG (3.45L Pa.) as stated by the American National
Standards Z83,1 11a-1987 Copies of this Standard are
available from the American Gas Association, 1515
Wilson Blvd., Arlington, Virginia 22209.

Pipe joint compounds used when connecting appliances
to gas should be resistant to the action of L.P. gases.

Pipe joints should be tested for leaks with a soap and
water solution before operating the unit.

Continue to level up and connect manifold pipe until all
appliances in the battery are connected. Then tighten
manifold unions gas tight and connect to gas supply in
accordance with applicable local code.

Be sure all burner and pilot valves are in a closed
position. Turn on gas supply and check for leaks using a
soap and water solution or other acceptable methods
WARNING matches, candles or other sources of ignition
should not be used for this purpose.

Adjust burners making sure they line up with burner
nozzles and that all burner baffle plates are hanging in
the proper position.

LIGHTING AND SHUTDOWN INSTRUCTIONS

LIGHTING CHAR-BROILER
A. Turn the main gas supply on.
B. Turn the burner valve on and purge air from lines.

Turn the valve off. Wait 5 minutes.

C. Using a taper, light the pilot. Turn burner valve on.
D. If the pilot fails to light, turn off the gas, wait 5 minutes

and repeat steps A thru C.

NIGHTLY SHUTDOWN
A. Turn the burner valve off, the pilot will remain lit.
SEASONAL SHUTDOWN
A. Turn the burner valve off, the pilot will remain lit.
B. Extinguish the pilot.
C. Turn the main gas supply off.

– 5 –
