Vulcan Hart K60GLT PARTS LIST

REPLACEMENT PARTS

K SERIES GAS KETTLES

Stationary Kettles

ML-136090 K20GL
ML-136091 K40GL
ML-136092 K60GL

Tilting Kettles

ML-136094 K20GLT
ML-136095 K40GLT
ML-136096 K60GLT

CATALOG OF

For additional information on Vulcan-Hart Company or to locate an authorized

parts and service provider in your area, visit our website at www.vulcanequipment.com

VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANEQUIPMENT.COM

3600 NORTH POINT BLVD.

BALTIMORE, MD 21222

F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

F-35462 (May 2012) - 2 - © VULCAN-HART COMPANY 2012

K SERIES GAS KETTLES REPLACEMENT PARTS

Table of Contents

5 DRAW-OFF VALVE ASSEMBLY (2 INCH)
7 DRAW-OFF VALVE ASSEMBLY (3 INCH)

9 PLUG VALVE (2 INCH)
11 CONTROL PANEL (STATIONARY)
13 ELECTRICAL COMPONENTS (STATIONARY)
15 ELECTRICAL COMPONENTS (TILTING)
17 CONTROL PANEL AND ELECTRICAL COMPONENTS (TILTING)
19 GAS HEAT COMPONENTS
21 TILTING COMPONENTS
23 LID AND HANDLE ASSEMBLY
25 KETTLE EXTERIOR
27 PANELS (STATIONARY)
29 PANELS AND FRAME (TILTING)

- 3 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

DRAW-OFF VALVE ASSEMBLY

(2 INCH)

F-35462 (May 2012) - 4 -

K SERIES GAS KETTLES REPLACEMENT PARTS

DRAW-OFF VALVE ASSEMBLY

(2 INCH)

ILLUS.
PL-59774

10 WL-006-35 Lockwasher 1/2 Light.................................................................................................................4

11 00-856570-00002 Plate - Valve Mounting (2 In.).....................................................................................................1

12 00-855830-00001 Gasket - Draw-Off Valve............................................................................................................1

PART NO. NAME OF PART AMT.

1 00-856213-00008 Nut..............................................................................................................................................1

2 00-856213-00009 Washer.......................................................................................................................................1

3 00-856213-00005 Handle........................................................................................................................................1

4 00-856213-00004 Nut - Hex....................................................................................................................................1

5 00-856213-00006 Retainer......................................................................................................................................1

6 00-856213-00007 O-Ring........................................................................................................................................1

7 00-856213-00003 Disc & Stem Assy.......................................................................................................................1

8 00-856213-00002 Valve Body (2 In.).......................................................................................................................1

9 SC-041-44 Cap Screw 1/2-13 x 1-1/4 Hex Hd..............................................................................................4

00-856569-00001 Draw-Off Valve Assy. (2 In.) (Incls. Items 1 thru 8 & 11)............................................................1

- 5 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

DRAW-OFF VALVE ASSEMBLY

(3 INCH)

F-35462 (May 2012) - 6 -

K SERIES GAS KETTLES REPLACEMENT PARTS

DRAW-OFF VALVE ASSEMBLY

(3 INCH)

ILLUS.
PL-59775

10 00-856570-00001 Plate - Valve Mounting (3 In.).....................................................................................................1

11 00-855830-00001 Gasket - Draw-Off Valve............................................................................................................1

PART NO. NAME OF PART AMT.

1 00-359996-00007 Nut..............................................................................................................................................1

2 00-359996-00005 Handle........................................................................................................................................1

3 00-369996-00004 Nut - Hex....................................................................................................................................1

4 00-369996-00003 Retainer......................................................................................................................................1

5 00-369996-00006 O-Ring........................................................................................................................................1

6 00-369996-00002 Disc & Stem Assy.......................................................................................................................1

7 00-369996-00001 Valve Body (3 In.).......................................................................................................................1

8 SC-041-44 Cap Screw 1/2-13 x 1-1/4 Hex Hd..............................................................................................4

9 WL-006-35 Lockwasher 1/2 Light.................................................................................................................4

00-856569-00003 Draw-Off Valve Assy. (3 In.) (Incls. Items 1 thru 7 & 10)............................................................1

- 7 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

PLUG VALVE

(2 INCH)

F-35462 (May 2012) - 8 -

PLUG VALVE

(2 INCH)

K SERIES GAS KETTLES REPLACEMENT PARTS

ILLUS.
PL-59795

PART NO. NAME OF PART AMT.

1 00-857547-00004 Plug - Valve (Draw-Off)..............................................................................................................1

2 00-857547-00007 Pin - Retaining............................................................................................................................1

3 00-857547-00006 Handle - Athermic.......................................................................................................................1

4 00-857547-00009 Gasket - Coupling.......................................................................................................................1

5 00-857547-00003 Coupling - Valve (Draw-Off).......................................................................................................1

6 00-857547-00002 Valve Body (Draw-Off)...............................................................................................................1

7 00-857547-00005 Washer.......................................................................................................................................1

8 00-857547-00008 Ring - Metal................................................................................................................................1

00-857547-00001 Draw-Off Valve Assy. (2 In., Plug Type) (Incls. Items 1 thru 8)..................................................1

- 9 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

CONTROL PANEL (STATIONARY)

F-35462 (May 2012) - 10 -

K SERIES GAS KETTLES REPLACEMENT PARTS

CONTROL PANEL (STATIONARY)

ILLUS.
PL-59777

10 NS-047-98 Lock Nut 8-32 Hex......................................................................................................................2

11 00-856119-00001 Bracket - Offset..........................................................................................................................1

12 NS-011-07 Nut 6-32 Hex (SST)....................................................................................................................3

13 00-856083-00001 Gauge - Pressure (Panel Mount)...............................................................................................1

14 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. (SST)......................................................................3

15 00-855884-00001 Panel - Control (K20GL).............................................................................................................1

16 00-856040-00001 Panel - Control (K40GL).............................................................................................................1

17 00-856122-00001 Panel - Control (K60GL).............................................................................................................1

18 FP-086-36 Fitting - Tube (1/4)......................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-855969-00001 Light - Indicator (Red) (24 VAC).................................................................................................1

2 00-856678-00001 Gasket........................................................................................................................................1

3 00-855797-00005 Switch Assy. (Power with Indicator Lights).................................................................................1

4 00-854647-00001 Knob - Control............................................................................................................................1

5 00-854693-00001 Shaft - Rotary Seal.....................................................................................................................1

6 00-855831-00001 Overlay - Gas Kettle...................................................................................................................1

7 00-957916-00003 Nameplate - Small (Vulcan).......................................................................................................1

8 NS-047-28 Nut - Pal.....................................................................................................................................2

9 00-857389-00001 Potentiometer.............................................................................................................................1

- 11 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

ELECTRICAL COMPONENTS (STATIONARY)

F-35462 (May 2012) - 12 -

K SERIES GAS KETTLES REPLACEMENT PARTS

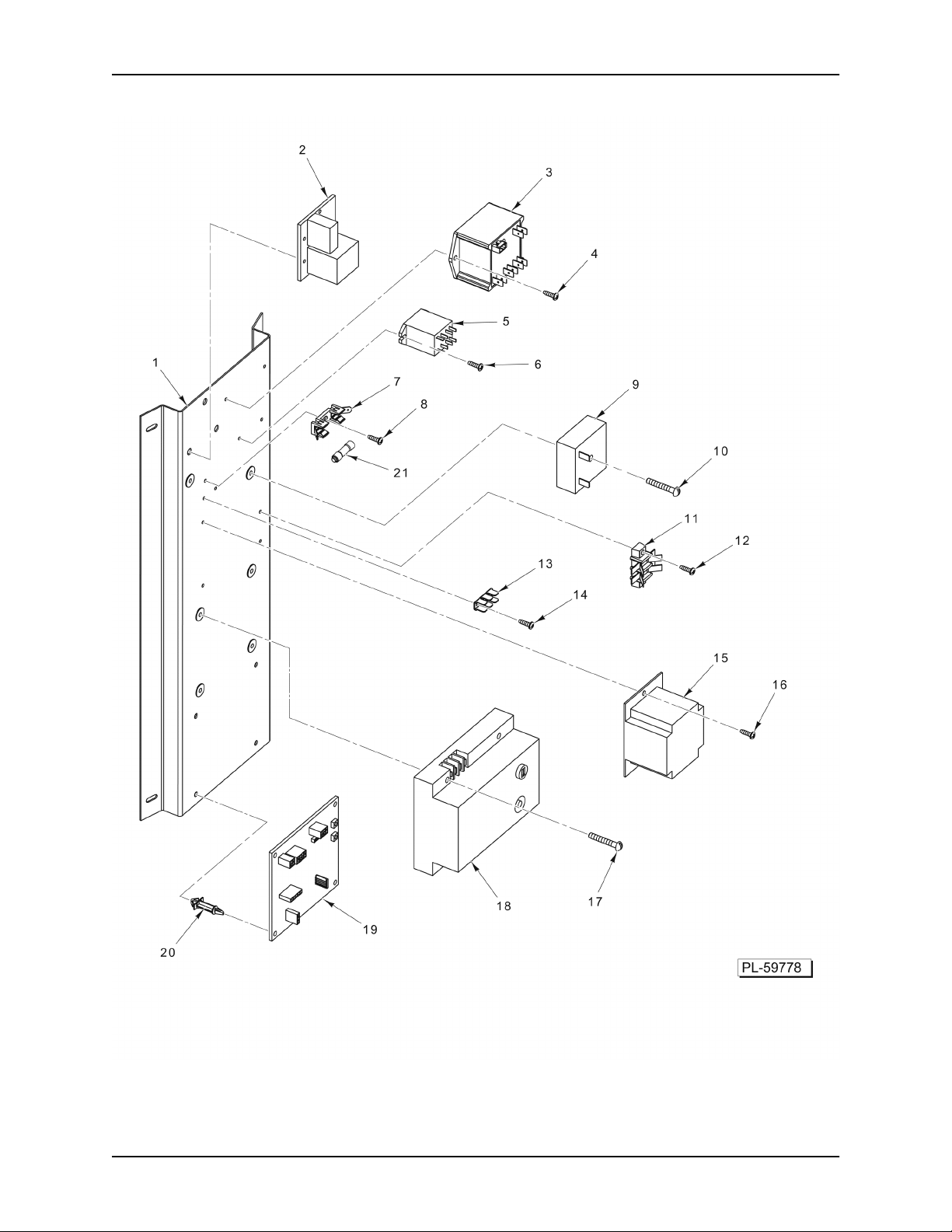

ELECTRICAL COMPONENTS (STATIONARY)

ILLUS.
PL-59778

10 SC-125-46 Mach. Screw 8-32 x 1-1/4 Phil. Truss Hd. (SST).......................................................................1

11 00-854707-00002 Block - Terminal (2-Pole)............................................................................................................1

12 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

13 00-419317 Terminal - Stationary..................................................................................................................1

14 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

15 00-411500-00012 Transformer (40 Amp, 120 V.)....................................................................................................1

16 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

17 SC-125-46 Mach. Screw 8-32 x 1-1/4 Phil. Truss Hd. (SST).......................................................................4

18 00-855976-00001 Module - Ignition.........................................................................................................................1

19 00-855867-00001 Board - Control Universal (EBM)................................................................................................1

20 00-857060-00001 Standoff - Board.........................................................................................................................4

21 FE-024-94 Fuse - Time Delay (4.0 Amp.)....................................................................................................1

PART NO. NAME OF PART AMT.

1 00-855863-00001 Bracket - Ignition Module............................................................................................................1

2 00-844070-00001 Control - Low Water...................................................................................................................1

3 00-857112-00001 Controller - Temperature............................................................................................................1

4 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

5 00-416535-00004 Switch - Relay SPDT 24 V. Coil (Electronic Ignition).................................................................1

6 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

7 00-856677-00001 Block - Fuse (20 Amp., 300 V.)..................................................................................................1

8 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................1

9 00-855973-00001 Relay - Time Delay.....................................................................................................................1

- 13 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

ELECTRICAL COMPONENTS (TILTING)

F-35462 (May 2012) - 14 -

K SERIES GAS KETTLES REPLACEMENT PARTS

ELECTRICAL COMPONENTS (TILTING)

ILLUS.
PL-59796

PART NO. NAME OF PART AMT.

1 00-857060-00001 Standoff - Board.........................................................................................................................4

2 00-855867-00001 Board - Control Universal (EBM)................................................................................................1

3 00-416535-00004 Switch - Relay SPDT 24 V. Coil (Electronic Ignition).................................................................1

4 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

5 00-855973-00001 Relay - Time Delay.....................................................................................................................1

6 SC-125-46 Mach. Screw 8-32 x 1-1/4 Phil. Truss Hd. (SST).......................................................................1

7 SC-125-46 Mach. Screw 8-32 x 1-1/4 Phil. Truss Hd. (SST).......................................................................4

8 00-855976-00001 Module - Ignition.........................................................................................................................1

9 00-856954-00001 Bracket - Ignition Module............................................................................................................1

- 15 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

CONTROL PANEL AND ELECTRICAL COMPONENTS (TILTING)

F-35462 (May 2012) - 16 -

K SERIES GAS KETTLES REPLACEMENT PARTS

CONTROL PANEL AND ELECTRICAL COMPONENTS (TILTING)

ILLUS.
PL-59782

10 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

11 00-854707-00002 Block - Terminal (2-Pole)............................................................................................................1

12 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

13 00-856677-00001 Block - Fuse (20 Amp., 300 V.)..................................................................................................1

14 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................1

15 SC-120-23 Mach. Screw 10-24 x 3/8 Hex Hd...............................................................................................1

16 00-328479-00002 Nut - Insert..................................................................................................................................1

17 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

18 00-411500-00012 Transformer (40 Amp, 120 V.)....................................................................................................1

19 00-857112-00001 Controller - Temperature............................................................................................................1

20 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2

21 00-844070-00001 Control - Low Water...................................................................................................................1

22 00-856847-00001 Panel - Electrical........................................................................................................................1

23 NS-015-01 Nut 1/4-20 Hex (SST).................................................................................................................3

24 NS-047-28 Nut - Pal.....................................................................................................................................2

25 00-957916-00003 Nameplate - Small (Vulcan).......................................................................................................1

26 00-855889-00001 Overlay - Tilting Gas Kettles.......................................................................................................1

27 00-856218-00001 Flap - Tilt Handle Opening.........................................................................................................1

28 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................1

29 00-855969-00001 Light - Indicator (Red) (24 VAC).................................................................................................1

30 00-855797-00005 Switch Assy. (Power with Indicator Lights).................................................................................1

31 00-854647-00001 Knob - Control............................................................................................................................1

32 00-854693-00001 Shaft - Rotary Seal.....................................................................................................................1

33 NS-011-18 Nut 10-24 Hex (SST)..................................................................................................................1

34 00-856816-00001 Box - Control..............................................................................................................................1

35 00-857389-00001 Potentiometer.............................................................................................................................1

36 00-856119-00001 Bracket - Offset..........................................................................................................................1

37 NS-047-98 Lock Nut 8-32 Hex......................................................................................................................2

38 FE-024-94 Fuse - Time Delay (4.0 Amp.)....................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (SST).....................................................................................4

2 00-855902-00001 Bracket - Faucet.........................................................................................................................1

3 00-854766-00001 Nut - Speed 3 Type..................................................................................................................10

4 00-854763-00002 O-Ring........................................................................................................................................1

5 00-854761-00002 Relief - Strain 1/2 Electrical........................................................................................................1

6 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).......................................................................10

7 00-856210-00001 Lid Assy. - Control Box...............................................................................................................1

8 00-854762-00002 Lock Nut 1/2 Electrical................................................................................................................1

9 00-419317 Terminal - Stationary..................................................................................................................1

- 17 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

GAS HEAT COMPONENTS

F-35462 (May 2012) - 18 -

K SERIES GAS KETTLES REPLACEMENT PARTS

GAS HEAT COMPONENTS

ILLUS.
PL-59779

10 FP-013-14 Elbow - Pipe 1/2 x 45 Deg. (Stationary Kettles).........................................................................1

11 FP-035-91 Pipe 1/2 x 1-1/8 TBE (Stationary Kettles)...................................................................................1

12 00-855870-00001 Valve Assy. - Gas.......................................................................................................................1

13 00-855877-00001 Screw.........................................................................................................................................2

14 00-855868-00001 Blower Assy................................................................................................................................1

15 SC-123-01 Cap Screw 10-24 x 3/4 Hex Socket Hd. (SST)..........................................................................4

16 WL-006-07 Lockwasher #10 Helical (SST)...................................................................................................4

17 00-855649-00001 Gasket - Blower..........................................................................................................................1

18 00-855935-00001 Gasket - Spark Ignitor................................................................................................................1

19 00-855843-00001 Ignitor - Spark.............................................................................................................................1

20 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................2

21 FP-091-19 Fitting - Tube (1 In.) (Brass).......................................................................................................1

22 00-856055-00001 Tube - Gas Supply (ML-136090)................................................................................................1

23 00-856054-00001 Tube - Gas Supply (ML-136091)................................................................................................1

24 00-856065-00001 Tube - Gas Supply (ML-136092)................................................................................................1

25 00-856375-00001 Tube - Gas Supply (ML-136094)................................................................................................1

26 00-856253-00001 Tube - Gas Supply (ML-136095)................................................................................................1

27 00-856289-00001 Tube - Gas Supply (ML-136096)................................................................................................1

28 FP-091-19 Fitting - Tube (1 In.) (Brass).......................................................................................................1

29 FP-013-27 Elbow - Pipe 1 x 90 Deg.............................................................................................................1

30 NS-038-04 Lock Nut 1/4-20..........................................................................................................................2

31 00-855980-00001 Cover - Combustion Chamber....................................................................................................1

32 00-855950-00001 Insulation....................................................................................................................................1

33 00-855826-00001 Burner - Flat...............................................................................................................................1

34 NS-038-10 Lock Nut 3/8-16 Hex...................................................................................................................6

35 00-856102-00001 Seal Ring....................................................................................................................................1

36 00-855914-00001 Ring - Floating Seal....................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-856941-00001 Manifold - Burner........................................................................................................................1

2 00-855869-00001 Plate...........................................................................................................................................1

3 00-855873-00001 Plate...........................................................................................................................................1

4 00-855878-00001 Screw.........................................................................................................................................3

5 FP-035-91 Pipe 1/2 x 1-1/8 TBE (Tilting Kettles).........................................................................................1

6 FP-013-15 Elbow - Pipe 1/2 x 90 Deg. (Tilting Kettles)................................................................................1

7 FP-035-91 Pipe 1/2 x 1-1/8 TBE (Stationary Kettles)...................................................................................1

8 FP-013-15 Elbow - Pipe 1/2 x 90 Deg. (Stationary Kettles).........................................................................1

9 FP-059-63 Pipe 1/2 x 6 TBE (Stationary Kettles).........................................................................................1

- 19 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

TILTING COMPONENTS

F-35462 (May 2012) - 20 -

K SERIES GAS KETTLES REPLACEMENT PARTS

TILTING COMPONENTS

ILLUS.
PL-59783

10 NS-038-01 Lock Nut 6-32 Flange.................................................................................................................2

11 00-411496-000F1 Switch - Micro.............................................................................................................................1

12 00-856843-00001 Bracket - Limit Switch.................................................................................................................1

13 SC-022-33 Mach. Screw 1/4-20 x 3/4 Slotted Flat Hd. (SST)......................................................................1

14 00-856858-00001 Clamp - Positve Stop..................................................................................................................1

15 NS-038-04 Lock Nut 1/4-20..........................................................................................................................1

16 KW-003-07 Key - Woodruff 3/16 x 5/8...........................................................................................................1

17 RP-003-36 Pin - Roll.....................................................................................................................................2

18 00-856184-00002 Gear - Reducer (80:1)................................................................................................................1

19 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1

20 FP-013-15 Elbow - Pipe 1/2 x 90 Deg..........................................................................................................1

21 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1

22 00-856004-00001 Valve - Shut-Off..........................................................................................................................1

23 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1

24 FP-013-15 Elbow - Pipe 1/2 x 90 Deg..........................................................................................................1

25 00-856838-00001 Fitting 1/2 Swivel........................................................................................................................1

26 SC-082-45 Bolt 1/2-13 x 1-1/2 Sq. Neck Rd. Hd. (SST)...............................................................................4

27 NS-015-20 Nut 1/2-13 Hex (SST).................................................................................................................4

28 00-854652-00002 Shaft - Crank Handle..................................................................................................................1

29 00-854651-00001 Handle - Crank...........................................................................................................................1

30 RP-002-46 Pin - Roll.....................................................................................................................................2

31 FP-042-41 Pipe 3/4 x 14-7/8 TBE (Brass)....................................................................................................1

32 FP-013-20 Elbow 3/4 x 45 Deg....................................................................................................................1

33 00-854649-00001 Detent - Ball................................................................................................................................1

34 NS-011-18 Nut 10-24 Hex (SST)..................................................................................................................1

35 00-854644-00002 Extension - Shaft Reducer.........................................................................................................1

PART NO. NAME OF PART AMT.

1 00-856856-00001 Shaft - Positive Stop...................................................................................................................1

2 00-857295-00001 Bearing 1/2 (Bronze)..................................................................................................................1

3 00-856854-00001 Plate - Positive Stop...................................................................................................................1

4 SC-041-30 Cap Screw 3/8-16 x 1 Hex Hd. (SST)........................................................................................4

5 00-856855-00001 Traveller - Positve Stop..............................................................................................................1

6 SC-130-09 Shoulder Screw 3/8 Dia. 5/16-18 x 2 Hex Socket Hd.................................................................1

7 NS-049-30 Jam Nut 1/2-20 Hex...................................................................................................................2

8 SC-119-51 Mach. Screw 6-32 x 1 Slotted Pan Hd. (SST)............................................................................2

9 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................2

00-854650-00002 Handle Assy. (Incls. Items 28, 29, & 30)....................................................................................1

00-856857-00001 Positive Stop Assy. (Incls. Items 1 thru 16)................................................................................1

- 21 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

LID AND HANDLE ASSEMBLY

F-35462 (May 2012) - 22 -

K SERIES GAS KETTLES REPLACEMENT PARTS

LID AND HANDLE ASSEMBLY

ILLUS.
PL-59776

10 00-856511-00001 Handle Assy. (ML-136091).........................................................................................................1

11 00-856514-00001 Handle Assy. (ML-136092).........................................................................................................1

12 00-855880-00001 Handle Assy. (ML-136094).........................................................................................................1

13 00-855886-00001 Handle Assy. (ML-136095).........................................................................................................1

14 00-856287-00001 Handle Assy. (ML-136096).........................................................................................................1

15 RP-004-31 Roll Pin 1/4 x 1...........................................................................................................................1

16 00-853568-00001 Nut - Kettle Cover.......................................................................................................................1

17 00-853567-00001 Rocker - Kettle Cover.................................................................................................................1

18 00-853285-00001 Knob - Press On.........................................................................................................................1

19 00-856490-00002 Lid Assy. (ML-136090) (Incls. Items 16 & 17)............................................................................1

20 00-856495-00002 Lid Assy. (ML-136091) (Incls. Items 16 & 17)............................................................................1

21 00-856500-00002 Lid Assy. (ML-136092) (Incls. Items 16 & 17)............................................................................1

22 00-856490-00005 Lid Assy. (ML-136094) (Incls. Items 16 & 17)............................................................................1

23 00-856495-00004 Lid Assy. (ML-136095) (Incls. Items 16 & 17)............................................................................1

24 00-856500-00004 Lid Assy. (ML-136096) (Incls. Items 16 & 17)............................................................................1

PART NO. NAME OF PART AMT.

1 SC-110-98 Cap Screw 1/4-20 x 3/4 Hex Socket Hd. (SST).........................................................................4

2 00-853284-00001 Pin - Lock...................................................................................................................................1

3 00-853286-00001 Plate - Front................................................................................................................................1

4 00-853292-00001 Disc - Tension Adjustment.........................................................................................................1

5 00-853289-00001 Spring - Torsion..........................................................................................................................1

6 00-853293-00001 Disc - Rotary Stop......................................................................................................................1

7 00-855220-00002 Plate - Rear (Incls. Item 8).........................................................................................................1

8 00-855221-00001 Pin - Stop....................................................................................................................................1

9 00-856507-00001 Handle Assy. (ML-136090).........................................................................................................1

- 23 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

KETTLE EXTERIOR

F-35462 (May 2012) - 24 -

KETTLE EXTERIOR

K SERIES GAS KETTLES REPLACEMENT PARTS

ILLUS.
PL-59780

10 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................4

11 00-856200-00001 Shield - Flue...............................................................................................................................1

12 00-855833-00001 Flue Assy. (Incls. Items 10 & 11)................................................................................................1

13 FP-012-10 Fitting - Tube 1/4 (Brass)............................................................................................................1

14 00-856045-00001 Switch - Pressure.......................................................................................................................1

15 FP-027-06 Bushing - Pipe 1/2 To 1/8 (Brass)..............................................................................................1

16 00-855856-00001 Probe - Water Level...................................................................................................................1

17 00-856042-00001 Sensor - Temperature................................................................................................................1

18 FP-027-06 Bushing - Pipe 1/2 To 1/8 (Brass)..............................................................................................1

19 00-856966-00001 Cover - Bottom (ML-136090)......................................................................................................1

20 00-857155-00001 Cover - Bottom (ML-136091)......................................................................................................1

21 00-856988-00001 Cover - Bottom (ML-136092)......................................................................................................1

22 00-856977-00003 Leg - Adjustable (With Flange Foot) (Stationary Kettles Only)...................................................3

23 00-856314-00001 Cover - Leg (ML-136090)...........................................................................................................3

24 00-856128-00001 Cover - Leg (ML-136091)...........................................................................................................3

25 00-856251-00001 Cover - Leg (ML-136092)...........................................................................................................3

26 FP-040-03 Pipe 1/8 x 1-3/8 TBE (Brass) (Tilting Kettles Only)....................................................................1

27 FP-012-16 Fitting - Tube (1/4) (Tilting Kettles Only)....................................................................................2

28 FP-019-02 Tee - Pipe 1/8 x 1/8 x 1/8 (Tilting Kettles Only)..........................................................................1

PART NO. NAME OF PART AMT.

1 00-855882-00001 Glass - Level Sight.....................................................................................................................1

2 FP-054-08 Pipe 1/2 x 1-1/8 TBE (SST)........................................................................................................1

3 00-833648-00002 Valve - Swing Check (Brass)......................................................................................................1

4 FP-054-08 Pipe 1/2 x 1-1/8 TBE (SST)........................................................................................................1

5 00-833501 Valve 1/2 Angle..........................................................................................................................1

6 FP-040-50 Pipe 1/2 x 2 TBE (Brass)............................................................................................................1

7 FP-015-16 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1

8 00-855968-00001 Valve - Relief (50 PSI)................................................................................................................1

9 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1

00-855963-00001 Fill Assy. (Incls. Items 2 thru 5)..................................................................................................1

00-856918-00001 Cover - Bottom (ML-136094)......................................................................................................1

00-856953-00001 Cover - Bottom (ML-136095)......................................................................................................1

00-856846-00001 Cover - Bottom (ML-136096)......................................................................................................1

- 25 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

PANELS (STATIONARY)

F-35462 (May 2012) - 26 -

K SERIES GAS KETTLES REPLACEMENT PARTS

PANELS (STATIONARY)

ILLUS.
PL-59781

10 00-855939-00001 Panel - Bottom (ML-136090)......................................................................................................1

11 00-855860-00001 Panel - Bottom (ML-136091)......................................................................................................1

12 00-855918-00001 Panel - Bottom (ML-136092)......................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................9

2 00-856313-00001 Panel - Rear (ML-136090)..........................................................................................................1

3 00-856047-00001 Panel - Rear (ML-136091)..........................................................................................................1

4 00-855979-00001 Panel - Rear (ML-136092)..........................................................................................................1

5 00-856206-00001 Bracket - Faucet.........................................................................................................................1

6 00-856312-00001 Panel - Side (ML-136090)..........................................................................................................1

7 00-856044-00001 Panel - Side (ML-136091)..........................................................................................................1

8 00-855987-00001 Panel - Side (ML-136092)..........................................................................................................1

9 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................6

- 27 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

PANELS AND FRAME (TILTING)

F-35462 (May 2012) - 28 -

K SERIES GAS KETTLES REPLACEMENT PARTS

PANELS AND FRAME (TILTING)

ILLUS.
PL-59784

10 00-856132-00001 Panel - Side (ML-136096)..........................................................................................................1

11 00-856912-00001 Panel - Bottom (ML-136094)......................................................................................................1

12 00-857153-00001 Panel - Bottom (ML-136095)......................................................................................................1

13 00-856986-00001 Panel - Bottom (ML-136096)......................................................................................................1

14 00-856892-00001 Frame Assy. (ML-136094)..........................................................................................................1

15 00-856929-00001 Frame Assy. (ML-136095)..........................................................................................................1

16 00-856801-00001 Frame Assy. (ML-136096)..........................................................................................................1

17 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. (SST)......................................................................3

18 00-856083-00001 Gauge - Pressure (Panel Mount)...............................................................................................1

19 00-856178-00002 Casting - Pivot............................................................................................................................1

20 00-856180-00001 Bushing......................................................................................................................................1

21 00-856182-00001 Washer - Retainer......................................................................................................................1

22 SC-041-30 Cap Screw 3/8-16 x 1 Hex Hd. (SST)........................................................................................1

23 00-856510-00001 Bracket - Lid Support..................................................................................................................1

24 SC-047-12 Set Screw 1/4-20 x 3/8 Soc. Hdls., Knife Cup Pt.......................................................................4

25 00-856311 Mast - Lid Support......................................................................................................................1

26 SC-047-43 Set Screw 3/8-16 x 1/2 Hex Hdls., Knife Cup Pt........................................................................4

27 00-855989-00001 Seal - Shaft.................................................................................................................................1

28 SD-009-41 Self-Tapping Screw 8-32 x 3/8 Phil. Pan Hd., Type F (SST)..................................................AR

PART NO. NAME OF PART AMT.

1 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST)......................................................................AR

2 00-856368-00001 Panel - Rear (ML-136094)..........................................................................................................1

3 00-856943-00001 Panel - Rear (ML-136095)..........................................................................................................1

4 00-856130-00001 Panel - Rear (ML-136096)..........................................................................................................1

5 00-856369-00001 Panel - Corner (ML-136094)......................................................................................................1

6 00-856219-00001 Panel - Corner (ML-136095)......................................................................................................1

7 00-856129-00001 Panel - Corner (ML-136096)......................................................................................................1

8 00-856373-00001 Panel - Side (ML-136094)..........................................................................................................1

9 00-856252-00001 Panel - Side (ML-136095)..........................................................................................................1

00-856183-00001 Pivot Assy. (Incls. Items 19, 20, & 26)........................................................................................1

00-855882-00001 Glass - Level Sight.....................................................................................................................1

00-851318-00001 Flex Line.....................................................................................................................................1

- 29 - F-35462 (May 2012)

K SERIES GAS KETTLES REPLACEMENT PARTS

FORM 35462 MAY 2012 PRINTED IN U.S.A.
