Vulcan Hart HCB2T PARTS LIST

Download

REPLACEMENT PARTS

HEAVY DUTY GAS BROILERS

CERAMIC BROILERS

MODELS MLS

GHCB40C ML-52212 GHCB40 ML-52211 GHCB44 ML-52213 GHMCB44 ML-52214 HCB1 ML-52202 HCB2T ML-52203

HCB2B ML-52208

CATALOG OF

SUNGLOW BROILERS

MODELS MLS IR1 ML-52200

IR2T ML-52207 IR2B ML-52201 GHIR44 ML-52210

For additional information on Vulcan-Hart or to locate an authorized

parts and service provider in your area, visit our website at www.vulcanhart.com

VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC

WWW.VULCANHART.COM

MODEL GHCB40 SHOWN

P.O. BOX 696, LOUISVILLE, KY 40201-0696

TEL. (800) 814-2028

FORM 30907 Rev A(12-06)

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - FRONT VIEW IR1

PL-40422-1A

- 2 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - FRONT VIEW IR1

ILLUS. PL-40422-1A PART NO. DESCRIPTION QTY.

1 00-407727-00005 Burner Knob (On-Off) ................................................................................................................... 2

2 00-414269-00001 Burner Knob Cover Plate.............................................................................................................. 1

3 00-407785-00002 Grid Arm Handle ........................................................................................................................... 1

4 00-413609-00001 Grid Arm Cover Index Plate .......................................................................................................... 1

5 00-404549-00005 Right Grid Post............................................................................................................................. 1

6 00-404549-00006 Left Grid Post ............................................................................................................................... 1

7 00-404647-00001 Grid Handle .................................................................................................................................. 1

8 00-411144-000G2 Burner Shield Cover (Top) ............................................................................................................ 1

9 00-413383-000G2 Legs (SST)................................................................................................................................... 4

10 00-408161-00001 Grease Collector Front ................................................................................................................. 1

1 1 00-417700-00001 Vulcan Nameplate ........................................................................................................................ 1

12 00-410834-000G2 Deflector Assy.............................................................................................................................. 1

13 00-409033-000G2 Lock Panel ................................................................................................................................... 1

14 00-409030-000G4 Blower Cover Assembly ............................................................................................................... 1

00-411040-000G1 Drip Tray Assembly ...................................................................................................................... 1

00-407673-000G1 Grease Collector .......................................................................................................................... 1

00-414639-00001 I.D. TAB “R”................................................................................................................... ............... 1

00-414639-00002 I.D. TAB “L” .................................................................................................................................. 1

00-412681-00001 Adjustable Foot ............................................................................................................................ 4

- 3 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - FRONT VIEW IR2

- 4 -

PL-40423-1

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - FRONT VIEW IR2

ILLUS. PL-40423-1 PART NO. DESCRIPTION QTY.

1 00-407727-00005 Burner Knob (On-Off) ................................................................................................................... 4

2 00-414269-00001 Burner Knob Cover Plate.............................................................................................................. 2

3 00-407785-00002 Grid Arm Handle ........................................................................................................................... 1

4 00-413609-00001 Grid Arm Cover Index Plate .......................................................................................................... 2

5 00-404549-00005 Right Grid Post............................................................................................................................. 1

6 00-404549-00006 Left Grid Post ............................................................................................................................... 1

7 00-408161-00001 Grease Collector Front ................................................................................................................. 1

8 00-411144-000G2 Burner Shield Cover (Top) ............................................................................................................ 1

9 00-409840-00006 Legs (SST)................................................................................................................................... 4

10 00-410834-000G2 Deflector Assembly ...................................................................................................................... 1

1 1 00-404647-00001 Grid Handle .................................................................................................................................. 1

12 00-417700-00001 Vulcan Nameplate ........................................................................................................................ 1

13 00-411144-000G4 Burner Shield Cover (Bottom) ...................................................................................................... 1

14 00-409033-000G2 Lock Panel ................................................................................................................................... 1

15 00-409030-000G4 Blower Cover Assembly ............................................................................................................... 1

00-411040-000G1 Drip Tray Assembly ...................................................................................................................... 1

00-407673-000G1 Grease Collector Assembly .......................................................................................................... 1

00-414639-00001 I.D. Knob T ab “R” (New style not shown) ...................................................................................... 2

00-414639-00002 I.D. Knob T ab “L” (New style not shown)....................................................................................... 2

- 5 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

22-23

18 19

PARTS - FRONT VIEW GHCB40

- 6 -

PL-40424-1

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - FRONT VIEW GHCB40 / GHCB40C

ILLUS. PL-40424-1 DESCRIPTION PART NO. QTY.

1 00-420560-00001 Burner Valve Knob........................................................................................................................ 2

2 00-404647-00001 Grid Handle .................................................................................................................................. 1

3 00-407785-00002 Grid Arm Handle (Old style shown) ............................................................................................... 1

4 00-413609-00002 Grid Arm Cover/Index Plate (SS).................................................................................................. 1

5 00-404549-00005 Right Grid Post............................................................................................................................. 1

6 00-404549-00006 Left Grid Post ............................................................................................................................... 1

7 00-409776-000G2 Manifold Cover Assembly (SS) ....................................................................................................1

8 00-405488-000G2 Augratin Oven Door Assembly .....................................................................................................1

9 00-409840-00006 (Adj.) Legs (SS)............................................................................................................................ 4

10 00-409790-00003 Right Oven Door Post .................................................................................................................. 1

1 1 00-409790-00004 Left Oven Door Post .................................................................................................................... 1

12 00-417700-00001 Vulcan Nameplate ........................................................................................................................ 2

13 00-401847-00001 Oven Door Handle........................................................................................................................ 1

14 00-405499-00002 Lower Burner Cover (SS) ............................................................................................................. 1

15 00-409793-00001 Oven Handle (Lower).................................................................................................................... 1

16 00-404549-00001 Right Door Post ........................................................................................................................... 1

17 00-404549-00002 Left Door Post ............................................................................................................................. 1

18 00-420774-00001 Control Panel-GHCB40 (Used Until Oct. 2004) ............................................................................ 1

19 00-420784-00001 Control Panel-GHCB40C (Used Until Oct. 2004).......................................................................... 1

20 00-402957-00002 Valve Handle (Red)....................................................................................................................... 1

21 00-420775-000G1 Lower Front Panel ........................................................................................................................ 1

22 00-409791-000G2 Oven Door Assembly (S td Oven).................................................................................................. 1

23 00-409791-000G4 Oven Door Assembly (Convection Oven)..................................................................................... 1

24 00-409873-00001 Grease Collector Front ................................................................................................................. 1

00-417862-00009 Hinge Pin for Oven Door (RH or LH on Std Oven) (LH on Convection Oven) ............................. AR

00-497549-00001 Hinge Pin (RH on Convection Oven Door) ................................................................................... 1

00-404629-00002 Door Bushing ............................................................................................................................... 2

00-497126-00001 Control Panel (GHCB40) (Oct. 2004 to Present) .......................................................................... 1

00-497126-00002 Control Panel (GHCB40C) (Oct. 2004 to Present)........................................................................ 1

(SS) Stainless S teel Photo shows old style grid handle assembly .

- 7 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

FRONT VIEW IR44

PARTS - FRONT VIEW GHIR44

- 8 -

9-10

PL-40425-1

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - FRONT VIEW GHIR44

ILLUS. PL-40425-1 PART NO. DESCRIPTION QTY.

1 00-407727-00004 Burner Valve Knob Hi-Med-Lo...................................................................................................... 2

2 00-414878-000G2 Flue Riser ..................................................................................................................................... 1

3 00-407785-00002 Grid Arm Handle ........................................................................................................................... 1

4 00-413609-00002 Grid Arm Cover/Index Plate (SS).................................................................................................. 1

5 00-404549-00005 Right Grid Post............................................................................................................................. 1

6 00-404549-00006 Left Grid Post ............................................................................................................................... 1

7 00-412945-000G3 Left Hand Door Panel Assembly (SS) .......................................................................................... 1

8 00-412945-000G4 Rt. Hd. Door Panel Assembly (SS)............................................................................................... 1

9 00-409840-00005 Adjustable Leg (Flanged Foot)...................................................................................................... 4

10 00-409840-00006 Adjustable Leg (SS) (Bullet Foot).................................................................................................. 4

1 1 00-409653-00006 Manifold Cover Assembly (SS) ....................................................................................................1

12 00-417700-00001 Vulcan Nameplate ........................................................................................................................ 1

13 00-408246-00001 Grid Handle .................................................................................................................................. 1

14 00-405488-000G2 Augratin Oven Door Assembly .....................................................................................................1

15 00-404549-00001 Right Oven Door Post .................................................................................................................. 1

16 00-404549-00002 Left Oven Door Post .................................................................................................................... 1

17 00-401847-00001 Door Handle................................................................................................................................. 1

18 00-405499-00002 Burner Box Cover......................................................................................................................... 1

19 00-41 1496-000E4 Pilot Light ..................................................................................................................................... 1

20 00-417812-00001 Toggle Switch ............................................................................................................................... 1

21 00-408615-00021 Cabinet Door Handle.................................................................................................................... 2

00-411040-000G1 Drip Tray Assembly ...................................................................................................................... 1

00-412942-00001 Lt. Door Panel Lining .................................................................................................................... 1

00-412942-00002 Rt. Door Panel Lining ................................................................................................................... 1

00-414639-00001 I.D. T ab “R”................................................................................................................................... 1

00-414639-00002 I.D. TAB “L” .................................................................................................................................. 1

00-405651-00001 Hinge Pin (Augratin Door) ............................................................................................................ 1

00-404629-00002 Door Bushing (Augratin Door) ...................................................................................................... 1

00-405886-000G2 Door Hinge (LH) (Augratin Door).................................................................................................. 1

00-405886-000G1 Door Hinge (RH) (Augratin Door) .................................................................................................1

(SS) Stainless S teel

- 9 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

9-10

PL-40426-1

PARTS - FRONT VIEW GHCB44

- 10 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - FRONT VIEW GHCB44

ILLUS. PL-40426-1 PART NO. DESCRIPTION QTY.

1 00-402957-00002 Burner Valve Knob........................................................................................................................ 2

2 00-408246-00001 Grid Handle .................................................................................................................................. 1

3 00-407785-00002 Grid Arm Handle (Old style shown) ............................................................................................... 1

4 00-413609-00002 Grid Arm Cover/Index Plate (SS).................................................................................................. 1

5 00-404549-00005 Right Grid Post............................................................................................................................. 1

6 00-404549-00006 Left Grid Post ............................................................................................................................... 1

7 00-412945-000G1 Door Panel Assembly , Left ........................................................................................................... 1

8 00-412945-000G2 Door Panel Assembly , Right......................................................................................................... 1

9 00-409840-00005 Adj. Leg (Flanged Foot) ................................................................................................................ 4

10 00-409840-00006 Adj. Leg (SS) (Bullet Foot)............................................................................................................ 4

1 1 00-409776-000G2 Manifold Cover Assembly (SS) ....................................................................................................1

12 00-405488-000G2 Augratin Oven Door Assembly .....................................................................................................1

13 00-404549-00001 Right Oven Door Post .................................................................................................................. 1

14 00-404549-00002 Left Oven Door Post .................................................................................................................... 1

15 00-401847-00001 Oven Door Handle........................................................................................................................ 1

16 00-405499-00002 Lower Burner Cover (SS) ............................................................................................................. 1

17 00-408615-00021 Door Handle ................................................................................................................................. 2

00-412942-00001 Left Door Liner ............................................................................................................................. 1

00-412942-00003 Left Door Liner (SS) ..................................................................................................................... 1

00-412942-00002 Right Door Liner ........................................................................................................................... 1

00-412942-00004 Right Door Liner (SS) ................................................................................................................... 1

00-405651-00001 Hinge Pin (Augratin Door) ............................................................................................................ 1

00-404629-00002 Door Bushing (Augratin Door) ...................................................................................................... 1

00-405886-000G2 Door Hinge (LH) (Augratin Door).................................................................................................. 1

00-405886-000G1 Door Hinge (RH) (Augratin Door) .................................................................................................1

(SS) Stainless S teel Photo shows old style grid handle assembly .

- 11 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

CB - 2L

FRONT VIEW HCB2

PARTS - FRONT VIEW HCB2

- 12 -

9-10

PL-40427-1

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - FRONT VIEW HCB2

ILLUS. PART NO. DESCRIPTION QTY. PL-40427-1 HCB1 HCB2

1 00-407727-00005 Burner Knob (On-Off) ............................................................................... 2 ............................. 4

2 00-414269-00001 Burner Knob Cover Plate.......................................................................... 1 ............................. 2

3 00-408246-00001 Grid Handle ............................................................................................ 1 ............................. 2

4 00-413609-00001 Grid Arm Cover Index Plate...................................................................... 1 ............................. 2

5 00-404549-00005 Right Grid Handle Post............................................................................. 1 ............................. 2

6 00-404549-00006 Left Grid Handle Post ............................................................................... 1 ............................. 2

7 00-408161-00001 Grease Collector Front .............................................................................1 ............................. 2

8 00-408132-000G6 Burner Shield Cover (T op) ........................................................................ 1 ............................. 1

9 00-413383-000G1 Adj. Legs ............................................................................................ 4 .............................

10 00-413383-000G2 Adj. Legs (SS) ..........................................................................................4 .............................

1 1 00-411040-000G1 Drip Tray Assembly .................................................................................. 1 ............................. 1

12 00-417700-00001 Vulcan Nameplate .................................................................................... 1 ............................. 1

13 00-408132-000G4 Burner Shield Cover (Bottom) ................................................................................................... 1

14 00-414639-00002 I.D. Knob T ab “L” (Old style shown) ..........................................................1 ............................. 2

15 00-414639-00001 I.D. Knob T ab “R” (Old style shown)..........................................................1 ............................. 2

16 00-410834-000G2 Deflector Assy . ......................................................................................... 1 ............................. 1

17 00-407785-00002 Grid Arm Handle ....................................................................................... 1 ............................. 1

00-409840-00005 Adj. Legs ............................................................................................................................. 4

00-409840-00006 Adj. Legs (SS) ................................................................................................................. .......... 4

00-407673-000G1 Grease Collector Assembly...................................................................... 1 ............................. 1

(SS) Stainless S teel Front View GHCB1 Not Shown.

- 13 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40428-1

PARTS - REAR VIEW IR1, IR2, GHIR44

ILLUS. PART NO. NAME OF PART QTY. PL-40428-1 IR1 IR2 GHIR44 HCB1 HCB2

1 00-408987-000G1 Body Back (Cabinet) ....................................................... 1 ............1 .................................................

2 FP-085-88 Inlet Pipe ................................................................... 1 ............ 1 .................................................

3 00-405016-00001 Elec. Supply Cord............................................................ 1............1 ............. 1 ................................

4 00-408647-00001 Elec. Cover Plate ............................................................ 1 ............1 ............. 1 ................................

5 00-409896-00001 Body Back .................................................................................................... 1 ................................

00-408987-000G3 Body Back (Cabinet) ........................................................................................................ 1................

00-408214-000G1 Body Back (Cabinet) ........................................................................................................................... 1

FP-085-97 Inlet Pipe .................................................................................................................... 1 ............... 1

00-408210-00003 Body Back (Upper)..........................................................................1 ................................................ 1

00-405407-00003 Body Back (Upper)........................................................................................... 1 ................................

00-408210-00001 Body Back (Lower).......................................................... 1 ............1 ............................. 1............... 1

00-409158-00001 Body Back (Lower)........................................................................................... 1 ................................

- 14 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

2 3 4

7 thru 10

15-16

19 18

PL-40429-1

PARTS - FRONT VIEW FRAME REMOVED IR1 & IR2

ILLUS. PART NO. DESCRIPTION QTY. PL-40429-1 IR1 IR2

1 00-415095-000G1 Front Burner Shield Assembly................................................................... 1 ............................. 2

2 FP-012-49 Fitting 1/2 CC to 1/2 MPT............................................................................ 2 ............................. 4

3 00-414861-00001 Burner Sub-Manifold (Prior to July 2004).................................................. 2 ............................. 4

4 00-415133-00001 Right Hand Burner Tube ...........................................................................1 ............................. 2

5 00-415134-00001 Left Hand Burner Tube ............................................................................. 1 ............................. 2

6 FP-035-01 Close Nipple 1/8" .......................................................................................4 ............................. 8

7 00-405643-0000F Pilot Elbow Burner ....................................................................................4 ............................. 8

8 00-010901-00044 Orifice Spud (NA T.) .................................................................................. 4 ............................. 8

9 00-010901-00055 Orifice Spud (PROP ANE).........................................................................4 ............................. 8

10 00-010901-00056 Orifice Spud (BUT ANE)............................................................................ 4 ............................. 8

1 1 00-415089-00001 Air Transition Box .....................................................................................1 ............................. 1

12 00-409759-00002 Pressure Switch Tubing ............................................................................1 ............................. 1

13 00-413552-00004 Blower Motor ........................................................................................... 1 ............................. 1

14 00-428578-000G1 Solenoid ............................................................................................ 1 ............................. 1

15 00-408279-00020 Regulator (NAT.).......................................................................................1 ............................. 1

16 00-408279-00021 Regulator (PROPANE & BUTANE).......................................................... 1 ............................. 1

17 00-409033-000G2 Lock Panel ............................................................................................ 1 ............................. 1

18 00-417812-00001 Toggle Switch ...........................................................................................1 ............................. 1

19 00-411496-000E4 Signal Light ............................................................................................ 1 ............................. 1

20 00-415300-000G1 Air Transition Box ..................................................................................... 1 .............................

00-415299-000G1 Air Transition Box ...................................................................................................................... 2

00-415807-00001 Pilot Shield ............................................................................................4 ............................. 8

00-497022-00001 Burner Sub-Manifold (July 2004 to Present) ............................................. 1 ............................. 1

- 15 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

1-2-3

PL-40430-1

PARTS - FRONT VIEW FRAME REMOVED HCB2

ILLUS. PART NO. DESCRIPTION QTY. PL-40430-1 HCB1 HCB2

1 00-010901-00042 Pilot Burner Orifice (NA T .) ........................................................................4 ............................. 8

2 00-010901-00053 Pilot Burner Orifice (PROP ANE) .............................................................. 2 ............................. 4

3 00-405643-0000F Elbow Nozzle ........................................................................................... AR .......................... AR

4 00-41 1463-000G1 Pilot Manifold Assembly ........................................................................... 1 .............................2

5 00-413607-000G1 Grid Arm Lifting Assembly ........................................................................ 1 ............................. 2

6 00-408770-000G1 Upper Lever Arm Assembly...................................................................... 1 ............................. 2

7 00-408774-000G1 Lower Lever Arm Assembly ...................................................................... 1 ............................. 2

8 00-497762-000G1 Grid Carriage Assembly ........................................................................... 1 ............................. 2

9 00-405655-00003 Roller Bearing With Shaft ......................................................................... 2 .............................4

10 00-408078-00001 Rt. Hd. Burner Tubing ............................................................................... 1 ............................. 2

1 1 00-408328-00001 Rt. Burner Tubing Valve to Double CC Fitting ...........................................1 ............................. 1

12 00-408329-00001 Lt. Burner Tubing Fitting to Valve ..............................................................1 ............................. 1

13 00-407789-00001 Burner Valve ............................................................................................ 2 ............................. 4

14 00-408076-000G1 Sub - Manifold Assembly..........................................................................1 ............................. 2

15 00-407724-00001 Spring Lifting Arm (Inner) .......................................................................... 2 ............................. 4

16 00-401992-00002 Spring Lifting Arm (Outer) .........................................................................2 .............................4

17 FP-012-01 Fitting 3/8" to 1/2" CC ..................................................................................2 ............................. 4

18 FP-016-02 Elbow Street 1/2" x 3/8" ............................................................................... 2 ............................. 4

19 FP-012-49 Fitting Straight 1/2" x 1/2" CC.......................................................................2 ............................. 4

20 FP-077-36 Fitting Straight Double 1/2" CC................................................................... 2 ............................. 4

21 FP-012-21 Elbow 1/8" NPS x 1/4" CC........................................................................... 1 ............................. 2

22 00-426505-00014 Pilot Tube V alve to CC Elbow .................................................................. 1 .............................

23 00-408199-000G1 1" Manifold Pipe....................................................................................... 1 ............................. 2

24 FP-079-97 Elbow Reducing 1" x 3/4" ...........................................................................2 ............................. 4

00-415229-00001 Pilot Tube V alve to CC Elbow ................................................................................................... 2

00-405655-00001 Roller Bearing Without Shaft .................................................................... 2 ............................. 4

- 16 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40431-1

PARTS - GRID ASSEMBLY HCB2

ILLUS. PART NO. DESCRIPTION QTY. PL-40431-1 HCB1 HCB2 GHCB40 GHCB44

1 00-417074-000G1 Grid Final Assembly......................................................................................1 ........ 2 ..........1........... 1

2 00-411551-000G1 Burner Assembly .......................................................................................... 4 ........ 8 ..........4........... 4

3 00-404146-00001 Burner Side Ceramics .................................................................................. 8 ........ 16........8........... 8

4 00-404145-00001 Burner Center Ceramics ............................................................................... 12 ...... 24 .......12......... 12

5 SC-036-08 Grid Stop Bolt Hex Head 1/4" x 1 1/4" ............................................................. 3 ........ 6..........3........... 3

6 00-497762-000G1 Grid Carriage................................................................................................ 1 ........ 2..........1........... 1

00-4081 11-00002 Drip Shield Rod ............................................................................................ 1 ........ 2 ..........1........... 1

00-413607-000G1 Lifting Arm Assembly .................................................................................... 1 ........ 2 .........................

00-413612-000G1 Lifting Arm Assembly ..............................................................................................................1 ........... 1

00-416844-00001 Front Cooking Grate..................................................................................... 1 ........ 2..........1........... 1

00-416845-00001 Rear Cooking Grate ..................................................................................... 1 ........ 2..........1........... 1

00-408726-000G2 Ceramic Set (8 Sides & 12 Centers) ............................................................ 1 ........ 2 ..........1........... 1

00-408244-000G2 Brick Support (Left Side) .............................................................................. 1 ........ 2 ..........1........... 1

00-408244-000G1 Brick Support (Right Side) ............................................................................1 ........ 2 ..........1........... 1

- 17 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40432-1

PARTS - UPPER MANIFOLD ASSEMBLY GHCB40

ILLUS. PL-40432-1 PART NO. DESCRIPTION QTY.

1 00-404738-00003 Pilot V alve .................................................................................................................................... 4

2 00-409873-00001 Grease Collector Front Panel (SS) ...............................................................................................1

3 00-409899-000G1 Grease Collector Assembly.......................................................................................................... 1

4 00-408379-00003 Burner Valve ................................................................................................................................. 2

5 00-408079-00001 Burner Valve Tube, Rt................................................................................................................... 1

6 00-408079-00002 Burner Valve Tube, Lt. .................................................................................................................. 1

7 00-41 1696-00001 Pilot Supply Tube ......................................................................................................................... 1

(SS) Stainless S teel

00-010901-00032 Orifice Spud Nat. Gas (Ceramic Burner)....................................................................................... 4

00-010901-00053 Orifice Spud Propane Gas (Ceramic Burner)................................................................................ 4

00-010901-00054 Orifice Spud Butane Gas (Ceramic Burner) .................................................................................. 4

00-405643-0000F Elbow Nozzle (Ceramic Burner) ...................................................................................................4

00-411469-00002 Pilot Lighter Tube (Ceramic Burner).............................................................................................. 4

00-408485-00080 Nozzle (Nat. Gas)......................................................................................................................... 4

00-408485-00010 Nozzle (LP or MFG Gas) ............................................................................................................. 4

- 18 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

3-4

PARTS - GHIR44 WITH MANIFOLD COVER DROPPED

ILLUS. PL-40433-1 PART NO. DESCRIPTION QTY.

PL-40433-1

1 00-413500-00E98 Drop Pipe 3/4" x 12 1/4" .................................................................................................................. 1

2 00-408422-000G1 Sub-Manifold ................................................................................................................................1

3 00-4081 19-0001L Valve HI-MED-LO (PROPANE & BUTANE)................................................................................. 2

4 00-4081 19-0001N Valve HI-MED-LO (NA T .).......................................................................................................... .... 2

5 FP-013-22 Elbow 3/4" 90° ............................................................................................................................... 1

- 19 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40434-1

PARTS - BURNER TUBING ASSEMBLY LT. & RT. GHIR44

ILLUS. PL-40434-1 PART NO. DESCRIPTION QTY.

1 00-407785-00002 Grid Handle .................................................................................................................................. 1

2 00-414863-00001 Burner Tubing ............................................................................................................................... 2

3 FP-077-36 Fitting 1/2 x 1/2 CC .......................................................................................................................... 2

4 00-414749-00001 Lt. Hd. Burner Tubing.................................................................................................................... 1

5 00-414866-00001 Rt. Hd. Burner Tubing................................................................................................................... 1

- 20 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

1 thru 4

PARTS - PILOT MANIFOLD ASSEMBLY GHIR44

ILLUS. PL-40435-1 PART NO. DESCRIPTION QTY.

1 00-405643-0000F Elbow Pilot Nozzle ....................................................................................................................... 4

2 00-010901-00044 Orifice Spud (NA T.) ...................................................................................................................... 4

3 00-010901-00055 Orifice Spud (PROPANE)............................................................................................................. 4

4 00-010901-00056 Orifice Spud (BUTANE)................................................................................................................ 4

5 00-414860-00001 Pilot Manifold Assembly ............................................................................................................... 1

6 00-426505-00030 Pilot Tube - Adj. V alve to 1/4" CC................................................................................................... 1

* 7 00-497022-00001 Burner Sub Assembly ................................................................................................................... 2

8 00-414753-000G1 Front Burner Shield Assembly....................................................................................................... 1

9 00-414870-00003 Air Closure ................................................................................................................................... 1

00-415807-00001 Pilot Shield ................................................................................................................................... 4

PL-40435-1

* Must Order Qty. 2 of FP-035-05 When Ordering Part 00-497022-00001.

- 21 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40436-1

PARTS - AUGRATIN OVEN COMPARTMENT GHIR44

ILLUS. PL-40436-1 PART NO. DESCRIPTION QTY.

1 00-401847-00001 Handle ............................................................................................................................... ........... 1

2 00-405499-00002 Burner Box Cover......................................................................................................................... 1

3 00-405522-000G1 Augratin Oven Bottom Baffle Assembly........................................................................................ 1

4 00-405489-000G2 Lt. Hd. Side Lining Assembly ................................................................................................... ..... 1

5 00-405489-000G1 Rt. Hd. Side Lining Assembly ....................................................................................................... 1

6 00-404549-00002 Post, Left Hand ............................................................................................................................ 1

7 00-404549-00001 Post, Right Hand .......................................................................................................................... 1

8 00-405488-000G2 Oven Door Assembly ................................................................................................................... 1

9 00-404074-00002 Oven Rack (Augratin Oven) .......................................................................................................... 1

10 00-405123-000G3 Oven Bottom Assembly (Augratin)................................................................................................ 1

- 22 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - CONTROL PANEL GHIR44

ILLUS. PL-40437-1 PART NO. DESCRIPTION QTY.

PL-40437-1

1 00-409653-00006 Manifold Cover Assembly (SS) ....................................................................................................1

2 00-407727-00004 Knob HI-MED-LO......................................................................................................................... 2

3 00-411496-000E4 Signal Light................................................................................................................................... 1

4 00-417812-00001 T oggle Switch............................................................................................................................... 1

- 23 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

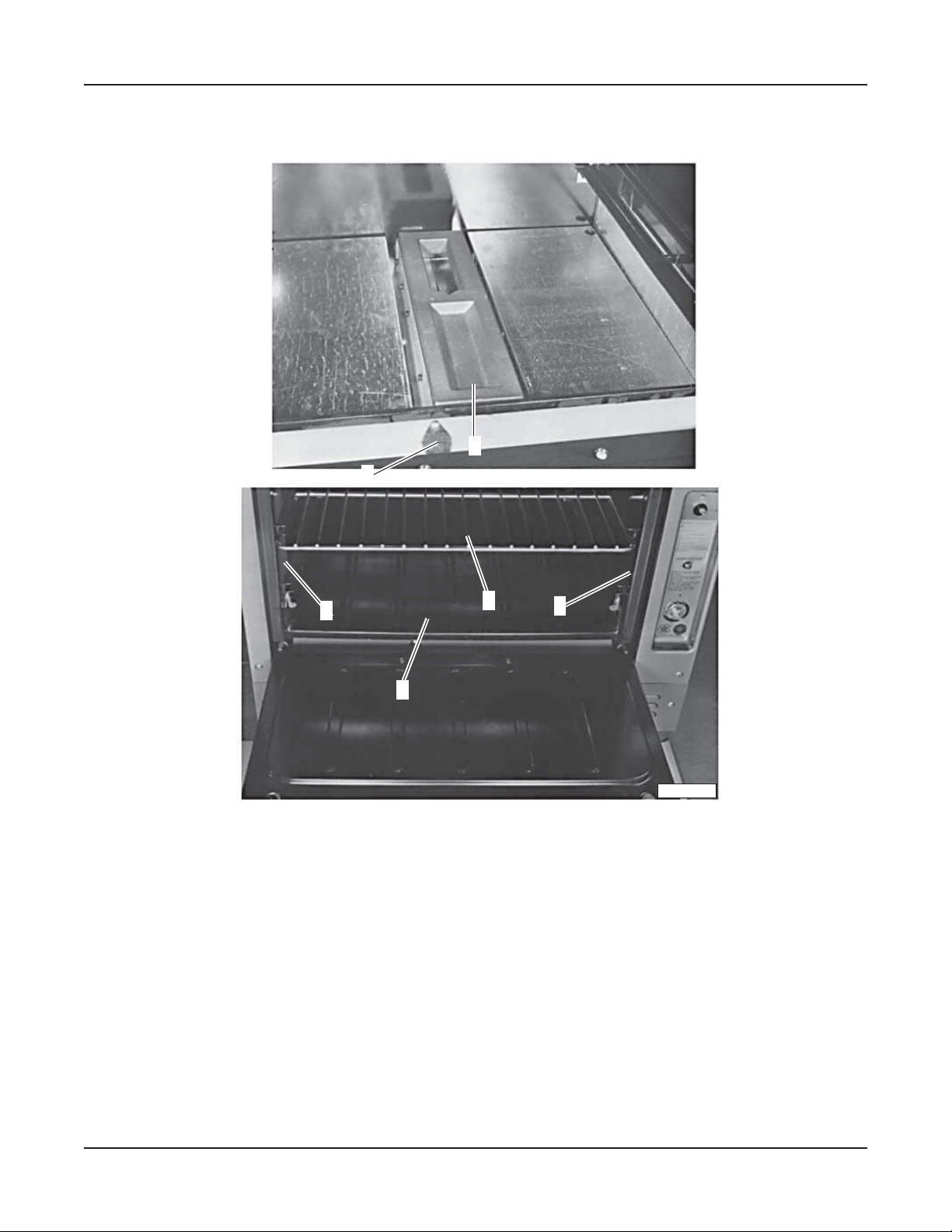

PARTS - GRID ASSEMBLY GHCB40 & GHCB44

ILLUS. PART NO. DESCRIPTION QTY. PL-40438-1 GHCB40 GHCB44

1 00-417074-000G1 Grid Final Assembly..................................................................................1 ............................. 1

2 00-41 1040-000G1 Grid Drip Shield ........................................................................................1 ............................. 1

3 00-41 1280-00001 Drip Shield Rod ........................................................................................1 ............................. 1

4 00-413612-000G1 Lifting Arm Assembly ................................................................................1 ............................. 1

PL-40438-1

- 24 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40439-1

PARTS - AUGRATIN OVEN SECTION GHCB40 & GHCB44

PARTS - AUGRATIN OVEN BAFFLE GHIR44, GHCB44 & GHCB40

ILLUS. PART NO. DESCRIPTION QTY. PL-40439-1 GHIR44 GHCB40 GHCB44

1 00-405522-000G1 Oven Bottom Baffle Assembly ................................................................. 1 ............ 1 ............. 1

2 00-405489-000G2 Oven Side Lining Assembly , Lt. Hd........................................................... 1 ............ 1............. 1

3 00-405489-000G1 Oven Side Lining Assembly , Rt. Hd. .........................................................1 ............ 1 ............. 1

4 00-405488-000G2 Augratin Oven Door Assembly ................................................................. 1 ............ 1 ............. 1

5 00-404074-00002 Oven Rack ............................................................................................ 1 ............ 2............. 1

6 00-405123-000G3 Oven Bottom Assembly............................................................................1 ............ 1 ............. 1

- 25 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40440-1A

PARTS - OVEN MANIFOLD & CONTROLS GHCB40 / GHCB40C

ILLUS. PL-40440-1A PART NO. DESCRIPTION QTY.

1 00-404193-00001 Pilot V alve .................................................................................................................................... 1

2 00-407789-00001 Burner Valve ................................................................................................................................. 1

3 00-413091-00001 J Hook ......................................................................................................................................... 2

4 00-403956-00001 Bell Crank ..................................................................................................................................... 2

5 00-412014-00001 Oven Door Spring......................................................................................................................... 1

6 00-403971-00001 Bell Crank Pin ............................................................................................................................... 2

7 00-407798-00004 Safety Valve (FMDA) ( Prior to Sept. 2000) ................................................................................. 1

8 00-407522-00001 Thermostat................................................................................................................................... 1

9 00-426505-00042 Pilot Tubing Shut Of f to Pilot (Not Shown).................................................................................... 1

10 00-426505-00006 Pilot Tubing Pilot V alve to Shut Of f............................................................................................... 1

1 1 00-405618-00002 Oven Door Hook, Right ................................................................................................................ 1

12 00-405618-00001 Oven Door Hook, Left .................................................................................................................. 1

13 00-409824-00001 Oven Burner T ubing ...................................................................................................................... 1

00-427083-00002 Safety Valve (TS1 1) ( Sept. 2000 Thru Aug. 2004) ....................................................................... 1

00-720719 Safety Valve (BASO) ( Sept. 2004 to Present) ............................................................................. 1

00-405643-0000F Oven Burner Elbow....................................................................................................................... 1

00-010901-00049 Oven Orifice Spud Propane.......................................................................................................... 1

00-010901-00050 Oven Orifice Spud Butane ............................................................................................................ 1

00-412788-00002 Thermocouple (TS11 Valve) ......................................................................................................... 1

00-412788-00004 Thermocouple (BASO Valve) .......................................................................................................1

00-409125-00001 Oven Pilot (Nat. Gas) (Prior to Sept. 2000) .................................................................................. 1

00-409125-00003 Oven Pilot (LP Gas) (Prior to Sept. 2000) .................................................................................... 1

00-409125-00002 Oven Pilot (MFG Gas) (Prior to Sept. 2000)................................................................................. 1

00-426262-00001 Oven Pilot (Nat. Gas) ( Sept. 2000 to Present)............................................................................. 1

00-426262-00002 Oven Pilot (LP Gas) ( Sept. 2000 to Present)............................................................................... 1

CONVECTION OVENS GHCB40C

00-419730-00001 Motor (120V)................................................................................................................................ 1

00-411496-000F1 Micro Switch Door ....................................................................................................................... 2

00-418557 Door Gasket................................................................................................................................. 2

00-411496-000B4 ON/OFF Switch ............................................................................................................................ 2

00-411496-000E4 ON Light....................................................................................................................................... 2

00-413976-00001 Thermostat Knob.......................................................................................................................... 2

00-411506-00003 Convection Oven Thermostat....................................................................................................... 2

- 26 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - OVEN BAFFLE ASSEMBLY GHCB40

ILLUS. PL-40441-1 PART NO. DESCRIPTION QTY.

1 00-405124-00005 Oven Bottom Baffle ...................................................................................................................... 1

2 00-405928-00004 Foil Face Insulation....................................................................................................................... 1

3 00-409787-00001 Oven Bottom Insulation Pan ......................................................................................................... 1

PL-40441-1

- 27 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40442-1A

PARTS - OVEN SECTION GHCB40

ILLUS. PL-40442-1A PART NO. DESCRIPTION QTY.

1 00-409819-000G2 Burner Assembly (Oven) ............................................................................................................... 1

2 00-41 1928-00001 Lighting Hole Cover...................................................................................................................... 2

3 00-405123-000G3 Oven Bottom Assembly................................................................................................................ 1

4 00-404074-00002 Oven Rack ................................................................................................................................... 2

5 00-409778-000G2 Oven Side Lining Assem., Lt. Hd. ................................................................................................. 1

6 00-409778-000G1 Oven Side Lining Assem., Rt. Hd. ................................................................................................1

- 28 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

7-8

5-6

PARTS - PILOT ASSEMBLY IR1, IR2, GHIR44

ILLUS. PART NO. DESCRIPTION QTY. PL-40443-1 IR1 IR2 GHIR44

1 00-404738-00003 Pilot Adj. Valve ......................................................................................... 1 ............ 2 ............. 1

2 00-414860-00001 Pilot - Sub Manifold ..................................................................................1 ............ 2 ............. 1

3 00-414748-00001 Pilot Tube ............................................................................................ 4 ............ 8............. 4

4 FP-012-16 Fitting 1/8" MPT x 1/4" CC........................................................................... 4 ............ 8 ............. 4

5 00-408485-00079 Pilot Orifice (NAT. ) ................................................................................... 4 ............ 8 ............. 4

6 00-408485-00010 Pilot Orifice (PROPANE).......................................................................... 4 ............ 8............. 4

7 00-414795-00001 Pilot Burner Nozzle (NAT.)........................................................................4 ............ 8 ............. 4

8 00-414795-00002 Pilot Burner Nozzle (PROP ANE).............................................................. 4 ............ 8............. 4

9 00-414862-00001 Pilot Support Housing .............................................................................. 4 ............ 8 ............. 4

PL-40443-1

- 29 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

2-3

PL-40444-1

PARTS - MANIFOLD ASSEMBLY (TOP) IR2

ILLUS. PL-40444-1 PART NO. DESCRIPTION QTY.

1 FP-012-01 Fitting 3/8" x 1/2" CC ....................................................................................................................... 2

2 00-410610-00008 HI-LO V alve (NA T .)....................................................................................................................... 2

3 00-410610-00009 HI-LOW Valve (PROPANE & BUT ANE)....................................................................................... 2

4 FP-079-97 Elbow - Reducing 3/4" 1" LG . ......................................................................................................... 1

5 FP-016-02 Elbow - Reducing 1/4" x 3/8"............................................................................................................ 2

6 FP-035-38 Close Nipple 1/4" ........................................................................................................................... 2

7 FP-085-88 Nipple 3/4" x 6 1/4" LG ..................................................................................................................... 1

8 FP-036-91 Nipple Closed 3/4" ......................................................................................................................... 1

9 FP-085-61 Union - Male Female 1" ................................................................................................................ 1

10 FP-078-89 Elbow - Reducing 1/2" x 3/4"............................................................................................................ 2

11 FP-035-96 Nipple 1/2" x 2 1/2" LG ..................................................................................................................... 1

12 FP-022-1 1 Union 1/2" ...................................................................................................................................... 1

13 FP-077-68 Elbow 1/2" 90° ............................................................................................................................... 1

14 FP-012-08 Fitting 1/2" x 5/8" CC ....................................................................................................................... 2

15 FP-059-76 Nipple 3/4" x 2 1/4" .......................................................................................................................... 1

16 00-408199-000G2 Manifold Pipe Assembly............................................................................................................... 1

- 30 -

1-2

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

12 13

PL-40445-1

PARTS - MANIFOLD ASSEMBLY (BOTTOM) IR1 & IR2

ILLUS. PART NO. DESCRIPTION QTY. PL-40445-1 IR1 IR2

1 00-410610-00009 HI-LOW Valve (PROPANE & BUTANE)...................................................2 ............................. 2

2 00-410610-00008 HI-LOW Valve (NA T.) ............................................................................... 2 ............................ .2

3 00-408199-000G2 Manifold Assembly ...................................................................................1 ............................. 1

4 FP-085-61 Union 1" Male - Female ............................................................................2 .............................2

5 FP-019-42 Tee Reducing 1" x 1" x 3/4" ........................................................................1 ............................. 1

6 FP-028-18 Pipe Plug 3/4" ............................................................................................ 1 ............................. 1

7 FP-036-24 Nipple 1" x 12" LG . ................................................................................... 1 ............................. 1

8 FP-079-97 Elbow Reducing 3/4" x 1" ...........................................................................2 ............................. 2

9 00-404949-00001 Pilot Valve ............................................................................................ 1 ............................. 1

10 00-415156-00001 Pilot Tube ............................................................................................ 1 ............................. 1

1 1 00-428578-000G1 Solenoid ............................................................................................ 1 ............................. 1

12 00-408279-00021 Regulator (PROP ANE OR BUT ANE)....................................................... 1 ............................. 1

13 00-408279-00020 Regulator (NAT.).......................................................................................1 ............................. 1

14 FP-085-88 Pipe 1" x 35" LG . ......................................................................................1 ............................. 1

15 FP-085-01 Nipple 3/4" x 1" LG . ....................................................................................3 ............................. 3

16 FP-012-21 Elbow Fitting 1/8" x 1/4" CC......................................................................... 1 ............................. 1

17 FP-012-01 Fitting 3/8" x 1/2" CC ................................................................................... 2 ............................. 2

[Select For Proper Gas]

NOTE: Photo shows street El Manifold Construction. Proper construction uses (2) 3/4" x 1" reducing elbows FP-079-97 with (2) nipples 3/4" x 1" FP-085-01.

- 31 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

3-4

PL-40446-1A

PARTS - BLOWER MOTOR IR1 & IR2

ILLUS. PART NO. DESCRIPTION QTY. PL-40446-1A IR1 IR2

1 00-413552-00004 Blower & Motor ........................................................................................1 ............................. 1

2 00-428578-000G1 Solenoid ............................................................................................ 1 ............................. 1

3 00-408279-00020 Regulator (NAT.).......................................................................................1 ............................. 1

4 00-408279-00021 Regulator (PROP ANE OR BUT ANE)....................................................... 1 ............................. 1

5 00-409033-000G2 Lock Panel ............................................................................................ 1 ............................. 1

6 00-417812-00001 Toggle Switch ...........................................................................................1 ............................. 1

7 00-41 1496-000E4 Signal Light ............................................................................................ 1 ............................. 1

8 FE-002-03 Tomic Connector 3/8" ................................................................................ 4 ............................. 4

9 00-409254-00001 Pressure Switch (Used on Units Prior to Aug. 2000).................................1 ............................. 1

- 32 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

4 5

13 -14

PARTS - MANIFOLD CONTROLS GHIR44

ILLUS. PL-40447-1 PART NO. DESCRIPTION QTY.

1 00-413552-00004 Blower & Motor ............................................................................................................................ 1

2 00-428578-000G1 Solenoid ....................................................................................................................................... 1

3 00-408279-00022 Regulator (NAT.) 3/

4 00-408279-00021 Regulator (PROPANE) 3/

[Select for Proper Gas]

5 00-408279-00012 Regulator (NA T .)1 1/4" ................................................................................................................... 1

6 00-408279-00013 Regulator (PROPANE) 1 1/4" ........................................................................................................ 1

7 FP-013-22 Elbow 3/4" 90 Degree .................................................................................................................... 1

8 00-414755-00001 Pressure Switch (Used on Units Prior to Aug. 2000)..................................................................... 1

9 00-409696-000G1 Air Disc ........................................................................................................................................ 1

10 00-413551-00001 Disc Support ................................................................................................................................ 1

1 1 FP-018-11 Street El 3/4" .................................................................................................................................. 1

12 FP-085-60 Union 3/4" Male - Female............................................................................................................... 2

13 00-413550-00001 Support Angles, Left ..................................................................................................................... 1

14 00-413550-00002 Support Angles Right....................................................................................................................1

15 00-413556-00001 Bracket ......................................................................................................................................... 1

16 FP-085-89 Riser Pipe 3/4" x 8 3/4".................................................................................................................... 1

17 FP-086-57 Pipe 3/4" x 13 3/16" .......................................................................................................................... 1

18 00-400994-000G1 Grease Pan .................................................................................................................................. 1

19 00-414757-00003 Air Duct Cover.............................................................................................................................. 1

20 FP-059-74 Drop Pipe 3/4" x 12 1/4" .................................................................................................................. 1

00-414867-00001 Air Tube........................................................................................................................................ 1

FP-036-91 Nipple - Closed 3/4" ....................................................................................................................... 1

00-414756-00001 Air Duct ........................................................................................................................................ 1

........................................................................................................................................................................................................

........................................................................................................................................................................................

1 1

PL-40447-1

- 33 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PL-40448-1

PARTS - BURNER ASSEMBLY IR1, IR2 & GHIR44

ILLUS. PART NO. DESCRIPTION QTY. PL-40448-1 IR1 IR2 GHIR44

1 00-414754-00003 Infrared Burner Assembly ......................................................................... 4 ............ 8 ............. 4

- 34 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

PARTS - BURNER ASSEMBLY & CERAMICS HCB1 & HCB2

ILLUS. PART NO. DESCRIPTION QTY. PL-40449-1 HCB1 HCB2

1 00-41 1551-000G1 Burner Assembly ...................................................................................... 4 ............................. 8

2 00-404146-00001 Burner Ceramic - Sides ............................................................................ 8 .............................16

3 00-404145-00001 Burner Ceramic - Center........................................................................... 12 ........................... 24

00-408726-000G2 Ceramic Set (Contains 8 Sides and 12 Center Bricks)..............................1 ............................. 2

PL-40449-1

- 35 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

RECOMMENDED SPARE PARTS

GHCB40 & GHCB40C CERAMIC BROILER

PART NO. DESCRIPTION QTY.

BROILER SECTION

00-010901-00043 Broiler Orifice (Nat. Gas).............................................................................................................2

00-010901-00053 Broiler Orifice (LP Gas) ...............................................................................................................2

00-408379-00003 ON/OFF Valve.............................................................................................................................2

00-405655-00004 Roller Bearing W/Shaft ................................................................................................................ 8

00-411551-000G1 Burner Assy . ................................................................................................................................2

OVEN SECTION

00-010901-00031 Oven Orifice (Nat. Gas) ............................................................................................................... 1

00-010901-00049 Oven Orifice (LP Gas) .................................................................................................................1

00-427083-00002 Oven Safety (Used Until August 31, 2004)...................................................................................2

00-407522-00001 Oven Thermostat.........................................................................................................................2

00-413614-00001 Oven Thermostat Knob ...............................................................................................................2

00-412788-00002 Thermocouple (Used Until August 31, 2004)................................................................................2

00-407789-00001 Service Valve ..............................................................................................................................1

00-402957-00002 Service Valve Knob.....................................................................................................................1

00-720719 Safety Valve (Used From September 2004 to Present)...............................................................2

00-412788-00004 Thermocouple (Used From September 2004 to Present) ............................................................2

00-412014-00001 Oven Spring.................................................................................................................................2

00-403956-00001 Bell Crank ....................................................................................................................................2

00-405618-00001 Door Hook (Left).........................................................................................................................2

00-405618-00002 Door Hook (Right) ....................................................................................................................... 2

CONVECTION OVENS

00-419730-00001 Motor 120V .................................................................................................................................1

00-411496-000F1 Micro Switch Door ...................................................................................................................... 2

00-418557 Door Gasket................................................................................................................................2

00-411496-000B4 ON/OFF Switch ...........................................................................................................................2

00-411496-000E4 ON Light......................................................................................................................................2

00-426262-00001 Pilot Assy . (Nat. Gas) ..................................................................................................................2

00-426262-00002 Pilot Assy . (LP Gas) ....................................................................................................................2

00-413976-00001 Thermost

00-411506-00003 Convection Oven Knob ...............................................................................................................2

at Knob......................................................................................................................... 2

- 36 -

HEAVY DUTY GAS BROILER REPLACEMENT PARTS

RECOMMENDED SPARE PARTS

IR1, IR2 & GHIR44

PART NO. DESCRIPTION QTY.

00-407727-00005 ON/OFF Burner Knob (IR1 & IR2) ...............................................................................................2

00-407727-00004 Hi/Med/Low Burner Knob (GHIR44) ............................................................................................2

00-405016-00001 Electric Supply Cord....................................................................................................................1

00-413552-00004 Blower Motor .............................................................................................................................. 1

00-428578-000G1 Solenoid Valve ............................................................................................................................1

00-408485-00079 Pilot Orifice (Nat. Gas) ................................................................................................................2

00-408485-00010 Pilot Orifice (LP Gas) ..................................................................................................................2

00-411496-000E4 Signal Light..................................................................................................................................1

00-404738-00003 Pilot Adj. Valve ............................................................................................................................1

00-410610-00008 Hi/Low V alve (Nat. Gas) (IR1 & IR2) ...........................................................................................1

00-410610-00009 Hi/Low Valve (LP Gas) (IR1 & IR2) ............................................................................................. 1

00-4081 19-0001N Hi/Med/Low Valve (Nat. Gas) (GHIR44)...................................................................................... 1

00-4081 19-0001L Hi/Med/Low Valve (LP Gas) (GHIR44) ........................................................................................1

00-417812-00001 Toggle Switch ..............................................................................................................................1

00-414754-00003 Infrared Burner Assy . ................................................................................................................... 1

- 37 -

Vulcan Hart HCB2T PARTS LIST

Specifications and Main Features

Frequently Asked Questions

User Manual
