ITW Food Equipment Group, LLC
3600 North Point Blvd.
Baltimore, MD 21222
FORM F-38329 REV. A(06-11)
MODELS
GTS12-1
GTS12-2
GTS12-3R
GTS12-4R
MODEL GTS12
GTS HEAVY DUTY ELECTRIC GRIDDLE TOP
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
CATALOG OF
REPLACEMENT PARTS
GTS Heavy Duty Electric Griddle Top Catalog Of Replacement Parts
10.f
7 6 5 8 9 3 2 4 10 1 10.a
10.b
10.c
10.d
10.e
11
CONTROL HOUSING
- 2 -
GTS Heavy Duty Electric Griddle Top Catalog Of Replacement Parts
ILLUS.
PART NO.
QTY
NAME OF PART
1
944130
1
W/A, TRIGGER
01 060 070
2
944131
1
INDICATOR LIGHT
05 080 120
3
944132
1
ON/OFF SWITCH
05 080 110
4
944133
1
HIGH LIMIT CUTOFF SWITCH
05 010 038
5
944134
1
INNER LINER
01 090 058
6
498859
1
DIAL
06 030 070
7
944135
1
KNOB
03 060 051
8
944136
1
THERMOSTAT
05 010 072
9
944137
1
CONNECTOR BLOCK
05 030 061
10
944138
1
KIT, TRIGGER MOUNTING
10.a
944138-1
2
NUT
01 110 156
10.b
944138-2
1
SHAFT
04 090 147
10.c
944138-3
2
SNAP RING
04 060 021
10.d
944138-4
8
PIN
04 080 034
10.e
944138-5
2
WASHER
04 120 130
10.f
944138-6
2
BOLT
04 030 184
11
944139
1
W/A, TRIGGER MID SUPPORT BRACKET
04 090 100
12
944175
1
KIT, WIRING
12.a
944175-1
2
11” Long (Green-Yellow)
35 010 050
12.b
944175-2
1
12” Long (White-Black-Blue)
35 030 080
12.c
944175-3
2
26.5” Long (White-Yellow)
35 030 040
12.d
944175-4
1
27.5” Long (Black-Yellow-White) Is there any
35 020 086
12.e
944175-5
2
12” Long (Black-Yellow-White)
03 020 100
CONTROL HOUSING
- 3 -
GTS Heavy Duty Electric Griddle Top Catalog Of Replacement Parts
9.a
14.c
19
18
17 1 2 3 4 5 6 7 9
10
11
12
13
14.a
14.b
15
16
7a 20
9.c
9.b
8
ON P/N 14.a
ON P/N 12
ON P/N 14.c

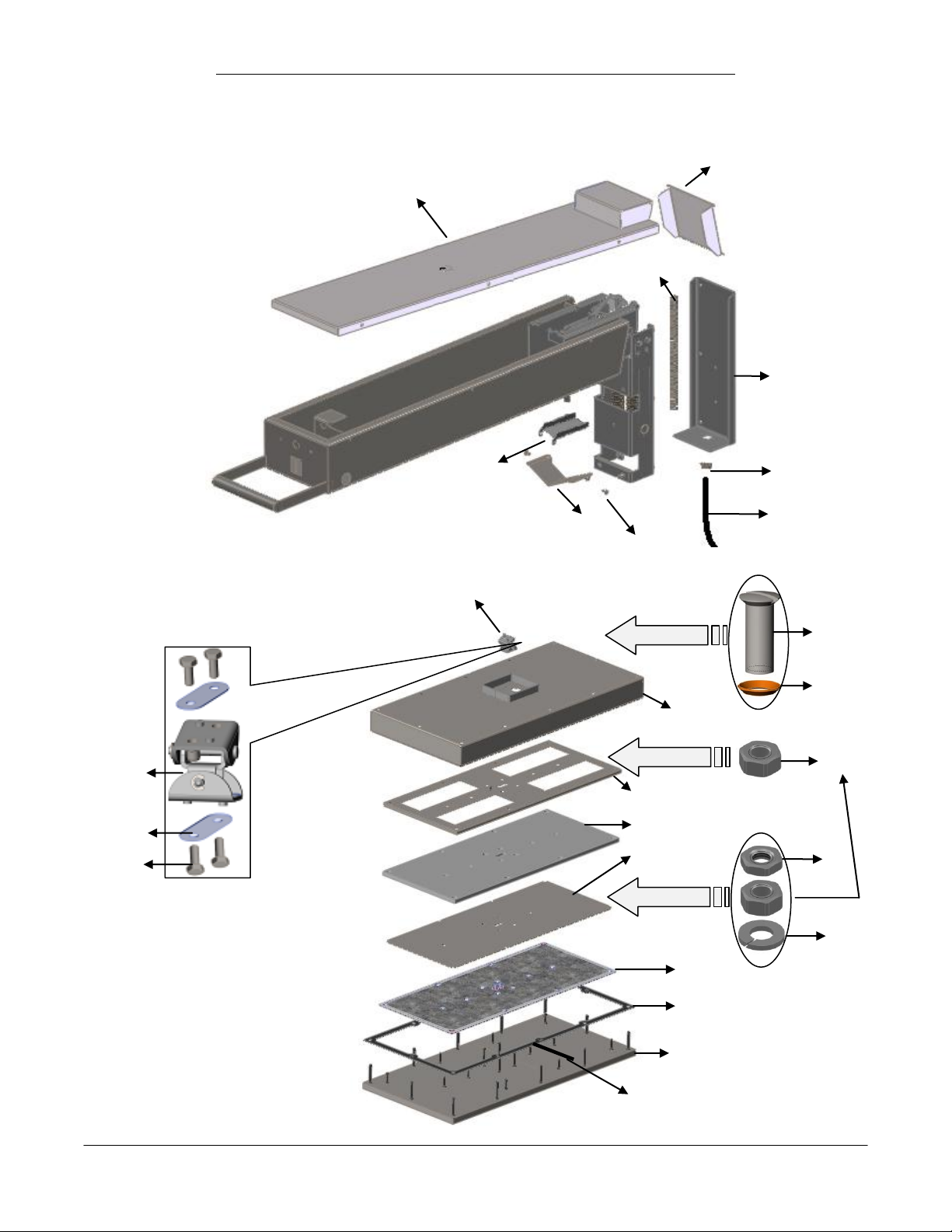

PLATE ASSEMBLY
- 4 -
GTS Heavy Duty Electric Griddle Top Catalog Of Replacement Parts
ILLUS.
PART NO.
QTY.
NAME OF PART
1
944140
1
TOP COVER
01 400 058
2
944141
1
FLAP COVER
04 090 098
3
944142
1
PROTECTIVE SPRING SLEEVE
04 090 099
4
944143
1
BACK COVER
01 090 054
5
944144
1
POWER CORD RETAINER
03 020 050
6
944145
1
POWER CORD
05 050 061
7
944146
1
FLUE DEFLECTOR
01 020 056
7.a
Reference
2
SCREW, M3 SELF TAPING
8
944184
1
POWER CORD GUARD
9
944147
1
KIT, UNIVERSAL JOINT
01 110 135
9.a
944147-1
1
UNIVERSAL JOINT
9.b
944147-2
2
LOCKING WASHER
9.c
944147-3
4
SCREW, ISO 4017 - M4 x 10-N
10
944148
16
HALLOW NUT SCREW, M6/ 10x15
04 011 090
11
944149
16
ALUMINUM WASHER
04 090 033
12
944150
1
W/A, PLATE FRAME
01 050 024
13
944151
32
NUT, M6 DIN934
04 010 024
14
944152
1
KIT, HEATER INSULATION KIT
14.a
944152-1
1
INSULATOR FRAME
01 400 026
14.b
944152-2
1
INSULATOR PANEL
05 070 090
14.c
944152-3
1
PRESSURE PLATE
01 100 130
15
944153
16
NUT, M6 DIN 127
04 010 124
16
944154
16
LOCK WASHER, M6
04 020 020
17
944155-208
1
208V, HEATING ELEMENT
05 120 550
944155-240
240V, HEATING ELEMENT
05 120 560
18
944156
1
GASKET
05 070 080
19
944157
1
W/A, PLATE
22 010 116
20
944179
1
T-STAT INSULATION STRIP
PLATE ASSEMBLY
- 5 -
GTS Heavy Duty Electric Griddle Top Catalog Of Replacement Parts
14.c
4 1 3 2 5 6 7
8.a
9
9a
9b
9c
10
11
13
12
16
17
18
8.b
14.a
15
14.b

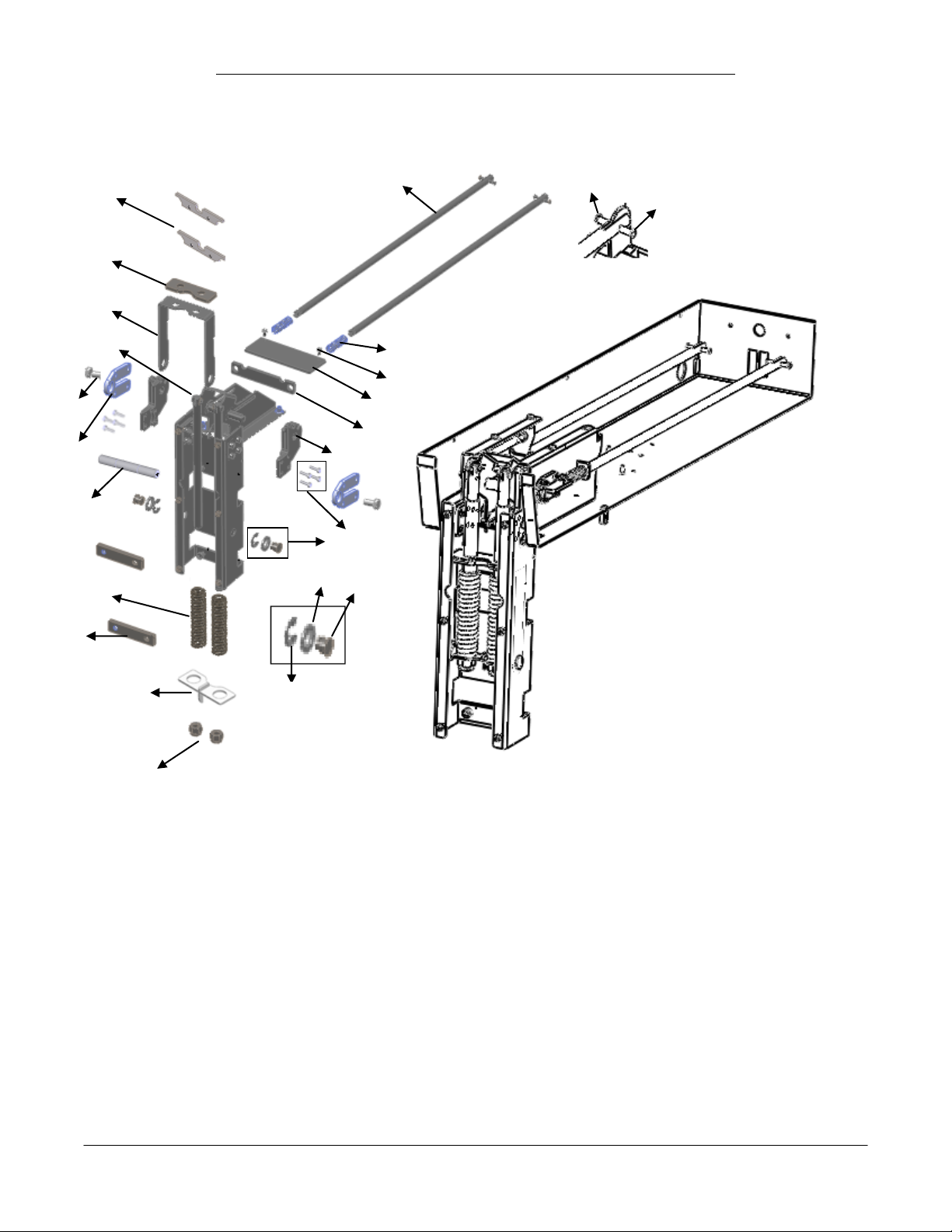

ARM MECHANISM
- 6 -
GTS Heavy Duty Electric Griddle Top Catalog Of Replacement Parts
ILLUS.
PART NO.
QTY
NAME OF PART
1
944158
2
TRIGGER TIE BARS
01 060 041
2
944159
2
E-CLIPS - DIN 6799 - 3.2
04 060 022
3
944160
2
PIN, 4x30-1.4305
04 090 018
4
944161
2
TRIGGER SPRING
04 110 175
5
944162
2
SCREW, M4x6
04 030 024
6
944163
1
LOCKING PLATE
01 010 085
7
944164
1
TIE BAR HOUSING
01 110 056
8
944165
1
KIT, ANGLE DISC
8.a
944165-1
2
ANGLE DISC
01 110 058
8.b
944165-2
8
HEX-HEAD BOLT, M6x20mm
04 030 193
9
944166
1
KIT, YOKE MOUNTING
9.a
944166-1
2
SHAFT, 10mm DIN 6799-10
04 060 028
9.b
944166-2
2
WASHER, M13
04 120 110
9.c
944166-3
2
E-CLIPS - DIN 6799 - 12
04 090 144
10
944167
2
NUTS, M12
04 010 022
11
944169
1
SPRING GUIDE BRACKET
04 090 103
12
944170
2
MOUNTING SUPPORT BRACKET
01 110 155
13
944171
2
SPRING
04 110 153
14
944180
1
KIT, AXLE
14.a
944180-1
1
AXLE
04 090 142
14.b
944180-2
2
AXLE SIDE SUPPORT BRACKET
01 020 086
14.c
944180-3
2
M6x12 DIN EN 24014
14.d
944180-4
2
WASHER- DIN_9021_6,4
14.e
944180-5
8
HEX SCREW M4x12 DIN EN 24
14.f
944180-6
16
HEX NUT- M4 ISO 4032
15
944181
2
SPRING PIVOT PIN
04 090 200
16
944172
1
SPRING YOKE
04 090 094
17
944173
1
YOKE SUPPORT BRACKET
10 110 152
18
944174
2
MOUNTING BRACKET
01 110 060
ARM MECHANISM
- 7 -
GTS Heavy Duty Electric Griddle Top Catalog Of Replacement Parts
#
PART NO.
QTY
DESCRIPTION
1
944131
1
INDICATOR LIGHT
2
944132
1
ON/OFF SWITCH
3
944133
1
HIGH LIMIT CUTOFF SWITCH
4
498859
1
DIAL
5
944135
1
KNOB
6
944136
1
THERMOSTAT
7
944137
1
CONNECTOR BLOCK
8
944175
1
KIT, WIRING
9
944147
1
KIT, UNIVERSAL JOINT
10
944148
16
HALLOW NUT SCREW, M6/ 10x15
11
944149
16
ALUMINUM WASHER
12
944152-2
1
INSULATOR PANEL
13
944155-208
1
208V, HEATING ELEMENT
14
944155-240
1
240V, HEATING ELEMENT
15
944156
1
GASKET
16
944179
1
T-STAT INSULATION STRIP
17
944159
2
E-CLIPS - DIN 6799 - 3.2
18
944161
2
TRIGGER SPRING
19
944167
2
NUTS, M12
20
944169
1
SPRING GUIDE BRACKET
21
944171
2
SPRING
22
944174
2
MOUNTING BRACKET
Recommended Spare Part List:
NOTES:
