REPLACEMENT PARTS

C24EA SERIES STEAMER

3-PAN BASIC

ML-136043 208/240 V. 8.5kW ML-136045 480 V. 8.5kW

CATALOG OF

3-PAN PRO

ML-136037 208/240 V. 9.25kW ML-136044 480 V. 9.25kW

5-PAN BASIC

ML-136046 208/240 V. 15kW ML-136048 480 V. 15kW

5-PAN PRO

ML-136038 208/240 V. 15.75kW ML-136047 480 V. 15.75kW

For additional information on Vulcan-Hart or to locate an authorized parts

and service provider in your area, visit our website at www.vulcanhart.com

VU LC AN -H ART DI VI SI ON OF ITW FOO D EQUIPMENT GROUP, LL C WW W.VULCANHART.COM

P.O. BOX 69 6, LOUISVILLE, KY 40201-0696

TE L. (800) 81 4- 20 28

FORM 43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

F-43123 (August 2006)

- 2 -

TABLE OF CONTENTS

C24EA SERIES STEAMER REPLACEMENT PARTS

5 CONTROLS 7 ELECTRICAL COMPONENTS 9 CABINET 11 DOOR 13 COMPARTMENT 15 GENERATOR (3-PAN) 17 GENERATOR (5-PAN) 19 WATER LEVEL PROBE 21 CABINET VALVE 22 GENERATOR DRAIN (BASIC) 23 GENERATOR DRAIN (PRO) 24 COMPARTMENT VACUUM BREAKER

- 3 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

PL-58193

2 -3

7 -8 - 9

1 0

1 1

1 2- 1 3

1 4

CONTROLS

F-43123 (August 2006)

- 4 -

C24EA SERIES STEAMER REPLACEMENT PARTS

CONTROLS

ILLUS. PART NO. NAME OF PART AMT. PL-58193

1 00-854330-00001 Plug – Switch Hole .....................................................................................................................1

2 00-855677-00001 Switch – On/Off (Lighted) (Pro)..................................................................................................1

3 00-856754-00001 Power Light (Basic) (Not Shown) ...............................................................................................1

4 00-855795-00001 Gasket – Switch ......................................................................................................................... 1

5 00-855794-00001 Bezel – Switch ...........................................................................................................................2

6 00-855796-00001 Gasket – Bezel ..........................................................................................................................1

7 00-855695-00001 Light – Indicating (125 VAC) (Pro) ............................................................................................. 1

8 00-854330-00001 Plug – Blank (Basic) (Not Shown) .............................................................................................1

9 00-856678-00001 Gasket – Indicator Light ............................................................................................................. 1

10 00-856773-00001 Knob – Timer .............................................................................................................................1

11 00-854693-00001 Shaft – Rotary Seal ....................................................................................................................1

12 00-856771-00001 Overlay – Control (Basic) ...........................................................................................................1

13 00-856771-00002 Overlay – Control (Pro) .............................................................................................................. 1

14 00-856621-00001 Timer – Mechanical ....................................................................................................................1

00-856744-00002 Harness – Wiring (Front) (Basic) ...............................................................................................1

00-856745-00002 Harness – Wiring (Front) (Pro) ..................................................................................................1

- 5 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

1 6

1 7

1 5

1 4

1 1

1 0

1 3

1 2

1 8

2 1

1 9

2 0

2 2

2 3

2 5

2 4

2 6

2 7

2 8

PL-58242

F-43123 (August 2006)

ELECTRICAL COMPONENTS

- 6 -

C24EA SERIES STEAMER REPLACEMENT PARTS

ELECTRICAL COMPONENTS

ILLUS. PART NO. NAME OF PART AMT. PL-58242

1 00-856762-00001 Shield – Mylar 9

2 00-856762-00002 Shield – Mylar 9 In. ....................................................................................................................1

3 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................2

4 00-410472-00008 Block – Terminal (3-Pole) ...........................................................................................................1

5 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................1

6 FE-023-88 Lug – Ground ............................................................................................................................. 1

7 00-856756-00001 Probe – High Limit Temperature ................................................................................................ 1

8 SC-018-28 Mach. Screw 6-32 x 1/4 Phil. Pan Hd. .........................................................................................1

9 00-855028-00001 Block – Fuse (480 V.) .................................................................................................................1

10 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................2

11 FE-024-94 Fuse (250 V., 4 Amp.) ................................................................................................................ 2

12 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................2

13 00-294436-00003 Block – Fuse (208/240 V.) ..........................................................................................................2

14 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................4

15 00-881654 Contactor (50 Amp., 3-Pole) ......................................................................................................2

16 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................2

17 00-411500-00012 Transformer (120 V., 50/60 Hz.) (Pro)........................................................................................1

18 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................2

19 00-294500-00033 Transformer (60 VA, 50/60 Hz.) ................................................................................................. 1

20 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B ................................................................AR

21 00-856699-00001 Switch – Relay (480 V.) (Pro) .....................................................................................................3

22 00-844069-00001 Control – Low Water ..................................................................................................................1

23 00-416535-00006 Switch – Relay (K3) ...................................................................................................................1

24 00-416535-00006 Switch – Relay (K2) ...................................................................................................................1

25 00-416535-00006 Switch – Relay (K1) ...................................................................................................................1

26 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................1

27 00-855661-00001 Relay – Time Delay ....................................................................................................................1

28 NS-049-01 Nut – Panel ................................................................................................................................1

00-856619-00001 Plate – Mounting (9.25 & 15.75 kW) (Pro Assy.)........................................................................1

00-856619-00002 Plate – Mounting (8.5 & 15 kW) (Basic Assy.) ........................................................................... 1

00-856744-00003 Harness – Wiring (Control Section) (Basic) ...............................................................................1

00-856745-00003 Harness – Wiring (Control Section) (Pro) ..................................................................................1

/2 In. .................................................................................................................1

- 7 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

1 7

1 4- 1 5

3 1 3 2

1 3

1 2

1 9

2 0 2 1

1 8

2 5

2 6

2 7

1 0

2 8

3 0

2 9

2 4

1 6

1 1

2 2- 2 3

3 -4

PL-58243

F-43123 (August 2006)

CABINET

- 8 -

C24EA SERIES STEAMER REPLACEMENT PARTS

CABINET

ILLUS. PART NO. NAME OF PART AMT. PL-58243

1 00-855547-00002 Top Panel – Cabinet ..................................................................................................................

2 NS-049-01 Nut – Panel ................................................................................................................................2

3 00-856733-00001 Back Panel – Cabinet (3-Pan) ................................................................................................... 1

4 00-856733-00002 Back Panel – Cabinet (5-Pan) ................................................................................................... 1

5 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (SST) ........................................................................................ 4

6 00-857020-00001 Bracket – High Limit Mounting ................................................................................................... 1

7 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .................................................................4

8 WS-002-45 Washer .......................................................................................................................................2

9 SC-053-02 Mach. Screw 10-24 x 1/2 Slotted Truss Hd. (SST) ......................................................................2

10 NS-049-03 Nut – Panel ................................................................................................................................1

11 NS-049-01 Nut – Panel ................................................................................................................................2

12 RS-030-08 Rivet – Dome 0.125 ...................................................................................................................8

13 00-854766-00001 Nut – Speed (3 Type) .................................................................................................................4

14 00-856731-00001 Side Panel – Cabinet (3-Pan) ....................................................................................................1

15 00-856731-00002 Side Panel – Cabinet (5-Pan) ....................................................................................................1

16 SC-115-70 Mach. Screw 1/4-20 x 1 Slotted Truss Hd. (SST) ........................................................................4

17 00-856760-00001 Leg – Leveling (Counter Top).....................................................................................................4

18 SC-115-70 Mach. Screw 1/4-20 x 1 Slotted Truss Hd. (SST) ........................................................................2

19 00-855314-00001 Apron – Cabinet ......................................................................................................................... 1

20 FE-025-79 Bushing – Snap Electric (Basic) ................................................................................................1

21 PB-004-38 Plug – Button (3/4) (Pro)..............................................................................................................1

22 00-855355-00001 Rack – Wire (3-Pan) ..................................................................................................................2

23 00-855355-00002 Rack – Wire (5-Pan) ..................................................................................................................2

24 NS-049-03 Nut – Panel ................................................................................................................................1

25 NS-049-02 Nut – Panel ................................................................................................................................2

26 NS-049-01 Nut – Panel ................................................................................................................................5

27 00-856740-00001 Cross Channel – Base (Cabinet) ...............................................................................................1

28 NS-049-03 Nut – Panel ................................................................................................................................4

29 WL-006-17 Lockwasher 1/4 Helical................................................................................................................5

30 NS-049-02 Nut – Panel ................................................................................................................................1

31 00-856731-00001 Side Panel – Cabinet (3-Pan) ....................................................................................................1

32 00-856731-00002 Side Panel – Cabinet (5-Pan) ....................................................................................................1

- 9 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

1 1

2 0

2 1

2 2

1 0

3 1 3 2

2 5

2 4

2 3

2 9

2 8

3 0

2 6

2 7

1 2

1 5 1 4

1 3

1 7 1 6

1 9 1 8

PL-58068

F-43123 (August 2006)

DOOR

- 10 -

C24EA SERIES STEAMER REPLACEMENT PARTS

DOOR

ILLUS. PART NO. NAME OF PART AMT. PL-58068

1 00-855288-00001 Face Plate – Door Handle .........................................................................................................1

2 SC-120-70 Cap Screw 1/4-20 x 15/8 Hex Socket Hd. .....................................................................................2

3 00-855287-00001 Door – Handle ............................................................................................................................

4 SC-066-20 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. .......................................................................................4

5 00-855521-00001 Hinge Assy. – Door (Top) ........................................................................................................... 1

6 WL-006-17 Lockwasher 1/4 Helical................................................................................................................2

7 NS-046-38 Mach. Nut 1/4-20 Hex (SST) .......................................................................................................2

8 00-817643 Bearing – Flanged ..................................................................................................................... 1

9 00-817643 Bearing – Flanged ..................................................................................................................... 1

10 00-855521-00002 Hinge Assy. – Door (Bottom)......................................................................................................1

11 WL-006-17 Lockwasher 1/4 Helical................................................................................................................2

12 NS-046-38 Mach. Nut 1/4-20 Hex (SST) .......................................................................................................2

13 00-855597-00002 Screw – Shoulder Slotted ..........................................................................................................3

14 00-855714-00001 Gasket – Door Guard (3-Pan) ....................................................................................................1

15 00-855714-00002 Gasket – Door Guard (5-Pan) ....................................................................................................1

16 00-855285-00001 Gasket Retainer – Door (3-Pan) ................................................................................................1

17 00-855285-00002 Gasket Retainer – Door (5-Pan) ................................................................................................1

18 00-857085-00001 Gasket – Door (3-Pan) ...............................................................................................................1

19 00-857085-00002 Gasket – Door (5-Pan) ...............................................................................................................1

20 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. ................................................................................ 2

21 00-855582-00001 Bracket Weldment – Door (3-Pan) .............................................................................................1

22 00-855582-00002 Bracket Weldment – Door (5-Pan) .............................................................................................1

23 00-855584-0001 Door Latch – Bracket .................................................................................................................1

24 00-855298-00001 Latch Spring – Door ................................................................................................................... 1

25 RR-006-22 Ring – Retaining (1/4 In.).............................................................................................................1

26 00-855585-00001 Latch Actuator – Door ................................................................................................................ 1

27 RR-006-22 Ring – Retaining (1/4 In.).............................................................................................................3

28 00-855590-00002 Pin – Clevis 1.525 In. Lg. ........................................................................................................... 4

29 NS-048-63 Stop Nut 1/4-20 Special...............................................................................................................2

30 00-855290-00001 Bearing – Door Handle ..............................................................................................................2

31 00-855580-00001 Frame – Door (3-Pan) ................................................................................................................1

32 00-855580-00002 Frame – Door (5-Pan) ................................................................................................................1

- 11 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

5 -6

1 8

1 2

1 3

1 5

1 6

1 7

1 9

2 0

1 4

1 -2

1 1

1 0

PL-58097

F-43123 (August 2006)

COMPARTMENT

- 12 -

C24EA SERIES STEAMER REPLACEMENT PARTS

COMPARTMENT

ILLUS. PART NO. NAME OF PART AMT. PL-58097

1 00-855278-00001 Compartment (3-Pan) ................................................................................................................1

2 00-855449-00001 Compartment (5-Pan) ................................................................................................................1

3 00-855337-00001 Shoulder Screw 18-8 Slotted .....................................................................................................

4 NS-046-88 Nut Assy. 10-32 Hex ..................................................................................................................

5 00-856753-00001 Steam Port – Compartment (5-Pan) ..........................................................................................1

6 00-856742-00001 Steam Port – Compartment (3-Pan) ..........................................................................................1

7 NS-011-07 Mach. Nut 6-32 Hex (SST) ........................................................................................................2

8 WL-014-03 Lockwasher #6 External ............................................................................................................

9 00-411499-00004 Buzzer (115 V.) ..........................................................................................................................

10 SC-021-12 Mach. Screw 6-32 x 1 Slotted Rd. Hd. .......................................................................................1

11 00-842049 Switch – Door ............................................................................................................................ 1

12 00-855586-00001 Bullet – Door ..............................................................................................................................1

13 00-855308-00001 Actuator Bracket – Door ............................................................................................................

14 RR-006-22 Ring – Retaining ........................................................................................................................

15 00-855307-00001 Actuator Rod – Door ..................................................................................................................1

16 FP-090-18 Elbow Pipe 5/8 x 45 Deg. (Brass)................................................................................................1

17 00-855394-00001 Adapter – Cabinet Steam Port ................................................................................................... 1

18 00-855586-00001 Bullet – Door ..............................................................................................................................

19 NS-011-18 Mach. Nut 10-24 Hex (SST) ......................................................................................................

20 00-855753-00001 Cover – Drain .............................................................................................................................1

00-855779-00001 Compartment – Insulation (3-Pan) .............................................................................................1

00-855779-00002 Compartment – Insulation (5-Pan) .............................................................................................1

00-557760 Shim (0.005 Thk.) (SST) ...........................................................................................................

00-557761 Shim (0.010 Thk.) (SST) ...........................................................................................................

00-557762 Shim (0.031 Thk.) (SST) ...........................................................................................................AR

4 4

2 1

1 2

1 1

AR AR

- 13 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

B A SIC

P R O

1 2

1 3

1 1

3 2

1 4

1 0

2 7

2 3

1 5

2 6

2 5

1 6

1 8

2 1- 2 2

1 7

1 9

2 0

2 8

2 9

3 0

3 1

2 4

PL-58244

4 -5

F-43123 (August 2006)

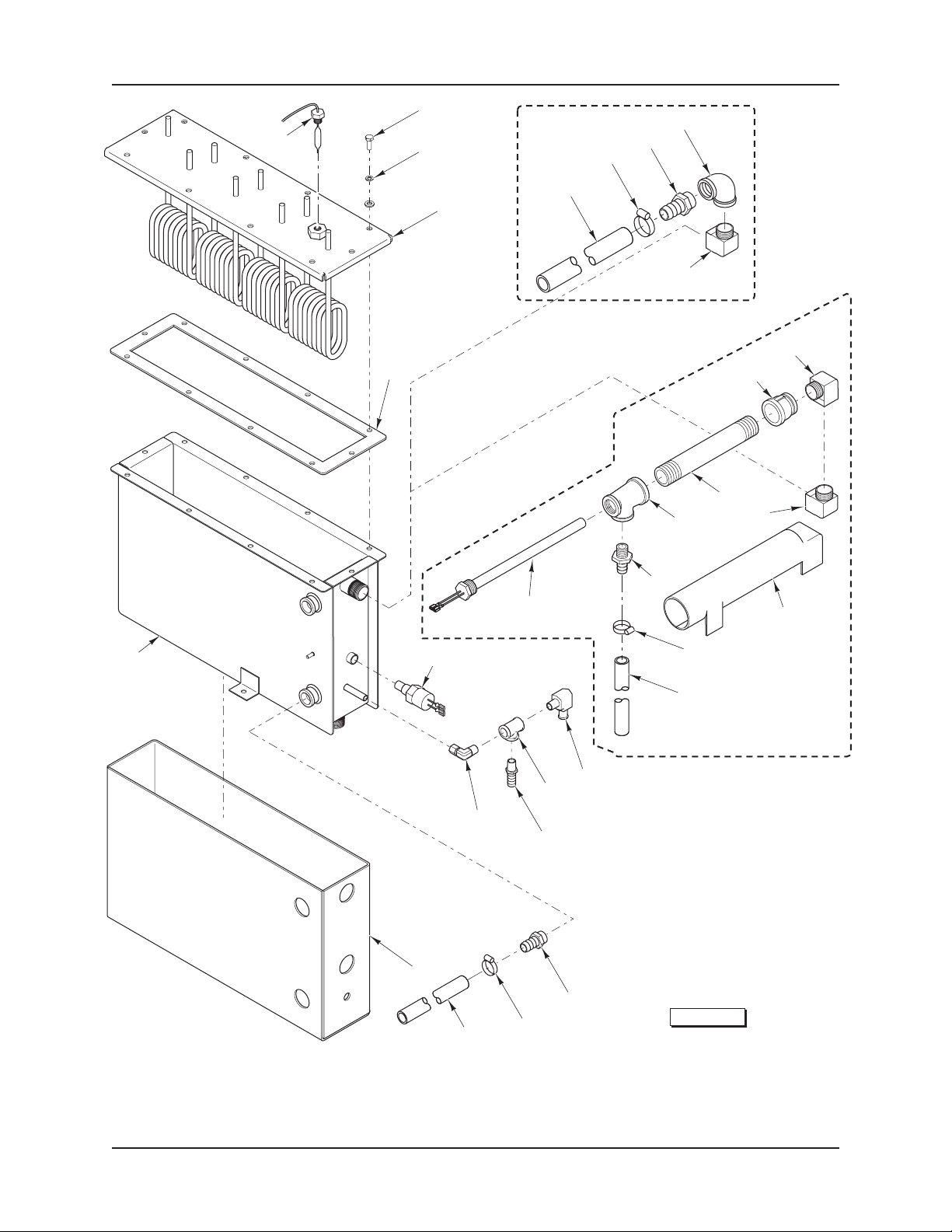

GENERATOR (3-PAN)

- 14 -

C24EA SERIES STEAMER REPLACEMENT PARTS

GENERATOR (3-PAN)

ILLUS. PART NO. NAME OF PART AMT. PL-58244

1 00-856756-00001 Probe – High Limit Temperature ................................................................................................ 1

2 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ....................................................................................... 10

3 WL-006-17 Lockwasher

4 00-856710-00002 Element – Heating (208/240 V., 8.5 kW) ....................................................................................1

5 00-856710-00004 Element – Heating (480 V., 8.5 kW) ...........................................................................................1

6 00-856711-00001 Gasket – Generator ...................................................................................................................1

7 00-557475 Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (Basic) ........................................................................ 1

8 00-557718 Clamp – Hose (Basic) ................................................................................................................1

9 FP-090-31 Fitting – Hose 5/8 Hose to 3/4 MPT (Brass) (Basic) ..................................................................... 1

10 FP-015-23 Elbow – Pipe 3/4 90 Deg. (Brass) (Basic) ...................................................................................1

11 FP-090-70 Elbow 3/4 Pipe 90 Deg. (Brass) (Basic) ......................................................................................1

12 FP-083-99 Coupling – Reducing 1 to 3/4 (Brass) (Pro)................................................................................1

13 FP-090-70 Elbow 3/4 Pipe 90 Deg. (Brass) (Pro) .........................................................................................1

14 FP-090-70 Elbow 3/4 Pipe 90 Deg. (Brass) (Pro) .........................................................................................1

15 FP-090-49 Pipe 1 x 8 (Brass) (Pro) .............................................................................................................1

16 FP-019-40 Tee – Pipe 1 x 3/4 x 3/4 (Brass) (Pro) .......................................................................................... 1

17 00-856774-00001 Insulation – Super Heater (Pro) .................................................................................................1

18 FP-090-31 Fitting – Hose 5/8 Hose to 3/4 MPT (Brass) (Pro) ........................................................................1

19 00-557718 Clamp – Hose (Pro) ...................................................................................................................1

20 00-557475 Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (Pro) ...........................................................................1

21 00-856709-00001 Heater – Generator (280/240 V.) (Pro) ......................................................................................1

22 00-856709-00002 Heater – Generator (480 V.) (Pro) .............................................................................................1

23 00-856768-00001 Probe – Hold Temperature .........................................................................................................1

24 FP-012-11 Fitting – Tube 3/8 TBG x 1/4 MPT (Brass) ....................................................................................1

25 FP-090-59 Fitting – Hose 1/2 Hose to 1/4 MPT (Brass) .................................................................................1

26 FP-019-08 Tee – Pipe 1/4 x 1/4 x 1/4 (Brass) ...................................................................................................1

27 FP-090-55 Fitting – Hose 1/2 Hose x 1/4 NPT (Brass) ................................................................................... 1

28 FP-087-39 Fitting – Hose 5/8 ID Hose to 1/2 MPT (Brass) ............................................................................. 1

29 00-534177 Clamp – Hose ............................................................................................................................1

30 00-557477 Hose 1 ID x 1.133 OD (0.93 Ft.) (Green) ................................................................................... 1

31 00-856757-00001 Insulation – Generator ...............................................................................................................1

32 00-856701-00001 Generator ...................................................................................................................................1

/4 Helical...............................................................................................................10

- 15 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

B A SIC

P R O

1 4

1 3

1 1

1 2

3 3

1 5

1 0

2 8

2 4

1 6

2 7

2 6

1 7

1 9

2 2- 2 3

1 8

2 0

2 1

2 9

3 0

3 1

3 2

2 5

PL-58245

4 -5

F-43123 (August 2006)

GENERATOR (5-PAN)

- 16 -

C24EA SERIES STEAMER REPLACEMENT PARTS

GENERATOR (5-PAN)

ILLUS. PART NO. NAME OF PART AMT. PL-58245

1 00-856756-00001 Probe – High Limit Temperature ................................................................................................ 1

2 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ....................................................................................... 10

3 WL-006-17 Lockwasher 1/4 Helical...............................................................................................................10

4 00-856710-00001 Element – Heating (208/240 V., 15 kW) .....................................................................................1

5 00-856710-00003 Element – Heating (480 V., 15 kW) ............................................................................................1

6 00-856711-00001 Gasket – Generator ...................................................................................................................1

7 00-557475 Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (Basic) ........................................................................ 1

8 00-557718 Clamp – Hose (Basic) ................................................................................................................1

9 FP-090-31 Fitting – Hose 5/8 Hose to 3/4 MPT (Brass) (Basic) ..................................................................... 1

10 FP-015-23 Elbow – Pipe 3/4 90 Deg. (Brass) (Basic) ...................................................................................1

11 FP-041-66 Pipe 3/4 x 3 TBE (Brass) (Basic) .................................................................................................1

12 FP-015-23 Elbow – Pipe 3/4 x 90 Deg. (Brass) (Basic) ................................................................................1

13 FP-015-23 Elbow – Pipe 3/4 90 Deg. (Brass) (Pro) ......................................................................................1

14 FP-041-66 Pipe 3/4 x 3 TBE (Brass) (Pro) .................................................................................................... 1

15 FP-015-23 Elbow – Pipe 3/4 x 90 Deg. (Brass) (Pro)....................................................................................1

16 FP-090-49 Pipe 1 x 8 (Brass) (Pro) .............................................................................................................1

17 FP-019-40 Tee – Pipe 1 x 3/4 x 3/4 (Brass) (Pro) .......................................................................................... 1

18 00-856774-00001 Insulation – Super Heater (Pro) .................................................................................................1

19 FP-090-31 Fitting – Hose 5/8 Hose to 3/4 MPT (Brass) (Pro) ........................................................................1

20 00-557718 Clamp – Hose (Pro) ...................................................................................................................1

21 00-557475 Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (Pro) ...........................................................................1

22 00-856709-00001 Heater – Generator (280/240 V.) (Pro) ......................................................................................1

23 00-856709-00002 Heater – Generator (480 V.) (Pro) .............................................................................................1

24 00-856768-00001 Probe – Hold Temperature .........................................................................................................1

25 FP-012-11 Fitting – Tube 3/8 TBG x 1/4 MPT (Brass) ....................................................................................1

26 FP-090-59 Fitting – Hose 1/2 Hose to 1/4 MPT (Brass) .................................................................................1

27 FP-019-08 Tee – Pipe 1/4 x 1/4 x 1/4 (Brass) ...................................................................................................1

28 FP-090-55 Fitting – Hose 1/2 Hose x 1/4 NPT (Brass) ................................................................................... 1

29 FP-087-39 Fitting – Hose 5/8 ID Hose to 1/2 MPT (Brass) ............................................................................. 1

30 00-534177 Clamp – Hose ............................................................................................................................1

31 00-557477 Hose 1 ID x 1.133 OD (0.93 Ft.) (Green) ................................................................................... 1

32 00-856757-00001 Insulation – Generator ...............................................................................................................1

33 00-856701-00001 Generator ...................................................................................................................................1

- 17 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

2 1

2 2

1 2

1 3

1 4

1 5

2 7

2 8

2 9

3 0

3 1

3 3

3 2

2 0

1 9

1 8

1 7

2 6

2 5

1 6

2 3

2 4

1 0

1 1

2 -3

3 5

3 4

PL-58246

F-43123 (August 2006)

WATER LEVEL PROBE

- 18 -

C24EA SERIES STEAMER REPLACEMENT PARTS

WATER LEVEL PROBE

ILLUS. PART NO. NAME OF PART AMT. PL-58246

1 00-857021-00001 Valve – Solenoid

2 FP-090-55 Fitting – Hose Pipe to Hose Adapter 1/2 ID x 1/4 NPT 90 Deg. (3-Pan) (Brass) .......................... 1

3 FP-090-59 Fitting – Hose 1/2 ID x 1/4 Straight NPT (5-Pan) (Brass) (Not Shown) ........................................1

4 00-557718 Clamp – Hose #10 .....................................................................................................................

5 00-557474 Hose 1/2 ID x 0.830 OD (3 Ft.) ....................................................................................................1

6 00-557718 Clamp – Hose #10 ..................................................................................................................... 1

7 FP-090-59 Fitting – Hose 1/2 ID x 1/4 NPT (Brass) ........................................................................................ 1

8 FP-030-14 Locknut – Pipe 1/4 NPSL (Brass) ................................................................................................1

9 00-850736-00003 Probe – Level Control ................................................................................................................ 1

10 00-857022-00001 Switch – Pressure ...................................................................................................................... 1

11 FP-027-06 Bushing – Pipe 1/2 to 1/8 (Brass) ................................................................................................1

12 FP-035-91 Pipe 1/2 x 11/8 TBE.......................................................................................................................1

13 FP-019-25 Tee – Pipe 1/2 x 1/2 x 1/2 ..............................................................................................................1

14 FP-035-91 Pipe 1/2 x 11/8 TBE.......................................................................................................................1

15 FP-026-24 Bushing – Pipe 1 to 1/2 ..............................................................................................................1

16 FP-088-56 Cross – Pipe Std. 1 x 1 x 1 x 1 Std. ........................................................................................... 1

17 FP-036-17 Pipe 1 x 11/2 TBE ........................................................................................................................ 1

18 FP-024-14 Coupling – Reducing 1 to 3/4 .....................................................................................................1

19 FP-026-65 Bushing – Pipe 3/4 to 1/4 ............................................................................................................. 1

20 FP-035-38 Pipe 1/4 x 7/8 TBE ........................................................................................................................ 1

21 FP-078-85 Elbow – Pipe 1/4 x 90 Deg. .........................................................................................................1

22 FP-059-32 Pipe 1 x 21/2 TBE ........................................................................................................................1

23 FP-024-42 Coupling – Reducing 1 to 1/2 .....................................................................................................1

24 FP-035-94 Pipe 1/2 x 11/2 TBE.......................................................................................................................1

25 00-557718 Clamp – Hose #10 .....................................................................................................................1

26 FP-087-39 Fitting – Hose 5/8 Hose to 1/2 NPT (Brass) .................................................................................. 1

27 FP-019-25 Tee – Pipe 1/2 x 1/2 x 1/2 ..............................................................................................................1

28 FP-087-39 Fitting – Hose 5/8 Hose to 1/2 NPT (Brass) .................................................................................. 1

29 00-557718 Clamp – Hose #10 .....................................................................................................................1

30 00-557475 Hose 5/8 ID x 0.955 OD (1.66 Ft.) ...............................................................................................1

31 00-557718 Clamp – Hose #10 .....................................................................................................................1

32 FP-090-63 Fitting – Hose 5/8 ID Hose to 3/8 MPT .........................................................................................1

33 FP-090-37 Fitting – Hose – Anchor Coupling 3/8 NPT ..................................................................................1

34 00-856769-00001 O-Ring 1/8 In. Thk. ......................................................................................................................1

35 FP-090-60 Fitting – Hose – Round Hose Cap 3/4 NH Thread ......................................................................1

/4 NPT, 9/32 Orice ..........................................................................................1

- 19 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

2 3

2 1

2 4

2 5

2 6

1 0

2 2

2 0

1 8

1 6

1 5

1 4 1 3

1 2

1 1

1 7

1 9

PL-58093

F-43123 (August 2006)

CABINET VALVE

- 20 -

C24EA SERIES STEAMER REPLACEMENT PARTS

CABINET VALVE

ILLUS. PART NO. NAME OF PART AMT. PL-58093

1 00-856737-00001 Bracket – Valve (Cabinet) ..........................................................................................................

2 NS-038-04 Lock Nut 1/4-20 ...........................................................................................................................2

3 SC-053-02 Mach. Screw 10-24 x 1/2 Slotted Truss Hd. (SST) ......................................................................4

4 FE-026-41 Connector – Conduit (1 In.) (Pro) ..............................................................................................1

5 NS-049-01 Nut – Panel ................................................................................................................................

6 00-557681 Hose – Generator Slow Fill Line (12 In.) ....................................................................................

7 00-557681 Hose – Generator Fill Line (12 In.) ............................................................................................ 1

8 00-544424 Clamp – Hose #8 .......................................................................................................................1

9 00-544424 Clamp – Hose #8 .......................................................................................................................1

10 00-856720-00002 Valve – Dual Water 4.8 - 0.15 GPM ...........................................................................................

11 NS-048-97 Nut – Panel ................................................................................................................................

12 NS-049-03 Nut – Panel ................................................................................................................................5

13 00-856720-00006 Valve – Dual Water 4.8 - 1.35 GPM (5-Pan) .............................................................................. 1

14 00-856720-00004 Valve – Dual Water 4.8 - 0.75 GPM (3-Pan) .............................................................................. 1

15 00-557718 Clamp – Hose #10 .....................................................................................................................

16 00-557681 Hose – Condensate Box Line (14 In.) ........................................................................................

17 00-557718 Clamp – Hose #10 .....................................................................................................................1

18 00-557681 Hose – Compartment Condensate Line (30 In.) ........................................................................ 1

19 00-855607-00001 Thermostat – Condensate .........................................................................................................1

20 00-557477 Hose – Generator Drain Line (3 In.) ..........................................................................................

21 00-544424 Clamp – Hose #8 .......................................................................................................................

22 00-557681 Hose – Condensate Box Line (14 In.) ........................................................................................ 1

23 00-557718 Clamp – Hose #10 .....................................................................................................................1

24 00-856734-00001 Box – Condensate – Weldment ................................................................................................. 1

25 00-534177 Clamp – Hose #12 .....................................................................................................................

26 00-557477 Hose – Compartment Drain Line (7 In.) .....................................................................................

00-856744-00004 Harness – Wiring (Rear) (Basic) ................................................................................................ 1

00-856745-00004 Harness – Wiring (Rear) (Pro) ...................................................................................................1

2 1

1 4

1 1

- 21 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

1 3

1 1

1 5

1 4

1 2

1 0

PL-58247

ILLUS. PART NO. NAME OF PART AMT. PL-58247

1 NS-011-07 Mach. Nut 6-32 Hex (SST) ........................................................................................................2

2 WL-014-03 Lockwasher #6 External ............................................................................................................2

3 00-856779-00001 Bracket – Actuator (Generator) ..................................................................................................1

4 00-842049 Switch – Door ............................................................................................................................ 1

5 SC-021-12 Mach. Screw 6-32 x 1 Slotted Rd. Hd. (SST) ............................................................................ 2

6 SC-066-05 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. (SST) ............................................................................2

7 00-856776-00001 Lever – Generator Drain ............................................................................................................1

8 00-855729-00001 Pin – Cotter ................................................................................................................................ 1

9 00-856729-00001 Drain Handle – Generator ..........................................................................................................1

10 00-856736-00001 Cap – Drain Handle – Cabinet ................................................................................................... 1

11 FP-090-56 Fitting – Hose ............................................................................................................................. 1

12 FP-085-65 Tee – Pipe 3/4 x 3/4 x 3/4 ..............................................................................................................1

13 FP-090-51 Fitting – Hose .............................................................................................................................1

14 FP-036-92 Pipe 3/4 x 13/8 TBE ...................................................................................................................... 1

15 FP-090-57 Valve 3/4 In. Ball (Bronze) ........................................................................................................... 1

GENERATOR DRAIN (BASIC)

F-43123 (August 2006)

- 22 -

C24EA SERIES STEAMER REPLACEMENT PARTS

PL-58248

GENERATOR DRAIN (PRO)

ILLUS. PART NO. NAME OF PART AMT. PL-58248

1 00-856718-00001 Drain Valve – Generator ............................................................................................................1

2 FP-090-56 Fitting – Hose .............................................................................................................................1

3 FP-085-65 Tee – Pipe 3/4 x 3/4 x 3/4 ..............................................................................................................1

4 FP-090-51 Fitting – Hose .............................................................................................................................1

5 FP-036-92 Pipe 3/4 x 13/8 TBE ...................................................................................................................... 1

- 23 -

F-43123 (August 2006)

C24EA SERIES STEAMER REPLACEMENT PARTS

PL-58249

COMPARTMENT VACUUM BREAKER

ILLUS. PART NO. NAME OF PART AMT. PL-58249

1 00-856755-00001 Valve – Check ............................................................................................................................1

2 00-557718 Clamp – Hose ............................................................................................................................1

3 00-557473 Tube Line – Compartment Vacuum ........................................................................................... 1

4 00-557718 Clamp – Hose ............................................................................................................................2

5 FP-090-71 Fitting – Hose 3/8 Hose by 1/8 NPT (Brass) ................................................................................. 1

6 WS-010-26 Washer .......................................................................................................................................1

7 00-856769-00001 O-Ring .......................................................................................................................................1

8 FP-090-36 Coupling – Anchor 1/8 (Brass)....................................................................................................1

FORM 43123 AUGUST 2006 PRINTED IN U.S.A.

Vulcan Hart C24EA SERIES STEAMER Part Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTROLS

ELECTRICAL COMPONENTS

CABINET

DOOR

COMPARTMENT

WATER LEVEL PROBE

CABINET VALVE

COMPARTMENT VACUUM BREAKER
