REPLACEMENT PARTS
ER SERIES FRYER
MODEL ML NUMBER
1ER50A ML-136730
1ER50C ML-136498
1ER50D ML-136496
1ER85A ML-136740
1ER85C ML-136499
1ER85D ML-136497
1ER50AF ML-136799
2ER50AF ML-136741
3ER50AF ML-136743
4ER50AF ML-136745
1ER50CF ML-136798
2ER50CF ML-136598
3ER50CF ML-136608
4ER50CF ML-136615
1ER50DF ML-136797
2ER50DF ML-136596
3ER50DF ML-136606
4ER50DF ML-136614
1ER85AF ML-136802
2ER85AF ML-136742
1ER85CF ML-136801
2ER85CF ML-136599
1ER85DF ML-136800
2ER85DF ML-136597
CATALOG OF
For additional information on Vulcan-Hart Company or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanequipment.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANEQUIPMENT.COM
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
F-43220 Rev. A (April 2015) - 2 - © VULCAN-HART COMPANY 2015
Table of Contents
ER Series Fryer REPLACEMENT PARTS
5 CONTROL BOX ASSEMBLY (BEHIND DOOR)
7 CONTROL PANEL (NCC)
9 POWER SUPPLY BOX
13 BODY UNIT (WITHOUT FILTER)
15 BODY UNIT (WITH FILTER)
17 TANK AND DRAIN
19 HEATING ELEMENT ASSEMBLY
21 OIL RETURN (STAND ALONE WITH FILTER)
23 OIL RETURN (BATTERY WITH FILTER)
25 FILTER ASSEMBLY (STAND ALONE WITH FILTER)
27 FILTER ASSEMBLY (BATTERY WITH FILTER)
- 3 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
CONTROL BOX ASSEMBLY
(BEHIND DOOR)
F-43220 Rev. A (April 2015) - 4 -
CONTROL BOX ASSEMBLY
(BEHIND DOOR)
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59476
10 00-956827-00002 Overlay.......................................................................................................................................1
11 00-427755-000G1 Rocker Switch Assy. S.P.S.T. (ON/OFF)...................................................................................1
12 00-411242-00001 Knob...........................................................................................................................................1
13 00-427755-000G2 Rocker Switch Assy. (Start)........................................................................................................1
14 00-427755-000G1 Rocker Switch Assy. S.P.S.T.....................................................................................................1
15 00-427755-000G1 Rocker Switch Assy. S.P.S.T. (FILTER) (AF Series).................................................................1
PART NO. NAME OF PART AMT.
1 00-957822-00002 Cover - Control Box (LH)............................................................................................................1
2 00-957822-00003 Cover - Control Box (RH)...........................................................................................................1
3 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................1
4 00-956926-000G2 Control Assy. - Behind Door No Led..........................................................................................1
00-956926-000G4 Control Assy. - Behind Door With Led.....................................................................................AR
5 00-416535-00006 Relay - Heating (120 V.).............................................................................................................1
6 00-416535-00007 Relay - Heating (200-240 V.)......................................................................................................1
7 00-416535-00004 Switch - Relay S.P.D.T. 24 V. Coil (Electronic Ignition).............................................................1
8 00-499716-00003 Plate - Control Mounting (LH).....................................................................................................1
9 00-499716-00004 Plate - Control Mounting (RH)....................................................................................................1
00-428906-00001 Overlay - Power..........................................................................................................................1
- 5 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
CONTROL PANEL (NCC)
F-43220 Rev. A (April 2015) - 6 -
CONTROL PANEL (NCC)
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59477
10 00-913086-00002 Computer Cooking Assy. (Filter Button) (Incls. 15)....................................................................1
11 00-913086-00001 Computer Cooking Assy. (Boil Button) (Incls. 16)......................................................................1
12 00-426815-000G1 Plate Assy. - Mounting (50 Series).............................................................................................1
13 00-426815-000G2 Plate Assy. - Mounting (85 Series).............................................................................................1
14 NS-046-89 Nut Assy. 6-32 Hex....................................................................................................................4
15 00-958620-00001 Overlay - Vulcan (Filter Button) Control Panel...........................................................................1
16 00-958620-00002 Overlay - Vulcan (Boil Button) Control Panel.............................................................................1
17 00-427755-000G1 Rocker Switch Assy....................................................................................................................1
18 00-428906-00001 Overlay - Power..........................................................................................................................1
19 00-426732-00001 Overlay - Control Panel (Filter Button).......................................................................................1
20 00-497422-00001 Overlay - Control Panel (Boil).....................................................................................................1
PART NO. NAME OF PART AMT.
1 NS-046-89 Nut Assy. 6-32 Hex....................................................................................................................4
2 00-426815-000G1 Plate Assy. - Mounting (50 Series).............................................................................................1
3 00-426815-000G2 Plate Assy. - Mounting (85 Series).............................................................................................1
4 00-497745-00003 Overlay - Vulcan (Boil) (Button)..................................................................................................1
5 00-497745-00001 Overlay - Vulcan (Filter) (Button)................................................................................................1
6 00-913086-00003 Control Assy. - Solid State (Boil Button) (Incls. Item 4)..............................................................1
7 00-913086-00004 Control Assy. - Solid State (Filter Button) (Incls. Item 5)............................................................1
8 00-427755-000G1 Rocker Switch Assy. Power.......................................................................................................1
9 00-428906-00001 Overlay - Power..........................................................................................................................1
- 7 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
POWER SUPPLY BOX
F-43220 Rev. A (April 2015) - 8 -
POWER SUPPLY BOX
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59486
10 SC-119-90 Mach. Screw 6-32 x 1 Slotted Pan Hd.......................................................................................2
11 WL-004-40 Lockwasher #10 Helical.............................................................................................................2
12 00-417856-00001 Lug - Grounding (With Set Screw).............................................................................................1
13 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................1
14 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................2
15 00-411500-00012 Transformer (120 VAC, 28 V., 40 VA)........................................................................................1
16 00-411500-00013 Transformer (200-240 VAC, 28 V., 20 VA).................................................................................1
17 SD-037-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................8
18 00-411497-000C5 Contactor (3-Pole) (40 Amp., 230 V.).........................................................................................4
19 00-411497-000C3 Contactor (3-Pole) (40 Amp., 120 V.).........................................................................................4
20 00-497096-00001 Plate - Temperature Board (1HF50C/D) Plate - Temperature Board (50 Series)......................1
21 00-497096-00002 Plate - Temperature Board (85 Series)......................................................................................1
22 NS-047-32 Lock Nut 4-40..........................................................................................................................AR
23 00-416535-00007 Switch - Relay (240 V.)...............................................................................................................1
24 SC-060-23 Mach. Screw 4-40 x 1/4 Slotted Rd. Hd..................................................................................AR
25 00-416535-00004 Switch - Relay S.P.D.T. 24 V. Coil (Electronic Ignition).............................................................1
26 SC-060-23 Mach. Screw 4-40 x 1/4 Slotted Rd. Hd..................................................................................AR
27 SC-060-23 Mach. Screw 4-40 x 1/4 Slotted Rd. Hd..................................................................................AR
28 00-419317 Terminal - Stationary..................................................................................................................1
29 00-427759-00001 Control - Interface.......................................................................................................................1
30 SD-024-40 Self-Tapping Screw 6-32 x 5/8 Phil. Pan Hd., Type TT..............................................................4
31 00-497266-000G4 Box - Power Supply (480 V.) (Incls. Items 32, 33, 34, 36, & 38)................................................1
32 00-428270-00003 Box - Breaker.............................................................................................................................1
33 00-428271-00005 Lid - Breaker Box Small..............................................................................................................1
34 00-410472-00008 Block - Terminal (3-Pole)............................................................................................................1
35 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................1
36 00-417856-00001 Lug - Grounding (With Set Screw).............................................................................................1
37 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................1
38 00-414208-00002 Barrier - Terminal.......................................................................................................................1
39 NS-009-07 Nut 6-32 Hex..............................................................................................................................2
40 SC-119-90 Mach. Screw 6-32 x 1 Slotted Pan Hd.......................................................................................2
41 WL-004-40 Lockwasher #10 Helical.............................................................................................................2
42 00-417856-00001 Lug - Grounding (With Set Screw).............................................................................................1
43 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................1
44 00-497266-000G1 Box - Power Supply (208 V., 17 kW) (50 Series) (Incls. Items 45, 46, 47, & 49).......................1
45 00-428270-00003 Box - Breaker.............................................................................................................................1
46 00-428271-00005 Lid - Breaker Box Small..............................................................................................................1
47 00-410472-00008 Block - Terminal (3-Pole)............................................................................................................1
48 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................2
49 00-417856-00001 Lug - Grounding (With Set Screw).............................................................................................1
50 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................1
51 00-497266-000G2 Box - Power Supply (208 V.) (24 kW)(85 Series) (Incls. Items 52, 53, 54, 56, 58, & 59)
52 00-428270-00002 Box - Breaker.............................................................................................................................1
53 00-428271-00004 Lid Breaker Box With Breakers..................................................................................................1
54 00-410472-00008 Block - Terminal (3-Pole)............................................................................................................1
55 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................2
PART NO. NAME OF PART AMT.
1 SD-036-80 Self-Tapping Screw 8-32 x 3/8 Hex Washer Hd., Type TT........................................................4
2 00-497095-00002 Box - Power Supply (85 Series).................................................................................................1
3 00-497095-00001 Box - Power Supply (50 Series).................................................................................................1
4 PB-002-26 Plug - Button (Slave Power Box)................................................................................................2
5 SD-036-80 Self-Tapping Screw 8-32 x 3/8 Hex Washer Hd., Type TT........................................................4
6 FE-019-40 Fuse (15 Amp., 300 V.)..............................................................................................................2
7 FE-023-55 Holder - Fuse (15 Amp., 300 V.)................................................................................................2
8 00-414208-00002 Barrier - Terminal.......................................................................................................................1
9 NS-009-07 Nut 6-32 Hex..............................................................................................................................2
...................................................................................................................................................1
- 9 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
POWER SUPPLY BOX
ILLUS.
PL-59486
56 00-417856-00001 Lug - Grounding (With Set Screw).............................................................................................1
57 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................1
58 00-497265-00001 Breaker (3-Pole) (ER85 208 V.).................................................................................................2
59 00-497361-00002 Bracket - Breaker (ER85 208 V.)................................................................................................1
60 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................2
61 00-499219-000G1 Plate - Control Mounting (Incls. Items 61 thru 64)......................................................................1
62 00-499219-00001 Plate - Control Mount.................................................................................................................1
63 00-428864-00001 Relay (Filter)...............................................................................................................................1
64 00-416535-00004 Switch - Relay S.P.D.T. 24 V. Coil (Electronic Ignition).............................................................1
PART NO. NAME OF PART AMT.
F-43220 Rev. A (April 2015) - 10 -
NOTES
ER Series Fryer REPLACEMENT PARTS
- 11 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
BODY UNIT
(WITHOUT FILTER)
F-43220 Rev. A (April 2015) - 12 -
BODY UNIT
(WITHOUT FILTER)
ER Series Fryer REPLACEMENT PARTS

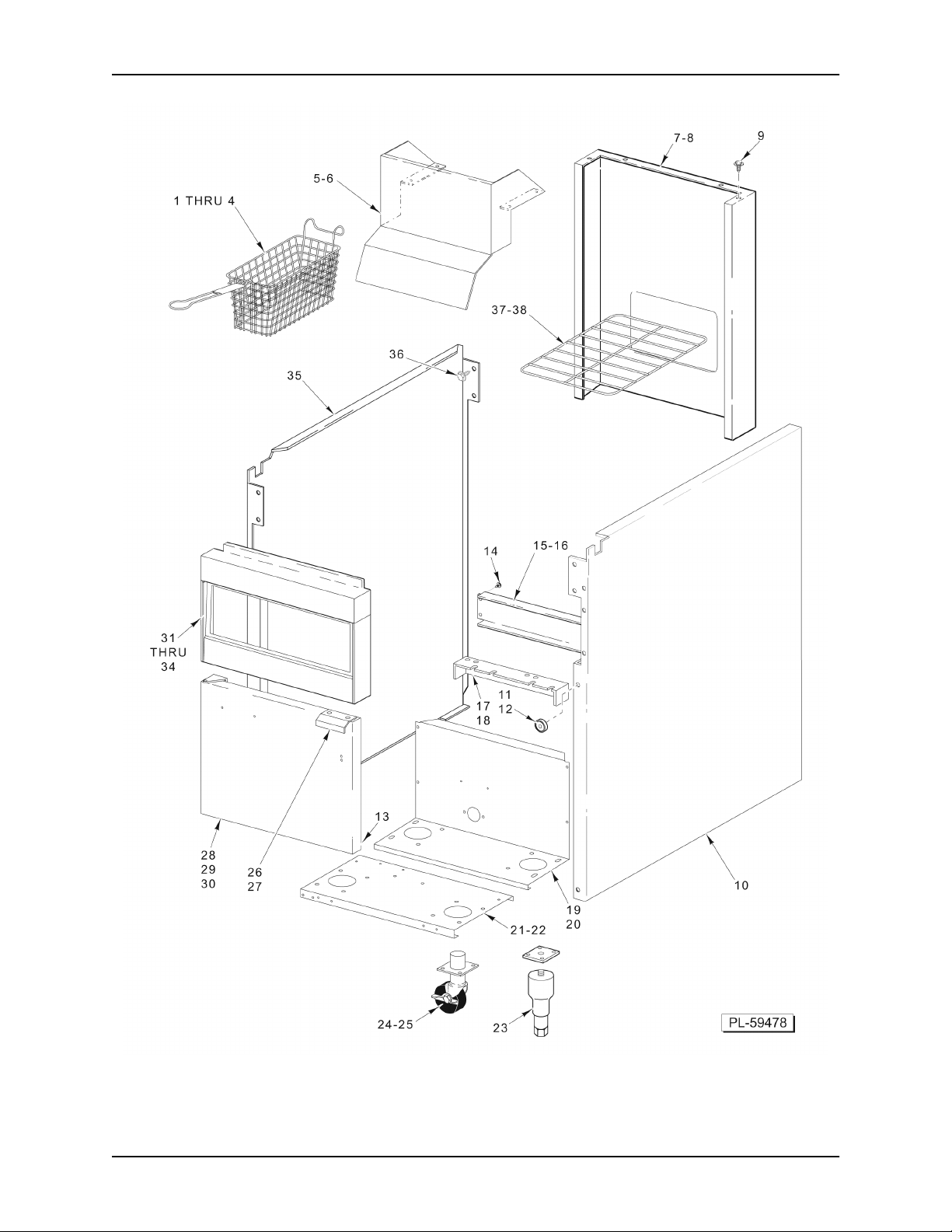

ILLUS.
PL-59478
10 00-420596-00004 Body - Side (SST) (RH)..............................................................................................................1
11 RS-033-04 Rivet - Pop..................................................................................................................................1
12 00-497296-000G2 Magnet Assy...............................................................................................................................1
13 00-420769-00001 Bumper - Rubber........................................................................................................................1
14 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT....................................................10
15 00-417014-00001 Bracket - Rear Support (50 Series)............................................................................................1
16 00-418320-00001 Bracket - Rear Support (85 Series)............................................................................................1
17 00-427825-00001 Bracket - Power Supply - Rear...................................................................................................1
18 00-427824-00001 Bracket - Power Supply - Front..................................................................................................1
19 00-416950-00001 Body - Bottom (Rear) (50 Series)...............................................................................................1
20 00-419652 Body - Bottom (Rear) (85 Series)...............................................................................................1
21 00-427886-00001 Body - Bottom (Front) (50 Series)..............................................................................................1
22 00-428152-00001 Body - Bottom (Front) (85 Series)..............................................................................................1
23 00-413112-00012 Leg (6 In.) (SST).........................................................................................................................4
24 00-421893-00001 Mount Plate - Caster..................................................................................................................2
25 00-421893-00002 Caster 4 In. (No Brake)..............................................................................................................2
26 00-419653 Handle........................................................................................................................................1
27 RS-033-02 Rivet - Pop..................................................................................................................................2
28 00-428023-000G2 Hinge Assy. - Door LH................................................................................................................1
29 00-499487-000G1 Door Assy. (LH) (SST) (50 Series).............................................................................................1
30 00-499487-000G5 Door Assy. (LH) (SST) (85 Series).............................................................................................1
31 00-426806-000G1 Frame - Front Assy. (50 Series).................................................................................................1
32 00-426806-000G4 Frame - Front Assy. (85 Series).................................................................................................1
33 00-426814-00004 Plate - Control (1ER50A)............................................................................................................1
34 00-426814-00005 Plate - Control (1ER85A)............................................................................................................1
35 00-420596-00003 Body - Side (SST) (LH)..............................................................................................................1
36 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB........................................................8
37 00-427883-00002 Screen - Basket Support (50 Series)..........................................................................................1
38 00-427883-00004 Screen - Basket Support (85 Series)..........................................................................................1
PART NO. NAME OF PART AMT.
1 00-499223-00001 Basket - Twin (50 Series)........................................................................................................AR
2 00-499223-00004 Basket - Twin (85 Series)........................................................................................................AR
3 00-499223-00011 Basket - Single (85 Series)......................................................................................................AR
4 00-499223-00009 Basket Single (50 Series)........................................................................................................AR
5 00-421912-000G1 Hanger - Single Basket (85 Series)............................................................................................1
6 00-421911-000G1 Hanger - Basket (50 Series).......................................................................................................1
7 00-422020-000G4 Flue Wrap (SST) (85 Series)......................................................................................................1
8 00-422021-00002 Flue Wrap (SST) (50 Series)......................................................................................................1
9 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................2
00-426610-00001 Gusset - Body RH......................................................................................................................1
00-426610-00002 Gusset - Body LH.......................................................................................................................1
00-419592-00001 Clip - Thermistor Probe..............................................................................................................1
00-422737-00002 Probe - Thermistor (50 Series)...................................................................................................1
00-422737-00001 Probe - Thermistor (85 Series)...................................................................................................1
- 13 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
BODY UNIT
(WITH FILTER)
F-43220 Rev. A (April 2015) - 14 -
BODY UNIT
(WITH FILTER)
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59479
10 00-427883-00002 Screen - Basket Support (50 Series)..........................................................................................1
11 00-427883-00004 Screen - Basket Support (85 Series)..........................................................................................1
12 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB........................................................8
13 00-420596-00003 Body - Side (SST) (LH) (3ER50 & 4ER50 Series).....................................................................1
14 00-419777-00003 Body - LH Side (SST) (85 Series, 1ER50, & 2ER50 Series)......................................................1
15 00-420596-00004 Body - Side (SST) (RH) (4ER50 Series)....................................................................................1
16 00-419777-00004 Body - RH Side (SST) (85 Series, 1ER50, 2ER50, & 3ER50 Series)........................................1
17 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT....................................................10
18 00-417014-00001 Bracket - Rear Support (50 Series)............................................................................................1
19 00-418320-00001 Bracket - Rear Support (85 Series)............................................................................................1
20 RS-033-04 Rivet - Pop..................................................................................................................................1
21 00-497296-000G1 Magnet Assy...............................................................................................................................1
22 00-420769-00001 Bumper - Rubber........................................................................................................................1
23 00-416950-00001 Body - Bottom (Rear) (3ER50 & 4ER50 Series)........................................................................1
24 00-427886-00001 Body - Bottom (Front) (3ER50 & 4ER50 Series)........................................................................1
25 00-413112-00007 Leg (6-1/4 In.) (SST)..................................................................................................................4
26 00-418907-00001 Caster - Swivel Assy. (Adjustable) (With Brake)........................................................................2
27 00-418907-00003 Caster (Without Brake)...............................................................................................................2
28 00-427275-000G1 Body - Bottom Frame (2ER50, 3ER50, & 4ER50 Series)..........................................................1
29 00-427373-000G1 Body - Bottom Frame (2ER85 Series)........................................................................................1
30 00-956906-000G2 Body - Bottom Frame (50 Series)...............................................................................................1
31 00-956906-000G4 Body - Bottom Frame (85 Series)...............................................................................................1
32 00-419653 Handle........................................................................................................................................1
33 RS-033-02 Rivet - Pop..................................................................................................................................2
34 00-499487-000G1 Door Assy. (LH) (SST) (3ER50 & 4ER50 Series)......................................................................1
35 00-499487-000G2 Door Assy. (RH) (RH) (SST) (4ER50 Series).............................................................................1
36 00-499487-000G3 Door Assy. (LH) (With Hinge) (SST) (50 Series)........................................................................1
37 00-499487-000G4 Door Assy. (RH) (With Hinge) (SST) (2ER50, 3ER50, & 4ER50 Series)...................................1
38 00-499487-000G7 Door Assy. (LH) (With Hinge) (SST) (85 Series)........................................................................1
39 00-499487-000G8 Door Assy. (RH) (With Hinge) (SST) (2ER85 Series)................................................................1
40 00-428023-000G2 Hinge Assy. - Door LH (3ER50 & 4ER50 Series).......................................................................1
41 00-426806-000G1 Frame - Front Assy. (1ER50 Series)..........................................................................................1
42 00-426806-000G2 Frame - Front Assy. (2ER50 Series)..........................................................................................1
43 00-426806-000G3 Frame - Front Assy. (3ER50 Series)..........................................................................................1
44 00-426806-000G4 Frame - Front Assy. (1ER85 Series)..........................................................................................1
45 00-426806-000G5 Frame - Front Assy. (2ER85 Series)..........................................................................................1
46 00-426806-000G7 Frame - Front Assy. (4ER50 Series)..........................................................................................1
PART NO. NAME OF PART AMT.
1 00-499223-00001 Basket - Twin (50 Series)........................................................................................................AR
2 00-499223-00004 Basket - Twin (85 Series)........................................................................................................AR
3 00-499223-00011 Basket - Single (85 Series)......................................................................................................AR
4 00-499223-00009 Basket - Single (50 Series)......................................................................................................AR
5 00-421912-000G1 Hanger - Single Basket (85 Series)............................................................................................1
6 00-421911-000G1 Hanger - Basket (50 Series).......................................................................................................1
7 00-422020-000G4 Flue Wrap (SST) (85 Series)......................................................................................................1
8 00-422021-00002 Flue Wrap (SST) (50 Series)......................................................................................................1
9 SD-036-96 Self-Tapping Screw 8-18 x 3/4 Hex Hd., Type AB.....................................................................2
00-419592-00001 Clip - Thermistor Probe..............................................................................................................1
00-422737-00002 Probe - Thermistor (50 Series)...................................................................................................1
00-422737-00001 Probe - Thermistor (85 Series)...................................................................................................1
- 15 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
TANK AND DRAIN
F-43220 Rev. A (April 2015) - 16 -
TANK AND DRAIN
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59480
10 00-426801-00002 Magnet - Switch Element Head..................................................................................................1
11 00-497567-000G4 Pipe - Drain With Spout (2ER85 Series)....................................................................................1
12 00-497567-000G3 Pipe - Drain With Spout (2ER50 Series)....................................................................................1
13 00-497569-000G3 Pipe - Drain (Center) With Spout (3ER50 Series & 4ER50 Series)...........................................1
14 00-497566-000G1 Pipe - Drain (End) (50 Series)....................................................................................................1
15 00-497566-000G4 Pipe - Drain (End) (85 Series)....................................................................................................1
16 00-497568-000G1 Pipe - Drain (Center) (4ER50 Series).........................................................................................1
17 00-497571-000G1 Plug - Drain................................................................................................................................2
18 00-420726-00001 Flange - Pipe (1 1/4 In.)..............................................................................................................1
19 00-420553-00002 Gasket - Silicone........................................................................................................................1
20 FP-036-32 Pipe 1 1/4 x 2 TBE.....................................................................................................................1
21 FP-036-33 Pipe 1 1/4 x 2 1/2 TBE...............................................................................................................1
22 SC-036-13 Cap Screw 1/4-20 x 3/4 Hex Hd.................................................................................................2
23 00-497409-00001 Clamp - Drain Tube.................................................................................................................AR
24 00-419351-00001 Hose - Connect.......................................................................................................................AR
25 00-420553-00002 Gasket - Silicone........................................................................................................................1
26 00-420726-00001 Flange - Pipe (1 1/4 In.)..............................................................................................................1
27 FP-036-32 Pipe 11/4 x 2 TBE......................................................................................................................1
28 FP-036-33 Pipe 1 1/4 x 2 1/2 TBE...............................................................................................................1
29 SC-036-13 Cap Screw 1/4-20 x 3/4 Hex Hd.................................................................................................2
30 00-406363-00001 Spring - Door (Long)................................................................................................................AR
PART NO. NAME OF PART AMT.
1 00-421844-000G3 Tank Assy. (50 Series)...............................................................................................................1
2 00-421842-000G3 Tank Assy. (85 Series)...............................................................................................................1
3 00-410863-00002 Channel - Grease (50 Series)....................................................................................................1
4 00-410863-00007 Channel - Grease (85 Series)....................................................................................................1
5 FP-028-14 Pipe - Plug 1/2 Sq. Hd.............................................................................................................AR
6 00-402570-00003 Eye Bolt...................................................................................................................................AR
7 NS-047-69 Lock Nut 6-32 Hex...................................................................................................................AR
8 00-426803-000G8 Valve Assy. (Incls. Items 9 & 10)................................................................................................1
9 00-426805-000G1 Switch Assy................................................................................................................................1
00-420588-00004 Bracket - Upright........................................................................................................................1
00-422376-00001 Brace - Spring Retainer (50 Series)...........................................................................................1
00-422377-00001 Brace - Spring Retainer (85 Series)...........................................................................................1
00-956636-00001 Bracket - Bulb Locator................................................................................................................1
00-497572-000G2 Pipe - Boil Out Bypass...............................................................................................................1
00-418364-000G4 Drain Assy. (1 1/4 In.) (Without Filter)........................................................................................1
- 17 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
HEATING ELEMENT ASSEMBLY
F-43220 Rev. A (April 2015) - 18 -
HEATING ELEMENT ASSEMBLY
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59481
10 00-414178-000G2 Clamp - Top Element Assy. (50 Series).....................................................................................4
11 00-416741-000G9 Element Assy. (208 V., 8500 kW) (50 Series)............................................................................2
12 00-416741-00G12 Element Assy. (480 V., 8500 kW) (50 Series)............................................................................2
13 00-416741-00G11 Element Assy. (240 V., 8500 kW) (50 Series)............................................................................2
14 00-421892-000G1 Element Assy. (208 V., 12000 kW) (85 Series)..........................................................................2
15 00-421892-000G4 Element Assy. (480 V., 12000 kW) (85 Series)..........................................................................2
16 00-421892-000G3 Element Assy. (240 V., 12000 kW) (85 Series)..........................................................................2
PART NO. NAME OF PART AMT.
1 00-421829-000G1 Element Head Assy. (85 Series)................................................................................................1
2 00-422322-000G1 Element Head Assy. (50 Series)................................................................................................1
3 00-422737-00001 Probe - Thermistor (85 Series)...................................................................................................1
4 00-422737-00002 Probe - Thermistor (50 Series)...................................................................................................1
5 00-416782-00001 Bracket - Hi-Limit.....................................................................................................................AR
6 00-416782-00002 Bracket - Hi-Limit........................................................................................................................1
7 00-414177-00001 Clamp - Bottom Element (50 Series)..........................................................................................2
8 00-422380-00001 Clamp - Bottom Element (85 Series)..........................................................................................1
9 00-422381-000G1 Clamp - Top Element Assy. (85 Series).....................................................................................4
00-414146-00002 Thermostat Hi-Limit....................................................................................................................1
00-426801-00001 Switch - Wired............................................................................................................................1
00-426801-00002 Magnet - Switch Element Head..................................................................................................1
00-422380-00001 Clamp - Rear Lower Element (85 Series)..................................................................................1
00-414178-000G3 Clamp - Top Element Assy. With Guard (50 Series)..................................................................1
00-422381-000G2 Clamp - Top Element Assy. With Guard (85 Series)..................................................................1
00-422414-00001 Clamp - Front Lower Element (85 Series)..................................................................................1
00-427764-00001 Clamp - Front Lower Element (50 Series)..................................................................................1
00-414305-00001 Gasket - Wire Chase..................................................................................................................1
00-416736-00001 Gasket - Element Flange............................................................................................................4
00-422737-00002 Probe - Thermister (50 Series)...................................................................................................1
00-422737-00001 Probe - Thermistor (85 Series)...................................................................................................1
- 19 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
OIL RETURN
(STAND ALONE WITH FILTER)
F-43220 Rev. A (April 2015) - 20 -
OIL RETURN
(STAND ALONE WITH FILTER)
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59482
10 FP-035-96 Pipe 1/2 x 2-1/2 TBE..................................................................................................................1
11 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
12 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
13 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
14 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
15 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
16 00-428753-00001 Valve - Oil Discharge..................................................................................................................1
17 00-426805-000G2 Switch - Magnetic (Wired)..........................................................................................................1
18 00-426801-00002 Magnet - Switch Element Head Mounted...................................................................................1
19 SC-018-55 Mach. Screw 4-40 x 1/2 Phil. Pan Hd.........................................................................................4
20 NS-044-01 Nut Assy. 4-40 KEPS.................................................................................................................4
21 00-428697-00001 Actuator - Oil Discharge.............................................................................................................1
22 00-428694-000G1 Valve - Discard (LH) (Incls. Items 15 thru 20)............................................................................1
23 SC-116-19 Shoulder Bolt 1/4-20 x 3/4..........................................................................................................1
24 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
25 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
26 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
27 FP-036-91 Pipe 1/2 x 91/2 TBE...................................................................................................................1
28 FP-090-81 Pipe 1/2 x 13-1/2 TBE................................................................................................................1
29 00-418781-00001 Quick Disconnect Male...............................................................................................................1
30 NS-046-52 Nut Assy. 1/4-20 Hex.................................................................................................................1
31 WS-029-49 Washer.......................................................................................................................................1
32 00-416435-00002 Grip (Yellow)...............................................................................................................................1
33 00-428693-00006 Rod - Pull Kleenscreen............................................................................................................AR
34 NS-046-52 Nut Assy. 1/4-20 Hex.................................................................................................................2
35 00-521820 U-Bolt.........................................................................................................................................1
36 00-426567-00002 O-Ring (Viton)............................................................................................................................2
37 00-426567-00003 Receptacle - Oil Suction.............................................................................................................1
38 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
39 SC-114-01 Mach. Screw 10-32 x 3/8 Hex Washer Hd.................................................................................1
40 00-417792-00005 Pump Motor Assy. (115 V., 60 Hz.) (8 G.P.M.)..........................................................................1
41 00-417792-00006 Pump Motor Assy. (208 V., 50/60 Hz.).......................................................................................1
42 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
43 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
44 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
45 00-426602-00004 Tube - Flex (19 In.) Suction........................................................................................................1
46 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-419251-00001 Fitting - 90 Deg. Swivel..............................................................................................................1
2 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
3 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
4 00-418786-00001 Valve - Check.............................................................................................................................1
5 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
6 00-959909-00001 Valve - Solenoid (120 V.)...........................................................................................................1
7 00-959909-00002 Valve - Solenoid (208 V.)...........................................................................................................1
8 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
9 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
00-422281-00008 Hose - Discard (4 Ft.).................................................................................................................1
00-956900-00001 Bracket - Suction Block..............................................................................................................1
- 21 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
OIL RETURN
(BATTERY WITH FILTER)
F-43220 Rev. A (April 2015) - 22 -
OIL RETURN
(BATTERY WITH FILTER)
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59483
10 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
11 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
12 FP-059-63 Pipe 1/2 x 6 TBE........................................................................................................................1
13 FP-090-81 Pipe 1/2 x 13-1/2 TBE................................................................................................................1
14 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
15 00-419251-00001 Fitting - 90 Deg. Swivel..............................................................................................................1
16 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
17 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
18 00-418786-00001 Valve - Check.............................................................................................................................1
19 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
20 00-959909-00001 Valve - Solenoid (120 V.)...........................................................................................................1
21 00-959909-00002 Valve - Solenoid (208 V.)...........................................................................................................1
22 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
23 FP-059-18 Pipe 1/2 x 3-1/2 TBE..................................................................................................................1
24 00-419251-00001 Fitting - 90 Deg. Swivel..............................................................................................................1
25 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
26 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
27 00-418786-00001 Valve - Check.............................................................................................................................1
28 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
29 00-959909-00001 Valve - Solenoid (120 V.)...........................................................................................................1
30 00-959909-00002 Valve - Solenoid (208 V.)...........................................................................................................1
31 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
32 FP-028-14 Pipe - Plug 1/2 Sq. Hd................................................................................................................1
33 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
34 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
35 00-417792-00005 Pump Motor Assy. (115 V., 60 Hz.) (8 G.P.M.)..........................................................................1
36 00-417792-00006 Pump Motor Assy. (208 V., 50/60 Hz.).......................................................................................1
37 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................1
38 SC-114-01 Mach. Screw 10-32 x 3/8 Hex Washer Hd.................................................................................1
39 00-426567-00002 O-Ring (Viton)............................................................................................................................2
40 00-426567-00003 Receptacle - Oil Suction.............................................................................................................1
41 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
42 00-426602-00004 Tube - Flex (19 In.).....................................................................................................................1
43 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
44 00-426602-00004 Tube - Flex (19 In.).....................................................................................................................1
45 FP-035-94 Pipe 1/2 x 1-1/2 TBE..................................................................................................................1
46 00-426602-00002 Tube - Flex (29 In.).....................................................................................................................1
47 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
48 FP-035-95 Pipe 1/2 x 2 TBE........................................................................................................................1
49 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
50 FP-035-91 Pipe 1/2 x 1-1/8 TBE..................................................................................................................1
51 00-426803-000G2 Valve Assy. (Incls. Items 52 thru 55)..........................................................................................1
52 00-426805-000G2 Switch - Magnetic (Wired)..........................................................................................................1
53 00-426801-00002 Magnet - Switch Element Head..................................................................................................1
54 SC-018-55 Mach. Screw 4-40 x 1/2 Phil. Pan Hd.........................................................................................4
55 NS-044-01 Nut Assy. 4-40 KEPS.................................................................................................................4
56 00-428693-00004 Rod - Pull Kleenscreen...............................................................................................................1
57 00-416435-00002 Grip (Yellow)...............................................................................................................................1
58 FP-077-68 Elbow 1/2 x 90 Deg....................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-418781-00001 Quick Disconnect.......................................................................................................................1
2 FP-090-81 Pipe 1/2 x 13-1/2 TBE................................................................................................................1
3 FP-090-88 Pipe 1 1/4 x 2 3/4 TBE (HXE5 & HF50 Series)..........................................................................1
4 NS-046-51 Nut Assy. 8-32 Hex....................................................................................................................1
5 FP-019-25 Tee 1/2 x 1/2 x 1/2......................................................................................................................1
6 FP-035-94 Pipe 1/2 x 1-1/2 TBE..................................................................................................................1
7 WS-029-49 Washer.......................................................................................................................................1
8 SC-116-19 Shoulder Bolt 1/4-20 x 3/4..........................................................................................................1
9 FP-028-14 Pipe - Plug 1/2 Sq. Hd................................................................................................................1
00-521820 U-Bolt.........................................................................................................................................1
- 23 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
FILTER ASSEMBLY
(STAND ALONE WITH FILTER)
F-43220 Rev. A (April 2015) - 24 -
FILTER ASSEMBLY
(STAND ALONE WITH FILTER)
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59484
10 00-499089-00003 Clip - Filter (85 Series)...............................................................................................................1
11 00-956901-000G4 Tube - Suction (50 Series).........................................................................................................1
12 00-956901-000G8 Tube - Suction (85 Series).........................................................................................................1
13 NS-017-49 Jam Nut 3/4-16 Hex...................................................................................................................1
14 00-499083-00002 Coupling - Suction......................................................................................................................1
15 00-499084-00002 Knob - Port Suction....................................................................................................................1
16 00-428180-000G6 Drawer Assy. (50 Series)...........................................................................................................1
17 00-428180-000G7 Drawer Assy. (85 Series)...........................................................................................................1
18 00-958026-000G2 Guide - Roller.............................................................................................................................1
19 00-426606-000G5 Basket - Scrap (50 Series).........................................................................................................1
20 00-426606-000G7 Basket - Scrap (85 Series).........................................................................................................1
21 00-958000-000G1 Pan Assy. - Filter (50 Series).....................................................................................................1
22 00-958000-000G2 Pan Assy. - Filter (85 Series).....................................................................................................1
PART NO. NAME OF PART AMT.
1 00-956904-00001 Splash Guard (50 Series)...........................................................................................................1
2 00-956904-00002 Splash Guard (85 Series)...........................................................................................................1
3 00-499087-00002 Screen - Fine Mesh Filter (50 Series)........................................................................................1
4 00-499087-00004 Screen - Fine Mesh Filter (85 Series)........................................................................................1
5 00-499085-00003 Insert - Filter Screen (50 Series)................................................................................................1
6 00-499085-00006 Insert - Filter Screen (85 Series)................................................................................................1
7 00-499086-000G4 Filter - Envelope (6 Pack) (50 Series)........................................................................................1
8 00-499086-000G6 Filter - Envelope (6 Pack) (85 Series)........................................................................................1
9 00-499089-00002 Clip - Filter (50 Series)...............................................................................................................1
00-499486-00001 Clip - Drain Pipe.........................................................................................................................1
00-413927-00001 Grommet - Rubber.....................................................................................................................1
00-499085-00005 Insert - Envelope (50 Series)......................................................................................................1
00-499085-00006 Insert - Filter Screen Insert - Envelope (85 Series)....................................................................1
- 25 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
FILTER ASSEMBLY
(BATTERY WITH FILTER)
F-43220 Rev. A (April 2015) - 26 -
FILTER ASSEMBLY
(BATTERY WITH FILTER)
ER Series Fryer REPLACEMENT PARTS
ILLUS.
PL-59485
10 00-499083-00002 Coupling - Suction......................................................................................................................1
11 00-499084-00002 Knob - Port Suction....................................................................................................................1
12 00-497374-000G1 Vessel Assy. (50 Series)............................................................................................................1
13 00-497374-000G2 Vessel Assy. (85 Series)............................................................................................................1
14 00-426606-000G4 Basket - Scrap (50 Series).........................................................................................................1
15 00-426606-000G6 Basket - Scrap (85 Series).........................................................................................................1
16 00-428180-000G4 Drawer Assy. (Incls. Items 18, 19, & 20) (50 Series).................................................................1
17 00-428180-000G5 Drawer Assy. (Incls. Items 18, 19, & 20) (85 Series).................................................................1
18 00-426600-00002 Bearing - Roller..........................................................................................................................2
19 00-426600-00003 Screw 1/4-20..............................................................................................................................2
20 00-426600-000G1 Roller Guide Assy.......................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-428518-00001 Splash Guard (50 Series)...........................................................................................................1
2 00-428519-00001 Splash Guard (85 Series)...........................................................................................................1
3 00-499087-00001 Screen - Fine Mesh Filter...........................................................................................................1
4 00-499085-00001 Insert - Filter Screen...................................................................................................................1
5 00-499085-00002 Insert - Filter Envelope...............................................................................................................1
6 00-499089-00001 Clip - Filter..................................................................................................................................1
7 00-499086-000G2 Filter - Envelope (6 Pack)...........................................................................................................1
8 00-499081-000G3 Tube - Suction............................................................................................................................1
9 NS-017-49 Jam Nut 3/4-16 Hex...................................................................................................................1
00-422281-00007 Hose - Discard (6 Ft.).................................................................................................................1
00-499486-00001 Clip - Drain Pipe.........................................................................................................................1
00-413927-00001 Grommet - Rubber.....................................................................................................................1
- 27 - F-43220 Rev. A (April 2015)
ER Series Fryer REPLACEMENT PARTS
FORM 43220 Rev. A APRIL 2015 PRINTED IN U.S.A.
Loading...
