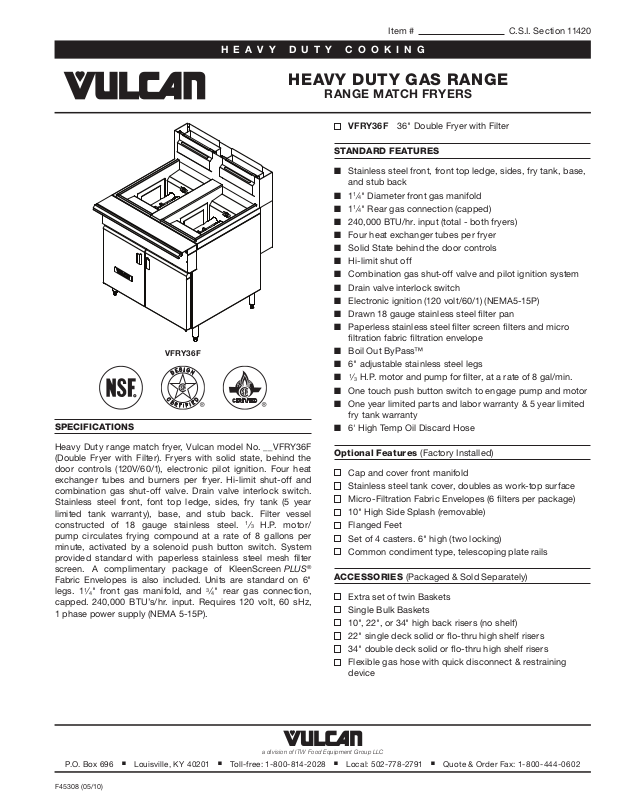

SPECIFICATIONS

VFRY36F

Item # C.S.I. Section 11420

HEAVY DUTY COOKING

HEAVY DUTY GAS RANGE

RANGE MATCH FRYERS

VFRY36F 36" Double Fryer with Filter

STANDARD FEATURES

Stainless steel front, front top ledge, sides, fry tank, base, ■
and stub back

1

1 ■

⁄4" Diameter front gas manifold

1

1 ■

⁄4" Rear gas connection (capped)
240,000 BTU/hr. input (total - both fryers) ■
Four heat exchanger tubes per fryer ■
Solid State behind the door controls ■
Hi-limit shut off ■
Combination gas shut-off valve and pilot ignition system ■
Drain valve interlock switch ■
Electronic ignition (120 volt/60/1) (NEMA5-15P) ■
Drawn 18 gauge stainless steel lter pan ■
Paperless stainless steel lter screen lters and micro ■

ltration fabric ltration envelope
Boil Out ByPass™ ■
6" adjustable stainless steel legs ■

1

■

⁄3 H.P. motor and pump for lter, at a rate of 8 gal/min.
One touch push button switch to engage pump and motor ■
One year limited parts and labor warranty & 5 year limited ■

fry tank warranty
6' High Temp Oil Discard Hose ■

Heavy Duty range match fryer, Vulcan model No. __ VFRY36F
(Double Fryer with Filter). Fryers with solid state, behind the
door controls (120V/60/1), electronic pilot ignition. Four heat
exchanger tubes and burners per fryer. Hi-limit shut-off and
combination gas shut-off valve. Drain valve interlock switch.
Stainless steel front, font top ledge, sides, fry tank (5 year
limited tank warranty), base, and stub back. Filter vessel
constructed of 18 gauge stainless steel.

1

⁄3 H.P. motor/
pump circulates frying compound at a rate of 8 gallons per
minute, activated by a solenoid push button switch. System
provided standard with paperless stainless steel mesh lter
screen. A complimentary package of KleenScreen PLUS
Fabric Envelopes is also included. Units are standard on 6"

1

legs. 1

⁄4" front gas manifold, and 3⁄4" rear gas connection,
capped. 240,000 BTU’s/hr. input. Requires 120 volt, 60 sHz,
1 phase power supply (NEMA 5-15P).

Optional Features (Factory Installed)

Cap and cover front manifold
Stainless steel tank cover, doubles as work-top surface
Micro-Filtration Fabric Envelopes (6 lters per package)
10" High Side Splash (removable)
Flanged Feet
Set of 4 casters. 6" high (two locking)
Common condiment type, telescoping plate rails

®

ACCESSORIES (Packaged & Sold Separately)

Extra set of twin Baskets
Single Bulk Baskets
10", 22", or 34" high back risers (no shelf )
22" single deck solid or flo-thru high shelf risers
34" double deck solid or flo-thru high shelf risers
Flexible gas hose with quick disconnect & restraining

device

a divisi on of IT W Food Equ ipme nt Group L LC

P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: [phone]

F45308 (05/10)

INSTALLATION INSTRUCTIONS

48 3⁄8"

8

3

⁄4"

17

1

⁄2"36"

36"

40" 3"

8

1

⁄2"

HEAVY DUTY COOKING

HEAVY DUTY GAS RANGE

RANGE MATCH FRYERS

A combination valve with pressure regulator is provided with 1.
this unit. Natural Gas: 4.0" (102mm) W.C. Propane Gas: 10.0"
(254mm) W.C.

An adequate ventilation system is required for commercial 2.
cooking equipment. Information may be obtained by writing
to the National Fire Protection Association, 1 Batterymarch
Park, Quincy, MA 02269. When writing refer to NFPA No.96.

These units are manufactured for installation in accordance 3.
with ANSZ223.1A (latest edition), National Fuel Gas Code.
Copies may be obtained from The American Gas Association,
400 N Capitol St., N.W., Washington, DC 20001, www.AGA.org.

For proper combustion, install equipment on adjustable legs or 4.
casters. On curb or platform, all 3

1

⁄2" front overhang. Toe base
with leveling bolts are required for curb installation. Specify
when ordering.

Clearances5. Rear Sides
Combustible 10" 10"
Noncombustible 0" 0"
Open Top Models 16" 16"

Cannot be batteried with GH series equipment.6.

This appliance is manufactured for commercial installation only 7.
and is not intended for home use.

NOTE: In line with its policy to continually improve its product,
Vulcan reserves the right to change materials and specication
without notice.

Specif y type of gas when ordering.

Specif y altitude when above 2,000 feet.

SHIPPI NG

MODEL

NUMBER DESCRIPTION

TOTAL INPUT

BTU / HR

WEIGHT

LBS / KG

VFRY36F 36" Heavy-Duty Range Match Fryers with Filter 240,000 530 / 240

This appliance is manufactured for commercial use only and is not intended for home use.

a divisi on of IT W Food Equ ipme nt Group L LC

P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: [phone]

F45308 (05/10)
