CATALOG OF
REPLACEMENT
PARTS
V Series HDR Gas Ranges
TOPS
Open Top
Hot Top
Griddle Top
Work Surface
BASES
Standard Oven
Convection Oven
Cabinet Base
*Add “B” for Cabinet Base.
*Add “S” for Standard Oven Base on
36” Models.
*Add “C” for Convection Oven Base on
36” Models.
VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC 3600 NORTH POINT BLVD., BALTIMORE, MD 21222
FORM 37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
F-37419 (September 2016) - 2 - © VULCAN-HART COMPANY 2016
V Series HDR Gas Ranges REPLACEMENT PARTS
Table of Contents
5 "B" MODEL 36", 24", 18", 12" CABINET BASE
7 "S" MODEL OVEN
9 "S" MODEL GAS MANIFOLD ASSY
11 "C" MODEL OVEN
13 "C" MODEL GAS MANIFOLD ASSY
15 36", 24" & 12" OPEN TOP BURNER
17 36"- 4 & 18"- 2 OPEN TOP BURNER
19 36" & 24" CHAR BROILER
21 36" & 18" FRENCH TOP RADIAL FIN HOT TOP
23 36", 24" & 18" THERMO CONTROL GRIDDLE TOP
25 36", 24", 18" & 12" WORK TOP
27 36" AND 18" STEP UP OPEN TOP BURNER
29 36" 6 OPEN TOP STEP UP BURNER
31 STEP UP BURNER ASSEMBLY
- 3 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
"B" MODEL 36", 24", 18", 12" CABINET BASE
F-37419 (September 2016) - 4 -
V Series HDR Gas Ranges REPLACEMENT PARTS
"B" MODEL 36", 24", 18", 12" CABINET BASE
ILLUS.
PL-F37419 FIG-1
PART NO. NAME OF PART AMT.
1 00-958087-000G4 Door Assy. L/H (36" Base Cabinet Only)...................................................................................1
00-958087-000G3 Door Assy. (24" Base Cabinet Only)..........................................................................................1
00-958087-000G2 Door Assy. (18" Base Cabinet Only)..........................................................................................1
00-958087-000G1 Door Assy. (12" Base Cabinet Only)..........................................................................................1
2 00-958087-000G5 Door Assy. R/H...........................................................................................................................1
3 00-499740-00001 Bracket - Cabinet Door Magnet..................................................................................................1
4 00-497296-00001 Magnet - Door............................................................................................................................2
5 00-499744-000G1 Support - Shelf...........................................................................................................................2
6 00-499747-00001 Shelf (36" Base Cabinet Only)...................................................................................................1
00-499747-00002 Shelf (24" Base Cabinet Only)...................................................................................................1
00-499747-00003 Shelf (18" Base Cabinet Only)...................................................................................................1
7 00-408615-00021 Handle - Door Keeler R3122......................................................................................................2
- 5 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
"S" MODEL OVEN
F-37419 (September 2016) - 6 -
"S" MODEL OVEN
V Series HDR Gas Ranges REPLACEMENT PARTS
ILLUS.
PL-F37419 FIG-2
3A 00-499467-00003 Oven - Side Liner R/H (SST)......................................................................................................1
4A 00-499467-00004 Oven - Side Liner L/H (SST)......................................................................................................1
5A 00-499800-000G2 Bottom Liner (SST).....................................................................................................................1
7A 00-499513-000G4 Door (SST) less handle..............................................................................................................1
10 00-497891-00001 Burner - Oven.............................................................................................................................1
11 00-412787-00001 Pilot - Oven (NAT)......................................................................................................................1
12 00-010901-00031 Orifice - Spud (31 Drill) (Sea Level - 2499 Ft.)...........................................................................1
14 00-499554-00001 Disconnect - Main Male Q..........................................................................................................1
15 00-497906-00001 Bearing - Pillow Block.................................................................................................................2
16 00-499512-000G3 Counterweight - Oven L.H..........................................................................................................1
17 00-499452-00001 Coverplate..................................................................................................................................1
18 00-958353-00001 Cover - Moulian Panel................................................................................................................1
19 00-958470-000G1 Kick Panel..................................................................................................................................1
20 00-499507-00001 Panel - Oven Control..................................................................................................................1
21 00-413157-00001 Knob - Shut Off...........................................................................................................................1
22 00-497883-00001 Bracket - Themostat Bulb...........................................................................................................1
23 00-414708-00001 Plate - On-Off.............................................................................................................................1
24 00-499168-00001 Knob - Oven 650 Deg. F............................................................................................................1
PART NO. NAME OF PART AMT.
1 00-499468-00001 Support - Wire Rack...................................................................................................................2
2 00-499517-00002 Rack, Oven.................................................................................................................................1
3 00-499467-00001 Oven - Side Liner R/H (Porcelain)..............................................................................................1
4 00-499467-00002 Oven - Side Liner L/H (Porcelain)..............................................................................................1
5 00-499800-000G1 Bottom Liner (Porcelain).............................................................................................................1
6 00-405930-00001 NLA - Obsolete--Eyelet - Brass..................................................................................................1
7 00-499513-000G3 Door (Porcelain) less handle......................................................................................................1
8 00-956635-00001 Handle - Oven Door...................................................................................................................1
9 00-404079-0000F Nozzle, 90 Deg. Burner..............................................................................................................1
00-412787-0002 Pilot - Oven (LP).........................................................................................................................1
00-010901-00047 Orifice - Spud (47 Drill) (Sea Level - 2499 Ft.)...........................................................................1
00-499512-000G4 Counterweight - Oven R.H.........................................................................................................1
00-499168-00002 Knob - Oven 550 Deg. F............................................................................................................1
00-413112-00012 Leg (6 In.)...................................................................................................................................4
00-497001-00001 Caster (Without Brake)............................................................................................................AR
00-497001-00002 Caster (With Brake).................................................................................................................AR
- 7 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
"S" MODEL GAS MANIFOLD ASSY
F-37419 (September 2016) - 8 -
V Series HDR Gas Ranges REPLACEMENT PARTS
"S" MODEL GAS MANIFOLD ASSY
ILLUS.
PL-F37419 FIG-3
10 00-719066 Bushing - Pipe 3/8 -1/8...............................................................................................................1
11 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................1
12 NS-044-09 Nut Assy. 10-24 Hex KEPS........................................................................................................1
13 FP-012-03 Fitting - Elbow 1/2 TBG X 3/8 MPT............................................................................................1
14 SC-060-38 Cap Screw 1/4-20 X 5/8 Hex Hd................................................................................................1
15 00-499465-00001 Bracket - Gas Mounting..............................................................................................................1
16 00-426505-00009 Tube - Flex 1/4" O.D. 9" Lg........................................................................................................1
17 FP-035-46 Pipe 3/8 x 1 Lg. TBE..................................................................................................................1
18 00-426509-00024 Tube - Flex 1/2" O.D. 24" Lg......................................................................................................1
19 00-426508-00048 Tube - Flex 7/16" O.D. 48" Lg....................................................................................................1
20 00-426505-00036 Tube - Flex 1/4" O.D. 36" Lg......................................................................................................1
21 00-412788-00004 Thermocouple - 48" Lg. 48" Lg...................................................................................................1
PART NO. NAME OF PART AMT.
1 00-497765-00001 Valve - Pilot Safety.....................................................................................................................1
2 00-407522-00007 Thermosat - 550 Deg. F.............................................................................................................1
00-407522-00008 Thermostat - 400-650 Deg. F.....................................................................................................1
3 00-719971 Valve - Gas Manual Shut-Off.....................................................................................................1
4 FP-035-54 Pipe - 3/8 X 2.250 (BLKSTL) (TBE)...........................................................................................1
5 FP-012-21 Elbow 90 Deg. (1/8 Male Pipe x 1/4 Tube).................................................................................2
6 00-719132 Union - 3/8" (BLKSTL) (150#)....................................................................................................1
7 FP-085-68 Fitting- Elbow (7/16 TBG X 3/8 MPT).........................................................................................1
8 FP-019-10 Tee - 3/8 X 3/8 X 3/8 (BLKSTL).................................................................................................1
9 00-404193-00001 Valve - Pilot 260 BROILER........................................................................................................1
- 9 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
"C" MODEL OVEN
F-37419 (September 2016) - 10 -
"C" MODEL OVEN
V Series HDR Gas Ranges REPLACEMENT PARTS
ILLUS.
PL-F37419 FIG-4
10 00-956633-00002 Bracket - Switch Door.................................................................................................................1
11 00-411496-000F1 Switch - Micro Door....................................................................................................................1
12 00-405016-00001 Cord - Electric Supply (120 V. Only)..........................................................................................1
13 00-499554-00001 Disconnect - Main Male Q..........................................................................................................1
14 00-499513-000G3 Door (Porcelain) less handle......................................................................................................1
14A 00-499513-000G4 Door (SST) less handle..............................................................................................................1
15 00-956635-00001 Handle - Oven Door...................................................................................................................1
16 00-499512-000G6 Counterweight - Oven Convection R.H......................................................................................1
17 00-499452-00001 Coverplate..................................................................................................................................1
18 00-497906-00001 Bearing - Pillow Block.................................................................................................................1
19 00-958353-00001 Cover - Moulian Panel................................................................................................................1
20 00-499507-00003 Cover - Control Panel.................................................................................................................1
21 00-957464-00001 Guard - Thermostat....................................................................................................................1
22 00-411506-00015 Thermostat (200-550 Deg. F).....................................................................................................1
23 00-497883-00002 Bracket - Thmostat Bulb.............................................................................................................1
24 00-413157-00001 Knob - Shut Off...........................................................................................................................1
25 00-499168-00003 Knob - Oven 550F Convection...................................................................................................1
26 00-715112 Switch - Rocker, Lighted............................................................................................................1
27 00-957609-00001 Label - On - Off Cool Down........................................................................................................1
28 00-414708-00001 Plate - On-Off.............................................................................................................................1
29 00-499515-000G1 Kick Plate Assy...........................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-499468-00002 Support - Wire Rack R.H............................................................................................................1
00-499468-00003 Support - Wire Rack L.H............................................................................................................1
2 00-499517-00002 Rack, Oven.................................................................................................................................2
3 00-499547-000G1 Motor - 1/6 HP, 120V..................................................................................................................1
4 00-415780-00008 Wheel - Blower (Incls. Set Screws)............................................................................................1
5 00-499641-00001 Grate - Motor Convection Oven.................................................................................................1
6 00-404079-0000F Nozzle, 90 Deg. Burner..............................................................................................................1
7 00-010901-00042 Orifice - Spud (Drill 42) (Nat.) (Sea Level - 2499 FT.)................................................................1
00-010901-00051 Orifice - Spud (51 Drill) Orifice - Spud (Drill 51) (Pro) (Sea Level - 2499 Ft.)............................1
8 00-497891-00001 Burner - Oven.............................................................................................................................1
9 00-412787-00001 Pilot - Oven (NAT)......................................................................................................................1
00-412787-00002 Pilot - Oven (LP).........................................................................................................................1
00-499512-000G3 Counterweight - Oven L.H..........................................................................................................1
* 00-497694-00001 Wiring Diagram...........................................................................................................................1
* 00-497698-00001 Decal - Wire Schematic..............................................................................................................1
* Not Shown
- 11 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
"C" MODEL GAS MANIFOLD ASSY
F-37419 (September 2016) - 12 -
V Series HDR Gas Ranges REPLACEMENT PARTS
"C" MODEL GAS MANIFOLD ASSY
ILLUS.
PL-F37419 FIG-5
10 NS-044-09 Nut Assy. 10-24 Hex KEPS........................................................................................................1
11 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT......................................................1
12 FP-012-03 Fitting - Elbow 1/2 TBG X 3/8 MPT............................................................................................1
13 FP-012-21 Elbow 90 Deg. (1/8 Male Pipe x 1/4 Tube).................................................................................1
14 00-404193-00001 Valve - Pilot................................................................................................................................1
15 FP-026-04 Bushing - Pipe 3/8 to 1/8............................................................................................................1
16 00-426505-00006 Tube - Flex (1/4 x 6 In.)..............................................................................................................1
17 00-426509-00024 Tube - Flex 1/2" O.D. 24" Lg......................................................................................................1
18 00-426508-00048 Tube - Flex 7/16" O.D. 48" Lg....................................................................................................1
19 00-426505-00036 Tube - Flex 1/4" O.D. 36" Lg......................................................................................................1
20 00-412788-00004 Thermocouple - 48" Lg...............................................................................................................1
PART NO. NAME OF PART AMT.
1 00-499651-00003 Bracket - Mounting Gas (Convection)........................................................................................1
2 00-497765-00001 Valve - Pilot Safety - Basso........................................................................................................1
3 FP-035-47 PIPE - 3/8 X 1.125 (TBE) (BLKSTL)..........................................................................................1
4 00-428045-00001 Gas Solenoid Valve....................................................................................................................1
5 00-719971 Valve - Gas Manual Shut-Off.....................................................................................................1
6 FP-019-10 Tee - 3/8 X 3/8 X 3/8 (BLKSTL).................................................................................................1
7 FP-085-68 Fitting- Elbow (7/16 TBG X 3/8 MPT).........................................................................................1
8 00-956615-00002 Bracket - Manifold Support.........................................................................................................1
9 SC-060-38 Cap Screw 1/4-20 X 5/8 Hex Hd................................................................................................1
- 13 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
36", 24" & 12" OPEN TOP BURNER
F-37419 (September 2016) - 14 -
V Series HDR Gas Ranges REPLACEMENT PARTS
36", 24" & 12" OPEN TOP BURNER
ILLUS.
PL-F37419 FIG-6
11 00-499493-00001 Support - Grate (Alum.)..............................................................................................................1
12 00-499001-00002 Support - HD Burner (SST) 36" (6 Open Top Burner)................................................................1
13 00-499002-00003 Deflector - HD Splash L.H. (SST)...............................................................................................1
14 00-499615-00002 Deflector - Rear (SST) 36" (6 Open Top Burner).......................................................................1
15 00-957368-00001 Grate - Front 12".....................................................................................................................AR
16 00-957369-00001 Grate - Rear 12"......................................................................................................................AR
17 00-957341-00001 Bowl - Rear 12" Double...........................................................................................................AR
18 00-499712-00001 Knob - HD Burner....................................................................................................................AR
19 00-957367-00001 Valve - Burner.........................................................................................................................AR
20 00-499970-00001 Valve - Pilot Quick Disconnect................................................................................................AR
21 00-957343-00002 Burner - Head 6".....................................................................................................................AR
22 00-957342-00001 Venturi Assy............................................................................................................................AR
23 00-402558-00004 Clip - Tubing............................................................................................................................AR
24 00-958073-00002 Plate - Restrictor......................................................................................................................AR
25 00-959108-000G1 Pilot - Kit Open Top Burners...................................................................................................AR
PART NO. NAME OF PART AMT.
1 00-957575-00001 Cover - Manifold 36" (6 Open Top Burner)................................................................................1
00-957570-00001 Cover Manifold 24" (4 Open Top Burner)...................................................................................1
00-957559-00001 Cover - Manifold 12" (2 Open Top Burner)................................................................................1
2 00-499006-000G2 Tray - Crumb (SST) 36" (6 Open Top Burner)...........................................................................1
00-956724-000G2 Tray - Crumb (SST) 24" (4 Open Top Burner)...........................................................................1
00-499969-000G2 Tray - Crumb (SST) 12" (2 Open Top Burner)...........................................................................1
3 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1
4 00-499555-00001 Disconnect - Gas Female...........................................................................................................1
5 00-499047-00001 Bracket - Disconnect..................................................................................................................1
6 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1
7 00-497984-00001 Retainer - Grate..........................................................................................................................2
8 00-499425-000G1 Front Top Assy. 36" (6 Open Top Burner).................................................................................1
00-956705-000G1 Front Top Assy. 24" (4 Open Top Burner).................................................................................1
00-499966-000G1 Front Top Assy. 12" (2 Open Top Burner).................................................................................1
9 00-957235-000G1 Front Top Assy - Condiment Rail 36" (6 Open Top Burner).......................................................1
00-957239-000G1 Front Top Slide Rail Assy. 36" (6 Open Top Burner).................................................................1
00-957357-000G1 Front Top Assy. - Condiment Rail 24" (4 Open Top Burner)......................................................1
00-499493-00002 Support - Grate (SST)................................................................................................................1
00-956718-00002 Support - HD Burner (SST) 24" (4 Open Top Burner)................................................................1
00-499965-00002 Support - HD Burner (SST) 12" (2 Open Top Burner)................................................................1
00-499002-00004 Deflector - HD Splash R.H. (SST)..............................................................................................1
00-956725-00002 Deflector - Rear (SST) 24" (4 Open Top Burner).......................................................................1
00-499935-00001 Deflector - Rear (SST) 12" (2 Open Top Burner)....................................................................AR
* 00-957067-000G1 Riser - Stub 36" W/Alum. Back 36" (6 Open Top Burner)..........................................................1
* 00-957066-000G1 Riser - Stub 24" W/Alum. Back 24" (4 Open Top Burner)..........................................................1
* 00-957064-000G1 Riser - Stub 12" W/Alum. Back 12" (2 Open Top Burner)..........................................................1
* Not Shown
- 15 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
36"- 4 & 18"- 2 OPEN TOP BURNER
F-37419 (September 2016) - 16 -
V Series HDR Gas Ranges REPLACEMENT PARTS
36"- 4 & 18"- 2 OPEN TOP BURNER
ILLUS.
PL-F37419 FIG-7
10 00-499001-00004 Support - (4) OTB Burner (SST).................................................................................................1
11 00-499493-00001 Support - Grate (Alum.)..............................................................................................................1
12 00-499615-00002 Deflector - Rear (SST) 36" (4 Open Top Burner).......................................................................1
13 00-957370-00001 Grate - Front 18".....................................................................................................................AR
14 00-957371-00001 Grate - Rear 18"......................................................................................................................AR
15 00-957372-00001 Bowl - 18" Double....................................................................................................................AR
16 00-957343-00002 Burner - Head 6".....................................................................................................................AR
17 00-499712-00001 Knob - HD Burner....................................................................................................................AR
18 00-957367-00001 Valve - Burner.........................................................................................................................AR
19 00-499970-00001 Valve - Pilot Quick Disconnect................................................................................................AR
20 00-957398-000G1 Venturi Assy...............................................................................................................................1
21 00-402558-00004 Clip - Tubing............................................................................................................................AR
22 00-958073-00001 Plate - Restricor..........................................................................................................................1
23 00-959108-000G1 Pilot - Kit Open Top Burners......................................................................................................1
24 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1
25 00-499002-00003 Deflector - HD Splash L.H. (SST)...............................................................................................1
PART NO. NAME OF PART AMT.
1 00-957573-00001 Manifold Cover 36" (4 Open Top Burner)...................................................................................1
00-957564-00001 Manifold Cover 18" (2 Open Top Burner)...................................................................................1
2 00-499006-000G2 Tray - Crumb (SST) 36" (4 Open Top Burner)...........................................................................1
00-956696-000G2 Tray - Crumb (SST) 18" (2 Open Top Burner)........................................................................AR
3 00-497984-00001 Retainer - Grate..........................................................................................................................2
4 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1
5 00-499555-00001 Disconnect - Gas Female...........................................................................................................1
6 00-499047-00001 Bracket - Disconnect..................................................................................................................1
7 00-499425-000G1 Front Top Assy. 36" (4 Open Top Burner).................................................................................1
00-957235-000G1 Front Top Assy - Condiment Rail 36" (4 Open Top Burner).......................................................4
00-956658-000G1 Front Top Assy 18" (2 Open Top Burner)...............................................................................AR
8 00-957239-000G1 Front Top Slide Rail Assy...........................................................................................................4
00-956690-00001 Support - (2) OTB Burner (SST).................................................................................................1
00-499493-00002 Support - Grate (SST)................................................................................................................1
00-956697-00002 Deflector - Rear (SST) 36" (4 Open Top Burner).......................................................................1
00-499002-00004 Deflector - HD Splash R.H. (SST)..............................................................................................1
* 00-957067-000G1 Riser - Stub 36" W/Alum. Back 36" (4 Open Top Burner)..........................................................1
* 00-957065-000G1 Riser - Stub 18" W/Alum. Back 36" (4 Open Top Burner)..........................................................1
* Not Shown
- 17 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
36" & 24" CHAR BROILER
F-37419 (September 2016) - 18 -
V Series HDR Gas Ranges REPLACEMENT PARTS
36" & 24" CHAR BROILER
ILLUS.
PL-F37419 FIG-8
10 00-710407 Radient.......................................................................................................................................6
11 00-956614-00002 Supercharger..............................................................................................................................5
12 00-418051-0000F Hood - Orifice.............................................................................................................................6
13 00-957413-00001 Burner Assy................................................................................................................................6
14 00-710455 Burner Rod.................................................................................................................................6
15 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1
16 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1
17 00-499712-00001 Knob - HD Burner.......................................................................................................................3
18 00-719383 W/O Plug....................................................................................................................................6
19 00-722425 Tubing - Flex 3/8" X 8" Lg..........................................................................................................3
20 00-957348-00001 Valve - Gas.................................................................................................................................3
21 00-714676 New Part.....................................................................................................................................1
22 00-722468 NLA - Obsolete--3/8"" Tube 1-1/4"" Long...................................................................................1
23 00-956748-00001 Heat Deflector............................................................................................................................6
24 00-957412-00001 Bracket - Dual Pilot..................................................................................................................AR
25 00-957335-00001 Stabilizer - Burner.......................................................................................................................6
26 00-719329 Air Mixer Assy............................................................................................................................6
27 00-499615-00002 Deflector - Rear (SST) 36" Char Broiler.....................................................................................1
28 00-497984-00001 Retainer - Grate..........................................................................................................................2
PART NO. NAME OF PART AMT.
1 00-957574-00001 Cover - Manifold 36" Char Broiler..............................................................................................1
00-957567-00001 Cover - Manifold 24" Char Broiler..............................................................................................1
2 00-499006-000G2 Tray - Crumb (SST) 36" Char Broiler.........................................................................................1
00-956724-000G2 Tray - Crumb (SST) 24" Char Broiler.........................................................................................1
3 00-499555-00001 Disconnect - Gas Female...........................................................................................................1
4 00-499047-00001 Bracket - Disconnect..................................................................................................................1
5 00-957814-00001 Valve - Dual Pilot........................................................................................................................1
6 00-788541-0000A Tube - Pilot, Flex (W/Tip)...........................................................................................................1
7 00-499425-000G1 Front Top Assy. 36" Char Broiler...............................................................................................1
00-956705-000G1 Front Top Assy. 24" Char Broiler...............................................................................................1
8 00-957235-000G1 Front Top Assy - Condiment Rail 36" Char Broiler.....................................................................1
00-957239-000G1 Front Top Slide Rail Assy. 36" Char Broiler...............................................................................1
00-957357-000G1 Front Top Assy. - Condiment Rail 24" Char Broiler....................................................................1
9 00-412852-00001 Grate - Top Straight....................................................................................................................6
00-722131 Grate - Slanted 6-RIB 24" Char Broiler 24" Char Broiler............................................................2
00-956725-00002 Deflector - Rear (SST) 24" Char Broiler.....................................................................................1
00-957067-000G1 Riser - Stub 36" W/Alum. Back 36" Char Broiler........................................................................1
00-957066-000G1 Riser - Stub 24" W/Alum. Back 24" Char Broiler........................................................................1
- 19 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
36" & 18" FRENCH TOP RADIAL FIN HOT TOP
F-37419 (September 2016) - 20 -
V Series HDR Gas Ranges REPLACEMENT PARTS
36" & 18" FRENCH TOP RADIAL FIN HOT TOP
ILLUS.
PL-F37419 FIG-9
10 00-497984-00001 Retainer - Grate..........................................................................................................................1
11 00-719383 Elbow 3/8 Orifice W/O Plug........................................................................................................1
12 00-499810-00002 Bracket - Pilot.............................................................................................................................1
13 00-957801-000G1 Burner - Inner, Radial Fin 36" Radial Fin. Hot Top.....................................................................1
14 00-957946-000G1 Plate - Aeration Assy. 36" Radial Fin. Hot Top..........................................................................1
15 00-409413-00001 Burner - Casting 36" Radial Fin. Hot Top...................................................................................1
16 00-409412-00001 Burner - Casting.........................................................................................................................1
17 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1
18 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1
19 00-499047-00001 Bracket - Disconnect..................................................................................................................1
20 00-408379-00003 Valve - Burner............................................................................................................................3
21 00-957814-00001 Valve - Dual Pilot........................................................................................................................1
22 00-499712-00001 Knob - HD Burner.......................................................................................................................3
23 00-499555-00001 Disconnect - Gas Female...........................................................................................................1
PART NO. NAME OF PART AMT.
1 00-957576-00001 Cover - Manifold W/Rail 36" Radial Fin. Hot Top.......................................................................1
00-957563-00001 Cover Manifold 18" Radial Fin. Hot Top.....................................................................................1
2 00-499425-000G1 Front Top Assy. 36" Radial Fin. Hot Top....................................................................................1
00-956658-000G1 Front Top Assy 18" Radial Fin. Hot Top.....................................................................................1
3 00-957235-000G1 Front Top Assy - Condiment Rail...............................................................................................1
00-957239-000G1 Front Top Slide Rail Assy...........................................................................................................1
4 00-499814-00001 Casting - LH Radial Fin. 36" 36" Radial Fin. Hot Top.................................................................1
00-956800-00001 Casting - Radial Fin. 18" Radial Fin. Hot Top............................................................................1
5 00-499814-00002 Casting - RH Radial Fin. 36"......................................................................................................1
6 00-400705-00001 Ring - TOP.................................................................................................................................1
7 00-715211-000GR Plate - Top..................................................................................................................................1
8 00-956809-00002 Deflector - Radial Fin. Rear 36" Radial Fin. Hot Top.................................................................1
00-956663-00001 Deflector - Radial Fin. 18" Radial Fin. Hot Top..........................................................................1
9 00-956622-000G1 Brick Set 36" Radial Fin. Hot Top...............................................................................................1
00-956799-000G1 Brick Set 18" Radial Fin. Hot Top...............................................................................................1
00-956794-00001 Burner - 18" Inner 18" Radial Fin. Hot Top.................................................................................1
00-957710-000G1 Plate - Aeration, Assy. 18" Radial Fin. Hot Top.........................................................................1
00-956793-00001 Burner - 18" Outer 18" Radial Fin. Hot Top................................................................................1
00-426509-00018 Tube - Flex 1/2" O.D. 18" Lg......................................................................................................3
00-426505-00014 Tube - Flex 1/4" O.D. 14" Lg......................................................................................................2
- 21 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
36", 24" & 18" THERMO CONTROL GRIDDLE TOP
F-37419 (September 2016) - 22 -
V Series HDR Gas Ranges REPLACEMENT PARTS
36", 24" & 18" THERMO CONTROL GRIDDLE TOP
ILLUS.
PL-F37419 FIG-10
10 00-497984-00001 Retainer - Grate..........................................................................................................................2
11 00-957982-000G4 Grease Drawer Assy. 36" Griddle Top.......................................................................................1
12 00-499622-000G2 NLA - Obsolete--36"" Griddle Assy............................................................................................1
13 00-957170-000G1 Griddle Baffle Assy. Center (Not Shown)...................................................................................2
14 00-956662-00001 Cover - Rear Manifold................................................................................................................1
15 00-499488-00002 Knob - Gas Thermostat..............................................................................................................3
16 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1
17 00-404193-00001 Valve - Pilot................................................................................................................................3
18 00-499488-00001 Thermostat - Gas.......................................................................................................................3
19 FP-085-68 Fitting- Elbow (7/16 TBG X 3/8 MPT).........................................................................................6
20 00-404079-0000F Nozzle........................................................................................................................................3
21 00-418051-0000F Hood - Orifice.............................................................................................................................3
22 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................3
23 00-426508-00006 Tube - Flex 7/16" O.D. 6" Lg......................................................................................................3
24 00-426508-00010 Tube - Flex 7/16" O.D. 10" Lg....................................................................................................3
25 SD-036-79 Self-Tapping Screw 6-32 x 1/2 Type TT Hex Hd. (SST)............................................................6
26 FP-085-53 Pipe Plug 1/8..............................................................................................................................1
27 00-957604-000G2 Cover - Manifold 36" Thermo Griddle (Condiment Rail).............................................................1
28 00-957396-00002 Baffle - Griddle...........................................................................................................................1
29 00-788541-0000A Tube - Pilot, Flex (W/Tip) (Not Shown)......................................................................................2
30 00-956939-00002 Tube - Pilot, Flex (W/Tip) (Not Shown)......................................................................................1
PART NO. NAME OF PART AMT.
1 00-957961-00001 Panel - Rear Closure 36" (Alum.) 36" Griddle Top.....................................................................1
00-957989-00001 Panel - Rear Closure 24" 24" Griddle Top.................................................................................1
00-957993-00001 Panel - Rear Closure 18" 18" Griddle Top..............................................................................AR
2 00-499047-00001 Bracket - Disconnect..................................................................................................................1
3 00-499555-00001 Disconnect - Gas Female...........................................................................................................1
4 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1
5 00-499425-000G1 Front Top Assy. 36" Griddle Top................................................................................................1
00-956705-000G1 Front Top Assy. 24" Griddle Top................................................................................................1
00-956658-000G1 Front Top Assy 18" Griddle Top.................................................................................................1
6 00-957235-000G1 Front Top Assy - Condiment Rail 36" Griddle Top.....................................................................1
00-957239-000G1 Front Top Slide Rail Assy. 36" Griddle Top................................................................................1
00-957357-000G1 Front Top Assy. - Condiment Rail 24" Griddle Top....................................................................1
00-957235-000G1 Front Top Assy - Condiment Rail 18" Griddle Top.....................................................................1
7 00-499112-00001 Bracket - Griddle Burner Support...............................................................................................3
8 00-499635-00001 Griddle Burner Assy...................................................................................................................3
9 00-413302-00001 Clip - Pilot Mounting...................................................................................................................3
00-956709-000G4 Grease Drawer Assy. 24" Griddle Top.......................................................................................1
00-956677-000G4 Grease Drawer Assy. 18" Griddle Top.......................................................................................1
00-499957-000G2 NLA - Obsolete--24"" Griddle Assy............................................................................................1
00-956674-000G2 NLA - Obsolete--18"" Griddle Assy............................................................................................1
00-956710-00001 Cover - Hot Top 24" Griddle.......................................................................................................1
00-957602-000G2 Cover - Manifold 24" Therno Griddle (Condiment Rail)..............................................................1
00-957594-000G1 Cover - Manifold 18" Thermo Griddle.........................................................................................1
00-957988-00002 Baffle - 24" Forward Griddle.......................................................................................................1
00-957992-00002 Bafffle - 18" Forward Griddle......................................................................................................1
- 23 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
36", 24", 18" & 12" WORK TOP
F-37419 (September 2016) - 24 -
V Series HDR Gas Ranges REPLACEMENT PARTS
36", 24", 18" & 12" WORK TOP
ILLUS.
PL-F37419 FIG-11
PART NO. NAME OF PART AMT.
1 00-497984-00001 Retainer - Grate..........................................................................................................................2
2 00-499615-00002 Deflector - Rear (SST) 36" Work Top.........................................................................................1
00-956725-00002 Deflector - Rear (SST) 24" Work Top.........................................................................................1
00-956697-00002 Deflector - Rear (SST) 18" Work Top.........................................................................................1
00-499935-00002 Deflector - Rear (SST) 12" Work Top.........................................................................................1
3 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1
4 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1
5 00-957590-00001 Cover Manifold 36" Work Top....................................................................................................1
00-957572-00001 Cover Manifold 24" Work Top....................................................................................................1
00-957566-00001 Cover - Manifold 18" Work Top..................................................................................................1
00-957558-00001 Cover - Manifold 12" Work Top..................................................................................................1
6 00-956639-000G1 Work Top Assy. 36"....................................................................................................................1
00-956639-000G2 Work Top Assy. 24"....................................................................................................................1
00-956639-000G3 Work Top Assy. 18"....................................................................................................................1
00-956639-000G4 Work Top Assy. 12"....................................................................................................................1
7 00-499555-00001 Disconnect - Gas Female...........................................................................................................1
8 00-499047-00001 Bracket - Disconnect..................................................................................................................1
9 00-499425-000G1 Front Top Assy. 36" Work Top...................................................................................................1
00-957235-000G1 Front Top Assy - Condiment Rail 36" Work Top........................................................................1
00-956705-000G1 Front Top Assy. 24" Work Top...................................................................................................1
00-957357-000G1 Front Top Assy. - Condiment Rail 24" Work Top.......................................................................1
00-956658-000G1 Front Top Assy 18" Work Top....................................................................................................1
00-499966-000G1 Front Top Assy. 12" Work Top...................................................................................................1
* 00-957067-000G1 Riser - Stub 36" W/Alum. Back..................................................................................................1
* 00-957066-000G1 Riser - Stub 24" W/Alum. Back..................................................................................................1
* 00-957065-000G1 Riser - Stub 18" W/Alum. Back..................................................................................................1
* 00-957064-000G1 Riser - Stub 12" W/Alum. Back..................................................................................................1
* Not Shown
- 25 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS

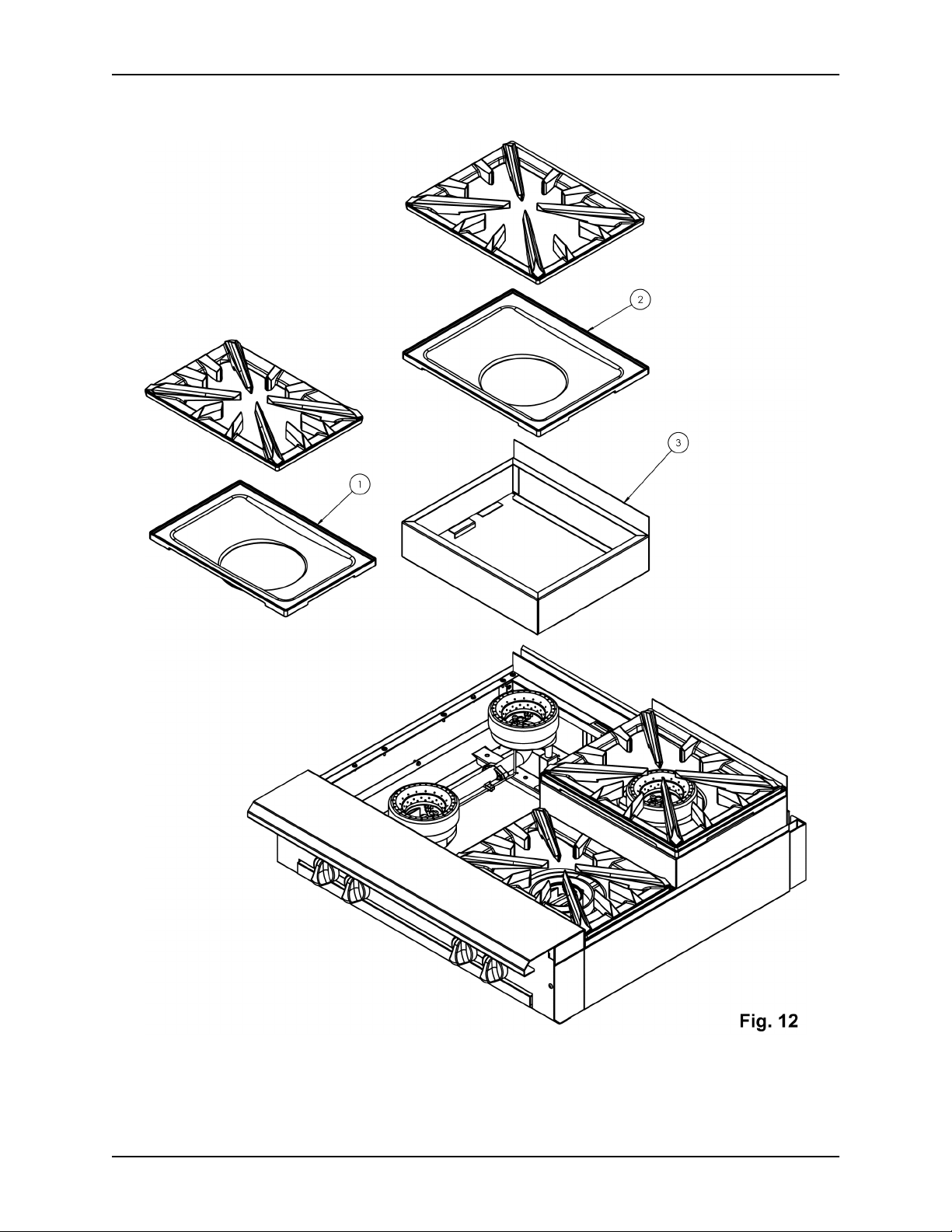

36" AND 18" STEP UP OPEN TOP BURNER
F-37419 (September 2016) - 26 -
V Series HDR Gas Ranges REPLACEMENT PARTS
36" AND 18" STEP UP OPEN TOP BURNER
ILLUS.
PL-F37419 FIG-12
PART NO. NAME OF PART AMT.
1 00-957882-00001 Bowl - Front 18' Step Up............................................................................................................2
2 00-957881-00001 Bowl - Rear 18: Step Up.............................................................................................................2
3 00-957877-000G1 Frame - 18" Step Up..................................................................................................................2
- 27 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
36" 6 OPEN TOP STEP UP BURNER
F-37419 (September 2016) - 28 -
V Series HDR Gas Ranges REPLACEMENT PARTS
36" 6 OPEN TOP STEP UP BURNER
ILLUS.
PL-F37419 FIG-13
PART NO. NAME OF PART AMT.
1 00-957878-00001 Bowl - 12" Front..........................................................................................................................1
2 00-958879-00001 Bowl - 12" Rear..........................................................................................................................1
3 00-957877-000G1 Frame - 18" Step Up..................................................................................................................1
4 00-957817-000G1 Burner Assy. - Step Up............................................................................................................AR
5 00-957880-00001 Support - Burner Step Up........................................................................................................AR
- 29 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
STEP UP BURNER ASSEMBLY
F-37419 (September 2016) - 30 -
V Series HDR Gas Ranges REPLACEMENT PARTS
STEP UP BURNER ASSEMBLY
ILLUS.
PL-F37419 FIG-14
PART NO. NAME OF PART AMT.
1 00-957817-000G1 Burner Assy. - Step Up...............................................................................................................1
2 00-957826-00001 Burner - Rear Step Up................................................................................................................1
3 00-957825-00001 Elbow - Center Step Up..............................................................................................................1
4 00-957824-00001 Burner - Front Step Up...............................................................................................................1
5 00-957823-00001 Gasket........................................................................................................................................1
6 00-959108-000G2 Pilot Assy. - Step Up..................................................................................................................1
- 31 - F-37419 (September 2016)
V Series HDR Gas Ranges REPLACEMENT PARTS
FORM 37419 SEPTEMBER 2016 PRINTED IN U.S.A.
Loading...
