Vulcan MGH14A Service Manual

SERVICE MANUAL & CATALOG OF

GAS HOTPLATE

MODEL

MGH14A

REPLACEMENT PARTS

ML-103826

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. [phone] FORM 30972 (5-97)

REPLACEMENT PARTS MGH14A GAS HOTPLATE

MGH14A MEDIUM DUTY GAS

COUNTER HOTPLATE

SERVICE

WARNING: THE HOTPLATE AND ITS PARTS ARE HOT. USE CARE WHEN OPERATING, CLEANING

OR SERVICING THE HOTPLATE.

REMOVING BURNERS
Lift the top grates, then lift the burners carefully and maneuver venturi tube out of the top opening.

ACCESSING PRESSURE REGULATOR
To gain access to the pressure regulator, remove two screws on the back. Lift off the hold-down strip and

slide the top panel toward the front. If necessary, remove the top drip tray by removing two screws on top.
After reassembly, check that the burner venturi has engaged with the orifice fitting.

© VU LCAN-HART, 1997 - 3 -

HOTPLATE ASSEMBLY

-4-

REPLACEMENT PARTS MGH14A GAS HOTPLATE

HOTPLATE ASSEMBLY

ILLUS. PART
PL-52128 NO. NAME OF PART AMT.

1 00-920229-00001 Frame-Top 1
2 00-920231 Grate-Top 2
3 00-920196 Label 1
4 SD -036-61 Self-Tapping Screw 10-16 x 1/2 Slotted Truss Hd , Type B 2
5 00-920212 Tray-Drip Top 1
6 00-920647 Bracket-Pilot 1
7 SC -119-23 Mach Screw 10-24 x '/2 Hex Washer Hd 2
8 00-920207 Strip-Back Hold Down 1
9 00-920642 Member-Rear Cross 1
10 00-920001 -00001 Side Panel Weldment 2
11 SC -119-23 Mach Screw 10-24 x 1/2; Hex Washer Hd 4
12 00-804405 Leg - With Adjustable Foot 4
13 00-920670 Upper Front Cross Angle Assy 1
14 00-920641 Member-Front Cross 1
15 00-920650 Plate-Lighting/Shutdown 1
16 00-086556-00001 Label 1
17 00-920640-00001 Front Panel Weldment 1
18 PB-004-69 Plug-Hole 2
19 00-344646-00001 Label 1
20 00-417700-00003 Nameplate 1
21 00-920507 Label-Instruction 1
22 00-920140-00001 Leg Pad Weldment 4
23 00-920643 Pan-Drip Bottom 1
24 00-920240 Bracket-Pilot Support 1

-5-

MGH14A GAS HOTPLATE REPLACEMENT PARTS

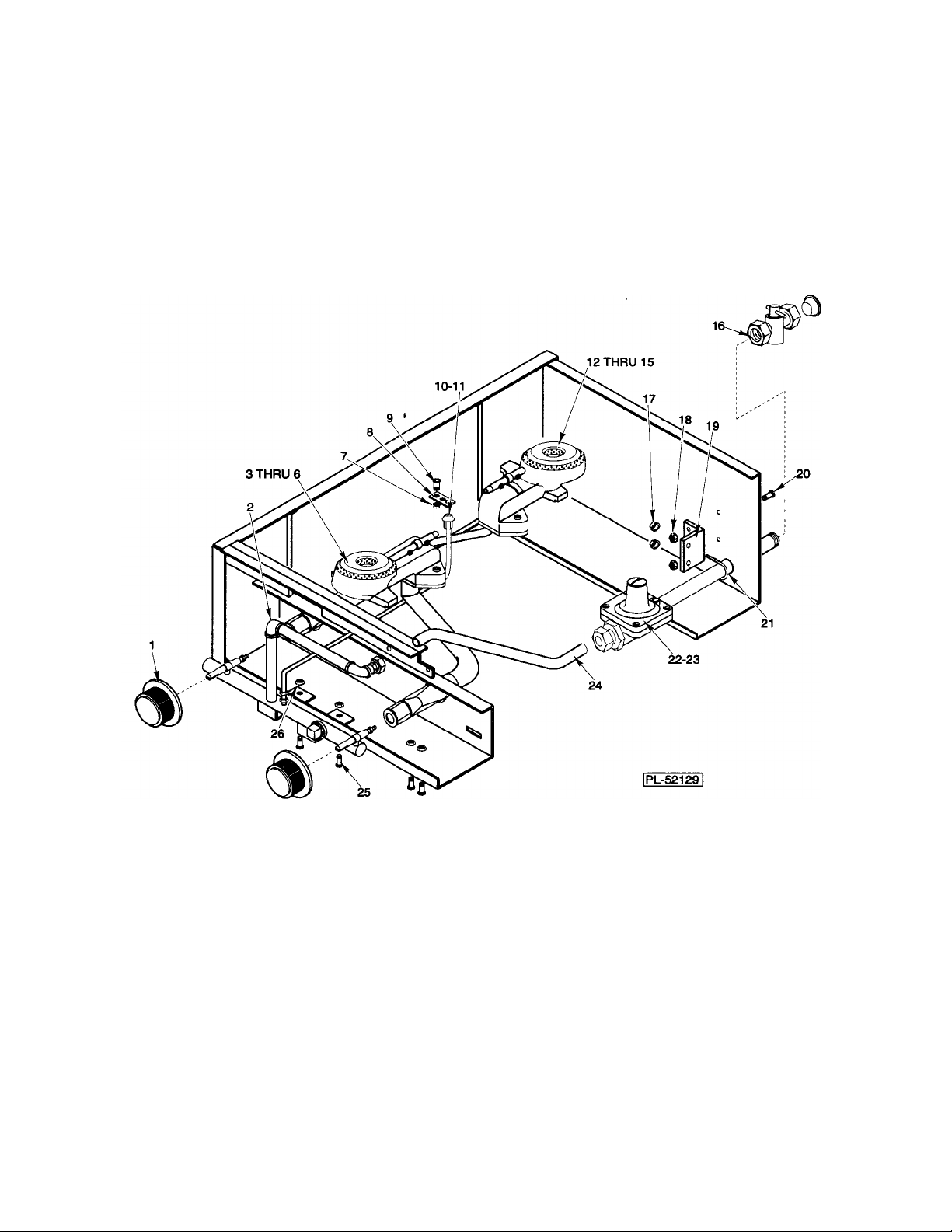

GAS PIPING

-6-

GAS PIPING

ILLUS. PART
PL-52129 NO. NAME OF PART AMT.

1 00-920392 Knob-Control 2
2 00-920644-00001 Manifold Assy 1
3 00-920674-00001 Front Burner Assy 1
4 00-920339 Tube-Ventun (Front) 1
5 00-920659 Head-Burner 1
6 00-806469 Gasket 1
7 NS-044-09 Nut Assy 10-24 Hex Keps 1
8 00-920677 Clip-Pilot 1
9 SC -119-23 Mach Screw 10-24 x '/2 Hex Washer Hd 1
10 00-920648-00001 Pilot Tube Assy 1
11 00-920676 Valve-Pilot 1
12 00-920675-00001 Rear Burner Assy 1
13 00-920337 Tube-Ventun (Rear) 1
14 00-920659 Head-Burner 1
15 00-806469 Gasket 1
16 00-920601 Valve-Manual 1
17 NS-038-08 Lock Nut 1/4-20 2
18 NS-044-09 Nut Assy 10-24 Hex Keps 2
19 00-920511 Bracket-Inlet Pipe 1
20 SC -119-23 Mach Screw 10-24 x '/2 Hex Washer Hd 1
21 00-920516 "U' Bolt 'A x '/2 1
22 00-920778-00001 Regulator Assy (4') (Nat) 1
23 00-920778-00002 Regulator Assy (10') (PRO) 1
24 00-920230 Tubing-Primary Supply 1
25 SC -119-23 Mach Screw 10-24 x '/2 Hex Washer Hd 2
26 NS-044-09 Nut Assy 10-24 Hex Keps 2

00-920237-00011 Valve-Burner (#52 Onfice)(NAT)(Use W/items 3 & 8) 2
00-920237-00012 Valve-Burner (#60 Onfice)(PRO)(Use W/items 3 & 8) 2
00-920656 Flash Tube Assy (Not Shown) 2
