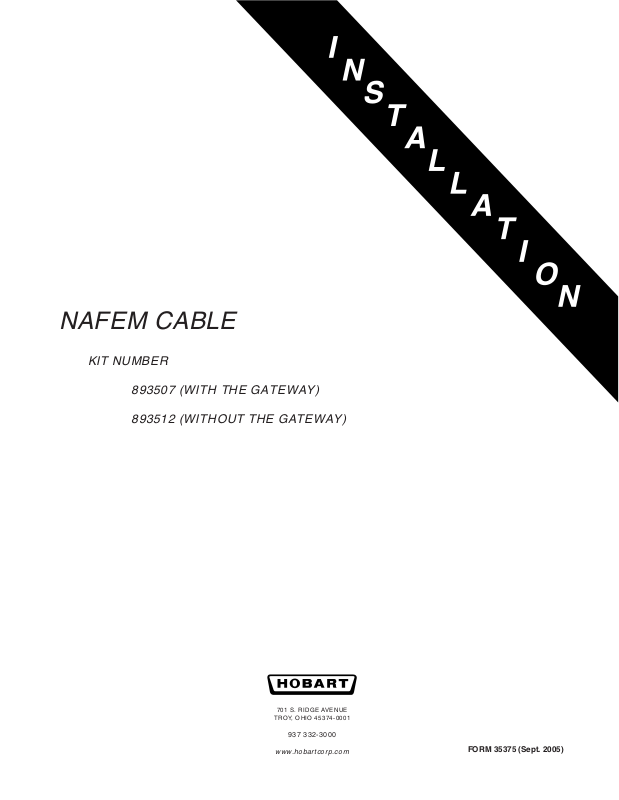

Vulcan LXi Installation Manual

NAFEM CABLE

KIT NUMBER

893507 (WITH THE GATEWAY)

893512 (WITHOUT THE GATEWAY)

701 S. RIDGE AVENUE

TROY, OHIO 45374-0001

937 332-3000

www.hobartcorp.com

FORM 35375 (Sept. 2005)

TABLE OF CONTENTS

GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Model LXi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Models AM15, AM15T, AM15F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

© HOBART, 2005

– 2 –

Installation

NAFEM CABLE

KIT NUMBER 893507 (WITH THE GATEWAY) OR

KIT NUMBER 893512 (WITHOUT THE GATEWAY)

SAVE THESE INSTRUCTIONS

GENERAL

This installation instruction covers installation of NAFEM cables whitch may have been ordered
either with the gateway or without the gateway.

INSTALLATION

MODEL LXi

WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW LOCKOUT

/ TAGOUT PROCEDURES. THERE MAY BE MULTIPLE CIRCUITS. BE SURE THAT ALL CIRCUITS
ARE DISCONNECTED.

CAUTION: Certain components in this system are subject to damage due to electrostatic
discharge. A Field Service Grounding Kit, part number TL-84919 is available to prevent this
damage. The Field Service Grounding Kit must be used when any electronic boards or cables
are handled.

STEP 1. Remove the screws in the corner of the control drawer. Pull the drawer forward until
it is fully extended open.

STEP 2. Insert the NAFEM cable into the tubing and feed it through until it emerges at the other
end (Fig. 1).

Fig. 1

– 3 –

STEP 3. Guide the cable and tubing through the drawer area, starting at the back near the
vacuum breaker, until it appears out the front of the drawer (Figs. 2, 3).

Fig. 2

Fig. 3

– 4 –

STEP 4. With a wire tie, secure the cable and tubing to the sensor harness and cut the excess
wire tie (Figs. 4, 5).

Fig. 4

Fig. 5

– 5 –
