STANDARD FEATURES
■ Heavy-Duty 1⁄2 H.P. Motor
■ Gear Transmission
■ Three Fixed Speeds Plus Stir Speed
■ Shift-on-the-Fly™ Controls
■ Patented soft start Agitation Technology
■ 15-Minute SmartTimer™
■ Automatic Time Recall
■ Large, Easy-To-Reach Controls
■ Single Point Bowl Installation
■ Ergonomic Swing-Out Bowl
■ #12 Taper Attachment Hub
LEGACY
HL120 MIXER
MODEL
❑ HL120 – 12-Quart All Purpose Mixer
Specifications, Details and Dimensions on Inside and Back.
®
■ Open Base
■ Stainless Steel Bowl Guard
■ Metallic Gray Hybrid Powder Coat Finish
ACCESSORY PACKAGES - featuring
™
Hobart Quick Release
❑ Deluxe Accessory Package Includes:
- 12 Quart Stainless Steel Bowl
- 12 Quart “B” Beater
- 12 Quart “D” Wire Whip
- 12 Quart Bowl Scraper
- 12 Quart Ingredient Chute
❑ Standard Accessory Package Includes:
- 12 Quart Stainless Steel Bowl
- 12 Quart “B” Beater
- 12 Quart “D” Wire Whip
Agitators
LEGACY
®
HL120 MIXER
F-40092 – Legacy® HL120 Mixer Page 1 of 4
LEGACY
®
HL120 MIXER
SOLUTIONS/BENEFITS
1
⁄2 H.P. Motor
Durability
■ Heavy-duty to meet the most demanding
operations
Gear Transmission
Durability, Reliability
■ Ensures consistent performance and minimum
downtime under heavy loads
Three Fixed Speeds plus Stir Speed
Flexibility, Reliability, Consistency
■ For incorporating, blending, mixing ingredients
■ Supports consistent results and thorough mixing
Shift-on-the-Fly™ Controls
Flexibility
■ Allows operator to change speeds while mixer is
running
Patented soft start Agitation Technology
Sanitation
■ Each speed has a soft transition into a higher
speed to reduce the chances of product
splash-out
15-Minute SmartTimer™
Convenience, Ease of Use, Consistency
■ Supports recipe mixing times
■ Provides accurate results and eliminates
overmixing
Automatic Time Recall
Productivity, Consistency
■ Remembers the last time set for each speed
■ Great for multiple batches
Ergonomic Swing-Out Bowl
Ease of Use, Convenience
■ Easy loading and unloading of products
■ Single Point Bowl Installation allows for simple
mounting and removal of bowl
■ Bowl Interlock ensures mixer bowl is properly in
place for mixer to operate
Stainless Steel Bowl Guard
Protection
■ Safety interlock prevents operation when front
portion of guard is out of position
Hobart Accessories
Durability, Flexibility, Simplicity
■ Hobart Quick Release™ agitators allow for
simple installation and removal from agitator
shaft
■ Hobart accessories are designed for long-term
usage under heavy-duty conditions
■ Large array of accessories provide multiple uses
for recipe and product processing
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
HL120 MIXER CAPACITY CHART
Recommended Maximum Capacities - dough capaci
ties based on 70°F. water and 12% flour moisture.
AGITATORS
PRODUCT SUITABLE FOR HL120
OPERATION
CAPACITY OF BOWL (QTS. LIQUID) 12
Egg Whites D 1
Mashed Potatoes B & C 10 lbs.
Mayonnaise (Qts. of Oil) B or C or D 4
Meringue (Qts. of Water) D
Waffle or Hot Cake Batter B 5 qts.
Whipped Cream D or C 2
Cake, Angel Food
(8-10 oz. cake) C or I 7
Cake, Box or Slab B or C 12 lbs.
Cake, Cup B or C 12 lbs.
Cake, Layer B or C 12 lbs.
Cake, Pound B 12 lbs.
Cake, Short (Sponge) C or I 8 lbs.
Cake, Sponge C or I 6
Cookies, Sugar B 10 lbs.
Dough, Bread or Roll
(Lt.-Med.) 60% AR § ED 13 lbs.
Dough, Heavy Bread 55% AR § ED 8 lbs.
Dough Pie B & P 11 lbs.
Dough, Thin Pizza 40% AR
(max. mix time 5 min.) §‡ ED 5 lbs.
Dough, Med. Pizza 50% AR §‡ ED 6 lbs.
Dough, Thick Pizza 60% AR §‡ ED 11 lbs.
Dough, Raised Donut 65% AR ED 4 lbs.*
Dough, Whole Wheat 70% AR ED 11 lbs.
Eggs & Sugar for Sponge Cake B & C or I 5 lbs.
Icing, Fondant B 7 lbs.
Icing, Marshmallow C or I 1
Shortening & Sugar, Creamed B 9
Pasta, Basic Egg Noodle
(max. mix time 5 min.) ED —
NOTE: % AR (% Absorption Ratio) - Water weight divided by
flour weight. Capacity depends on moisture content of dough.
Above capacities based on 12% flour moisture at 70°F water
temperature.
■
1st Speed
* 2nd Speed
† 3rd Speed
§ If high gluten flour is used, reduce above dough batch size
by 10%.
‡ 2nd Speed should never be used on 50% AR or lower
products.
USE OF ICE REQUIRES A 10% REDUCTION IN BATCH SIZE.
1 gallon of water weighs 8.33 lbs.
NOTE: Attachment hub should not be used while mixing.
1
⁄4 pts.
1
⁄2 qts.
3
⁄4 pts.
1
⁄2 qts.
1
⁄2 lbs.
1
⁄4 lbs.
1
⁄2 lbs.
■
■
■
■
■
■
-
Page 2 of 4 F-40092 – Legacy® HL120 Mixer
LEGACY
®
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
SPECIFICATIONS
MOTOR:
1
⁄2 H.P. high torque motor.
100-120/50/60/1 8.0 Amps
200-240/50/60/1 5.0 Amps
ELECTRICAL:
100-120/50/60/1, 200-240/50/60/1 – UL Listed.
CONTROLS:
Magnetic contactor with thermal overload protection. Internally sealed “Start-Stop” push buttons.
A 15-minute SmartTimer™ is standard.
SmartTimer™ includes Automatic Time Recall,
which remembers the last time set for each speed.
TRANSMISSION:
Gear-driven. Gears are constant mesh heat-treated
hardened alloy steel along with anti-friction ball
bearings. Grease lubricants furnished to all gears
and shafts.
SPEEDS:
Agitator
(RPM)
Stir 59 33
First (Low) 107 61
Second (Intermediate) 198 113
Third (High)
365 207
Attachment
(RPM)
HL120 MIXER
BOWL LIFT:
Ergonomic style, hand crank operated, self-locking in
top and bottom position.
FINISH:
Metallic Gray Hybrid Powder Coat finish.
ATTACHMENT HUB:
Comes with front-mounted Hobart standard #12
taper attachment hub for use with #12 size
attachments.
ATTACHMENTS AND ACCESSORIES:
The following are available at extra cost:
Stainless Steel Bowl
“B” Flat Beater
“C” Wing Whip
“D” Wire Whip
“ED” Dough Hook
“P” Pastry Knife
Bowl Splash Cover
Bowl Scraper
Ingredient Chute
9" Vegetable Slicer
Meat Chopper Attachment
Rubber Foot Pads
Attachment Tray Support
BOWL GUARD:
Heavy-duty stainless steel wire front and solid rear
portion. Front portion of guard rotates easily to
add ingredients and install or remove agitator.
It detaches in seconds for cleaning in dishwasher or
sink. Rear portion of guard can be quickly cleaned
in position. Guard must be in closed position before
mixer will operate. Bowl support interlock provides
further protection.
Hobart Ingredient Chute
Listed by Underwriters Laboratories Inc. and certified by NSF
International.
F-40092 – Legacy® HL120 Mixer Page 3 of 4
Hobart Bowl Scraper
Printed On Recycled Paper
LEGACY
®
HL120 MIXER
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS: 100-120/50/60/1,
200-240/50/60/1 – UL Listed.
WEIGHT:

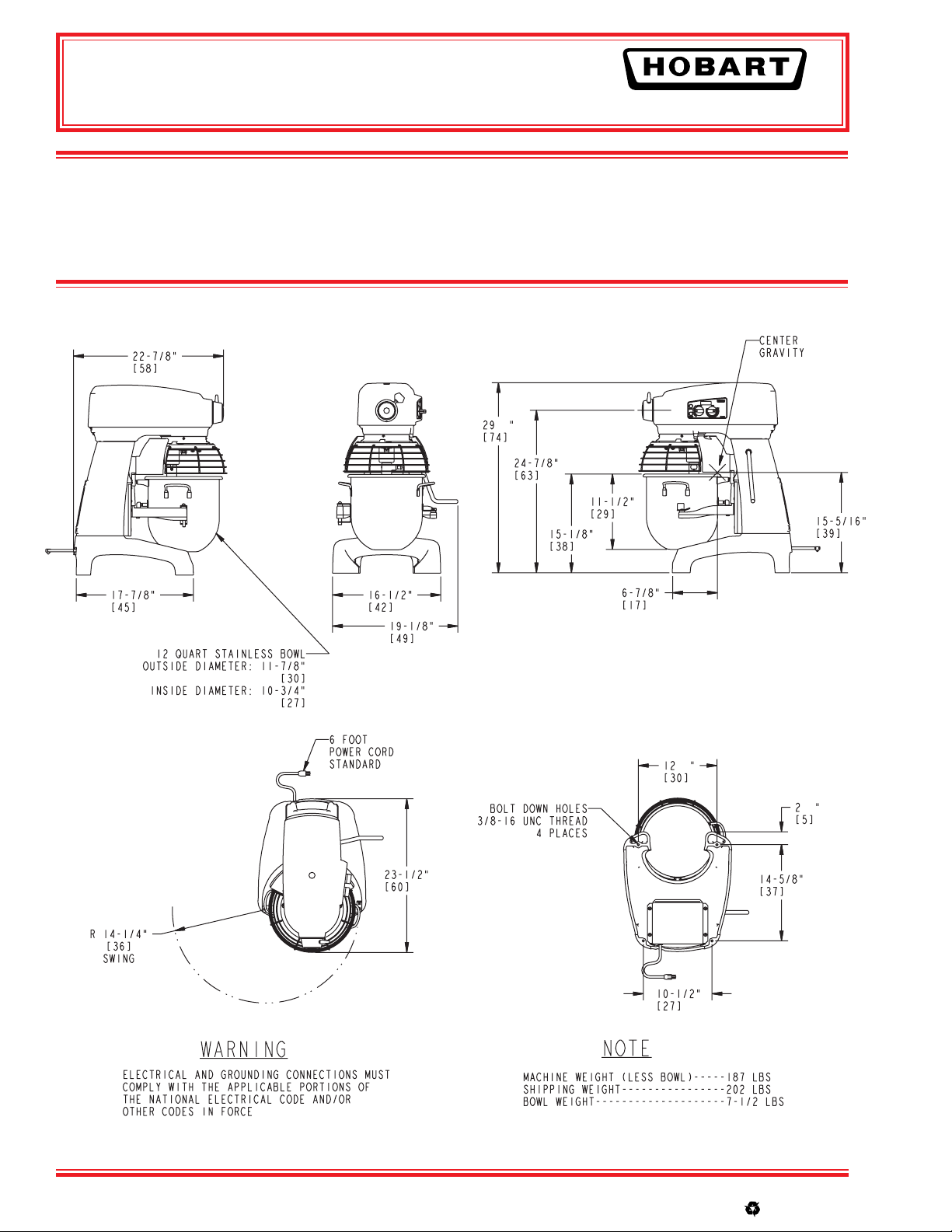

DETAILS AND DIMENSIONS
189 lbs. net; 204 lbs. domestic shipping.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
WARRANTY: Unit has full one-year warranty on
parts, labor and mileage against manufacturer’s
defects. Service contracts are available.
As continued product improvement is a policy of Hobart, specifications are subject to change without notice.
Page 4 of 4 F-40092 – Legacy® HL120 Mixer
