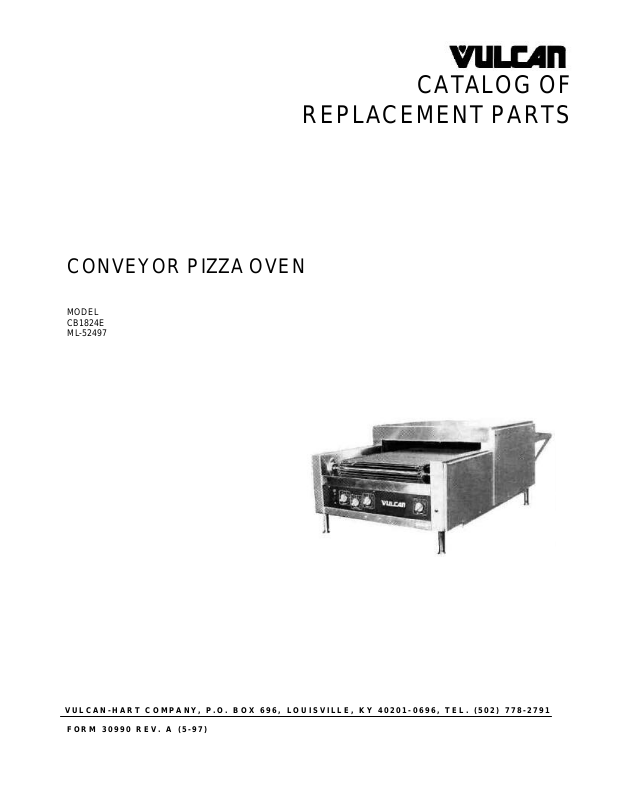

Vulcan CB1824E Parts List

REPLACEMENT PARTS

CONVEYOR PIZZA OVEN

MODEL
CB1824E
ML-52497

CATALOG OF

VULCAN- HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201- 0696, TEL. [phone]

FORM 30990 REV. A (5- 97)

CB1824E Conveyor Pizza Oven Replacement Parts

CONVEYOR PIZZA OVEN

©VULCAN-HART, 1997 -2-

REPLACEMENT PARTS CB 1824E CONVEYOR PIZZA OVEN

CONVEYOR PIZZA OVEN

ILLUS. PART
PL-52732 NO. NAME OF PART AMT.

1 00-825567 Hood 1
2 00-825874 Reflector – Top 1
3 00-357605-00001 Heater - Top (1300W, 208 V ) 6
4 00-357605-00002 Heater - Top (1300W, 240 V ) 6
5 00-844549 Cover - Panel (LH) 1
6 00-825861-00052 Arm - Ramp Support 2
7 00-357606-00001 Heater - Bottom (1300W, 208 V ) 8
8 00-357606-00002 Heater - Bottom (1300W, 240 V ) 8

9 00-825943 Rod - Tie 3/8’ 4
10 00-825582 Bracket – Ramp 2
11 00-825594 Idler Rod Weldment 1
12 00-844557 Bearing – Flanged 2
13 00-844560 Retaining Ring "E" Style 3/8 2
14 00-825210 Belt - Conveyor 18" x 90' 1
15 00-825883 Crumb Tray Weldment 1
16 00-844550 Panel - Cover (RH) 1
17 00-825168-00090 Sprocket 25B36 5/16 Bore 1
18 00-825245 Drive Chain Assy 1
19 00-825168-00060 Sprocket 25B11 '/2 Bore 1
20 00-825172-00050 Leg - Adjustable 4' 4
21 00-825100-00091 Motor 220 V , 60 Hz 1
22 00-825127-00030 Regulator 40A , 208 V 3
23 00-844554 Fuse Holder 2
24 00-844555 Fuse 300 V , 5A 2
25 00-825572 Reflector - Bottom 1
26 00-825100-00020 Control - Speed 1
27 00-844551 Sink - Heat 1
28 00-825100-00050 Guard - Finger 1
29 00-844558-00002 Knob - Control 4
30 00-844552 Switch - Rocker 1
31 00-844548 Panel - Control 1
32 00-850054-00002 Overlay - Control Panel 1
33 00-844553 Contactor 1
34 00-825945 Rod - Tie 1/2" 2
35 00-825943 Rod - Tie 3/8' 4
36 00-825871 Slide - Weldment 1
37 00-844559 Label - Caution 1
38 00-825584 Rod - Tie (Hockey Stick) 2
39 00-844556 Bushing - Snap 1
40 00-825553 Lug - Terminal 1
41 00-825126 Block - Section 6
42 00-825128-00040 Block - End 1
43 00-825100-00080 Fan - Cooling 1
44 00-825861-00050 Ramp Weldment 1
45 00-825126 Block - Section 3
46 00-825128-00040 Block - End 1
47 00-825535 Bearing - Drive 1/2 2
48 00-825869 Support - Belt 2
49 00-825596 Drive Rod Weldment 2
50 00-825100-00030 Nipple - Chase 1
51 00-825100-00040 Nut 1
52 00-825861-00053 Bracket - Left 1
53 00-825861-00054 Bracket - Right 1

00-359459-00001 Rack - Pizza 1
00-359510-00001 Support - Lower Heater 1
00-359510-00002 Hook - Upper Heater 1
00-359510-00003 Hanger 1

-3-
