CATALOG OF
REPLACEMENT PARTS
ENDURANCE/CHALLENGER MODULAR
SERIES GAS RANGES
MODELS
VULCAN
12 (F)
24S (F)
36S (F)
36C (F)
WOLF
C12 (F)
C24S (F)
C36S (F)
C36C (F)
parts and service provider in your area, visit our website at www.vulcanequipment.com
48S (F)
48SS (F)
48C (F)
60SS (F)
60SC (F)
60CS (F)
C48S (F)
C48SS (F)
C48C (F)
C60SS (F)
C60SC (F)
C60CS (F)
For additional information on Vulcan-Hart Company or to locate an authorized
72SS (F)
72SC (F)
72CC (F)
72CS (F)
C72SS (F)
C72SC (F)
C72CC (F)
C72CS (F)
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
www.vulcanequipment.com
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
F-43260 Rev. G (March, 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
F-43260 Rev. G (March 2016) - 2 - © 2016
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
Table of Contents
5 ORIFICE CHART
7 OPEN TOP BURNER ASSEMBLY
9 OPEN TOP BURNER MODULE (12 INCH)
11 OPEN TOP BURNER MODULE (24 INCH)
13 OPEN TOP BURNER MODULE (36 INCH)
15 TOP BURNER & MANIFOLD (FLAME SAFETY OPTION)
17 TOP BURNER AND MANIFOLD (FLAME FAILURE OPTION)
19 TOP BURNER MODULE (FLAME FAILURE OPTION)
21 GRIDDLE TOP MODULE (24 INCH)
23 GRIDDLE TOP MODULE (36 INCH)
25 MANUAL GRIDDLE MANIFOLD AND VALVES (24 INCH)
27 GRIDDLE MANIFOLD AND VALVES (36 INCH)
29 THERMOSTAT GRIDDLE CONTROL ASSEMBLY (24 INCH)
31 THERMOSTAT GRIDDLE CONTROL ASSEMBLY (36 INCH)
33 GRIDDLE/BROILER BURNER AND MANIFOLD
35 GRIDDLE/BROILER PANELS

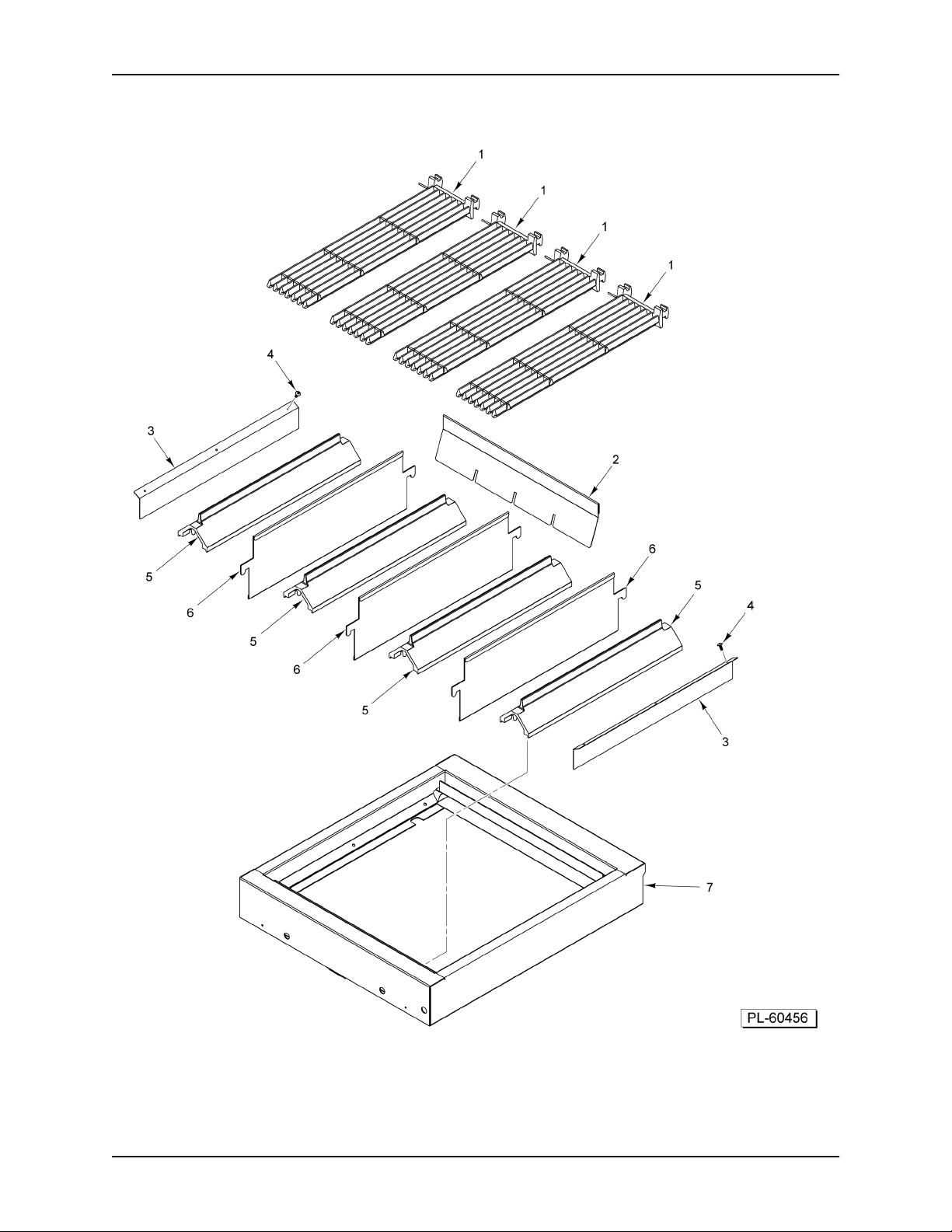

37 CHARBROILER GRILL
39 CHARBROILER BURNER AND MANIFOLD
41 CHARBROILER PANELS
43 STANDARD OVEN CONTROL (30 INCH)
45 CONVECTION OVEN CONTROL (30 INCH)

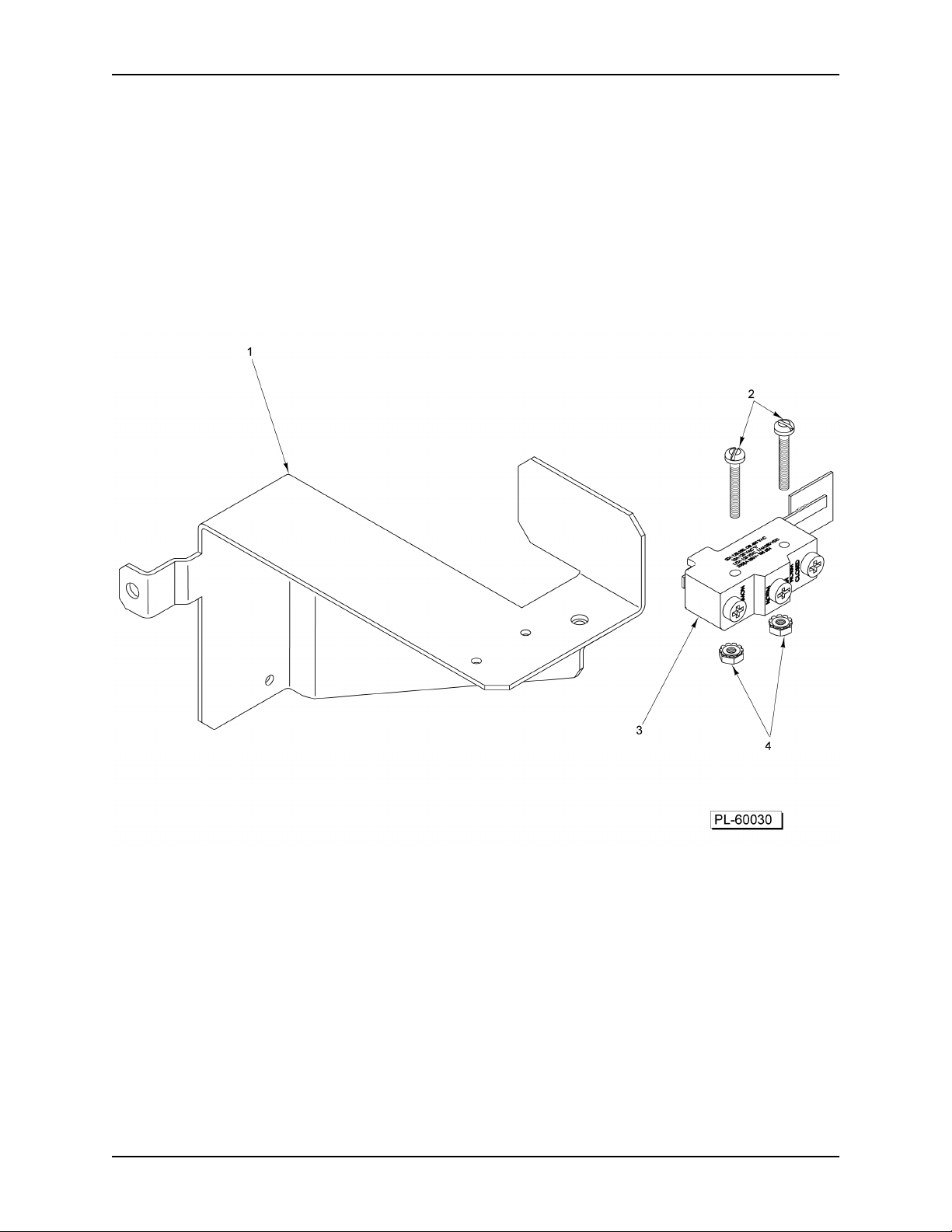

47 DOOR SWITCH ASSEMBLY
49 OVEN BURNER ASSEMBLY
51 RANGE BODY (12 INCH)
53 STANDARD OVEN CAVITY (24 INCH)

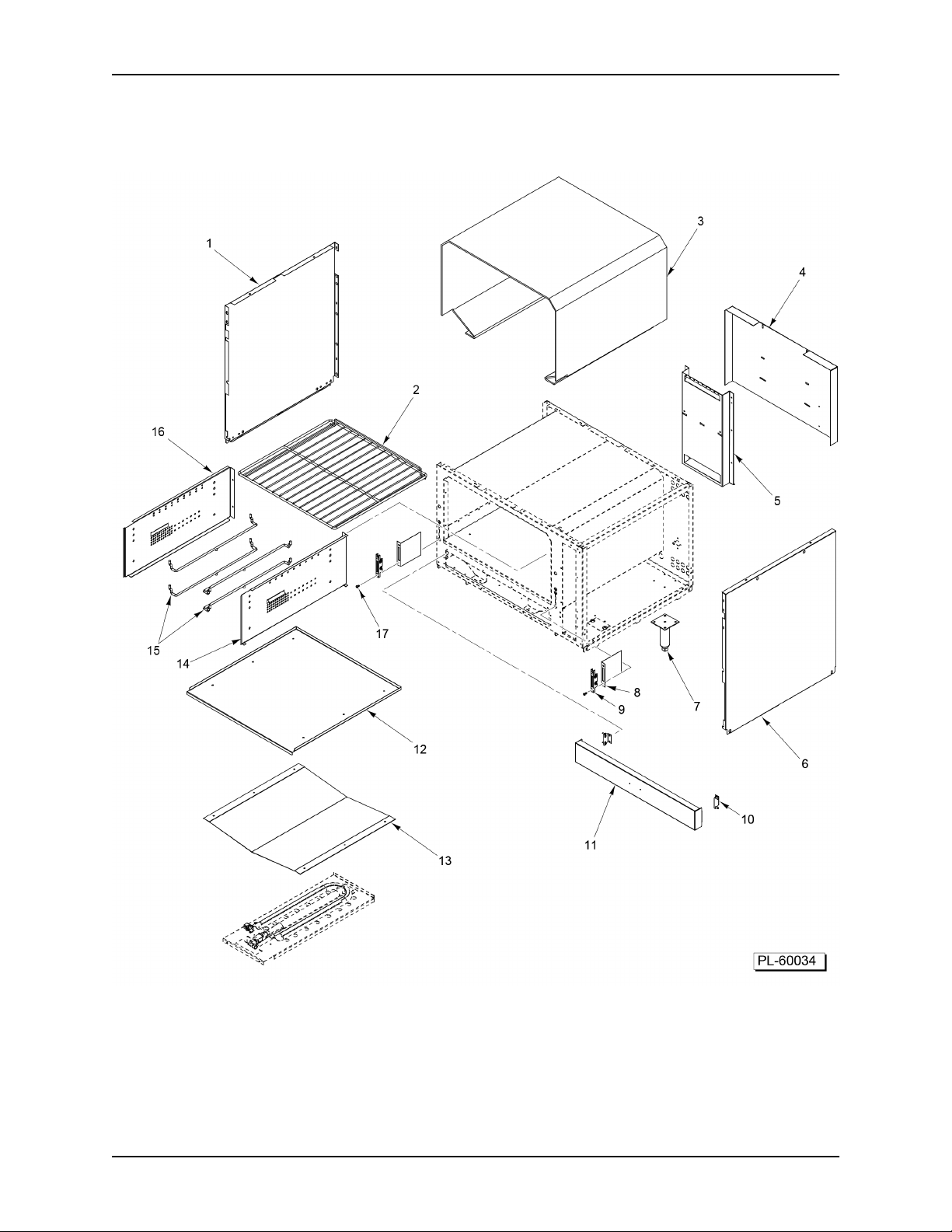

55 STANDARD OVEN CAVITY (30 INCH)

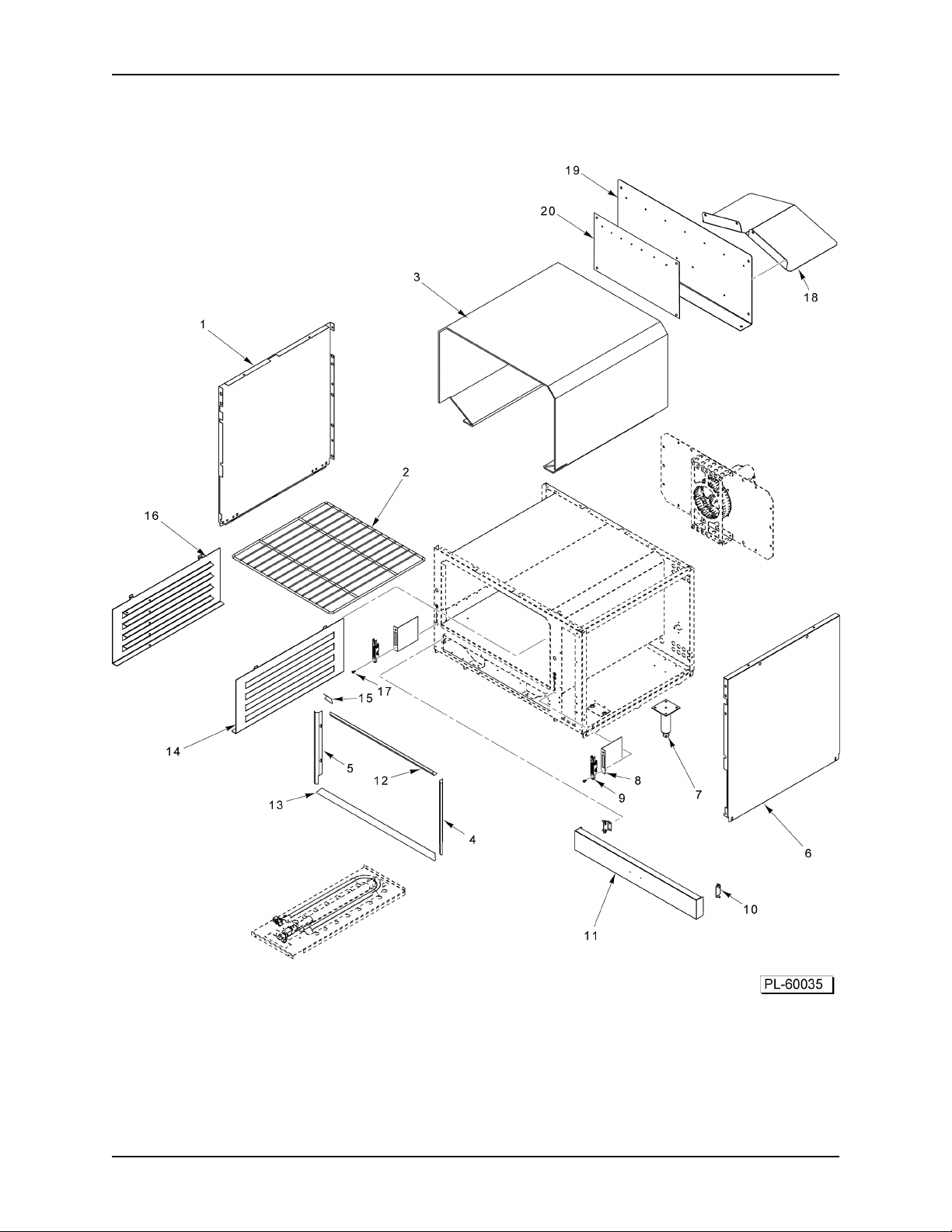

57 CONVECTION OVEN CAVITY (30 INCH)
59 CONVECTION MOTOR ASSEMBLY (30 INCH UNIT ONLY)

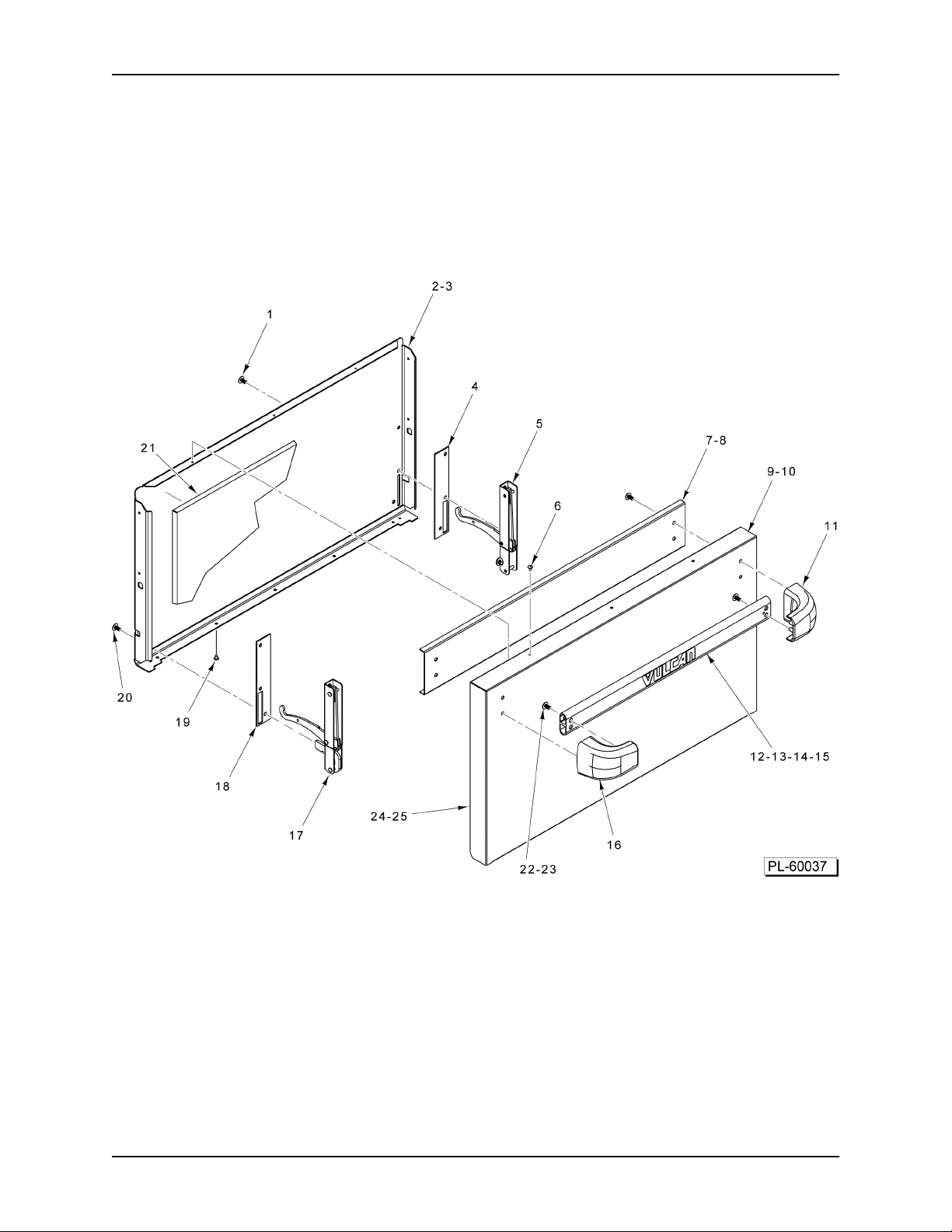

61 DOOR ASSEMBLY (BEFORE 10/31/2014)

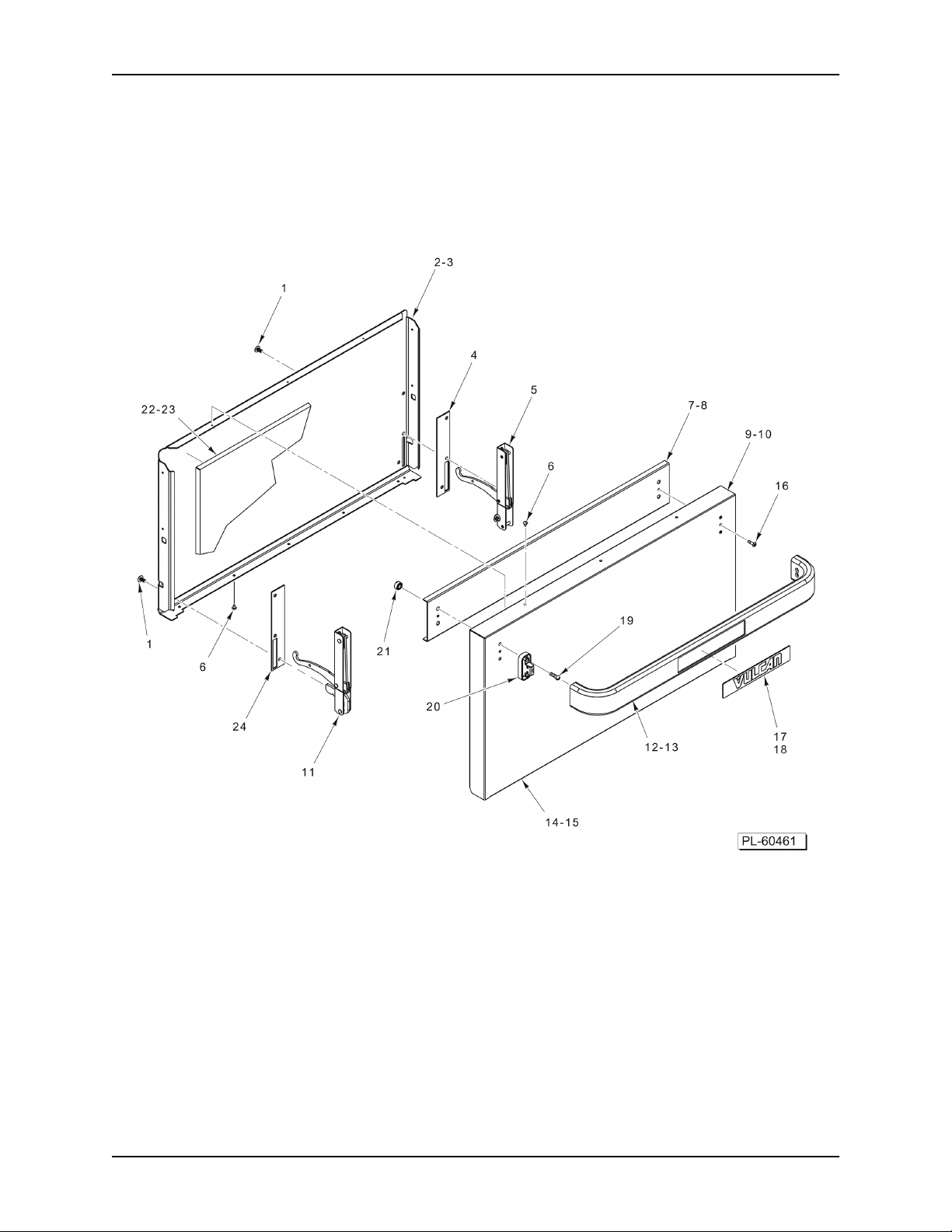

63 DOOR ASSEMBLY (AFTER 10/31/2014)
65 BACKSPLASH, SHELF, AND BULL NOSE (ALL SIZES)
67 BACKSPLASH AND PANELS (GRIDDLE/BROILERS)
- 3 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
ORIFICE CHART
F-43260 Rev. G (March 2016) - 4 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
ORIFICE CHART
ILLUS.
PL-60530
35 00-719951-00035 Hood - Orifice (Drill 35)............................................................................................................AR
36 00-719951-00036 Hood - Orifice (Drill 36)............................................................................................................AR
37 00-719951-00037 Hood - Orifice (Drill 37)............................................................................................................AR
39 00-719951-00039 Hood - Orifice (Drill 39)............................................................................................................AR
40 00-719951-00040 Hood - Orifice (Drill 40)............................................................................................................AR
41 00-719951-00041 Hood - Orifice (Drill 41)............................................................................................................AR
42 00-719951-00042 Hood - Orifice (Drill 42)............................................................................................................AR
43 00-719951-00043 Hood - Orifice (Drill 43)............................................................................................................AR
44 00-719951-00044 Hood - Orifice (Drill 44)............................................................................................................AR
45 00-719951-00045 Hood - Orifice (Drill 45)............................................................................................................AR
46 00-719951-00046 Hood - Orifice (Drill 46)............................................................................................................AR
47 00-719951-00047 Hood - Orifice (Drill 47)............................................................................................................AR
48 00-719951-00048 Hood - Orifice (Drill 48)............................................................................................................AR
49 00-719951-00049 Hood - Orifice (Drill 49)............................................................................................................AR
51 00-719951-00051 Hood - Orifice (Drill 51)............................................................................................................AR
52 00-719951-00052 Hood - Orifice (Drill 52)............................................................................................................AR
53 00-719951-00053 Hood - Orifice (Drill 53)............................................................................................................AR
54 00-719951-00054 Hood - Orifice (Drill 54)............................................................................................................AR
55 00-719951-00055 Hood - Orifice (Drill 55)............................................................................................................AR
56 00-719951-00056 Hood - Orifice (Drill 56)............................................................................................................AR
57 00-719951-00057 Hood - Orifice (Drill 57)............................................................................................................AR
59 00-719951-00059 Hood - Orifice (Drill 59)............................................................................................................AR
60 00-719951-00060 Hood - Orifice (Drill 60)............................................................................................................AR
61 00-719951-00061 Hood - Orifice (Drill 61)............................................................................................................AR
63 00-719951-00063 Hood - Orifice (Drill 63)............................................................................................................AR
64 00-719951-00064 Hood - Orifice (Drill 64)............................................................................................................AR
65 00-719951-00065 Hood - Orifice (Drill 65)............................................................................................................AR
66 00-719951-00066 Hood - Orifice (Drill 66)............................................................................................................AR
67 00-719951-00067 Hood - Orifice (Drill 67)............................................................................................................AR
PART NO. NAME OF PART AMT.
- 5 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OPEN TOP BURNER ASSEMBLY
F-43260 Rev. G (March 2016) - 6 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OPEN TOP BURNER ASSEMBLY
ILLUS.
PL-60015
PART NO. NAME OF PART AMT.
1 00-714215-00002 Open Top Burner........................................................................................................................1
2 00-719329 Air Mixer Assy............................................................................................................................2
3 00-417608-00001 Burner Head...............................................................................................................................1
4 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................2
5 00-787275-00001 Flash Tube.................................................................................................................................1
6 00-417608-00001 Burner Head...............................................................................................................................1
7 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................1
8 00-413302-00001 Clip - Pilot Mounting...................................................................................................................1
- 7 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OPEN TOP BURNER MODULE
(12 INCH)
F-43260 Rev. G (March 2016) - 8 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OPEN TOP BURNER MODULE
(12 INCH)
ILLUS.
PL-60016
10 00-428300-00001 Knob...........................................................................................................................................2
11 00-922358-00002 Bracket - Manifold Cover (LH)....................................................................................................1
12 00-719221 Valve - Manual...........................................................................................................................2
*13 Orifice.........................................................................................................................................1
14 00-921082-0000A Manifold......................................................................................................................................1
15 00-719189 Valve - Manual Griddle...............................................................................................................1
16 00-922124-0000A Pilot Tube/Tip Assy....................................................................................................................1
17 00-922865-00012 Deflector (12 In.).........................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921884-00012 Bull Nose (12 In.)........................................................................................................................1
2 00-925000 Grate - Front............................................................................................................................AR
3 00-925001 Grate - Rear............................................................................................................................AR
4 00-921886-00012 Shield - Front..............................................................................................................................1
5 00-924006 Burner Support...........................................................................................................................1
6 00-921782 Shield - Rear..............................................................................................................................1
7 00-922355-00012 Tray - Crumb..............................................................................................................................1
8 00-922358-00001 Bracket - Manifold Cover (RH)...................................................................................................1
9 00-922356-00012 Cover - Gas Manifold.................................................................................................................1
* (See Orifice Chart)
- 9 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OPEN TOP BURNER MODULE
(24 INCH)
F-43260 Rev. G (March 2016) - 10 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OPEN TOP BURNER MODULE
(24 INCH)
ILLUS.
PL-60017
10 2240-2241 Grommet - Heyco.......................................................................................................................1
11 00-922355-00024 Tray - Crumb..............................................................................................................................1
12 00-922358-00001 Bracket - Manifold Cover (RH)...................................................................................................1
13 00-922356-00024 Cover - Gas Manifold.................................................................................................................1
14 00-428300-00001 Knob...........................................................................................................................................4
15 00-922358-00002 Bracket - Manifold Cover (LH)....................................................................................................1
16 00-719370 Plug............................................................................................................................................1
17 00-719221 Valve - Manual...........................................................................................................................4
*18 Orifice.........................................................................................................................................1
19 00-921356-0000A Manifold......................................................................................................................................1
20 00-719189 Valve - Single Pilot.....................................................................................................................1
21 00-922124-0000A Pilot Tube/Tip Assy....................................................................................................................2
22 00-922021 Thermostat (Oven).....................................................................................................................2
23 00-498356 Pipe - Flanged Thermostat Mount..............................................................................................1
24 00-922046-00024 Knob - Adjustable (BJ Valve).....................................................................................................1
25 00-921013 Cover - Valve (BJ)......................................................................................................................1
26 00-921014 NLA - Obsolete--Cover - Back (BJ Valve)..................................................................................1
27 00-922015 Elbow..........................................................................................................................................1
28 00-922912 Plate - Adapter...........................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921884-00024 Bull Nose (24 In.)........................................................................................................................1
2 00-925000 Grate - Front...............................................................................................................................2
3 00-925001 Grate - Rear...............................................................................................................................2
4 00-921886-00024 Bracket - Front Top....................................................................................................................1
5 00-921794 Support - Grate...........................................................................................................................1
6 00-922865-00024 Deflector (24 In.).........................................................................................................................1
7 00-924516 Support - Burner.........................................................................................................................1
8 00-921410 Cover - Flue................................................................................................................................1
9 00-924518 Heat Shield Rear........................................................................................................................1
* (See Orifice Chart)
- 11 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OPEN TOP BURNER MODULE
(36 INCH)
F-43260 Rev. G (March 2016) - 12 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OPEN TOP BURNER MODULE
(36 INCH)
ILLUS.
PL-60018
10 00-922355-00036 Tray - Crumb..............................................................................................................................1
11 00-922356-00036 Cover - Gas Manifold.................................................................................................................1
12 00-428300-00001 Knob...........................................................................................................................................6
13 00-922358-00002 Bracket - Manifold Cover (LH)....................................................................................................1
14 00-719370 Plug.........................................................................................................................................AR
15 00-922358-00001 Bracket - Manifold Cover (RH)...................................................................................................1
16 00-719221 Valve - Manual...........................................................................................................................6
*17 Orifice.........................................................................................................................................1
18 00-921881-0000A Manifold......................................................................................................................................1
19 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
20 00-719189 Valve - Single Pilot.....................................................................................................................3
21 00-922124-0000A Pilot Tube/Tip Assy....................................................................................................................3
22 00-921884-00036 Bull Nose (36 In.)........................................................................................................................1
23 00-921886-00036 Bracket - Front Top....................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-925000 Grate - Front...............................................................................................................................2
2 00-925001 Grate - Rear...............................................................................................................................2
3 00-921794 Support - Grate...........................................................................................................................1
4 00-922865-00036 Deflector (36 In.).........................................................................................................................1
5 00-925035 Deflector - Rear..........................................................................................................................1
6 00-921794 Support - Grate...........................................................................................................................1
7 00-921148 Heat Shield Rear........................................................................................................................1
8 00-921410 Cover - Flue................................................................................................................................1
9 2240-2241 Grommet - Heyco.......................................................................................................................1
* (See Orifice Chart)
- 13 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
TOP BURNER & MANIFOLD
(FLAME SAFETY OPTION)
F-43260 Rev. G (March 2016) - 14 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
TOP BURNER & MANIFOLD
(FLAME SAFETY OPTION)
ILLUS.
PL-60789
10 00-960263 Adapter - Tube........................................................................................................................AR
11 00-960222 Manifold - Burner.....................................................................................................................AR
12 00-426505-00018 Tube - Flex (1/4 x 18 In.).........................................................................................................AR
13 00-404738-00003 Valve - Pilot.............................................................................................................................AR
14 00-719363 Plug 1/8 NPT Countersink.......................................................................................................AR
15 00-730535 Nut 6-32 Hex KEPS.................................................................................................................AR
16 00-960495 Screw 6-32 x 1-1/4..................................................................................................................AR
17 00-944254 Knob (Igniter)...........................................................................................................................AR
18 00-944255 Igniter (Rotary) (3-Pole)...........................................................................................................AR
19 00-944255-00002 Igniter (Rotary) (2-Pole)...........................................................................................................AR
20 00-922558-00024 Shield - Heat (24 In.)..................................................................................................................1
21 00-922558-00036 Shield - Heat (36 In.)..................................................................................................................1
22 00-719329 Air Mixer Assy.........................................................................................................................AR
23 00-714215-00002 Open Top Burner.....................................................................................................................AR
24 00-417608-00001 Burner Head............................................................................................................................AR
25 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
26 00-714268 Thermocouple (18 In.).............................................................................................................AR
27 00-960238 Mount - Pilot Safety.................................................................................................................AR
28 00-960239 Shield - Pilot Safety.................................................................................................................AR
29 00-960237 Flash Tube..............................................................................................................................AR
30 00-922547-00001 Pilot Assy. (NAT).....................................................................................................................AR
31 00-922547-00002 Pilot Assy. (LP)........................................................................................................................AR
32 00-960496 Nut 6-32 Hex...........................................................................................................................AR
33 00-960282-01600 Sleeving (Fiberglass) (5/16 Dia. x 16 In. Lg.) (Black)..............................................................AR
34 00-960278-00012 Cover - Manifold (12 In.).............................................................................................................1
35 00-960274 Manifold (12 In.).........................................................................................................................1
36 00-922588-00012 Shield - Heat (12 In.)...............................................................................................................AR
PART NO. NAME OF PART AMT.
1 00-428300 Knob........................................................................................................................................AR
2 00-960278-00024 Cover - Manifold (24 In.).............................................................................................................1
3 00-960278-00036 Cover - Manifold (36 In.).............................................................................................................1
4 00-960224 Manifold (24 In.).........................................................................................................................1
5 00-960276 Manifold (36 In.).........................................................................................................................1
6 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
7 00-960277 Valve - Safety..........................................................................................................................AR
8 00-719363 Plug 1/8 NPT Countersink..........................................................................................................1
9 00-719221 Valve - Manual........................................................................................................................AR
- 15 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
TOP BURNER AND MANIFOLD
(FLAME FAILURE OPTION)
F-43260 Rev. G (March 2016) - 16 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
TOP BURNER AND MANIFOLD
(FLAME FAILURE OPTION)
ILLUS.
PL-60460
10 00-714268 Thermocouple (18 In.)................................................................................................................3
11 00-944267 Screw 6-32 x 13/16 Phil. Pan Hd...............................................................................................6
12 00-426505-00018 Tube - Flex (1/4 x 18 In.)............................................................................................................3
13 00-922098 Thermocouple (36 In.)................................................................................................................3
14 00-426505-00033 Tubing - Pilot Flex 1/4 O.D. x 33 In............................................................................................3
*15 Orifice......................................................................................................................................AR
16 00-404193-00001 Valve - Pilot................................................................................................................................6
17 00-922518-0000A Valve Assy. (Flame Failure).......................................................................................................6
18 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
19 00-921968-0000A Manifold......................................................................................................................................1
20 00-922558-00036 Shield - Heat...............................................................................................................................1
21 00-730535 Nut 6-32 Hex KEPS....................................................................................................................6
22 00-922598-00002 Cover - Igniter.............................................................................................................................3
PART NO. NAME OF PART AMT.
1 00-714215-00002 Open Top Burner........................................................................................................................3
2 00-719329 Air Mixer Assy............................................................................................................................6
3 00-417608-00001 Burner Head...............................................................................................................................6
4 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
5 00-922514 Plate - Pilot Mounting.................................................................................................................3
6 00-922515 Plate - Mounting (Adjustable).....................................................................................................6
7 00-922517 Shield - Electrode.......................................................................................................................6
8 00-922547-00001 Pilot Assy. (NAT)........................................................................................................................6
9 00-922547-00002 Pilot Assy. (LP)...........................................................................................................................6
* (See Orifice Chart)
- 17 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
TOP BURNER MODULE
(FLAME FAILURE OPTION)
F-43260 Rev. G (March 2016) - 18 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
TOP BURNER MODULE
(FLAME FAILURE OPTION)
ILLUS.
PL-60459
10 00-922355-00036 Tray - Crumb..............................................................................................................................1
11 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................4
12 00-922519-000A1 Knob...........................................................................................................................................6
13 00-944255-00002 Igniter (Rotary)...........................................................................................................................3
14 00-921097-00036 Cover - Manifold.........................................................................................................................1
15 00-922358-00001 Bracket - Manifold Cover (RH)...................................................................................................1
16 00-922358-00002 Bracket - Manifold Cover (LH)....................................................................................................1
17 00-921884-00036 Bull Nose (36 In.)........................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-925000 Grate - Front...............................................................................................................................3
2 00-925001 Grate - Rear...............................................................................................................................3
3 00-921794 Support - Grate...........................................................................................................................1
4 00-922865-00036 Deflector (36 In.).........................................................................................................................1
5 00-925035 Deflector - Rear..........................................................................................................................1
6 00-921794 Support - Grate...........................................................................................................................1
7 00-921148 Heat Shield Rear........................................................................................................................1
8 00-921886-00036 Bracket - Front Top....................................................................................................................1
9 2240-2241 Grommet - Heyco.......................................................................................................................1
- 19 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE TOP MODULE
(24 INCH)
F-43260 Rev. G (March 2016) - 20 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE TOP MODULE
(24 INCH)
ILLUS.
PL-60020
10 00-922865-00012 Deflector (12 In.).........................................................................................................................1
11 00-921865 Panel..........................................................................................................................................1
12 00-924006 Burner Support...........................................................................................................................1
13 00-921865 Panel..........................................................................................................................................1
14 00-921886-00012 Shield - Front..............................................................................................................................1
15 00-922858-0000A Divider Wall................................................................................................................................1
16 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
17 00-922861-0000A Channel......................................................................................................................................1
18 00-924503 Support - Griddle........................................................................................................................1
19 00-960436 Tube - Hang Guide.....................................................................................................................1
20 00-960437 Liner...........................................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921927-0000A Griddle Plate Assy. (24 In.)........................................................................................................1
2 00-922361-00024 Shield - Heat...............................................................................................................................1
3 00-926509-0000A Burner - Griddle XL....................................................................................................................2
4 00-921874-0000A Grease Chute Assy....................................................................................................................1
5 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
6 00-922353-0000A Grease Can................................................................................................................................1
7 00-921870 Guide - Grease Can...................................................................................................................1
8 00-498896-00024 Insulation (24 In. Griddle)...........................................................................................................1
9 00-921782 Shield - Rear..............................................................................................................................1
- 21 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE TOP MODULE
(36 INCH)
F-43260 Rev. G (March 2016) - 22 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE TOP MODULE
(36 INCH)
ILLUS.
PL-60021
10 00-960436 Tube - Hang Guide.....................................................................................................................1
11 00-960437 Liner...........................................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921740-0000A Griddle Plate Assy. (36 In.)........................................................................................................1
2 00-922361-00036 Shield - Heat...............................................................................................................................1
3 00-926509-0000A Burner - Griddle XL....................................................................................................................3
4 00-921874-0000A Grease Chute Assy....................................................................................................................1
5 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
6 00-922353-0000A Grease Can................................................................................................................................1
7 00-921870 Guide - Grease Can...................................................................................................................1
8 00-498896-00036 Insulation (36 In. Griddle)...........................................................................................................1
9 00-925013 Support - Griddle........................................................................................................................1
- 23 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
MANUAL GRIDDLE MANIFOLD AND VALVES
(24 INCH)
F-43260 Rev. G (March 2016) - 24 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS

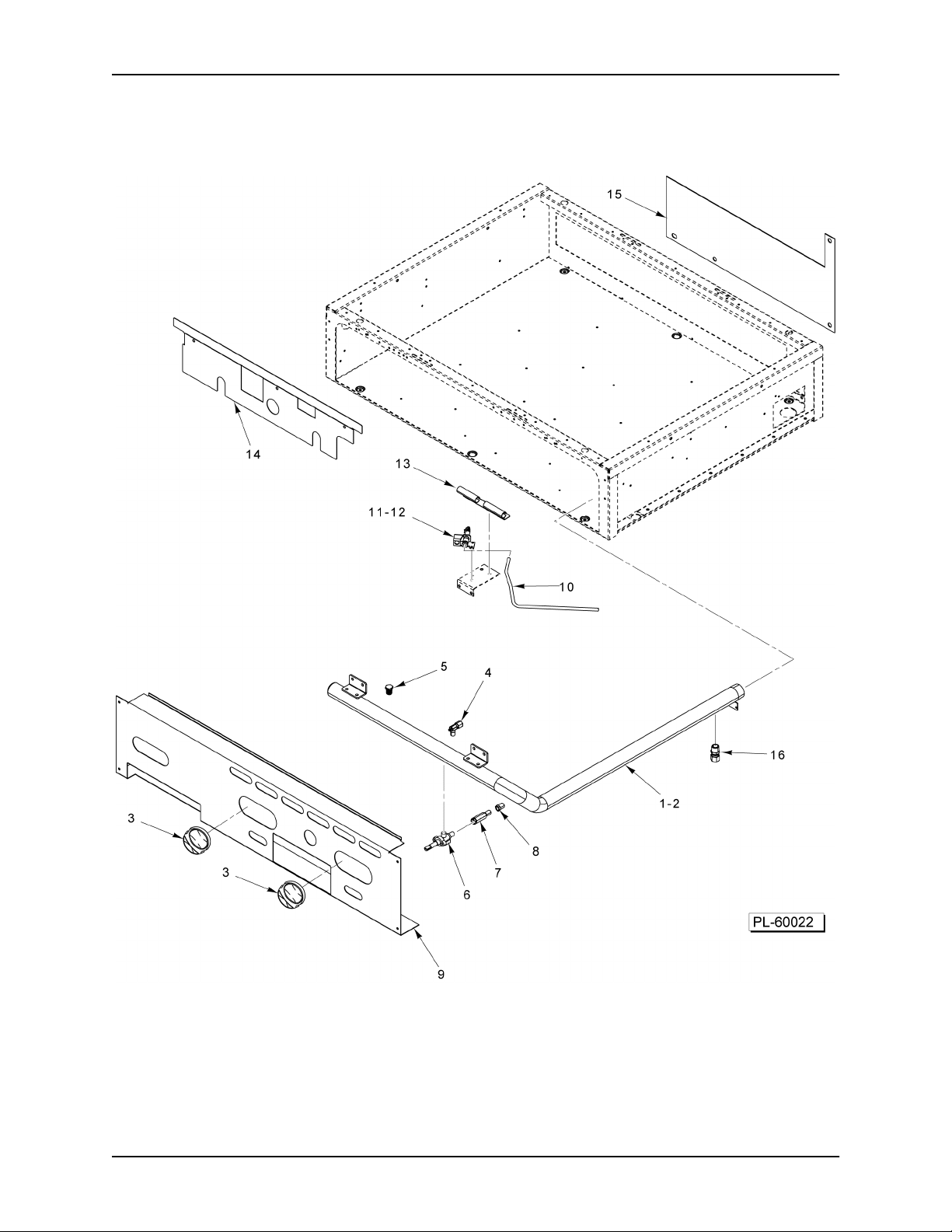

MANUAL GRIDDLE MANIFOLD AND VALVES
(24 INCH)
ILLUS.
PL-60022
10 00-426505-00012 Tubing - Pilot Flex 1/4 O.D. x 12 In............................................................................................1
11 00-426262-00001 Pilot Assy. (NAT)........................................................................................................................1
12 00-426262-00002 Pilot Assy. (LP)...........................................................................................................................1
13 00-921074 Flash Tube - Griddle...................................................................................................................1
14 00-922363-00024 Bracket - Gutter Seal (24 In.).....................................................................................................1
15 00-922288-00024 Plate - Flue Seal (24 In.)............................................................................................................1
16 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
PART NO. NAME OF PART AMT.
1 00-921356-0000A Manifold......................................................................................................................................1
2 00-921881-0000A Manifold (Griddle).......................................................................................................................1
3 00-497246-00001 Knob - Griddle/Broiler.................................................................................................................2
4 00-719189 Valve - Manual Griddle (Pilot)....................................................................................................1
5 00-719371 Plug.........................................................................................................................................AR
6 00-921999 Valve - Manifold (Griddle)...........................................................................................................2
7 00-926523 Valve - Extension.......................................................................................................................2
*8 Orifice.........................................................................................................................................2
9 00-922351-0024G Cover - Manifold.........................................................................................................................1
* (See Orifice Chart)
- 25 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE MANIFOLD AND VALVES
(36 INCH)
F-43260 Rev. G (March 2016) - 26 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE MANIFOLD AND VALVES
(36 INCH)
ILLUS.
PL-60023
10 00-426505-00012 Tubing - Pilot Flex 1/4 O.D. x 12 In............................................................................................2
11 00-426262-00001 Pilot Assy. (NAT)........................................................................................................................2
12 00-426262-00002 Pilot Assy. (LP)...........................................................................................................................2
13 00-921074 Flash Tube - Griddle...................................................................................................................2
14 00-922363-00036 Bracket - Gutter Seal (36 In.).....................................................................................................1
15 00-922288-00036 Plate - Flue Seal (36 In.)............................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921881-0000A Manifold......................................................................................................................................1
2 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
3 00-497246-00001 Knob - Griddle/Broiler.................................................................................................................3
4 00-404193-00001 Valve - Pilot................................................................................................................................2
5 00-719371 Plug.........................................................................................................................................AR
6 00-921999 Valve - Manifold..........................................................................................................................3
7 00-926523 Valve - Extension.......................................................................................................................3
*8 Orifice.........................................................................................................................................3
9 00-922350 Cover - Manifold.........................................................................................................................1
* (See Orifice Chart)
- 27 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
THERMOSTAT GRIDDLE CONTROL ASSEMBLY
(24 INCH)
F-43260 Rev. G (March 2016) - 28 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
THERMOSTAT GRIDDLE CONTROL ASSEMBLY
(24 INCH)
ILLUS.
PL-60024
10 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
11 00-719376 Elbow 3/8 x 3/8...........................................................................................................................2
12 00-719566 Sleeving - Silicon........................................................................................................................1
13 00-923013 Bracket - Mount..........................................................................................................................1
14 00-922203 Valve - Safety (WP22K-2511-2-1)..............................................................................................1
15 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
16 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
17 00-851614-00002 Flex Tubing.................................................................................................................................1
18 00-922510 Tee.............................................................................................................................................1
*19 Orifice.........................................................................................................................................1
20 00-719383 Elbow 3/8 Orifice........................................................................................................................1
21 00-851614-00002 Flex Tubing.................................................................................................................................1
22 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
23 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
24 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
25 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................2
26 00-719566 Sleeving - Silicon........................................................................................................................1
27 00-412788-00001 Thermocouple (18 In. Lg.)..........................................................................................................1
28 00-922501 Bracket - Griddle Orifice.............................................................................................................1
PART NO. NAME OF PART AMT.
1 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
2 00-922511 Knob (Thermostatic Griddle)......................................................................................................2
3 00-922504-00024 Control Bracket - T-Stat (24 In.).................................................................................................1
4 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
5 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
6 00-922501 Bracket - Griddle Orifice.............................................................................................................1
*7 Orifice.........................................................................................................................................1
8 00-719383 Elbow 3/8 Orifice........................................................................................................................1
9 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
* (See Orifice Chart)
- 29 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS

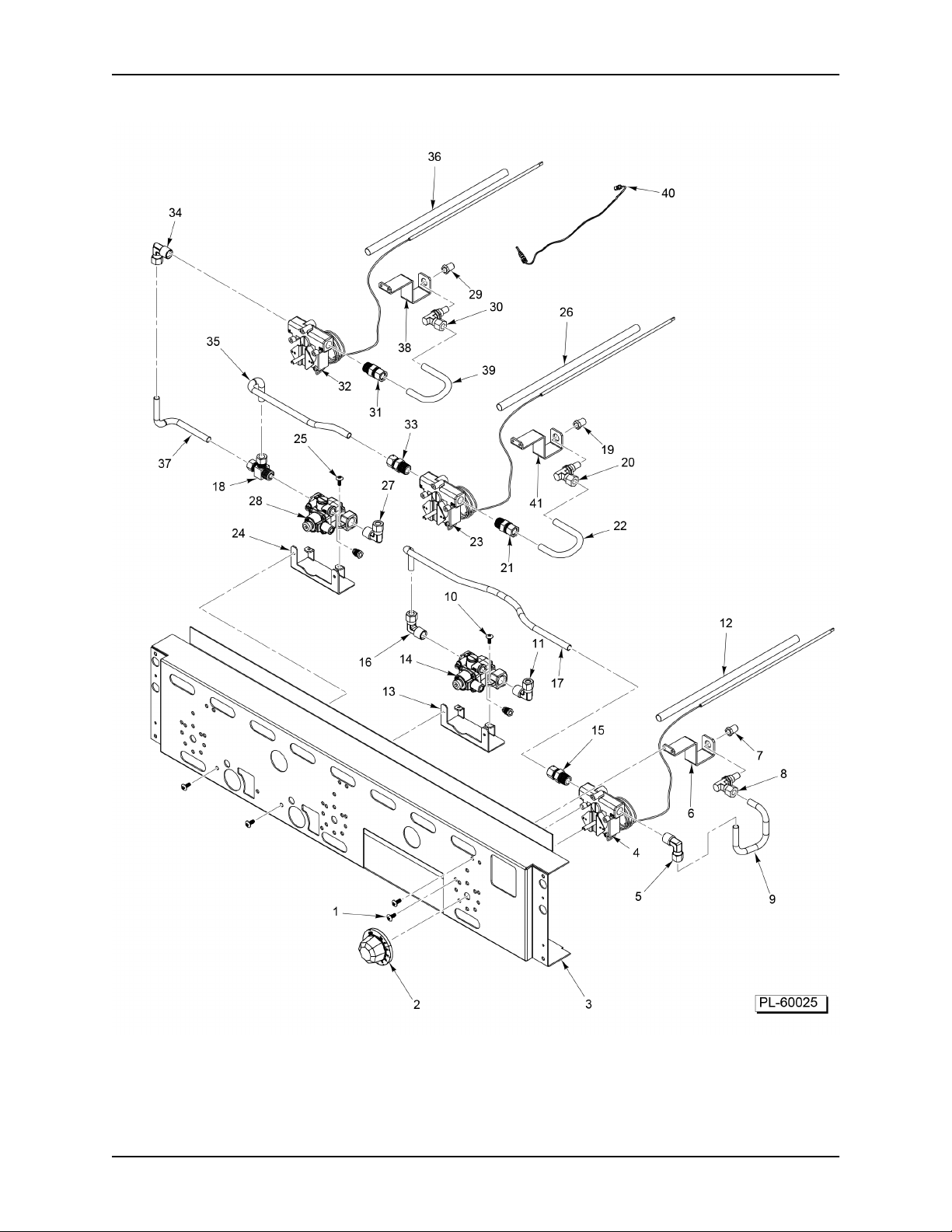

THERMOSTAT GRIDDLE CONTROL ASSEMBLY
(36 INCH)
F-43260 Rev. G (March 2016) - 30 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
THERMOSTAT GRIDDLE CONTROL ASSEMBLY
(36 INCH)
ILLUS.
PL-60025
10 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................2
11 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
12 00-719566 Sleeving - Silicon........................................................................................................................1
13 00-923013 Bracket - Mount..........................................................................................................................1
14 00-922203 Valve - Safety (WP22K-2511-2-1)..............................................................................................1
15 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
16 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
17 00-722221 Flex Tubing (3/8 x 12 In.)...........................................................................................................1
18 00-922380 Tee 3/8 x 3/8 x 3/8 NPT.............................................................................................................1
*19 Orifice.........................................................................................................................................1
20 00-719383 Elbow 3/8 Orifice........................................................................................................................1
21 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
22 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
23 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
24 00-923013 Bracket - Mount..........................................................................................................................1
25 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................2
26 00-719566 Sleeving - Silicon........................................................................................................................1
27 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
28 00-922203 Valve - Safety (WP22K-2511-2-1)..............................................................................................1
*29 Orifice.........................................................................................................................................1
30 00-719383 Elbow 3/8 Orifice........................................................................................................................1
31 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
32 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
33 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
34 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
35 00-722221 Flex Tubing (3/8 x 12 In.)...........................................................................................................1
36 00-719566 Sleeving - Silicon........................................................................................................................1
37 00-722221 Flex Tubing (3/8 x 12 In.)...........................................................................................................1
38 00-922501 Bracket - Griddle Orifice.............................................................................................................1
39 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
40 00-412788-00001 Thermocouple (18 In. Lg.)..........................................................................................................2
41 00-922501 Bracket - Griddle Orifice.............................................................................................................1
PART NO. NAME OF PART AMT.
1 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
2 00-922511 Knob (Thermostatic Griddle)......................................................................................................3
3 00-922504-00036 Control Bracket - T-Stat (36 In.).................................................................................................1
4 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
5 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
6 00-922501 Bracket - Griddle Orifice.............................................................................................................1
*7 Orifice.........................................................................................................................................1
8 00-719383 Elbow 3/8 Orifice........................................................................................................................1
9 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
* (See Orifice Chart)
- 31 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE/BROILER BURNER AND MANIFOLD
F-43260 Rev. G (March 2016) - 32 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE/BROILER BURNER AND MANIFOLD
ILLUS.
PL-60026
10 00-404193-00001 Valve - Pilot................................................................................................................................3
11 00-497062-000G1 Tube Assy. - Pilot (Broiler (260).................................................................................................3
12 00-927680-0000A Can Assy. - Grease....................................................................................................................1
13 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT) (Brass).............................................................................1
PART NO. NAME OF PART AMT.
1 00-417632-00001 Rack - Broiler Griddle.................................................................................................................1
2 00-404145-00001 Broiler Brick - Center..................................................................................................................6
3 00-417698-00001 Broiler Brick - Side......................................................................................................................6
4 00-411684-000G1 Burner.........................................................................................................................................3
5 00-922391-0000A Manifold......................................................................................................................................1
6 00-927679 Panel..........................................................................................................................................1
7 00-497246-00001 Knob - Griddle/Broiler.................................................................................................................3
8 00-921722 Valve (Griddle/Broiler)................................................................................................................3
*9 Orifice.........................................................................................................................................3
* (See Orifice Chart)
- 33 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE/BROILER PANELS
F-43260 Rev. G (March 2016) - 34 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
GRIDDLE/BROILER PANELS
ILLUS.
PL-60027
10 00-922358-00002 Bracket - Manifold Cover (LH)....................................................................................................1
11 00-927676 Support - Bracket.......................................................................................................................1
12 00-922393 Bracket - Support.......................................................................................................................1
13 00-927686 Bracket.......................................................................................................................................1
14 00-922394 Cap - Bull Nose End (RH)..........................................................................................................1
15 2240-2241 Grommet - Heyco.......................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921650-0000A Griddle Plate Assy. (24 In.)........................................................................................................1
2 00-922355-024GB Tray - Crumb..............................................................................................................................1
3 00-417669-000G1 Tray Weldment - Drip (Broiler)...................................................................................................1
4 00-922395 Panel..........................................................................................................................................1
5 00-927686 Bracket.......................................................................................................................................1
6 00-922355-00012 Tray - Crumb..............................................................................................................................1
7 00-922865-00012 Deflector (12 In.).........................................................................................................................1
8 00-927672 Panel - Griddle/Broiler................................................................................................................1
9 00-922356-012GB Cover - Manifold (12 In.).............................................................................................................1
- 35 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CHARBROILER GRILL
F-43260 Rev. G (March 2016) - 36 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CHARBROILER GRILL
ILLUS.
PL-60456
PART NO. NAME OF PART AMT.
1 00-710424 Grill - Charbroiler........................................................................................................................4
2 00-922882 Baffle..........................................................................................................................................1
3 00-922881 Baffle (Side)................................................................................................................................2
4 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
5 00-710407 Radient.......................................................................................................................................4
6 00-922641 Baffle - Burner............................................................................................................................3
7 00-922636-0024A Weldment - Charbroiler..............................................................................................................1
- 37 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CHARBROILER BURNER AND MANIFOLD
F-43260 Rev. G (March 2016) - 38 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CHARBROILER BURNER AND MANIFOLD
ILLUS.
PL-60457
10 00-719190 Valve..........................................................................................................................................2
11 00-922630-00001 Tubing........................................................................................................................................2
12 00-710409 Bracket - Pilot.............................................................................................................................2
13 00-719135 Top - Pilot (SST).........................................................................................................................4
14 00-719363 Plug 1/8 NPT Countersink..........................................................................................................1
15 00-921999 Valve - Manifold..........................................................................................................................4
16 00-926523 Valve - Extension.......................................................................................................................4
17 00-710406-0000A Burner Assy................................................................................................................................4
18 00-922644 Deflector.....................................................................................................................................4
19 00-710455 Burner Rod.................................................................................................................................4
20 00-922154 Screw.......................................................................................................................................16
21 00-922625 Support - Burner.........................................................................................................................4
22 00-922630-00002 Tubing........................................................................................................................................2
23 00-719221 Valve - Manual...........................................................................................................................2
24 00-719189 Valve - Manual Griddle...............................................................................................................1
PART NO. NAME OF PART AMT.
1 00-428300-00001 Knob...........................................................................................................................................6
2 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
3 00-922643 Cover - Manifold.........................................................................................................................1
4 00-922358-00002 Bracket - Manifold Cover (LH)....................................................................................................1
5 00-922358-00001 Bracket - Manifold Cover (RH)...................................................................................................1
6 00-922642 Bracket - Manifold......................................................................................................................1
7 00-922628-0000A Manifold......................................................................................................................................1
8 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
9 00-922884 Plate - Seal.................................................................................................................................2
- 39 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CHARBROILER PANELS
F-43260 Rev. G (March 2016) - 40 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CHARBROILER PANELS
ILLUS.
PL-60458
10 00-922883 Plate - Deflector..........................................................................................................................1
11 00-922645 Shield - Manifold Heat................................................................................................................1
12 00-922622 Tank - Side (RH)........................................................................................................................1
13 2240-2241 Grommet - Heyco.......................................................................................................................1
14 00-922635 Support - Front Burner...............................................................................................................1
15 00-922877 Bracket.......................................................................................................................................1
16 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
17 00-922864 Front - Divider Wall.....................................................................................................................1
18 00-922355-00012 Tray - Crumb..............................................................................................................................1
19 00-922355-00024 Tray - Crumb..............................................................................................................................1
20 00-922620-0000A Tank Assy. (Front)......................................................................................................................1
21 00-922625 Support - Burner.........................................................................................................................4
22 00-922154 Screw.......................................................................................................................................24
23 00-922624 Support - Radient.......................................................................................................................4
PART NO. NAME OF PART AMT.
1 00-921782 Shield - Rear..............................................................................................................................1
2 00-922865-00012 Deflector (12 In.).........................................................................................................................1
3 00-921865 Panel..........................................................................................................................................2
4 00-924006 Burner Support...........................................................................................................................1
5 00-921886-00012 Shield - Front..............................................................................................................................1
6 00-922858-0000A Divider Wall................................................................................................................................1
7 00-922861-0000A Channel......................................................................................................................................1
8 00-922623 Tank - Side (LH).........................................................................................................................1
9 00-922621-0000A Tank Assy. (Rear)......................................................................................................................1
- 41 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
STANDARD OVEN CONTROL
(30 INCH)
F-43260 Rev. G (March 2016) - 42 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
STANDARD OVEN CONTROL
(30 INCH)
ILLUS.
PL-60028
10 00-922178 Bracket - Controller....................................................................................................................1
11 00-498356 Pipe - Flanged Thermostat Mount..............................................................................................1
12 00-412788-00004 Thermocouple - 48" Lg...............................................................................................................1
PART NO. NAME OF PART AMT.
1 00-922019 Screw 10-24 x 1.........................................................................................................................2
2 00-922020 BJ Thermostat............................................................................................................................1
3 00-922015 Elbow..........................................................................................................................................1
4 00-730534 Nut 10-24 Hex KEPS..................................................................................................................2
5 00-922017 Fitting 1/8 x 7/16.........................................................................................................................1
6 00-922179 Panel - Control (Standard).........................................................................................................1
7 00-922046 Knob - Adjustable BJ Valve .......................................................................................................1
8 00-922160-0000A Valve Assy. - Safety...................................................................................................................1
9 00-921905 Tubing........................................................................................................................................1
- 43 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CONVECTION OVEN CONTROL
(30 INCH)
F-43260 Rev. G (March 2016) - 44 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CONVECTION OVEN CONTROL
(30 INCH)
ILLUS.
PL-60029
10 00-922160-0000A Valve Assy. - Safety...................................................................................................................1
11 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
12 00-770085-00002 Solenoid.....................................................................................................................................1
13 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
14 00-412788-00004 Thermocouple - 48" Lg...............................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921907 Tubing (GS to Solenoid).............................................................................................................1
2 FP-085-68 Fitting- Elbow (7/16 TBG X 3/8 MPT).........................................................................................1
3 00-922032 Valve - GS, Convention Oven....................................................................................................1
4 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
5 00-921906 Tubing (WP to GS Valve)...........................................................................................................1
6 00-921369 Panel - Control (Convection)......................................................................................................1
7 00-921686 Knob - Gas Valve Knob - Thermostat........................................................................................1
8 00-921528 Switch - Rocker..........................................................................................................................1
9 00-922180 Bracket - Mounting.....................................................................................................................1
- 45 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
DOOR SWITCH ASSEMBLY
F-43260 Rev. G (March 2016) - 46 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
DOOR SWITCH ASSEMBLY
ILLUS.
PL-60030
PART NO. NAME OF PART AMT.
1 00-922181 Bracket - Door Switch.................................................................................................................1
2 00-730058 Mach. Screw 6-32 x 1 Phil. Pan Hd............................................................................................2
3 00-922878-0000A Switch Assy................................................................................................................................1
4 00-730535 Nut 6-32 Hex KEPS....................................................................................................................2
- 47 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OVEN BURNER ASSEMBLY
F-43260 Rev. G (March 2016) - 48 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
OVEN BURNER ASSEMBLY
ILLUS.
PL-60031
10 00-944254 Knob (Flame Safety Units).........................................................................................................1
11 00-944255-00002 Igniter (Rotary) (2-Pole) (Flame Safety Units)............................................................................1
12 00-922896 Bracket (Flame Safety Units).....................................................................................................1
13 FE-023-56 Bushing - Electric Snap (Flame Safety Units)............................................................................1
14 00-944276 Wire - Ground (Static)................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921023 Carrier - Burner..........................................................................................................................1
2 00-404079-0000F Elbow 7/16 Orifice......................................................................................................................1
*3 Orifice.........................................................................................................................................1
4 00-426262-00001 Pilot Assy. (NAT)........................................................................................................................1
5 00-426262-00002 Pilot Assy. (LP)...........................................................................................................................1
6 00-921091-0000A Burner - Oven Module................................................................................................................1
7 00-921206 Electrode Assy. (36 In.) (Flame Safety Units)............................................................................1
8 00-714268 Thermocouple (18 In.) (Flame Safety Units)..............................................................................1
9 00-922897 Cover (Flame Safety Units)........................................................................................................1
* (See Orifice Chart)
- 49 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
RANGE BODY
(12 INCH)
F-43260 Rev. G (March 2016) - 50 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
RANGE BODY
(12 INCH)
ILLUS.
PL-60032
10 00-921851 Panel - Bottom............................................................................................................................1
11 00-922376-00001 Panel - Side Liner (RH)..............................................................................................................1
12 00-921849 Panel - Top.................................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921807 Panel - Side................................................................................................................................1
2 00-921317 Backsplash (12 In.).....................................................................................................................1
3 00-922140 Channel (LH)..............................................................................................................................1
4 00-921713 Panel - Back (12 In.)...................................................................................................................1
5 00-922141 Channel (RH).............................................................................................................................1
6 00-927459 Bracket - Anchor.........................................................................................................................2
7 00-921807 Panel - Side................................................................................................................................1
8 00-413112-00012 Leg (6 In.)...................................................................................................................................4
9 00-922376-00002 Panel - Side Liner (LH)...............................................................................................................1
- 51 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
STANDARD OVEN CAVITY
(24 INCH)
F-43260 Rev. G (March 2016) - 52 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
STANDARD OVEN CAVITY
(24 INCH)
ILLUS.
PL-60033
10 00-428179-000G1 Bracket - Kick Panel Mounting...................................................................................................2
11 00-921785 Kick Panel Assy..........................................................................................................................1
12 00-923515 Cavity Bottom (24 In. Oven).......................................................................................................1
13 00-923516 Flame Deflector..........................................................................................................................1
14 00-921078 Side Panel - Right......................................................................................................................1
15 00-921064 Guide - Rack..............................................................................................................................4
16 00-921073 Side Panel - Left.........................................................................................................................1
17 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................4
18 00-922159-0000A Valve - Safety (24 In. Oven).......................................................................................................1
19 00-922177 Bracket - Safety Valve................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921807 Panel - Side................................................................................................................................1
2 00-923508-0000A Oven Rack (24 In.).....................................................................................................................2
3 00-921527 Insulation Blanket.......................................................................................................................1
4 00-921786 Flue - Rear.................................................................................................................................1
5 00-921799 Channel - Back Flue...................................................................................................................1
6 00-921807 Panel - Side................................................................................................................................1
7 00-413112-00012 Leg (6 In.)...................................................................................................................................4
8 00-921095 Insulation - Door Hinge...............................................................................................................2
9 00-497029-00001 Door Hinge Stop.........................................................................................................................2
- 53 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
STANDARD OVEN CAVITY
(30 INCH)
F-43260 Rev. G (March 2016) - 54 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
STANDARD OVEN CAVITY
(30 INCH)
ILLUS.
PL-60034
10 00-428179-000G1 Bracket - Kick Panel Mounting...................................................................................................2
11 00-921721 Kick Panel Assy..........................................................................................................................1
12 00-921015 Cavity Bottom (30 In.).................................................................................................................1
13 00-921080 Flame Deflector..........................................................................................................................1
14 00-921078 Side Panel - Right......................................................................................................................1
15 00-921064 Guide - Rack..............................................................................................................................4
16 00-921073 Side Panel - Left.........................................................................................................................1
17 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................4
PART NO. NAME OF PART AMT.
1 00-921807 Panel - Side................................................................................................................................1
2 00-921010-0000A Oven Rack (30 In.).....................................................................................................................2
3 00-921035 Insulation Blanket.......................................................................................................................1
4 00-921723 Flue - Rear.................................................................................................................................1
5 00-921799 Channel - Back Flue...................................................................................................................1
6 00-921807 Panel - Side................................................................................................................................1
7 00-413112-00012 Leg (6 In.)...................................................................................................................................4
8 00-921095 Insulation - Door Hinge...............................................................................................................2
9 00-497029-00001 Door Hinge Stop.........................................................................................................................2
- 55 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CONVECTION OVEN CAVITY
(30 INCH)
F-43260 Rev. G (March 2016) - 56 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CONVECTION OVEN CAVITY
(30 INCH)
ILLUS.
PL-60035
10 00-428179-000G1 Bracket - Kick Panel Mounting...................................................................................................2
11 00-921721 Kick Panel Assy..........................................................................................................................1
12 00-921512 Seal - Top...................................................................................................................................1
13 00-921537 Seal - Bottom..............................................................................................................................1
14 00-921546-0000A Rack Guide Assy. (Right)...........................................................................................................1
15 00-921514 Seal - Corner..............................................................................................................................2
16 00-921547-0000A Rack Guide Assy. (Left).............................................................................................................1
17 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................4
18 00-921093 Guard - Motor.............................................................................................................................1
19 00-921529 Bracket - Convection Oven........................................................................................................1
20 00-921410 Cover - Flue................................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921807 Panel - Side................................................................................................................................1
2 00-921548-0000A Oven Rack (30 In.) (Convection)................................................................................................2
3 00-921035 Insulation Blanket.......................................................................................................................1
4 00-921536 Side Seal - Right........................................................................................................................1
5 00-921513 Side Seal - Left...........................................................................................................................1
6 00-921807 Panel - Side................................................................................................................................1
7 00-413112-00012 Leg (6 In.)...................................................................................................................................4
8 00-921095 Insulation - Door Hinge...............................................................................................................2
9 00-497029-00001 Door Hinge Stop.........................................................................................................................2
- 57 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CONVECTION MOTOR ASSEMBLY
(30 INCH UNIT ONLY)
F-43260 Rev. G (March 2016) - 58 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
CONVECTION MOTOR ASSEMBLY
(30 INCH UNIT ONLY)
ILLUS.
PL-60036
10 NS-047-72 Lock Nut 1/4-20..........................................................................................................................4
11 SC-121-01 Mach. Screw 1/4-20 x 1-1/4 Flat Hd...........................................................................................4
PART NO. NAME OF PART AMT.
1 00-419730-00001 Motor (1/6 Hp., 115/208-230 V., 50/60 Hz., 1 Ph.).....................................................................1
2 00-419719-00002 Bracket - Motor Mount................................................................................................................2
3 NS-044-07 Nut Assy. 8-32 Hex Keps...........................................................................................................4
4 00-712380 Spacer........................................................................................................................................4
5 00-428898-00008 Motor Insulation..........................................................................................................................2
6 00-921640 Motor Mount HB.........................................................................................................................1
7 00-415780-00008 Wheel - Blower (Incls. Set Screws)............................................................................................1
8 00-921631 Deflector - Air Flow.....................................................................................................................1
9 00-921658 Blower Cover HB........................................................................................................................1
- 59 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
DOOR ASSEMBLY
(BEFORE 10/31/2014)
F-43260 Rev. G (March 2016) - 60 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
DOOR ASSEMBLY
(BEFORE 10/31/2014)
ILLUS.
PL-60037
10 00-921749 Panel - Door (30 In.)...................................................................................................................1
11 00-922118 Bracket - Handle.........................................................................................................................1
12 00-913159-00002 Kit - Door Handle (24 In.) (Vulcan).............................................................................................1
13 00-913159-00001 Kit - Door Handle (24 In.) (Wolf).................................................................................................1
14 00-913159-00004 Kit - Door Handle (30 In.) (Vulcan).............................................................................................1
15 00-913159-00003 Kit - Door Handle (30 In.) (Wolf).................................................................................................1
16 00-922118 Bracket - Handle.........................................................................................................................1
17 00-497027-00002 Hinge - Door Spring (LH)............................................................................................................1
18 00-921033 Insulator - Door Hinge................................................................................................................1
19 00-730240 Mach. Screw #8 x 1/2.................................................................................................................3
20 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................3
21 00-921102 Insulation - Door.........................................................................................................................1
22 00-921891 Screw.........................................................................................................................................4
23 00-927434 Washer.......................................................................................................................................4
24 00-922131-0000A Door Assy. (24 In.).....................................................................................................................1
25 00-922132-0000A Door Assy. (30 In.).....................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................3
2 00-922030 Liner - Door (24 In.)....................................................................................................................1
3 00-921022 Liner - Door (30 In.)....................................................................................................................1
4 00-921033 Insulator - Door Hinge................................................................................................................1
5 00-497027-00001 Hinge - Door Spring (RH)...........................................................................................................1
6 00-730240 Mach. Screw #8 x 1/2.................................................................................................................3
7 00-922134 Reinforcement - Door (24 In.).....................................................................................................1
8 00-922133 Reinforcement - Door (30 In.).....................................................................................................1
9 00-921781 Panel - Door (24 In.)...................................................................................................................1
- 61 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
DOOR ASSEMBLY
(AFTER 10/31/2014)
F-43260 Rev. G (March 2016) - 62 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
DOOR ASSEMBLY
(AFTER 10/31/2014)
ILLUS.
PL-60461
10 00-922701-00036 Panel - Door (36 In.)...................................................................................................................1
11 00-497027-00002 Hinge - Door Spring (LH)............................................................................................................1
12 00-922710-00024 Handle - Door (24 In.).................................................................................................................1
13 00-922710-00030 Handle - Door (30 In.).................................................................................................................1
14 00-922700-00A24 Door Assy. (24 In.).....................................................................................................................1
15 00-922700-00A36 Door Assy. (36 In.).....................................................................................................................1
16 RS-033-05 Screw.........................................................................................................................................2
17 00-922712-00001 Logo (Vulcan).............................................................................................................................1
18 00-922712-00002 Logo (Wolf).................................................................................................................................1
19 Screw......................................................................................................................................AR
20 00-922711 Cap - Door Handle.....................................................................................................................2
21 Nut..............................................................................................................................................4
22 00-923529 Insulation - Door (24 In.).............................................................................................................1
23 00-921102 Insulation - Door (36 In.).............................................................................................................1
24 00-921033 Insulator - Door Hinge................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd................................................................................AR
2 00-922030 Liner - Door (24 In.)....................................................................................................................1
3 00-921022 Liner - Door (30 In.)....................................................................................................................1
4 00-921033 Insulator - Door Hinge................................................................................................................1
5 00-497027-00001 Hinge - Door Spring (RH)...........................................................................................................1
6 00-730240 Mach. Screw #8 x 1/2.................................................................................................................3
7 00-922702-00024 Reinforcment - Door (24 In.).......................................................................................................1
8 00-922702-00036 Reinforcment - Door (36 In.).......................................................................................................1
9 00-922701-00024 Panel - Door (24 In.)...................................................................................................................1
- 63 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
BACKSPLASH, SHELF, AND BULL NOSE
(ALL SIZES)
F-43260 Rev. G (March 2016) - 64 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
BACKSPLASH, SHELF, AND BULL NOSE
(ALL SIZES)
ILLUS.
PL-60038
10 00-921053-00060 Backsplash (60 In.).....................................................................................................................1
11 00-921053-00072 Backsplash (72 In.).....................................................................................................................1
12 00-921730-00024 Shelf (24 In.)...............................................................................................................................1
13 00-921730-00036 Shelf (36 In.)...............................................................................................................................1
14 00-921730-00048 Shelf (48 In.)...............................................................................................................................1
15 00-921730-00060 Shelf (60 In.)...............................................................................................................................1
16 00-921730-00072 Shelf (72 In.)...............................................................................................................................1
17 00-921728 Support - Backsplash (LH).........................................................................................................1
18 00-921713 Panel - Back (12 In.)...................................................................................................................1
19 00-923525 Panel - Back (24 In.)...................................................................................................................1
20 00-921054 Panel - Back (36 In.) (Use two for 72 In. Units)..........................................................................1
21 00-923009 Panel - Back (48 In.)...................................................................................................................1
22 00-929007 Panel - Back (60 In.)...................................................................................................................1
23 00-921729 Support - Backsplash (RH) (Used on 60 & 72 In. Units)............................................................1
24 00-921729 Support - Backsplash (RH).........................................................................................................1
PART NO. NAME OF PART AMT.
1 00-921884-00012 Bull Nose (12 In.)........................................................................................................................1
2 00-921884-00024 Bull Nose (24 In.)........................................................................................................................1
3 00-921884-00036 Bull Nose (36 In.)........................................................................................................................1
4 00-921884-00048 Bull Nose (48 In.)........................................................................................................................1
5 00-921884-00060 Bull Nose (60 In.)........................................................................................................................1
6 00-921884-00072 Bull Nose (72 In.)........................................................................................................................1
7 00-921053-00024 Backsplash (24 In.).....................................................................................................................1
8 00-921053-00036 Backsplash (36 In.).....................................................................................................................1
9 00-921053-00048 Backsplash (48 In.).....................................................................................................................1
- 65 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
BACKSPLASH AND PANELS (GRIDDLE/BROILERS)
F-43260 Rev. G (March 2016) - 66 -
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
BACKSPLASH AND PANELS (GRIDDLE/BROILERS)
ILLUS.
PL-60039
PART NO. NAME OF PART AMT.
1 00-921884-012GB Bull Nose Griddle Broiler (12 In.)................................................................................................1
2 00-921884-024GB Bull Nose Griddle Broiler (24 In.)................................................................................................1
3 00-921884-036GB Bull Nose Griddle Broiler (36 In.)................................................................................................1
4 00-921884-048GB Bull Nose Griddle Broiler (48 In.)................................................................................................1
5 00-921258-00036 Backsplash (36 In.).....................................................................................................................1
6 00-921258-00048 Backsplash (48 In.).....................................................................................................................1
7 00-921258-00060 Backsplash (60 In.).....................................................................................................................1
8 00-921258-00072 Backsplash (72 In.).....................................................................................................................1
9 00-921764 Panel - Side (Griddle/Broilers)....................................................................................................1
- 67 - F-43260 Rev. G (March 2016)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES REPLACEMENT PARTS
FORM 43260 Rev. G MARCH 2016 PRINTED IN U.S.A.
Loading...
