Vulcan 2G4BDF Parts List

CATALOG OF

REPLACEMENT PARTS

GRA, GRAF, GRBD & GRBDF SERIES
GAS FRYER

With KleenScreen PLUS® Filtration Systems

BATTERY

2GR45AF ML-136650
2G4BDF ML-136650
2GR65AF ML-136651
2G6BDF ML-136651
2GR85AF ML-136652
2G8BDF ML-136652
3GR45AF ML-136653
3G4BDF ML-136653
3GR65AF ML-136654
3G6BDF ML-136654
3GR85AF ML-136655
3G8BDF ML-136655
4GR45AF ML-136656
4G4BDF ML-136656
4GR65AF ML-136657
4G6BDF ML-136657
4GR85AF ML-136681
4G8BDF ML-136681
2XG4BDF ML-136658
2XG6BDF ML-136659
2XG8BDF ML-136660

STAND ALONE

1GR45A ML-136647
1G4BD ML-136647
1GR65A ML-136648
1G6BD ML-136648
1GR85A ML-136649
1G8BD ML-136649

For additional information on Vulcan-Hart Company or to locate an authorized

parts and service provider in your area, visit our website at www.vulcanequipment.com

VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANEQUIPMENT.COM

3600 NORTH POINT BLVD.

BALTIMORE, MD 21222

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

F-43210 Rev. A (July 2010)

- 2 -

© VULCAN-HART COMPANY

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

Table Of Contents

5 CONTROL BOX ASSEMBLY
7 POWER SUPPLY BOX
9 BODY UNIT (STAND-ALONE)
11 BODY UNIT (BATTERY)
13 BURNER COMPONENTS (STAND-ALONE)
15 BURNER COMPONENTS (BATTERY)

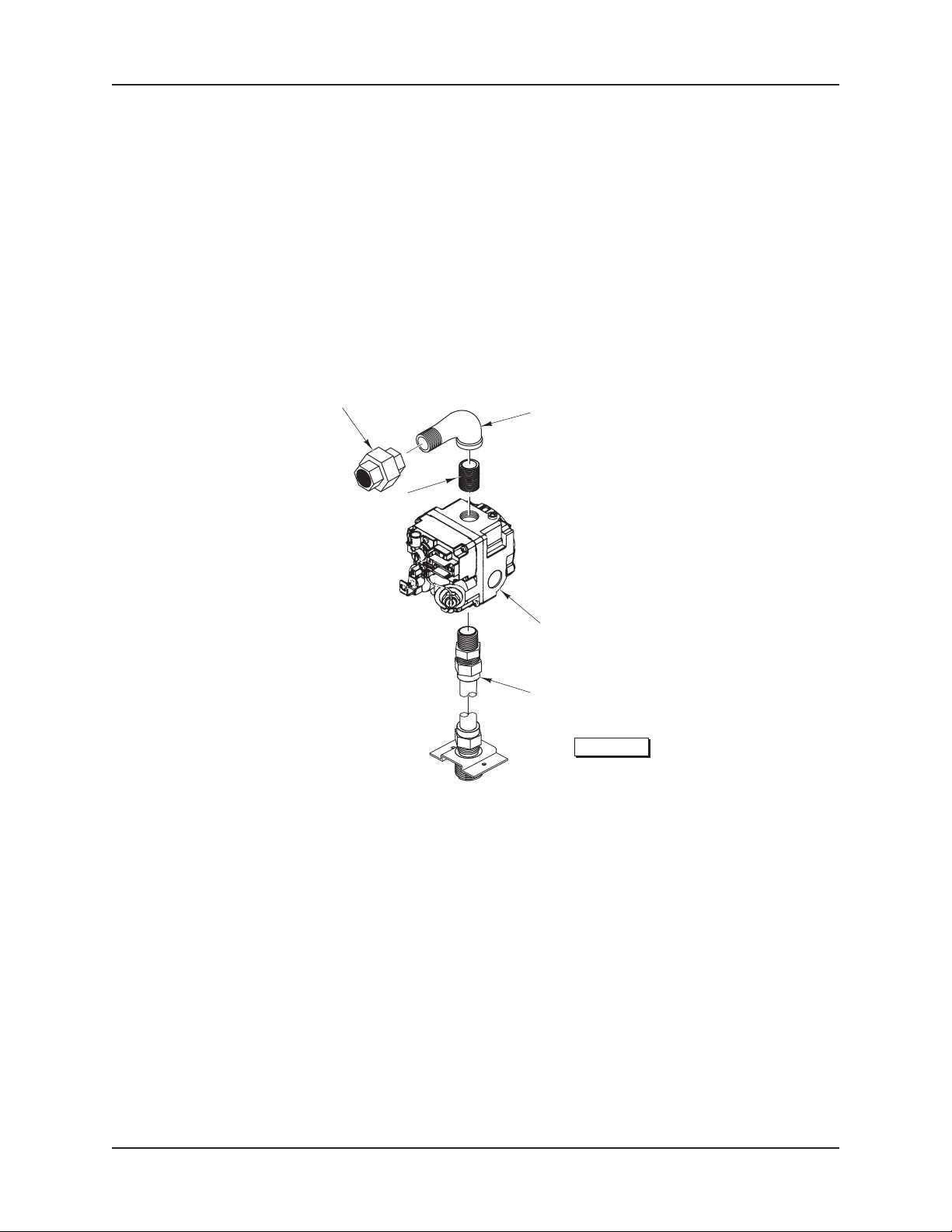

17 GAS VALVE
19 GAS INLET MANIFOLD

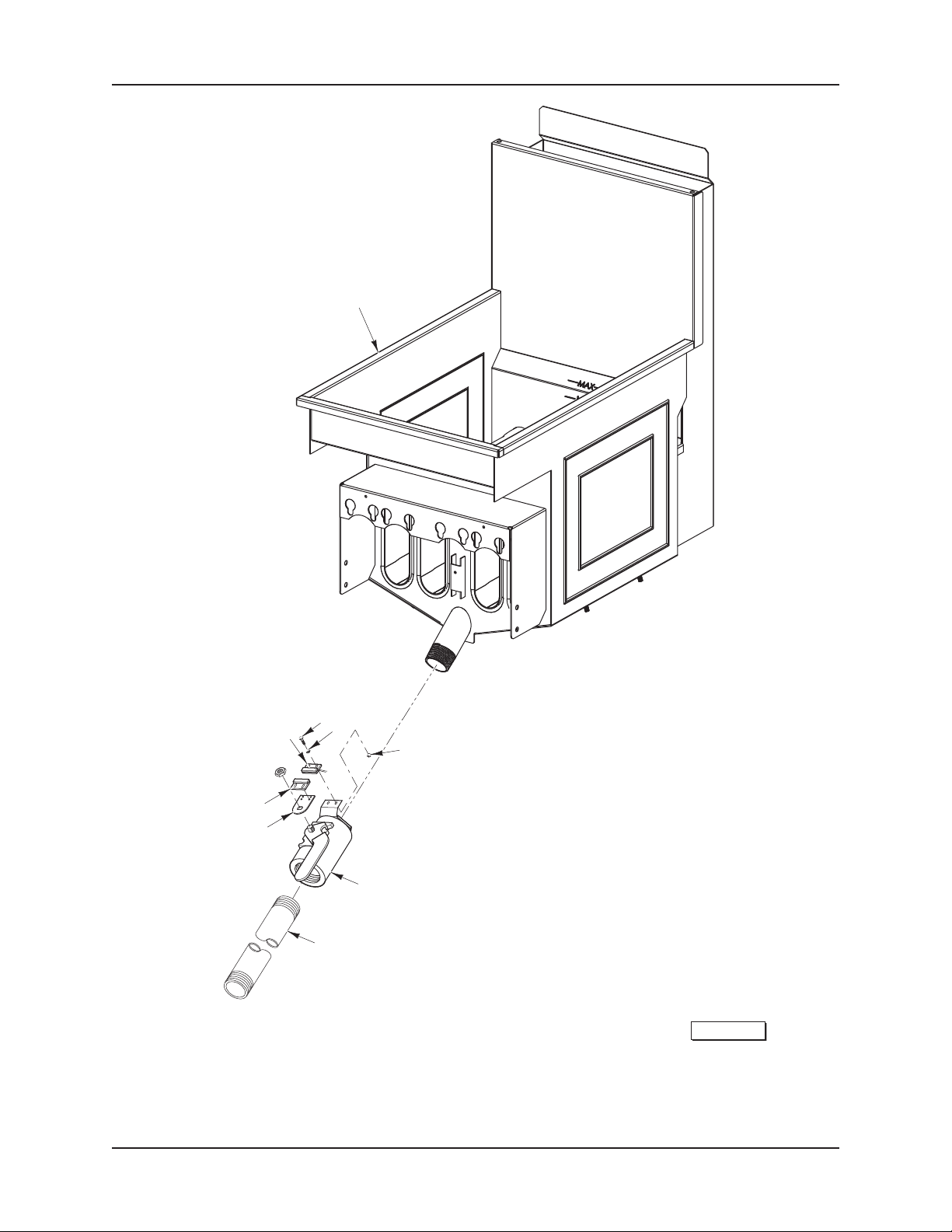

21 TANK AND DRAIN (STAND-ALONE)

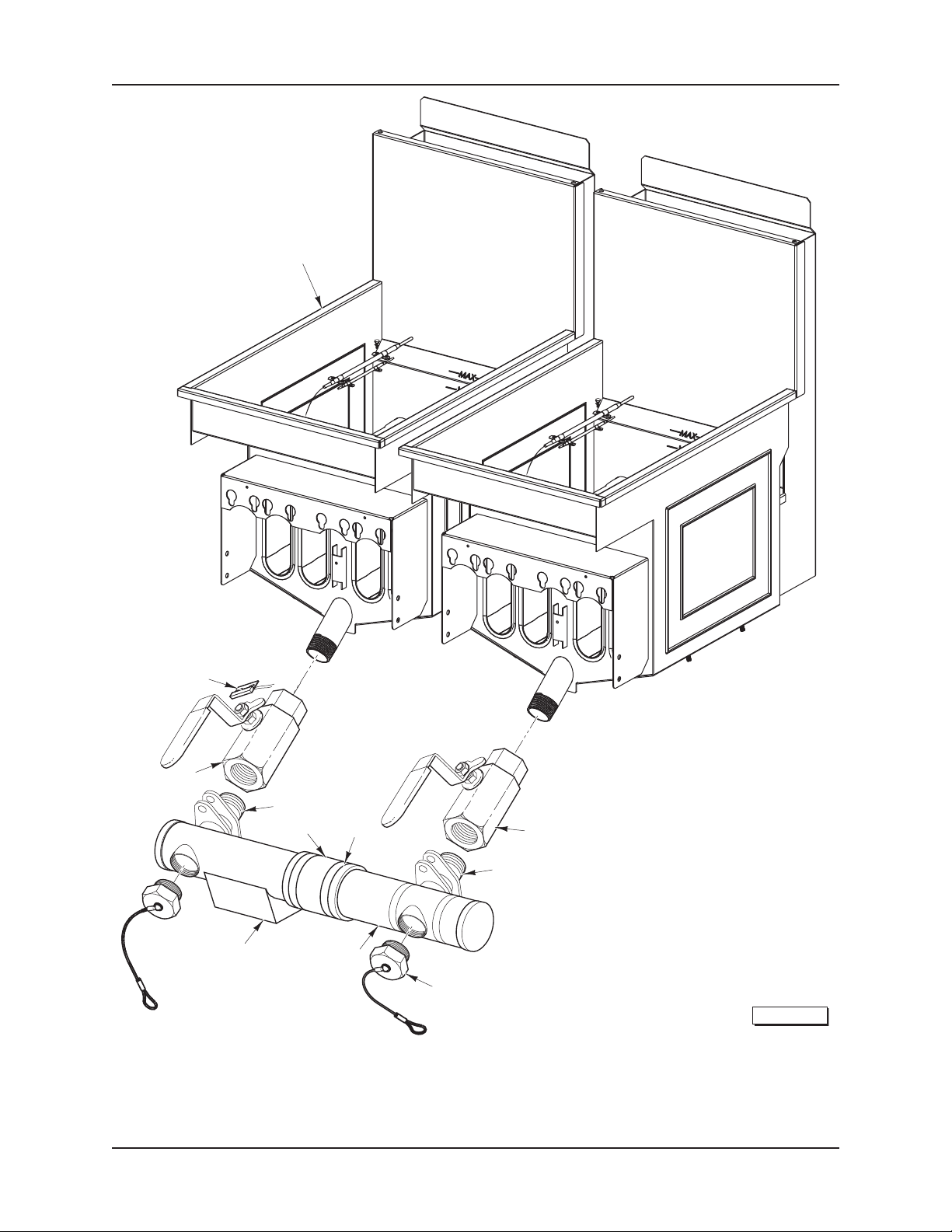

23 TANK AND DRAIN (BATTERY)

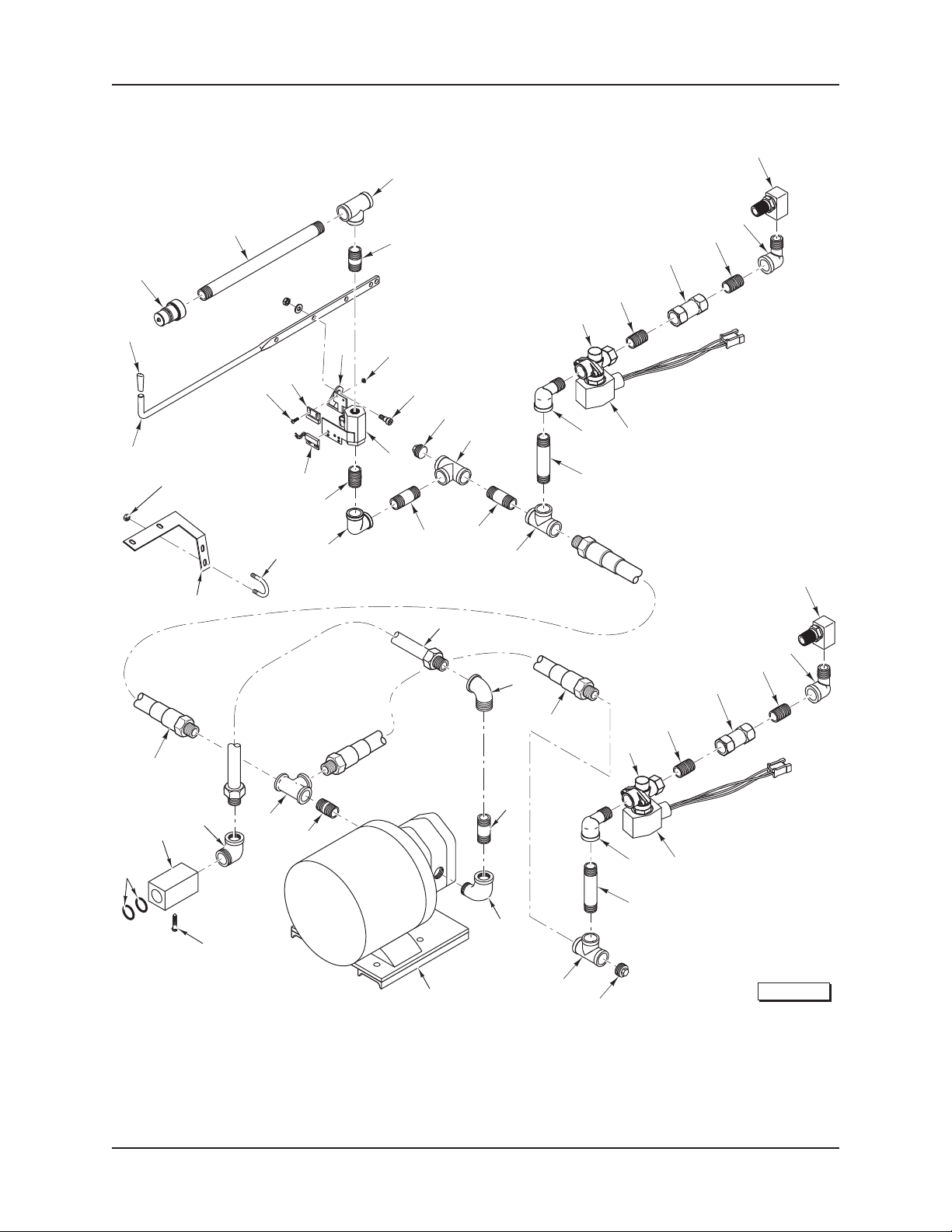

25 OIL RETURN (BATTERY)
27 FILTER ASSEMBLY

- 3 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

4-5

2

1

3

10

8

9

6

7

11-12

PL-59242

F-43210 Rev. A (July 2010)

CONTROL BOX ASSEMBLY

- 4 -

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

CONTROL BOX ASSEMBLY

ILLUS. PART NO. NAME OF PART AMT.
PL-59242

1 00-957822-00001 Cover – Control Box ..................................................................................................................1

2 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ........................................................ 1

3 00-956926-000G1 Control Assy. – Behind Door ...................................................................................................... 1

4 00-499716-00001 Plate – Control Mounting (LH) ................................................................................................... 1

5 00-499716-00002 Plate – Control Mounting (RH) (2G4, 2G6, 2G8, 3G4, 3G6, 3G8, 4G4, 4G6, & 4G8) ...............1

6 00-411242-00001 Knob ..........................................................................................................................................1

7 00-427755-000G1 Switch Assy. – Power. ................................................................................................................1

8 00-956827-00002 Overlay ......................................................................................................................................1

9 00-427755-000G1 Switch – Rocker S.P.S.T. ...........................................................................................................1

10 00-427755-000G2 Switch Assy. (Start) ....................................................................................................................1

11 00-427755-000G1 Switch Assy. – Power (Filter) .....................................................................................................1

12 00-426251-00002 Plug – Switch (Non-Filter) .......................................................................................................... 1

- 5 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

4

1

2

6

5

18

10

21

17

20

19

16

15

14

13

7

3

8-9

F-43210 Rev. A (July 2010)

11

12

POWER SUPPLY BOX

- 6 -

PL-59243

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

POWER SUPPLY BOX

ILLUS. PART NO. NAME OF PART AMT.
PL-59243

1 00-428684-00002 Lid – Power Supply .................................................................................................................... 1

2 FE-024-24 Bushing – Electrical Snap .......................................................................................................... 1

3 00-857207-00001 Module – Ignition .......................................................................................................................1

4 SD-037-49 Self-Tapping Screw 8-18 x 1/2 Hex Washer Hd., Type AB .......................................................... 4

5 WL-004-40 Lockwasher #10 Helical ............................................................................................................. 1

6 NS-044-09 Nut Assy. 10-24 Hex KEPS ........................................................................................................1

7 NS-047-32 Lock Nut 4-40 Hex .....................................................................................................................2

8 00-428716-000G1 Box – Power Supply (Filter) .......................................................................................................1

9 00-428716-000G2 Box – Power Supply (120 V.) (Non-Filter) .................................................................................. 1

10 00-419973-000G1 Receptacle – Male Power .......................................................................................................... 1

11 00-497125-00001 Relay S.P.D.T. (24 VAC) (Battery Units) (Filter) ......................................................................... 1

12 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB (Battery Units) .................................. 2

13 00-419317 Lug – Terminal ...........................................................................................................................1

14 SC-060-23 Mach. Screw 4-40 x 1/4 Slotted Rd. Hd. .....................................................................................2

15 00-428864-00001 Relay (Battery Units) ..................................................................................................................1

16 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB (Battery Units) .................................. 2

17 00-411500-00012 Transformer (120 V.-24 V., 40 Amp.) .........................................................................................1

18 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB .......................................................... 2

19 00-417856-00001 Lug – Ground ............................................................................................................................. 1

20 SD-032-07 Self-Tapping Screw 10-24 x

21 00-419973-000G2 Receptacle – Female Power (Battery Units) .............................................................................. 1

00-419967-00005 Cord – Power Supply (84 In.) ....................................................................................................1

00-419967-00003 Jumper – Extension (24

00-428685-000G2 Box – Power Supply (With Filtration) (Incls. Items 1 thru 8 & 10 thru 21) ..................................1

00-428685-000G5 Box – Power Supply (Without Filtration) (Incls. Items 1 thru 7 & 9 thru 21) ...............................1

1

/2 Hex Washer Hd., Type TT ........................................................ 1

1

/2 In.) ...................................................................................................1

- 7 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

29

THRU

32

33-34

1-2-3

35-36

4-5

39-40-41

42

37
38

6-7

8-9

10

27-28

26

24-25

22-23

21

19

11

12

15
16

17
18

13-14

20

PL-59244

F-43210 Rev. A (July 2010)

BODY UNIT (STAND-ALONE)

- 8 -

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

BODY UNIT (STAND-ALONE)

ILLUS. PART NO. NAME OF PART AMT.
PL-59244

1 00-499223-00001 Basket – Twin (1G4) ..................................................................................................................2

2 00-499223-00002 Basket – Twin (1G6) ..................................................................................................................2

3 00-499223-00003 Basket – Twin (1G8) ..................................................................................................................1

4 00-417056-00002 Hanger – Basket (1G4) .............................................................................................................. 2

5 00-418321-00002 Hanger – Basket (1G6 & 1G8) ...................................................................................................2

6 00-418201-000G2 Flue Assy. (4 Tube) (1G4) ..........................................................................................................1

7 00-418205-000G2 Flue Assy. (5 Tube) (1G6 & 1G8) ...............................................................................................1

8 00-416959-00002 Wrap – Flue (4 Tube) (1G4) ....................................................................................................... 1

9 00-418336-00002 Wrap – Flue (5 Tube) (1G6 & 1G8)............................................................................................ 1

10 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ........................................................ 2

11 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT ......................................................... 4

12 00-428688-00001 Bracket – Power Supply ............................................................................................................1

13 00-419648-00002 Body – RH Side (SST) (1G4 & 1G6) .........................................................................................1

14 00-420596-00004 Body – RH Side (SST) (1G8) .....................................................................................................1

15 RS-033-04 Rivet – Pop ................................................................................................................................1

16 00-497296-000G1 Magnet Assy............................................................................................................................... 1

17 00-497428-00001 Body – Bottom (1G4) ................................................................................................................. 1

18 00-497428-00003 Body – Bottom (1G6) ................................................................................................................. 1

19 00-497428-00004 Body – Bottom (1G8) ................................................................................................................. 1

20 00-421893-00001 Caster (With Mount Plate) (Set) .................................................................................................1

21 00-420769-00001 Bumper – Rubber ......................................................................................................................1

22 00-419653 Handle – Door ............................................................................................................................ 1

23 RS-033-04 Rivet – Pop (0.187) .................................................................................................................... 2

24 00-499487-000G1 Door Assy. (LH) (1G4)................................................................................................................ 1

25 00-499487-000G5 Door Assy. (LH) (1G6 & 1G8) ....................................................................................................1

26 00-428023-000G2 Hinge Assy. (LH Door) ...............................................................................................................1

27 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ........................................................ 1

28 NS-044-09 Nut Assy. 10-24 Hex KEPS ........................................................................................................ 1

29 00-428116-000G1 Frame – Front Assy. (1G4)......................................................................................................... 1

30 00-428116-000G2 Frame – Front Assy. (1G6 & 1G8) .............................................................................................1

31 00-417700-00002 Nameplate (6 In.) ....................................................................................................................... 1

32 NS-047-79 Lock Nut 3/16 ...............................................................................................................................2

33 00-418379-000G1 Heat Shield (1G4) ...................................................................................................................... 1

34 00-418324-000G1 Heat Shield (1G6 & 1G8) ........................................................................................................... 1

35 00-419648-00001 Body – LH Side (SST) (1G4 & 1G6) .......................................................................................... 1

36 00-420596-00003 Body – LH Side (SST) (1G8) .....................................................................................................1

37 00-419379-00001 Probe – Thermistor .................................................................................................................... 1

38 00-419592-00001 Clip – Thermistor Probe ............................................................................................................. 1

39 00-427883-00002 Screen – Basket Support (1G4) ................................................................................................. 1

40 00-427883-00003 Screen – Basket Support (1G6) ................................................................................................. 1

41 00-427883-00004 Screen – Basket Support (1G8) ................................................................................................. 1

42 SD-037-49 Self-Tapping Screw 8-18 x 1/2 Slotted Hex Washer Hd., Type AB .............................................AR

00-421756-00001 Brush – Fryer Cleaning .............................................................................................................. 1

00-421490-000G1 Scoop .........................................................................................................................................1

- 9 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

42 THRU 46

34 THRU 41

3 THRU 5

47 THRU 50

1-2

51

54-55-56

52
53

57

6-7

8-9

10

11

12
13

14

29
30

32
33

31

27
28

23

24

25-26

BODY UNIT (BATTERY)

15 THRU 18

21
22

19-20

PL-59252

F-43210 Rev. A (July 2010)

- 10 -

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

BODY UNIT (BATTERY)

ILLUS. PART NO. NAME OF PART AMT.
PL-59252

1 00-417056-00002 Hanger – Basket (2G4, 3G4, 4G4, & 2XG4) ..............................................................................2

2 00-418321-00002 Hanger – Basket (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8) ........................................ 2

3 00-499223-00001 Basket – Twin (2G4, 3G4, 4G4, & 2XG4) .................................................................................AR

4 00-499223-00002 Basket – Twin (2G6, 3G6, 4G6, & 2XG6) .................................................................................AR

5 00-499223-00003 Basket – Twin (2G8, 3G8, 4G8, & 2XG8) .................................................................................AR

6 00-418201-000G2 Flue Assy. (4 Tube) (2G4, 3G4, 4G4, & 2XG4) ..........................................................................1

7 00-418205-000G2 Flue Assy. (5 Tube) (2G6, 2G8, 3G6, 3G8, 4G6, 2XG6, 2XG8, & 4G8) .................................... 1

8 00-416959-00002 Flue – Wrap (SST) (2G4, 3G4, 4G4, & 2XG4)...........................................................................2

9 00-418336-00002 Flue – Wrap (SST) (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8) ..................................... 2

10 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ........................................................ 2

11 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ........................................................ 2

12 00-428699-00002 Brace – Rear (2TG4, 3G4, 4G4, & 2XG4) ................................................................................. 1

13 00-428749-00002 Brace – Rear (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8) ..............................................1

14 00-428688-00001 Bracket – Power Supply Mounting ............................................................................................. 1

15 00-419777-00004 Body – RH Side (SST) (2G8, 3G8, & 2XG8) .............................................................................1

16 00-417711-00002 Body – RH Side (SST) (2G4, 2G6, 3G4, 3G6, 2XG4, & 2XG6) ................................................1

17 00-419648-00002 Body – RH Side (SST) (4G4 & 2XG4) ....................................................................................... 1

18 00-420596-00004 Body – RH Side (SST) (4G8) .....................................................................................................1

19 00-418907-00001 Caster – Swivel Assy. (Adjustable) ............................................................................................2

20 00-418907-00003 Caster ........................................................................................................................................2

21 00-497428-00001 Body – Bottom (3G4 & 4G4) ...................................................................................................... 1

22 00-497428-00003 Body – Bottom (3G6 & 4G6) ...................................................................................................... 1

23 00-497428-00004 Body – Bottom (3G8 & 2XG4) ...................................................................................................1

24 00-420769-00001 Bumper – Rubber ......................................................................................................................1

25 00-499487-000G8 Door Assy. (RH) (2G6, 2G8, 3G6, 3G8, 4G6, G4G8, 2XG6, & 2XG8) ......................................1

26 00-499487-000G4 Door Assy. (RH) (2G4, 3G4, 4G4, & 2XG4) ............................................................................... 1

27 00-419653 Handle .......................................................................................................................................2

28 RS-033-04 Rivet – Pop (0.187) .................................................................................................................... 4

29 00-499487-000G7 Door Assy. (LH) (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8) .......................................... 1

30 00-499487-000G3 Door Assy. (LH) (2G4, 3G4, 4G4, & 2XG4) ...............................................................................1

31 00-428023-000G2 Hinge Assy. (LH Door) ...............................................................................................................2

32 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ........................................................ 4

33 NS-044-09 Nut Assy. 10-24 Hex KEPS ........................................................................................................ 4

34 00-428116-000G3 Frame – Front Assy. (2G4 & 2XG4) (2 Unit) .............................................................................. 1

35 00-428116-000G4 Frame – Front Assy. (2G6, 2G8, & 2XG8) (2 Unit) ....................................................................1

36 00-428116-000G5 Frame – Front Assy. (3G4) (3 Unit) ............................................................................................ 1

37 00-428116-000G6 Frame – Front Assy. (3G6 & 3G8) (3 Unit)................................................................................. 1

38 00-428116-000G7 Frame – Front Assy. (4G4) (4 Unit) ............................................................................................ 1

39 00-428116-00G12 Frame – Front Assy. (4G6 & 4G8) (4 Unit)................................................................................. 1

40 00-426806-000G5 Frame – Front Assy. (2XG8) (2 Unit) .........................................................................................1

41 00-417700-00002 Nameplate (6 In.) ....................................................................................................................... 1

42 00-418379-000G1 Heat Shield (2G4, 3G4, 4G4, & 2XG4) ...................................................................................... 1

43 00-418324-000G1 Heat Shield (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8) ................................................1

44 00-418322-00001 Heat Shield (2XG6 & 2XG8) ...................................................................................................... 1

45 00-428548-00002 Heat Shield (5 Tube) (2XG8) ..................................................................................................... 1

46 00-417037-00001 Heat Shield (2XG4) ....................................................................................................................1

47 00-419777-00003 Body – LH Side (SST) (2G8 & 2XG8) ........................................................................................ 1

48 00-417711-00001 Body – LH Side (SST) (2G4, 2G6, 2XG4, & 2XG6) ...................................................................1

49 00-420596-00003 Body – LH Side (SST) (NFR) (3G8 & 4G8) ...............................................................................1

50 00-419648-00001 Body – LH Side (SST) (3G4, 3G6, 4G4, & 4G6) .......................................................................1

51 SD-036-03 Self-Tapping Screw 8-18 x

52 00-419379-00001 Probe – Thermistor .................................................................................................................... 1

53 00-419592-00001 Clip – Thermistor Probe ............................................................................................................. 1

54 00-427883-00002 Rack – Basket Support (2G4, 3G4, 4G4, & 2XG4) ....................................................................2

55 00-427883-00003 Rack – Basket Support (2G6, 3G6, 4G6, 2XG6) ....................................................................... 2

56 00-427883-00004 Rack – Basket Support (2G8, 3G8, 4G8, & 2XG8) ....................................................................2

57 00-497296-000G1 Magnet Assy............................................................................................................................... 2

00-410863-00006 Channel – Grease (2G8, 3G6, 3G8, 4G6, 4G8, & 2XG8) ..........................................................1

00-410863-00002 Channel – Grease (2G4, 2G6, 3G4, 4G4, 2XG4, & 2XG6) ....................................................... 1

00-421756-00001 Brush – Fryer Cleaning .............................................................................................................. 1

00-421490-000G1 Scoop .........................................................................................................................................1

3

/8 Hex Washer Hd., Type AB .........................................................AR

- 11 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

29

24 THRU 28

22-23

30

19
20
21

31

1

18

2-3

5-6

7

4

8
9

10-11

F-43210 Rev. A (July 2010)

12

16-17

15

BURNER COMPONENTS (STAND-ALONE)

- 12 -

14

13

PL-59245

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

BURNER COMPONENTS (STAND-ALONE)

ILLUS. PART NO. NAME OF PART AMT.
PL-59245

1 00-409300-00005 Rod – Clean-Out ........................................................................................................................ 1

2 00-417522-00003 Clip – Capillary ...........................................................................................................................2

3 SD-035-02 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB .......................................................... 4

4 SC-018-32 Mach. Screw 8-32 x 3/8 Pan Hd. .................................................................................................2

5 00-419316-00001 Pilot (NAT Gas) (Electronic Ignition) ..........................................................................................1

6 00-419316-00002 Pilot (LP Gas) (Electronic Ignition) .............................................................................................1

7 00-426505-00023 Tube – Flex 1/4 O.D. x 23 In. Lg. ................................................................................................1

8 00-418211-00001 Hanger – Manifold (1G4) ........................................................................................................... 1

9 00-418317-00001 Hanger – Manifold (1G6 & 1G8) ................................................................................................ 1

10 00-418212-00001 Manifold – Burner (1G4) ............................................................................................................1

11 00-418318-00001 Manifold – Burner (1G6 & 1G8) .................................................................................................1

12 FP-086-74 Elbow – Pipe 1/2 x 90 Deg. ......................................................................................................... 1

13 FP-059-01 Pipe 1/2 x 13/4 TBE ......................................................................................................................1

14 FP-022-11 Union – Pipe ..............................................................................................................................1

15 NS-047-72 Lock Nut 1/4-20 ........................................................................................................................... 2

16 00-420561-00001 Bracket – Support (1G4) ............................................................................................................ 1

17 00-420562-00001 Bracket – Support (1G6 & 1G8) ................................................................................................. 1

18 FP-085-53 Pipe Plug 1/8 ...............................................................................................................................1

19 00-010901-00039 Orifi ce – Spud (NAT Gas) (Sea Level – 2000 Ft.) .....................................................................AR

20 00-010901-00052 Orifi ce – Spud (LP Gas) (Sea Level – 3499 Ft.) .......................................................................AR

21 00-410695-00001 Extension – Orifi ce ....................................................................................................................AR

22 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT ........................................................AR

23 NS-046-52 Nut 1/4-20 Hex ...........................................................................................................................AR

24 00-419548 Bracket – Hi-Limit ...................................................................................................................... 1

25 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type AB ......................................................... 4

26 NS-046-52 Nut 1/4-20 Hex ............................................................................................................................4

27 SD-036-80 Self-Tapping Screw 8-32 x 3/8 Hex Washer Hd., Type TT .......................................................... 2

28 00-410840-00002 Box – Control Hi-Limit With Stuffi ng .......................................................................................... 1

29 00-417714-00001 Extension – Hanger ...................................................................................................................1

30 00-410681-00001 Burner .......................................................................................................................................AR

31 00-428035-00001 Bolt – Shoulder .........................................................................................................................AR

00-427953-00001 Bracket – Tank To Pilot ..............................................................................................................1

00-427952-00001 Bracket – Pilot Mounting ............................................................................................................ 1

SC-027-55 Mach. Screw 10-32 x 1/4 Slotted Rd. Hd. (Brass) .......................................................................2

- 13 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

1

2-3-4

33

32

31

26

THRU

30

24
25

23

20-21-22

14
15

18-19

5

6-7

8

9-10

11

12

13

16
17

PL-59246

F-43210 Rev. A (July 2010)

BURNER COMPONENTS (BATTERY)

- 14 -

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

BURNER COMPONENTS (BATTERY)

ILLUS. PART NO. NAME OF PART AMT.
PL-59246

1 00-409300-00005 Rod – Clean-Out ........................................................................................................................ 1

2 00-402558-00005 Clamp ........................................................................................................................................2

3 00-417522-00003 Clip – Capillary ...........................................................................................................................2

4 SD-035-02 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB .......................................................... 4

5 SC-018-32 Mach. Screw 8-32 x 3/8 Pan Hd. .................................................................................................2

6 00-419316-00001 Pilot (NAT Gas) (Electronic Ignition) ..........................................................................................1

7 00-419316-00002 Pilot (LP Gas) (Electronic Ignition) .............................................................................................1

8 00-426505-00023 Tube – Flex 1/4 O.D. x 23 In. Lg. ................................................................................................1

9 00-418211-00001 Hanger – Manifold (2G4, 3G4, 4G4, & 2XG4) ........................................................................... 1

10 00-418317-00001 Hanger – Manifold (5 Tube) (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8) ....................... 1

11 FP-022-11 Union – Pipe .............................................................................................................................AR

12 FP-059-01 Pipe 1/2 x 13/4 TBE ......................................................................................................................1

13 FP-086-74 Elbow – Pipe 1/2 x 90 Deg. ......................................................................................................... 1

14 00-418212-00001 Manifold – Burner (2G4, 3G4, 4G4, & 2XG4) ............................................................................ 1

15 00-418318-00001 Manifold – Burner (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8) ......................................1

16 NS-047-72 Lock Nut 1/4-20 ........................................................................................................................... 2

17 NS-046-52 Nut Assy. 1/4-20 Hex ................................................................................................................... 2

18 00-420561-00001 Bracket – Support (3G4 & 4G4) ................................................................................................. 1

19 00-420562-00001 Bracket – Support (3G6, 3G8, 4G6, & 4G8) .............................................................................. 1

20 00-010901-00039 Orifi ce – Spud (NAT Gas) (Sea Level – 2000 Ft.) .....................................................................AR

21 00-010901-00052 Orifi ce – Spud (LP Gas) (Sea Level – 3499 Ft.) .......................................................................AR

22 00-410695-00001 Extension – Orifi ce ....................................................................................................................AR

23 FP-085-53 Plug – Pipe 1/8 ............................................................................................................................ 1

24 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT ........................................................AR

25 NS-046-52 Nut 1/4-20 Hex ...........................................................................................................................AR

26 00-419548 Bracket – Hi-Limit ...................................................................................................................... 1

27 SD-037-70 Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type AB ......................................................... 4

28 NS-046-52 Nut 1/4-20 Hex ............................................................................................................................4

29 SD-036-80 Self-Tapping Screw 8-32 x 3/8 Hex Washer Hd., Type TT .......................................................... 2

30 00-410840-00002 Box – Control Hi-Limit With Stuffi ng .......................................................................................... 1

31 00-417714-00001 Extension – Hanger ...................................................................................................................1

32 00-410681-00001 Burner .......................................................................................................................................AR

33 00-428035-00001 Bolt – Shoulder Burner .............................................................................................................AR

00-427953-00001 Bracket – Tank To Pilot ..............................................................................................................1

00-427952-00001 Bracket – Pilot Mounting ............................................................................................................ 1

SC-027-55 Mach. Screw 10-32 x 1/4 Slotted Rd. Hd. (Brass) .......................................................................2

- 15 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

6

5

4

2-3

1

PL-59247

F-43210 Rev. A (July 2010)

GAS VALVE

- 16 -

GAS VALVE

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

ILLUS. PART NO. NAME OF PART AMT.
PL-59247

1 00-427882-000G3 Gas Inlet .................................................................................................................................... 1

2 00-410841-00028 Valve – Combination (NAT) (Electronic Ignition) ........................................................................ 1

3 00-410841-00029 Valve – Combination (LP) (Electronic Ignition) .......................................................................... 1

4 FP-013-17 Elbow – Pipe 1/2 x 90 Deg. ......................................................................................................... 1

5 FP-035-95 Pipe 1/2 x 2 TBE ..........................................................................................................................1

6 FP-022-11 Union – Pipe .............................................................................................................................. 1

- 17 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

9

1

6-7

2

3

4

5

PL-59254PL-59254

8

10-11

F-43210 Rev. A (July 2010)

GAS INLET MANIFOLD

- 18 -

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

GAS INLET MANIFOLD

ILLUS. PART NO. NAME OF PART AMT.
PL-59254

1 FP-090-80 Tee 11/4 x 11/4 x 1/2 ......................................................................................................................AR

2 FP-035-91 Pipe 1/2 x 11/8 TBE......................................................................................................................AR

3 00-428472-00001 Valve – Gas (1/2 In.) ...................................................................................................................AR

4 FP-035-91 Pipe 1/2 x 11/8 TBE......................................................................................................................AR

5 FP-022-11 Union – Pipe .............................................................................................................................AR

6 00-957744-00001 Pipe – Rear Gas (With Tap) (2G4, 3G4, & 4G4) .......................................................................AR

7 00-957744-00002 Pipe – Rear Gas (With Tap) (3G6 & 3G8)................................................................................AR

8 FP-085-53 Plug – Pipe 1/8 Hex Hd. (SST) ...................................................................................................AR

9 FP-028-26 Plug – Pipe 11/4 Square Hd. ......................................................................................................AR

10 00-957744-00004 Pipe – Rear Gas (Without Tap) (3G4 & 4G4)............................................................................AR

11 00-957744-00003 Pipe – Rear Gas (Without Tap) (3G6 & 3G8)............................................................................AR

00-419878-000G1 Manifold – Gas Inlet (2G4) (Incls. Items 1 thru 6, 8, & 9) ..........................................................1

00-419878-000G2 Manifold – Gas Inlet (3G4) (Incls. Items 1 thru 6, 8, 9, & 10) ....................................................1

00-419878-000G7 Manifold – Gas Inlet (4G4) (Incls. Items 1 thru 6, 8, 9, & 10) ....................................................1

00-419876-000G1 Manifold – Gas Inlet (2G6, 2G8, 4G6, & 4G8) (Incls. Items 1 thru 5, 7, 8, & 9) .........................1

00-419876-000G2 Manifold – Gas Inlet (3G6 & 3G8) (Incls. Items 1 thru 5, 7, 8, 9, & 11) ..................................... 1

- 19 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

1-2-3

F-43210 Rev. A (July 2010)

6

5

7

4

8

9

11- 1 2

10

PL-59248

TANK AND DRAIN (STAND-ALONE)

- 20 -

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

TANK AND DRAIN (STAND-ALONE)

ILLUS. PART NO. NAME OF PART AMT.
PL-59248

1 00-499701-000G2 Tank Assy. (1G4) (SST) .............................................................................................................1

2 00-499702-000G2 Tank Assy. (1G6) (SST) .............................................................................................................1

3 00-499703-000G2 Tank Assy. (1G8) (SST) .............................................................................................................1

4 NS-044-01 Nut Assy. 4-40 KEPS .................................................................................................................4

5 WL-003-03 Lockwasher #4 Helical ............................................................................................................... 4

6 SC-018-55 Mach. Screw 4-40 x 1/2 Phil. Pan Hd. .........................................................................................4

7 00-426805-000G1 Switch Assy. ...............................................................................................................................1

8 00-426801-00002 Switch – Mounted ...................................................................................................................... 1

9 00-426798-00001 Plate – Switch ............................................................................................................................1

10 FP-085-74 Pipe 11/4 x 63/4 ............................................................................................................................1

11 00-426803-000G8 Valve – Drain Assy. (11/4) (LH) (With Magnet) ............................................................................ 1

12 00-426803-000G9 Valve – Drain Assy. (11/4) (RH) (With Magnet)............................................................................1

FP-028-14 Plug – Pipe 1/2 ............................................................................................................................ 1

00-499486-00001 Clip – Drain Pipe ........................................................................................................................ 1

- 21 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

1-2-3

4

5

6 THRU 11

23 THRU 26

16

12-13-14

17

15

22

18 THRU 21

TANK AND DRAIN (BATTERY)

PL-59249

F-43210 Rev. A (July 2010)

- 22 -

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

TANK AND DRAIN (BATTERY)

ILLUS. PART NO. NAME OF PART AMT.
PL-59249

1 00-499701-000G2 Tank Assy. (SST) (2G4, 3G4, 4G4, & 2XG4) ............................................................................. 1

2 00-499702-000G2 Tank Assy. (SST) (2G6, 3G6, 4G6, & 2XG6) ............................................................................. 1

3 00-499703-000G2 Tank – Fry (2G6, 3G8, 4G8, & 2XG8) ........................................................................................1

4 00-426805-000G1 Switch Assy. (Drain Valve Interlock) ........................................................................................... 1

5 00-426803-000G8 Valve – Drain Assy. (LH) (11/4) (With Magnet)

(2G4, 2G6, 2G8, 3G4, 3G6, 3G8, 4G4, 4G6, & 4G8) ................................................................ 1

6 00-497567-000G1 Pipe – Drain (LH) With Spout (2G4) .......................................................................................... 1

7 00-497567-000G2 Pipe – Drain (LH) With Spout (2G6 & 2G8) ............................................................................... 1

8 00-497569-000G1 Pipe – Drain (Center) With Spout (3G4 & 4G4) ......................................................................... 1

9 00-497569-000G2 Pipe – Drain With Spout (3G6, 3G8, 4G6, & 4G8) ....................................................................1

10 00-497568-000G1 Pipe – Drain (Center) (4G4) .......................................................................................................1

11 00-497568-000G2 Pipe – Drain (Center) (4G6 & 4G8) ........................................................................................... 1

12 00-497566-000G1 Pipe – Drain (End) (45 Lbs.) (2G4, 3G4, & 4G4) ....................................................................... 1

13 00-497566-000G3 Pipe – Drain (RH) (65/85 Lbs.) (2G6, 2G8, 3G6, 3G8, 4G6, & 4G8) .........................................1

14 00-497566-000G2 Pipe – End Section (LH) (5 Tube) (3G6, 3G8, 4G6, & 4G8) ......................................................1

15 00-497571-000G1 Plug – Drain ............................................................................................................................... 2

16 00-419351-00001 Hose – Connect (2G4, 2G6, 2G8, 3G4, 3G6, 3G8, 4G4, 4G6, & 4G8) ....................................AR

17 00-497409-00001 Clamp – Drain Tube ..................................................................................................................AR

18 00-420726-00001 Flange – Pipe (11/4 In.) ............................................................................................................... 1

19 00-420553-00002 Gasket – Silicone ....................................................................................................................... 1

20 FP-090-69 Pipe 11/4 x 1 TBE ........................................................................................................................1

21 SC-036-13 Cap Screw 1/4-20 x 3/4 Hex Hd. ...................................................................................................2

22 00-426803-000G9 Valve – Drain Assy. (RH) (11/4) (With Magnet)............................................................................1

23 00-420553-00002 Gasket – Silicone ....................................................................................................................... 1

24 00-420726-00001 Flange – Pipe (11/4 In.) ............................................................................................................... 1

25 FP-090-69 Pipe 11/4 x 1 TBE ........................................................................................................................1

26 SC-036-13 Cap Screw 1/4-20 x 3/4 Hex Hd. ...................................................................................................2

00-497572-000G2 Pipe – Boil Out Bypass (With Hose Fitting) ............................................................................... 1

- 23 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

24

1

41

42

27

40

39

25-26

18

57

17

21

14

13

20

19

15-16

23

22

12

58

34

11

10

2

3

4

5

7

6

59

46

9

8

53

52

51

35

50

43

31

29

28

30

F-43210 Rev. A (July 2010)

32

56

33

36

37

45

38

OIL RETURN (BATTERY)

- 24 -

44

48

54

55

49

47

PL-59250

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

OIL RETURN (BATTERY)

ILLUS. PART NO. NAME OF PART AMT.
PL-59250

1 00-419251-00001 Fitting – 90 Deg. Swivel .............................................................................................................1

2 FP-013-17 Elbow – Street 1/2 x 90 Deg. .......................................................................................................1

3 FP-035-91 Pipe 1/2 x 11/8 TBE.......................................................................................................................1

4 00-418786-00001 Valve – Check ............................................................................................................................1

5 FP-035-91 Pipe 1/2 x 11/8 TBE.......................................................................................................................1

6 00-428691-00002 Valve Solenoid (120 V.) .............................................................................................................. 1

7 FP-035-91 Pipe 1/2 x 11/8 TBE.......................................................................................................................1

8 FP-019-25 Tee 1/2 x 1/2 x 1/2 ..........................................................................................................................1

9 FP-035-95 Pipe 1/2 x 2 TBE (2G4, 3G4, 4G4, & 2XG4) ............................................................................... 1

10 FP-059-63 Pipe 1/2 x 6 TBE (2G6, 2G8, 3G6, 3G8, 4G6, 4G8, 2XG6, & 2XG8) ..........................................1

11 FP-019-25 Tee 1/2 x 1/2 x 1/2 ..........................................................................................................................1

12 FP-035-95 Pipe 1/2 x 2 TBE ..........................................................................................................................1

13 FP-077-68 Elbow 1/2 x 90 Deg. ....................................................................................................................1

14 FP-035-91 Pipe 1/2 x 11/8 TBE.......................................................................................................................1

15 00-428694-000G1 Valve – Discard (LH) (Incls. Items 16 thru 21) ........................................................................... 1

16 00-428753-00001 Valve – Oil Discharge.................................................................................................................1

17 00-426801-00002 Switch – Valve Mounted.............................................................................................................1

18 SC-018-55 Mach. Screw 4-40 x 1/2 Phil. Pan Hd. .........................................................................................4

19 NS-044-01 Nut Assy. 4-40 Hex KEPS .......................................................................................................... 4

20 00-428697-00001 Actuator – Oil Discharge ............................................................................................................ 1

21 00-426805-000G2 Switch Assy. ...............................................................................................................................1

22 SC-116-19 Shoulder Screw 1/4-20 x 3/8 Hex. Socket Hd. .............................................................................. 1

23 FP-035-94 Pipe 1/2 x 11/2 TBE.......................................................................................................................1

24 FP-019-25 Tee 1/2 x 1/2 x 1/2 ..........................................................................................................................1

25 FP-036-91 Pipe 1/2 x 91/2 TBE (2G4, 2G6, 3G4, 3G6, G4G4, 4G6, 2XG4, & 2XG6) ...................................1

26 FP-090-81 Pipe 1/2 X 131/2 TBE (2G8, 3G8, 4G8, & 2XG8) ......................................................................... 1

27 00-418781-00001 Disconnect – Male .....................................................................................................................1

28 00-426567-00002 O-Ring (Viton) ............................................................................................................................ 2

29 00-426567-00003 Receptacle – Oil Suction ...........................................................................................................1

30 SC-114-01 Mach. Screw 10-32 x 3/8 Hex Washer Hd. .................................................................................1

31 FP-013-17 Elbow – Street 1/2 x 90 Deg. .......................................................................................................1

32 FP-019-25 Tee 1/2 x 1/2 x 1/2 ..........................................................................................................................1

33 00-426602-00001 Tube – Flex (12 In.) (2G4, 3G4, 4G4, 2XG6, & 2XG8) .............................................................. 1

34 00-426602-00004 Tube – Suction Flex (19 In.) .......................................................................................................1

35 FP-077-68 Elbow 1/2 x 90 Deg. ....................................................................................................................1

36 FP-035-95 Pipe 1/2 x 2 TBE ..........................................................................................................................1

37 FP-077-68 Elbow 1/2 x 90 Deg. ....................................................................................................................1

38 00-417792-00005 Pump Motor Assy. (8 G.P.M.) (115 V., 60 HZ.) ...........................................................................1

39 00-497087-00001 Bracket – Quick Disconnect (2XG4, 2XG6, & 2XG8) ................................................................1

40 NS-046-52 Nut Assy. 1/4-20 Hex ................................................................................................................... 2

41 00-416435-00002 Grip (Yellow) ..............................................................................................................................1

42 00-428693-00004 Rod – Pull Kleenscreen .............................................................................................................1

43 00-426602-00001 Tube – Flex (12 In.) (2G4, 3G4, 4G4, 2XG6, & 2XG8) .............................................................. 1

44 FP-028-14 Pipe – Plug 1/2 Sq. Hd. ............................................................................................................... 1

45 FP-019-25 Tee

46 - Pipe ............................................................................................................................................1

47 00-428691-00002 Valve Solenoid (120 V.) ..............................................................................................................1

48 FP-035-91 Pipe
49 FP-035-91 Pipe

50 00-418786-00001 Valve – Check ............................................................................................................................1

51 FP-035-91 Pipe 1/2 x 11/8 TBE.......................................................................................................................1

52 FP-013-17 Elbow – Street

53 00-419251-00001 Fitting – 90 Deg. Swivel ............................................................................................................. 1

54 - Elbow ......................................................................................................................................... 1

55 - Pipe ............................................................................................................................................1

56 FP-035-91 Pipe 1/2 x 11/8 TBE.......................................................................................................................1

57 00-521820 U-Bolt .........................................................................................................................................1

58 FP-028-14 Plug – Pipe 1/2 Sq. Hd. ............................................................................................................... 1

59 - Elbow ......................................................................................................................................... 1

00-422281-00007 Hose – Discard (6 Ft.) ................................................................................................................1

1

/2 x 1/2 x 1/2 ..........................................................................................................................1

1

/2 x 11/8 TBE.......................................................................................................................1

1

/2 x 11/8 TBE.......................................................................................................................1

1

/2 x 90 Deg. .......................................................................................................1

- 25 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

8

1-2-3

17-18

4 THRU 7

9

10

11

19-20

12
13

PL-59253

F-43210 Rev. A (July 2010)

14

15

16

FILTER ASSEMBLY

- 26 -

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

FILTER ASSEMBLY

ILLUS. PART NO. NAME OF PART AMT.
PL-59253

1 00-428677-00001 Splash Guard (G4 Series) .........................................................................................................1

2 00-428678-00001 Splash Guard (G6 Series) .........................................................................................................1

3 00-428911-00001 Splash Guard (G8 Series) .........................................................................................................1

4 00-499087-00001 Screen – Fine Mesh Filter ..........................................................................................................1

5 00-499085-00001 Insert – Filter Screen .................................................................................................................1

6 00-499086-00001 Filter – Kleenscreen Plus ........................................................................................................... 1

7 00-499089-00001 Clip – Filter .................................................................................................................................1

8 00-499081-000G3 Tube – Suction ...........................................................................................................................1

9 NS-017-49 Jam Nut .....................................................................................................................................1

10 00-499083-00002 Coupling .....................................................................................................................................1

11 00-499084-00002 Knob .......................................................................................................................................... 1

12 00-428180-000G4 Drawer Assy. (G4 Series) (Incls. Item 16) .................................................................................. 1

13 00-428180-000G5 Drawer Assy. (G6 & G8 Series) (Incls. Items 14, 15, & 16) .......................................................1

14 00-426600-00002 Bearing – Roller ......................................................................................................................... 2

15 00-426600-00003 Screw 1/4-20 ...............................................................................................................................2

16 00-426600-000G1 Roller Guide Assy.......................................................................................................................1

17 00-426606-000G4 Basket – Scrap (G4 Series) ....................................................................................................... 1

18 00-426606-000G6 Basket – Scrap (G6 & G8 Series) .............................................................................................. 1

19 00-497374-000G1 Vessel Assy. (G4 Series)............................................................................................................ 1

20 00-497374-000G2 Vessel Assy. (G6 & G8 Series) ..................................................................................................1

00-499486-00001 Clip – Drain Pipe ........................................................................................................................ 1

00-413927-00001 Grommet – Rubber ....................................................................................................................1

00-499085-00002 Insert – Envelope ....................................................................................................................... 1

- 27 -

F-43210 Rev. A (July 2010)

GRA & GRBD SERIES FRYERS REPLACEMENT PARTS

RECOMMENDED SPARE PARTS LIST

PART NO. NAME OF PART AMT.

00-956926-000G1 Control Assy. – Behind Door ...................................................................................................... 1

00-411242-00001 Knob ..........................................................................................................................................1

00-427755-000G1 Switch Assy. – Power .................................................................................................................1

00-411496-00B10 Switch – Rocker S.P.S.T. ...........................................................................................................1

00-427755-000G2 Switch Assy. (Start) ....................................................................................................................1

00-427755-000G1 Switch Assy. – Power (Filter) .....................................................................................................1

00-857207-00001 Module – Ignition ....................................................................................................................... 1

00-497125-00001 Relay S.P.D.T. (24 VAC) (Battery Units) (Filter) ......................................................................... 1

00-428864-00001 Relay (Battery Units) ..................................................................................................................1

00-411500-00012 Transformer (120-24 V., 40 Amp.)..............................................................................................1

00-419967-00005 Cord – Power Supply (84 In.) .................................................................................................... 1

00-427882-000G3 Flex Tube – Gas Inlet ................................................................................................................. 1

00-410841-00028 Valve – Combination (NAT) (Electronic Ignition) ........................................................................ 1

00-410841-00029 Valve – Combination (LP) (Electronic Ignition) .......................................................................... 1

00-428472-00001 Valve – Gas (

1

/2 In.) ...................................................................................................................AR

BODY UNIT (STAND-ALONE)

00-497296-000G1 Magnet Assy............................................................................................................................... 1

00-418907-00002 Caster – Adjustable Swivel ........................................................................................................1

00-421893-00002 Caster (4 In.) (No Brake) ...........................................................................................................1

00-419379-00001 Probe – Thermistor .................................................................................................................... 1

00-417522-00003 Clip – Capillary ...........................................................................................................................2

00-419316-00001 Pilot (NAT Gas) (Electronic Ignition) ..........................................................................................1

00-419316-00002 Pilot (LP Gas) (Electronic Ignition) .............................................................................................1

00-426505-00023 Tube – Flex 1/4 O.D. x 23 In. Lg. ................................................................................................1

00-010901-00039 Orifi ce – Spud (NAT Gas) (Sea Level – 2000 Ft.) .....................................................................AR

00-010901-00052 Orifi ce – Spud (LP Gas) (Sea Level – 3499 Ft.) .......................................................................AR

00-410840-00002 Box – Control Hi-Limit With Stuffi ng ..........................................................................................1

00-410681-00001 Burner .......................................................................................................................................AR

00-426805-000G1 Switch Assy. ...............................................................................................................................1

00-426801-00002 Switch – Mounted ...................................................................................................................... 1

00-426803-000G8 Valve – Drain Assy. (11/4) (LH) (With Magnet) ........................................................................... 1

00-426803-000G9 Valve – Drain Assy. (11/4) (RH) (With Magnet)............................................................................1

BODY UNIT (BATTERY)

00-418907-00001 Caster – Swivel Assy. (Adjustable) ............................................................................................2

00-418907-00003 Caster ........................................................................................................................................ 2

00-426805-000G1 Switch Assy. (Drain Valve Interlock) ........................................................................................... 1

00-426803-000G8 Valve – Drain Assy. (LH) (11/4) (With Magnet)

(2G4, 2G6, 2G8, 3G4, 3G6, 3G8, 4G4, 4G6, & 4G8) ................................................................ 1

00-426803-000G9 Valve – Drain Assy. (RH) (1

00-420553-00002 Gasket – Silicone ....................................................................................................................... 1

00-418786-00001 Valve – Check ............................................................................................................................2

00-428691-00002 Valve Solenoid (120 V.) .............................................................................................................. 2

00-426801-00002 Switch – Valve Mounted............................................................................................................. 1

00-426805-000G2 Switch Assy. ...............................................................................................................................1

00-426567-00002 O-Ring (Viton) ............................................................................................................................2

00-426602-00001 Tube – Flex (12 In.) (2G4, 3G4, 4G4, 2XG6, & 2XG8) .............................................................. 1

00-426602-00004 Tube – Suction Flex (19 In.) ....................................................................................................... 1

00-417792-00005 Pump Motor Assy. (8 G.P.M.) (115 V., 60 Hz.) ...........................................................................1

00-426602-00001 Tube – Flex (12 In.) (2G4, 3G4, 4G4, 2XG6, & 2XG8) .............................................................. 1

1

/4) (With Magnet)............................................................................1

FILTER ASSEMBLY

00-499081-000G3 Tube – Suction ...........................................................................................................................1

00-499084-00002 Knob .......................................................................................................................................... 1

00-426600-00002 Bearing – Roller .........................................................................................................................2

00-413927-00001 Grommet – Rubber ....................................................................................................................1

FORM 43210 Rev. A JULY 2010 PRINTED IN U.S.A.
