Vulcan 1IFC50 Installation Manual

OPERATION MANUAL

ELECTRIC INDUCTION HEAT FRYERS

MODEL
1IFD50 ML-114500 & ML-114501
1IFC50 ML-114502 & ML-114503
2IFD50 ML-114504 thru ML-114509
2IFC50 ML-114510 thru ML-114515
31FD50 ML-114516 thru ML-114523
3IFC50 ML-114524 thru ML-114531

INSTALLATION &

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. [phone]

FORM 30894 (1-95)

TABLE OF CONTENTS

IF 50 SERIES ELECTRIC INDUCTION HEAT FRYERS

Features, Construction Features, Battery Configurations 4
Field Installable Accessories, Factory Installed Only 4

DUMP STATION

Finish Options, Features 5

INSTALLATION

Uncrating 5
Location 5
Installation Codes and Standards 5
Casters 6
Electrical Connections 6
Fire Suppression System 7

OPERATION

Before First Use 8
Filling the Vat with Shortening 8
Frying 9
Daily 9
Shortening Life 9
Model IFC50 10
Controls 10
Power-up 11
Fat Melt. 11
Heating 11
To Begin Melt Cycle 11
Cooking 11
Manual Cooking Operation 11
Cooking Time Remaining 12
Completion 12
Successive Product Cooking 12
During Slack Periods 12
Idle Mode 12
Operator Advice 12
Using the Editor 12
Programming the Controller 12
Definitions — Edit Product 12
Overview of Programming 13
Edit Product 14
Sel Setback 14
Calibrate 14
Boil Out 15
Recovery 15
Select Melt 15
Manual Setup 15
Oil Timer 16
Error Messages 16

3

5

5

8

-2-

Model IFD50
Controls
Turning the Fryer On
Daily Filtering — All Models
Fryers Without Filter Ready Options
Filtering Procedure (Stand Alone Fryers Without Filter Ready Option)
Filter-Ready Fryers Only (Batteried Fryers)
Battery Interplumbing (Standard on Batteried Fryers)
High Limit Device
Cleaning (All Models)

MAINTENANCE

Lubrication
Service and Parts Information

17
17
17
18
18
18
18
18
19
19
20
20
20

INSTALLATION AND OPERATION MANUAL FOR IF50 SERIES
ELECTRIC INDUCTION HEAT FRYERS

KEEP THESE INSTRUCTIONS FOR FUTURE USE

The manufacturer suggests that you thoroughly
read this entire manual and carefully follow all of the
instructions provided.

Standard equipment on your Vulcan-Hart Model
IF50 Electric Induction Heat Fryer includes 2 fry
baskets per vat, a clean-out rod, a cleaning brush,
and casters.

Single fry baskets are available as an optional
accessory.

Model IF50 Fryers can be free standing or arranged
in a battery of 2 units.

The number preceding the model number of your
IF50 Fryer refers to the number of units in a battery.
One of the units in a battery can be a Frymate
Dump Station.

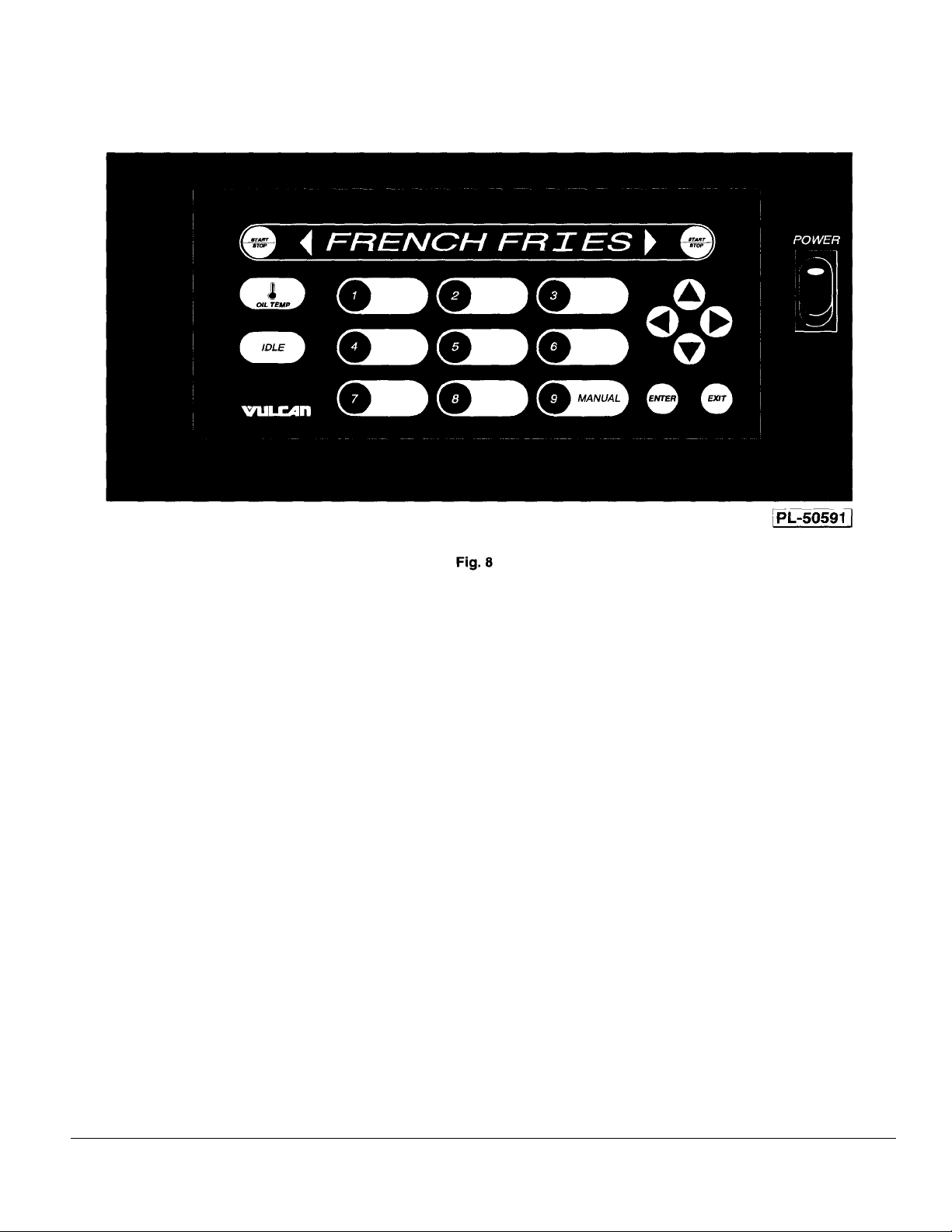

Model IFC50 Fryers have a microprocessor (computer)
thermostat and timer control. Model IFD50 Fryers have a
solid state thermostat.

Feature options include Filter Ready (battery units only).
Standard features include Battery Interplumbing on
batteried fryers, and stainless steel sides, flue and vat(s).
A Fat Melt cycle is standard.

The fryer may be ordered with or without a basket lift with
timer.

Your Vulcan Fryer is constructed and designed to give
long satisfactory service, providing it is properly installed,
adjusted and maintained.

The Vulcan-Hart Model MF50 Mobile Filter is covered in
a separate Installation and Operation Manual.

-3-

Features

Model Fat Melt Cycle Thermostat Basket Lift(s) Twin Baskets

IFC50 Std. Computer Opt. Std.
IFD50 Std. Solid State Opt. Std.

Construction Features

Model

IFC50 Opt. (Use MF50.) Opt. Std. Casters
IFD50 Opt. (Use MF50.) Opt. Std. Casters

Filter Ready

(Battery Units Only)

Battery

Configuration

Battery

Interplumbing

Legs

BATTERY CONFIGURATIONS

IF50 Fryer configurations can be a stand-alone unit, or 2 fryers in a battery, or 1 fryer and 1 dump station, or 3 fryers in a
battery, or 2 fryers and 1 dump station. The dump station can be on either the right or left side.

*Indicates interplumbing is not applicable. The filter is
centered in a double and triple unit only.

Field Installable Accessories Factory Installed Only

Twin Baskets Casters
Heat Lamp Basket Lift

S/S Vat Cover S/S Vat(s)
Batter Tray S/S Sides
Vat Skimmer Battery Interplumbing
Vat Scoop

-4-

DUMP STATION

A Frymate dump station can be configured in a battery. The dump station provides a final prep area where excess oil
drains away and product is seasoned, packaged, and kept ready for sale.

Frymate Dump Station — Finish Options

Frymate Dump Station Front Door Sides & Dummy Flue Legs

Standard Stainless Steel Stainless Steel Casters

Frymate Dump Station — Features

Heat Lamp

Opt. Std. Std. Std. Opt.

Drain Pan Solid Pan Perforated

INSTALLATION

Before installing the fryer, verify that the electrical
service agrees with the specifications on the fryer
data plate which is located on the inside of the door
panel. If the supply and equipment requirements do
not agree, contact your dealer or Vulcan-Hart
immediately.

UNCRATING
This fryer was carefully inspected before leaving the

factory. The transportation company assumes full
responsibility for safe delivery upon acceptance of the
shipment. Immediately after unpacking the fryer, check for
possible shipping damage. If the fryer is found to be
damaged, save the packaging material and contact the
carrier within 15 days of delivery.

Do not use the door or its handle to lift or move the fryer.

LOCATION

Tops

Side Liners

Minimum clearance from combustible and non­combustible construction is 6" from the sides and
6" from the back of the fryer. There must be at
least 16" clearance between the fryer and any
open top flame units. Adequate clearances for
servicing and proper operation must be allowed. A
minimum front clearance of 24" is required. The
unit may be installed on combustible floors.

INSTALLATION CODES AND STANDARDS
Vulcan-Hartfryers should be installed in accordance

with state and local codes, or in the absence of local
codes, with the National Electrical Code ANSI/ NFPA­70 (latest edition) and ANSI-NFPA Standard #96,
Vapor Removal from Cooking Equipment, (latest
edition) available from the National Fire Protection
Assoc., Batterymarch Park, Quincy, MA 02269.

The equipment area must be kept free and clear of
combustible substances.

-5-

CASTERS
The fryer is shipped from the factory with the casters

installed.

ELECTRICAL CONNECTIONS
WARNING: ELECTRICAL AND GROUNDING

CONNECTIONS MUST COMPLY WITH THE NATIONAL
ELECTRICAL CODE AND/OR OTHER LOCAL CODES.

WARNING: DISCONNECT ELECTRICAL POWER
SUPPLY AND PLACE A TAG AT THE DISCONNECT
SWITCH TO INDICATE THAT YOU ARE WORKING ON
THE CIRCUIT.

Bring conduit containing the proper supply wire (size and
type in accordance with latest edition of the National
Electrical Code ANSI/NFPA-70) to the fryer through the
knockout located at the rear of the fryer (Fig. 1).

The wiring compartment is located behind the door.
Remove 4 screws and remove the wiring compartment
cover (Fig. 2). Make electrical connections (Fig. 3).

The wiring diagram is located on the reverse side of the
supply control box compartment cover.

Fryers with built-in filtration systems require a 120V, 15
Amp, single-phase, 60 Hz electrical service. This is in
addition to the fryer's main electrical service. The junction
box, switch and outlet are supplied. Line cord to connect
to 120V, 15 Amp, single-phase, 60 Hz electrical service is
not supplied.

Before applying power to the fryer, ensure that the power
switch(es) marked OFF/ON are in the OFF position. Do
not connect power lines to the fryer with power applied to
them.

Connecting the fryer with the incorrect power supply may
cause damage to the fryer and void the fryer warranty.

Replace supply control box compartment cover.

-6-
