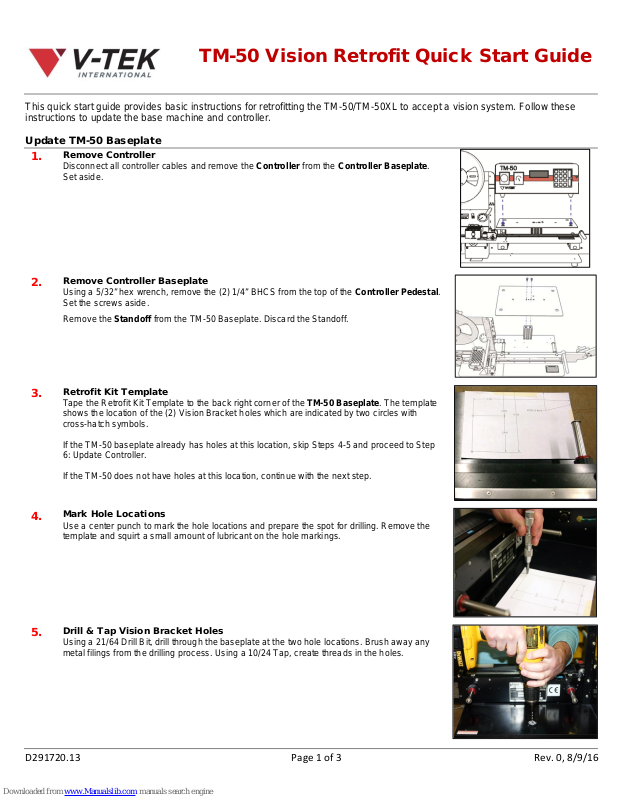

TM-50 Vision Retrofit Quick Start Guide

This quick start guide provides basic instructions for retrofitting the TM-50/TM-50XL to accept a vision system. Follow these
instructions to update the base machine and controller.

Update TM-50 Baseplate

1.

2.

Remove Controller

Disconnect all controller cables and remove the Controller from the Controller Baseplate.
Set aside.

Remove Controller Baseplate

Using a 5/32” hex wrench, remove the (2) 1/4” BHCS from the top of the Controller Pedestal.
Set the screws aside.

Remove the Standoff from the TM-50 Baseplate. Discard the Standoff.



3.

4.

5.



Retrofit Kit Template

Tape the Retrofit Kit Template to the back right corner of the TM-50 Baseplate. The template
shows the location of the (2) Vision Bracket holes which are indicated by two circles with
cross-hatch symbols.

If the TM-50 baseplate already has holes at this location, skip Steps 4-5 and proceed to Step
6: Update Controller.

If the TM-50 does not have holes at this location, continue with the next step.

Mark Hole Locations

Use a center punch to mark the hole locations and prepare the spot for drilling. Remove the
template and squirt a small amount of lubricant on the hole markings.

Drill & Tap Vision Bracket Holes

Using a 21/64 Drill Bit, drill through the baseplate at the two hole locations. Brush away any
metal filings from the drilling process. Using a 10/24 Tap, create threads in the holes.

D291720.13 Page1of3 Rev.0,8/9/16

TM-50 Vision Retrofit Quick Start Guide

Update Controller

1.

2.

3.

Check Controller Version

Check the back of the controller to determine if it has the Software Option installed.
If the controller has a Vision Port the Software Option is already installed. Proceed to the

Keyence IV-G Vision Install Quick Start.
If no Vision Port exists, follow the steps below to update the controller.

Remove Controller Cover

Using a Phillips head screwdriver, remove the (6) BHCS from the sides of the Controller
Cover. Remove the Controller Cover and set the cover and screws aside.

Install Vision Port

Tap out the top left punch-out on the back of the Controller.
Insert the Vision Port through the new hole in the back of the
Controller. Using a 5mm open end wrench, attach the port to
the controller with the provided nuts and screws.



4.

5.



Connect Vision Plugs

Insert Vision Plug J12 into the J12 connection on the Controller Board.

Remove Software Chip

Remove the software chip from the Controller Board Socket.
