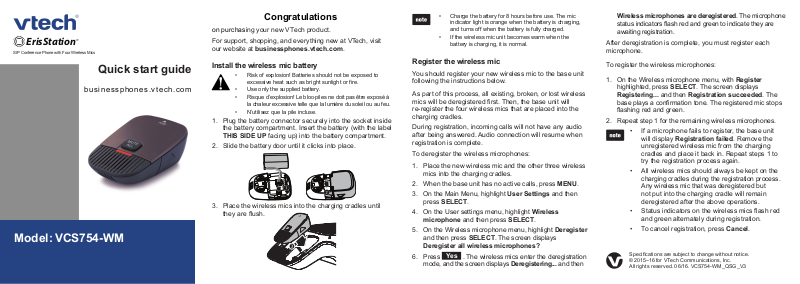

Vtech VCS754-WM User Manual
ErisStation
TM
®
SIP Conference Phone with Four Wireless Mics
Quick start guide
businessphones.vtech.com
Model: VCS754-WM
Congratulations
on purchasing your new VTech product.
For support, shopping, and everything new at VTech, visit
our website at businessphones.vtech.com.
Install the wireless mic battery
• Risk of explosion! Batteries should not be exposed to
excessive heat such as bright sunlight or re.
• Use only the supplied battery.
• Risque d’explosion! Le bloc-piles ne doit pas être exposé à
la chaleur excessive telle que la lumière du soleil ou au feu.
• N’utilisez que la pile incluse.
1. Plug the battery connector securely into the socket inside
the battery compartment. Insert the battery (with the label
THIS SIDE UP facing up) into the battery compartment.
2. Slide the battery door until it clicks into place.
3. Place the wireless mics into the charging cradles until
they are ush.
• Charge the battery for 8 hours before use. The mic
indicator light is orange when the battery is charging,
and turns off when the battery is fully charged.
• If the wireless mic unit becomes warm when the
battery is charging, it is normal.
Register the wireless mic
You should register your new wireless mic to the base unit
following the instructions below.
As part of this process, all existing, broken, or lost wireless
mics will be deregistered rst. Then, the base unit will
re-register the four wireless mics that are placed into the
charging cradles.
During registration, incoming calls will not have any audio
after being answered. Audio connection will resume when
registration is complete.
To deregister the wireless microphones:
1. Place the new wireless mic and the other three wireless
mics into the charging cradles.
2. When the base unit has no active calls, press MENU.
3. On the Main Menu, highlight User Settings and then
press SELECT.
4. On the User settings menu, highlight Wireless
microphone and then press SELECT.
5. On the Wireless microphone menu, highlight Deregister
and then press SELECT. The screen displays
Deregister all wireless microphones?
6. Press
Yes
mode, and the screen displays Deregistering... and then
. The wireless mics enter the deregistration
Wireless microphones are deregistered. The microphone
status indicators ash red and green to indicate they are
awaiting registration.
After deregistration is complete, you must register each
microphone.
To register the wireless microphones:
1. On the Wireless microphone menu, with Register
highlighted, press SELECT. The screen displays
Registering... and then Registration succeeded. The
base plays a conrmation tone. The registered mic stops
ashing red and green.
2. Repeat step 1 for the remaining wireless microphones.
• If a microphone fails to register, the base unit
will display Registration failed. Remove the
unregistered wireless mic from the charging
cradles and place it back in. Repeat steps 1 to
try the registration process again.
• All wireless mics should always be kept on the
charging cradles during the registration process.
Any wireless mic that was deregistered but
not put into the charging cradle will remain
deregistered after the above operations.
• Status indicators on the wireless mics ash red
and green alternately during registration.
• To cancel registration, press Cancel.
Speci cati ons are subj ect to chan ge witho ut notice .
© 2015–16 for V Tech Commu nicati ons, Inc .
All rig hts rese rved. 0 6/16. VCS75 4-W M_QSG _V3
Compliance
FCC Part 15
This equipment has been tested and found to comply
with the requirements for a Class B digital device under
Part 15 of the Federal Communications Commission
(FCC) rules. These requirements are intended to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Changes or modications to this equipment not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation. Privacy
of communications may not be ensured when using this
telephone.
To ensure safety of users, the FCC has established criteria
for the amount of radio frequency energy that can be safely
absorbed by a user or bystander according to the intended
usage of the product. This product has been tested and
found to comply with the FCC criteria. The wireless mic may
be safely held against the ear of the user. The telephone
base shall be installed and used such that parts of the user’s
body other than the hands are maintained at a distance of
approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian
requirement CAN ICES-3 (B)/NMB-003(B)
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
Industry Canada
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Privacy of communications may not be ensured when using
this telephone.
The term ‘’IC:‘’ before the certication/registration number
only signies that the Industry Canada technical specications
were met.
This product meets the applicable Innovation, Science and
Economic Development Canada technical specications.
