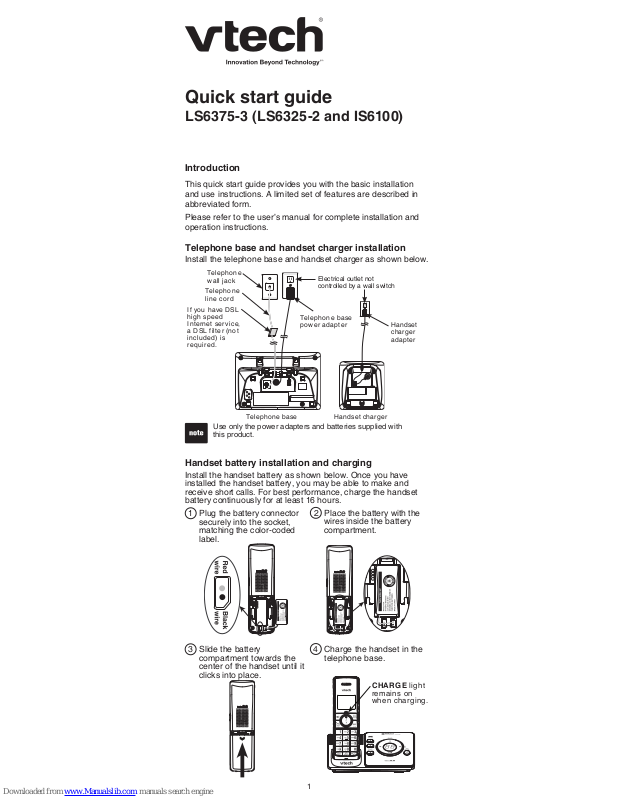

Quick start guide
LS6375-3 (LS6325-2 and IS6100)
Introduction
This quick start guide provides you with the basic installation
and use instructions. A limited set of features are described in
abbreviated form.
Please refer to the user’s manual for complete installation and
operation instructions.
Telephone base and handset charger installation
Install the telephone base and handset charger as shown below.
Use only the power adapters and batteries supplied with
this product.
Handset battery installation and charging
Install the handset battery as shown below. Once you have
installed the handset battery, you may be able to make and
receive short calls. For best performance, charge the handset
battery continuously for at least 16 hours.
CHARGE li ght
remai ns on
when charging.
1
Plug the battery connector
securely into the socket,
matching the color-coded
label.
2
Place the battery with the
wires inside the battery
compartment.
3
Slide the battery
compartment towards the
center of the handset until it
clicks into place.
4
Charge the handset in the
telephone base.
Telephone bas e
Tele ph one
wal l jac k
Handset ch arg er
Electrical outlet not
controlled by a wall switch
If you have DSL
high speed
Int er net ser vice,
a D SL filte r (not
include d) is
requi re d.
Tele ph one
line cord
Tele ph one base
power ad apter
Handset
cha rge r
adapter
2
Headset charger installation
Install the headset charger as shown below.
Heads et ch arger
Plu g the sm al l e nd of th e
heads et ch arger power
adapt er into the power j ack
of the h ead se t c ha rger.
Plug the large end of the
headset charger power
adapter into an electrical
outlet not controlled by a
wall switch.
Power on the headset
Power on the headset before use. Place the headset in the
headset charger or press and hold for two seconds. The
light ashes three times in blue and you hear three beeps
when the headset is being powered on.
Headset charging
Charge the headset as shown below. If the light does not
turn on while charging, you need to charge the headset without
interruption for at least 15 minutes to give the headset enough
charge to use for a short time. For best performance, charge the
headset continuously for at least three hours.
1. P la ce th e t ip of
th e h ea dset in
th e s ma ll cr adle
on th e hea ds et
ch ar ger.
2. The magnet holds
the top of the
headset in place.
The light turns
on when charging.
/FIND HANDSET
Page all system
handsets and headset.
Message window
Shows the number of
messages and other
answering system
information.
X/DELETE
Delete the message currently playing.
Press twice to delete all old
messages when the telephone is not
in use.
/ANS ON/OFF
Turn the
answering
system on or off.
/PLAY/STOP
Play messages.
Stop message playback.
/VOL and
VOL/
Adjust the
volume during
playback.
Adjust the
telephone base
ringer volume
when the
telephone is not
in use.
IN USE light
Flashes when there
is an incoming call,
or another telephone
sharing the same line
is in use.
On when the
telephone is in use,
or the answering
system is answering
a call.
Telephone base overview
/SKIP
Skip to the next message.
/REPEAT
Repeat a message or press
twice to play the previous
message.
3
Handset overview
/ VOL
(directory/volume)
Review the directory
when the telephone is
not in use.
Scroll up while in a
menu.
Increase the listening
volume during a call.
CHARGE light
On when the handset is
charging.
1
Press repeatedly to add
or remove 1 in front of a
call log number before
dialing or saving it in
the directory.
/FLASH
Make, answer or join
a call.
Answer another
incoming call during
a call.
REDIAL/PAUSE
Review the redial list.
Press and hold to
insert a dialing pause
while dialing or
entering numbers.
(speakerphone)
Make, answer or join
a call.
Switch between the
speakerphone and
handset during a call.
TONE
Switch to tone dialing
temporarily during a
call.
Dialing keys
Enter numbers or
characters.
MENU/SELECT
Show the menu.
Select an item or save
a setting while in a
menu.
OFF/CLEAR
Hang up a call.
Silence the ringer
temporarily while the
handset is ringing.
Press and hold to
erase the missed call
indicator when the
telephone is not in use.
Return to the previous
menu while in a menu.
Press and hold to
return to idle mode
while in a menu.
#
Press repeatedly to show
other dialing options
when reviewing a call
log entry.
MUTE/REMOVE
Mute the microphone during a call.
Delete the displayed entry while reviewing
the call log, directory or redial list.
Silence the ringer temporarily while the
handset is ringing.
Delete digits when predialing.
EQ
Change the audio quality
during an outside call,
intercom call, message or
announcement playback.
VOL/CID
(volume/caller ID)
Review the call log
when the telephone is
not in use.
Scroll down while in a
menu.
Decrease the listening
volume during a call.
PUSH TO TALK (PTT)
Begin a one-to-one or
one-to-all broadcast
message.
(on/off)
Press and hold two seconds to power on or off.
Answer, join or end a call.
On in red when charging in the headset charger.
On in blue when fully charged in the headset charger.
Flashes once every 10 seconds in blue when in idle mode.
Flashes once every 10 seconds in red when in low battery mode.
Flashes twice every three seconds in blue while on a call.
Flashes quickly and alternately in red and blue while being
registered.
Flashes four times every four seconds in blue when there is an
incoming call.
Headset overview
MUTE/FLASH
Mute the microphone while
on a call.
Press and hold to answer
another incoming call during
a call.
Silence the ringer in the
earpiece temporarily when
there is an incoming call.
Microphone
Earpiece
Rotating
clip
Connect
the ear
hook or
head
band.
+/-/VOLUME
Adjust the
listening volume
while on a call.
Adjust the ringer
volume when
the headset is
not in use.
RESET
inset button
