3
Align the wall mount and screws with the
holes in the wall as shown. Tighten the screw
in the middle hole rst, so that the wall mount
position is xed. You can tighten the other
screw in the top hole.
4
Place the baby unit on the wall mount.
Tighten the screw into the threaded socket at
the bottom to secure the baby unit.
5
Plug the power adapter into the baby unit,
plug the other end of the power adapter into
the wall outlet. Bundle the power cord neatly
with the self-adhesive strap. Make sure to
keep the power adapter cord away from
children’s reach.

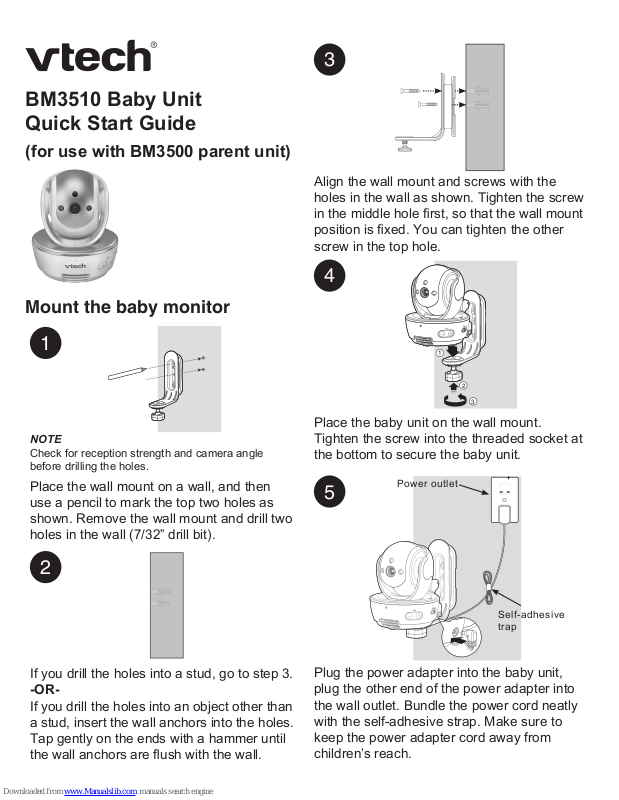

BM3510 Baby Unit
Quick Start Guide
(for use with BM3500 parent unit)
1
NOTE
Check for reception strength and camera angle
before drilling the holes.
Place the wall mount on a wall, and then
use a pencil to mark the top two holes as
shown. Remove the wall mount and drill two
holes in the wall (7/32” drill bit).
2
If you drill the holes into a stud, go to step 3.
-OR-
If you drill the holes into an object other than
a stud, insert the wall anchors into the holes.
Tap gently on the ends with a hammer until
the wall anchors are ush with the wall.
1
2
3
VO
L
ON/OFF
Mount the baby monitor
VO
L
ON/OFF
Power outlet
Self-adhesive
trap
Pair/unpair the baby unit
Pair new baby unit
The new BM3510 baby unit must be paired
to the BM3500 parent unit before use. Please
refer to BM3500 user’s manual for complete
instructions, including baby unit installation.
To pair a baby unit:
Make sure you power on the baby unit and the
parent unit before pairing.
Press when the parent unit is not in use.
Press or to choose PAIR/UNPAIR,
then press .
Press or to choose Pair Baby unit,
then press .
Press or to choose a desired baby
unit slot, then press .
Make sure the new baby unit is turned on. On
the new baby unit, immediately
press and hold PAIR for ve seconds when
the parent unit screen displays Press and
hold PAIR on Baby Unit to start Pairing.
Parent unit screen displays Pairing...Please
Wait... and emits beep sound every two
seconds. The LED light on the new baby unit
ashes quickly.
When pairing is successful, the screen
displays Pairing completed. You hear a
conrmation tone. The LED light on the
new baby unit turns on. The parent unit
returns to the previous menu.
NOTES
If pairing fails, the screen displays Pairing
failed. Try the pairing process again.
During registration, you may press to cancel the
registration when parent unit screen displays
Pairing... Please Wait....
Only one baby unit can be paired at a time.
1.
2.
3.
4.
5.
6.
•
•
•
Unpair the baby unit
Make sure you powered on the baby unit
and the parent unit before unpairing the
baby unit.
To unpair a baby unit:
Press when the parent unit is not in
use.
Press or to choose PAIR/UNPAIR,
then press .
Press or to choose Unpair Baby
unit, then press .
Press or to choose a desired baby
unit or all baby units, then press .
When the screen displays Conrm to
unpair?, press .
When unpairing is successful, the screen
displays Unpairing completed. The LED
light on the selected baby unit ashes
slowly. Then, the parent unit returns to the
previous menu.
1.
2.
3.
4.
5.
6.
If you have any problems with your baby unit, refer to the
TROUBLESHOOTING section of your BM3500 User’s manual.
For technical support, please call VTech Technical Inquiry Hotline
852-2667 7433.
© 2014 VTech Telecommunications Ltd. All Rights Reserved.
