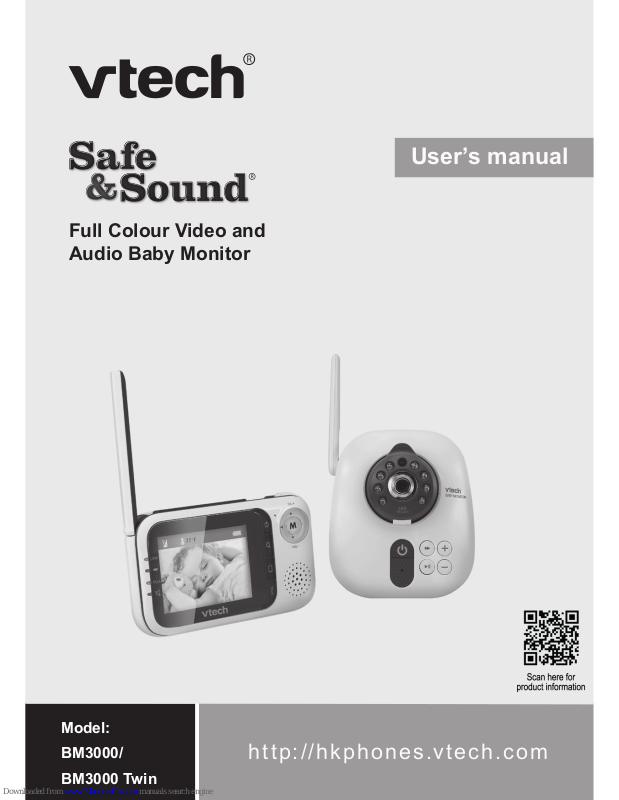

Model:
BM3000/
BM3000 Twin
User’s manual
Full Colour Video and
Audio Baby Monitor
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS ............................1
2. SET UP THE BABY MONITOR ..........................................4
2.1 Package Contents ...............................................................4
2.2 Baby unit battery installation ...............................................5
2.3 Baby unit installation ...........................................................6
2.4 Baby unit installation options ...............................................7
2.4.1 Tabletop to wall mount installation .........................7
2.5 Parent unit battery installation ...........................................12
2.6 Parent unit installation .......................................................14
2.7 Parent unit battery charging ..............................................15
3. GET TO KNOW THE BABY MONITOR ............................16
3.1 Baby unit overview ............................................................16
3.2 Baby unit lights ..................................................................17
3.3 Parent unit overview ..........................................................18
3.4 Parent unit lights ...............................................................20
3.5 Parent unit display screen icons .......................................21
3.6 Positioning and operating range .......................................22
3.6.1 Position the video and audio monitor ...................22
3.6.2 Audio settings.......................................................22
3.6.3 Test your video and audio monitor before use ...........23
4. USING YOUR BABY MONITOR .......................................24
4.1 Parent unit settings ...........................................................24
4.2 Alert tone ...........................................................................24
4.2.1 Low battery tone alert ..........................................24
4.2.2 No link alert ..........................................................24
4.3 Sensitivity ..........................................................................25
4.4 Temperature ......................................................................25
4.4.1 Minimum temperature ..........................................25
4.4.2 Maximum temperature .........................................26
4.4.3 Temperature alert .................................................26
4.4.4 Temperature format ..............................................27
4.5 Vibration ............................................................................27
4.6 Sound-activated screen ....................................................28
4.7 LDC brightness .................................................................28
4.8 Pair/ unpair CAM ...............................................................29
4.8.1 Pair new CAM ......................................................29
4.8.2 Unpair CAM .........................................................29
4.9 Language ..........................................................................30
5. BABY UNIT OPERATION .................................................31
5.1 Power the baby unit on or off ............................................31
5.2 Speaker volume ................................................................31
5.3 Play lullabies .....................................................................31
5.3.1 To play lullabies: ...................................................31
5.3.2 To skip to the next lullaby .....................................31
5.3.3 To stop playing lullabies .......................................31
5.4 Night vision ........................................................................32
6. PARENT UNIT OPERATION ............................................33
6.1 Power the parent unit on or off ..........................................33
6.2 Speaker volume ................................................................33
6.3 Zoom .................................................................................33
6.3.1 To zoom in or out while in single-CAM mode .............33
6.3.2 To zoom in or out while in multi-CAM mode ..............33
6.4 View...................................................................................34
6.5 To turn the screen on or off ...............................................34
6.6 Talk to the baby unit ..........................................................34
7. TROUBLESHOOTING ......................................................35
8. CARE AND MAINTENANCE INSTRUCTIONS ................39
9. TECHNICAL SPECIFICATIONS .......................................41
Product introduction
BM3000 is a video and audio monitor which consists of one parent unit
(BM3000 PU) and one baby unit (BM3000 BU).
BM3000 twin is a video and audio monitor which consists of one parent
unit (BM3000 twin PU) and two baby units (BM3000 twin BU).
The parent unit may be shipped with a protective sticker covering the
display. Remove the protective sticker before use.
1
IMPORTANT SAFETY INSTRUCTIONS
1. IMPORTANT SAFETY INSTRUCTIONS
When using your equipment, basic safety precautions should always be
followed to reduce the risk of re, electric shock and injury, including the
following:
Follow all warnings and instructions marked on the product.
Adult setup is required.
This product is intended as an aid. It is not a substitute for
responsible and proper adult supervision and should not be used as
such.
This product is not intended for use as a medical monitor.
Do not use this product near water. For example, do not use it next
to a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool,
or in a wet basement or shower.
CAUTION: Use only the batteries indicated in this manual. There
may be a risk of explosion if a wrong type of battery is used for the
parent unit. Use only the supplied rechargeable battery.
Use only the adapters included with this product. Incorrect adapter
polarity or voltage can seriously damage the product.
Baby unit power adapter: Input 100-240V AC 50/60 Hz; output: 6V
DC 450 mA; Parent unit power adapter: Input 100-240V AC 50/60
Hz; output: 6V DC 450 mA.
The power adapters are intended to be correctly oriented in a
vertical or oor mount position. The prongs are not designed to hold
the plug in place if it is plugged into a ceiling, under-the-table or
cabinet outlet.
Unplug this product from the wall outlet before cleaning. Do not use
liquid or aerosol cleaners. Use a damp cloth for cleaning.
Unplug the power cords before replacing batteries.
Do not cut off the power adapters to replace them with other plugs,
as this causes a hazardous situation.
Do not allow anything to rest on the power cords. Do not install this
product where the cords may be walked on or crimped.
This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply in your home, consult your dealer or local power
company.
Do not overload wall outlets or use an extension cord.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
2
Do not place this product on an unstable table, shelf, stand or other
unstable surfaces.
This product should not be placed in any area where proper
ventilation is not provided. Slots and openings in the back or bottom
of this product are provided for ventilation. To protect them from
overheating, these openings must not be blocked by placing the
product on a soft surface such as a bed, sofa or rug. This product
should never be placed near or over a radiator or heat register.
Never push objects of any kind into this product through the slots
because they may touch dangerous voltage points or create a short
circuit. Never spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product,
but take it to an authorized service facility. Opening or removing parts
of the product other than specied access doors may expose you to
dangerous voltages or other risks. Incorrect reassembling can cause
electric shock when the product is subsequently used.
You should test the sound reception every time you turn on the units
or move one of the components.
Periodically examine all components for damage.
Be aware of possible loss of privacy while using public airwaves.
Conversations may be picked up by other nursery monitors, cordless
phones, scanners, etc.
Children should be supervised to ensure that they do not play with the
product.
The product is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety.
SAVE THESE INSTRUCTIONS
15.
16.
17.
18.
19.
20.
21.
22.
23.
3
IMPORTANT SAFETY INSTRUCTIONS
Cautions
Use and store the product at a temperature between 10oC and 39oC.
Do not expose the product to extreme cold, heat or direct sunlight.
Do not put the product close to a heating source.
Batteries should not be exposed to excessive heat such as bright
sunshine or re.
Make sure the baby unit(s) and the adapter cord(s) are always out
of reach of the baby, at least 1 metre away from the baby or crib, to
avoid a possible strangulation hazard.
Never place the baby unit(s) inside the baby’s crib or playpen.
Never cover the baby unit(s) or parent unit with anything such as a
towel or a blanket.
Other electronic products may cause interference with your audio
monitor. Try installing your audio monitor as far away from these
electronic devices as possible: wireless routers, radios, cellular
telephones, intercoms, room monitors, televisions, personal
computers, kitchen appliances and cordless telephones.
DISPOSAL WARNING
When this crossed-out wheeled bin symbol is attached
to a product, it means the product is covered by the
European Directive 2002/96/EC.
All electrical and electronic products/battery should be
disposed of separately from the municipal waste stream
via designated collection facilities appointed by the
government or the local authorities.
The correct disposal of your old appliance/battery will
help prevent potential negative consequences for the environment
and human health.
For more detailed information about disposal of your old appliance/
battery, please contact your city ofce, waste disposal service or The
Shop where you purchased the product.
If you have questions about this product, or having difculty with setup or
operation, call our Customer Service Centre.
Customer Service Hotline: (852) 2666 5558
Technical Inquiry Hotline: (852) 2667 7433
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4
2. SET UP THE BABY MONITOR
2.1 Package Contents
The package contains the following items:
1 Parent unit (BM3000 PU / BM3000 twin PU)
Baby unit (1 for BM3000, 2 for BM3000 twin)
1 Parent unit battery compartment cover
1 Battery for parent unit
Baby unit battery compartment cover (1 for BM3000, 2 for BM3000
twin)
Baby unit power adapter (1 for BM3000, 2 for BM3000 twin)
1 Parent unit power adapter
Screws (2 for BM3000, 4 for BM3000 twin)
Wall anchors (2 for BM3000, 4 for BM3000 twin)
Wall mount (1 for BM3000, 2 for BM3000 twin)
1 English user manual
1 Chinese user manual
•
•
•
•
•
•
•
•
•
•
•
•
5
SET UP THE BABY MONITOR
2.2 Baby unit battery installation
You can power up the baby unit by connecting it to AC power and
installing four AA alkaline batteries. Even if the baby unit is connected to
AC power, you must also install four AA alkaline batteries for the baby
unit to operate. This can also guarantee continual operation in case of a
power outage..
Install four AA alkaline batteries (not supplied) into the battery
compartment, matching the polarity markings (+ and -) inside the battery
compartment.
Make sure the ribbon attached inside the battery compartment is put
under the batteries and the excess ribbon is tucked in properly. Then
replace the battery compartment cover.
Gently pull the ribbon
and lift up to remove the
batteries
Notes
Do not mix old and new batteries. Do not mix alkaline and standard
(carbon-zinc) batteries.
The operating time for using AA batteries is short, only for a few hours. If you
want to monitor your baby for a long time, we recommend you connect your
baby unit to AC power.
If the baby unit will not be used for a long time, disconnect and remove the
battery to prevent possible leakage.
You can use rechargeable AA batteries for the baby unit, but the baby unit
cannot charge rechargeable batteries.
•
•
•
•
6
2.3 Baby unit installation
Install the baby unit as shown below.
Make sure that the power outlet is not controlled by a wall switch. Bundle
the power cord neatly with the self-adhesive strap.
Notes
The baby unit power adapters are intended to be correctly oriented in a vertical
or oor mount position. The prongs are not designed to hold the plug in place if
it is plugged into a ceiling, under-the-table or cabinet outlet.
Make sure the baby units and the power adapter cords are out of reach of
children.
•
•
Baby unit
Power outlet not
controlled by a wall
switch
Baby unit power
adapter
Self-adhesive strap
Raise the antenna for better
reception.
7
SET UP THE BABY MONITOR
2.4 Baby unit installation options
The baby unit is ready for tabletop use. Use the provided wall mount if
you want to mount it on a wall. Make sure to test the reception and the
baby unit position before completing the wall mounting installation (see
Test your video and audio monitor before use on 23).
2.4.1 Tabletop to wall mount installation
Option 1: Use this method to x the wall mount securely on the wall.
Place the wall mount on a wall and then use a pencil to mark the top
two holes as shown. Then remove the wall mount and drill two holes
in the wall. Check for reception strength and camera angle before
drilling the holes.
If you drill the holes into a stud, go to step 3.
-OR-
If you drill the holes into an object other than a stud, insert the wall
anchors into the holes and tap gently on the ends with a hammer
until the wall anchors are ush with the wall.
1.
2.
8
Align the wall mount and screws with the holes in the wall as shown.
Make sure to attach the screw in the middle hole rst so that the wall
mount position is xed. Then attach the other screw in the top hole.
Place the baby unit on the wall mount and tighten the screw into the
threaded socket at the bottom to secure the baby unit.
3.
4.
9
SET UP THE BABY MONITOR
Bundle the power cord neatly with the self-adhesive strap. Make
sure to keep the power adapter cord away from children’s reach.
Option 2: Use this method so that you can relocate the baby unit with
the wall mount easily.
Place the wall mount on a wall and then use a pencil to mark the top
and the bottom holes as shown. Then remove the wall mount and
drill two holes in the wall. Check for reception strength and camera
angle before drilling the holes.
5.
1.
10
If you drill the holes into a stud, go to step 3.
-OR-
If you drill the holes into an object other than a stud, insert the wall
anchors into the holes and tap gently on the ends with a hammer until
the wall anchors are ush with the wall.
Insert the screws into the holes and tighten the screws until only 0.7
cm of the screws are exposed.
2.
3.
Loading...
