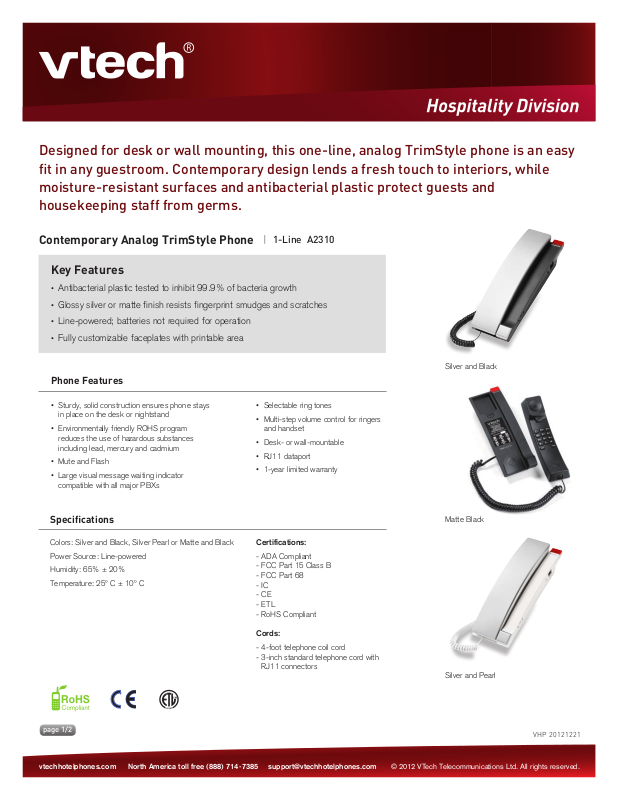

Designed for desk or wall mounting, this one-line, analog TrimStyle phone is an easy
fit in any guestroom. Contemporary design lends a fresh touch to interiors, while
moisture-resistant surfaces and antibacterial plastic protect guests and
housekeeping staff from germs.
North America toll free (888) 714-7385
page 1/2 page 2/2
Key Features
• Antibacterial plastic tested to inhibit 99.9% of bacteria growth
• Glossy silver or matte finish resists fingerprint smudges and scratches
• Line-powered; batteries not required for operation
• Fully customizable faceplates with printable area
Phone Features
• Sturdy, solid construction ensures phone stays
in place on the desk or nightstand
• Environmentally friendly ROHS program
reduces the use of hazardous substances
including lead, mercury and cadmium
• Mute and Flash
• Large visual message waiting indicator
compatible with all major PBXs
• Selectable ring tones
• Multi-step volume control for ringers
and handset
• Desk- or wall-mountable
• RJ11 dataport
• 1-year limited warranty
Specifications
Colors: Silver and Black, Silver Pearl or Matte and Black
Power Source: Line-powered
Humidity: 65% ± 20%
Temperature: 25º C ± 10º C
Certifications:
- ADA Compliant
- FCC Part 15 Class B
- FCC Part 68
- IC
- CE
- ETL
- RoHS Compliant
Cords:
- 4-foot telephone coil cord
- 3-inch standard telephone cord with
RJ11 connectors
Matte Black
Silver and Black
Silver and Pearl
Contemporary Analog TrimStyle Phone
1-Line A2310 |
Page 2
© 2012 VTech Telecommunications Ltd. All rights reserved.
VH P 20 12 12 21
vtechhotelphones.com
North America toll free (888) 714-7385
Product Part Numbers
Silver and Black
Matte Black Silver and Pearl
• Model No. A2310:
1-Line Corded Trimstyle,
0 Speed Dial Keys
80-H024-06-000 80-H024-15-000 80-H024-11-000
Dimensions
Master Carton Measurements: 19.7 in. x 14 in. x 9.4 in., 18.7 lbs., 12 per carton
Phone Measurements: 2.8 in. x 8.4 in. x 2.1 in.,1.1 lbs.
Matte Black
Silver and Black
Silver and Pearl
Contemporary Analog TrimStyle Phone
1-Line A2310 |
