INTRODUCTION
Congratulations! You have purchased
one of the most sophisticated cordless
telephones on the market! The SBC9030
has been designed to offer a new
standard in cordless telephone
technology.
Unlike most other cordless phones,
the SBC9030 digitizes your voice using
advanced digital voice coding to provide
noise and distortion free performance.
In most conditions you will not be able to
tell you are using a cordless phone.
Gone are the annoyances of static,
interference and having to listen to other
people’s conversations on your cordless
phone.
The SBC9030 scrambles your voice
before it transmits it. This allows you the
security of knowing that no one can tune
in and eavesdrop on your conversations.
The SBC9030 decodes and displays
name and number Caller ID (CID)
information where available and when
subscribed to. The alpha-numeric
display will show both the name and
number of the calling party (when
available). Up to 15 name characters
and/or 11 phone number digits can be
displayed on the LCD.
addition, the Intercom feature allows twoway communication between the
Handset and Base Unit. Pressing
INTERCOM on the Base can also assist
you in locating a misplaced Handset.
The SBC9030 uses special memory
in both the Base Unit and Handset which
is not susceptible to power failures. This
provides permanent storage of all speed
dial numbers, CID information as well as
the Base Unit and Handset security
codes.
When a spare battery(not included) is
installed in the Base Unit, the SBC9030
uses this battery to provide operational
backup in case of power failure. In this
way, you have access to all normal
phone functions during a total power
outage. Calls can still be placed and
received without interruption. More than
4 hours backup will be possible with a
fully charged battery in the Base Unit.
The phone will also alert you when
you are Out of Range even when you're
not using the phone!
With the SBC9030, the user can easily
answer a call by pressing any key other
than the OFF, VOLUME keys or 3 PPU
keys. In addition, the handset keypad
and LCD illuminate while the handset
rings to signal an incoming call. This is
very useful in a dark environment.
The SBC9030 includes a
Speakerphone and keypad on the Base
Unit. This enables you to make and
receive calls hands-free at the Base. In
1
INTRODUCTION
SPECIAL FEATURES
• 900 MHz Operation.
• Direct Sequence Spread Spectrum
- Digital Cordless Telephone.
• Digitally-Scrambled Voice
Communication.
• Simultaneous display of Name,
Number, and Time/Date stamp for
Caller ID.
• 50 Caller ID memory locations.
• Voice announce Caller ID
• 4-row by 16-character dot matrix
alphanumeric display.
• Backlit display on handset.
• Backlit handset keypad.
• Three Soft Keys which allow the user
to access different functions,
depending on which mode the phone
is currently in (i.e. Caller ID, Memory
Programming, etc.).
• Smart Dialing from Caller ID memory
eliminates the need to pre-program
your local area code.
• 25 locations Programmable Memory
for 16-Digit Phone Number. Each
location can also be assigned up to
a 15 character name.
• Out of Range indication while the
handset is in use or in standby mode.
• Handset speakerphone.
• Speakerphone and keypad on the
Base Unit.
• Two-way intercom between Handset
and Base Unit.
• Removable handset battery pack.
• Spare battery charger in the base
unit.
• Complete battery back-up in case of
power failure (with additional battery
pack installed in base).
• Face up or down Handset charging.
• Easy answer - When the phone
rings, simply press any key other
than OFF, the Volume keys or the
3 PPU keys on the handset to
answer.
• Pressing the OFF key on handset
during incoming ring will stop the
ringing.
• Auto hang up when returning the
handset to the base cradle.
• 24-Bit Digital Security Code.
• Low Battery Detect and Warning
indicator.
• Tone or Pulse dialing.
• Visual Message Waiting Indication
(VMWI) for use with voicemail
service.
• Up to 7 hours of continuous talk time
or 14 days standby time.
• 8-level Volume control on Handset.
• Programmable Ringer Tones and
Volume.

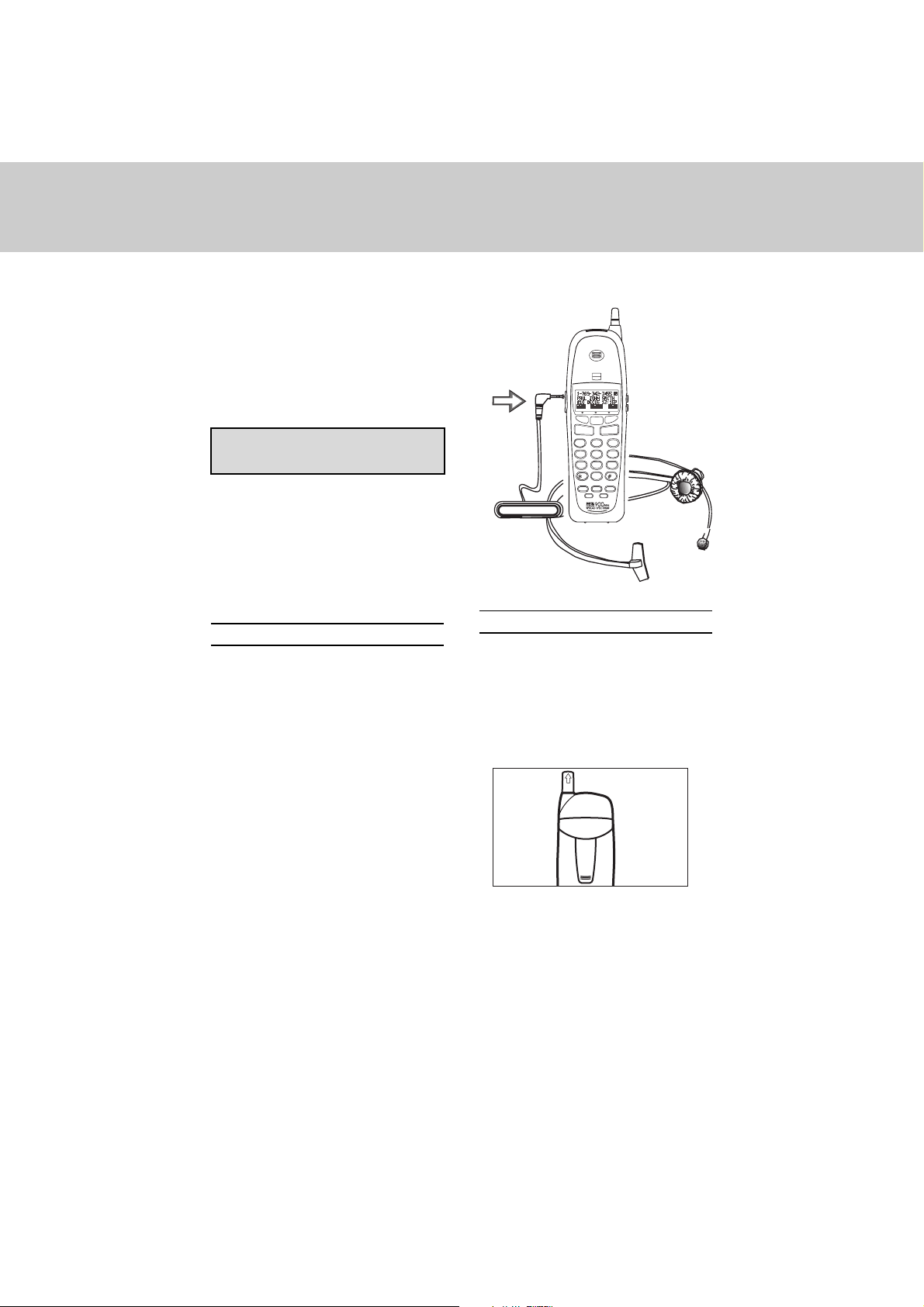

• Headset Compatible, for use with
2.5mm headsets.
This manual is designed to familiarize
you with the SBC9030. We strongly
recommend you read the manual before
using your phone.
2
INTRODUCTION
PARTS CHECK LIST
1.
Base Unit, Handset, Belt Clip and AC
adapter
2.One-Line Telephone Cord
OFF
PHONE
FLASH
ABC
DEF
1
2
3
GHI
MNO
JKL
6
5
4
TUV
PQRS
WXYZ
8
7
9
OPER
TONE
0
AUTO CALL
3-WAY
AUTO BUSY
RETURN *69
CALLING
REDIAL *66
INTERCOM SPEAKER
Handset
3.Battery Pack
4.Wall mount accessory
To purchase replacement battery
packs, call Customer Service at 800667-2118.
MEMORY
AUTO CALL
RETURN *69
POWER IN-USE CHARGE SPARE BATT
1
ghi
4
pqrs
7
tone
MUTE VOL
INTERCOM
MIC
Base Unit
3-WAY
AUTO BUSY
CALLING
REDIAL *66
MESSAGE
FLASH
abc
def
3
2
MEMORY
jkl
mno
5
6
REDIAL
tuv
wxyz
8
9
HOLD
oper
0
SPEAKERPHONE
Belt Clip
Wall mount accessory
Battery Pack
Telephone Cord
AC Adapter
3
FCC REGULATIONS
This equipment complies with Parts
15 and 68 of the Federal
Communications Commission (FCC)
rules for the United States. Operation is
subject to the following two conditions:
(1) this device may not cause
interference, and (2) this device must
accept any interference, including
interference that may cause undesired
operation of the device.
The underside of the Base Unit
containing engravements of either the
FCC registration number and Ringer
Equivalence Number (REN), or the IC
registration number . You must, upon
request, provide this information to your
local telephone company.
This equipment is compatible with
inductively coupled hearing aids.
Should you experience trouble with
this telephone equipment, please
contact:
Customer Service at 800-667-2118
rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try and correct the
interference by one or more of the
following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet
or on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
The telephone company may ask you
to disconnect this equipment from the
line network until the problem has been
corrected.
FCC Part 15
Warning: Changes or modifications
to this unit not expressly approved by
the party responsible for compliance's
could void the user’s authority to operate
the equipment.
The equipment has been tested and
found to comply with part 15 of the FCC
4
FCC REGULATIONS
FCC Part 68
The FCC requires that you connect
your cordless telephone to the
nationwide telephone network through
a modular telephone jack (USOC
RJ11C, RJ11W or RJ14).
Your telephone company may
discontinue your service if your equipment causes harm to the telephone
network. They will notify you in advance of disconnection, if possible.
During notification, you will be informed
of your right to file a complaint with the
FCC.
Occasionally, your telephone
company may make changes in its facilities, equipment, operation, or procedures that could affect the operation of
your equipment. If so, you will be given
advance notice of the change to give
you an opportunity to maintain
uninterrupted service.
This equipment may not be used on
coin service provided by the phone
company or Party Lines.
The REN is useful in determining the
number of devices you may connect to
your telephone line and still enable the
devices to ring when you receive a call.
The general rule is that the REN value
should not exceed 5.0 total; however,
contact your local telephone company
for the specific number in your area.
The Base Unit contains no user
serviceable parts. The Handset contains
a user replaceable battery pack.
If it is determined that your telephone
equipment is malfunctioning, the FCC
requires that it not be used and that it be
unplugged from the modular jack until
the problem has been corrected.
Repairs to this telephone equipment can
only be made by the manufacturer or its
authorized agents or by others who
may be authorized by the FCC. For
repair procedures, follow the instructions
outlined under the Limited Warranty.
5
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone
equipment, basic safety precautions
should always be followed to reduce the
risk of fire, electric shock and injury to
persons, including the following:
1.Read and understand all instructions.
2.Follow all warnings and instructions
marked on the product.
3. Unplug this product from the wall
outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
4.Do not use this product near water
(for example, near a bath tub, kitchen
sink, or swimming pool).
5.Do not place this product on an
unstable cart, stand, or table. The
product may fall, causing serious
damage to the product.
6.Slots and openings in the cabinet on
the back or bottom are provided for
ventilation.To protect it from
overheating, these openings must
not be blocked by placing the product
on a bed, sofa, rug, or other similar
surface. This product should never
be placed near or over a radiator or
heat register. This product should not
be placed in a built-in installation
where proper ventilation is not
provided.
7.This product should be operated only
from the type of power source
indicated on the marking label. If you
are not sure of the type of power
supply to your home, consult your
dealer or local power company.
8.Do not allow anything to rest on the
power cord. Do not locate this
product where the cord will be
abused by persons walking on it.
9.Never push objects of any kind into
this product through cabinet slots as
they may touch dangerous voltage
points or short out parts that could
result in a risk of fire or electric shock.
Never spill liquid of any kind on the
product.
10.To reduce the risk of electric shock,
do not disassemble this product, but
take it to an authorized service
facility. Opening or removing cabinet
parts other than specified access
doors may expose you to dangerous
voltage or other risks. Incorrect
reassembling can cause electric
shock when the appliance is
subsequently used.
11.Do not overload wall outlets and
extension cords as this can result in
the risk of fire or electric shock.
12. Unplug this product from the wall
outlet and refer servicing to an
authorized service facility under the
following conditions:
A.When the power supply cord or plug
is damaged or frayed.
B. If liquid has been spilled into the
product.
C.If the product has been exposed to
rain or water.
6
IMPORTANT SAFETY INSTRUCTIONS
D.If the product does not operate
normally by following the operating
instructions. Adjust only those
controls that are covered by the
operating instructions, because
improper adjustment of other controls
may result in damage and will often
require extensive work by an
authorized technician to restore the
product to normal operation.
E.If the product has been dropped and
the cabinet has been damaged.
F. If the product exhibits a distinct
change in performance.
13.Avoid using a telephone (other than
a cordless type) during an electrical
storm. There may be a remote risk
of electric shock from lighting.
14.Do not use the telephone to report
a gas leak in the vicinity of the leak.
SA VE THESE INSTRUCTIONS
7
INST ALLING THE BA TTER Y P A CK
The Handset of your SBC9030 is
powered by a rechargeable battery pack.
It charges automatically whenever the
Handset is in the Base Unit. You should
charge the battery pack for 16 hours
when you first receive your phone. You’ll
know the battery pack needs charging
when:
• The low battery message is displayed:
• The Handset seems completely dead,
the LCD is completely clear and does
not activate when you press the
keys.
TO CHARGE THE BATTERY
PACK
To charge the battery pack, place the
Handset in the Base Unit. The
CHARGING indicator will light to show
the Handset is seated properly and the
battery pack is charging. It is
recommended that the battery pack be
charged for at least 16 hours initially.
Afterwards, 8 hours of maintenance
charging should be sufficient. You can
use your telephone before that with diminished capacity, but it is best to charge
the battery pack fully. It will take several
recharge cycles to maximize the charge
capacity of your battery pack. The
maximum battery life between charges
is 7 hours of continuous talk time or 14
days of stand by.
Alternatively, if a spare battery pack
has been charging in the Base Unit,
simply exchange the drained Handset
battery pack with the fully charged
replacement battery pack from the Base
Unit charger. Place the drained Handset
battery pack into the Base Unit charger
so that it will charge.
The Base Unit spare battery charger
does NOT charge a battery pack as
quickly as the main Handset battery
charger. A full charge requires 24 hours.
A WORD ABOUT
RECHARGEABLE BATTERIES
Your Ni-Cd battery pack recharges
whenever the Handset is returned to the
Base Unit.
IT’S IMPOSSIBLE TO
OVERCHARGE THE BATTERY
PACK
The battery pack can be recharged
many times but if you get a low-battery
signal even after 8 hours of charging in
the Base Unit cradle (or 24 hours in the
Base Unit spare battery charger), the
battery pack(s) should be replaced.
To purchase replacement battery
packs, call Customer Service at
800-667-2118.
8
INST ALLING THE BA TTER Y P A CK
REPLACING THE HANDSET
BATTERY PACK
Follow the steps below:
1.Remove the battery case cover by
pressing on the ridged lines and
sliding downward.
2.Discard the old battery pack. Don’t
put the old battery pack in a trash
compactor or a fire - it could burst.
Please recycle.
3.Place the new battery pack in its
housing with the metal contacts
facing down.
1.Use only Cincinnati Bell rechargeable
battery pack, or equivalent.
2.Do not dispose of the battery pack
in a fire. The cell may explode.
IMPORTANT: Do not dispose of this
battery pack into household garbage.
For information on recycling or proper
disposal, consult your local solid
waste collection or disposal
organization.
3.Do not open or mutilate the battery
pack. Released electrolyte is
corrosive and may cause damage to
the eyes or skin. It may be toxic if
swallowed.
4.Exercise care in handling batteries in
order not to short the battery with
conducting materials such as rings,
bracelets, and keys. The battery
pack or conductor may overheat and
cause burns.
To purchase replacement battery
packs, call Customer Service at
800-667-2118.
+
-
4.Replace the battery case cover by
sliding the cover upwards.
5.If the new battery pack is not already
charged, place the Handset in the
cradle of the Base Unit to allow it to
charge for 16 hours.
CAUTION: To Reduce the Risk of
Fire or Injury, Read and Follow the
Instructions
SPARE BATTERY CHARGER/
POWER BACKUP FUNCTION
When an optional, Spare Battery pack
is installed in the Base Unit, the
SBC9030 uses this battery to provide
operational backup in case of a power
failure. If you have a fully charged battery
pack in the Spare Battery charger and
there is a power outage, you will still be
able to place and receive calls on the
SBC9030 Handset for up to 4 hours.
The Spare Battery pack can also be
used to replace a drained Handset
battery to ensure uninterrupted use. Be
sure to put the drained battery pack in
the Spare Battery charger.
9
GETTING STARTED
SETTING UP AC POWER
ADAPTER
Plug the AC power adaptor into an
electrical outlet and the DC connector
to the back of the Base Unit.
xxx xx xx xxxxxx xxx
PRODUCT CONTAINS NICKEL-CADMIUM BATTERY:
MUST BE RECYCLED OR DISPOSED OF PROPERLY.
DO NOT BURN OR PUNCTURE BATTERY. LIKE
OTHER BATTERIES OF THIS TYPE. IF IT IS BURNED
OR PUNCTURED. IT COULD RELEASE TOXIC
MATERIAL WHICH COULD CAUSE INJURY.
Cd
CAUTION: USE CLASS 2, 9V
DC POWER SUPPLY ONLY.
SETTING RINGER
The Handset ringer is programmed
ON as the factory default setting. To
change ringer settings, see RINGER
TONE / VOLUME.
The Base Unit ringer is controlled
independently, by a switch located on
the front, right hand side (antenna side)
of the Base.
The Base ringer has 3 settings; high,
low and off.
TONE/PULSE SELECTION
Your SBC9030 is preset for Tone
dialing. If you have rotary (pulse)
service, program the Handset
accordingly. See SET TONE/PULSE
for details.
CHARGE THE HANDSET
BA TTER Y P ACK BEFORE USE.
The battery pack recharges
automatically whenever the Handset is
in the Base Unit. The battery pack must
be charged for 16 hours before using
your phone for the first time.
CONNECT THE TELEPHONE
LINE CORD
Plug one end of the telephone line
cord into the jack on the back of the
Base Unit, plug the other end of this cord
into the wall jack.
CHECK FOR A DIAL TONE
After the battery is charged, rotate the
Base Unit antenna to upright position.
Now press PHONE on the Handset.
PHONE ON will appear on the LCD,
and you will hear a dial tone. If not, see
IN CASE OF DIFFICULTY.
Fill in the telephone number card on
the Base Unit.
CAUTION:
1.Never install telephone wiring during
a lightning storm.
2.Never install telephone jacks in wet
locations unless the jack is
specifically designed for wet
locations.
3.Never touch uninsulated telephone
wires or terminals unless the
telephone line has been disconnected
at the network interface.
4.Use caution when installing or
modifying telephone lines.
10
WALL MOUNTING
USING THE WALL MOUNT
ADAPTOR
1. Position the wall mount bracket
on the Base Unit.
Line up the tabs on the wall mount
adaptor with the holes on the bottom
of the Base Unit . Snap the wall
mount bracket firmly in place.
xxx xx xx xxxxxx xxx
PRODUCT CONTAINS NICKEL-CADMIUM BATTERY:
MUST BE RECYCLED OR DISPOSED OF PROPERLY.
DO NOT BURN OR PUNCTURE BATTERY. LIKE
OTHER BATTERIES OF THIS TYPE. IF IT IS BURNED
OR PUNCTURED. IT COULD RELEASE TOXIC
MATERIAL WHICH COULD CAUSE INJURY.
Cd
2. Mount the Base Unit on the wall.
Position the Base Unit so the
mounting studs will fit into the holes
on the bottom of the Base Unit.
Position the power cord to extend
down the wall the phone is to be
mounted on. Slide the Base Unit
down on the mounting studs until it
locks into place.
xxx xx xx xxxxxx xxx
PRODUCT CONTAINS NICKEL-CADMIUM BATTERY:
MUST BE RECYCLED OR DISPOSED OF PROPERLY.
DO NOT BURN OR PUNCTURE BATTERY. LIKE
OTHER BATTERIES OF THIS TYPE. IF IT IS BURNED
OR PUNCTURED. IT COULD RELEASE TOXIC
MATERIAL WHICH COULD CAUSE INJURY.
Cd
4. Connect the telephone line cord.
The telephone line cord has a
snap-in plug at each end. Insert one
of the plugs into the jack on the
bottom of the Base Unit. Insert the
other end of the plug into the wall
jack.
3. Plug in the AC adaptor.
Plug the AC adaptor into an electrical
outlet, and the DC connector to the
back of the Base Unit. If the Handset
battery pack has not been charged
previously,
place the Handset in
the Base Unit cradle, and allow it
to
charge for 16 hours.
11
HANDSET LAYOUT
HEADSET JACK
VOLUME UP
VOLUME DOWN
SOFT KEYS
PHONE ON PHONE OFF
PHONE
FLASH
1
GHI
4
OFF
ABC
2
JKL
5
DEF
3
MNO
6
DIALING KEYS
TUV
8
OPER
0
3-WAY
CALLING
INTERCOM SPEAKER
9
AUTO BUSY
REDIAL *66
WXYZ
BUSY REDIAL
SPEAKER KEY
RETURN CALL
3-WAY CALL
INTERCOM KEY
PQRS
7
AUTO CALL
RETURN *69
TONE
12
BASE LAYOUT
TEL LINE
9V DC
MEMORY
POWER IN-USE CHARGE SPARE BATT
MIC
AUTO CALL
3-WAY
RETURN *69
CALLING
abc
1
2
jkl
ghi
5
4
tuv
pqrs
8
7
oper
tone
0
MUTE VOL
INTERCOM
AUTO BUSY
REDIAL *66
def
3
mno
6
wxyz
9
SPEAKERPHONE
MESSAGE
FLASH
MEMORY
REDIAL
HOLD
PHONE CORD JACK
AC POWER JACK
SPARE BATTERY
CHARGER
COMPARTMENT
AUTO CALL RETURN *69
3-WAY CALLING KEY
AUTO BUSY REDIAL *66 KEY
MESSAGE INDICATOR
SPARE BATT. LED
CHARGE LED
IN USE LED
POWER LED
FLASH KEY
MEMORY KEY
DIALING KEYS
REDIAL KEY
HOLD KEY
VOLUME UP/DOWN KEY
MUTE KEY/LED
SPEAKERPHONE KEY
INTERCOM KEY
13
Loading...
