INTRODUCTION
Congratulations! You have purchased one of the most sophisticated
cordless telephones on the market!
The CB 1733 has been designed to
offer a new standard in cordless
telephone technology.
Unlike most other cordless phones,
the CB 1733 digitizes your voice using
advanced digital voice coding to provide noise and distortion free performance. In most conditions you will not be
able to tell you are using a cordless
phone. Gone are the annoyances of
static, interference and having to listen
to other people’s conversations on your
cordless phone.
The CB 1733 scrambles your voice
before it transmits it. This allows you
the security of knowing that no one can
tune in and eavesdrop on your conversations.
The CB 1733 decodes and displays
name and number Caller ID (CID)
information where available and when
subscribed to. The alpha-numeric
display will show both the name and
number of the calling party (when
available). Up to 15 name characters
and/or 11 phone number digits can be
displayed on the LCD.
and receive calls hands-free at the
Base. In addtion, the Intercom feature
allows two-way communication
between the Handset and Base Unit.
Pressing INTER.COM on the Base can
also assist you in locating a misplaced
Handset.
The CB 1733 uses special memory
in both the Base Unit and Handset
which is not susceptible to power
failures. This provides permanent
storage of all speed dial numbers, CID
information as well as the Base Unit
and Handset security codes.
When the spare battery is installed in
the Base Unit, the CB 1733 uses this
battery to provide operational backup
in case of power failure. In this way, you
have access to all normal phone
functions during a total power outage.
Calls can still be placed and received
without interruption. More than 4 hours
backup will be possible with a fully
charged battery in the Base Unit.
The phone will also alert you when
you are Out of Range even when you're
not using the phone!
With the CB 1733, the user can easily
answer a call by pressing any key other
than the OFF, VOLUME keys or 3 PPU
keys. In addition, the handset keypad
and LCD illuminate while the handset
rings to signal an incoming call. This is
very useful in a dark environment.
The CB 1733 includes a
Speakerphone and keypad on the
Base Unit. This enables you to make
1
INTRODUCTION
SPECIAL FEATURES
• 900 MHz Operation.
• Direct Sequence Spread Spectrum - Digital Cordless Telephone.
• Digitally-Scrambled Voice Communication.
• Simultaneous display of Name,
Number, and Time/Date stamp for
Caller ID.
• 50 Caller ID memory locations.
• 4-row by 16-character dot matrix
alphanumeric display.
• Backlit display on handset.
• Backlit handset keypad.
• Three Soft Keys which allow the
user to access different functions,
depending on which mode the
phone is currently in (i.e. Caller ID,
Memory Programming, etc.).
• Smart Dialing from Caller ID
memory eliminates the need to
pre-program your local area code.
• 25 locations Programmable
Memory for 16-Digit Phone
Number. Each location can also
be assigned up to a 15 character
name.
• Out of Range indication while the
handset is in use or in standby
mode.
• Speakerphone and keypad on the
Base Units.
• Two-way intercom between
Handset and Base Unit.
• Removable handset battery pack.
• Spare battery charger in the base
unit.
• Complete battery back-up in case
of power failure (with additional
battery pack installed in base).
• Face up or down Handset charging.
• Easy answer - When the phone
rings, simply press any key other
than OFF, the Volume keys or the
3 PPU key on the handset to
answer.
• Pressing the OFF key on handset
during incoming ring will stop the
ringing.
• Auto hang up when returning the
handset to the base cradle.
• 24-Bit Digital Security Code.
• Low Battery Detect and Warning
indicator.
• Tone or Pulse dialing.
• Visual Message Waiting Indication
(VMWI) for use with voicemail
service.
• Up to 7 hours of continuous talk
time or 14 days standby time.
• 8-level Volume control on Handset.
• Programmable Ringer Tones and
Volume.
• Headset Compatible, for use with
2.5mm headsets.
This manual is designed to familiarize you with the CB 1733. We strongly
recommend you read the manual
before using your phone.
2
INTRODUCTION
PARTS CHECK LIST
1.
Base unit, Handset, Belt Clip and AC adaptor
2.One-Line Telephone Cord
3.Battery Pack( x 2 )
4.Wall mount accessory
To purchase replacement battery
packs, call Customer Service at 800877-1624.
3
FCC REGULATIONS
This equipment complies with Parts
15 and 68 of the Federal Communications Commission (FCC) rules for
the United States. It also complies with
regulations RSS210 and CS-03 of Industry and Science Canada. Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interference that may cause undesired
operation of the device.
The underside of the Base Unit containing engravements of either the FCC
registration number and Ringer Equivalence Number (REN), or the IC registration number . You must, upon
request, provide this information to your
local telephone company.
This equipment is compatible with
inductively coupled hearing aids.
Should you experience trouble with
this telephone equipment, please contact:
Customer Service at 800-877-1624
The equipment has been tested and
found to comply with part 15 of the FCC
rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference
to radio communications. However,
there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try and
correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet
or on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
The telephone company may ask
you to disconnect this equipment from
the line network until the problem has
been corrected.
FCC Part 15
Warning: Changes or modifications
to this unit not expressly approved by
the party responsible for compliance's
could void the user’s authority to operate the equipment.
4
FCC REGULATIONS
FCC Part 68
The FCC requires that you connect
your cordless telephone to the nationwide telephone network through a
modular telephone jack (USOC
RJ11C, RJ11W or RJ14).
Your telephone company may discontinue your service if your equipment causes harm to the telephone
network. They will notify you in advance of disconnection, if possible.
During notification, you will be informed
of your right to file a complaint with the
FCC.
Occasionally, your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the operation of
your equipment. If so, you will be given
advance notice of the change to give
you an opportunity to maintain uninterrupted service.
This equipment may not be used on
coin service provided by the phone
company or Party Lines.
The REN is useful in determining the
number of devices you may connect to
your telephone line and still enable the
devices to ring when you receive a call.
The general rule is that the REN value
should not exceed 5.0 total; however,
contact your local telephone company
for the specific number in your area.
The Base Unit contains no user serviceable parts. The Handset contains a
user replaceable battery pack.
If it is determined that your telephone
equipment is malfunctioning, the FCC
requires that it not be used and that it
be unplugged from the modular jack
until the problem has been corrected.
Repairs to this telephone equipment
can only be made by the manufacturer
or its authorized agents or by others
who may be authorized by the FCC.
For repair procedures, follow the instructions outlined under the Limited
Warranty.
5
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of
fire, electric shock and injury to persons, including the following:
1.Read and understand all instructions.
2.Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall
outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4.Do not use this product near water
(for example, near a bath tub,
kitchen sink, or swimming pool).
5.Do not place this product on an
unstable cart, stand, or table. The
product may fall, causing serious
damage to the product.
6.Slots and openings in the cabinet
on the back or bottom are provided
for ventilation. To protect it from
overheating, these openings must
not be blocked by placing the
product on a bed, sofa, rug, or
other similar surface. This product
should never be placed near or
over a radiator or heat register.
This product should not be placed
in a built-in installation where
proper ventilation is not provided.
7.This product should be operated
only from the type of power source
indicated on the marking label. If
you are not sure of the type of
power supply to your home, consult your dealer or local power
company.
8.Do not allow anything to rest on the
power cord. Do not locate this
product where the cord will be
abused by persons walking on it.
9.Never push objects of any kind into
this product through cabinet slots
as they may touch dangerous
voltage points or short out parts
that could result in a risk of fire or
electric shock. Never spill liquid of
any kind on the product.
10.To reduce the risk of electric
shock, do not disassemble this
product, but take it to an authorized
service facility. Opening or removing cabinet parts other than specified access doors may expose you
to dangerous voltage or other
risks. Incorrect reassembling can
cause electric shock when the
appliance is subsequently used.
11.Do not overload wall outlets and
extension cords as this can result
in the risk of fire or electric shock.
12. Unplug this product from the wall
outlet and refer servicing to an
authorized service facility under
the following conditions:
A. When the power supply cord or
plug is damaged or frayed.
B. If liquid has been spilled into the
product.
6
IMPORTANT SAFETY INSTRUCTIONS
C. If the product has been exposed
to rain or water.
D. If the product does not operate
normally by following the operating instructions. Adjust only those
controls that are covered by the
operating instructions, because
improper adjustment of other controls may result in damage and will
often require extensive work by an
authorized technician to restore
the product to normal operation.
E. If the product has been dropped
and the cabinet has been damaged.
F. If the product exhibits a distinct
change in performance.
13.Avoid using a telephone (other
than a cordless type) during an
electrical storm. There may be a
remote risk of electric shock from
lighting.
14.Do not use the telephone to
report a gas leak in the vicinity of
the leak.
SAVE THESE INSTRUCTIONS
7
INSTALLING THE BATTERY PACK
The Handset of your CB 1733 is
powered by a rechargeable battery
pack. It charges automatically whenever the Handset is in the Base Unit.
You should charge the battery pack for
16 hours when you first receive your
phone. You’ll know the battery pack
needs charging when:
• The low battery message is
displayed:
• The Handset seems completely
dead, the LCD is completely clear
and does not activate when you
press the keys.
TO CHARGE THE BA TTER Y
P ACK
To charge the battery pack, place the
Handset in the Base Unit. The
CHARGING indicator will light to show
the Handset is seated properly and the
battery pack is charging. It is recommended that the battery pack be
charged for at least 16 hours initially.
Afterwards, 8 hours of maintenance
charging should be sufficient. You can
use your telephone before that with
diminished capacity, but it is best to
charge the battery pack fully. It will take
several recharge cycles to maximize
the charge capacity of your battery
pack. The maximum battery life between charges is 7 hours of continuous
talk time or 14 days of stand by.
Alternatively, if the spare battery pack
has been charging in the Base Unit,
simply exchange the drained Handset
battery pack with the fully charged replacement battery pack from the Base
Unit charger. Place the drained
Handset battery pack into the Base
Unit charger so that it will charge.
The Base Unit spare battery charger
does NOT charge a battery pack as
quickly as the main Handset battery
charger. A full charge requires 24
hours.
A WORD ABOUT RECHARGEABLE BA TTERIES
Your Ni-Cd battery pack recharges
whenever the Handset is returned to
the Base Unit.
IT’S IMPOSSIBLE TO OVERCHARGE THE BATTERY PACK
The battery pack can be recharged
many times but if you get a low-battery
signal even after 8 hours of charging in
the Base Unit cradle (or 24 hours in the
Base Unit spare battery charger), the
battery pack(s) should be replaced.
To purchase replacement battery
packs, call Customer Service at
800-877-1624.
8
INSTALLING THE BATTERY PACK
REPLACING THE HANDSET
BA TTER Y PACK
Follow the steps below:
1.Remove the battery case cover by
pressing on the ridged lines and
sliding downward.
2.Discard the old battery pack. Don’t
put the old battery pack in a trash
compactor or a fire - it could burst.
Please recycle.
3.Place the new battery pack in its
housing with the metal contacts
facing down.
1.Use only Cincinnati Bell rechargeable battery pack, or equivalent.
2.Do not dispose of the battery pack
in a fire. The cell may explode.
IMPORTANT: Do not dispose of this
battery pack into household garbage. For information on recycling
or proper disposal, consult your
local solid waste collection or
disposal organization.
3.Do not open or mutilate the battery
pack. Released electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic
if swallowed.
4.Exercise care in handling batteries
in order not to short the battery with
conducting materials such as rings,
bracelets, and keys. The battery
pack or conductor may overheat
and cause burns.
To purchase replacement battery
packs, call Customer Service at
800-877-1624.
4.Replace the battery case cover by
sliding the cover upwards.
5.If the new battery pack is not
already charged, place the Handset in the cradle of the Base Unit
to allow it to charge for 16 hours.
CAUTION: To Reduce the Risk of
Fire or Injury to Persons, Read and
Follow the Instructions
SPARE BATTERY CHARGER /
POWER B ACKUP FUNCTION
When the Spare Battery pack is
installed in the Base Unit, the CB 1733
uses this battery to provide operational
backup in case of a power failure. If you
have a fully charged battery pack in the
Spare Battery charger and there is a
power outage, you will still be able to
place and receive calls on the CB 1733
Handset for up to 4 hours.
The Spare Battery pack can also be
used to replace a drained Handset
battery to ensure uninterrupted use.
Be sure to put the drained battery pack
in the Spare Battery charger.
9
GETTING STARTED
SETTING UP AC POWER
ADAPTER
Plug the AC power adaptor into an
electrical outlet and the DC connector
to the back of the Base Unit.
CAUTION: USE CLASS 2, 9V
DC POWER SUPPLY ONLY.
SETTING RINGER
The Handset ringer is programmed
ON as the factory default setting. To
change ringer settings, see RINGER
TONE / VOLUME.
The Base Unit ringer is controlled
independently, by a switch located on
the front, right hand side (antenna
side) of the Base.
The Base ringer have 3 settings,
High, Low and Off.
TONE/PULSE SELECTION
Your CB 1733 is preset for Tone
dialing. If you have rotary (pulse)
service, program the Handset
accordingly. See SET TONE/PULSE
for details.
CHARGE THE HANDSET B A TTER Y
P A CK BEFORE USE.
The battery pack recharges
automatically whenever the Handset
is in the Base Unit. The battery pack
must be charged for 16 hours before
using your phone for the first time.
CONNECT THE TELEPHONE
LINE CORD
Plug one end of the telephone line
cord into the jack on the back of the
Base Unit, plug the other end of this
cord into the wall jack.
CHECK FOR A DIAL TONE
After the battery is charged, rotate
the Base Unit antenna to upright position. Now press PHONE on the Handset. PHONE ON will appear on the
LCD, and you will hear a dial tone. If
not, see IN CASE OF DIFFICULTY.
Fill in the telephone number card on
the Base Unit.
CAUTION:
1. Never install telephone wiring during a lightning storm.
2.Never install telephone jacks in
wet locations unless the jack is
specifically designed for wet locations.
3.Never touch uninsulated telephone wires or terminals unless
the telephone line has been disconnected at the network interface.
4.Use caution when installing or
modifying telephone lines.
10
WALL MOUNTING
USING THE WALL MOUNT
ADAPT OR
1. Position the wall mount bracket
on the Base Unit.
Line up the tabs on the wall
mount adaptor with the holes on
the bottom of the Base Unit . Snap
the wall mount bracket firmly in
place.
2. Mount the Base Unit on the wall.
Position the Base Unit so the
mounting studs will fit into the
holes on the bottom of the Base
Unit. Position the power cord to
extend down the wall the phone
is to be mounted on. Slide the
Base Unit down on the mounting
studs until it locks into place.
4. Connect the telephone line cord.
The telephone line cord has a
snap-in plug at each end. Insert
one of the plugs into the jack on
the bottom of the Base Unit. Insert
the other end of the plug into the
wall jack.
3. Plug in the AC adaptor.
Plug the AC adaptor into an
electrical outlet, and the DC
connector to the back of the Base
Unit. If the Handset battery pack
has not been charged
previously, place the Handset in
the Base Unit cradle, and allow it
to
charge for 16 hours.
11
HANDSET LAYOUT
12
BASE LAYOUT
13
QUICK REFERENCE GUIDE
Here is a brief guide to the features
and functions of your CB 1733 cordless
telephone:
SET-UP
• Plug AC adaptor into a standard
electrical outlet.
• Set Dial Mode setting in MENU to
PULSE or TONE, The unit is factory
set to TONE.
• Let Handset battery pack charge
for 16 hours before first use.
• Connect telephone line cord to
Base Unit and telephone jack.
SETTING TIME
With the Handset in the idle (off)
mode:
• Press MENU
digit hour must be preceded by a
0.
• Next, enter the minute.
• Next, select the Hour Presenta-
tion (12-hour or 24-hour format)
by pressing the key directly below
the 12 or 24 icon in the handset
display.
• Press SAVE. The display will
confirm that the time has been
updated.
• The time setting will also auto-
matically be updated when Time/
Date information is received from
Caller ID.
MAKING CALLS
• Use the / soft keys to scroll
until 5. Set Time is highlighted
• Press ENTER
• Enter the current hour. A single-
FROM THE HANDSET
• Press PHONE. The Handset will
briefly display CONNECTING,
then PHONE ON. Listen for dial
tone. Using the keypad, dial the
desired number. To end your call,
press OFF, or retur n the handset
to the base unit.
-OR-
• First, dial the desired number.
Then, press PHONE. After accessing dial tone, the phone
number will be dialed. To end
your call, press OFF, or return the
handset to the base unit.
14
QUICK REFERENCE GUIDE
FROM THE BASE
• Press SPEAKERPHONE, then
wait for dial tone. Dial the desired
phone number.
• To end your call, press
SPEAKERPHONE again.
TONE key. When you end your
*
call by pressing OFF or returning
the handset to the base unit, the
phone will return to the rotary
(PULSE) mode.
VOLUME CONTR OL
ANSWERING CALLS
• When there is an incoming phone
call, pressing OFF key on the
handset can stop the ringing.You
can also answer the call simply by
pressing any key except OFF,
VOLUME, INT.COM keys and 3
PPU keys.
FROM THE HANDSET:
• Press any key except OFF,
Volume, INT.COM keys and 3
PPU keys.
• Press OFF to end your call.
FROM THE BASE:
• Press SPEAKERPHONE. To end
your call, press SPEAKERPHONE
again.
TEMPORARY T ONE
• If your local telephone service
requires rotary (PULSE) dialing,
you can temporarily switch to
TONE dialing for such purposes
as accessing answering machines, bank-by-phone services,
and using calling cards.
FROM THE HANDSET
• The phone must be ON.
• Located on the side of the Hand-
set, press the VOLUME UP or
VOLUME DOWN keys to raise or
lower the earpiece volume. There
are 8 volume levels.
FROM THE BASE
• The Base Unit has its own volume
control. The VOL Up and Down
keys are located directly above
the SPEAKERPHONE key.
RINGER CONTROL
FROM THE HANDSET
With the Handset in the idle (off)
mode:
• Press MENU
• To switch from rotary to tone
dialing during a call, press the
15
QUICK REFERENCE GUIDE
• Using the
scroll until 3. Ringer Tone/Vol is
highlighted
• Press ENTER
• Use the RING soft key to select
the Ringer Type (there are 4 ring
styles) and Vol soft key to select
the ringer volume (High, Low or
Off).
• Press SAVE to store your ringer
settings
• To exit programming mode at any
time, press OFF key .
/ soft keys,
while the CB 1733 has a call on
HOLD, the CB 1733 will release
the call and turn itself OFF.
FROM THE BASE
• During a Speakerphone call,
press HOLD on the Base Unit.
The red light (LED) buit into the
SPEAKERPHONE key, will flash
rapidly while your call is on hold.
• Press either HOLD or
SPEAKERPHONE to return to
your call.
MUTE
FROM THE HANDSET
• Press the MUTE soft key to disable the Handset microphone
during an active call. Press the
TALK soft key or the PHONE key
to return to normal 2-way
conversation.
FROM THE BASE
• The Base Unit ringer is controlled
independently, by a switch located
on the front, right hand side
(antenna side) of the Base.
• The Base ringer has (3) settings:
High, Low and Off.
HOLD
FROM THE HANDSET
• Press the HOLD soft key to place
an active call on hold. Press the
TALK soft key or the PHONE key
to return to your call.
• If an extension phone is activated
FROM THE BASE
• During a Speakerphone call,
press MUTE to disable the Base
Unit microphone. The red light
(LED) buit into the MUTE key, will
glow.
• Press MUTE again to return to a
two-way conversation.
REDIAL WITH THE HANDSET
ON (OFF HOOK)
16
QUICK REFERENCE GUIDE
• Press the RDL soft key to display
the last three telephone numbers
you dialed.
P AGE/HANDSET LOCAT OR
• Using the / soft keys,
select the number from the list
and then press DIAL soft key.
REDIAL WITH THE HANDSET
OFF (ON HOOK)
• To page the Handset from the
Base Unit, press INTER.COM. The
Handset and Base Unit will emit a
special beep tone for up to 60
seconds, In addition, the Handset
will display BASE PAGING.
• To answer the page, press
INT.COM on the Handset. You are
now in intercom mode.
• To terminate the page, press OFF
on the Handset,or INTER.COM
on the Base Unit.
• Press RDL. The Handset will the
display last 3 phone numbers
dialed.
• Use the / soft keys to
highlight the desired phone
number.
• Press PHONE. The CB 1733 will
access dial tone, and dial the
number.
INTERCOM BETWEEN
HANDSET AND BASE
FROM THE HANDSET (when
HANDSET OFF or ON HOOK)
• Press the INT.COM key. The Base
Unit will emit 2 short tones and
then enter Intercom mode. You
can now talk to the person at the
Base Unit.
• The Handset will display as:
17
QUICK REFERENCE GUIDE
• Press the MUTE softkey to mute
the handset microphone. But you
can still hear the speaking from
the Base.
• You can return the intercom
conversation with the Base by
press the TALK softkey.
• Press the OFF key to end the
intercom mode.
FROM THE HANDSET (when
HANDSET ON or OFF HOOK)
• You can use the intercom when
you are in a call.
• Press the INT.COM key, then you
can talk to the Base unit.
• At the same time, your active call
will be place on HOLD.
• You can press the MUTE softkey
to mute the handset microphone.
But you can still hear the speaking
from the Base.
• You can return the intercom
conversation with the Base by
press the TALK softkey.
• Press the OFF key to end the
intercom mode. But, at this time,
your call still on hold. You need to
press the TALK softkey or the
PHONE key to return to your call.
• Anytime in the intercom mode,
you can press the PHONE key to
end the intercom and return to
your call.
FROM THE BASE (when
SPEAKERPHONE OFF)
• Press INTER.COM key to page
the Handset.
• After the Handset receives the
page from the Base, press the
INT.COM key on the Handset to
establish conversatiion.
• During the intercom, you can
press the MUTE key to mute the
microphone on the Base. But you
can still hear the speaking from
the Handset.
• Press the MUTE key once again
to release the mute function.
• Press INTER.COM key to exit the
intercom mode.
FROM THE BASE (when
SPEAKERPHONE ON)
• You can use intercom dur ing a call
• Press INTER.COM key to page the
Handset. You will be on hold.
• After the Handset receives the
page from the Base, press the
INT.COM key on the Handset to
establish conversation.
• During the intercom, you can press
the MUTE key to mute the
microphone on the Base. But you
can still hear the speaking from
the Handset.
• Press the MUTE key once again to
release the mute function.
• Press INTER.COM and then
SPEAKERPHONE key to exit the
intercom mode and return to the
call.
• Or simply press SPEAKERPHONE
to exit the intercom mode and
return to the call.
18
QUICK REFERENCE GUIDE
CONFERENCE
Your CB 1733 allows you to establish
a 3 party conference between the
Handset, Base and the incoming
call:
1) Use either the Base or the Handset
to make a call.
2) If you are using the Base to make
the call, the Handset can join the
conference by pressing PHONE.
Or, press the SPEAKERPHONE
key on the Base if you use the
Handset to make the call.
3) If either the Handset or the Base
parties want to leave the
conference, either side can press
OFF (or SPEAKERPHONE) to
leave.
REVIEWING CALLER ID
RECORDS
NOTE: Caller ID and Call Waiting ID
are subscription services, available
through most local telephone service
providers. These are optional services; you are not required to subscribe
to them. However, to receive Caller ID
on your CB 1733, subscription through
your local phone company is required.
• Press MENU
• Using the / soft keys scroll
until 1. Caller ID is highlighted
• Press the ENTER soft key.
• Use the / soft keys to
scroll through the Caller ID
records. The CB 1733 will store
the last 50 Caller ID records to
come in.The latest one will be in
#01.
• Press OFF to exit Caller ID mode.
MEMORY DIALING
FROM THE HANDSET
With the Handset OFF (on hook):
• Press the MEM soft key.
With the Handset in the OFF (on
hook) mode:
19
QUICK REFERENCE GUIDE
• Enter Memory Location (01 – 25).
As soon as you enter the second
digit, the contents of the selected
Memory Location will be
displayed.
• Enter Memory Location (01 – 25).
• Press PHONE key or the DIAL
soft key to dial the displayed
phone number.
The displayed phone number will
be dialed.
• Press the PHONE or DIAL key.
FROM THE BASE
With the Handset ON (off hook):
• Press PHONE. Listen for dial
tone.
• Press the MEM soft key.
• Press the SPEAKERPHONE to
get the dial tone.
• Press MEMORY key, then enter 2
digit location number (01-25).
• You will then hear the dialing
sequence.
FLASH
• You can use your CB 1733 with
services such as Call Waiting.
Simply press the PHONE key to
flash the line on the Handset, OR
press FLASH on the Base.
20
SOFTMENU FUNCTIONS
The CB 1733 has an advanced de-
sign which uses a menu system and
soft keys to access all of the built-in
features.
Example of the idle mode display:
NEW: The number of Caller ID records
not previously viewed
TOTAL: The total number of stored
Caller ID records (50 max.)
RDL (Redial)
Press RDL to display the last 3 telephone numbers dialed. The number
on the top line is the most recent number
dialed. The display will look like:

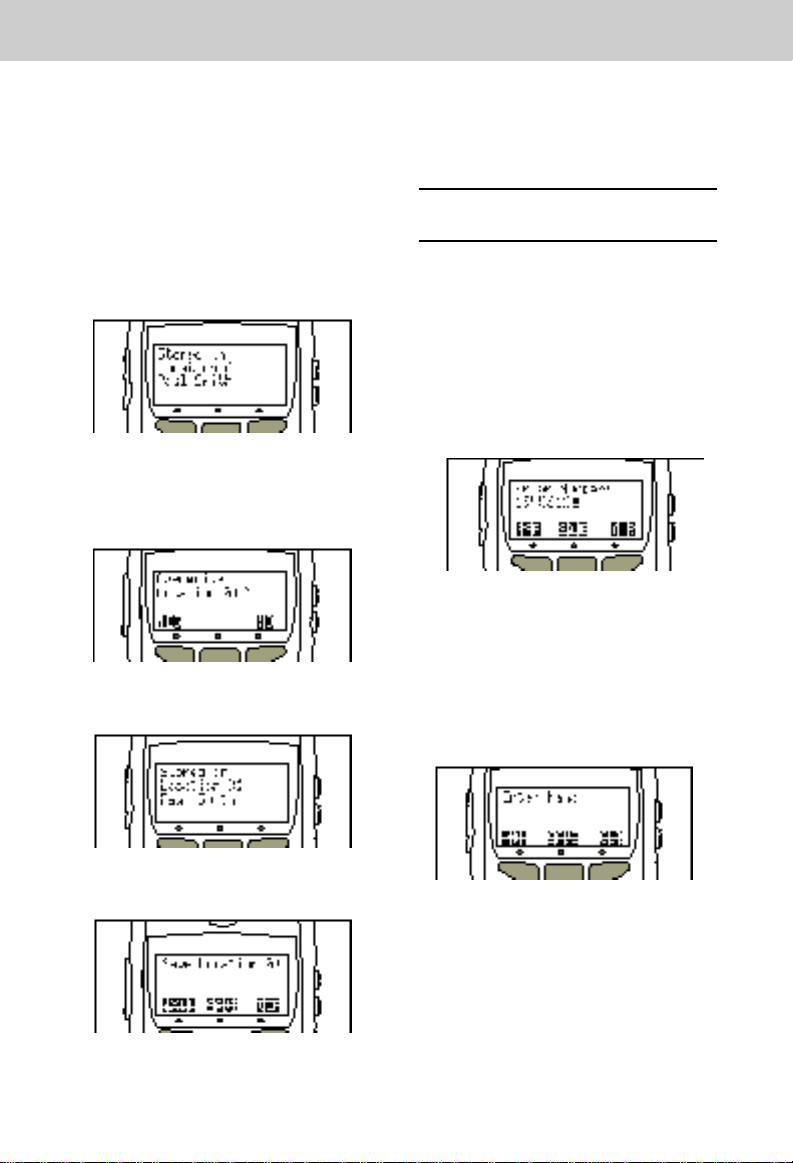

• Press PSE if you want to add a 2-
second pause in the dialing sequence
• Press CLR to backspace
• Press SAVE to save the phone
number in the Phone Book directory. The LCD will display:
• Using the keypad, enter the
desired name (15 character
maximum)
• Press to advance the cursor to
the next space. You won’t have to
advance the cursor if the next
letter of the name is not on the
same key as the previous letter; it
will advance automatically.
• Press CLR to backspace
• Press SAVE when you finished
entering the desired name. The
LCD will display:
• Use the / soft keys to
select desired number.
• Once highlighted, press PHONE
to dial.
• To save the phone number in the
phone book directory, press SA VE.
The LCD will display:
• The XX location displayed is the
smallest, unoccupied directory
location. If you want to save the
phone number in a different location, press CLR, and then enter
the two-digit directory location you
desire (01 – 25).
• Press SAVE to confirm your loca-
tion selection. The screen will
display:
21
SOFTMENU FUNCTIONS
• CLR to clear the display and
allow you to enter another location number,
• EXIT to exit Memory Dialing, and
return to the idle mode display.
MEM (Memory)
From the idle mode display,press
MEM, the screen will now display:
Enter the 2-digit location code representing the Phone Book directory
record you wish to access. The screen
will display the contents of that record.
If the contents of the selected record
are empty, the screen will display:
and then ask for another 2-digit location code.
With the contents of the Phone Book
record displayed, press:
• DIAL to access the line and dial
the displayed phone number,
You can also access directory
records by entering the name of the
desired party. See PHONE BOOK for
details.
MENU
With the Handset in the idle (OFF)
mode, press the MENU key to access
the following options:
1. Caller ID
2. Phone Book
3. Ringer T one/V ol
4. KeyBeep On/Off
5. Set Time
6. Clear ALL MEM
7. AutoAns (Auto Answer) On/Off
8. Set Tone/Pulse
9. Del (delete) MSG Icon.
Use the
desired option, then press ENTER.
Because there are only three lines to
display information, only three of the
menu options will be displayed at a
time. The first screen displayed is:
1. Caller ID
2. Phone Book
3. Ringer T one/V ol
The second screen is:
4. KeyBeep On/Off
5. Set Time
6. Clear ALL MEM
/ keys to select the
22
SOFTMENU FUNCTIONS
And the third screen is:
7. AutoAns (Auto Answer) On/Off
8. Set Tone/Pulse
9. Del (delete) MSG Icon
The following sections will detail
how to access and operate the nine
MENU functions.
Note: You do not have to use the
/ soft keys to select menu
options. Instead, you can simply
press the number key that corresponds to the desired feature.
For an example, if you want to access
the Set Time function, using the
soft keys you would do the following:
• Press MENU
/
However, using the shortcut, all you
would need to do is:
• Press MENU
• Press the 5 key to enter the Set
Time function
• Then follow the on-screen
prompts.
• Using the / keys, scroll
until 5. Set Time is highlighted
• Press ENTER
• Then follow the on-screen
prompts
23
CALLER ID
Once you have chosen CALLER ID
(Menu selection #1), the screen will
display:
• If an N in a shaded box appears
in the upper right hand corner of
the Caller ID screen, this indicates
that it is a new (not previously
viewed) record.
If a number in a shaded box
appears in the upper right hand
corner of the Caller ID screen, this
indicates that you have received
multiple calls from this party. For
example, a 3 indicates that the
party has called 3 additional times
since the initial call. This repeat
indicator can go to a maximum of
9.
• Use the / keys to scroll
through the records.
• Once you have found the desired
record, press PICK.
SAVE
Press SAVE while reviewing a Caller
ID record. The screen will display:
• Press PSE if you want to add a 2second pause in the dialing sequence
• Press CLR to backspace
• Press SAVE to save the phone
number in the Phone Book directory. The LCD will display:
You now have 3 options:
• SAVE the phone number (and
name) in the Phone Book directory,
• DIAL the phone number, or
• DEL (delete) the Caller ID record
from memory.
• Press to advance the cursor to
the next space. You won’t have to
advance the cursor if the next
letter of the name is not on the
same key as the previous letter; it
will advance automatically.
• Press CLR to backspace
• Press SAVE when you finish en-
tering the desired name. The
LCD will display:
24
CALLER ID
• If you want to save the phone
number in a different location,
press CLR, and then enter the
two-digit directory location you
desire (01 – 25).
• Press SAVE.The screen will
confirm your location selection.
- OR -
• Press EXIT to cancel the operation and return to the idle mode
display. The screen will display:
• To dial, use the / scroll
keys to select the desired dialing
option, then press DIAL or
PHONE;
- OR -
• Enter the desired number key, 1
through 4. The CB 1733 will
access dial tone, and dial the
selected sequence.
DEL (Delete)
Press DEL while reviewing a Caller
ID record. The screen will display:
DIAL
Press DIAL or PHONE when re-
viewing a Caller ID record. The screen
will display up to 4 dialing options:
(examples)
1. 643-8981
Local# only (7 digits)
2. 1-503-643-8981
Long Distance (11 digits)
3. 503-643-8981
Area Code+ local# (10 digits)
4. 1-643-8981
“Local” Long distance (8 digits)
• Press YES to delete the dis-
played Caller ID record. The
screen will say:
• Press NO to cancel the deletion,
and return to the main display.
25
CALLER ID
CALLER ID - CALL WAITING
ID
Your CB 1733 is capable of display-
ing the name and/or number of the
party calling before you answer the
phone (Caller ID). It is also capable of
displaying Caller ID information in conjunction with a Call Waiting alert signal
(Call Waiting ID). With Call Waiting ID,
the Caller ID data will help you decide
whether to switch to the incoming call,
or continue with you current conversation.
NOTES ABOUT CALLER ID &
CALL W AITING ID
These are subscription services,
provided by most regional telephone
service providers. You must subscribe
to these services to get the benefits of
these features. If you do not subscribe
to Caller ID services, you can still use
your CB1733 and the other features it
offers.
Due to regional incompatibilities,
Caller ID information may not be available for every call you receive. In
addition, the calling party may block
their name and phone number from
being sent.
PHONE BOOK
The names and phone numbers of
25 frequently called parties can be
stored in the CB 1733 Phone Book
directory. You will find instructions for
programming names and numbers into
the directory in the section, ADDING
NEW PHONE BOOK RECORDS.
Once you have chosen PHONE
BOOK (Menu selection #2), the screen
will display:
Using the numeric keys, enter the
first letter of the desired name. The
Handset will display either the exact
record, or a close match. If it is not the
desired record, press the
keys to search.
Once you are viewing the desired
record, press PICK. You now have the
following options:
/ scroll
• EDIT – if you want to change the
name or phone number
• DIAL – to access the line and dial
the phone number
• DEL - to delete the record from
the directory. You will then be
prompted to press YES to confirm
deletion or NO to cancel and
return to the idle mode display.
EDITING PHONE BOOK
RECORDS
If you press EDIT, the Handset will
display:
• Press PSE if you want to add a 2-
second pause in the dialing sequence
• Press CLR to backspace
• Press SAVE to save the phone
number in the Phone Book directory. The LCD will display:
• Press to advance the cursor to
the next space. You won’t have to
advance the cursor if the next
letter of the name is not on the
same key as the previous letter; it
will advance automatically.
• Press CLR to backspace
• Press SAVE when you finished
entering the desired name. The
LCD will display:
28
PHONE BOOK
The XX location displayed is its origi-
nal location.
If you want to save the phone number
in a different location, press CLR, and
then enter the two-digit location number.
Press SAVE to confirm your location
selection. The screen will display:
If you are saving an edited record in
its original directory location, you will
see the following message after pressing SAVE:
If you press YES, the Handset will
display:
You can choose a new location, or
press EXIT to return to the idle mode
display.
ADDING NEW PHONE BOOK
RECORDS
Starting from the idle mode (off) display, enter the number you want to
store in the Phone Book directory.
Then:
• To save the phone number in the
phone book directory , press SA VE.
The LCD will display:
• Press PSE if you want to add a 2-
second pause in the dialing sequence
• Press CLR to backspace
• Press SAVE to save the phone
number in the Phone Book directory. The LCD will display:
If you press NO, the Handset will
return to:
Each of the number keys has a specific set of characters. Each press of a
particular number key causes characters to be displayed in the following
order:
29
PHONE BOOK
Number Key Characters (in order)
1 ................... & ' , . 1
2 ................... a b c 2
3 ................... d e f 3
4 ................... g h i 4
5 ................... j k l 5
6 ................... m n o 6
7 ................... p q r s 7
8 ................... t u v 8
9 ................... w x y z 9
0 ................... 0
• Press to advance the cursor to
the next space. You won’t have to
advance the cursor if the next
letter of the name is not on the
same key as the previous letter; it
will advance automatically.
• Press CLR to backspace
• Press SAVE when you finished
entering the desired name. The
LCD will display:
• Press SAVE to confirm your loca-
tion selection. The screen will
display:
• The XX location displayed is the
smallest, unoccupied directory
location. If you want to save the
phone number in a different location, press CLR, and then enter
the two-digit directory location you
desire (01 – 25).
30
RINGER TONE / VOLUME
KEY BEEP ON/OFF
You can adjust the Handset ringer
style and volume level. There are 4
ringer styles and 3 volume levels: HI,
LO, and OFF.
Once you have selected RINGER
TONE/VOL (Menu selection #3), the
Handset will display:
To select a ringer style, press the
RING soft key.
To adjust ringer volume, press the
VOL soft key.
Press SAVE to confirm your selections. The screen will display Setting
Updated, and return to the idle mode
display.
As you use your CB 1733, you will
hear a quiet
You can turn this feature
choose KEY BEEP to be OFF.
Once you have selected KEY BEEP
ON/OFF (Menu selection #4), the Hand-
set will display:
Press ON or OFF, depending on
your preference, then press SAVE. The
screen will display Setting Updated,
and return to the idle mode display.
Factory default setting is Key Beep
ON.
beep
with each key press.
off
, if you
If you select Ringer Volume HI , the
LO
''.
, the
''.
idle mode screen will display''
If you select Ringer Volume
idle mode screen will display''
If you select Ringer Volume OFF,
the idle mode screen will display
''.
''
31
SET TIME
CLEAR ALL MEM
Once you have selected SET TIME
(Menu selection #5), the Handset will
display:
If you prefer a
times called
Enter the current time by pressing
the appropriate numbers on the
keypad. A single digit hour must start
with 0.
For a 12-hour clock, choose AM or
PM. The label above the left soft key
alternates between AM and PM. If the
clock is set to an AM time, the soft key
is PM. When the clock is set to a PM
time, the soft key is AM.
Press SAVE to confirm your selections. The Handset will display Setting
Updated, and return to the idle mode
display.
24-hour
Military Time
clock (some-
), press 24H.
This feature allows you to erase the
entire contents of the PHONE BOOK
and/or CALLER ID memory.
Once you have chosen CLEAR ALL
MEM, (Menu selection #6), the Handset
will display:
Use the / scroll keys to make
your selection, then press ENTER.
The screen will ask you to confirm
your decision to delete the entire contents of Caller ID or Phone Book
memory; for example:
Press YES to confirm. The screen
will display:
If you change your mind and do not
want to delete all records, press NO.
You will be returned to the idle mode
display.
32
AUTO ANSWER ON/OFF
SET TONE /PULSE
Factory default setting is Auto
Answer OFF.
With Auto Answer set to OFF,
when the phone is on cradle, you
cannot simply pick up the phone to
answer incoming call, you must press
PHONE to answer the call. This
allows you to review the Caller ID
information before answering. However, if you prefer to have your
Handset automatically answer the
call when removed from the Base
cradle:
Select AutoAns On/Off (Menu se-
lection #7). The Handset will display:
Press ON (or OFF if you’re canceling
Auto Answer), then SAVE. The screen
will display Setting Updated, and re-
turn to the idle mode display.
Your CB 1733 is preset for tone
dialing.To change the dialing mode
setting, choose SET TONE/PULSE
(Menu selection #8), the screen will
display:
Press TONE or PULSE, depending
on the requirements of your local
telephone provider.If you are not sure,
contact your local phone company.
Press SAVE. The screen will confirm
that the dialing mode is updated, and
then return to the idle mode display.
Delete MSG Icon
Refer to MESSAGE WAITNG.
INDICATIOR for an explanation of this
teature.
33
HEADSET OPERATION
Your CB 1733 is equipped with a
2.5mm Headset Jack for use with an
optional accessory Headset for handsfree operation.
If you choose to use the Headset
option, you must obtain an optional
accessory Headset, which is compatible with the CB 1733.
To purchase a Headset, call
800-877-1624.
Once you have a compatible 2.5mm
Headset, locate the Headset Jack on
the CB 1733 Handset. Connect the
plug on the Headset cord to the jack on
the cordless Handset. The plug should
fit securely. Do not force the connection.
OPERATION
NOTE: Whenever a compatible
Headset is connected to the cordless
Handset, the microphone on the Handset will be muted. This is done to limit
the effect of background noise.
The following operational characteristics apply to compatible Headsets.
The same may also apply to other
headsets, but Cincinnati Bell assumes
no responsibility for their performance.
BELT CLIP
The CB 1733 is also equipped with
a detachable belt clip. Align the pins on
the inside edge of the clip with the
notches on the sides of the CB 1733
Handset. The belt clip should snap
securely into place. Do not force the
connection.
34
ADDITIONAL OPERATING TIPS
OUT OF RANGE INDICATION
When the handset is in Phone On
mode and moved to a point where it
and the Base Unit can no longer communicate, the Handset will beep twice
and display OUT OF RANGE:
and attempt to re-link with the Base. If
this occurs while you’re on a call, move
closer to the Base Unit.
If the Handset does not re-establish
contact with the Base within 30 seconds of losing contact, the Handset will
automatically drop the call and turn off.
If you walk out of range while the
Handset is not in use, the Handset will
beep twice and display OUT OF
RANGE until the user press any key.
NOTE: If the Base Unit is without
power, the Handset will behave as if
it is out of range. Therefore, if the
handset beeps, the display OUT OF
RANGE occurs, and moving closer
to the Base does not help, check the
Base Unit to make sure it has power.
service from your local telephone company, and a visual message waiting
signal is provided, the CB 1733 will
display
Handset LCD to alert you to new,
unplayed messages.
On the Base, the red MESSAGE LED
will light up to alert you to new unplayed
messages.
Once you have reviewed all of your
new voicemail messages and hung up
the phone, the CB 1733 will usually
turn off the Handset and Base indicators
automatically. Note that there is a delay
for the indicators to turn off, as the CB
1733 is waiting for an update signal
from the telephone network.
After all new voicemail messages
have been reviewed, if the MESSAGE
WAITING indicator (icon or Base LED)
remains on, you can manually clear
the indications as follows:
• Press MENU, scroll to 9. Del MSG
on the right side of the
Icon. Press ENTER
MESSAGE W AITING
INDICATOR (for use with
Voicemail)
Your CB 1733 is capable of detecting a visual Message Waiting signal,
generated by many phone service providers. If you subscribe to Voicemail
• Press YES to delete the icon and
Base LED.
35
ADDITIONAL OPERATING TIPS
NOTE: Message Waiting indicator
works in conjunction with V oicemail
service from many local phone
companies. This is an optional
service; you are not required to
subscribe to it.
CUSTOM PAY-PER-USE (PPU)
FEATURES
Your CB 1733 gives you easy ac-
cess to 5 popular custom features, offered by many telephone companies:
1. Return Call
2. Repeat Dial
3. No Call Wait
4. Call FWD ON
5. Call FWD OFF
To use a custom Pay-Per-Use feature, do the following:
• Press PHONE. Listen for dial
tone.
• Press the SERV soft key.
• Using the
scroll until the desired custom
feature is highlighted.
• Press ENTER.
In addition 3 custom pay-pay-use
servises are accessible using onetouch keys located both the CB 1733
Handset and Base Unit;
Specifically:
AUTO CALL RETURN *69
3-WAY CALLING
AUTO BUSY REDIAL *66
AUTO CALL RETURN *69 dials the
last party who called you, whether or
not you answered the call. A charge
/ soft keys,
is added to your phone bill each time
you use this feature.
3-WAY CALLING allow you to talk
with 2 separate parties from a single
line. The set-up procedure is as
follows:
1) Call your first party; after the party
answers,
2) Press 3-WAY CALLING. Wait for
dial tone.
3) Call your second party; after the
call is answered.
4) Press 3-WAY CALLING again.
A charge is added to your phone bill
each time this service is used.
AUTO BUSY REDIAL *66 repeatedly
dials the last number your called,
over a time interval determined by
your local company. This is useful in
reaching a party whose line is busy
A charge is added to your phone bill
each time this service is used.
NOTE: It is likely that your local
telephone company will assess
charges to use custom features. You
should check with your local service
provider regarding which custom services are available in your area, and the
associated costs for the intentional or
unintentional use of Pay Per Use
services.
Your local telephone company may
provide a monthly subscription to an
individual service or a package of
services which gives you unlimited
usage for a small monthly fee.
36
ADDITIONAL OPERATING TIPS
LOW BATTERY INDICATION
During a Low Battery condition, the
Handset LCD will display:
When this occurs, you should either
return the Handset to the Base Unit for
recharging, or exchange the drained
Handset battery with a fully charged
battery from the Spare Battery charger.
CHECK AC POWER
INDICA TION
A charged battery installed in the
Base Unit will allow you to make and
receive calls from the Handset in the
event of a power failure, for
approximately 4 hours.During power
back-up mode, the Handset will display:
If your CB 1733 displays this
message, and AC power is present,
check the electrical outlet and the AC
adapter, ensuring that it is firmly
connected to the outlet and the Base
Unit.
37
MAINTENANCE
TAKING CARE OF YOUR
TELEPHONE.
Your Cincinnati Bell cordless
telephone contains sophisticated
electronic parts, so it must be treated
with care.
AVOID ROUGH TREATMENT
Place the Handset down gently. Save
the original packing materials to
protect your telephone if you ever
need to ship it.
A VOID W A TER
Your telephone can be damaged if it
gets wet. Do not use the Handset
outdoors in the rain, or handle it with
wet hands. Do not install your Base
Unit near a sink, bathtub or shower.
ELECTRICAL STORMS
Electrical storms can sometimes cause
power surges harmful to electronic
equipment.
For your own safety, be caution when
using electrical appliances during
storms.
CLEANING Y OUR TELEPHONE
Your telephone has a durable plastic casing that should retain its luster for
many years. Clean it only with a soft
cloth slightly dampened with water or
a mild soap. Do not use excess water
or cleaning solvents of any kind.
Remember that electrical appliances
can cause serious injury if used when
you are wet or standing in water. If
your base unit should fall into water,
DO NOT RETRIEVE IT UNTIL YOU
UNPLUG THE POWER CORD AND
TELEPHONE LINE CORDS FROM
THE WALL. Then pull the unit out by
the unplugged cords.
38
IN CASE OF DIFFICULTY
If you have difficulty operating your
phone, the suggestions below should
solve the problem. If you still have
difficulty after trying these suggestions,
call the Customer Service at 800-877-
1624.
THE PHONE DOESN’T WORK
AT ALL.
• Make sure the Power Cord is
plugged in.
• Make sure the telephone line
cord is plugged firmly into the
Base Unit and the telephone wall
jack.
• Make sure the battery pack is
properly charged. If the "LOW
BATTERY" message is shown,
the battery pack needs charging.
NO DIAL TONE.
• First check all the suggestions
above.
• If you still don’t hear a dial tone,
disconnect the Base Unit from the
telephone jack and connect a
different phone. If there is no dial
tone on that phone either, the
problem is in your wiring or local
service. Call your local telephone
company.
YOU GET NOISE, STATIC, OR
A WEAK SIGNAL EVEN
WHEN Y OU’RE NEAR THE
BASE UNIT.
• Household appliances plugged
into the same circuit as the Base
Unit can sometimes cause
interference. Try moving the
appliance or the Base Unit to
another outlet.
YOU GET NOISE, STATIC, OR
A WEAK SIGNAL WHEN
YOU’RE AWAY FROM THE
BASE UNIT.
• You may be out of range. Either
move close to or relocate the
Base Unit.
• The layout of your home may be
limiting the range. Try moving the
Base Unit to another position.
THE HANDSET DOES NOT
RING WHEN YOU RECEIVE A
CALL.
• Make sure you have the Handset
ringer activated.
• Make sure the telephone line
cord is plugged firmly into the
Base Unit and the telephone jack.
Make sure the power cord is
plugged in.
• You may be too far from the Base
Unit. And the "OUT OF RANGE"
message is shown on LCD.
• You may have too many extension
phones on your telephone line to
allow all of them to ring. Try
unplugging some of the other
phones.
YOU HEAR OTHER CALLS
WHILE USING YOUR PHONE.
• Disconnect your Base Unit from
the telephone jack, and plug in a
regular telephone. If you still hear
other calls, the problem is
probably in your wiring or local
service. Call your local telephone
company.
39
38
W ARRANTY STATEMENT
WHAT DOES OUR WARRANTY COVERS?
Any defect in material or workmanship.
FOR HOW LONG AFTER THE ORIGINAL PURCHASE?
To the original purchaser only - ONE YEAR.
WHAT WILL WE DO?
At our option, repair or replace your unit.
WHO DO I SEND MY UNIT, IN OR OUT OF WARRANTY?
In the U.S. Call Customer Service for Return Authorization
at: 800-877-1624.
Properly pack your unit. Include any cables & accessories which were
originally provided with the product. We recommend using the original
carton and packing materials.
Include in the package a copy of the sales receit or other evidence of date
of original pruchase(if the unit was purchased within the last twelve
months).
Print your name and address, along with a description of the defect, and
include this in the package.
Include payment for any service or repair not by warranty, as determined
by Cincinnati Bell Customer Service.
Ship the unit via UPS insured, or equivalent to the address provided by
Cincinnati Bell. Customer Service.
Cincinnati Bell assumes no responsibility for units sent
without prior Return Authorization.
WHAT DOES OUR WARRANTY NOT COVER?
Batteries
Damage from misuse, neglect, or acts of nature (lightning, floods, power
surges, etc.)
Products with may have been modified or incorporated into other products
Products purchased and/or operated outside the USA, its territories.
Products serviced by the owner or a service facility not expressly authorized
by Cincinnati Bell Customer Service.
Products purchased more than 12 months from current date
Units purchased in "US IS" condition, or units purchased as "Distressed
Merchandise".
HOW DOES STATE LAW OR PROVINCIAL LAW RELATE TO THIS WARRANTY?
This warranty gives you specific rights. You may also have other rights
which wary from state or province to province.
39
TECHNICAL SPECIFICATIONS
FREQUENCY CONTROL
Crystal Controlled Dual PLL Synthesizer
TRANSMIT FREQUENCY
Handset:
904.20 MHz to 925.80 MHz
( All 20 channels within this
range)
Base Unit:
904.20 MHz to 925.80 MHz
(All 20 channels within this
range)
RECEIVE FREQUENCY
Handset:
904.20 MHz to 925.80
MHz
( All 20 channels within this
range)
Base Unit:
904.20 MHz to 925.80MHz
( All 20 channels within this
range)
NOMINAL EFFECTIVE RANGE
Maximum power allowed by FCC
and IC. Actual operating range may
vary according to environmental conditions at the time of use.
cluded)
Base Unit:
21.5 x 16.5 x 5cm (L x W
x T) Maximum (Antenna
excluded)
WEIGHT
Handset :
250 grams
Base Unit:
415 grams
POWER REQUIREMENTS
Handset:
Self-contained nickel-cadmium rechargeable battery supply, 3.6V nominal,
600mAh capacity.
Base Unit:
9VDC @ 500mA
MEMORY
Speed Dial:
25 Memory locations
16 digits and 15 characters
per location.
CID:
Alpha Numeric Display 50
Memory locations
SIZE
Handset :
19 x 6 x 3.5cm (L x W xT)
Maximum (Antenna ex-
SPECIFICA TIONS ARE TYPICAL AND MA Y CHANGE
WITHOUT NOTICE.
40
Printed in China
91-5105-10-00
ISSUE 0
41
TABLE OF CONTENTS
INTRODUCTION......................................................................1
SPECIAL FEATURES...........................................................................2
PARTS CHECKLIST..........................................................................3
FCC REGULATIONS..........................................................4
IMPORTANT SAFETY INSTRUCTIONS.........................................6
INSTALLING THE BATTERY PACK...........................................8
TO CHARGE THE BATTERY PACK..............................................8
A WORD ABOUT RECHARGEABLE BATTERIES..............................8
REPLACING THE HANDSET BATTERY PACK.................................9
SPARE BATTERY CHARGER/POWER BACK UP FUNCTION...................9
GETTING STARTED..............................................................................10
WALL MOUNTING................................................................11
HANDSET UNIT LAYOUT........................................................12
BASE UNIT LAYOUT......................................................................13
QUICK REFERENCE GUIDE.......................................................14
SET-UP...........................................................................................14
SETTING TIME..............................................................................14
MAKING CALLS..................................................................................14
ANSWERING CALLS................................................................................15
TEMPORARY TONE....................................................................15
VOLUME CONTROL..............................................................................15
RINGER CONTROL...........................................................................15
HOLD.................................................................................16
MUTE..........................................................................................16
REDIAL WITH THE HANDST OFF(ON HOOK).........................................16
REDIAL WITH THE HANDST ON(OFF HOOK).....................................17
PAGE/HANDSET LOCATOR............................................................17
INTERCOM BETWEEN THE HANDSET AND THE BASE ......................17
CONFERENCE.......................................................... ......................19
REVIEW THE CALLER ID RECORDS.....................................................19
MEMORY DIALLING............................................................................19
FLASH................................................................................... ......................19
SOFT MENU FUNCTIONS..................................................................21
RDL(Redial)................................................................................21
MEM(Memory)......................................................................................22
MENU.....................................................................................22
CALLER ID.......................................................................24
SAVE...........................................................................24
DIAL....................................................................................25
DEL(Delete)..................................................................25
CALLER ID - CALL WAITING ID.................................................26
NOTES ABOUT CALLER ID & CALL WAITING ID............................26
42
TABLE OF CONTENTS
PHONE BOOK..............................................................27
EDITING PHONE BOOK RECORDS....................................27
ADDING NEW PHONE BOOK RECORDS...............................28
RINGER TONE / VOLUME..................................................30
KEY BEEP ON / OFF............................................................30
SET TIME................................................................................31
CLEAR ALL MEMORY...............................................................31
AUTO ANSWER ON/OFF...........................................................32
SET TONE /PULSE.............................................................32
HEADSET OPERATION.......................................................33
ADDITIONAL OPERATING TIPS........................................34
OUT OF RANGE INDICATION........................................................34
MESSAGE WAITING INDICATOR(for use with Voicemail)........................34
CUSTOM PAY-PER-USE (PPU) FEATURES...............................................35
LOW BATTERY INDICATION....................................................................36
CHECK AC POWER INDICATION.............................................................36
MAINTENANCE.........................................................................37
IN CASE OF DIFFICULTY............................................................38
WARRANTY STATEMENT..........................................................39
TECHNICAL SPECIFICATIONS.......................................................40
43
Loading...
