V-Tec DT24 Series, D4, HS24 Brochure & Specs

Product Information

DT24 Series

2-Wire Indoor Monitor

DESCRIPTION FEATURES

DIMENSION

2-wire system 4 inch color TFT Monitor ► Streamlined design with handset;

► Touch sensor button operation;

► Text menu display;

► Digital TFT screen with high resolution;

► Elegant talk button with blue backlight;

► 12pcs 8-chord Melodies for choose freely;

► Multi languages for choices(customized);

► Compatible with all DT outdoor

28

186

190

TALK

1. Parts and Funcons

2. Monitor Mounng

Wall Mounting Desktop Mounting

TALK

LCD Screen

UNLOCK Button

TALK Button

Memo Button

Up Button

MENU Button

Cancel Button

Down Button

Microphone

Speaker

Connection Port

Mounting Hook

Handset

Mounting Hook

Handset

Handset Line

Back viewFront view

Handset Line

12 3

ON

3. Specicaon

• Power Supply : DC 24V (supplied by PS4-24V or PS5-24V)

• Power Consumption: Standby 30mA; Working status 178mA;

• Display Device: 4’’Digital TFT screen with 4:3 rate;

• Resolution: 320*240 pixels,

• Wiring: 2 wires(non-polarity)

• Monitor Dimension: 186(H)×190(W)×36(D)mm;

• Gross Weight: 0.75KG;

4. Ordering Informaon for Monitor

Model No. Brief Description

Menu Style

DT24/D4/HS24

4 inch digital color TFT screen monitor with handset

Text menu

Item Brief Description Remark

DB1-W Desktop bracket in white color For desktop mounng

DB1-B Desktop bracket in black color For desktop mounng

5. Oponal Accessories (Not included)

DT24/D4/HS24

TALK

Main Menu

Monitor ...
Manual Monitor
Intercom
User Setup
Close

About OK Select Item

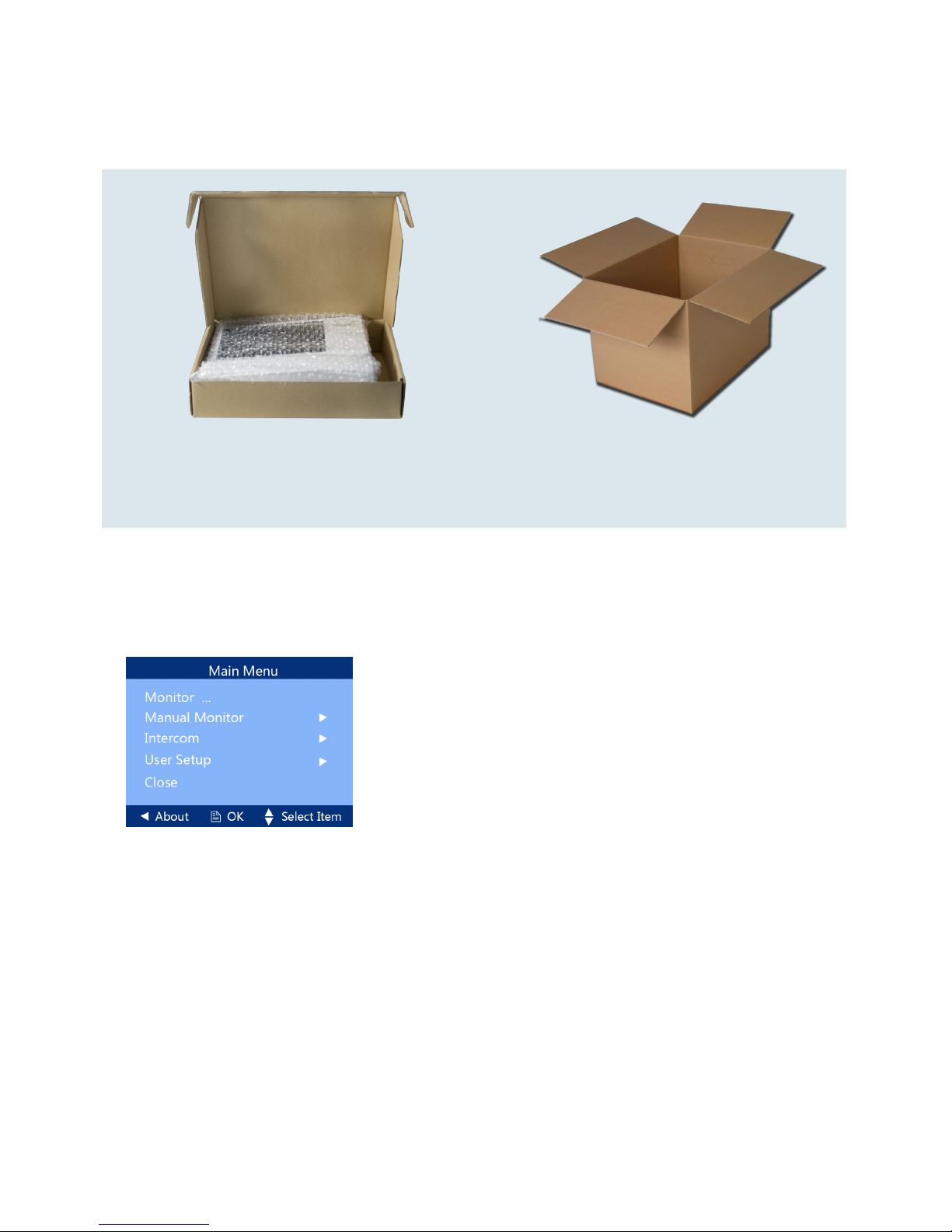

6. Packing Informaon

7. App: Menu style

Dimensions: 193(H)×226(W)×45(D)mm

Gross Weight: 0.60Kg

Carton: 415(H)×360 (W)×265(D)mm

Quanlity: 14PCS

Text menu style
