Page 1
FTC, FTC57
Hardware V. 1.0
Software V. 1.0
Flight
Time
Counter
Vtec Electronics GmbH
Schenkstr. 1
CH-3380 Wangen a.A.
Tel. 032 631 11 54
www.vtec.ch
Installation and Use
FlTC Users Manual Vtec Electronics GmbH Page 1
Page 2
Bedienung
Shows Hours and Minutes on LC—Display
Counting is active during blinking dots.
Both dots are on if counting isn‘t active.
An integrated capacitor ( SuperCap® ) keeps the display on for a few minutes
after power off.
Installation

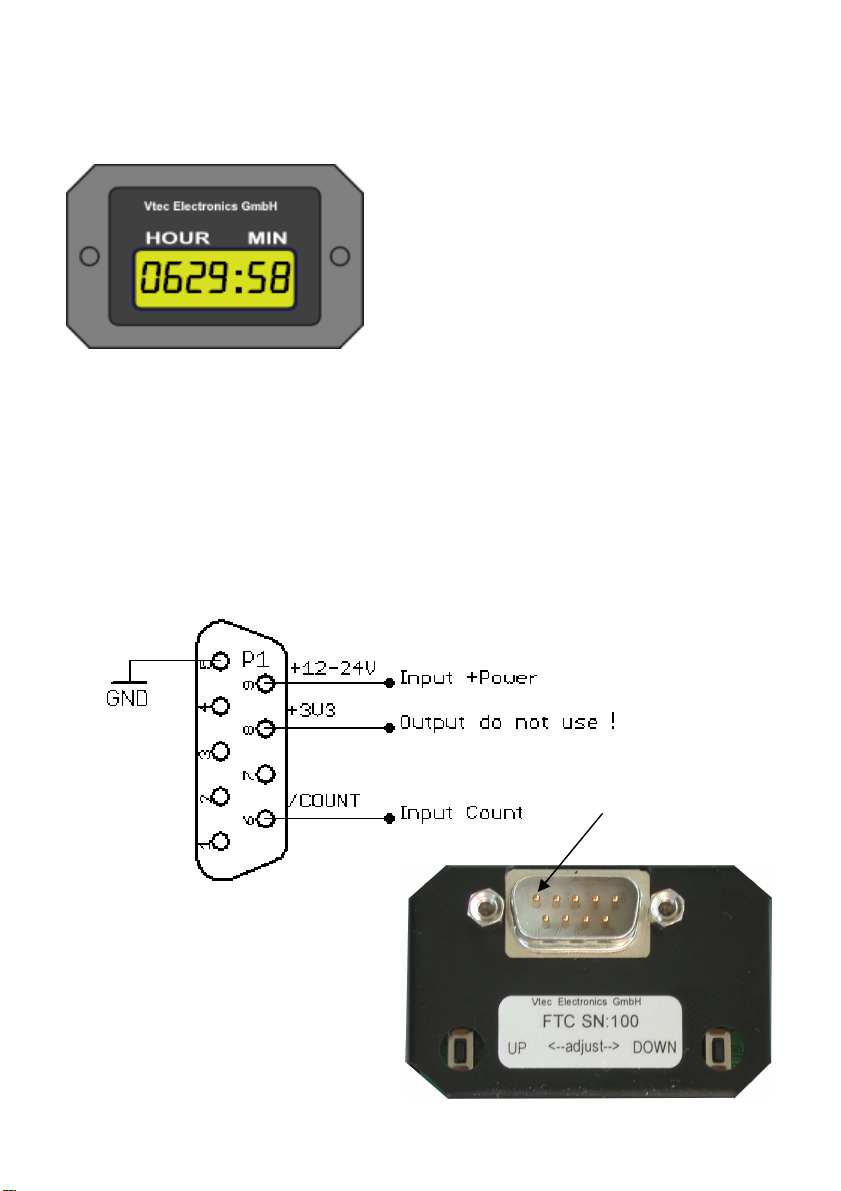

Inputs ground, power +12 up to 24V DC and count are available on the SUBD9M
connector. Don’t connect pin 8 !
1
FTC Users Manual Vtec Electronics GmbH Page 2
Page 3

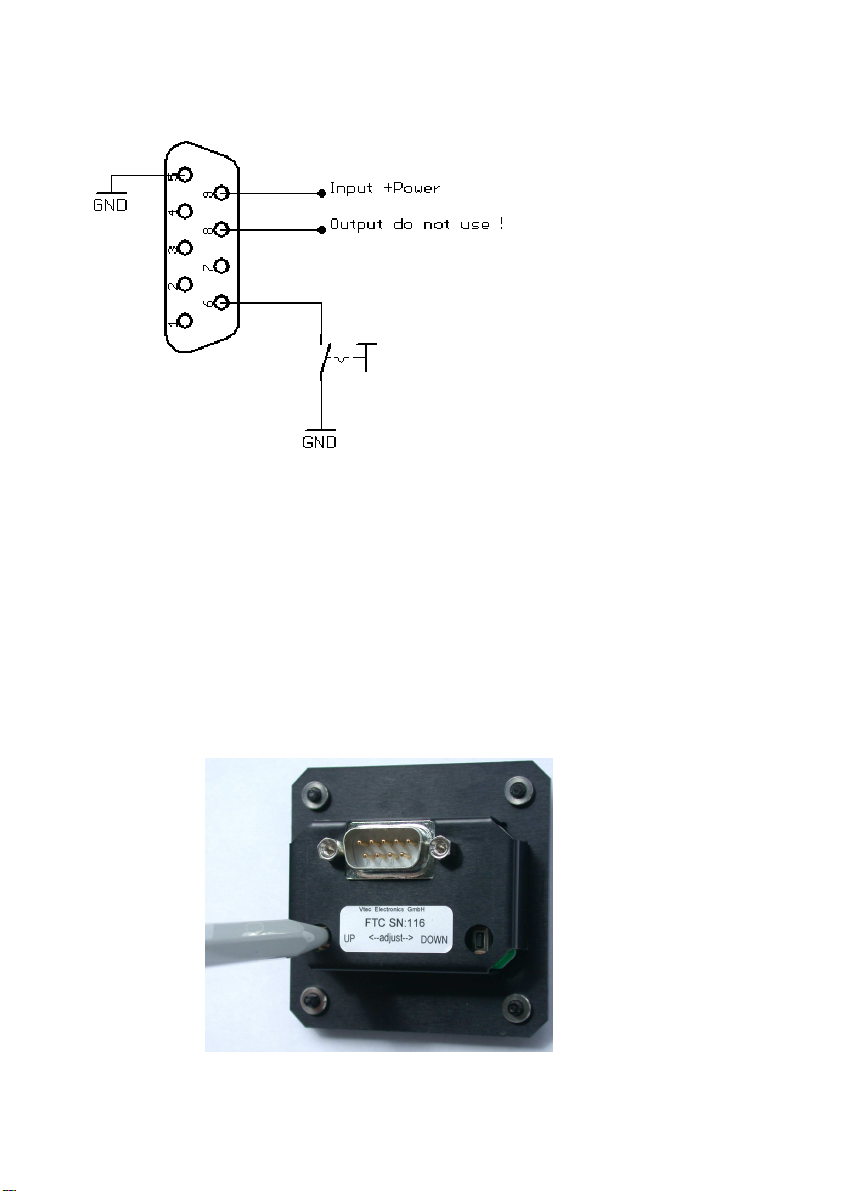

Count is active during input „Count“ has ground level. Activity is indicated with the two
blinking dots.
Staudruckschalter oder
Oeldruckschalter zum Beispiel.
Setting time for beginning
Connect the FTC with power. Any 9 V battery could used too.
Use a plastic ballpoint ore something like that for pushing the two switches on backside.
Short pushing increments or decrements in steps. Longer pushing increments or decrements faster.
FlTC Users Manual Vtec Electronics GmbH Page 3
Page 4
Model – Description

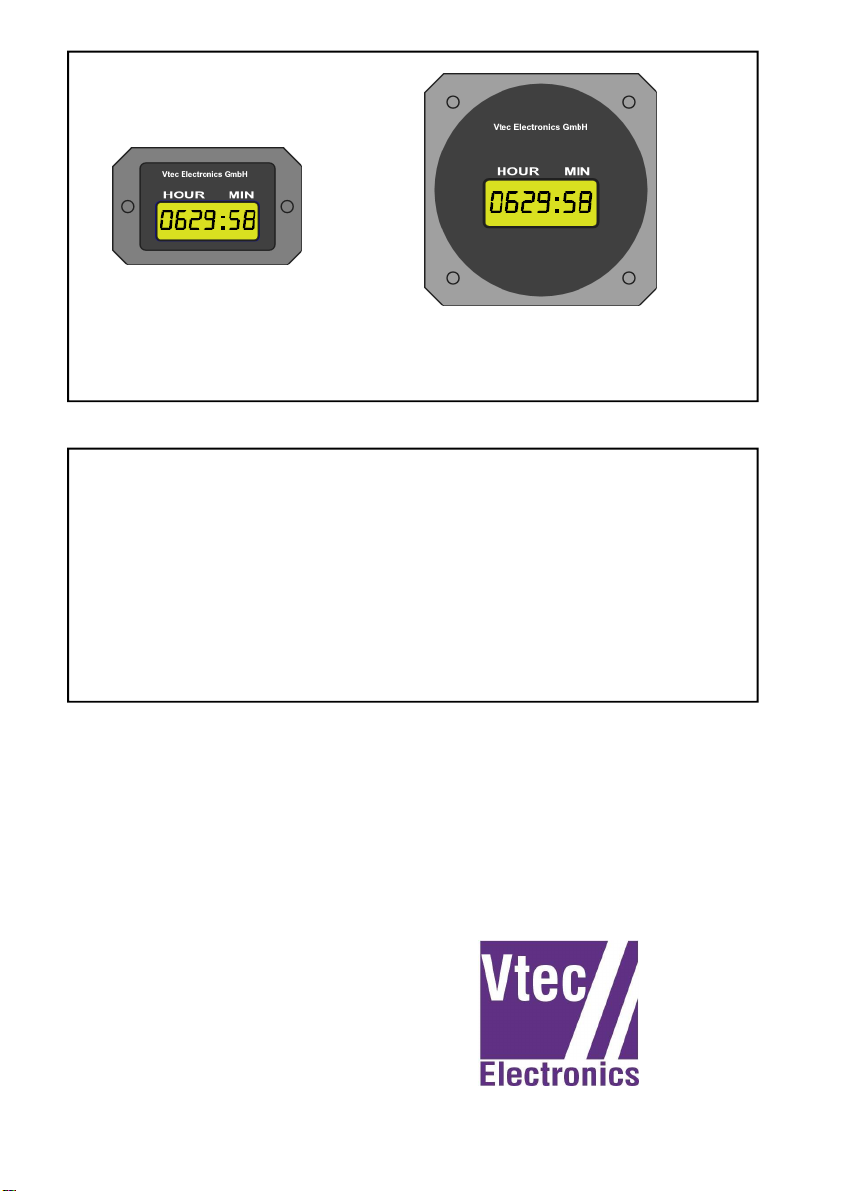

FTC FTC57
Difference is in size of front only
Specification
Power supply: 8 – 26V
Current consummation: < 1mA
Working temperature: -30 ... 70°C
Wight: 40gr
