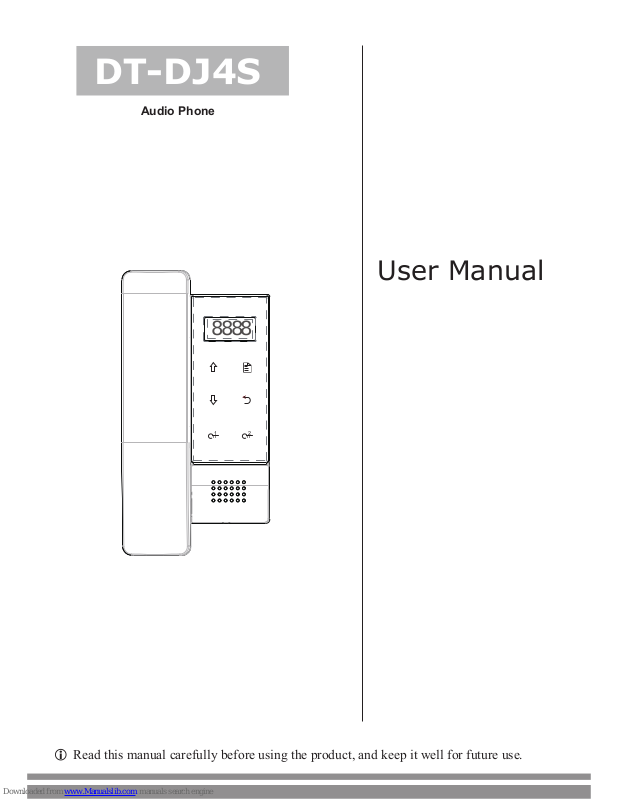

V-Tec DT-DJ4S User Manual

DT-DJ4S

User Manual

Audio Phone

Read this manual carefully before using the product, and keep it well for future use.



1 2

8888

1. Parts and Functions

187

33.2

150

97.1

2 1

8888

Handset

7 segment LED

Menu button

Cancel button

Unlock 2nd button

Speaker

Handset line

Side View

Up button

Down button

Unlock button

7 segment LED Display setting informations

Handset Pick up to communicate with visitor

Hand line Connect handset with monitor

Unlock button Press to release the door

Unlock 2nd button Press to release the second door

Up button Press to move up or increase the value

Down button Press to move down or decrease the value

Menu button Press and hold for 2s to open the setting menu shortcuts.

Cancel button Press to cancel the operations

Speaker Send out voice from the visitor

Key functions

2. Operation Instructions

3. Setup Instructions

1) Door opening function: When visitor calls from outdoor station, the monitor rings,
pick up handset to talk with the visitor, then press the Unlock button to open the door.
If the system connect 2 locks,press Unlock 2nd button to open the second door.

2) Monitoring & calling menu: Pick up handset in standby mode,the LED will be
shown a scroll information “Intr Call”,pressing Up button or Down button can stop the
scroll. To quit this menu, please tap Cancel button.

3) Entrance monitoring: In monitoring & calling menu page, the LED show "ds­x"(x=1~4,refer to part 3-Numbers of door station),it means that the monitor select "x"
door station to monitor. Press Up / Down button to increase/decrease the value,then
press Menu button to activate the monitoring.

4) Inner call: In monitoring & calling menu page, use Up / Down button to select
"-ALL" item on LED,then press Menu button to activate the inner call,all monitors
connected to the system will ring at the same time. Pick up any monitor,the others will
stop ringing immediately.(note that the user code must be the same for all monitors to
activate the inner call function)

5) Intercom call: In monitoring & calling menu page, use Up / Down button to select
"C-xx" (xx=00~31,refer to part3-Numbers of indoor monitor)item on LED,then press
Up / Down button to increase/decrease the value,and press Menu button to conrm the
intercom calling.(note that the user code must be different for all monitors to activate
the intercom call function)

Press Menu button and hold for 2s in standby mode,the LED will be shown a scroll
information "User Set-",press Up button or Down button to stop the scroll,and the LED
show the setting items. Press Menu button to select next setting items. To quit this set­ting menu, please tap Cancel button.

Setting

Item

LED

state

Description Default

Door station

call tone

1-xx

Set the ring tone calling from outdoor station. Total
12 pieces ring tones can be selected(xx=01~12),press
Up button or Down button to increase/decrease the
value,settings will be performed immediately.

02

Intercom

call tone

2-xx

Set the ring tone calling from intercom call or
inner c all. Total 12 pieces r ing t o n es ca n be
selected(xx=01~12), press Up / Down button to in­crease/decrease the value, settings will be performed
immediately.

12

Setting

Item

L E D
state

Description Default

Door bell call tone 3-xx

Set the ring tone calling from door bell. Total 12
pieces ring tones can be selected(xx=01~12),press
Up button or Down button to increase/decrease
the value,settings will be performed immediately.

02

Ring volume 4-rx

Set the ring volume for call tone,range from 0~9.

6

Numbers of door

station

5-0x

Maximum 4 door stations can be selected,this
item is used to set the numbers of door station
that can be surveilled by indoor monitor. Refer to
part 2 ->Entrance Monitoring.

1

Numbers of

indoor monitor

6-xx

Maximum 32 indoor monitors can be selected,this
item is used to set the numbers of indoor monitor
that can be selected to intercom. Refer to part 2

->Intercom call.

04

Slave address

setting for monitor

7-dx

Rang from 0~3,"0"-master monitor,"1~3"-slave
monitor.

0

Restore to default

setting

8-FS

The restore to default function allows the user to
recover the settings to factory setting. Select "8­FS" item on LED,then press Up button,"yES­"will be asked,press Up button again,the LED
will be shown"SUCC",that means settings are
restored to default.

-

4. Specication

●Power Supply: DC24V

●Power Consumption: standby 25mA,working 110mA

●7 segment LED: 4 digits dynamic

●Wiring: 2 wires, non-polarity

●Dimension: 187(H)X97(W)X33(D)mm

The design and specications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved.
