V-Tec DT591, DT592 User Manual

2 -Wire Intercom System

DT591/592 User Manual

DT-ENG-591/592-V1 100S503

DT591 DT592

CONTENTS

1.Parts and Functions............................................................................................. 1

2.Terminal Descriptions .......................................................................................... 1

3.Specications ...................................................................................................... 2

4.Mounting .............................................................................................................. 2

4.1 Mounting Without Rainy Cover ...................................................................... 2

4.2 Mounting With Rainy Cover ........................................................................... 3

4.3 Placing Name Label ...................................................................................... 3

4.4 Adjusting Camera Angle ................................................................................ 4

5.System Wiring and Connections ......................................................................... 4

5.1 Basic Connection........................................................................................... 4

5.2 Electric Lock Connection ............................................................................... 5

5.2.1 Door Lock Controlled with Internal Power ............................................ 5

5.2.2 Door Lock Controlled with Dry Contact ................................................ 5

5.2.3 How to setup the unlock parameter in Monitor ...................................... 6

5.3 Multi Doorstations Connection....................................................................... 7

5.4 Multi Monitors Connection ............................................................................. 8

5.4.1 Basic IN-OUT Wiring Mode ................................................................. 8

5.4.2 With DBC-4 Wiring Mode .................................................................... 9

6.Setup ................................................................................................................... 10

6.1 DIP Switches Settings of Doorstation ............................................................ 10

6.2 DIP Switches Settings of Monitor .................................................................. 10

6.3 Notices........................................................................................................... 12

7.Cables Requirements .......................................................................................... 13

-1-

1.Parts and Functions

Rainy Cover



Camera Lens

Night View LED

Speaker

Nameplate

Call Button

Microphone

90 mm

176 mm

23 mm

2.Terminal Descriptions

BUS

PL

S1+ S2+ S-

1 2

ON

12

ON

MIC adjustment

Lock Control Jumper

Doorstation Code DIP

Main Connect Port

1 2 3

SPK adjustment

Note: DT592 has two call buttons.

-2-

•

Lock Control Jumper:

To select the lock type: see 5.2.1 , 5.2.2

•

Doorstation Code DIP:

Total 4 doorstations can be supported,see 6.1

•

Main Connect Port:

To connect the bus line and the electronic locks.

• BUS: Connect to the bus line, no polarity.

• PL: External lock power input, connect to the power positive(power +).

• S1+, S2+: Lock power(+) output, to connect 2 locks.

• S-: Lock power(-) output, connect to the power(-) input of locks(only when using the camera to power the locks, if using the external power supply for the locks, the S- will not be connected).

3.Specications

Lock Power supply: 12Vdc, 300mA(Internal Power)

Power Consumtion: 1W in standby, 12W in working

NO, COM dry contact: Max. 48V dc 1.5A

Unlocking time: 1 to 9 seconds, set by Monitor

Working temperature: -10ºC ~ 45ºC

4.Mounting

4.1 Mounting Without Rainy Cover

160-165cm

1

2

1 2 3 4

-3-

4.2 Mounting With Rainy Cover

160-165cm

1

2

1 2 3 4

4.3 Placing Name Label

Move the plastic cover away to open the transparent name label cover, insert a name paper, then put the plastic cover back to the panel.

name label

12

ON

-4-

4.4 Adjusting Camera Angle

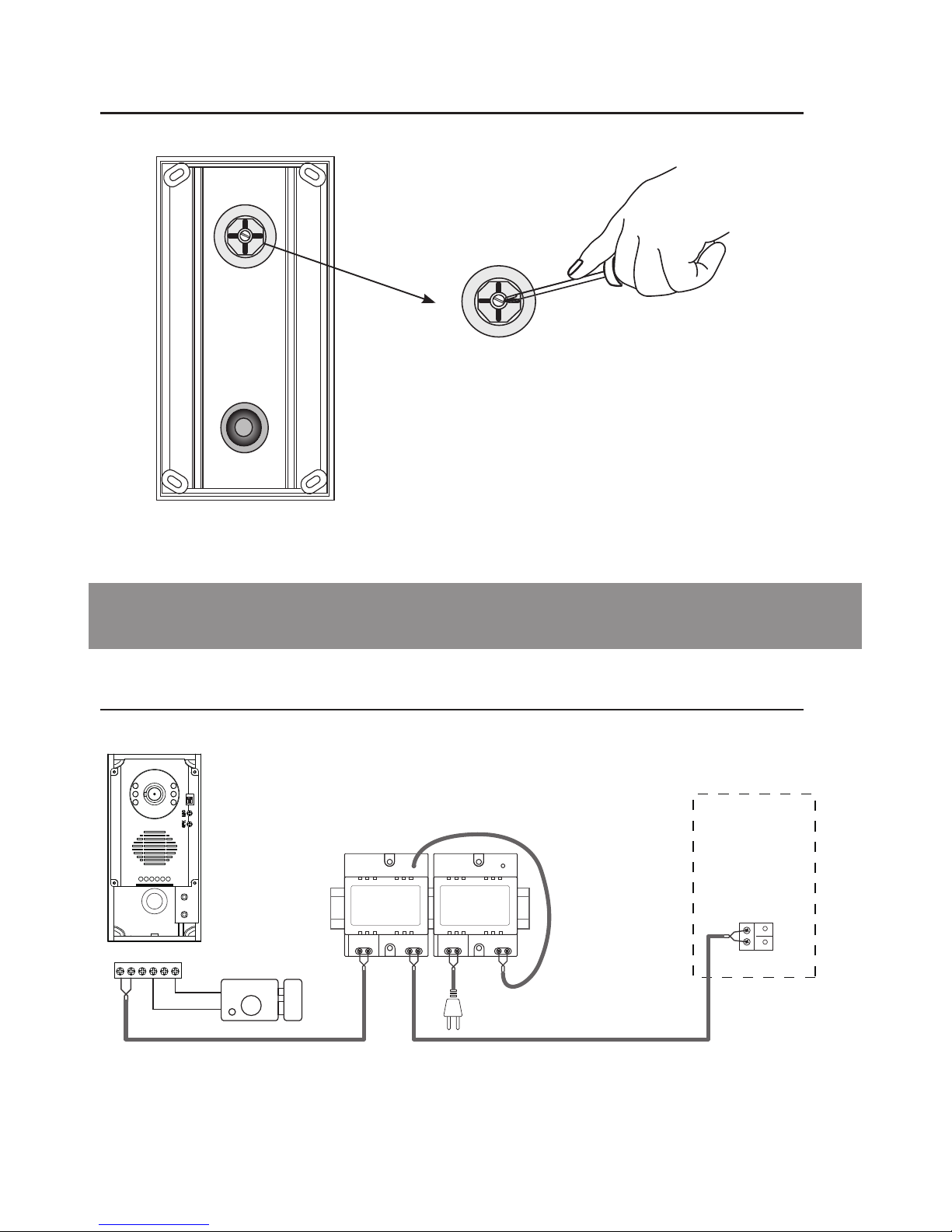

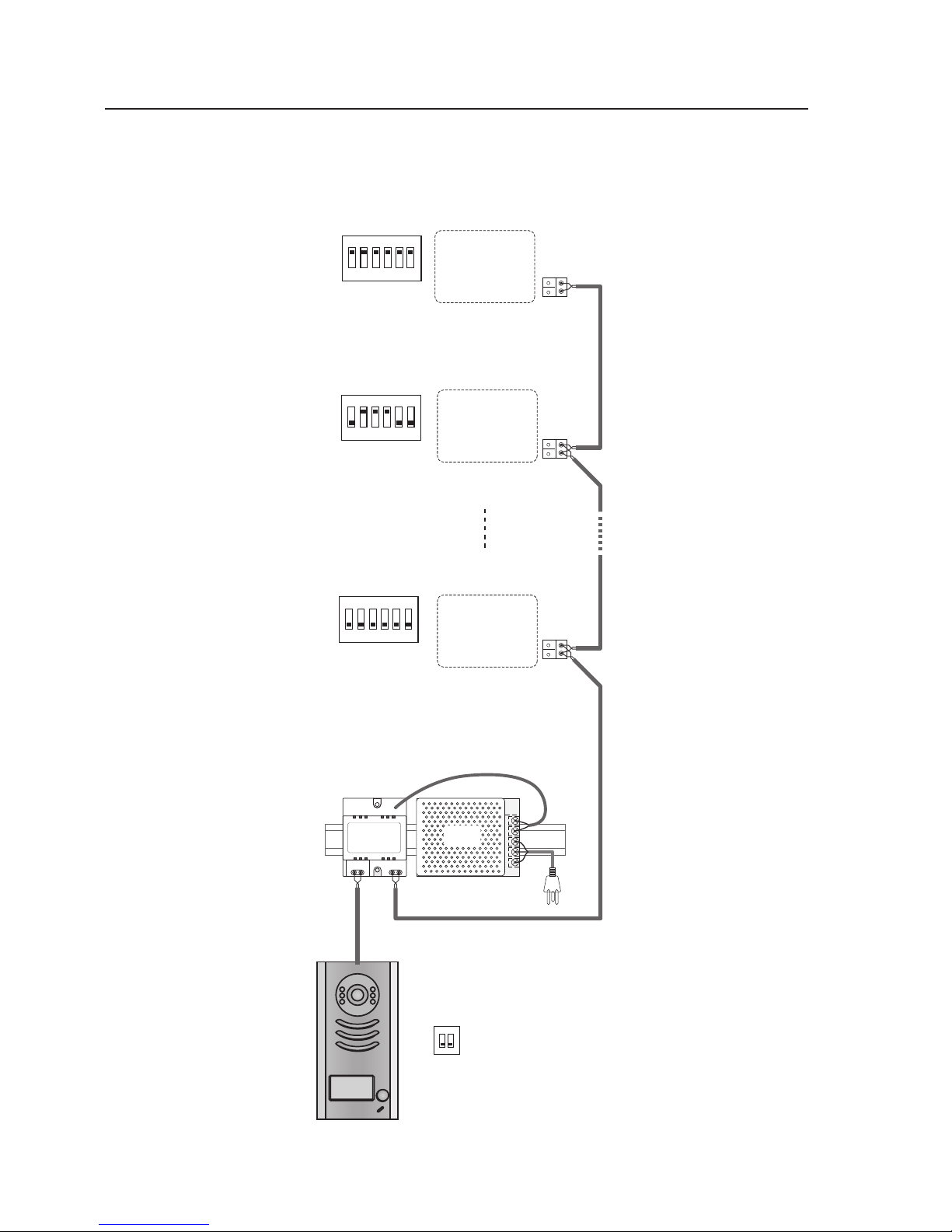

5.1 Basic Connection

use a screwdriver to loosen the screw and then adjust the angle

of the camera ,then x the screw.

5.System Wiring and Connections

12

ON

-

+

L1 L2 PL S1+ S2+ S-

monitor

DPS PS4

-5-

5.2 Electric Lock Connection

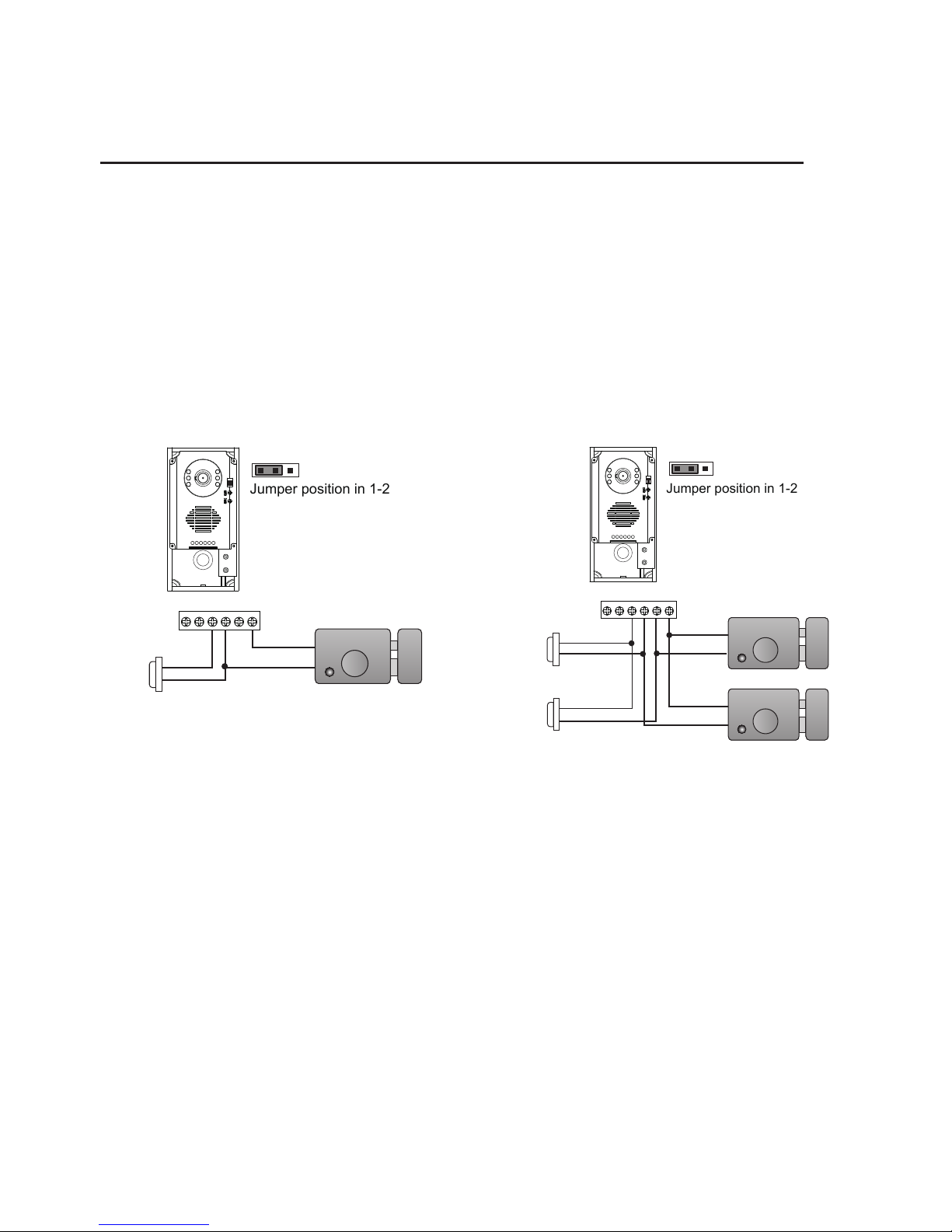

5.2.1 Door Lock Controlled with Internal Power

connect one lock connect two locks

Note:

1. Electronic lock of Power-on-to-unlock type should be used.

2. The door lock is limited to 12V, and holding current must be less than 250mA.

3. The door lock control is not timed from Exit Button(EB)

4. The

Unlock Mode

Parameter of Monitro must be set to 0 (by default)

12

ON

1 2 3

-

+

BUS PL S1+ S2+ S-

-

+

Jumper position in 1-2

lock #2

lock #1

EB

12

ON

1 2 3

-

+

BUS PL S1+ S2+ S-

Jumper position in 1-2

EB

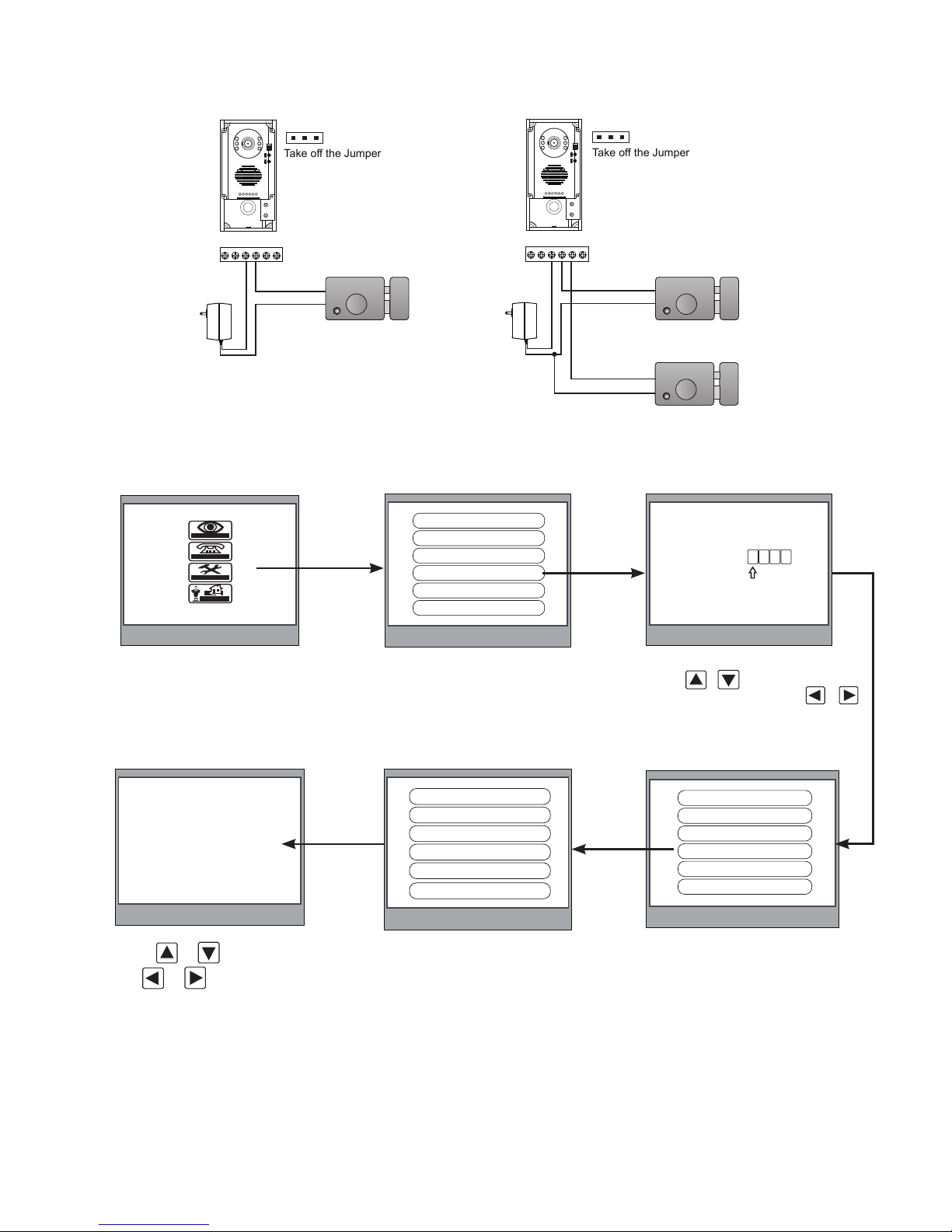

5.2.2 Door Lock Controlled with Dry Contact

Note:

1. The external power supply must be used according to the lock

2. The inside relay contact is restricted to AC or DC 24V/3A

3. The jumper must be taken off before connecting

4. Setup the

Unlock Mode

of Monitor for different lock types

• Power-on-to-unlock type:Unlock Mode=0 (by default)

• Power-off-to-unlock type:Unlock Mode=1

-6-

12

ON

1 2 3

-

+

BUS PL S1+ S2+ S-

Take off the Jumper

12

ON

1 2 3

-

+

BUS PL S1+ S2+ S-

Power supply

-

+

lock #2

lock #1

connect one lock connect two locks

5.2.3 How to setup the unlock parameter in Monitor

monitor

intercom

setup

exit

Outdoor Tone -- 01

Intercom Tone -- 05

Monitor Time -- 1min

Advanced Set...

Auto Record -- OFF

Exit

0

* * *

Password:

Slave Addr Set -- 0

Guard Unit Set -- 0

Date/Time Set...

Other Settings...

Information...

Exit

Hardware ver 0302

Software ver 0168

Voltage 22.4V

Manufacture 00.0T

Restore to default

Exit

Unlock Time 1

Unlock Mode 0

Exit

1.Press ME N U but t o n two times to enter the MAIN MENU page,then press setup item

2.Select Advanced Set...item and press MENU button to enter,a password will be asked

4.Select Information...item and press MENU button to enter next page.

Note:

1.must connect DT591/592 completely before setting

2.the parameter will be saved in doorstation automatically,so you need only set on one monitor

5.Press UNLOCK button and hold for 2s

6.Use

/

to select the item,

use

/

to change the value

of the ite m.select Exit item ,press MENU button to save the settings automatically.

3. The defa ult pass word is **** press / button to increase/ decrease the value,Press / button to select the location,after finishing,press MENU button to enter next step.

-7-

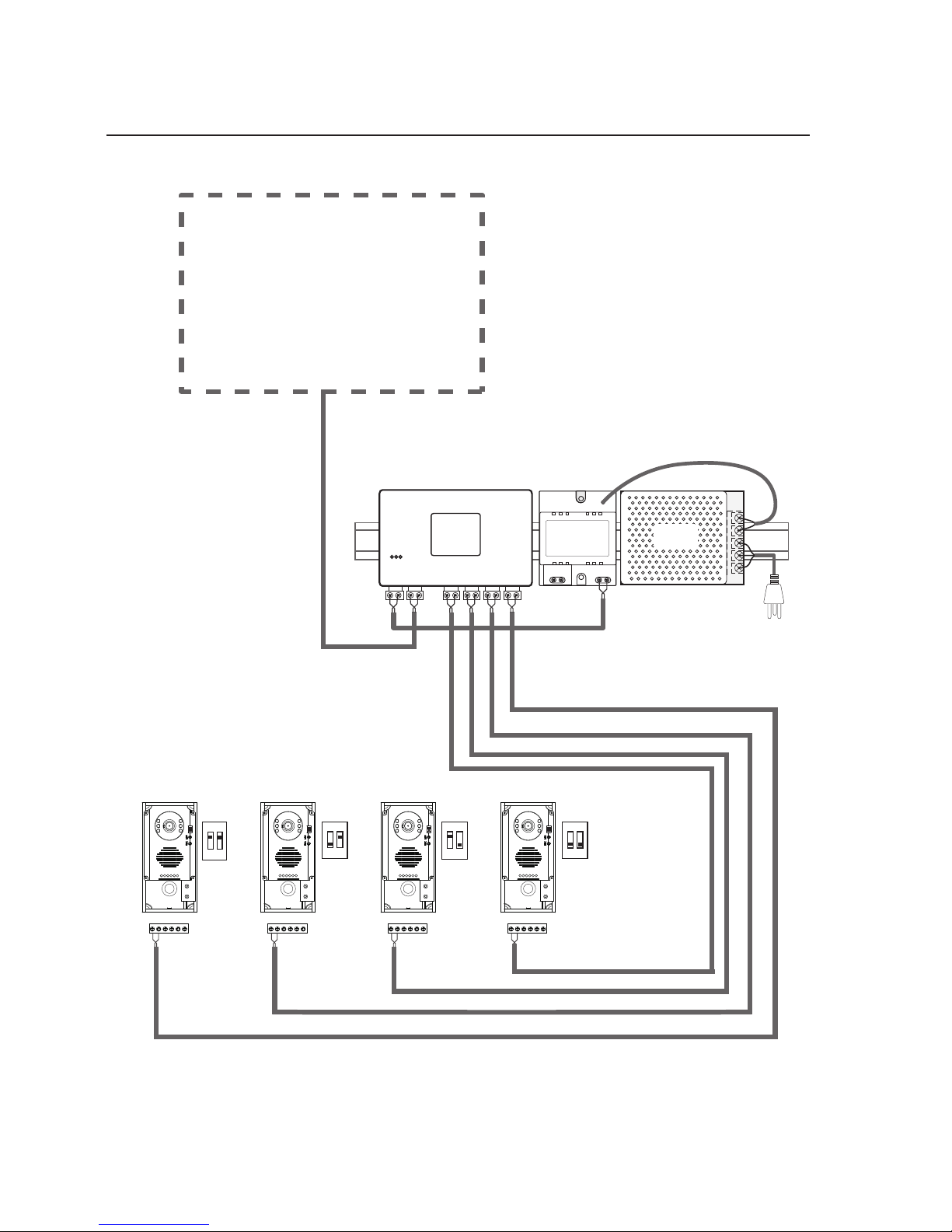

5.3 Multi Doorstations Connection

85~260VAC

DPS

PS5

monitors

12

ON

L1 L2 PL S1+ S2+ S-

12

ON

L1 L2 PL S1+ S2+ S-

12

ON

L1 L2 PL S1+ S2+ S-

12

ON

L1 L2 PL S1+ S2+ S-

1 2

ON

1 2

ON

1 2

ON

1 2

ON

1# Camera

ID=00

ID=10

ID=01ID=11

2# Camera3# Camera4# Camera

DBC4

A B C D

BUS

-8-

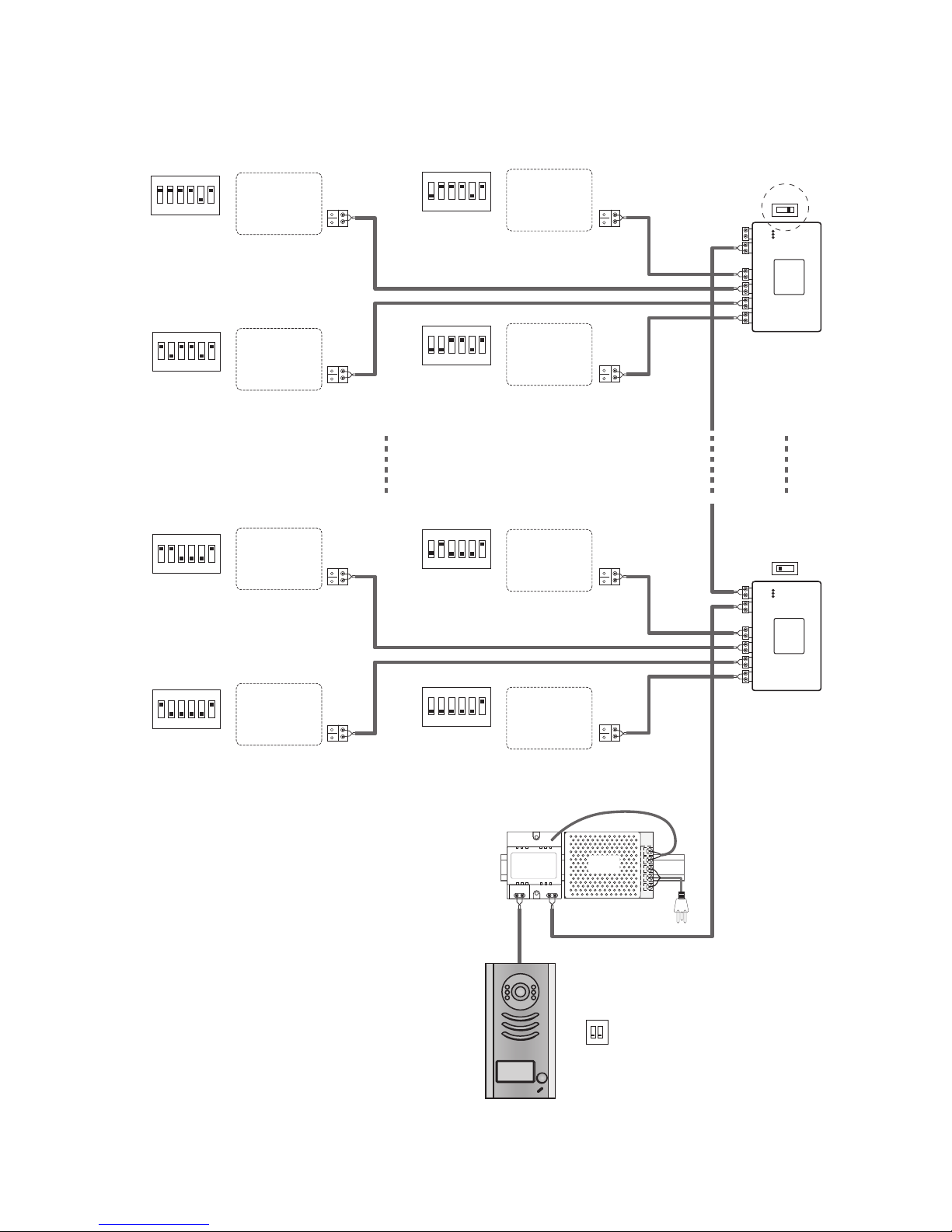

5.4.1 Basic IN-OUT Wiring Mode

5.4 Multi Monitors Connection

ID=00

1 2

ON

Code=0, DIP-6=off

Code=14, DIP-6=off

Code=15, DIP-6=on

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

85~260AC

DPS

PS5

monitor

-9-

5.4.2 With DBC-4 Wiring Mode

HI

monitor

DBC-4

A B C D

IN

OUT

DBC-4

A B C D

IN

OUT

85~260AC

DPS

PS5

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

Code=15, DIP-6=on

Code=13, DIP-6=on

Code=3, DIP-6=on

Code=1, DIP-6=on

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

Code=14, DIP-6=on

Code=12, DIP-6=on

Code=2, DIP-6=on

Code=0, DIP-6=on

ID=00

1 2

ON

-10-

6.Setup

6.2 DIP Switches Settings of Monitor

6.1 DIP Switches Settings of Doorstation

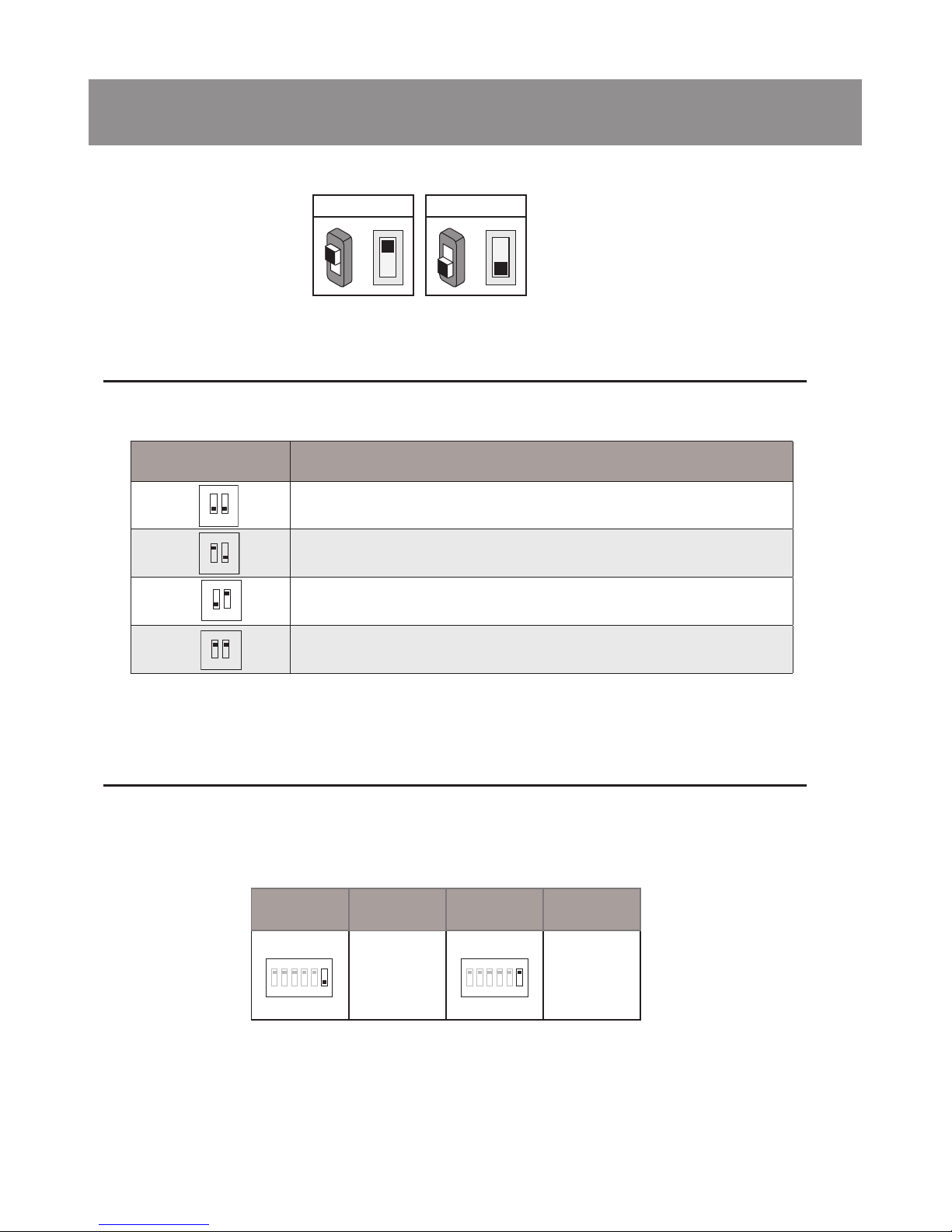

Total 2 bits on the DIP switches can be congured.The switches can be modied etther before or after installation.

Bit state Descriptions

Default setting, ID = 0(00), set to the rst Door Station.

ID = 1(10), set to the second Door Station.

ID = 2(01), set to the third Door Station.

ID = 3(11), set to the fourth Door Station.

1

2

ON

1 2

ON

1 2

ON

1 2

ON

There are 6 bit switches in total. The DIP switches are used to congure the User Code for each Monitor.

ON(1)

=

OFF(0)

=

ON

Bit-6 is line terminal switch, which have to be set to ON if the Monitor is in the end of the line(bus), otherwise set to OFF.

Bit state Setting Bit state Setting

The monitor is not at the end of the bus.

The monitor is at the end of the bus.

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

-11-

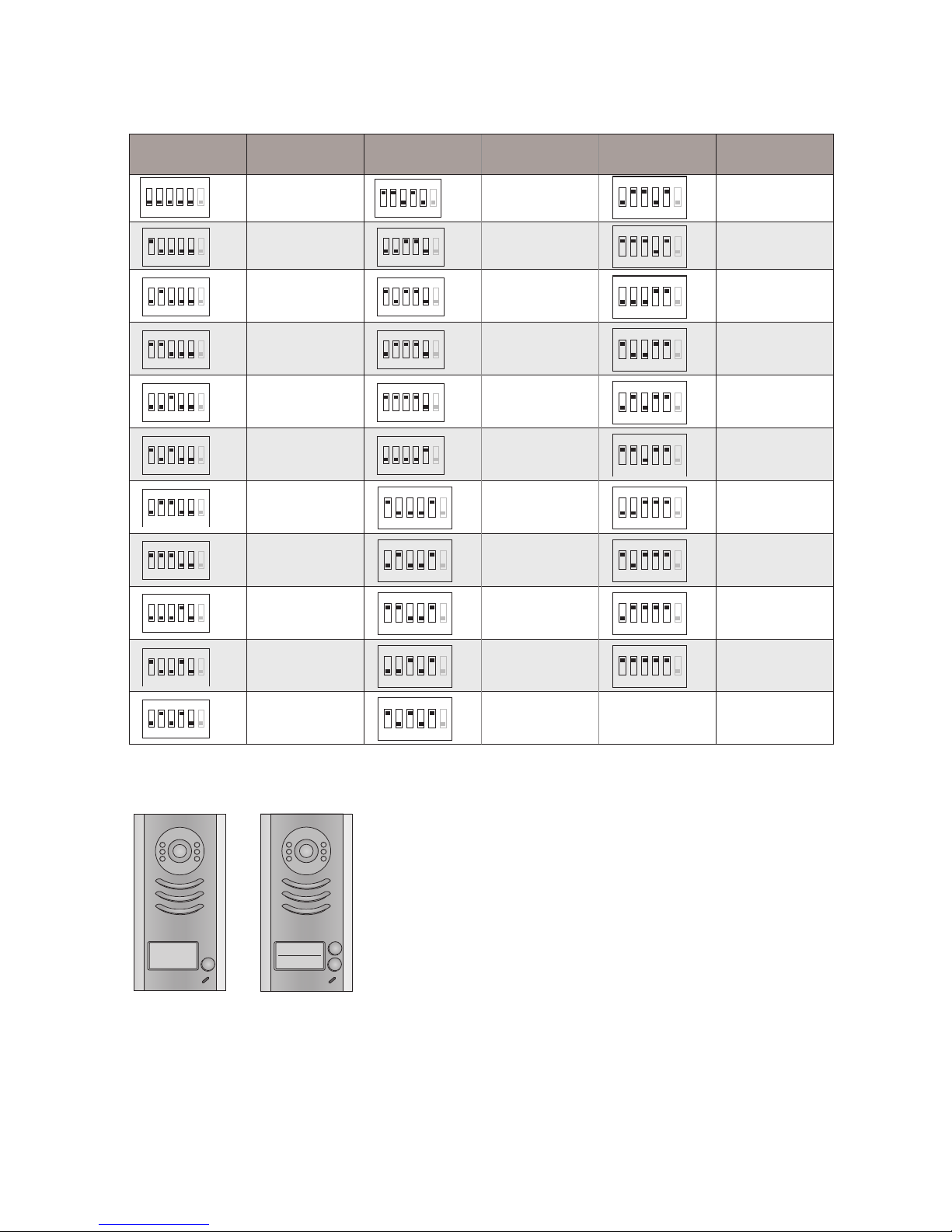

Bit state User Code Bit state User Code Bit state User Code

Code=0 Code=11 Code=22

1 2 3 4 5 6

ON

Code=1

1 2 3 4 5 6

ON

Code=12

1 2 3 4 5 6

ON

Code=23

1 2 3 4 5 6

ON

Code=2

1 2 3 4 5 6

ON

Code=13

1 2 3 4 5 6

ON

Code=24

1 2 3 4 5 6

ON

Code=3

1 2 3 4 5 6

ON

Code=14

1 2 3 4 5 6

ON

Code=25

1 2 3 4 5 6

ON

Code=4

1 2 3 4 5 6

ON

Code=15

1 2 3 4 5 6

ON

Code=26

1 2 3 4 5 6

ON

Code=5

1 2 3 4 5 6

ON

Code=16

1 2 3 4 5 6

ON

Code=27

1 2 3 4 5 6

ON

Code=6

1 2 3 4 5 6

ON

Code=17

1 2 3 4 5 6

ON

Code=28

1 2 3 4 5 6

ON

Code=7

1 2 3 4 5 6

ON

Code=18

1 2 3 4 5 6

ON

Code=29

1 2 3 4 5 6

ON

Code=8

1 2 3 4 5 6

ON

Code=19

1 2 3 4 5 6

ON

Code=30

1 2 3 4 5 6

ON

Code=9

1 2 3 4 5 6

ON

Code=20

1 2 3 4 5 6

ON

Code=31

1 2 3 4 5 6

ON

Code=10

1 2 3 4 5 6

ON

Code=21

Note:Monitors response button A must set the user code from 0 to 15.and button B set the user code from 16 to 31.

A

B

A

Bit-1 to Bit-5 are used to User Code setting. The value is from 0 to 31, which have 32 different codes .

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

1 2 3 4 5 6

ON

-12-

6.3 Notices

Name Discription Useage

PS5-24V

Power supply,85~260Vac input,24Vdc/3A output,10 DIN modeules

Connect with multi doorstations or multi monitors(up to 2 or above)

PS4-24V

Power supply,85~260Vac input,24Vdc/1A output,for basic kit only,4 DIN modules

Co nne ct with one doorstation and one monitor(DT16 can be connected two)

-13-

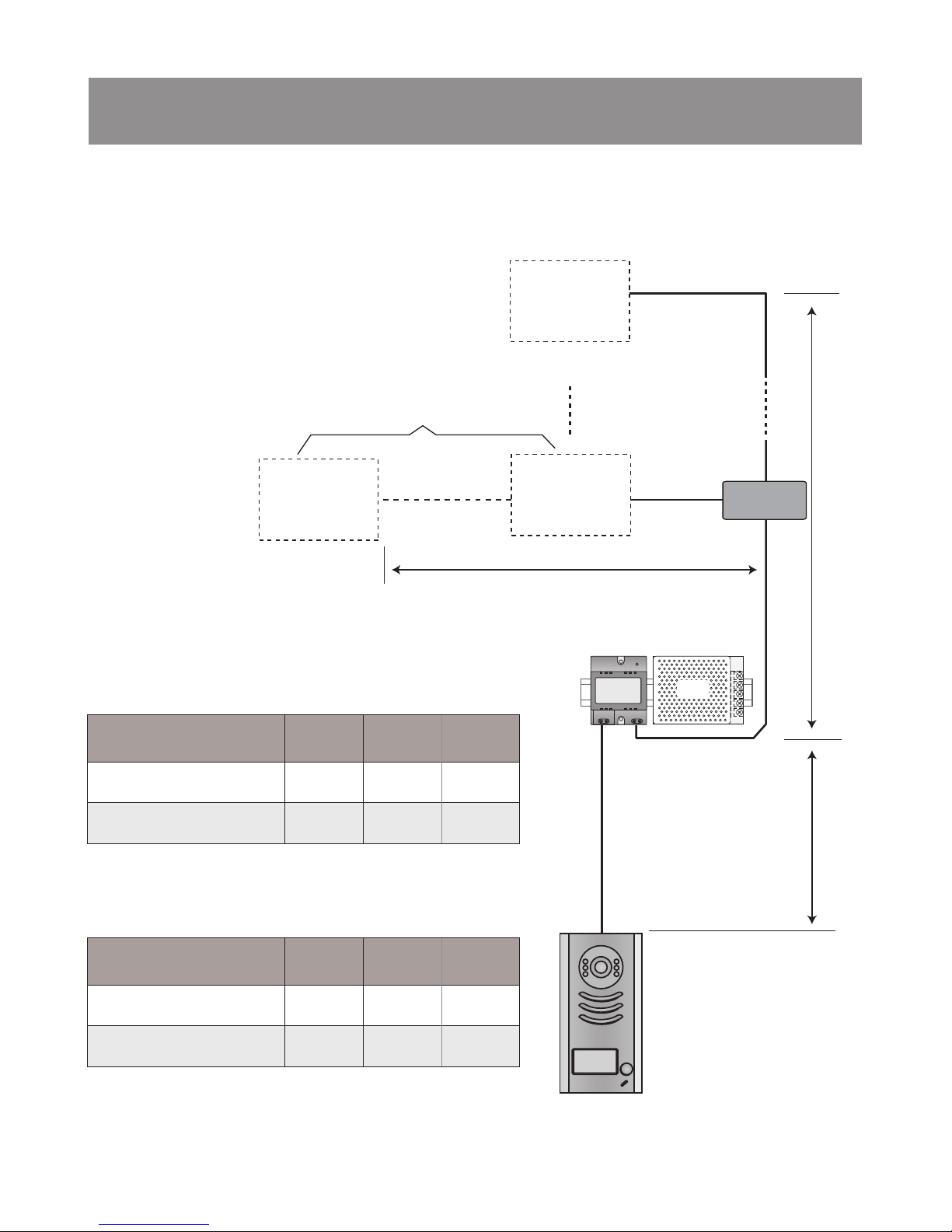

7.Cables Requirements

The maximum distance of the wiring is limited in the DT system. Using different cables may also effect the maximum distance the system can reach.

When Monitor quantity < 20

Cable Usage A B C

Twisted cable 2x0.75 mm

2

60 60 30

Twisted cable 2x1 mm

2

80 80 40

When Monitor quantity > 20

Cable Usage A B C

Twisted cable 2x1 mm

2

70 30 20

Twisted cable 2x1.5 mm

2

70 50 30

The farest monitor

B

A

C

DPS

PS5

DBC/DBC-4

monitor

with two or four monitors

-14-

The design and specications can be changed without notice to the user. Right to

interpret and copyright of this manual are preserved.
