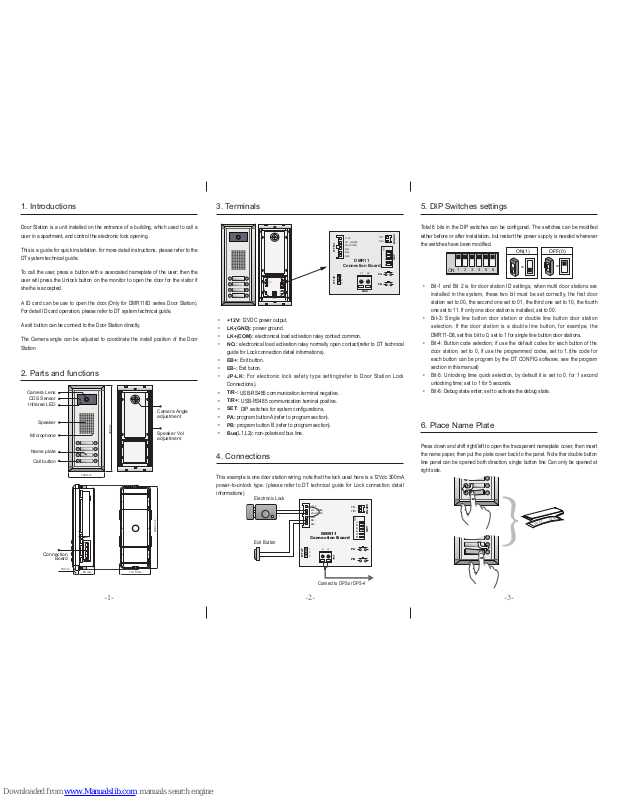

V-Tec DMR11 Quick Installation Manual
Camera Lens
Infrared LED
Speaker
Microphone
Name plate
Call button
Camera Angle
308 mm
298.5 mm
123 mm
18 mm
45 mm 114.5 mm
adjustment
Speaker Vol
adjustment
CDS Sensor
Connection
Board
2. Parts and functions
6. Place Name Plate
Press down and shift right/left to open the tracsparent nameplate cover, then insert
the name paper, then put the plate cover back to the panel. Note thar double button
line panel can be opened both direction, single button line Can only be opened at
right side.
1. Introductions
Door Station is a unit installed on the entrance of a building, which used to call a
user in a apartment, and control the electronic lock opening.
This is a guide for quick installation. for more detail instructions, please refer to the
DT system technical guide.
To call the user, press a button with a associated nameplate of the user; then the
user will press the Unlock button on the monitor to open the door for the visitor if
she/he is accepted.
A ID card can be use to open the door.(Only for DMR11/ID series Door Station).
For detail ID card operation, please refer to DT system technical guide.
A exit button can be connect to the Door Station directly.
The Camera angle can be adjusted to coordinate th e install position of the Door
Station
3. Terminals
D
a
v
i
d
C
a
l
o
-1- -2- -3-
1 2 3 4 5 6
ON
L1
+12V
T/R -
T/R+
LK - (GND)
CN-LK JP-LK
RS-485
SET
PA
PB
BUS
LK+(COM)
N.O.
EB+
EB -
1
2
3
L2
1 2 3 4 5 6
ON
L1
+12V
T/R -
T/R+
LK - (GND)
CN-LK
RS-485
SET
PA
PB
BUS
LK+(COM)
N.O.
EB+
EB -
1
2
3
L2
DMR11
Connection Board
•
+12V:
12VDC power output.
•
LK-(GND):
power ground.
•
LK+(COM):
electronical load activation ralay contact common.
•
NO.:
electronical load activation ralay normally open contact(refer to DT technical
guide for Lock connection detail informations).
•
EB+:
Exit button.
•
EB-:
Exit buton.
•
JP- LK:
For elect ronic lo ck s afety ty pe s ettin g(ref er to D oor Stat ion Lock
Connections).
•
T/R-:
USB-RS485 communication terminal negative.
•
T/R+:
USB-RS485 communication terninal positive.
•
SET:
DIP switches for system congurations.
•
PA:
program button A(refer to program section).
•
PB:
program button B.(refer to program section).
•
Bus(
L1,L2): non-polarised bus line.
4. Connections
This example is one door station wiring, note that the lock used here is a 12Vdc 300mA
power-to-un lock type. (please r efer to DT technical guide fo r Lock connection det ail
informations)
Exit Button
Electronic Lock
+
-
+12V
LK - (GND)
LK+(COM)
N.O.
EB+
EB -
1 2 3 4 5 6
ON
SET
L1
T/R -
T/R+
RS-485
JP-LK
DMR11
Connection Board
PA
PB
BUS
L2
Connect to DPS or DPS-4
1
2
3
5. DIP Switches settings
Total 6 bits in the DIP switches can be congured. The switches can be modied
either before or after installation, but restart the power supply is needed whenever
the switches have been modied.
• Bit-1 and Bit 2 is f or door station ID settings, wh en mutil door stations are
instal led in the s ystem, t hese two bit must be set correctly, the fi rst door
station set to 00, the second one set to 01, the third one set to 10, the fourth
one set to 11. If only one door station is installed, set to 00.
• Bit- 3: Si ngle line button doo r sta tion or d ouble line button doo r sta tion
sel ection . If the doo r s tation is a double li ne b utton, for exa mlpe, the
DMR11-D8, set this bit to 0, set to 1 for single line button door stations.
• Bit-4: Button code s election; if use the defa ult codes for each button of the
door station, set to 0, if use the progra mmed codes, set to 1.(the code for
each button can be program by the DT CONFIG so ftware, see the program
section in this manual)
• Bit-5: Unlocking tim e quick selection, by default i t is se t to 0, for 1 second
unlocking time; set to 1 for 5 seconds.
• Bit-6: Debug state enter; set to activate the debug state.
ON(1)=OFF(0)
=
ON
ON
ON
1 2 3 4 5 6
DT 2-wire System
DMR11 Door Station
Quick Installation Guide
Jointer*2
Stopper
1 2 3 4 5 6
ON
L1
+12V
T/R -
T/R+
LK - (GND)
CN-LK JP-LK
RS-485
SET
PA
PB
BUS
LK+(COM)
N.O.
EB+
EB -
L2
1
2
3
298.5 mm
114.5 mm
45 mm
7. Standard Installation
8. Installation with expanding panel
-4-
DMR11/D8
EP11/D24
DMR11/ID/S4
DMR11/S4
EP11/S12
DMR11/ID/D8
DT-ENG-DMR11-V1
