2 -Wire Intercom System
PC-D248-K User Manual
PC-D248-K
1
4 5 6
98
0 #
7
2 3
*
Contents
1.Parts and Functions............................................................................................. 1
2.Mounting .............................................................................................................. 1
3.Terminal Descriptions .......................................................................................... 2
4.System Wiring and Connections ......................................................................... 3
5. Functions Setting Up .......................................................................................... 9
6.Power Supply Instructions ................................................................................... 17
7. Precaustions ....................................................................................................... 17
8.Specications ...................................................................................................... 17
9.Cables Requirements .......................................................................................... 18
-1-

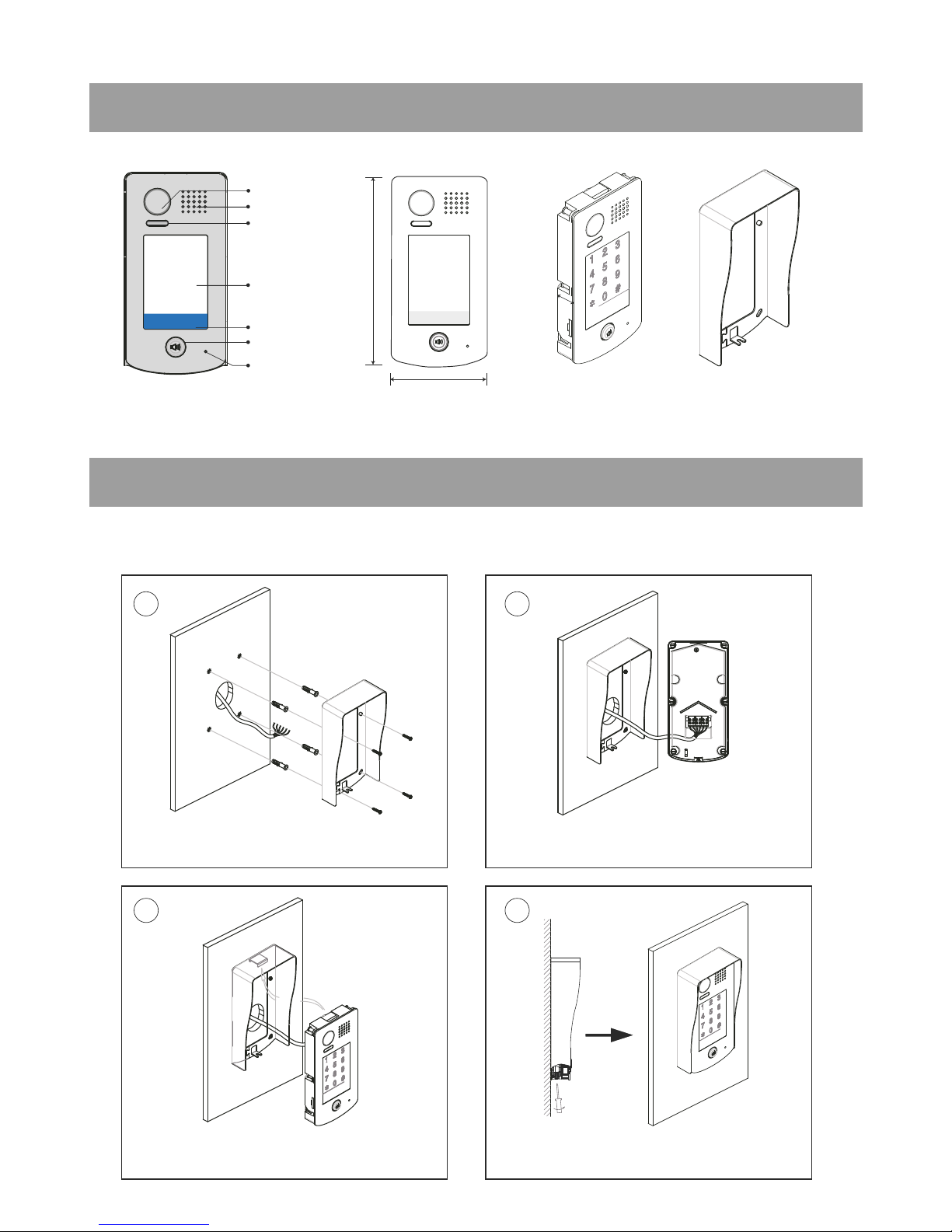

1.Parts and Functions
Rainy Cover
PC-D248-K
1
4 5 6
98
0 #
7
2 3
*
Camera Lens
Touch Sensitive
Digital Keypad
Speaker
Nameplate
Call Button
Microphone
93 mm
28 mm
182 mm
1
4 5 6
98
0 #
2
7
*
3
Night Light
2.Mounting
1 2
43
Drill holes in the wall to match the size of
screws and attach the rainy cover to the wall.
Attach the panel to the rainy cover Use the screwdriver and the screw
to x the panel
Connect the cable correctly
DT601/KP Mounting
-2-
1 2 3
Lock Control Jumper
BUS
PL
S+
S-
Main Connect Port
3.Terminal Descriptions
Placing Name Label
Use a screwdriver to unscrew the screw, and cock the host , then Placing Name Label.
•
Lock Control Jumper:
To select the lock type.
•
Main Connect Port:
To connect the bus line and
the electronic locks.
•BUS: Connect to the bus line, no polarity.
• PL: External lock power input, connect to the power
positive(power +).
• S+: Lock power(+) output.
• S-: Lock power(-) output, connect to the power(-)
input of locks(only when using the camera to power
the locks, if using the external power supply for the
locks, the S- will not be connected).
-3-

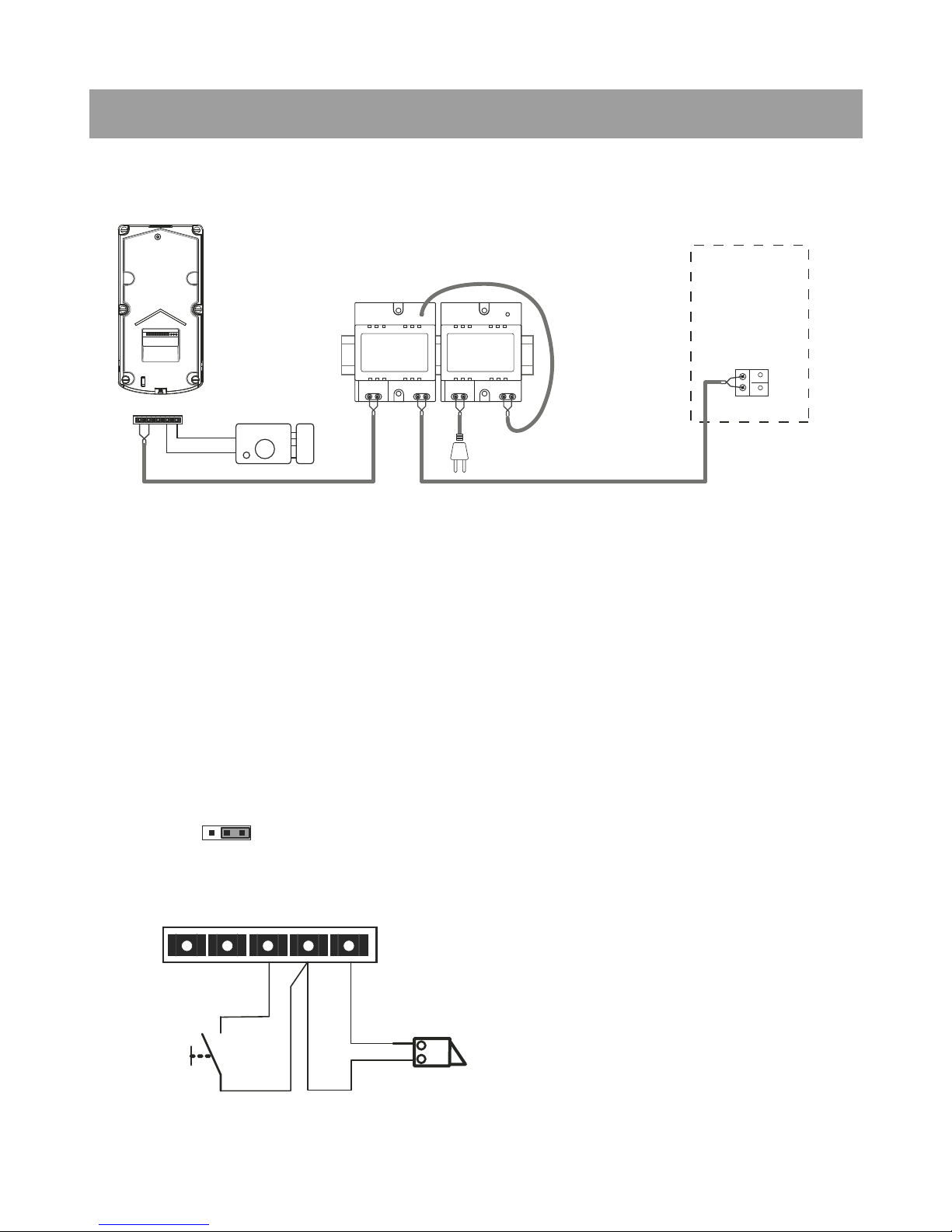

Basic Connection
4.System Wiring and Connections
-
+
AC~
monitor
DPS PS4
L1 L2 PL S+ S-
Electric Lock Connection
Door Lock Controlled with Internal Power
Note:
1. Electronic lock of Power-on-to-unlock type should be used.
2. The door lock is limited to 12V, and holding current must be less than 250mA.
3. The door lock control is not timed from Exit Button(EB).
4. The
Unlock Mode
Parameter of Monitor must be set to 0 (by default).
EB
*
LOCK
BUS PL S
+
S-
Jumper position in
Connect one lock
2-3
1 2 3
-4-
Unlock parameter setting(set in monitor)
LOCK
Take off the Jumper
POWER
SUPPLY
BUS PL S+S-
Connect one lock
Note:
1.must connect PC-D248-K correctly before setting.
2.the parameter will be saved in PC-D248-K automatically,so you need only set on one monitor.
3.the above diagram is fit for icon menu series monitors only, to text menu series monitors,please refer to
the corresponding user manual.
1.Touch item on main
menu page.
2.Touch the screen anywhere
and hold for 2s.
3.Touch Installer setup item
4.A digital keypad and setting
instructions will be showed.
Manual
Monitor
Monitor
Memory
Playback
Album
User Setup
09/30/2010 Thu.16:41
Close
Intercom
Multimedia
About
?
H/W : --- a1.3
S/W: V17.11.418.00
Local addr: --Unlock timing: --Video standard: UI-CODE: --MCM-VER.: --Updated: ---
Home
Installer
setup
Caliber
TouchScreen
[0010]#:Remove all remote control
Code Number:[----]
[0011]#:Add remote control
[8000]#:Set as master unit 0
[8001]#:Set as slaver unit 1
[8002]#:Set as slaver unit 2
[8003]#:Set as slaver unit 3
[8004]#:Set as guard unit
[8005]#:Set as not guard unit
[8006]#:Panel on as slaver unit called
[8007]#:Panel off as slaver unit called
[8008]#:Date format:MM/DD/YYYY
[8009]#:Date format:DD/MM/YYYY
[8010]#:Set lock mode to 0
[8011]#:Set lock mode to 1
[8021]~[8029]
#Set the lock time of 1~9s
Multi language settings:
1
---
4
7
8
0
9
6
5
2
3
Cancel
Installation settings:
Door Lock Controlled with Dry Contact
Note:
1. The external power supply must be used according
to the lock.
2. The inside relay contact is restricted to AC or DC
24V/1A.
3. The jumper must be taken off before connecting.
4. Setup the
Unlock Mode
of Monitor for different
lock types.
• Power-on-to-unlock type:Unlock Mode=0 (by
default)
• Power-off-to-unlock type:Unlock Mode=1
-5-

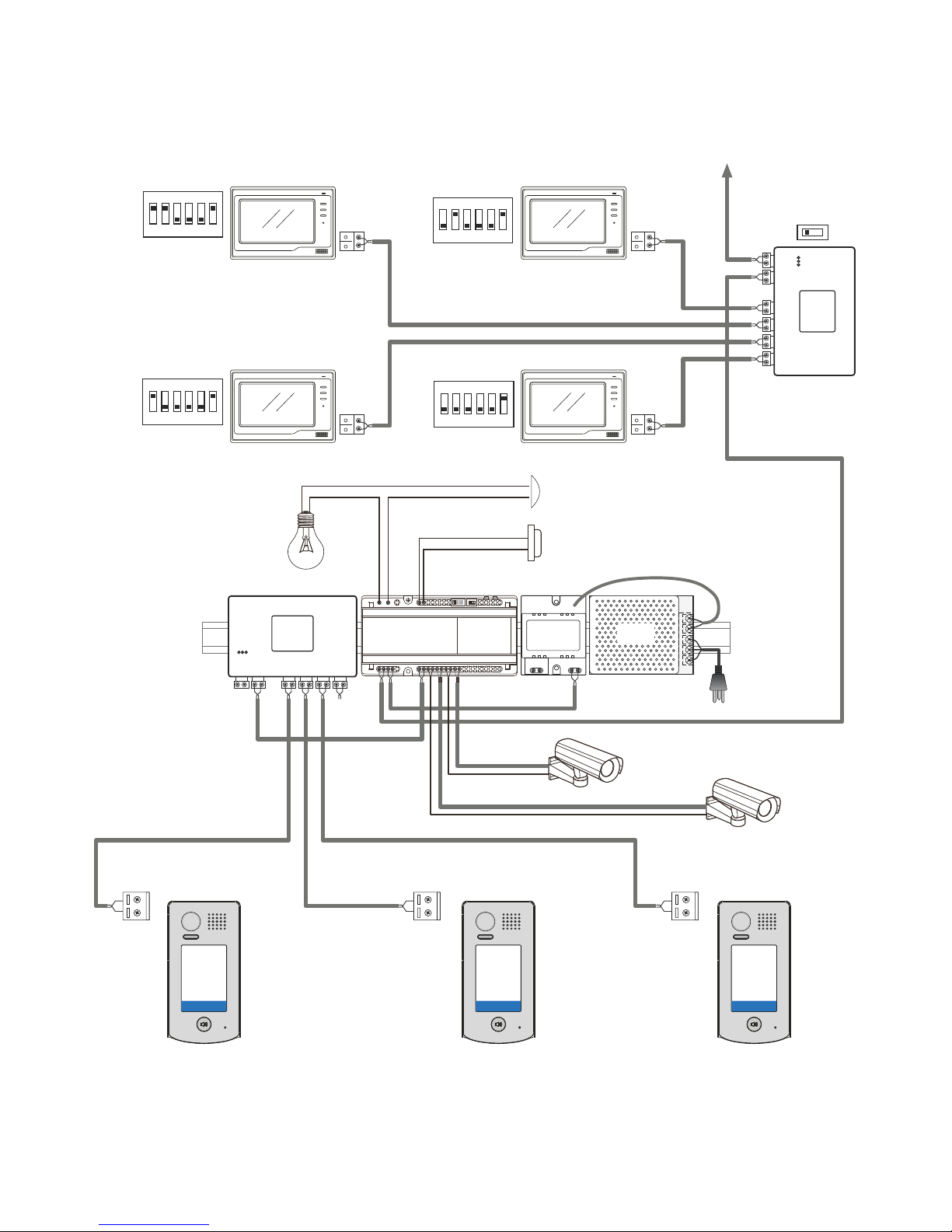

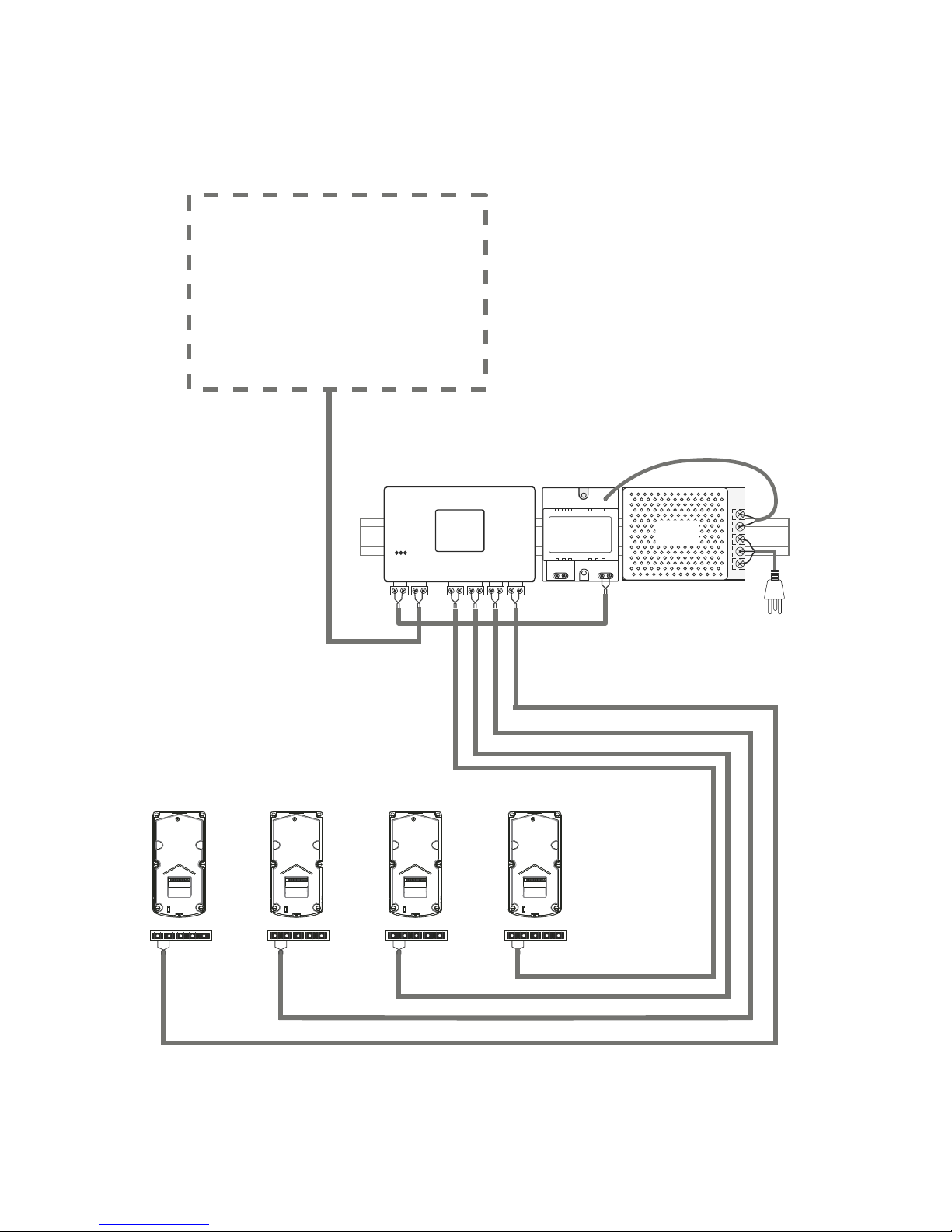

Multi Door Stations Connection
85~260VAC
DPS
PS5
monitors
1# Camera
2# Camera3# Camera4# Camera
DBC4
A B C D
BUS
L1 L2 PL S+ S-L1 L2 PL S+ S-
L1 L2 PL S+ S-
L1 L2 PL S+ S-
(Device Address:3) (Device Address:2) (Device Address:1) (Device Address:0)
-6-

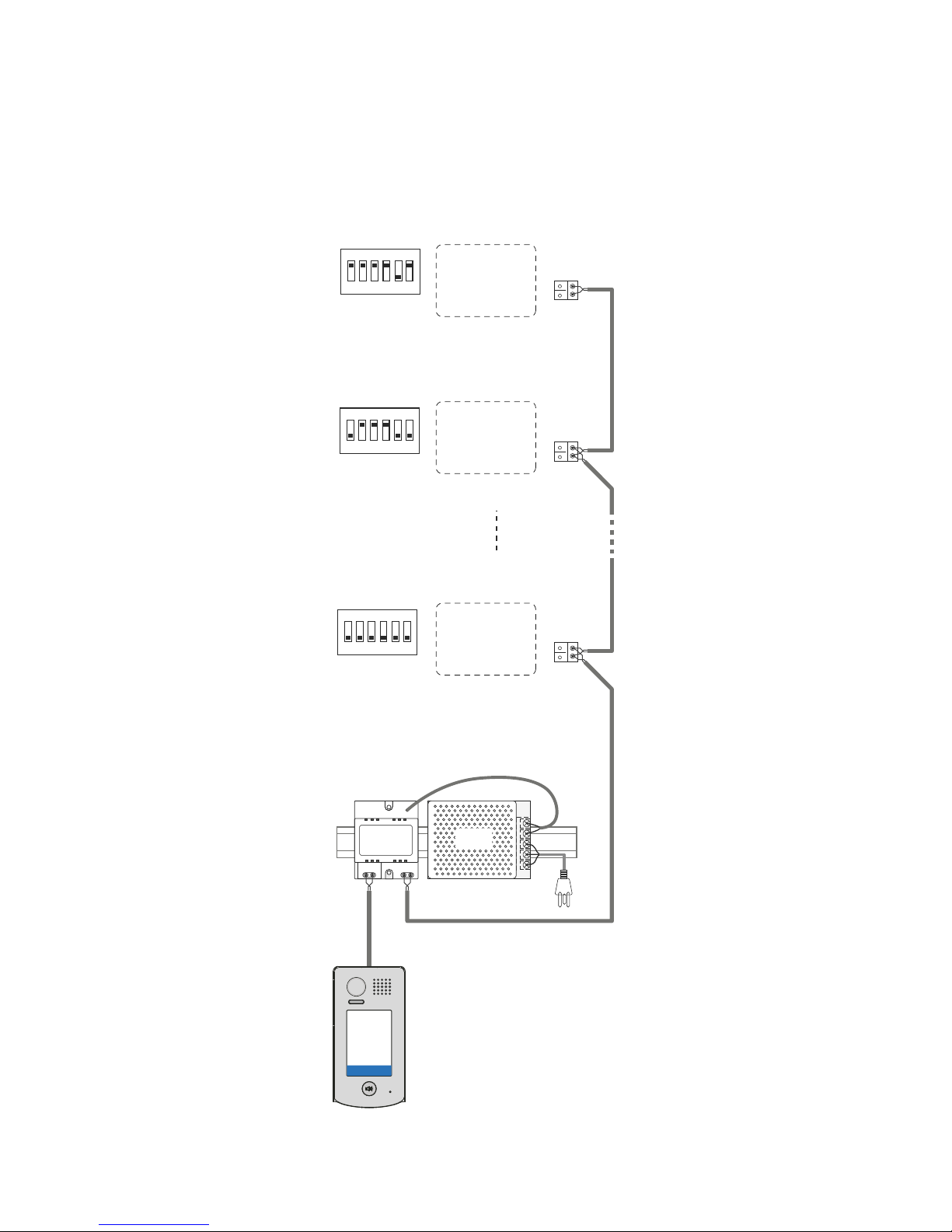

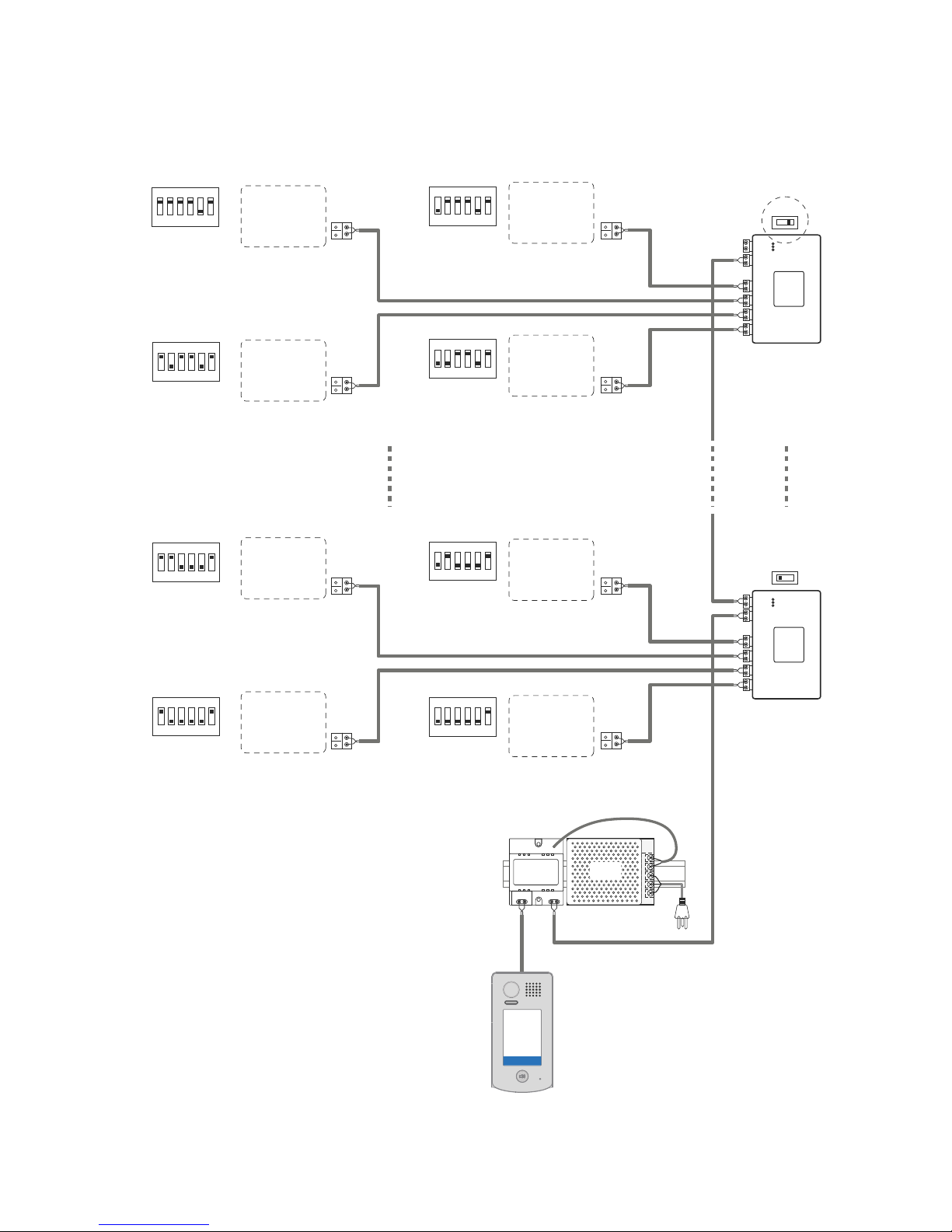

Basic IN-OUT Wiring Mode
Multi Monitors Connection
monitor
monitor
monitor
85~260AC
DPS
PS5
Code=0, DIP-6=off
Code=14, DIP-6=off
Code=15, DIP-6=on
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1
4 5 6
98
0 #
7
2 3
*
(Device Address:0)
-7-
With DBC-4 Wiring Mode
HI
HI
monitor
monitor
monitor
monitor
monitor
monitor
monitor
monitor
DBC-4
A B C D
IN
OUT
DBC-4
A B C D
IN
OUT
85~260AC
DPS
PS5
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
Code=15, DIP-6=on
Code=13, DIP-6=on
Code=3, DIP-6=on
Code=1, DIP-6=on
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
Code=14, DIP-6=on
Code=12, DIP-6=on
Code=2, DIP-6=on
Code=0, DIP-6=on
1
4 5 6
98
0 #
7
2 3
*
(Device Address:0)
-8-
Note:About DCU instructions , please refer to the user manual for more detail informations.
DCU Code =3(11)
Camera 1
Doorstation 1 Doorstation 2
Doorstation 3
Camera 2
85~260VAC
DPS
PS5
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
HI
DBC-4
A B C D
IN
OUT
Code=0, DIP-6=on
CALL
UNLOCK
TALK/MON
IN-USE
Code=3, DIP-6=on
Code=2, DIP-6=on
Code=1, DIP-6=on
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
1 2 3 4 5 6
ON
DCU
1 2 3 4
ON
DBC-4
A B C D
BUS
AC
1
4 5 6
98
0 #
7
2 3
*
1
4 5 6
98
0 #
7
2 3
*
1
4 5 6
98
0 #
7
2 3
*
(Device Address:0) (Device Address:1) (Device Address:2)
Extending Connections with DCU unit
-9-
5. Functions Setting Up
This section explains the settings of each function,please refer to the following table:
About the setting mode:
Input the master code to switch to the setting mode, and input the corresponding setting code to perform the
settings for the function you want. After settings have been made, input the following setting codes to continue the
setting operation. Press " " to exit the setting mode.
• The example is set as cancel button and # as confirm button,please refer to */# function
setting for detail information.
• Forbid to slide to touch the digital keypad,it may cause mistaken key,the correct operation is
using your finger to press the digital you desired.
• You sh ould pre ss“c o nfirm ”butt on af ter finis h inp uttin g th e co de nu mber eac h
time,otherwise,the operation will be canceled automatically in 10s.
-10-
Order Setting items Setting range Default value Setting code
1 Reset all settings 1234
-
00
2 Setting the master code
1 ~ 12 digits
Valid keys:0 ~ 9
1234 01
3
Setting the key
illumination time
10 to 99 seconds/
continually lit
10 seconds 02
4 Setting the unlock time 01 to 99 seconds 1 seconds 03
5 Setting the unlock mode 0:opened/1:closed opened 04
6 Operation tone settings
0:on/1:off on 05
7 Reset code settings 1234 - 06
8 &# function settings 0:Normal/1:Reverse Normal 07
9 Call tone settings 0:Enable/1:Disable
Enable 08
10
Interference resistant
grade settings
Valid keys:0 ~ 5 2 09
11 MIC Adjustment Valid keys:0~9 7 10
12 SPK Adjustment Valid keys:0~9 7 11
13 Display Scene Valid keys:0~2 0 12
14 Night Light Level Valid keys:0~5 4 13
15 Device Address Valid keys:0~3 0 14
16 Reserve
(not used)
Reserve Reserve 15~17
17
Setting the code
forTemporary1
1 ~ 12 digits
Valid keys:0~9
- 18
18
Setting the code
forTemporary2
1 ~ 12 digits
Valid keys:0~9
- 19
19
Setting the code for user
group1
1 ~ 12 digits
Number of codes:40
Valid keys:0~9
- 20~59
20
Setting the code for user
group2
1 ~ 12 digits
Number of codes:40
Valid keys:0~9
- 60~99
21 Work Mode 0:A partment/1:Villa 1(villa) 100
22 Call Address Valid keys: 0 - 9 00 101
-11-
1
4 5 6
98
0 #
2
7
*
3

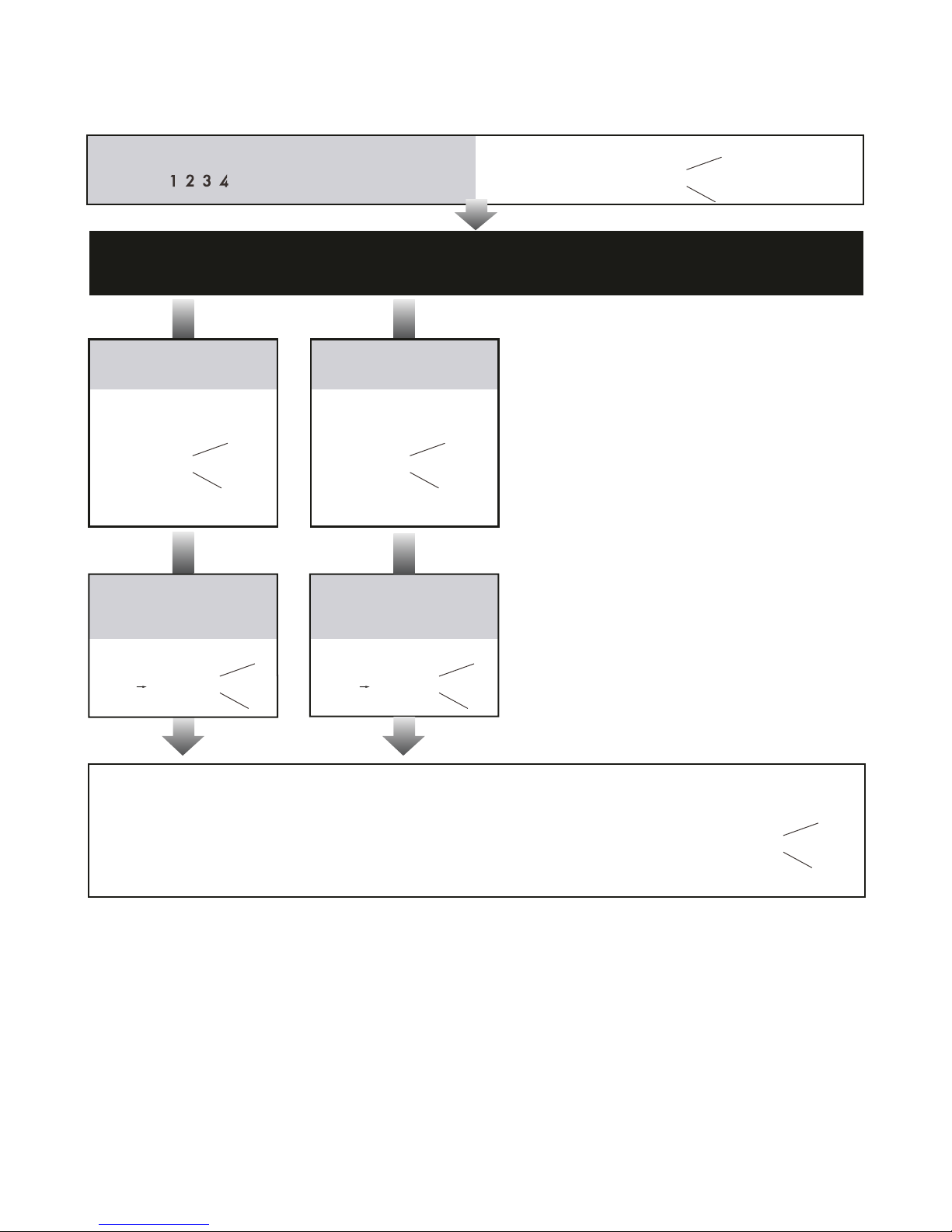

Each operation is indicated by the lighting up of the
different color of digital key and nameplate , and by the
sounding of the buzzer.
Input the master code.
(Default: [ ] +[#] )
- All settings will restore to their
default value.
-
When power on or activate
the reset all setting item,the
keypad checking will carry out,
during this time,the key
illumination will blink and the
touching operation is forbidden,
after nish checking,the key
illumination will stop blinking
and sent out a long sound of beep
- The master code is allowed 1~12
digits,the same code cannot be set
for both the user code and the
master code,it is recommended
that you modify the default master
code.
- The unlock time can be set on
both monitor and door station,
and the valid value is the number
you set last time.
(white)
The color of key indicator
Beep+, Beep
Beep+, Beep Beep+, Beep Beep+, Beep Beep+, Beep
Beep+ Beep+
Beep+ Beep+
Inputting of code (ex.: 10)
range:00 or 10~99
Inputting of code (ex.: 09)
range:01~99
3.Setting the key
illumination time
4.Setting the
unlock time
2.Setting the master code
(Default
1234)
(Default 10s) (Default 1s) nputting of n
I
ew master code
(ex.: 4321)(1~12 digits)
Input the setting code.
Inputting of code
Input the setting code.
1.Reset all settings
00+#
1234+# 4321+#
01+#
10+#
02+# 03+#
09+#
Input the setting code. Input the setting code.
- If the key illumination time is set
to 00,the key illumination will light
up all the time when power on.
- If the key illumination time is set to
10~99,the key illumination will light
up for 10~99 seconds.At this mode,
the key illumination lights off in
standby mode, touching any digital
key can illuminate,but this is the
invalid digital.
(yellow)
The color of key indicator
(yellow)
The color of key indicator
(yellow)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
The color of key indicator The color of key indicator The color of key indicator
(green white) (green white)(green white)
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
-
When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
-
When setting failure, the color of key indicator will turn red , the buzzer beeps.
-12-
Input the master code.
(Default: [ ] +[#])
Beep+, Beep
Beep+, Beep Beep+, Beep Beep+, Beep Beep+, Beep
Beep+
Beep+Beep+ Beep+
7.Reset code setting 8. &# function setting 6.Setting operation tone
(Default
ON) (Default Normal)(Default 0(opened))
Input the setting code.
Inputting of code
Input the setting code.
5.Setting the unlock mode
04+# 05+#
1+#
range:0:(open)/1:(close)
0/1
0/1 0/1
1+# 1+#
06+# 07+#
1234+#
Input the setting code. Input the setting code.
(ex.: 1)
Inputting of code Inputting of code Inputting of code
range:0:(on)/1:(off)
(ex.: 1)
range:0:(normal)/1:(reverse)
(ex.: 1)
*
*
*
- The unlock mode can be set on
both monitor and door station,
and the valid value is the number
you set last time.
- When the operation tone is
set to 0,pressing the digital
keypad will sent out a sound
of beep.
- When the operation tone is
set to 1,pressing the digital
keypad will blink one time.
- Cancel all the passwords except
the master code.
- Restore the master code to
default value(1,2,3,4)
- When the item is set to 0,press
the button to cancel the input,
and press the # button to conrm
the input.
- When the item is set to 1,press
the # button to cancel the input,
and press the button to conrm
the input .
(white)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(green white) (green white) (green white)
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
-
When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
-
When setting failure, the color of key indicator will turn red , the buzzer beeps.
-13-
Input the master code.
(Default: [ ] +[#])
Beep+, Beep
Beep+, Beep Beep+, Beep
Beep+
Beep+
10.Interference resistant
grade setting
Input the setting code.
Input the setting code.
9. Call tone setting
08+#
0/1
1+#
09+#
Inputting of code (ex.: 3)
Inputting of code (ex.: 1)
range:0~5
3+#
range:0(enable)/1:(disable)
(Default
2)
(Default
enable)
-
The larger you set the
interference resistant grade,
the stronger it will be,but the
sensitivity of the keypad will
be more lower.
- The interference resistant
grade setting also will activate
the keypad checking.
-
If the item is set to 0,the unit will
respond a call tone when pressing
the “CALL” button.
- If the item is set to 1, the unit will
have no responds when pressing
the “CALL” button.
(white)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
Beep+, Beep
Beep+
11.IMC volume adjust
setting
Input the setting code.
10+#
Inputting of code (ex.: 5)
(yellow)
range:0~9
5+#
(Default:7)
The color of key indicator
The color of key indicator
(green white)
Beep+, Beep
Beep+
12.SPK volume adjust
setting
Input the setting code.
11+#
Inputting of code (ex.: 5)
(yellow)
range:0~9
5+#
(Default:4)
The color of key indicator
The color of key indicator
(green white)
- Unlock via password is still available even when the door station is
talking.
- When door station is talking, you can enter the Master code (the
LED turns white upon that) to activate the volume adjusting function:
MIC adjustment: 1 (up), 4 (down);
Sleaker adjustment: 3 (up), 6 (down).
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
-
When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
-
When setting failure, the color of key indicator will turn red , the buzzer beeps.
-14-
Input the master code.
(Default: [ ] +[#])
Beep+, Beep
Beep+, Beep Beep+, Beep
Beep+
Beep+
14.Night light level
setting
Input the setting code.
Input the setting code.
13. Display scene setting
12+#
0/1
1+#
13+#
Inputting of code (ex.: 3)
Inputting of code (ex.: 1)
range:0~5
3+#
range:0~2
(Default
4)
(Default
0)
- Night Light Level:0~5.
-The higher the number, the brighter
the night lights.
-
Scene0: Standby(blue), calling
(blue blinks rapidly), talking(blue
blinks slowly), unlock(green).
- Scene1: Standby(green), calling
(green blinks rapidly), talking
(greenblinks slowly), unlock(blue).
- Scene2: Standby(blue), calling
(yellow), talking(red), unlock(green)
(white)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
Beep+, Beep
Beep+
15.Device address setting
Input the setting code.
14+#
Inputting of code (ex.: 0)
(yellow)
range:0~3
0+#
(Default:0 )
The color of key indicator
The color of key indicator
(green white)
-
Device address Settings:
0(device address:0),1(device
address:1),2(device address:2),
3(device address:3).
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
-
When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
-
When setting failure, the color of key indicator will turn red , the buzzer beeps.
-15-
Input the master code.
(Default: [ ]+[#] )
Beep+, Beep
Beep+, Beep Beep+, Beep Beep+, Beep Beep+, Beep
Beep+ Beep+
Beep+ Beep
Inputting of code (ex.: 2011)
1~12 digits
Inputting of code (ex.: 2012)
1~12 digits
18.Setting the code
for user group1
19.Setting the code
for user group2
17.Setting the code
forTemporary2
Input the setting code.
Input the setting code.
16.Setting the code
forTemporary1
18+# 19+#
21+# 60+#
2011+#
Inputting of code (ex.: 1006)
Inputting of code (ex.: 2011)
1~12 digits
1006+#
1~12 digits
2010+#
2012+#
Input the setting code.
(ex.:21)
Input the setting code.
(ex.:60)
20~59
60~99
- When input the correct temporary password to release the door,
the system will clear the temporary password after 60 seconds
automatically.But you should know that the password is valid within
60 seconds after inputing the correct temporary password
- The temporary1 is used to release the rst lock,and the temporary
2 is used to release the second lock(the second lock need external
device to support).
- If the password length exceeds 12 digits, the system will sent out
the sound of “beep,beep,beep,beep”,and the digitals you input before
will be cleared at the same time.
- The temporary code can not be set the same as the master code
and user code.
- The user code group1 is used to release the rst lock,and the user code
group2 is used to release the second lock(the second lock need external
device to support).
- The user code group1 and user code code group2 can contain 40
group passwords
- If the password length exceeds 12 digits, the system will sent out the
sound of “beep,beep,beep,beep”,and the digitals you input before will
be cleared at the same time.
- The user code can not be set the same as the master code and
temporary code.
(white)
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
-
When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
-
When setting failure, the color of key indicator will turn red , the buzzer beeps.
-16-
Input the master code.
(Default: [ ]+[#] )
Beep+, Beep
Beep+, Beep Beep+, Beep
Beep+ Beep+
21.Call address setting
Input the setting code.
Input the setting code.
20.Work mode setting
0+#
- Work mode setting:
(white)
0(a partment)/1:(villa).
The color of key indicator
(yellow)
The color of key indicator
The color of key indicator
(green white)
(yellow)
The color of key indicator
The color of key indicator
(green white)
100+# 101+#
(Default:villa:00,16;
a partment:00~31)
(Default:1/villa)
Inputting of code (ex.: 1)
Inputting of code (ex.: 1)
range:0(a partment)/1:(villa)
0+#
range:Valid keys: 0 - 9
- When the work mode is villa,the call
address:00 or 16.
- When the work mode is a partment,
the range of call
address:00~31.
-
When the “ cancel” key is pressed, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
-
When there isn’t any operation in 10s, the indicator will show its standby color, the buzzer beeps, and the system
exits the setting mode.
Beep, Beep+
*
(The color
of standby)
The color of
key indicator
-
When setting failure, the color of key indicator will turn red , the buzzer beeps.
-17-
6.Power Supply Instructions
8.Specications
7. Precaustions
Name Discription Usage
PS5-24V
Power supply,85~260Vac input,24Vdc/3A
output,10 DIN modules
Connect with multi doorstations or
multi monitors(up to 2 or above)
PS4-24V
Power supply,85~260Vac input,24Vdc/1A
output,for basic kit only,4 DIN modules
Connect with one doorstation and one
monitor(DT16 can be connected two)
• Power Supply : DC 24V (supplied by PS4-24V or PS5-24V);
• Power Consumption: Standby 60mA; Working status 200mA;
• Camera: Color ARS; 420 TV Lines;
• Unlocking time: 1~99s
• Lock Power supply: 12Vdc, 300mA(Internal Power);
• Number of relay circuits: 2(the second lock need external device to support)
• Mounting: Surface mounting
• Working temperature: -10ºC ~ +45ºC
• Dimens i o n: 182(H)×93(W)×44(D)mm
• Please clean the unit with soft cotton cloth, don't use the organic impregnant or chemical clean agent. If
necessary, please use a little pure water or dilute soap water to clean the dust.
• The unit is weather resistant. However do not spray high pressure water on access control keypad directly.
Excessive moisture may cause problems with the unit.
• You must use the right adaptor which is supplied by the manufacture or approved by the manufacture..
• Pay attention to the high voltage inside the products, please refer service only to a trained and qualified
professional.
-18-

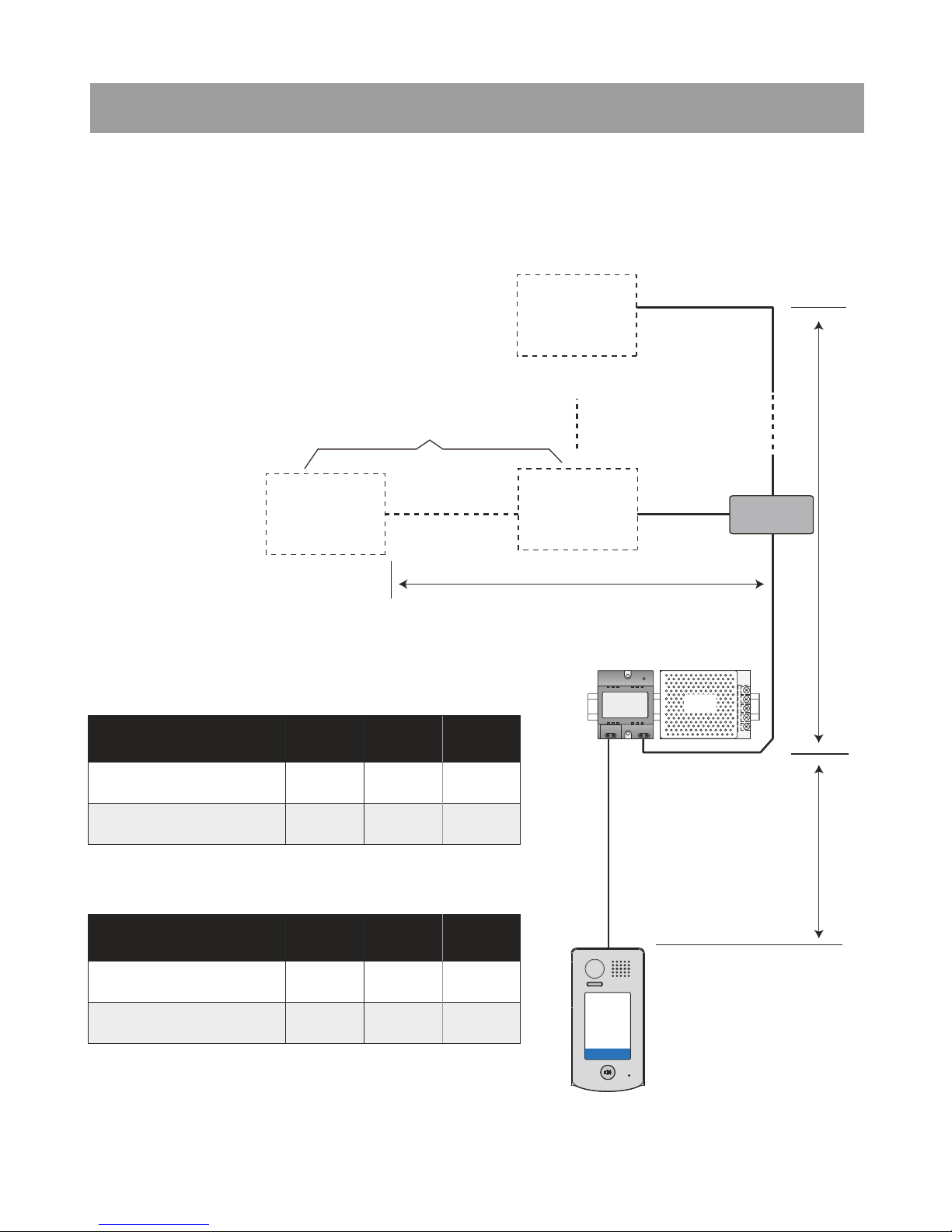

9.Cables Requirements
The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the
maximum distance which the system can reach.
When Monitor quantity < 20
Cable Usage A B C
Twisted cable 2x0.75 mm
2
60 60 30
Twisted cable 2x1 mm
2
80 80 40
When Monitor quantity > 20
Cable Usage A B C
Twisted cable 2x1 mm
2
70 30 20
Twisted cable 2x1.5 mm
2
70 50 30
The farest monitor
B
A
C
DPS
PS5
DBC/DBC-4
monitor
monitor
monitor
with two or four monitors
1
4 5 6
98
0 #
7
2 3
*
Note:If the monitor has been specified the distance,refer to the
parameter.
Note:
The design and specications can be modied without notice to the user. Right to interpret
and copyright of this manual are reserved.
Loading...
