WEEE Number: 80133970

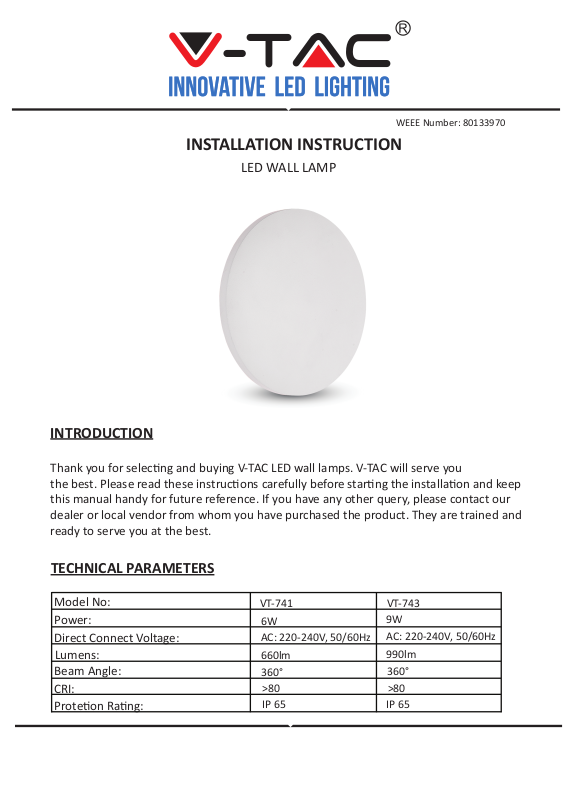

INSTALLATION INSTRUCTION
LED WALL LAMP
INTRODUCTION
Thank you for selecng and buying V-TAC LED wall lamps. V-TAC will serve you
the best. Please read these instrucons carefully before starng the installaon and keep
this manual handy for future reference. If you have any other query, please contact our
dealer or local vendor from whom you have purchased the product. They are trained and
ready to serve you at the best.
TECHNICAL PARAMETERS
Model No:
Power:
Direct Connect Voltage:
Lumens:
Beam Angle:
CRI:
Proteon Rang:
VT-741
6W
AC: 220-240V, 50/60Hz
660lm
360°
>80 >80
IP 65
VT-743
9W
AC: 220-240V, 50/60Hz
990lm
360°
IP 65
Page 2
INSTALLATION REQUIREMENTS
• Install only by cerfied electrician.
• Please connect with the driver properly before connecng main supply.
• Proper grounding should be ensured throughout installaon.
• The lighng should be located in dry area.
INSTALLATION INSTRUCTIONS
• Switch off the power.
• Cut appropriate size hove on the wall. Put the rubber plug into the hole. Fix the
bracket on the ceiling with screw.
• Connect the AC wires.
• Install the lamp body into the bracket and ghten the screw safely and solidly.
In case of any query /issue with the product please reach out to us at [email protected]
