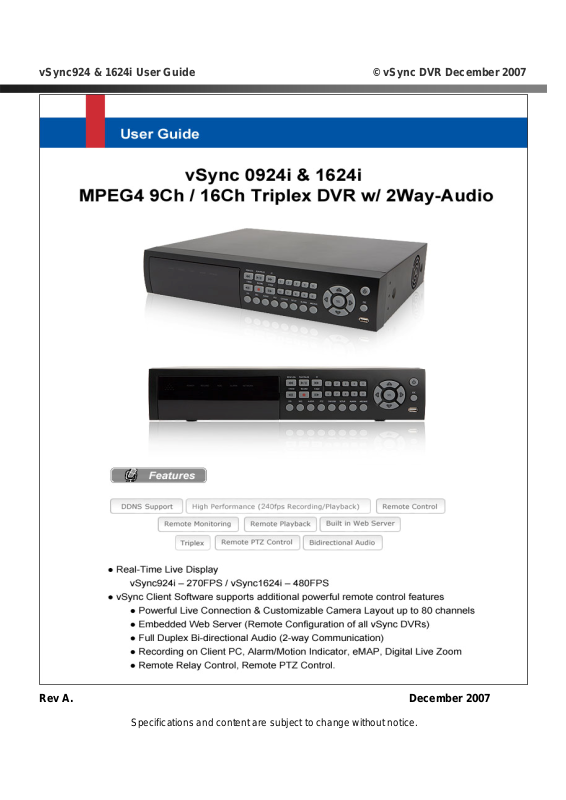

vSync 924, 0924i, 1624i User Manual

Download

Page 1

vSync924 & 1624i User Guide © vSync DVR December 2007

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 2

vSync924 & 1624i User Guide © vSync DVR December 2007

TABLE OF CONTENTS

1. Introduction............................................................................................................... ..7

1.1. Overview........................................................................................... ..................7

1.2. Summary of the Specifications of VSync924i & 1624i ......................................9

1.3. Packing List ......................................................................................................10

2. Product Description ................................................................................................. 11

2-1. Front Panel..................... ..... ... .. ...... .. ... ..... ... ... ..... ... .. ...... .. ...... .. ... ..... ... ... ..... ... ..11

2-2. Rear Panel ..... ..... ... .. ...... .. ...... .. ... ..... ... ..... ... ... ..... ... ..... ... .. ...... .. ...... .. ... ..... ... .....13

2-3. Remote Controller....................... ... ..... ... .. ...... .. ...... .. ... ..... ... ..... ... ... ..... ... ..... ... ..15

2-3-1. Alphabet Input with Remote Controller ............................................16

3. Getting Started – Setting Up the DVR ....................................... .............................17

3-1. Setup – Main Screen ............................. ........................................ ..................17

3-2. Setup – Live ............................. ........................................ ................................18

3-3. Setup – Recording Mode............................................ .....................................19

3-3-1. Motion Zone Set Up.............................................................................21

3-3-2. Record Schedule.................................................................................21

3-4. Setup – Device Mode.......................... ........................................ .....................23

3-4-1. ALARM-OUT......................... ................................................................24

3-4-2. PTZ Control............................................................................. .............25

3-4-3. SPOT-OUT .................................................................................... ........26

3-5. Setup – System Mode......................................................................................27

3-6. Setup – Security Mode.....................................................................................30

3-7. Setup – Network Mode.................................... ........................................ ........31

3-7-1. Ports......................... ........................................... ..................................33

3-7-2. Network Types............................. ........................................................33

3-8. Setup - Storage Mode......................................................................................35

3-9. Saving Setup.................................................. .. ...... .. ...... .. ... ..... ... ..... ... ... ..... ... ..36

4. Local Viewing............................................................................................ ................37

4-1. Live Window................................................... ..... ... .. ...... .. ...... .. ... ..... ... ..... ... ... ..37

4-2. SEARCH Window ............................................ ... ..... ... ..... ... ... ..... ... ..... ... .. ...... ..39

4-3. Play mode ........................................ ... ..... ... ... ..... ... ..... ... .. ...... .. ...... .. ... ..... ... .....44

4-4. PTZ Control...................................................... ... ..... ... ... ..... ... ..... ... .. ...... .. ...... ..45

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 3

vSync924 & 1624i User Guide © vSync DVR December 2007

5. Archiving Video vi a USB or CD-RW.................................. .....................................46

5-1. Capturing images or video............... ... ... ..... ... .. ...... .. ... ..... ... ... .. ...... .. ... ..... ... ... ..46

5-2. Transferring still images or video onto USB or CD-RW......................... .........47

6. Firmware Upgrade....................................................................................................50

6-1. Preparing USB memory with upgrade firmware..............................................50

7. Network Client - Remote Monitoring and Playback ................................ .............51

8. Remote Setup Using Embedded Web-Server of vSync924i & 1624i..................52

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 4

vSync924 & 1624i User Guide © vSync DVR December 2007

CAUTION

z THIS PRODUCT HAS MULTIPLE-RATED VOLTAGES (110V AND 220V). MAKE SURE TO SET THE

VOLTAGE SELECTION SWITCH AT THE REAR PANEL TO THE PROPER VOLTAGE LEVEL OF YOUR REGION.

z THIS PRODUCT USES A LITHIUM BATTERY. THERE IS RISK OF EXPLOSION IF THE BATTERY ON THE

MAIN BOARD IS INSTALLED INCORRECTLY. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS.

z THIS EQUIPMENT AND ALL COMMUNICATION WIRING IS INTENDED FOR INDOOR USE. z TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR

MOISTURE.

Rack Mount Instructions

A) Elevated Operating Ambience - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient . Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum a mbient temperature (Tma ) specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

C) Mechanical Loading - Mounting of the equipment in the ra ck should be such that a hazardous condition is not achieved due to uneven mechanical loading.

D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E) Reliable Earthing - Reliable grounding of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branc h circuit (e.g. use of power strips)."

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 5

vSync924 & 1624i User Guide © vSync DVR December 2007

CD-RW Installation Guide

1. Open the top cover of vSync DVR set and Install the CD-RW inside the DVR.

2. Fasten the screws on both side of CD-RW as indicated in red circle below.

3. Connect the IDE CD-RW 40pin cable and Power cable to the point o n both CD-RW and Main board as

indicated in red circles below. Set the CD-RW jumper setting as “MASTER”

Compatible CD-RW model

Sony CRX230EE or contact the vSync DVR distributor for other models.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 6

vSync924 & 1624i User Guide © vSync DVR December 2007

HDD Installation Guide

1. Mount the bracket to the hard disk using the supplied HDD mounting bracket screws.

2. Connect the supplied IDE HDD 80pin cable and Power cable to the hard disk and mount the hard dis k to the unit using the supplied HDD screws.

3. HDD JUMPER SETTING

HDD = MASTER

HDD = SLAVE

IDE HDD CABLE CONNECTION ORDER

BLUE: MAIN BOARD

WHITE: SLAVE HDD BLACK: MASTER HDD

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 7

vSync924 & 1624i User Guide © vSync DVR December 2007

1. Introduction

1.1. Overview

● Triplex MPEG-4 9/16 Channel DVR with Real-Time Live Display and Simultaneous Play Back.

● vSync924i & 1624i, (vSync924i Nine channel model & vSync1624i Sixteen channel model).

● vSync924i & 1624i features powerful embedded RTOS (Real Time Operating System).

● MPEG-4 video codec (video encoder/decoder), delivers uncompromised performance providing high

compression plus high quality video images.

● vSync924i & 1624i increases the days of recording between overwrite periods while improving the

quality of video images. Full triplex capability ensures uninterrupted recording.

● vSync DVR supports simultaneous:

1. Video Recording

2. Live Video Monitoring up to 80 cameras

• Locally via video outputs.

• Remotely via vSync network client software and viSync Central Monitoring Softwar e.

3. Play Back or File archiving via USB 2.0 port and CD-RW.

1. Video Recording

2. Remote Playback via vSync network client software and viSync CMS.

● vSync software also allows the administrator to remotely connect to, monitor, and manage multiple

networked DVRs. The vSync software logs the operation, motion, and alarm statuses of sites throughout the day for later analysis. The vSync software lets you search based on time or event, record on a remote PC, and retrieve video clips from remote sites.

● vSync software supports additional powerful remote control features,

z Powerful Live Connection & Customizable Camera Layout up to 80 channels, z Embedded Web Server (Remote Configuration of all vSync DVRs) z Full Duplex Bi-directional Audio (2-way Communication) z Recording on Client PC, Alarm/Motion Indicator, eMAP, Digital Live Zoom z Remote Relay Control, Remote PTZ Control.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 8

vSync924 & 1624i User Guide © vSync DVR December 2007

● NAFS (Network-Attached File Server) file systems provide a cluster-base d network-attached file server

which offers a high level of performance, reliability, and availability.

- Ex. Prevention of data loss and corruption in the event of a power failure.

● Multiplexing operation.

● State-of-the-art live monitoring and playback both locally and remotely.

● Individual channel recording and playback with different frame rates.

● Hidden Channel Mode on selected channels provides extra privacy and uninterrupted recording.

● Embedded Web-Viewer provides direct access using IP address or DDNS address in Internet Explorer.

● Multi-site management via network: up to 80 cameras.

- Supported by vSync network client software and viSync CMS.

- Remote live monitoring & recording , playback, backup, PTZF control & Presets, relay sensor contro l, eMAP, Digital Live Zoom, and 2-way communication.

- Remote DVR management via embedded Web-Browser for easy adjustments.

- Mobile phone & PDA viewing integration.

● Network via LAN, DDNS, DHCP, ADSL (Dynamic and Static IP addresses).

● Full duplex 4 Channel G.711 synchronized audio recording and Bi-directional Audio Communication.

● Built-in Quad Multiplexer provides sequential or quad display on all or selected channels.

● User-friendly setup menu with simplified G.U.I.(Graphic User Interface).

● Easy to schedule weekly recording plans.

● Motion detection – Use the 30x24 grid to define motion zones for each camera.

● Internal Pan/Tilt/Zoom/Focus controller.

● Easy operation via front panel and optional remote controller .

● Increased security by user name and password verification.

● Video loss detection.

● Backup - Still-images or AVI data onto USB storage device, internal CD-RW, or Network.

● USB port for JPEG/MPEG data backup and software upgrade using USB storage device.

● Still image capture and review as JPEG format.

● Variety of Hard Driv e Siz es - up to 2TB internally (500GB HDD X 4) for long-term recording.

● Multi-Languages - User can easily select language from Setup menu.

● Various Video Outputs - VGA(800x600 24-Bit Color), TV-Out, S-Video, SPOT-Out, Loop-Out.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 9

vSync924 & 1624i User Guide © vSync DVR December 2007

1.2. Summary of the Specifications of VSync924i & 1624i

Item Description Remarks

Operating System RTOS in f i rmware

Video/Audio

Compression

Triplex Function Record/Playback/Live Streaming or Record/USB archive/Live Streaming

Video Input Format NTSC/PAL Auto-Detection

Video Input 9 Ch (16 Ch) In

Video Output

Display

Frame Rate

Recording

Frame Rate

(Quad)

Recording

Frame Rate

(Full)

Record Modes Continuous/Motion/Schedule/Sensor/Manual

NTSC

PAL

NTSC

PAL

NTSC

PAL

1Ch VGA, 1 Ch BNC (Composite), 1Ch Spot-Out. 9Ch(16Ch) Loop-Out, 1 Ch S-VIDEO

270(480) frames/sec Real-Time

(Hidden Display Function)

225(400)frames/sec 25 frames/sec/Ch

240 frames/sec

(Hidden Record Function)

200 frames/sec 352x288 resolution

60 frame /sec (total) 50 frame /sec (total) 704 x 576 resolution

MPEG-4(video) /

G.711-PCM (audio)

9 Ch(16 Ch) x 30 frames/sec

352x240 resolution

704 x 480 resolution

Record Quality Network/Standard/High/Superior/Ultra

NTSC : 704 x 480(1 CH), 352x 240(Quad)

Resolution

Audio Input/Output

Channel

Alarm In/Alarm Output 9/16 Alarm Input (NC/NO selectable) / 8 Relay Output

HDD 3.5”, IDE type9 (IDE ATA133 Type), Min 80GB up to 4 IDE HDDs

CD-RW Optional CD-RW

Motion Detection Motion-Triggered Recording

Search Mode Date/Time/Event Search

Playback Speed 1x, 2x, 4x, 8x

2-way communication(Bi-Directional) Audio via network

Rev A. December 2007

Specifications and content are subject to change without notice.

PAL : 704 x 576(1 CH), 352 x 288(Quad)

Supports CIF, Half D1 & Full D1

4 Ch Input/1 Ch Output

Page 10

vSync924 & 1624i User Guide © vSync DVR December 2007

Serial Interface

USB Archiving (still images in JPEG format, video in AVI format), Firmware upgrade

Upgrade Method USB 2.0 Port or Web-Browser

PTZ Control

Network Interface LAN(10/100Base-T), Static, DHCP, PPPoE, and DDNS

Live Connection & Customizable Camera Layout up to 80 channels

Client PC S/W

( vSync )

Remote Playback

Power 110/220V, 50/60Hz

Embedded Web Server (Remote Configuration of all vSync DVRs)

Full Duplex Bi-directional Audio (2-way Communication)

Recording on Client PC, Alarm/Motion Indicator, eMAP, Digital Live Zoom

1 RS-232C (POS text inserter connection)

1 RS-422/485 (for PTZ control)

Local &

Remote Relay Control, Remote PTZ Control

Via vSync Client Software

vSync Client Software

Window2000/XP/Vista

1.3. Packing List

vSync924i or vSync1624i

Support CD includes:

vSync Network Client,

Utility Programs, Manual(s).

Infrared Remote Control

Batteries

Screws for mounting HDD.

(Preinstalled when unit is shipped with HDD)

HDD connection cables (2 ea).

(Preinstalled when unit is shipped with HDD(s))

Vsync.exe

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 11

vSync924 & 1624i User Guide © vSync DVR December 2007

HDD Mounting Brackets (2ea)

(Preinstalled when unit is shipped with HDD(s))

2. Product Description

2-1. Front Panel

Figure 2.1. Front Panel of vSync924i & 1624i

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 12

vSync924 & 1624i User Guide © vSync DVR December 2007

Table 2.1.1. Indication LEDs

Name Description

NETWORK

HDD

REC

ALARM

POWER

Name Description

POWER

DIS

SEQ

AUDIO

PTZ

SETUP

LED illuminates when system is accessing the hard disk drive. LED illuminates when recording is enabled. LED illuminates when alarm sensor(s) is/are triggered or detects video motion. (Alarm sensor(s) and/or video motion detection must be configured first). LED illuminates when clients connect through vSync software via network port. LED illuminates when the DVR unit is on.

Table 2.1.2. Buttons on the Front panel

Power ON/OFF. (Prompts for password before shutdown) Configure settings for power down in the SECURITY Setup Menu. The default password is “1111”. Press to select full, quad, 9 or 16 split-screens in live display mode. Press to start auto-sequencing in 1 Ch, 4 Ch, 9 Ch, or 16 Ch display modes. Press to select audio mode. Disable or Mute all 4 channels or selected channels only. Press to initiate PTZ control Press to launch SETUP menu.

ALARM ARCHIVE CAP/USB

REW/LOG

F/REW

F/ADV

PLAY/PAUSE

REC

Rev A. December 2007

Press to silence alarm operation. Press to review the ARCHIVE LIST in live display mode. Press to take a snapshot, or capture still images (JPEG format), during live or playback modes. (During Playback) Press to rewind video footage at 1x, 2x, 4x, and 8x speeds or to see the LOG LIST in live display mode. Jump/Step backward. In playback mode, the playback position reverses/jumps backwards 60 seconds. Jump/Step forward. In playback mode, the playback position moves forward 60 seconds. (From Playback Mode) Pressing fast forward advances footage at 1x, 2x, 4x, and 8x speeds. From Live Display Mode: Press to enter SEARCH menu. From Playback Mode: Press to play or pause video. Press to start or stop manual recording.

Specifications and content are subject to change without notice.

Page 13

vSync924 & 1624i User Guide © vSync DVR December 2007

Press to scroll up in the menu or to change values in setup mode.

(Also used as the number 1 when entering a password.) Press to scroll right in the menu or to change values in setup mode.

RIGHT

DOWN

LEFT

SEL

ESC

USB Port

2-2. Rear Panel

(Also used as the number 2 when entering a password.) Press to scroll down in the menu or to change values in setup mode. (Also used as the number 3 when entering a password.) Press to move left in the menu or to change values in setup mode. (Also used as the number 4 when entering a password.) (Surrounded by the direction control keys) Pressing selects desired menu item or saves setup values in menus. Press for temporary storage of the changed value or to return to the previous menu screen. The USB Port is located on front panel’s bottom right corner. This USB port is used to archive recordings onto a USB storage device or upgrade firmware with a USB storage device.

vSync924i

vSync1624i

Figure 2.2. Rear Panel

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 14

vSync924 & 1624i User Guide © vSync DVR December 2007

Table 2.2.1. Connectors and Switches on Rear Panel

Name Function

VIDEO IN

VIDEO OUT

SPOT

VIDEO

S-VHS

VGA

AUDIO IN

AUDIO OUT

RS-232

LAN

RS-485/422

SENSOR IN

9/16 BNC connectors for video input. Connect camera output to Video-in (NTSC/PAL) 9/16 BNC connectors for video output. (Loop-Out) Composite video output for spot monitoring. (Built-in Quad Multiplexer) Composite video output in NTSC or PAL format S-Video output Connect to a VGA monitor 15-pin connector 4 RCA connectors for audio input. 1 RCA connector for audio output. POS text inserter connection RJ-45 connector for Ethernet connection. For Pan/Tilt/Zoom control. Connector for external alarm sensor/contact devices alerts the vSync DVR and allows it to respond to events. 9/16 sensors can be connected to the DVR sensor 1~9/16 dedicated to Video Channel 1~9/16 correspondingly.

Connect 2 wires to activate a sensor input to the Terminal Block on the rear panel of the vSync DVR. A ground wire from the external device to the unit ensures that the ground reference voltage is identical. This line connects to the Terminal Block

G input.

ALARM OUT

POWER

Rev A. December 2007

8 (PGM) connectors for alarm device connection. Provides simple On/Off switching using relay (not included).

0.5A/125V or 1A/30V. The relay is open when not triggered. The relay can be close by either a motion or a sensor input, only if enabled in the Recording Setup menu. Connector for AC115/220V power cable.

Specifications and content are subject to change without notice.

Page 15

vSync924 & 1624i User Guide © vSync DVR December 2007

DIP SWITCHES

TEST

RSV VGA

PAL

2-3. Remote Controller

For futur e use. Reserved. Turn ON for VGA monitor use. Turn ON for PAL use.

POWER Power On/Off DISPLAY Displays Full, Quad or 9/16 Ch. Split View F/REW Jump 60 Seconds Backwards PLAY Play/Pause F/ADV Jump 60 Seconds Forwards FREEZE/CAP Freeze/Screen Capture FF Fast Forward ALARM Silence/Mute Alarm Operation

SETUP Setup Menu ARCHIVE Displays Archive List AUDIO Disable/Mute or Highlighted Channel Only LOCK Locks front panel and remote for all functions SEQ Sequences Full or Quad View RECORD Manual Recording SEARCH Search Menu Screen DIRECTION SELECT ID DVR ID (ID Button + DVR ID number) ESC Escape

Direction or Number 1 to 4 Enter

When you change the position of the

switch, reboot the DVR to apply the new

setting. When VGA is on, Video-Out will

be disabled!

Rev A. December 2007

Specifications and content are subject to change without notice.

PTZ PTZ Menu Screen NUMBER Channel 1 to 9 CH 10->press +10 and number 0 +10 CH 11->press +10 and number 1 CH 12->press +10 and number 2 CH 13->press +10 and number 3 CH 14->press +10 and number 4 CH 15->press +10 and number 5 CH 16->press +10 and number 6

Page 16

vSync924 & 1624i User Guide © vSync DVR December 2007

2-3-1. Alphabet Input with Remote Controller

The Numeric keys of the remote co ntroller can be used to enter letters when alphabet input is needed in parameter setting. The scheme follows the same pattern of a telephone keypad. For example, press the number “2” continuously to change the input value to “2, A, B, C, a, b, c, 2… “. This mode is useful for assigning channel names, DDNS, or ADSL configuration information.

The following table details the assignment of letters to the numeric keypad.

Table 2.3.1.1. Alphabet Input with Numeric Keypad of the Remote Controller

Numeric Key Input Values

1 1 2 A, B, C, a, b, c, 2 3 D, E, F, d, e, f, 3 4 G, H, I, g, h, i, 4 5 J, K, L, j, k, l, 5 6 M, N, O, m, n, o, 6 7 P, Q, R, S, p, q, r, s, 7 8 T, U, V, t, u, v, 8 9 W, X, Y, Z, w, x, y, z, 9

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 17

vSync924 & 1624i User Guide © vSync DVR December 2007

3. Getting Started – Setting Up the DVR

The following sections detail the initial setup of the vSync DVR.

3-1. Setup – Main Screen

Pressing the Setup button prompts a user for entry of a password. The default password is “1111”. Input the default password by pressing the Up button 4 times, followed by the SELECT button.

(We recommend that you protect your DVR system by assigning a new password. Refer to section

3.6 for instructions.)

After assigning a new password, enter it by using the direction arrow keys (representing 1, 2, 3, & 4) or using the keypad, and then press the SEL button for entering into the Setup menu shown in Figure 3.1.1. Navigate through the menu icons using the directional buttons and press the SELECT button to enter into sub-category menus.

Figure 3.1.1. Setup menu screen

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 18

vSync924 & 1624i User Guide © vSync DVR December 2007

3-2. Setup – Live

- Used for setting up the live display mode. Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.

Figure 3.2.1. Live mode setup screen

Table 3.2.1. Menu items in LIVE mode setup Item Description OSD

SEQUENCE

SEQ-DWELL TIME

OSD CONTRAST

CHANNEL

DISPLAY

BRIGHTNESS

CONTRAST

HUE

SATURATION

Rev A. December 2007

Specifications and content are subject to change without notice.

Enables/disables on-screen-display. Enables/disables sequential video channels display in full screen mode. Sets dwell time for each channel in sequential display mode.

Sets the contrast level of On Screen Display (OSD) Selects channel to apply settings. Enables/disables Hidden Channel Mode on selected channel. Brightness value for the specified channel. Contrast value for the specified channel. Hue value for the specified channel. Saturation value for the specified channel.

Page 19

vSync924 & 1624i User Guide © vSync DVR December 2007

3-3. Setup – Recording Mode

- Controls video recording attributes Navigate through the menu items using Up/Down buttons. Change values using Left/Right buttons.

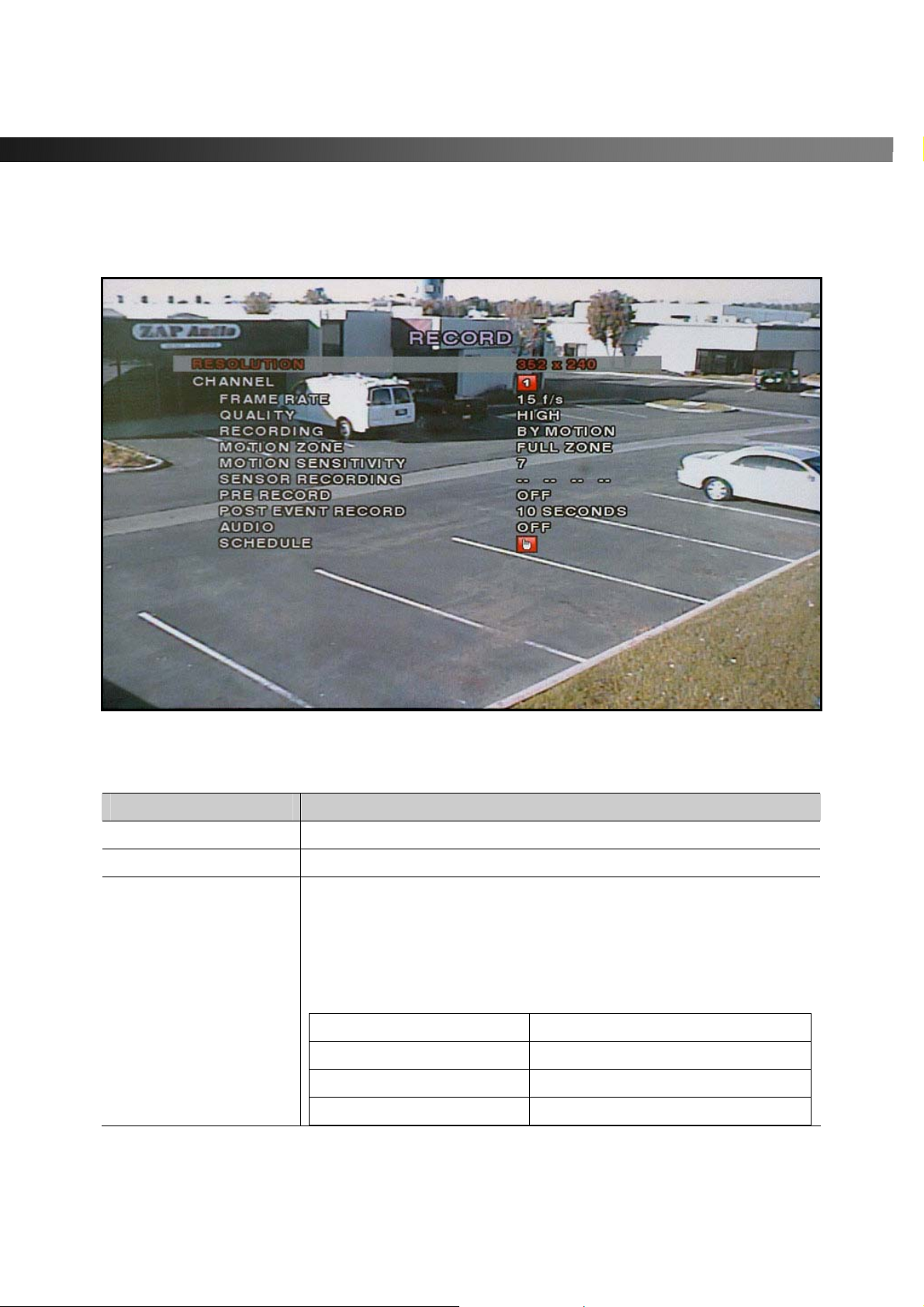

Figure 3.3.1. Recording mode setup screen

Table 3.3.1. Menu Items in Record Mode Setup

Menu item Description

RESOLUTION

CHANNEL

FRAME RATE

Configures resolution as 704x480, 704x240, or 352x240(NTSC). Selects channel to apply settings. Configures the frame rate for selected channel. Frame Rate and Recording Resolution are interdependent. The 9/16 channel frame rate sum may not exceed the maximum frame rate supported by the resolution. The following table shows the maximum frame rate for NTSC video.

Resolution Max. Frame Rate

320x240 240 FPS 704x240 120 FPS 704x480 60FPS

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 20

vSync924 & 1624i User Guide © vSync DVR December 2007

QUALITY

Configures the recording quality for selected channel. Network, Standard, High, Super, Ultra. Video quality is the best on “Ultra” setting (Network quality is designed for very low upload bandwidth conditions (i.e. weak WAN connections).

RECORDING

MOTION ZONE

MOTION SENSITIV I T Y

SENSOR RECORDING

PRE RECORD

POST EVENT RECORD

AUDIO

SCHEDULE

Assigns the recording method for a channel: Disable, Continuous, Motion, Sensor, or Schedule. Sets full zone or partial zone. Sets motion detection sensitivity for selected channel from 1 to 9. (9 is the most sensi tive setting.) Configures Alarm/Sensor Inputs for triggered recording. There are 16 sensors total (9 for vSync924i). A maximum of 4 sensor/alarm Inputs may be assigned to an individual channel. Enables/disables pre-event/pre-alarm recording. Pre-event/pre-alarm recording is 5 sec. Only i-frames are recorded. Set the length of time for post-event/post-alarm recording video. Configurable by channel from 1 to 30 seconds. Enables/disables audio by channel. There are 4 channels of audio inputs and a single audio output. Configures recording schedules. Launches new menu as shown in Figure 3.3.3.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 21

vSync924 & 1624i User Guide © vSync DVR December 2007

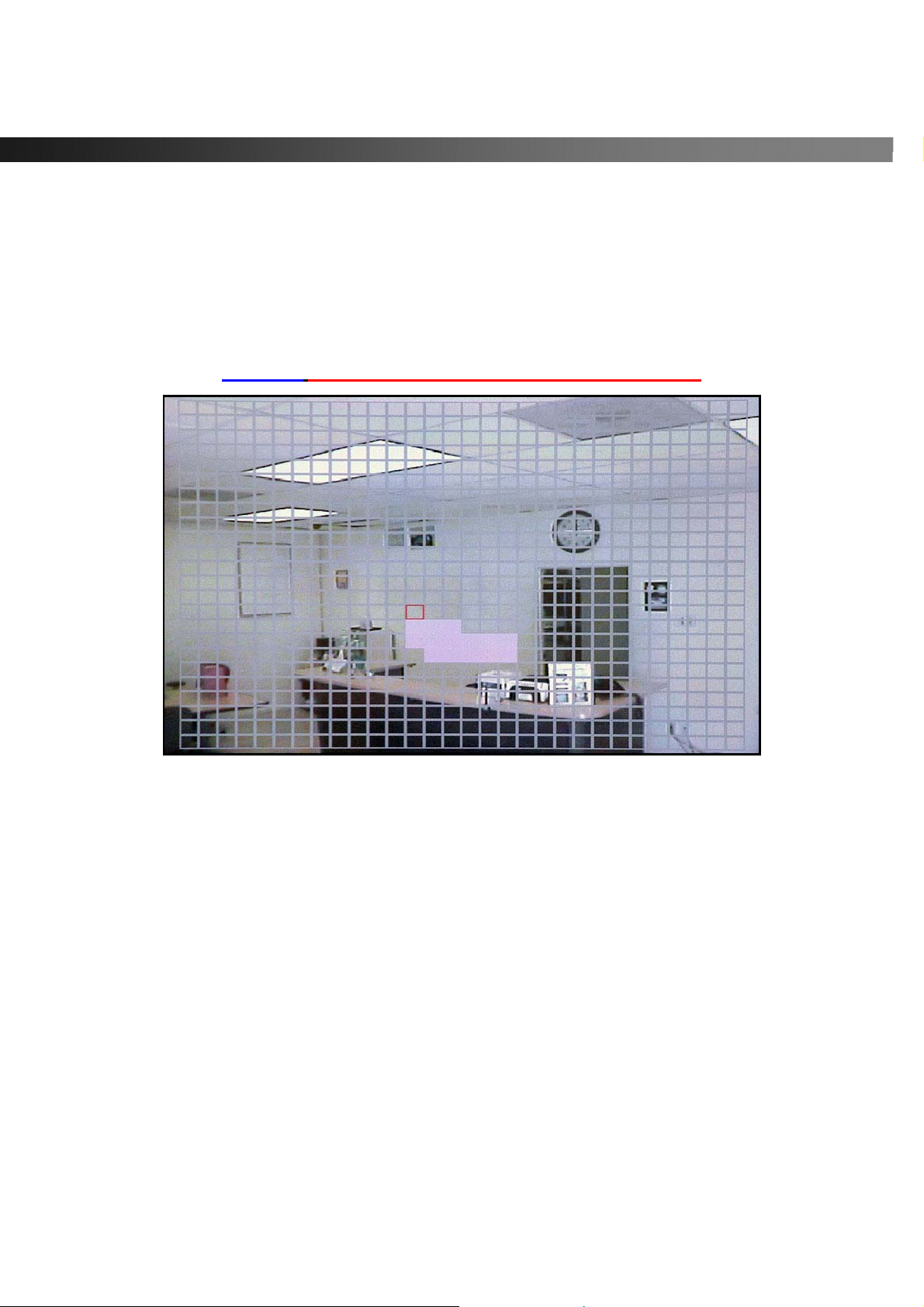

3-3-1. Motion Zone set up

By selecting Partial Zone, users can define motion zones within a screen area, as shown in Figure 3.3.1. Move each rectangular zone around using the four direction key buttons . Press the SELECT button to save the defined rectangular region as part of the motion zon e. Upon saving, the defined rectangular blocks will change color.

Important: Only selected zones will trigger motion recording.

Figure 3.3.1. Motion Zone selection scre e n

3-3-2. Record Schedule

- Records video based on a defined schedule.

The following table (3.3.3) defines button functions within this menu. Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons. Each vertical bar “ | ” corresponds to one hour. See Figure 3.3.3 for a menu example.

Rules:

1. Choosing ALL, vSync DVR globally applies the schedule to all time periods and channels.

2. Within a selected channel, a recording mode applies to the entire time period for the specific channel.

3. Within a selected time period, when highlighting one of the vertical bars “ | ”, the selected recording mode applies to all channels.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 22

vSync924 & 1624i User Guide © vSync DVR December 2007

Table 3.3.3. Button Functions in Recording Time Scheduling Mode

Button Function

REW

F/REW

PLAY/PAUSE

UP RIGHT DOWN

LEFT

SEL

Copying of a Schedule:

The following picture shows the copying of a schedule from Ch 1 to Ch 2 (useful for copying the schedule of one channel to another channel).

Use to set Continuous recording mode. Use to Disable recording setting. Use to enable Motion detection triggered recording. Use to enable Sensor triggered recording Move up in menu item. Move right in menu item. Move down in menu item. Move left in menu item. Exit from scheduling mode.

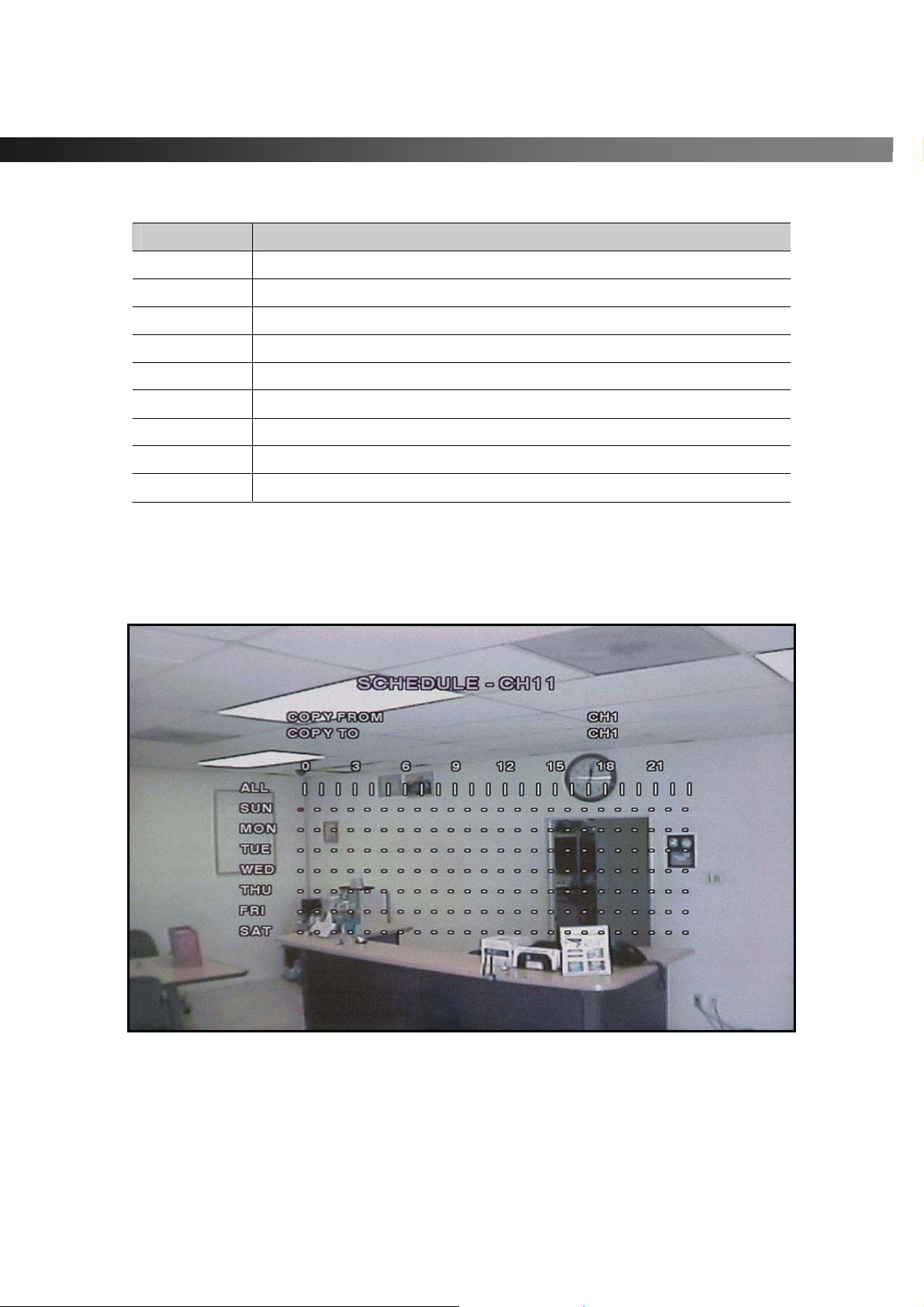

Figure 3.3.3. Recording Schedule Set-up Screen

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 23

vSync924 & 1624i User Guide © vSync DVR December 2007

3-4. Setup – Device Mode

- Configures values for device settings. Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.

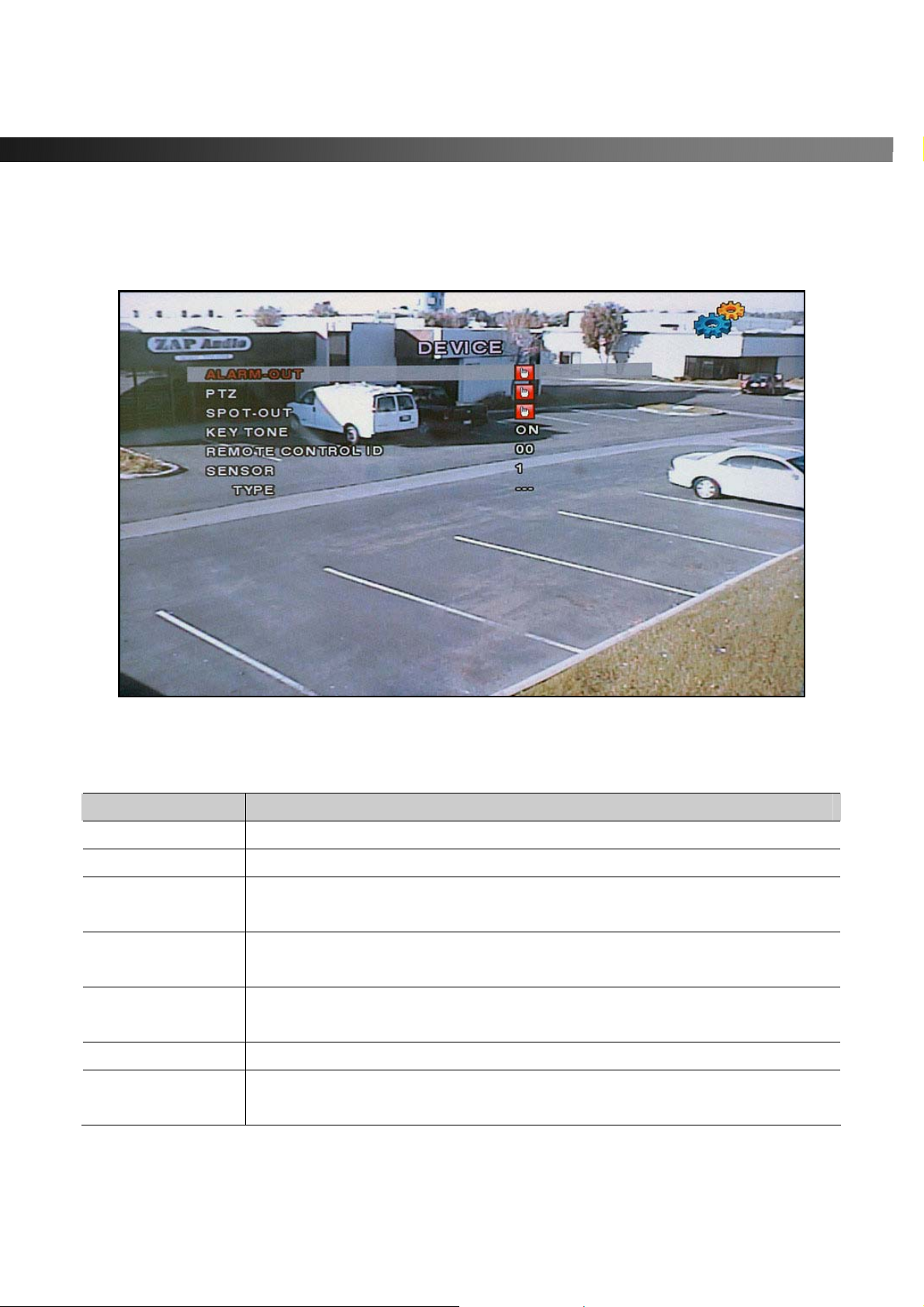

Figure 3.4.1. Device mode setup screen

Table 3.4.1. Menu items in Device Setup screen

Item Description

ALARM-OUT

PTZ

SPOT-OUT

KEY TONE

REMOTE

CONTROL ID

SENSOR

TYPE

Rev A. December 2007

Set the sensor, motion, video loss, and options for each alarm. Sets the camera’s pan speed, number, type and ID Configures the spot monitor output type (sequential or quad), and channel select. Enable/disable key tone audio. The vSync DVR beeps for e ach keystroke on the front panel or remote controller. Enter an ID for the remote controller. ID can range from 00 to 99, and is convenient when using multiple vSync DVR. Select a sensor from 1 to 16. Set the style of contact/alarm input for a specified sensor number. Choose None, N/O (normally open), and N/C (normally closed).

Specifications and content are subject to change without notice.

Page 24

vSync924 & 1624i User Guide © vSync DVR December 2007

3-4-1. ALARM-OUT

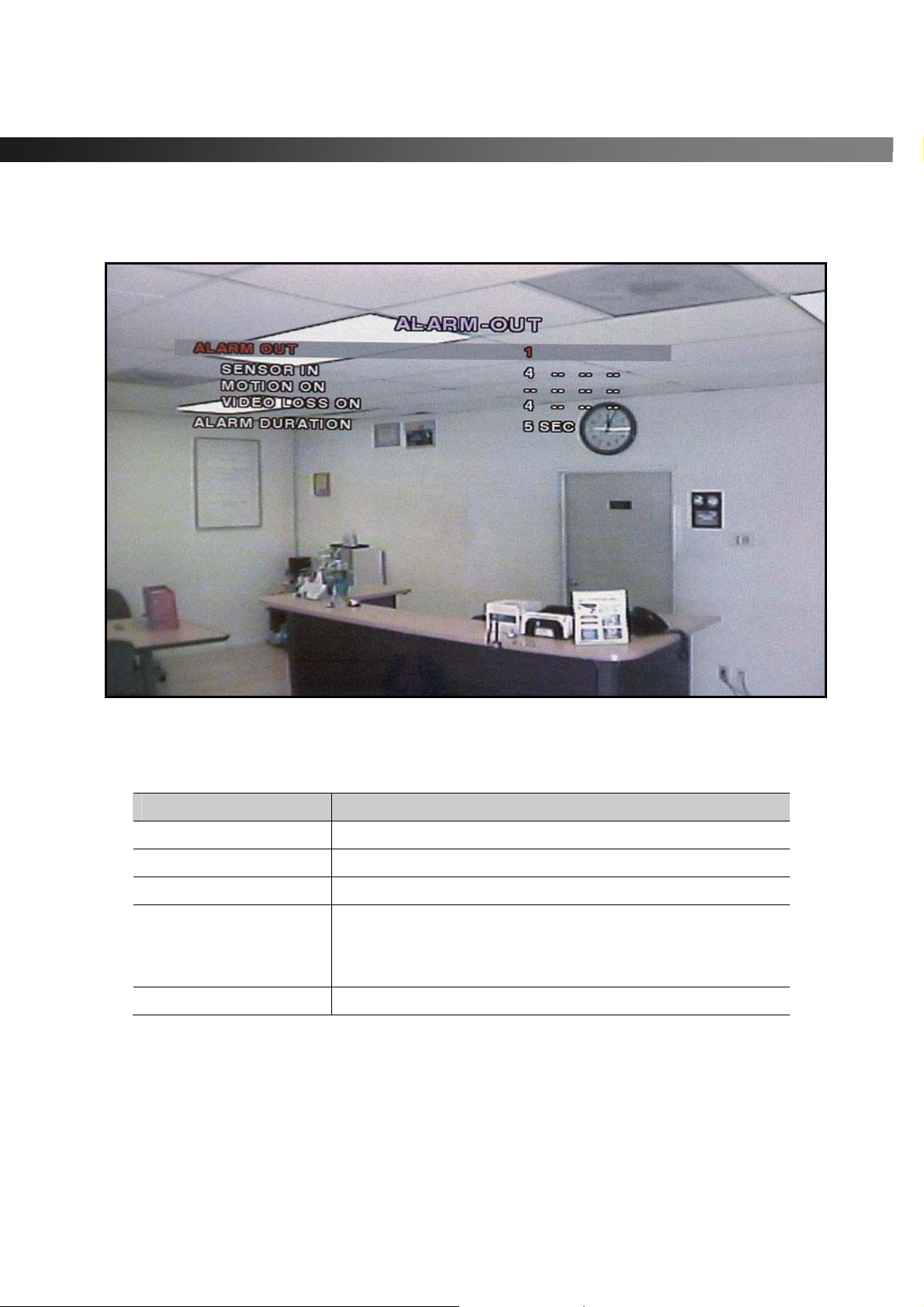

Figure 3.4.1.1. Al arm -out set up scr ee n

Table 3.4.1.1 Menu Items in ALARM-OUT Setup Screen

Item Description

ALARM OUT

SENSOR IN

MOTION ON

VIDEO LOSS ON

ALARM DURATION

Rev A. December 2007

Specifications and content are subject to change without notice.

Select alarm out puts from 1 to 8. Enable up to 4 sensors out of a total of 16. Enable up to 4 cameras out of a total of 16. Enable up to 4 cameras out of 16 cameras.

(From Multi Channel the video loss occurs simultaneously, one initial channel is notified with e-mail address in network setup)

Sets the alarm duration from 1 to 60 seconds.

Page 25

vSync924 & 1624i User Guide © vSync DVR December 2007

3-4-2. PTZ Control

To control the PTZ functions of a camera, connect the controller to the RS-485 port.

For speed dome cameras that supports RS-485, connect them directly to the RS-485 port.

For cameras using RS-232C, a Signal Converter (RS-485 to RS-232C) is needed (not included).

From the PTZ Control setting setup menu, select/set the protocol for the camera man ufacturer you wish to control. If the camera uses a specific camera ID, select the camera ID by using the Left or Right buttons.

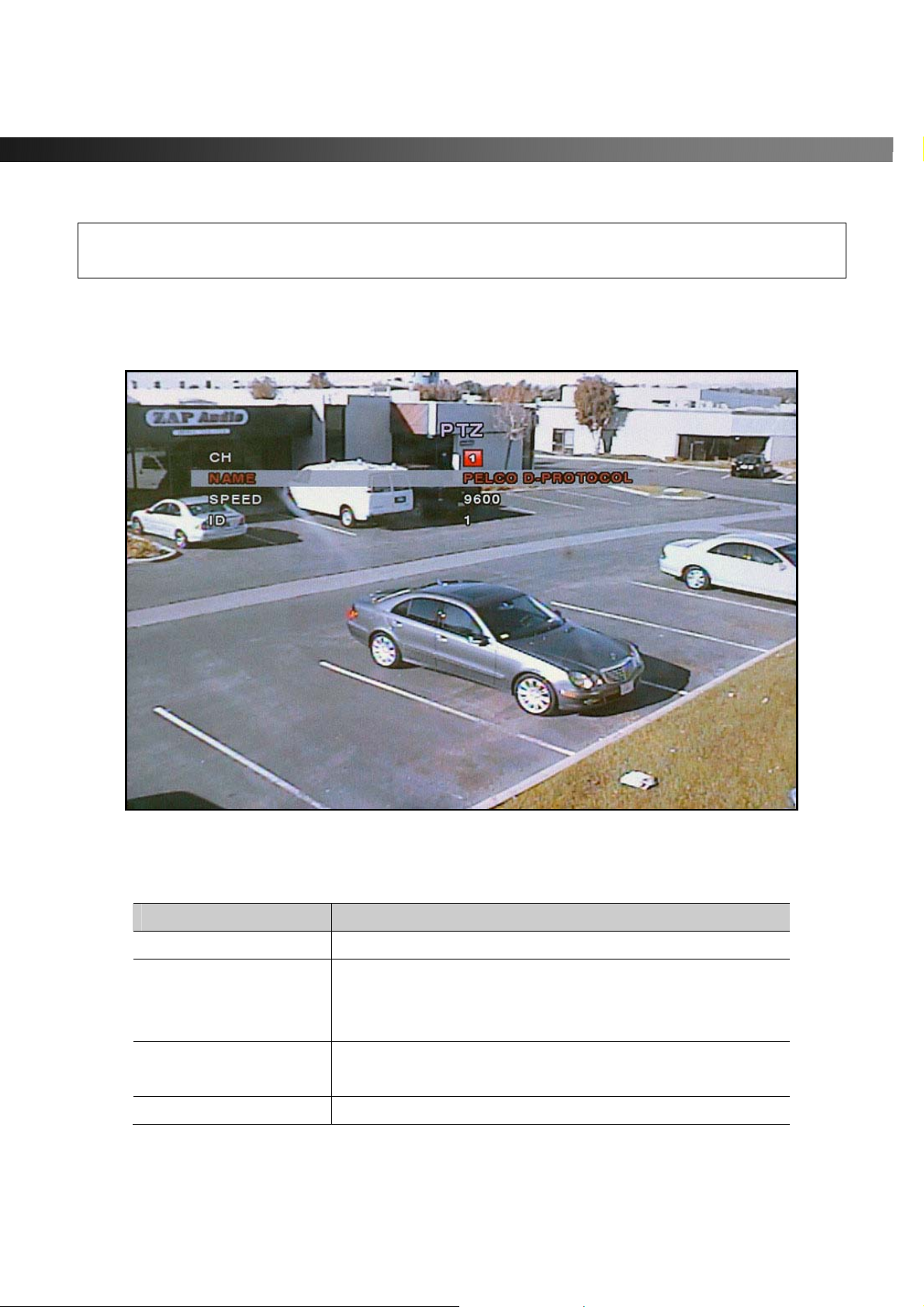

Figure 3.4.2.1. PTZ setup screen

Table 3.4.2.1. Menu item in PTZ Setup screen

Item Description

NAME

SPEED

Rev A. December 2007

Specifications and content are subject to change without notice.

Select the channel number for the PTZ device setup. Navigate through the list of PTZ cameras (protocol type) by using the LEFT and RIGHT arrow buttons and make a selection. Configure the speed (baud rate) of the RS-485 communication port by using the LEFT and RIGHT buttons. Program the PTZ address. (0-63)

Page 26

vSync924 & 1624i User Guide © vSync DVR December 2007

3-4-3. SPOT-OUT

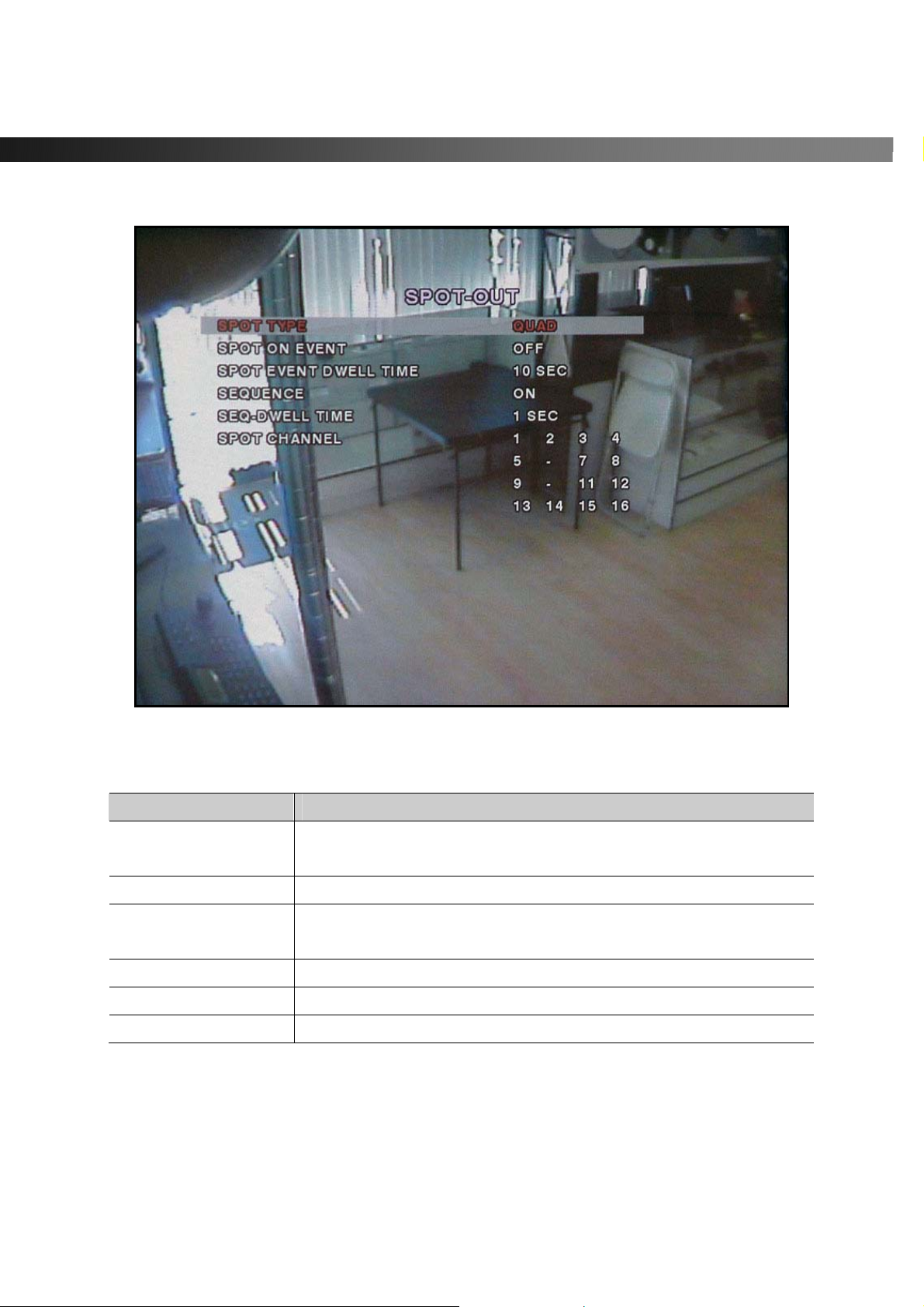

Figure 3.4.3.1 Spot-O ut Setup Screen

Table 3.4.3.1. Menu Items i n SPOT-OUT Setup Screen

Item Description

SPOT TYPE

SPOT ON EVENT

SPOT EVENT

DWELL TIM E

SEQUENCE

SEQ-DWELL TIME

SPOT CHANNEL

Rev A. December 2007

Specifications and content are subject to change without notice.

Configure the display mode, either full or quad view for the spot

monitor out put .

Enable/disable spot monitor upon events.

Set the dwell time for the spot event monitor from 1 to 10 seconds.

Enable/disable SEQ button.

Set the channel sequence dwell time.

Select the channel(s) to display on the Spot Monitor.

Page 27

vSync924 & 1624i User Guide © vSync DVR December 2007

3-5. Setup – System Mode

- Configures system parameters Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.

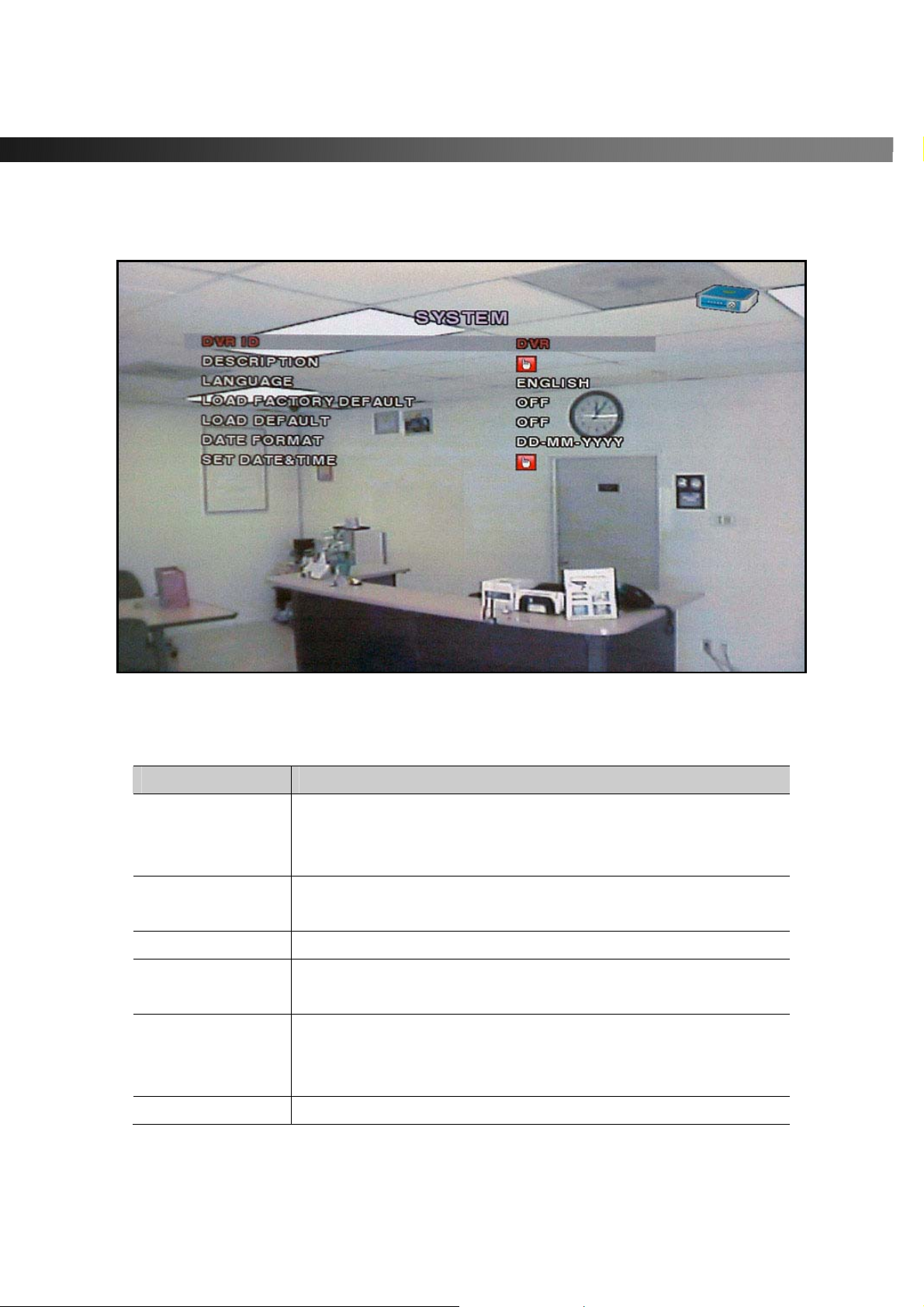

Figure 3.5.1. System Setup Screen

Table 3.5.1. Menu Items in System Setup Screen

Item Description

DVR ID

DESCRIPTION

LANGUAGE

LOAD FACTORY

DEFAULT

LOAD DEFAULT

DATE FORMAT

Defines the system name. Navigate through the position for each alphanumeric character by using the left and right buttons. Up/down buttons change characters. Displays system info rmation: Firmware Version, Storage Size, IP Address, and MAC Address. Select a language for all OSD (on screen display) Select OFF or ON. To load default values, choose ON, then press the SEL button. Select OFF or ON. ON loads the default values, with the following exceptions: Password, Date format, DLS setting, Network parameters, HDD overwrite mode. Configures the preferred display style for the date and time.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 28

vSync924 & 1624i User Guide © vSync DVR December 2007

Figure 3.5.2. DVR ID Setup Screen

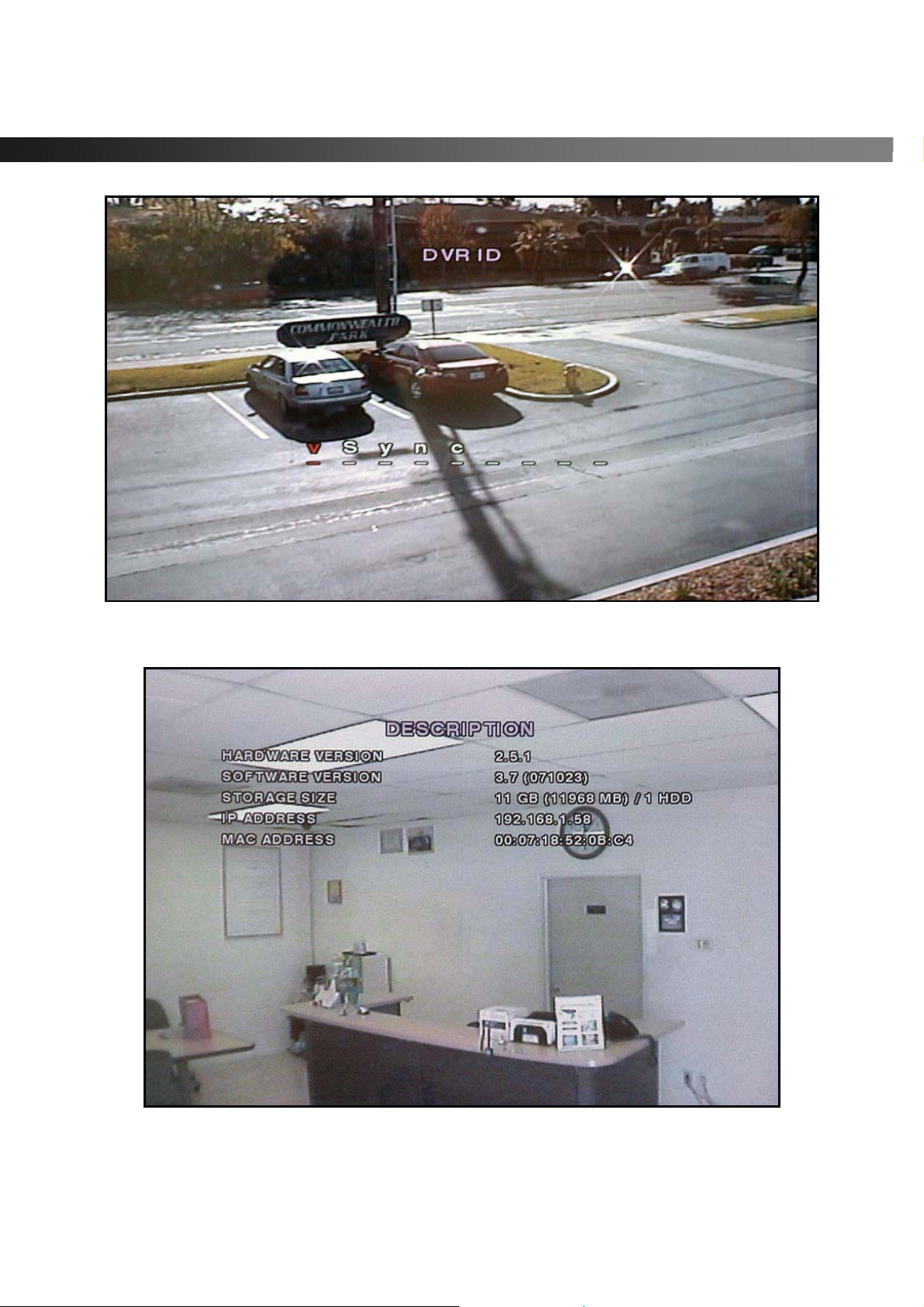

Figure 3.5.3. DVR Information Display Screen

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 29

vSync924 & 1624i User Guide © vSync DVR December 2007

SET DATE&TIME

DAYLIGHT

SAVINGS

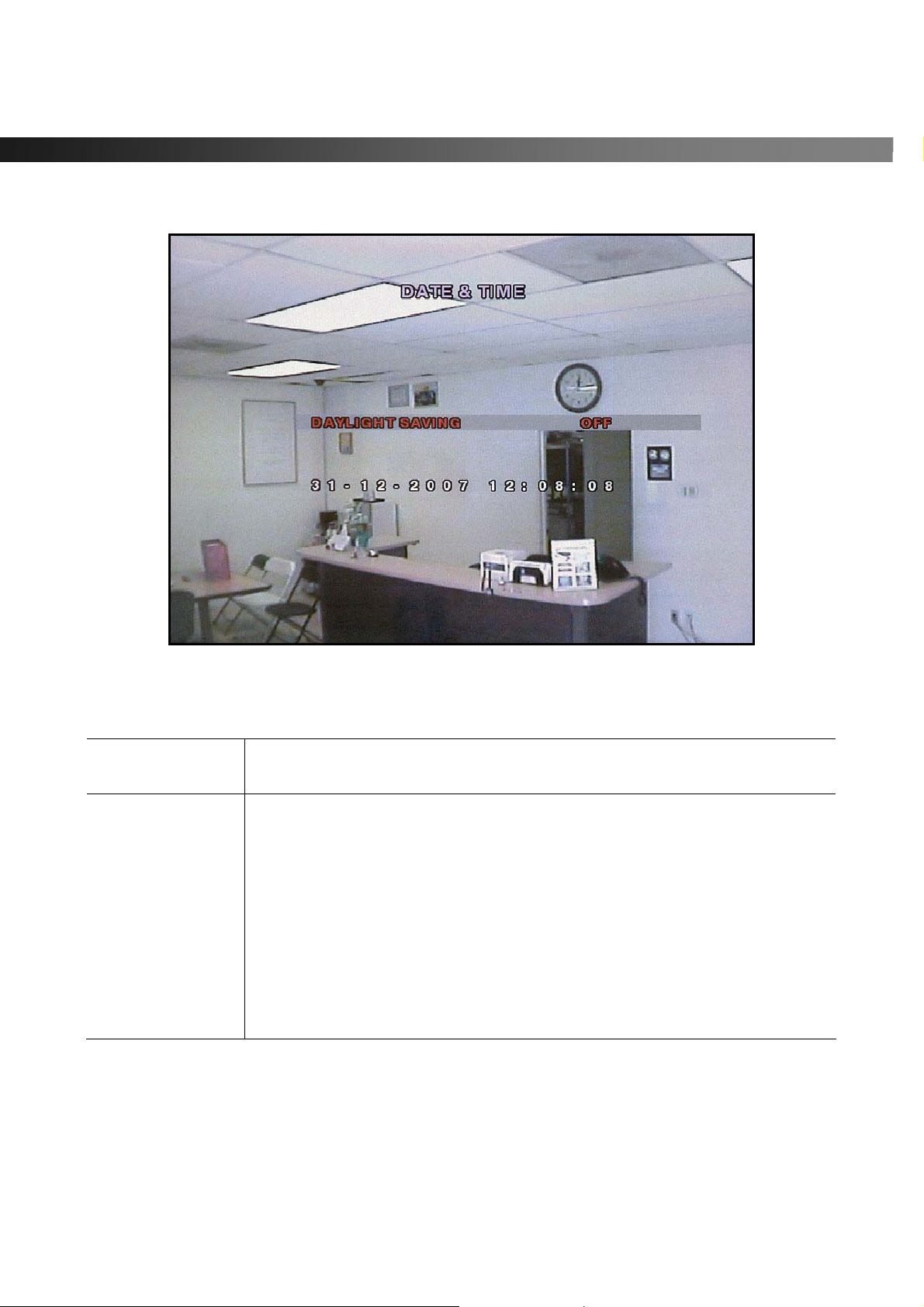

Figure 3.5.4.Set Date & Tim e Setup Screen

Table 3.5.4. Menu Items in Date & Time Setup

Warning! Changing this setting initiates a system reboot. Set date and

time. After changing, press the SEL button and select CONFIRM. Configures automatic adjustment for Daylight Savings Time. Use the LEFT or RIGHT buttons to enable/disable. After selecting ON, move the cursor to the BEGIN (MM/DD/HH) field. Press the SELECT button to set the DLS start time. Scroll to the END (MM/DD/HH) field. Set the DLS stop time by using the UP or DOWN buttons.

CAUTION : PLEASE NOTE TO PREVENT ERRORS

-DLS can’t start from 23:00.

-The BEGIN DATE and END DATE CANNOT be the same.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 30

vSync924 & 1624i User Guide © vSync DVR December 2007

3-6. Setup – Security Mode

- Assign new password and security p arameters here. Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.

Table 3.6.1. Menu Items i n Se c urity Setup Screen

Item Description

ADMIN PASSWORD

USER PASSWORD

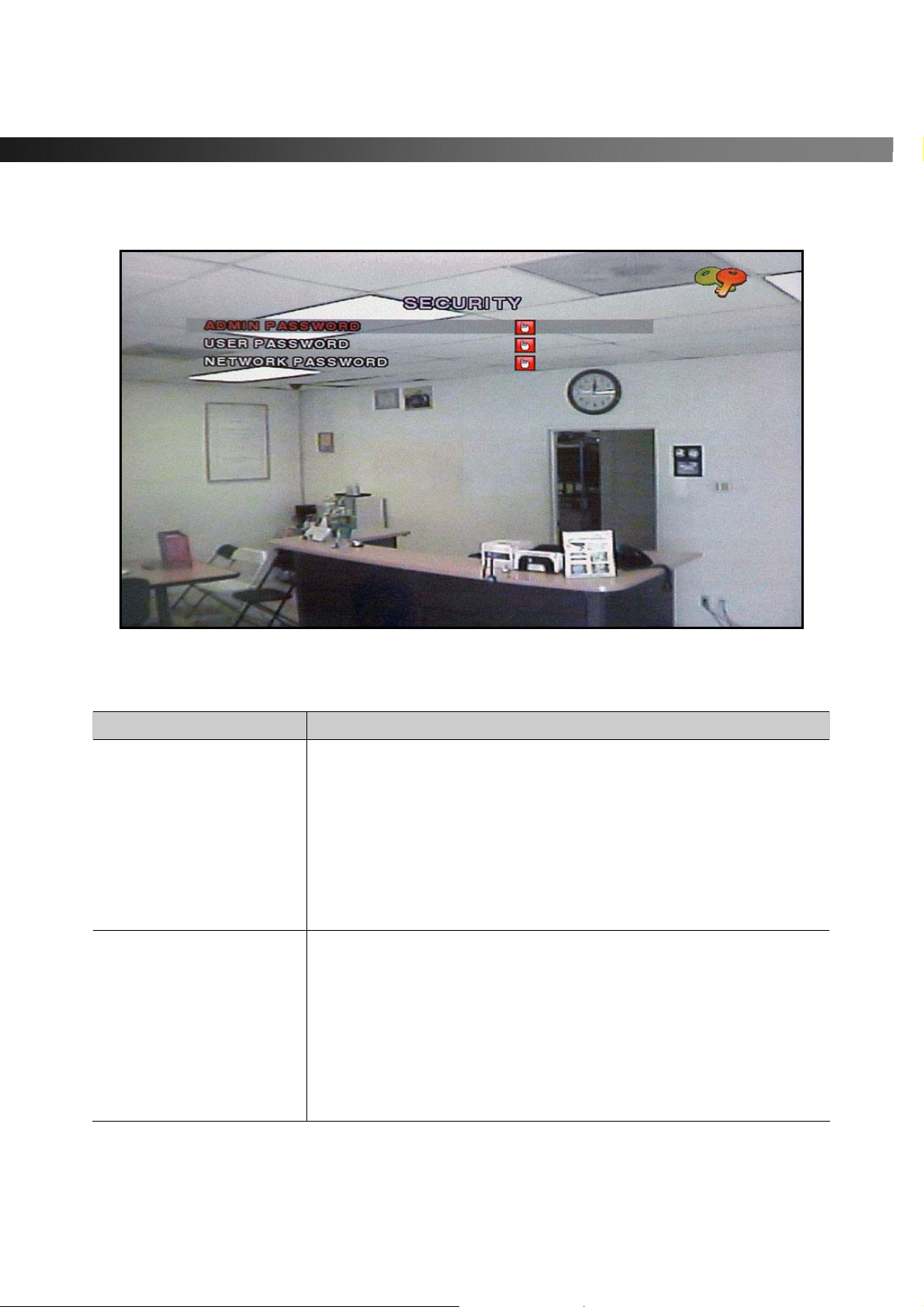

Figure 3.6.1. Security Setup Screen

Sets the administrator password. Once selected, the DVR will prompt for the current password and new password. Follow the prompts. The numbers 1, 2, 3 and 4 can be input by using direction keys UP, RIGHT, DOWN, and LEFT, respectively. The keypad can be used to input all characters from 0 – 9. The default password is “1111”. The Admin Password allows access to all DVR features. Sets the user password. Once selected, the DVR will prompt for the current password and new password. Follow the prompts. The numbers 1, 2, 3 and 4 can be input by using direction keys UP, RIGHT, DOWN, and LEFT, respectively. The keypad can be used to input all characters from 0 – 9. The default password is “1111”.

User has access only for search features.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 31

vSync924 & 1624i User Guide © vSync DVR December 2007

NETWORK PASSWORD

Sets the network client connect password. The DVR prompts for the entire process of setting up a network password. The numbers 1, 2, 3 and 4 can be in put by using direction keys UP, RIGHT, DOWN, and LEFT, respectively. The keypad can be used to input all characters from 0 – 9. The default user ID is “root” and the def ault password is “1111”.

3-7. Setup – Network Mode

- Configures network parameters used for remote clien ts that connect to the DVR over a network or other

network features.

Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.

If you do not understand the following settings, consult your network administrator.

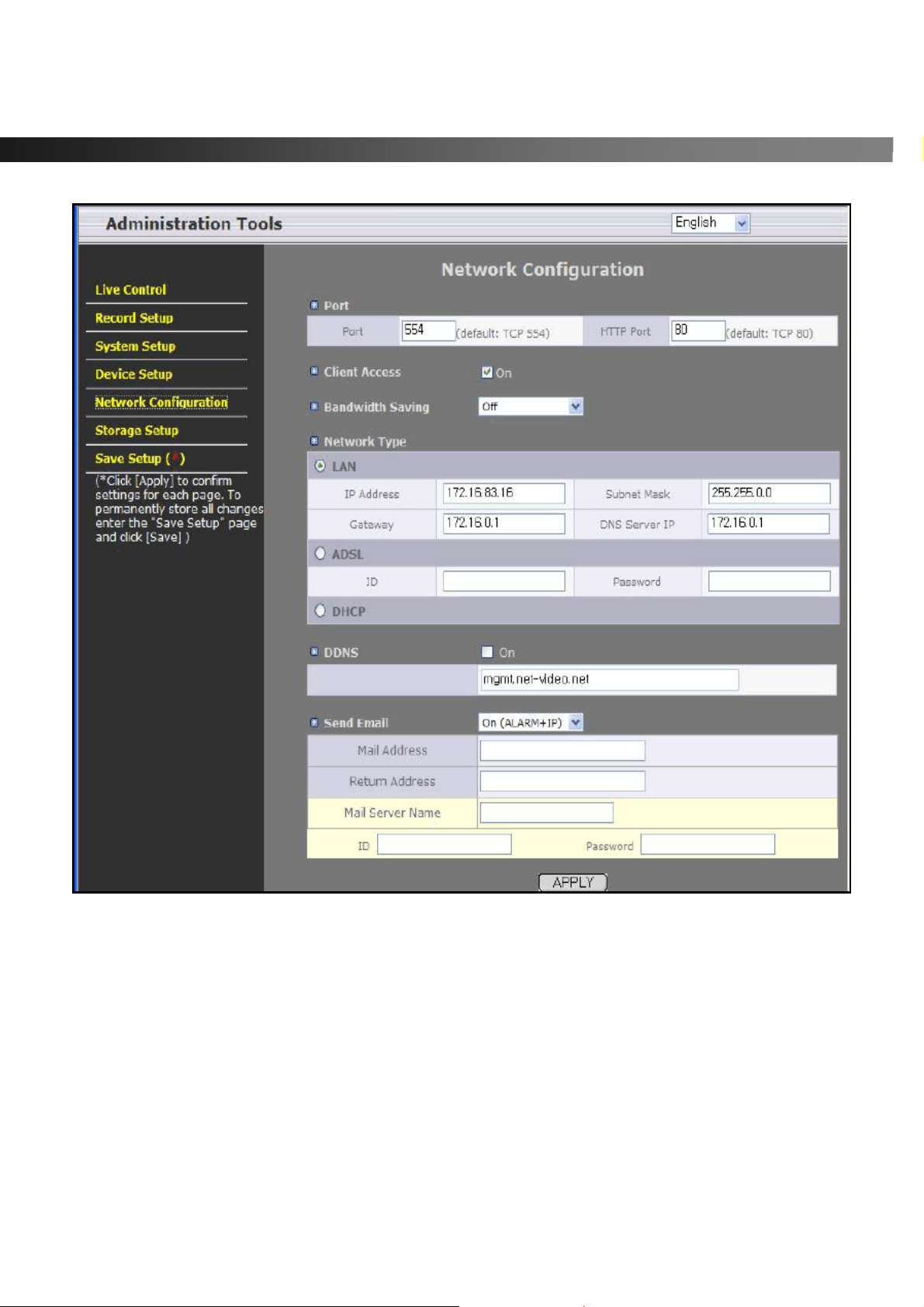

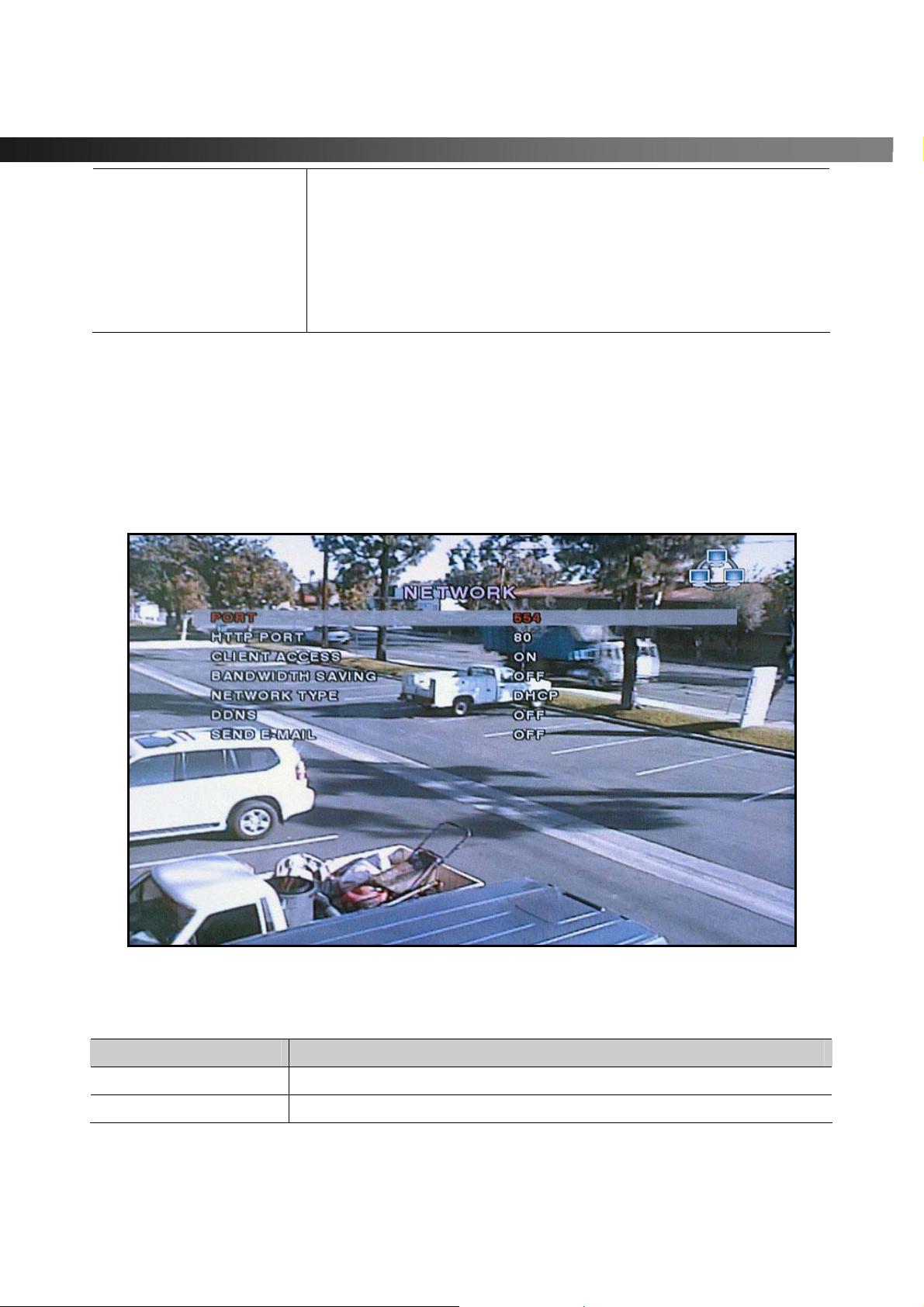

Figure 3.7.1. Network Setup Screen

Table 3.7.1. Menu Items in Network Set-up Setup Screen

Item Description

PORT

HTTP PORT

Rev A. December 2007

Specifications and content are subject to change without notice.

RTSP port number HTTP Port number

Page 32

vSync924 & 1624i User Guide © vSync DVR December 2007

CLIENT ACCESS

Enables/Disables network client access

BANDWIDTH SAVING

NETWORK TYPE

DHCP

GATEWAY

SUBNET MASK

DNS

DDNS

Send E-mail

Enables/Disables key frame transmission only. This feature is useful when network bandwidth is not enough for live streaming. Type of network Enables/Disables DHCP connection (Dynamic IP address) Static IP address Gateway IP address Network Subnet Mask address DNS server IP address. Valid DNS address is needed for E-mail transmission and use of DDNS. Domain name for the DDNS server. DDNS is used to resolve dynamic IP address by assigning a host name to replace the IP address for the connection. Setting this value to “ON” initiates e-mail transmission as follows through the designated email server. Set to “ON”, and press SEL button to BEGIN e-mail configura tion.

For use with DHCP (Dynamic IP) servers.

On : 1. “ALARM + IP”

2. “ALARM EVENT”

3. “NOTIFY IP”

Off : alarm = alarm event : capture JPG file and emails

1. Alarm + IP

2. Alarm Event

3. Notify IP

Mail Address

Mail Server Name

Password

Return Address

A combination of “Alarm Event” and “Notify IP” If an event occurs, the DVR s ends a n email to a specified recipient with a JPG file of the event. If the DHCP server assigns a new IP address to vSync DVR, the DVR sends an email to a specified recipient with the new IP address.. Input the designated recipient’s address. Enter the name of your SMTP server. Enter your SMTP server user ID. Enter your SMTP server password.

Warning: Some incoming e-mail servers block e-mail reception from unverified return e-mail addresses. Enter a valid e-mail address associated with the passwords above.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 33

vSync924 & 1624i User Guide © vSync DVR December 2007

3-7-1. Ports

Port-Forwarding for Access from a WAN

When one or more DVRs are connected through a IP sharing device (i.e. rou ter) to a larger netw ork (i .e. the internet), in order to access each unit from outside the local area network, each device must have a unique RTSP (Real Time Stream Protocol) and HTTP port number. You must also configure your IP sharing device for port-forwarding, so that each port, when accessed on the IP sharing device, will forward to the appropriate DVR’s IP and or MAC address. The port number is listed next to the “Port” menu option in the Network menu.

If you only plan to access multiple units from within a local area network the RTSP and HTTP port numbers, unless other IP sharing devices establish in-between the client and the DVRs.

To access the DVR, you must have the following information:

Table 3.7.1.1 Information Needed for Network Access

When accessing from the same LAN When accessing from outside the LAN

DVR IP Address The router or Gateway IP addresses

(The IP address of the IP sharing device) RTSP port number RTSP port number HTTP port number HTTP port number

Username Username

Password Password

3-7-2. Network Types

Configure one of three network types: LAN, DHCP, or ADSL Each type requires different settings.

, you do not need to change

LAN

To use the LAN option when connecting the D VR to a network, the follow ing information is required. If you do not have this information, see your network administrator.

Table 3.7.2.1. Network Parameters for LAN

Item Description

GATEWAY

SUBNET MASK

Rev A. December 2007

Specifications and content are subject to change without notice.

The fixed IP address of the DVR

The IP address of the gateway

The subnet mask for the LAN

Page 34

vSync924 & 1624i User Guide © vSync DVR December 2007

DHCP

Select DHCP (for Dynamic IP Addressing) to enable this feature. The DHCP server or a router automatically assigns the unit an IP address and other appropriate TCP/IP settings. After connecting to the network, view the assigned IP address by selecting DESCRIPTION from the SYSTEM menu.

If the network connection does not offer additional IP addresses , use an IP sharing device to remedy the issue. Port-Forwarding may be necessary in order to conn ect to this device. Also, if a firewall is deployed in the IP sharing device, the selected ports must be opened to the outside network. For more information on Port-Forwarding, see the documentation for your IP sharing device (router) or contact your local authorized

vSync DVR distributor.

ADSL

vSync DVR supports direct PPPoE connections to ADSL modems without a router. The following

information is required. If you do not have this information, contact your network administrator.

Table 3.7.2.2. Network Parameter s for ADSL

Item Description

PASSWORD

The ADSL modem connection must have an RJ-45 jack to connect to the DVR (USB Networking is not supported).

Sharing an ADSL connection with other devices requires an IP sharing device such as router. In this case, select LAN as the NETWORK type. Port-forwarding is required in order to access the vSync DVR through a GATEWAY/Router and/or Firewall. See the documentation for your IP sharing device or contact your network administrator to learn more about port-forwarding. If your router has QoS (Quality of Service) and gaming feature, you may want to enable this for the IP address of the DVR . Some ISPs block some ports commonly used for streaming video. If your ISP blocks the default port, simply change the por t number to an unblocked port. See the ISP technical support web page for additional help troubleshooting blocked ports.

The user ID for the ADSL connection

The password for the ADSL connection

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 35

vSync924 & 1624i User Guide © vSync DVR December 2007

3-8. Setup - Storage Mode

-Configures the hard disk record mode, or initiates a hard disk format. Navigate through menu items using the Up/Down buttons. Change the values using the Left/Right buttons.

Item Description

OVERWRITE

FORMAT

DISK INFO

LOAD SETUP FROM A USB

SAVE SETUP TO A USB

RECORD LIMIT

RECORD LIMIT DAYS

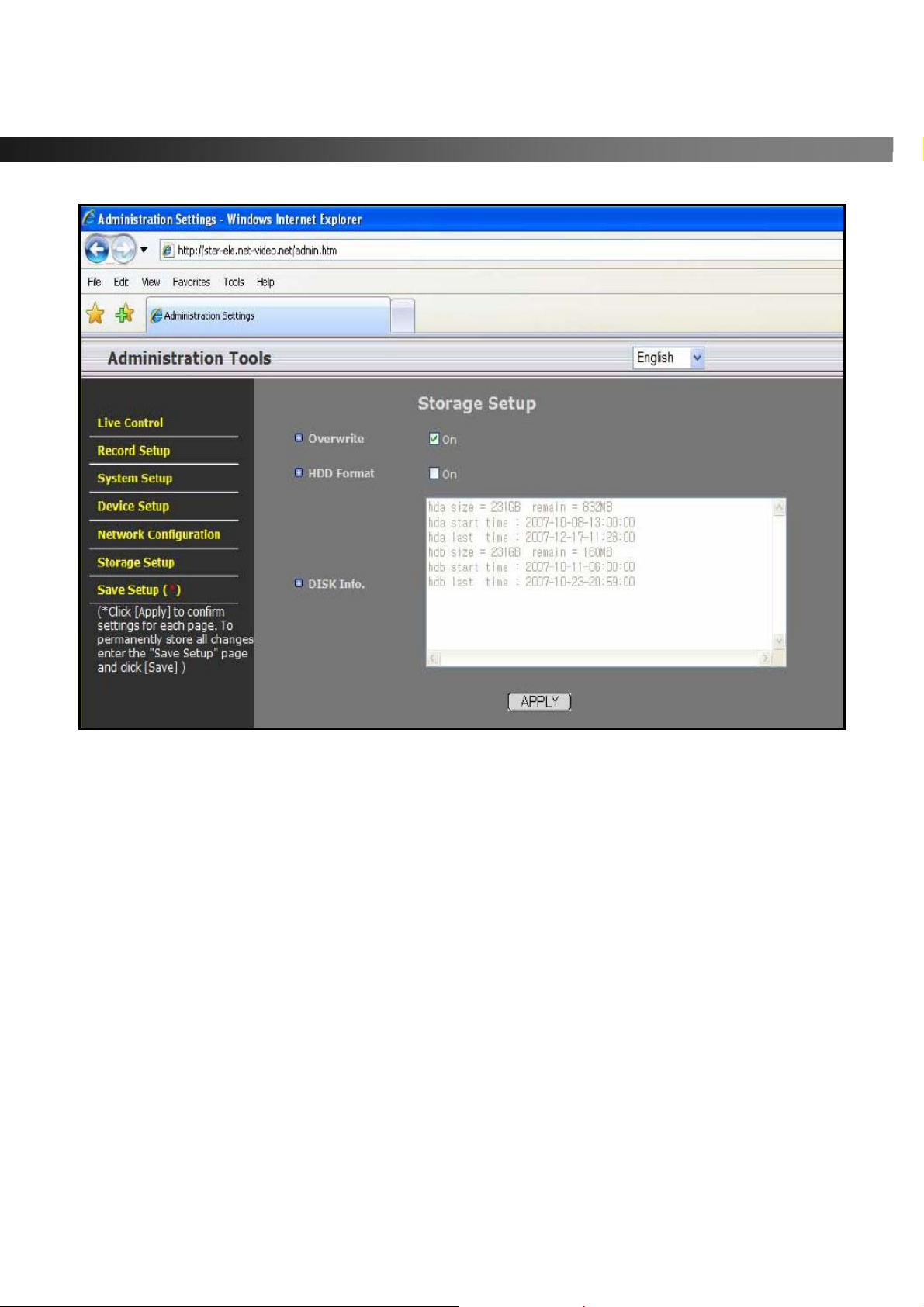

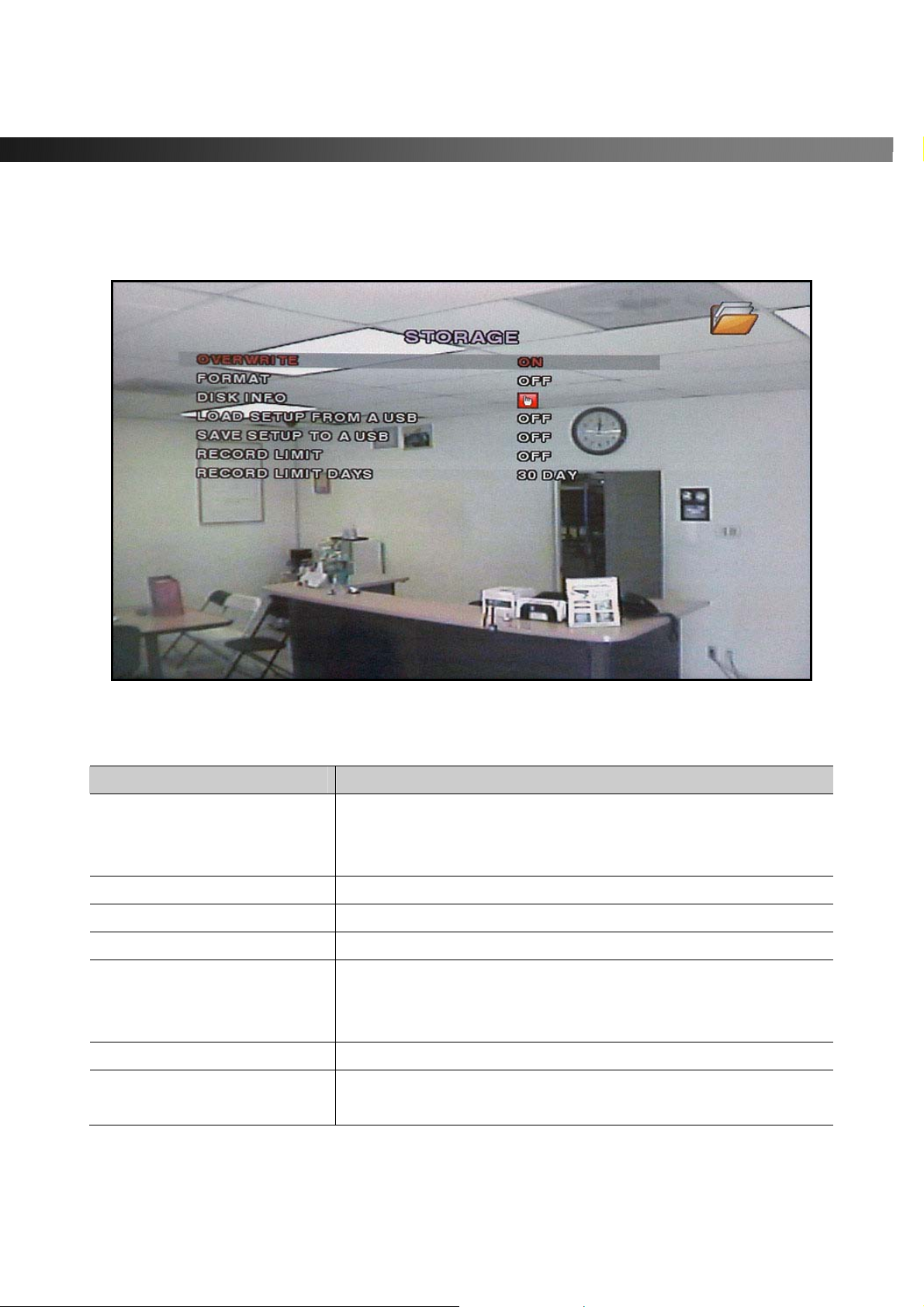

Figure 3.8.1. Storage Setup Screen

Table 3.8.1. Menus in Storage Setup

When enabled, the DVR will continue recording and overwrite the oldest existing recorded data once the hard drive is full. When disabled, recording will stop once the hard drive is full. Formats the har d disk driv e. Displays HDD(s) disk information. Loads DVR setup parameters from the USB memory. Stores DVR setup values to USB memory. This feature is useful when cop ying the setup parameters of one DVR to other DVRs or for building templates. Turns recording limit on/off for overwrite. Set number of days for the record limit. Only functions when “Record Limit” is on.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 36

vSync924 & 1624i User Guide © vSync DVR December 2007

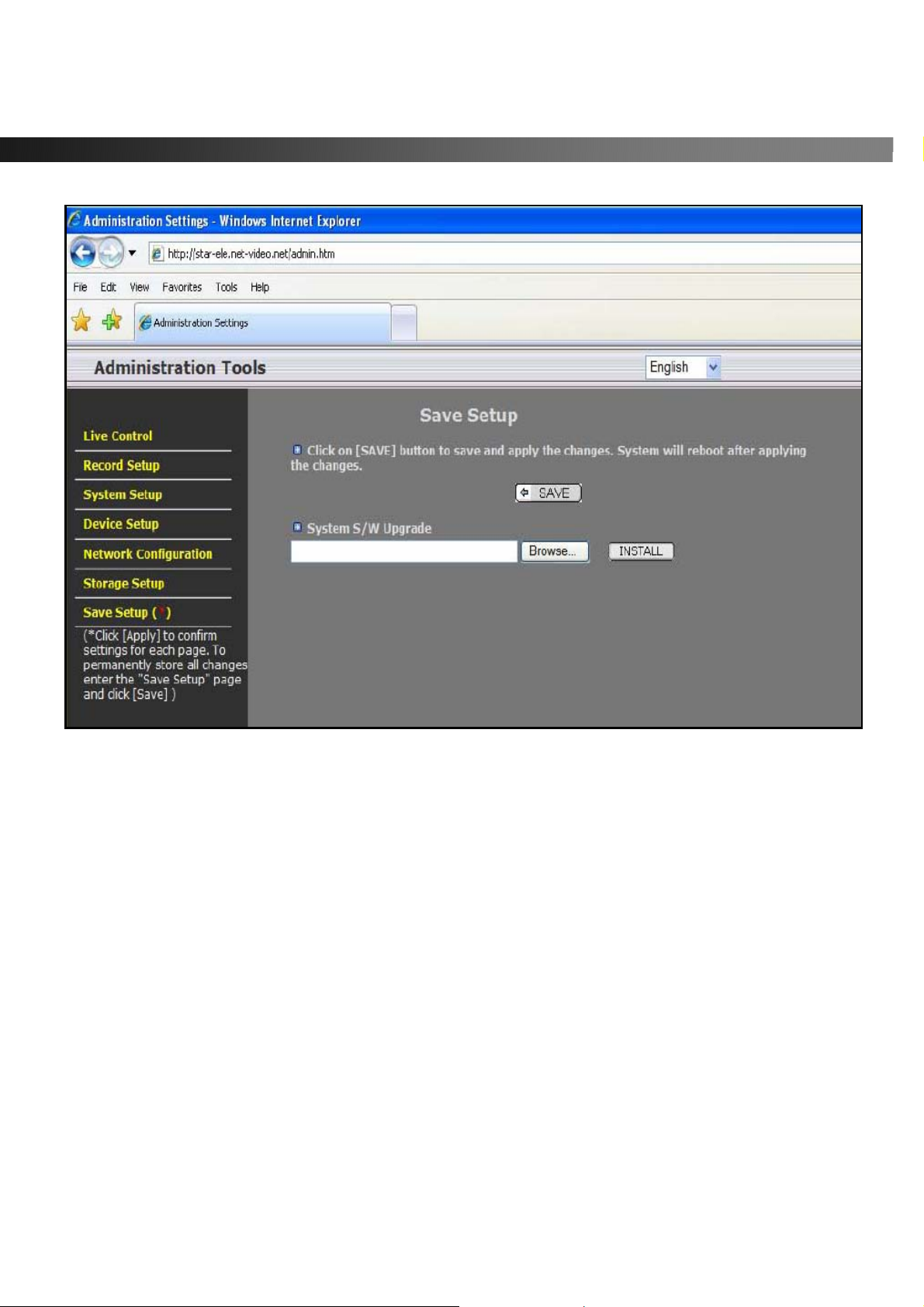

3-9. Saving Setup

To preserve changed setup values, select the SAVE SETUP menu and select YES. Unsaved setup values will be lost if this step is ignored or not applied properly.

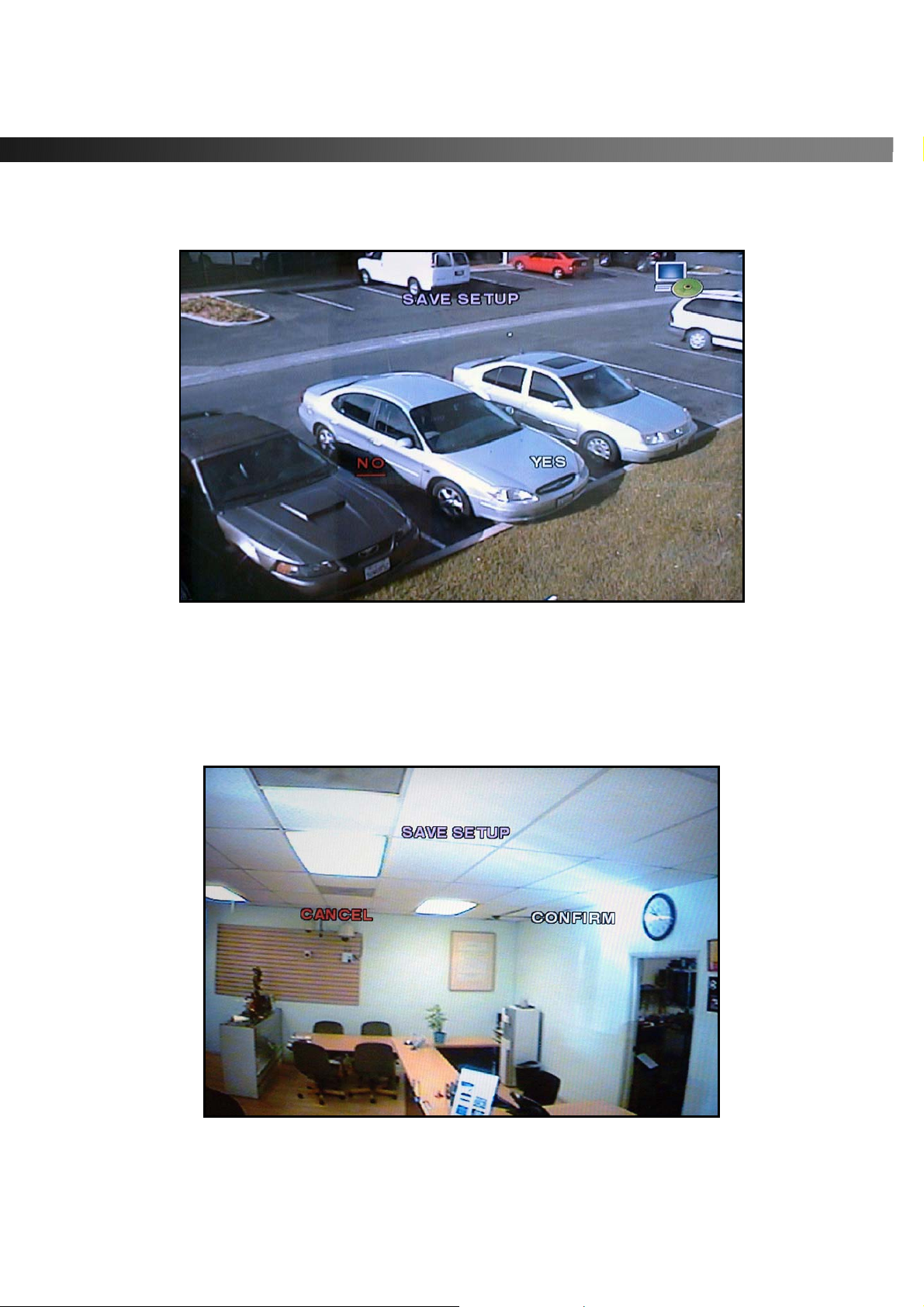

Figure 3.9.1. Save Setup Screen

Certain changes require that the system is restarted in order to take place.

These features will ask for a confirmation and are as follows:

z Load Factory Default, Set Time & Date, Network, Format, Load Setup from a USB

Figure 3.9.2. Save Setup Screen

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 37

vSync924 & 1624i User Guide © vSync DVR December 2007

4. Local Viewing

4-1. Live Window

Video from connected cameras are displayed on the Live Setup configuration screen. Symbols indicate the DVR’s status. Refer to Table 4.1.1 for a legend.

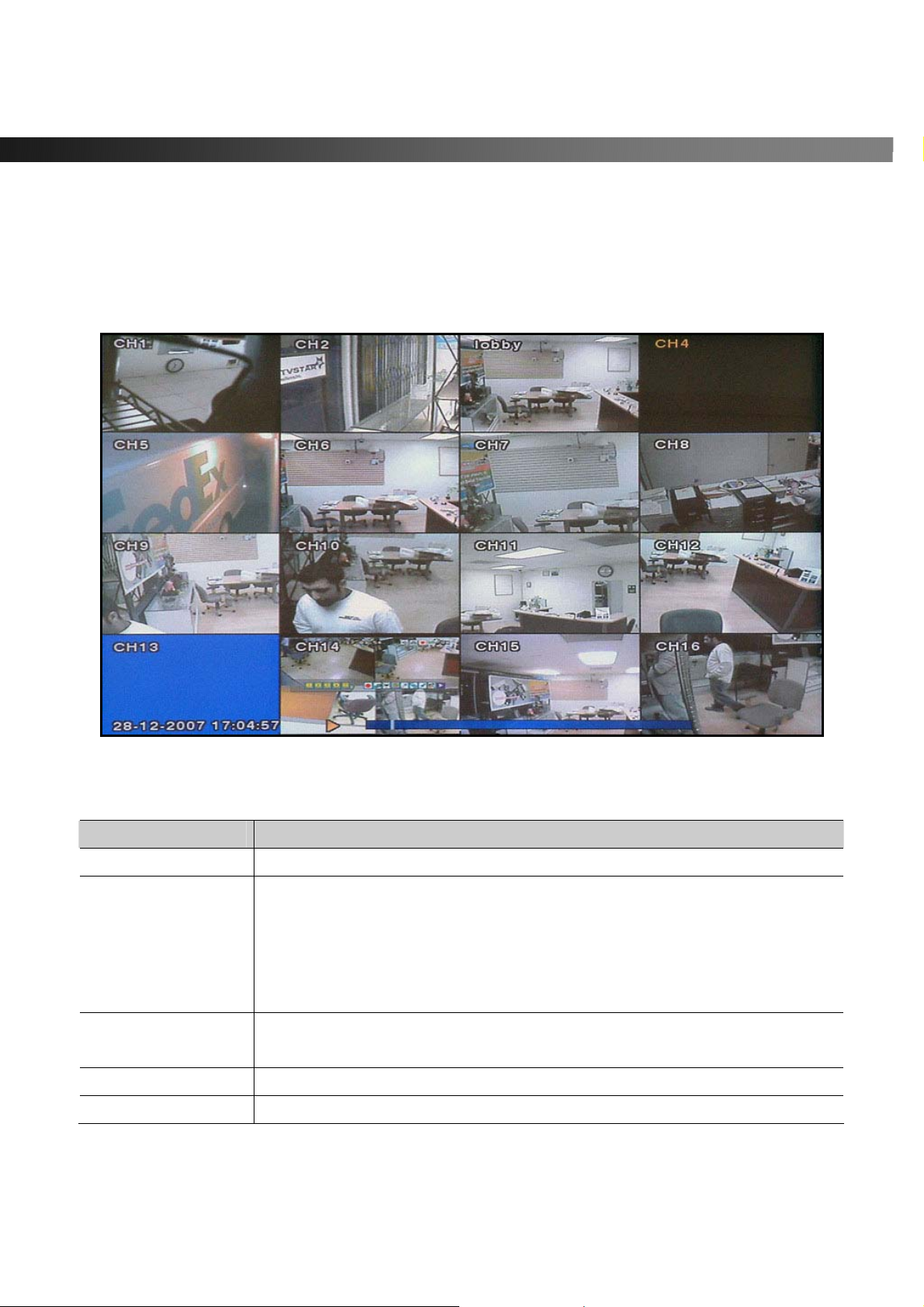

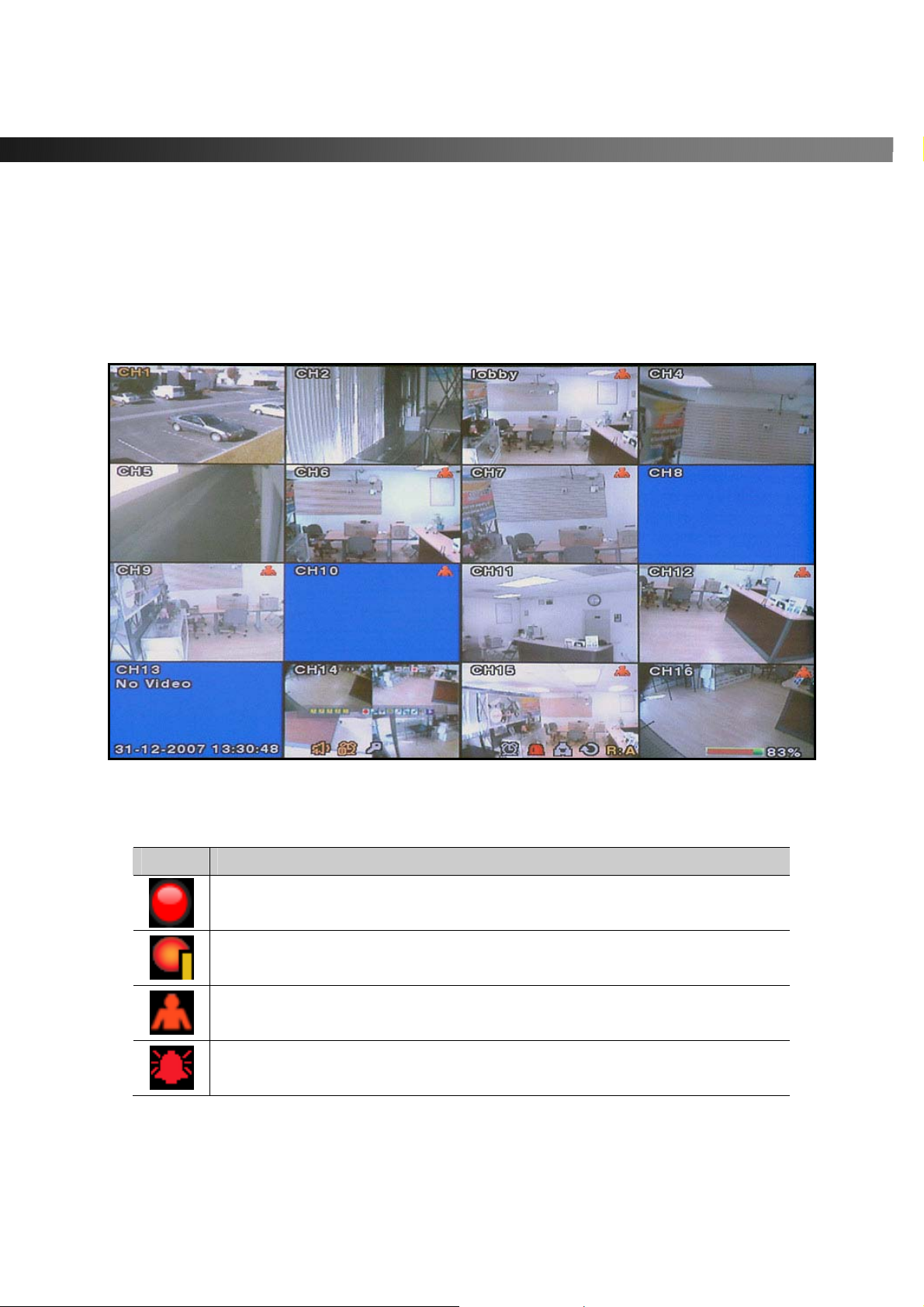

Figure 4.1.1. Live Window

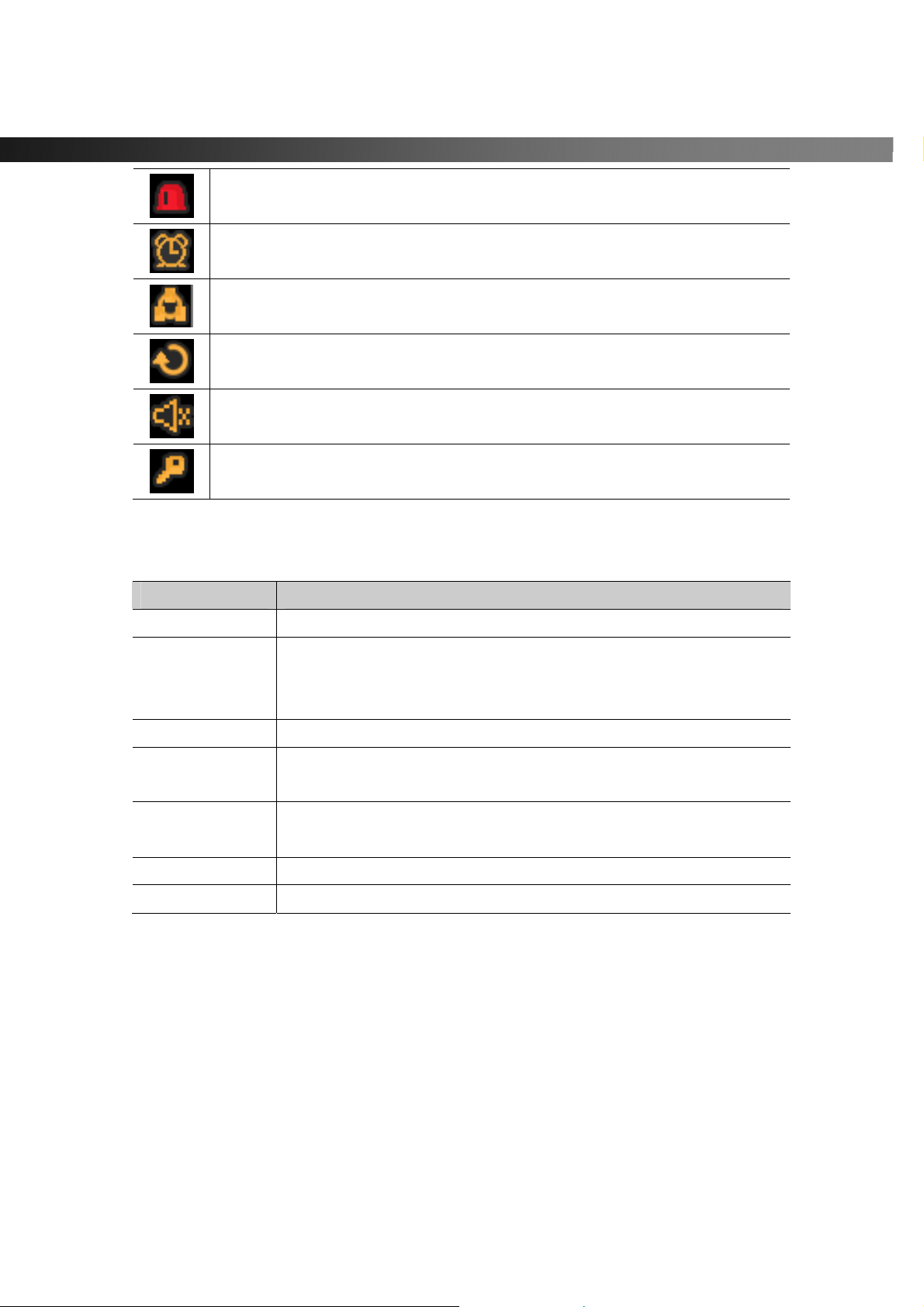

Table 4.1.1. Indicator ICONS in Liv e Window

Icon Description

Continuous recording in progress

Manual recording in progress

Motion recording in progress

Sensor recording in progress

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 38

Alarm indicator. This icon changes to bright red upon alarm activation (sensor alarm or motion alarm) for any video channel. Indicates activated alarm output.

Indicates network client is connected to the DVR.

Indicates sequencing mode is enabled.

Indicates Audio status is enabled/disabled.

Indicates the vSync DVR is locked

Table 4.1.2. Button Functions in Live Window

Button Description

SETUP

SEQ

PLAY/P AUSE

Directional

Buttons

SEL

ESC REC

Launches SETUP menu. Enables/disables automatic sequential switching in full or quad modes. Quad mode also follows these settings. Launches the SEARCH window. Select a channel by using the directional keys. Selected channels show the channel ID in yellow. When a channel is selected, press SEL button to expand the channel to full screen. No action, backs out of last menu. St arts manual recording for all channels.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 39

4-2. Search Window

Press PLAY/PAUSE button to launch the search menu. The screenshot shown in Figure 4.2.will appear. Select “

TIMELINE

”, “

EVENT

”, or “

DIRECT

” to initiate a search for recorded video.

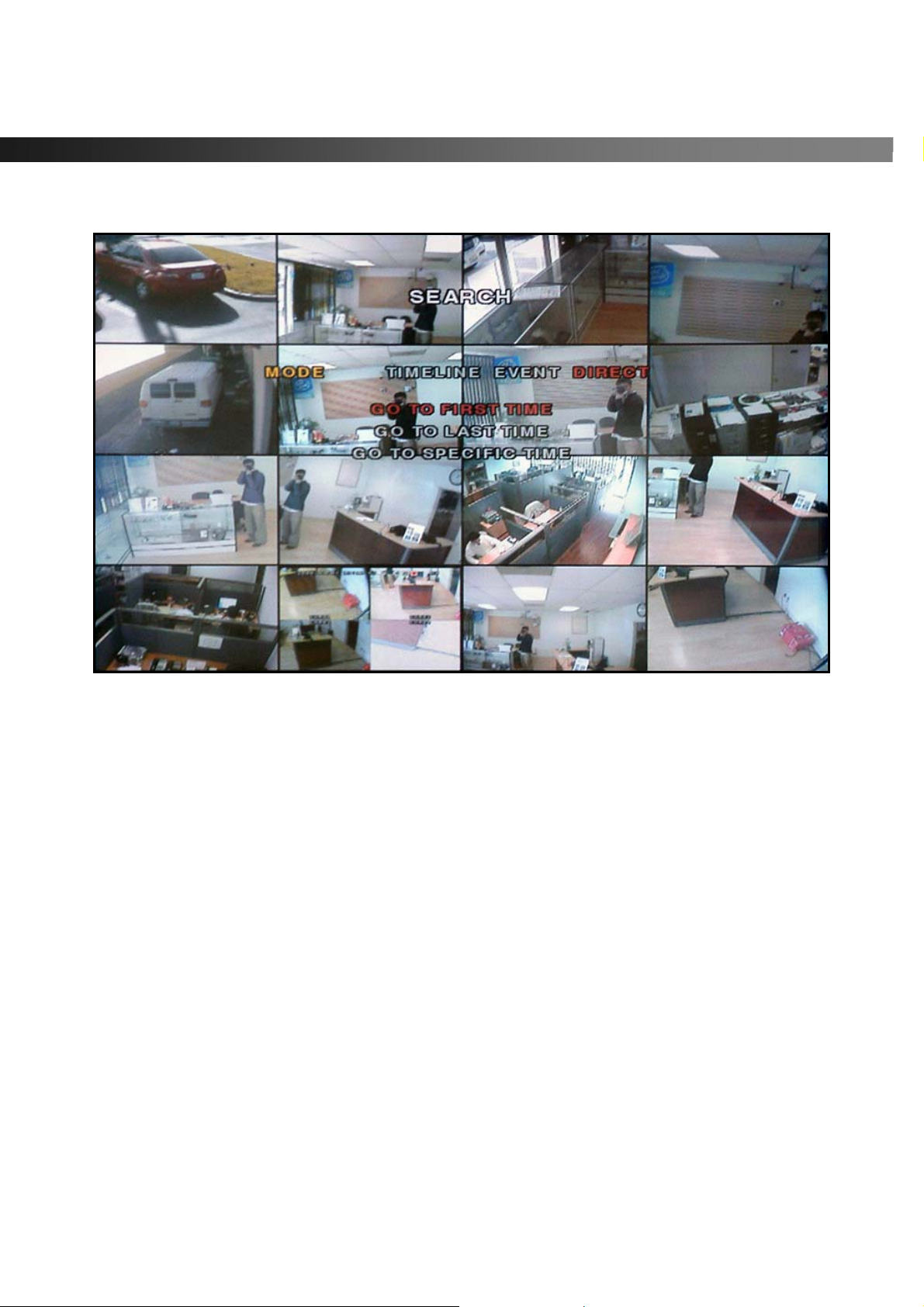

Figure 4.2. Search Mode Screen

4-2-1. TIMELINE Window

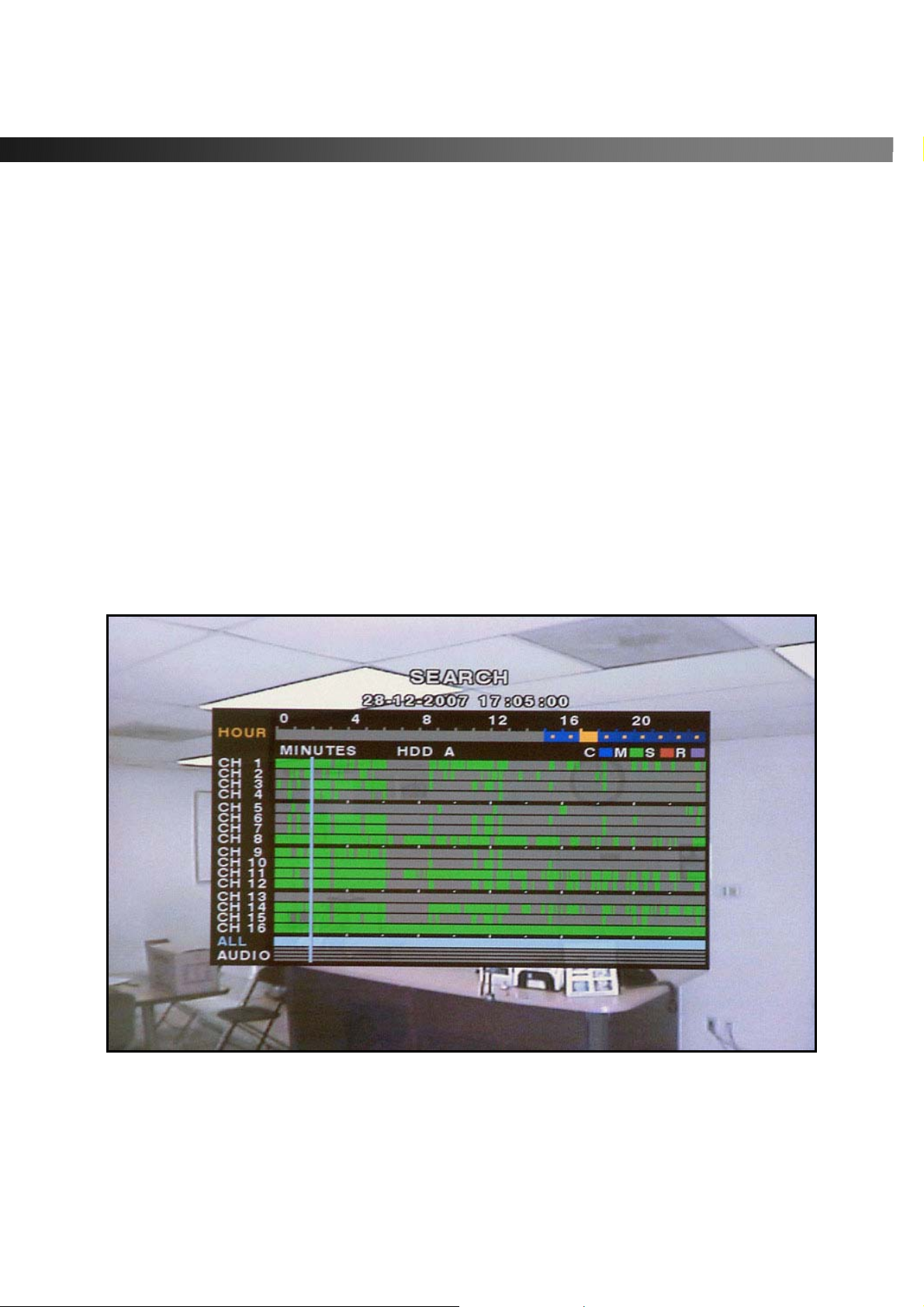

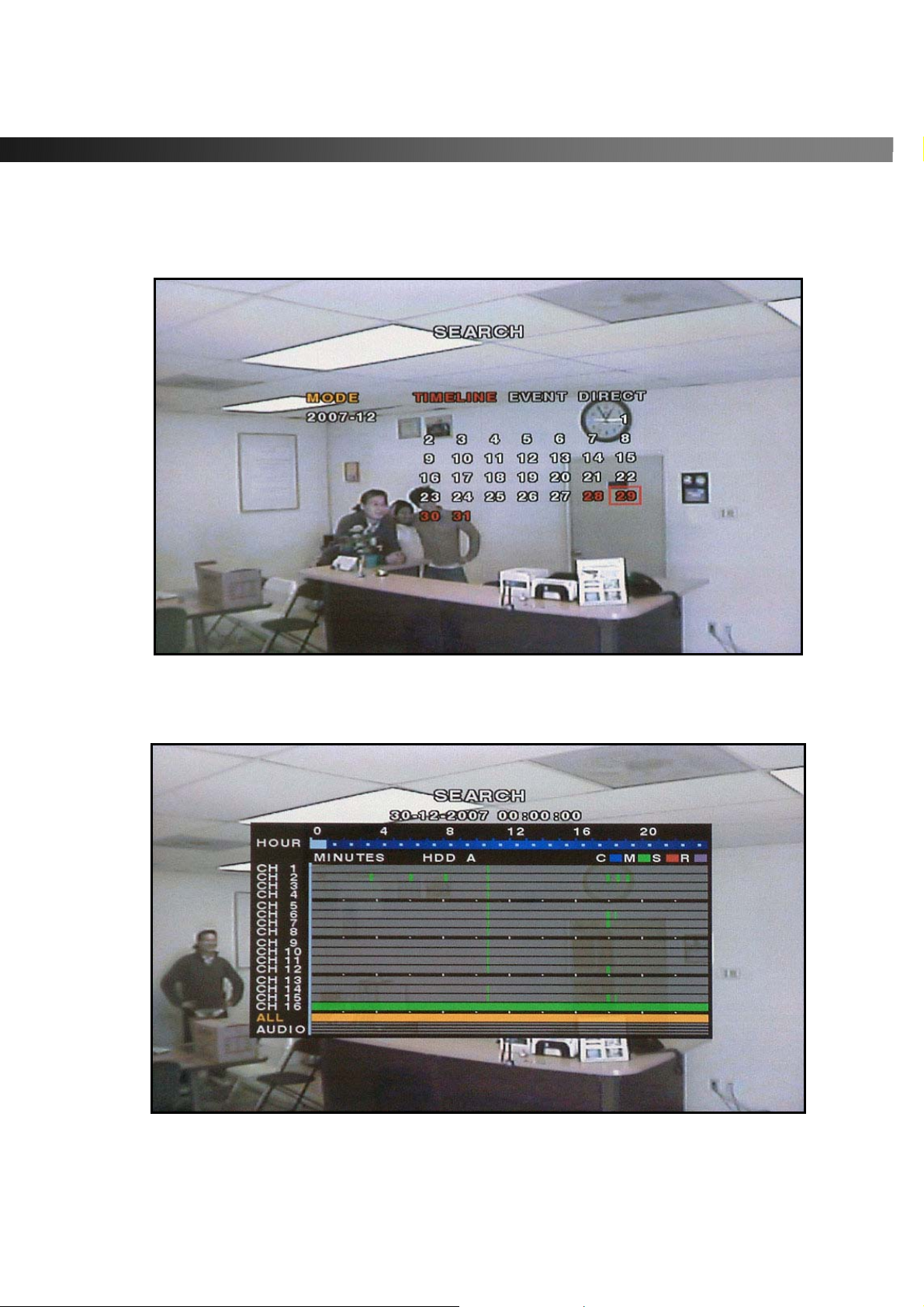

Figure 4.2.1. Timeline Search Mode Screen

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 40

1. Select the option “TIMELINE” and a calendar will appear (Figure 4.2.1).

2. Select the date of the video by using the LEFT, RIGHT, UP, and D OWN buttons to navig ate through

the days.

3. Press the SEL button to move to the timeline search window.

4. Use LEFT/F. REW or RIGHT/F. ADV buttons to select a starting time period on the 24 hour

timetable.

NOTE: The modes used during recording ar e indi c at ed bel o w.

C: Continuous

M: Motion

S: Sensor

R: Emergency Record

5. Once you have selected the date, press the SEL button to move to the hourly timetable.

6. Select a specific channel or All Channels by using the UP and DOWN arrow buttons.

7. Once you have selected the channel(s), use the LEFT/F. REW or RIGHT /F. ADV buttons to move

the timeline select bar (purple) to the point you wish to start playing the video clip.

8. Press the SEL button to playback the recorded video.

Figure 4.2.1-1. Motion Recording Search Mode Screen

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 41

4-2-2. EVENT Window

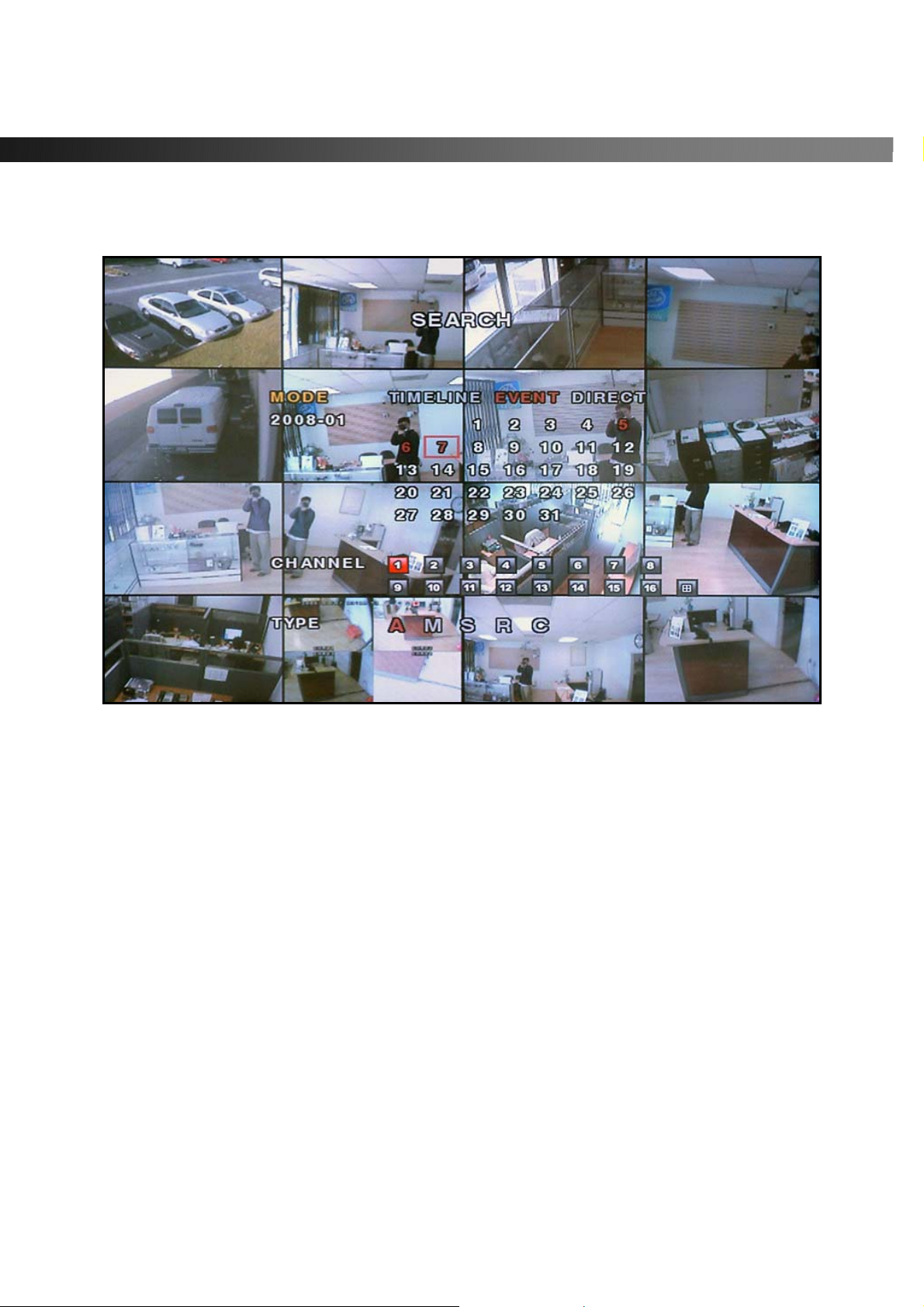

Figure 4.2.2. Event Search Mode Screen

1. Select the option “EVENT” and a calendar will appear (Figure 4.2.2).

2. Select the date of the video by using the LEFT, RIGHT, UP, and DOWN buttons to navigate through

the days.

3. Press the SEL button to move to CHANNEL selection.

4. Use the LEFT, RIGHT, UP, and DOWN buttons to select a specific channel or All Channels.

5. Press the SEL button to move to TYPE selection.

6. Use the LEFT, RIGHT, UP, and DOWN buttons to select A ll, Motion Only, Sensor Only, Emergency

Record Only , or Continuous Record Only.

7. Press the SEL button to see the event list.

8. Use the UP and DOWN buttons to scroll through the list and use the R IGHT and LEFT buttons to

move between pages.

9. Press the SEL button to playback the recorded video.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 42

Table 4.2.2-1 ICONS in Event Search Mode Screen

Icon Description

A M S

R C

Select All recording Select Motion alarm recording only Select Sensor alarm recording only

Select Manual recording only Select Continuous recording only

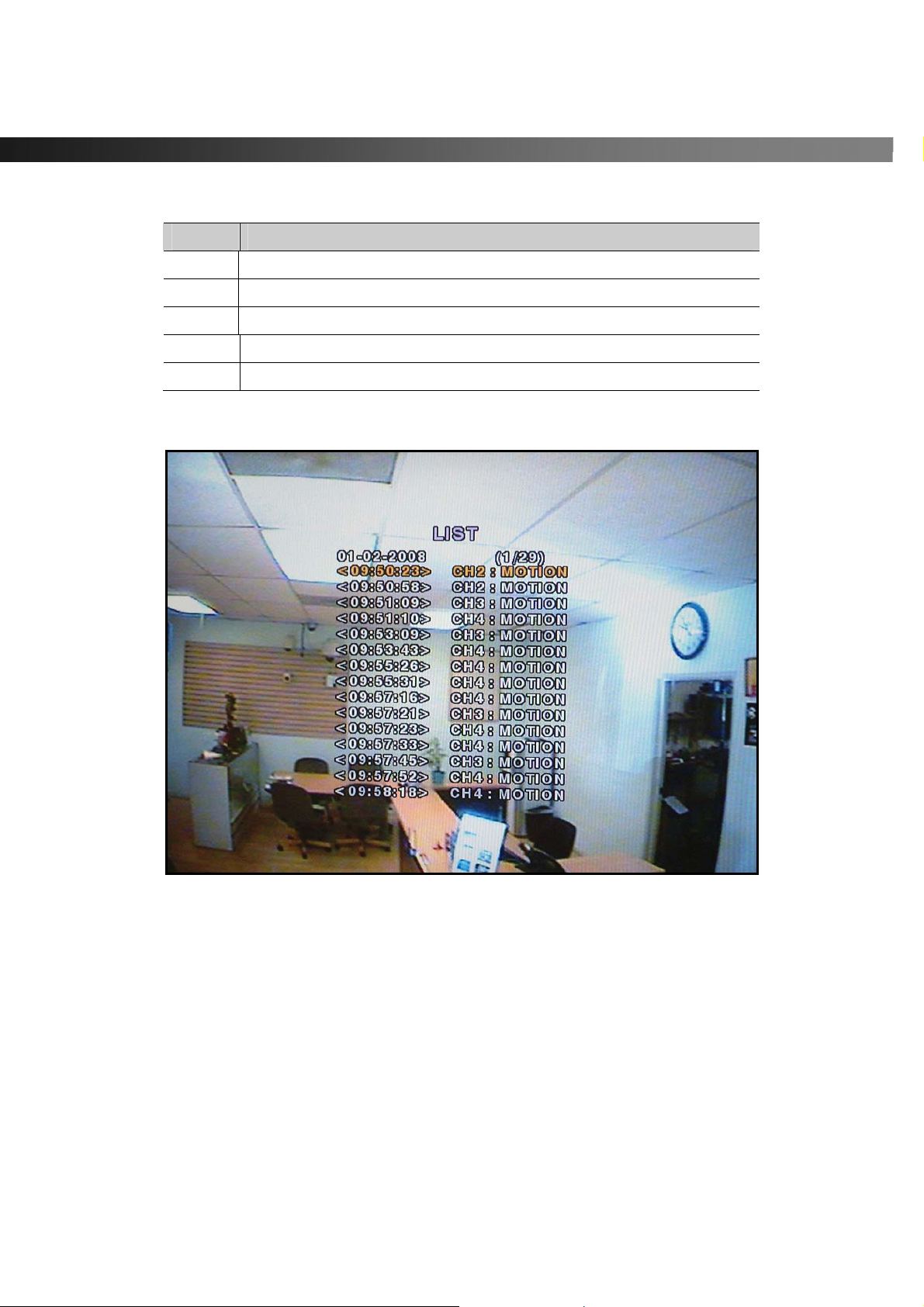

Figure 4.2.2-1 Event Search List

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 43

4-2-3 DIRECT Window

Figure 4.2.3. Direct Searc h List

Go To First Time

You can access the oldest recorded data on the DVR hard drive by selecting GO TO FIRST TIME under the DIRECT optio n.

Go To Last Time

You can access the latest recorded data on the DVR hard drive by selecting GO TO LAST TIME under the DIRECT optio n.

Go To Specific Time You can search for video data from a specific instanc e by s ettin g the date and time i n the GO TO SPECIFIC TIME search window.

Use the LEFT or RIGHT arrow buttons to move through the date and time values in this menu. Use the UP and DOWN arrow buttons to change the date and time values. Press SEL when the appropriate date and time is entered to playback the recorded video file.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 44

4-3. Play Mode

During recorded event playback, vSync DVR switches from the SEARCH screen to PLA Y mode. To return to the SEARCH LIST press the ESC button.

Figure 4.3.1. Play Mode Screen

Table 4.3.1. Button Functions in Play Mode

Button Description

ESC

REW

F/REW

PLAY/PAUSE

F/ADV

Rev A. December 2007

Specifications and content are subject to change without notice.

Returns to the previous menu screen or exits from the setup menu. Rewinds. Pressing repeatedly adjusts playback speed. Reverse playback speeds are indicated as -1x, -2x, -4x and -8 x for normal, twice, 4 and 8 times normal speed. The current speed is shown on the bottom right hand corner of the screen. Caution: Max 4x when playing 16 channels at once. Jumps/Step Backward – The playback position moves 60 seconds backward. Plays or pauses recorded video. Jumps/Step Forward – The playback position moves 60 seconds forward.

Page 45

Fast forwards. Pressing repeatedly adjusts playback speed.

Directional Buttons

SEL

CAP/USB

Fast forward playback speeds are indicated as +1x, +2x, +4x and +8x for normal, twice, 4 and 8 times normal speed. The current speed is shown on the bottom right hand corner of the screen. Caution: Max 4x when playing 16 channels at once. Used to move between the channels. Change to full, quad, or 9/16 split display by using the SEL button. Press to launch the archive feature.

4-4. PTZ Control

NOTE: Requires previous configuration of PTZ devices in SETUP Mode. Press the PTZ button to initiate device control features for a selected channel. See Figure 4.4.1. Select a menu item for the respective control features.

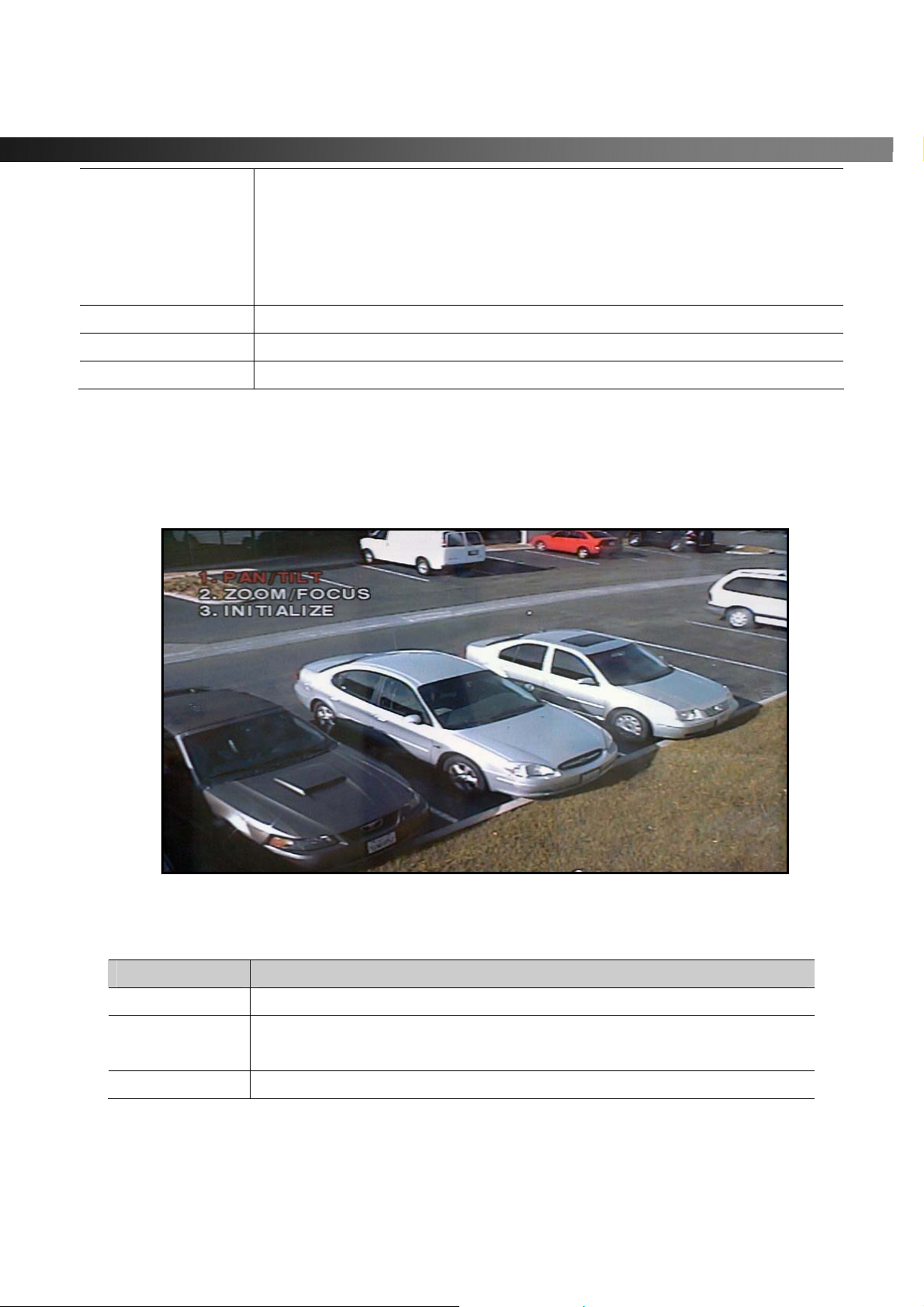

Figure 4.4.1. PTZ Control Screen.

Table 4.4.1 PTZ Control Menus

Item Description

PAN/TILT

ZOOM/FOCUS

INITIALIZE

Rev A. December 2007

Specifications and content are subject to change without notice.

Select menu and use the directional keys for Pan and Tilt.

Select menu and use the UP/DOWN keys for Zoom control.

Use the LEFT/RIGHT keys to control focus.

Initializes PTZ function on selected cameras.

Page 46

5. Archiving Video via USB, or CD-RW

Archives a still image or video clip onto a USB storage device or CD. Data must be captured before archiving.

5-1. Capturing Images or Video Clip

Capture still images in live mode or while playing back recorded video. In Live mode, pressing the

CAP/USB button twice initiates capturing a still image. See Figure 5.1.1 for an example.

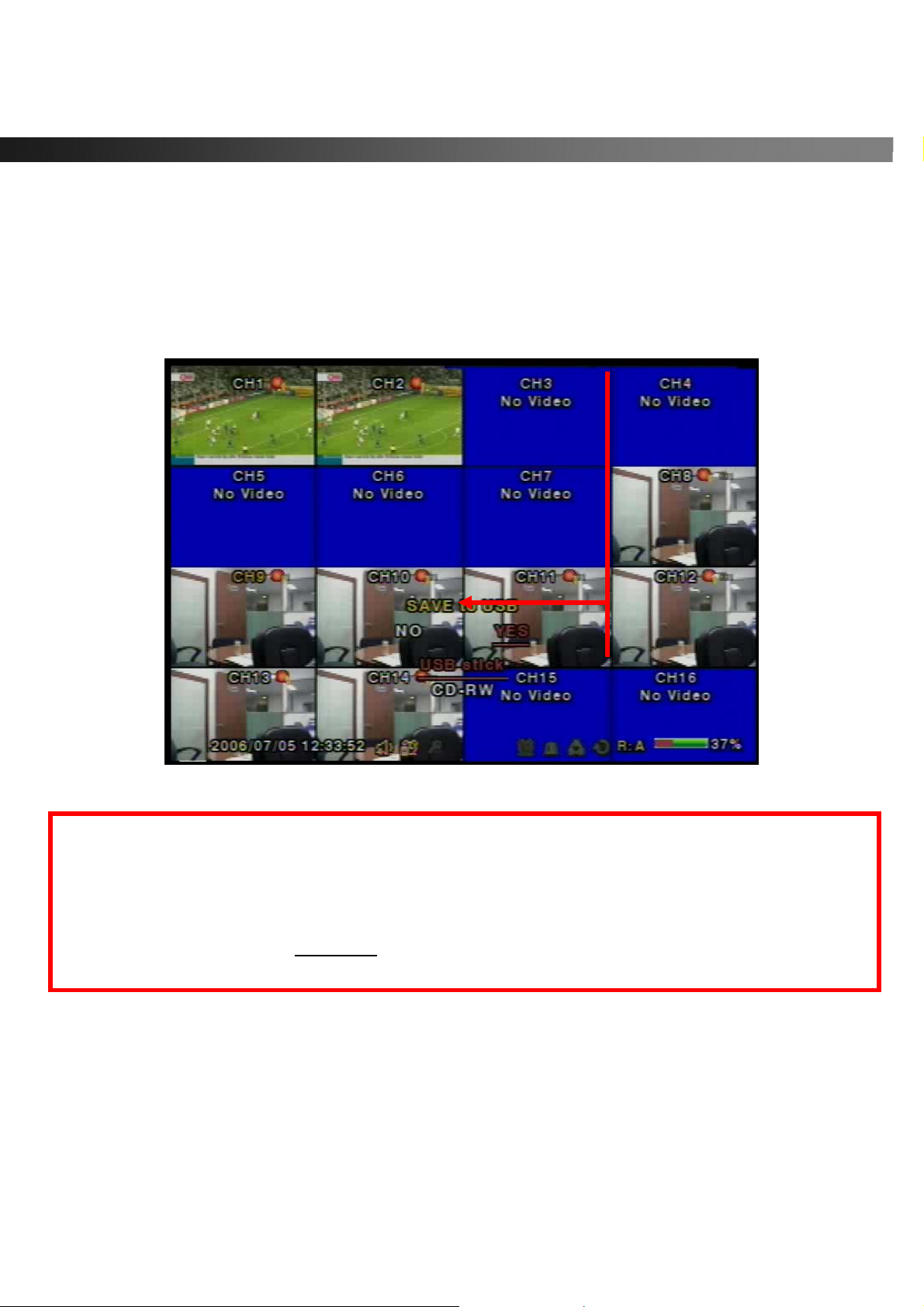

Figure 5.1.1. Archive Mode Screen

The still image is stored on the ha rd disk drive and may be transferred to a USB storage device by selecting YES, or a CD-RW disk by selecting CD-RW. User can select backup to USB or CD-RW.

Do you want to backup? NO YES Select media to backup USB stick CD-RW

1. From playback mode, pressing the CAP/USB button launches the archiving menu.

2. vSync DVR offers two choices, store still image or video. Selecting still images or video captures the

respective type of file to the hard disk.

3. Insert a USB storage device or CD. Select the corresponding type of storage device, USB or CD-RW.

vSync DVR converts the file to a AVI file type and writes to the selected device.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 47

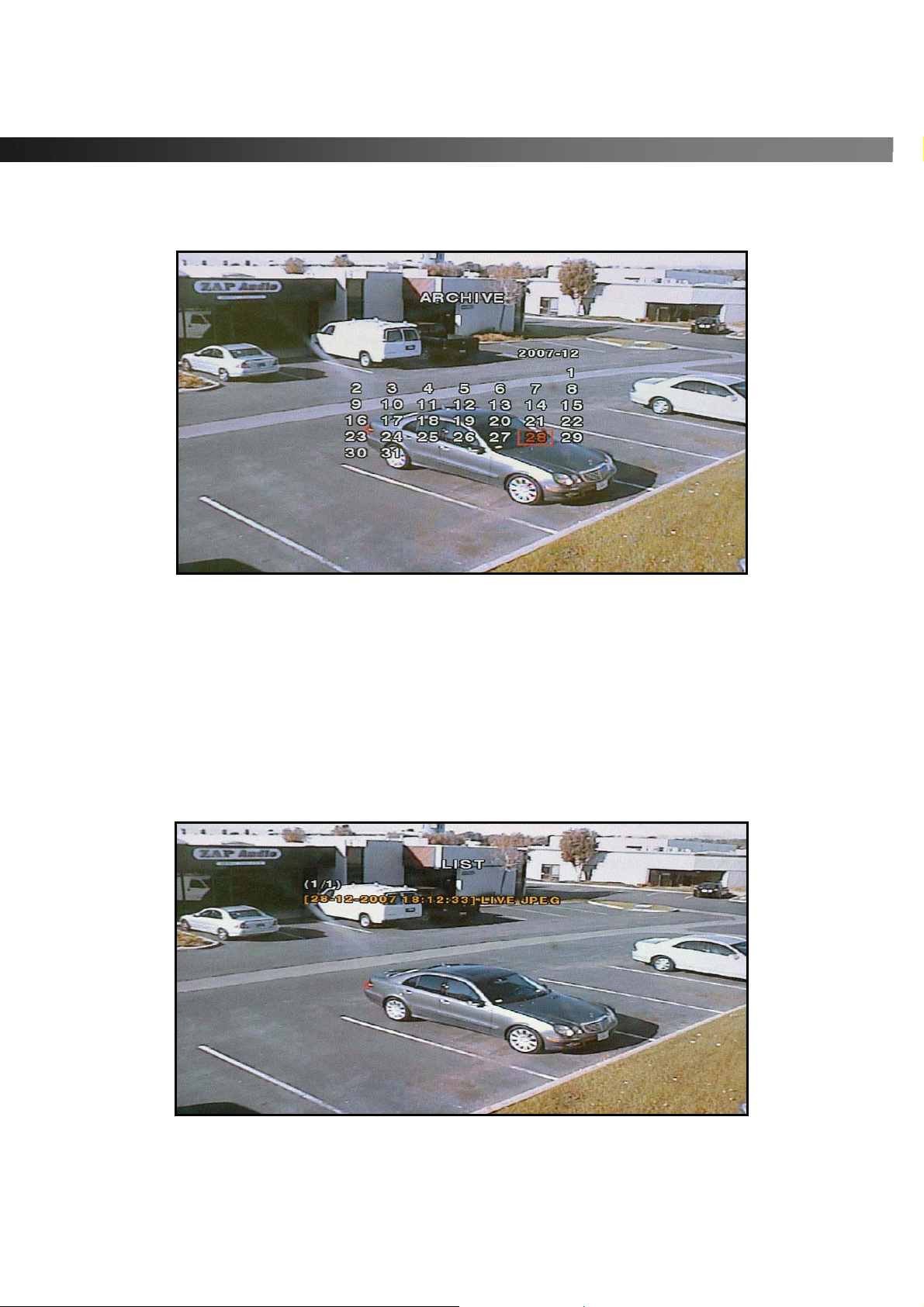

5-2. Transferring Still Images or Video Clips onto USB or CD-RW

From live mode, press the ARCHIVE button. This launches the ARCHIVE screen, which prompts with a calendar for date selection.

Figure 5.2.1. Archive Menu Screen

1. Press the SEL button to retrieve a list of archived images or video clips for the selected date.

2. Select a file from the archive list by using the UP or DOWN buttons and the RIGHT or LEFT buttons

to move between pages.

3. Press the CAP/USB button to transfer to a USB storage device or CD -RW. vSync DVR checks for free

space and will not save a file if there is insufficient free space on the storage media.

4. Video files are automatically converted to the AVI file format allowing easy playback from Windows Media

Player, or other Media Players supporting MPEG4/AVI file formats.

Figure 5.2.2. List of Archived Files

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 48

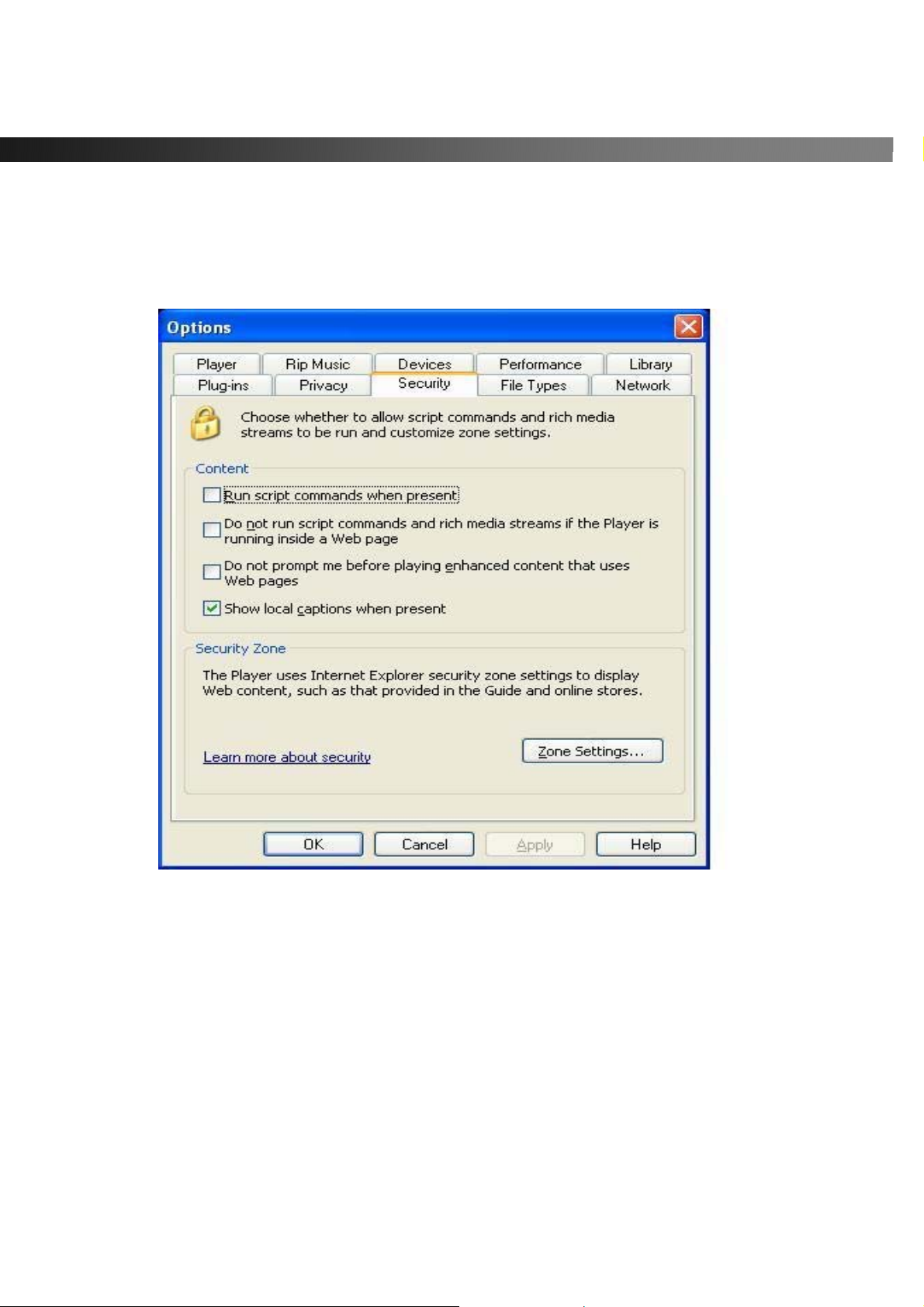

vSync DVR converts USB archived video to the AVI file format for easy viewing with Windows Media Player

10 or higher. If the archived video from vSync DVR c an not be played with standard video software, it is recommend that you install the FFDSHOW codec included on the installation CD on your Microsoft Windows based PC to properly review archived video files saved on the USB storage device or CD.

5.2.1. How to install Codec

1. Insert the vSync

2. Open Codec folder.

3. Double-click the file ffdshow-rev1322_xxxxx.exe to install codec program.

4. Follow the setup wizard and install using the initial settings for codec, filters, etc.

Note: In case of any technical difficulties with replaying archived video clip, please contact the vSync DVR distributor or download GOM Player from: www.gomplayer.com GOM Player is a multimedia player that is free to download with a relatively small file at 4.13MB, free of spyware and malware.

installation CD provided with vSync DVR into the CD drive of your computer.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 49

5.2.2. Time Stamp Display

Due to the enhanced security of Window s Media Player 10 running on Windows XP, some further setup is required. In Windows Media Player, go to Tools->Options->Security, then check “Show local captions when present” as shown below.

Figure 6.2.3. Setup Screen for Window Media Player 10

Caution! Always backup the contents of your USB storage device before archiving data from vSync DVRs.

- Improper handling of a USB storage device may cause it to become unstable.

Unplugging the USB storage device during a data transfer can cause system errors on the USB storage device’s file system. Before archiving to a USB storage device, always ensure that there is enough free storage space remaining in the device.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 50

6. Firmware Upgrade

6-1. Preparing USB storage device with Upgraded Firmware

1. Before upgrading the system with your USB storage device, create the following directory “E:\upgrade” (E:\ is just an example, your drive letter may be different).

2. Copy the firmware file to the \upgrade folder.

3. Double-check the name of the firmware file. The filename should be “app9.bin” for the vSync924i (9 Channel DVR) and “app16.bin” for the vSync1624i (16 channel DVR).

6-2. Steps to Complete Upgrade

1. Press the Setup button and enter the password. Default password is 1111

2. Select Security menu from the Setup Screen.

3. Select Admin Password followed by “12341234” and the SEL button.

4. The DVR will reboot in Test Mode.

5. Plug in the USB storage device containing the upgrade firmware.

6. Select the USB UPGRADE option to start the upgrade.

7. After the upgrade is finished, select the BOOT APPLICATION option and the DVR will restart to launch the new, upgraded firmware.

6-3. V erifying Software Installation.

1. Press Setup and log on.

2. Select System and press SEL.

3. Select Description and press SEL.

4. Check the version displayed. The version number should match the new firmware version you have installed.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 51

7. Network Client - Remote Monitoring and Playback

1. Install the vSync network client software to your PC.

2. Follow the appropriate instructions in the instructions detailed in section 3-7.

3. Connect the vSync DVR to the Network via the Ethernet Port on the rear of the DVR

4. The vSync Network Client Software features are explained in a separate manual.

When recording is in progress, vSync streams/transmits video identical to the quality settings applied in the record setup menu.

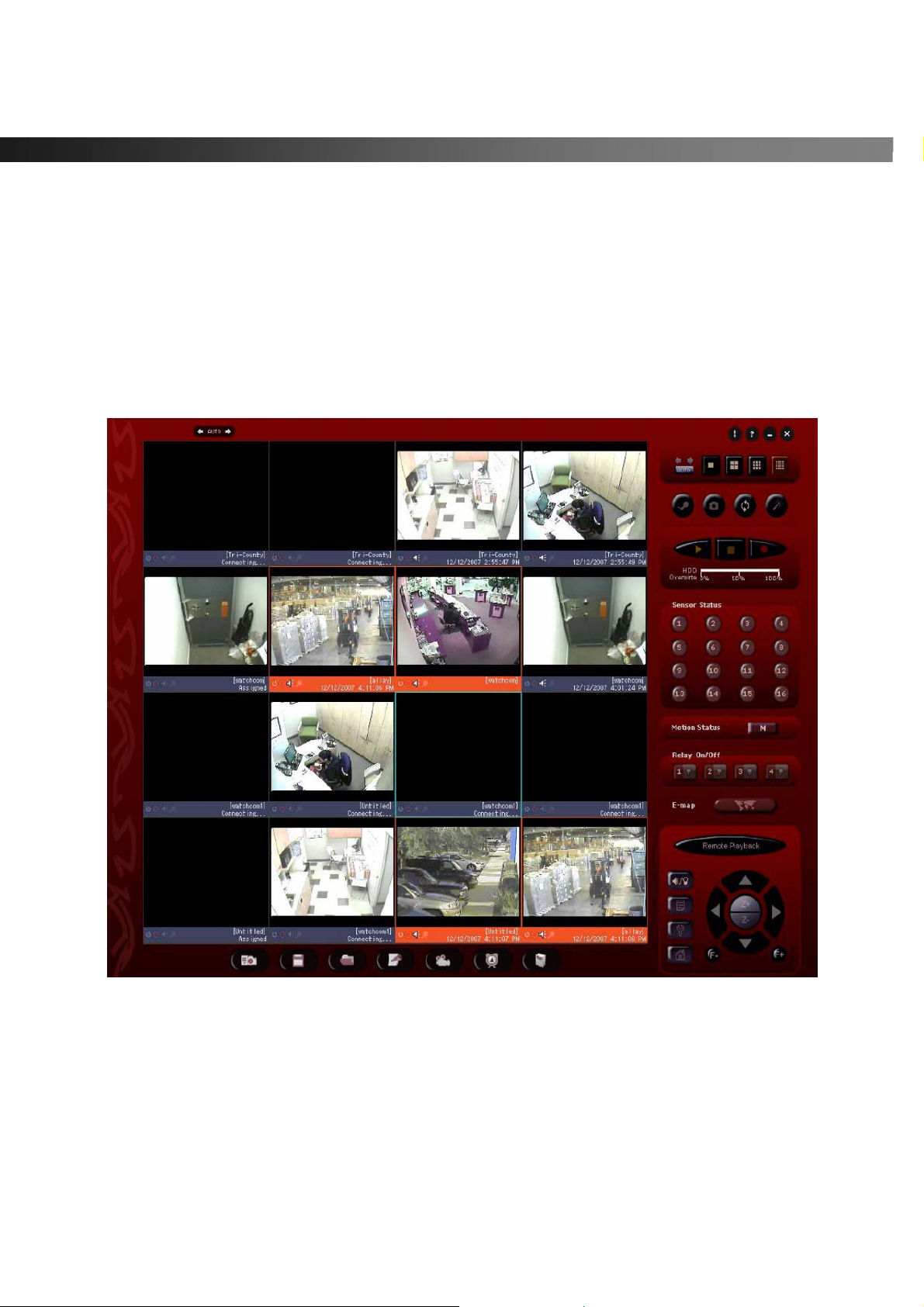

Figure 7.1. vSync Remote Client for Live Monitoring and Remote Search/Playback

For Networks with Limited Upload Bandwidth

Turning “BANDWIDTH SAVING ON” forces the vSync DVR to send only i-frames, saving network bandwidth. You can find this feature in the Network setup screen.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 52

8. Remote Setup Using Embedded Web-Server of vSync924i & 1624i

******** Requires Configuring Network Settings in Section 3-7 *************

vSync client software provides a remote web interface to access most setup parameters. Please note that

Schedule and Motion Zone setup parameters are not supported

To connect to the admin page over the web you can either click on the “Magic Wand/Admin” button in the vSync client program or type http://ip-address:http-port/admin.htm

(ex: http://xxx.xxx.xxx.xxx/admin.htm (Only Microsoft Internet Explorer is supported, we do not support other third-party browsers, i.e. FireFox.)

Before loading the admin page, the browser will prompt for the User ID and Password.

The default values are “root” and “dw2001,” respectively.

See Figures below for examples of Setup pages for each category. After setting all the parameters for each page, make sure to press the APPLY button at the bottom of the page to temporarily store these

settings.

After inputting all setup values, go to the “Save Setup” menu and press the SAVE button. The system will reboot to allow the new parameters to take place.

)

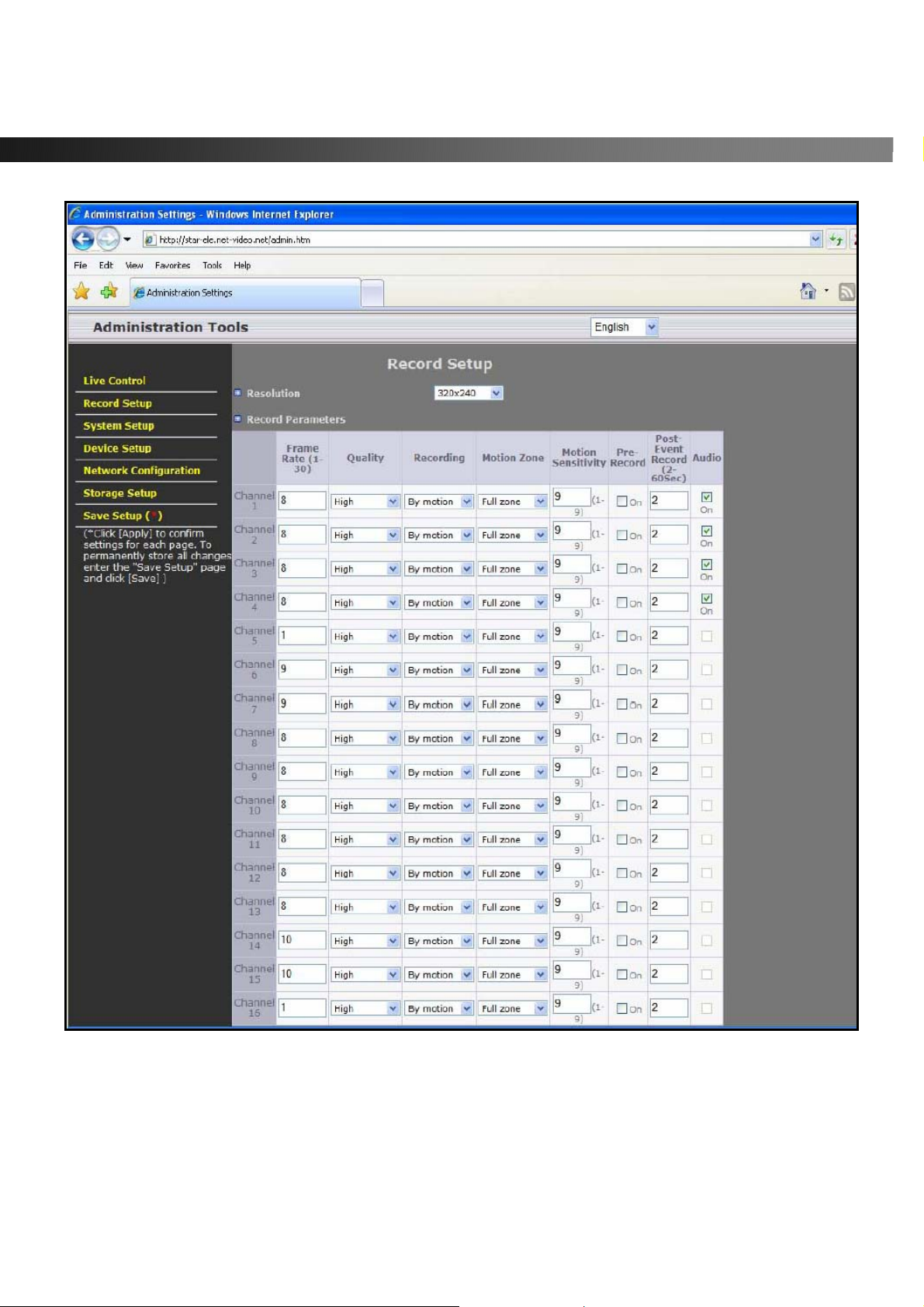

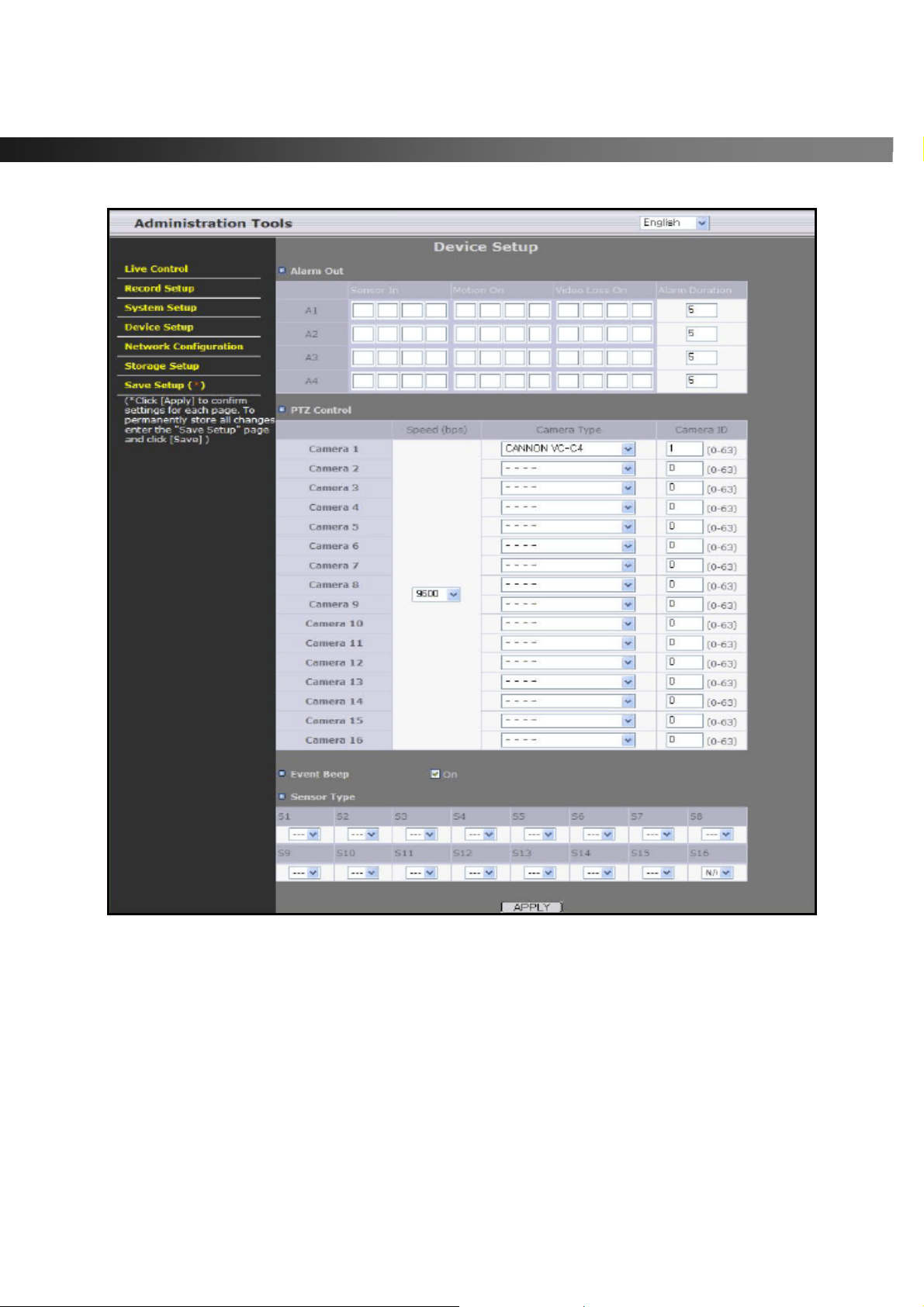

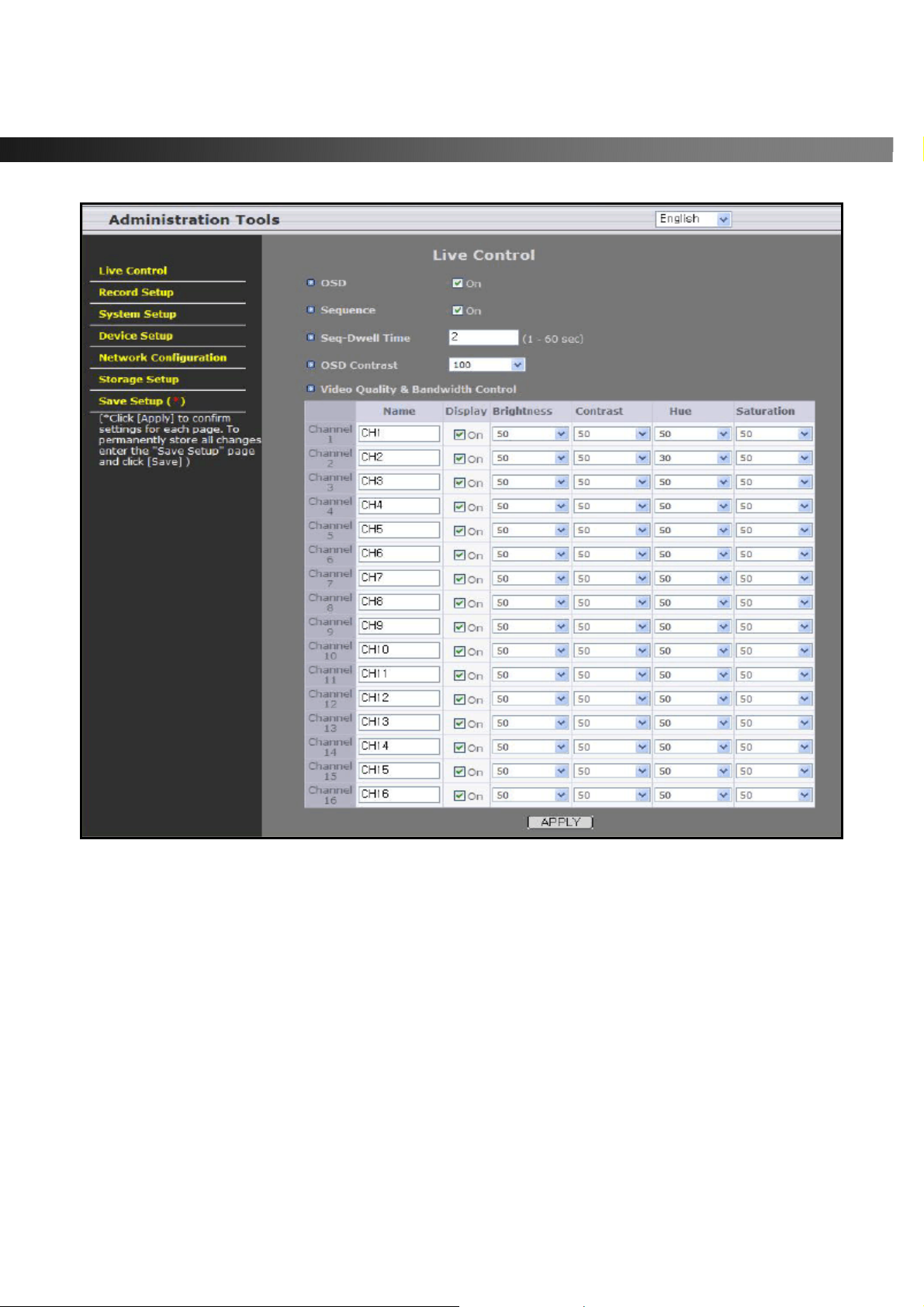

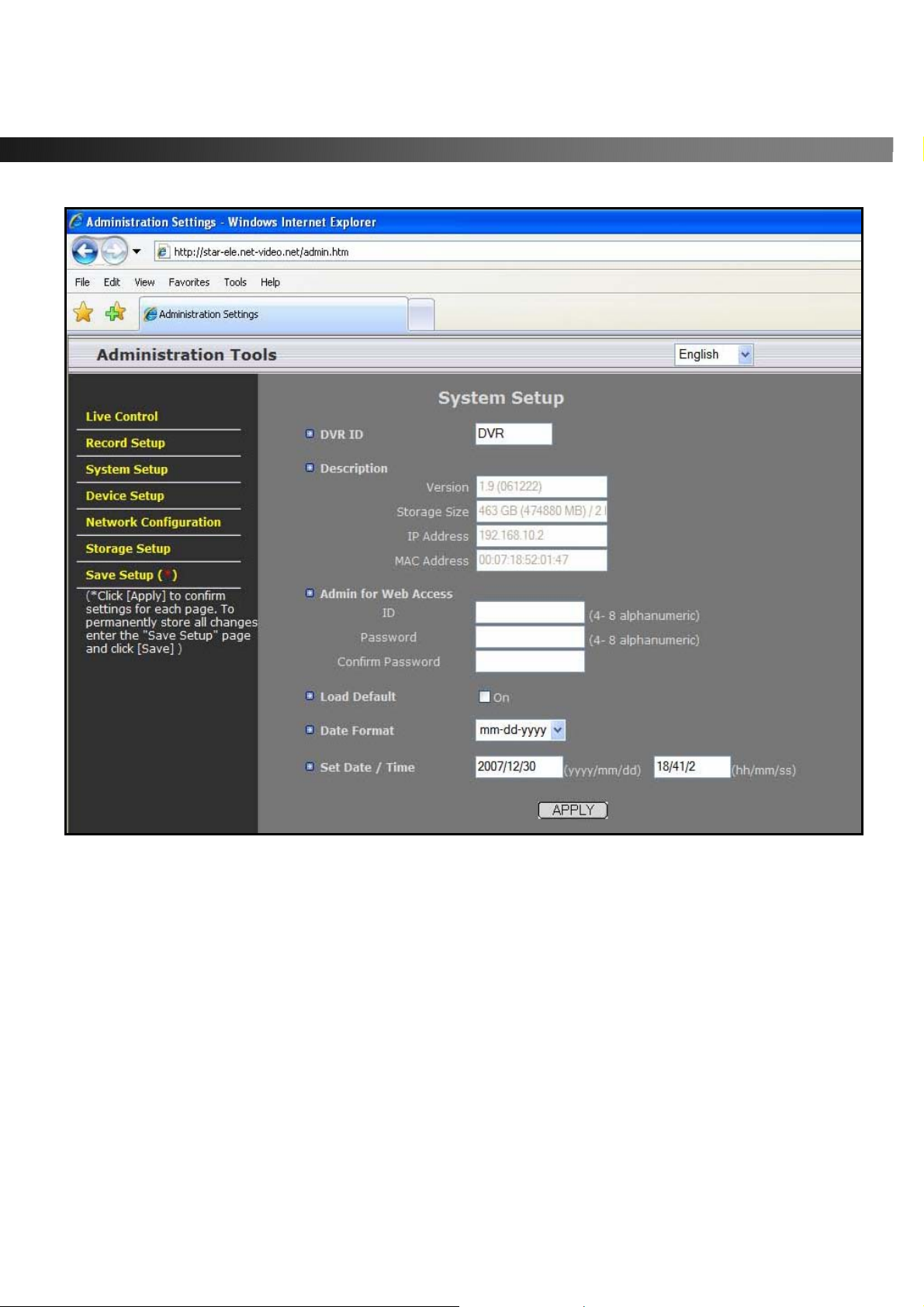

via the web interface.

in Microsoft Internet Explorer.

To protect your DVR from unauthorized use, we strongly recommend changing the User ID and Password.

Rev A. December 2007

Specifications and content are subject to change without notice.

Page 53
