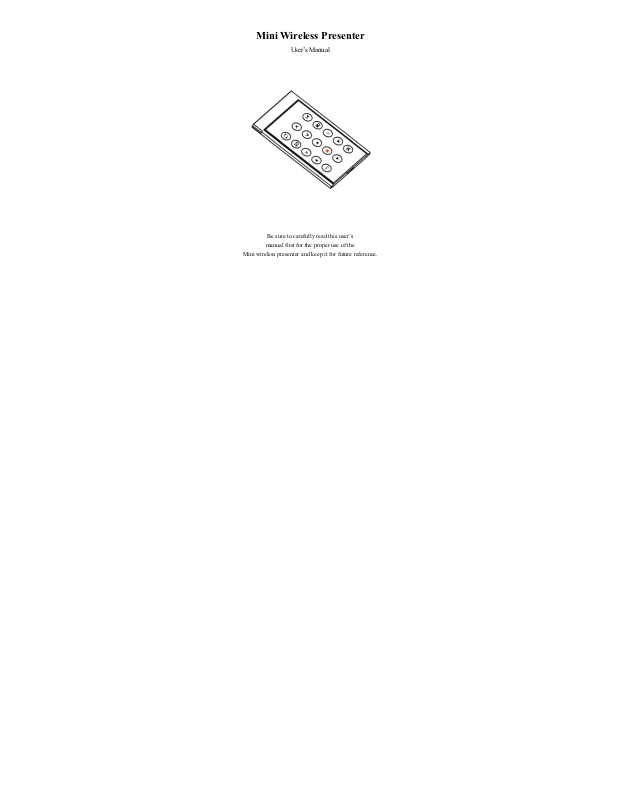

Mini Wireless Presenter
User’s Manual
Be sure to carefully read this user’s
manual first for the proper use of the
Mini wireless presenter and keep it for future reference.
0
Introduction..................................................................... 2
I. Operation system ........................................................ 2
II. Components ······························································· 3
III. Installation ................................................................. 4
IV. Functions................................................................... 4
V. Battery installation .....................................................6
VI. Technical parameters ················································ 7
Table of Contents
1
Mini wireless presenter is an excellent tool for making
presentations. Feel free to move around as you present. No
longer do you have to be in direct sight with your receiver. With
your wireless presenter you can now activate your application
remotely, flip slides, use the laser pointer to make the point and
then store it into laptop’s PCMCIA slot for storage.
It comes with a transmitter and a USB receiver.
Features:
1. Ultra slim design for PCMCIA slot !
Transmitter and receiver are integrated into one unit and
product can be stored into PCMCIA slot of laptop for easy carry !
2. Easily control the pace of your presentation
Advanced radio frequency (RF) technology that works through
walls, and provides control distance of up to 10-meters (30-feet),
so you never have to be near your computer.
3. Easy to use
It is USB plug-and-play. No software driver required. Just plug
the receiver into your USB port and it works within seconds.
I. Operation System
Windows 98,Se,Me,2000,XP, Mac OS, Linux
Instruction
II. Components
2
Take out the USB Receiver
Pull up the USB receiver and take out the receiver
Put back the USB Receiver
3
Insert the bottom of the USB receiver, label upwards, into the
compartment first and press the USB receiver to the
compartment.
III. Installation
Plug the receiver into the USB port on your PC. The system will
automatically search the new hardware and get the setup
completed.
(Attention: you may need Win98 disk if your computer runs
Win98/SE operating system.)
IV. Functions:

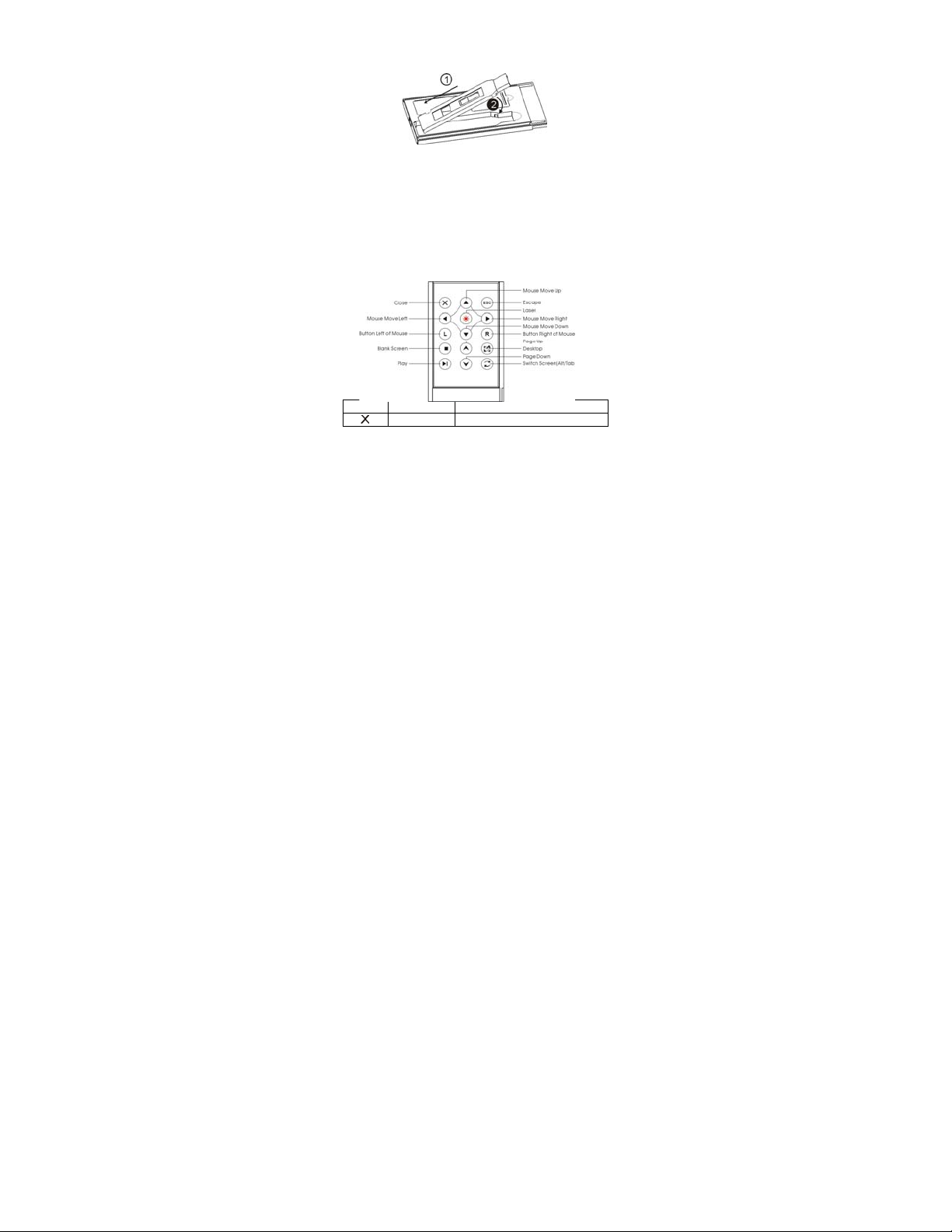

Key Function How to operate
Close Click this key to close current window
4
ESC Esc Click this key to Escape
Laser
Mouse up
Mouse down
Mouse left
Mouse right
Mouse left
L
button
Mouse Right
R
Button
Blank screen
or come
back
Play
PowerPoint
Page Up Click this key to Page Up
Page Down Click t his key to Page Down
Desktop Click this key to go to desktop
Switch
Screen
Click this key to generate red laser
light
Click this key to make mouse point
move up
Click this key to make mouse point
move down
Click this key to make mouse point
move left
Click this key to make mouse point
move right
Click this key to make function
Click this key to make function
Click this key to close the screen of
PowerPoint play
Click again to come back the show
status
Click this key to open PowerPoint by
hotkey
Click this key to switch screens
(Tip: Pinpoint the mouse to get exact position of the pointer,
pointer will move faster when pressing without pause )
5
Operating Hints
For optimal performance and RF reception:
Place the receiver at least 15 cm away from all electrical
devices, such as your monitor, speakers or external storage
devices.
V. Battery installation
z The unit is powered by 1x CR2032 battery.
z Pull up and remove the battery compartment cover.
z Insert 1x CR2032 battery into the battery compartment.
z Put the battery compartment cover back in position.
Note
1. Do not insert battery into the presenter in the wrong direction.
2. Do not leave bad or exhausted battery in the presenter
3. If you do not use the presenter for a long period of time, remove
the battery to avoid possible damage from battery corrosion.
4. If the presenter does not function correctly or if the operating
range becomes reduced, try to replace the battery with new
one.
VI. Technical parameters:
6
Transmitter
Interface Class ll Class llla
RF Frequency 433.92± 0.075MHz 433.92±0.075MHz
RF Power 0 dbm 0 dbm
Control
distance
Laser distance Up to 200 meters Up to 200 meters
Battery 1 x CR2032 1 x CR2032
Working
voltage
Sleep current 1uA 1uA
Wavelength 650nm 650nm
Max output < 1mW < 5mW
Class Class ll Class llla
Dimension 8.5x5.5x0.5 cm 8.5x5.5x0.5 cm
Weight 16g 16g
Receiver
Operation system Windows 98, Se, Me, 2000, XP, Mac
USB version USB1.1, compatible USB2.0
Working voltage USB electricity supply (4.5-5.5V)
Dimension 2.5X0.65X0.27cm
Up to 10 meters Up to 10 meters
3V 3V
OS, Linux
CAUTIONS:
Please note that laser radiation is harmful to the eye.
Do not look directly into the aperture while the laser is
operation!
Laser pointer can be harmful if used improperly.
Caution:
Changes or modifications to this unit not expressly approved
by the party responsible for compliance will void the user’s
Please keep out of reach of children!
7
authority to operate the equipment. Any change to the
equipment will void FCC grant.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.—Consult the
dealer or an experienced radio/TV technician for help.
Modifications not authorized by the manufacturer may void
users authority to operate this device.
