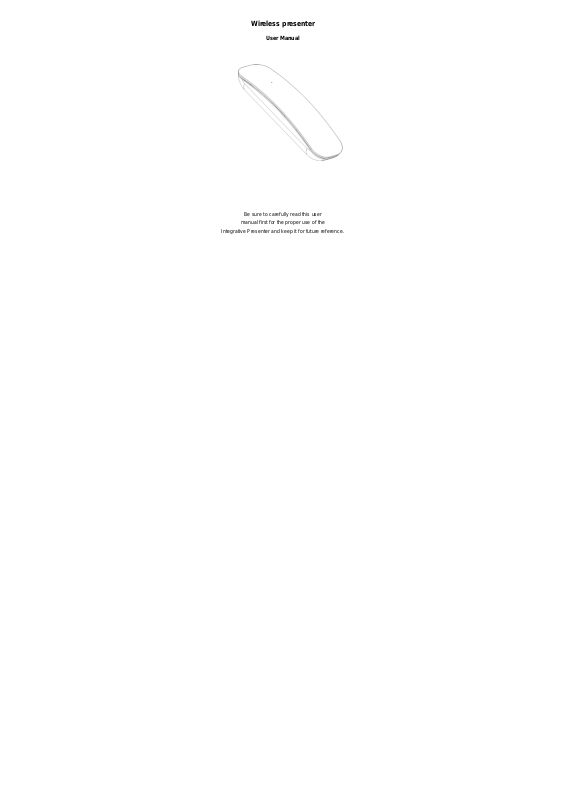

Wireless presenter
User Manual
Be sure to carefully read this user
manual first for the proper use of the
Integrative Presenter and keep it for future reference.
Instruction
It is a great tool for PowerPoint presentations! With it, you don't need to
stand beside your computer or have an additional person click the slide
for you!
It contains two parts: transmitter and USB receiver. Mini receiver can be
put into transmitter.
Features:
1. Easy carry
The transmitter and receiver are integrated into one unit for easy
carry!
2. Easily control the pace of your presentation
Advanced radio frequency (RF) technology that works through
walls and the controlling distance is up to 10-meters / 30-feet
away, so you never have to stand at beside of your computer.
3. Multifunctional presenter
It combines the functions of a laser pointer and hotkeys.
4. Easy to use
It is USB plug-and-play. No driver required. Just plug the receiver
into the USB port on a PC and it works within seconds.
I. Operating System
Windows 2000 and above, Windows XP, Vista, Win 7, Win8
II. Operating Hints
1. For optimal performance and RF reception, please place the
receiver at least 15cm away from all electrical devices, such as your
monitor, speakers or external storage devices.
1
2. If battery is low, the control distance will be shorter, please replace
battery in time.
3. The presenter will enter into sleep mode if there is no operation
about 10 minutes. It will wake up if laser key is pressed.
III. Functions:
Functions Functions instruction
Power switch power on or power off
Power
Indicator light
Laser Indicator
light
Turn on the power switch, the light above the switch will
be on; If entering into the sleep mode or turning off the
power switch, the light will go out
The laser indicator light will be on if you press the upper
part of presenter. Release your hand, the light will be
off.
2
Page Up The point (A position) is remote center. Slide from right
Page Down Slide from left of the point to right of the point.
Play/Esc Play PowerPoint: Slide from upper of the point to lower
Blank screen Slide from lower of the point to upper of the point (For
Laser Press the upper part of presenter to emit laser beam
Laser hole Emit laser beam
of the point to left of the point.
of the point,
Esc: Repeat above operation
(For PowerPoint only)
PowerPoint play only)
IV. Battery installation
z The product is powered by 1x AAA battery.
z Open the battery cover, and insert 1x AAA
battery into the battery holder.
z Battery negative(-) is left and positive (+) is
right as below
z Put the battery cover back into position.
Note
1. Do not insert battery into the device in the wrong direction.
2. Do not leave bad or exhausted battery in the device
3. If you do not use the device for a long period of time, remove the
battery to avoid possible damage from battery corrosion.
4. If the device does not function correctly or if the operating range
becomes reduced, try to replace the battery with new one.
3
V. Technical parameters
Transmitter
RF Frequency 2.437GHz
RF Output power 0dBm
Sensitivity -90dBm
Control distance Up to 10 meters
Laser wavelength 650nm
Laser distance >200m
Max output ＜1mW or ＜5mW
Battery
Working voltage
Sleep current
Dimension 124*35*24mm
Receiver
Operation system
Interface USB1.1 , Compatible with USB2.0
Working voltage USB electricity supply (4.5～5.5V)
Dimension 36.5*14.6*7mm
1 x AAA
1.2～1.5V
＜100uA
Windows 2000 and above, Windows XP, Vista,
Win 7，Win8
VI. Safety Measures
z To avoid possible eye damage, never point the presenter at people
especially their faces, or look directly into the presenter’s laser beam.
z Avoid pointing the presenter’s laser beam at a mirror or other highly
reflective surface.
z Keep the presenter away from children.
z Never view the presenter’s laser beam using telescopic devices, such
as a microscope or binoculars.
z Any attempt to disassemble, adjust or repair the presenter may result
in exposure to laser light or other safety hazards.
4
FCC Caution:
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
5
NOTE
The product adopts advance RF technology, the U SB receiver will
identify the first transmitter which is used. If you want to use different
transmitters with the same receiver, please pull off the receiver and
plug it again, after 6 seconds, press any key of the transmitter you
want to use. Then it can work successfully.
