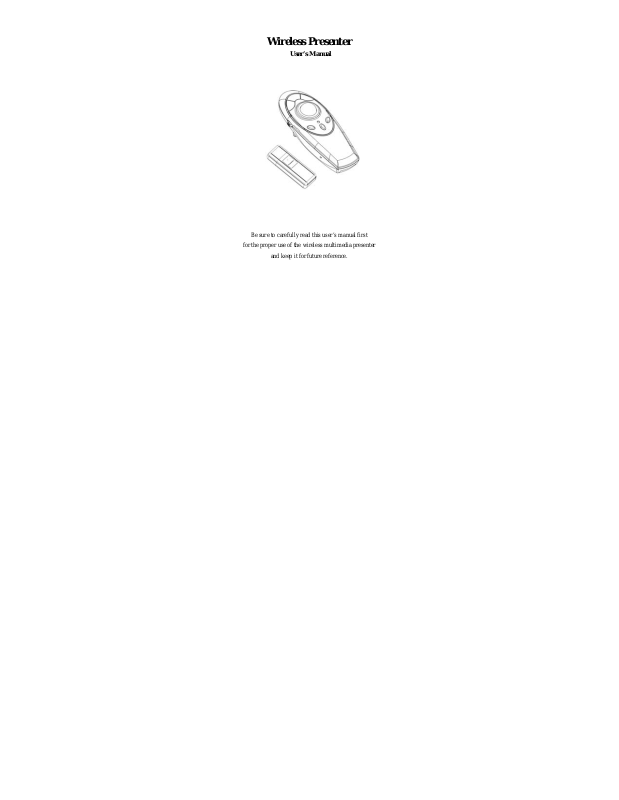

Wireless Presenter
User’s Manual
Be sure to carefully read this user’s manual first
for the proper use of the wireless multimedia presenter
and keep it for future reference.
0
Table of Contents
Introduction..................................................................... 2
I. Operation system ........................................................ 2
II. Parts description......................................................... 3
III. Installation ................................................................. 4
IV. Functions...................................................................5
V. Functions table...........................................................6
VI. Operating Hints.........................................................10
VII. Battery installation ..................................................10
VIII. Troubleshooting.......................................................12
IX. T echnical para mete rs................................................ 12
Safety Measures.............................................................13
1
Instruction
It is a great tool for PowerPoint presentations! With it, you don't
need to stand beside your computer or have an additional
person click the slide for you!
It works as a laser pointer, a optical mouse, a PC remote, a
multimedia keyboard and a portable storage device.
It comes with a transmitter and a USB receiver.
Advantage:
1. Easily control the pace of your presentation
Advanced radio frequency (RF) technology that works
through walls and control distance up to 15-meters / 50-feet
away, so you never have to stand at beside of your computer.
2. Multifunctional presenter
It combines the functions of a laser pointer, a optical mouse
and keyboard hotkeys etc. If you need flash memory, the
receiver supports to be added built-in flash memory.
( 64/128/256/512/1024MB optional ).
3. Easy to use
It is USB plug-and-play. No driver required. Just plug the
receiver into the USB port on a PC and it works within
seconds.
4. Save power design
The device will go to sleep mode after there is no any
operation for 30 seconds. It will wake up when any key is
pressed.
I. Operation System
Windows 98,Se,Me,2000,XP, Mac OS, Linux
2
II. Parts Description
3
Transmitter side view Transmitter back view
USB receiver
LED
4
III. Installation
Plug the receiver into the USB port on your PC. The system
will automatically drive it.
(Attention PLS: you may need Win98 disk if your computer
runs Win98/SE operating system.)
IV. Functions
z Laser pointer
z Trackball mouse
z Desktop / My computer
z Close / E-mail
z Internet / Favorite
z Page up / Zoom out
z Page down / Zoom in
z Alt/Tab
z ESC
5
V. Functions table:
The presenter provides two working modes ---- M1 & M2.
Mode: M1.
6
Corresponding
Key
Email M1
Desktop M1
Internet M1
Page Up M1
Page down M1
Alt /Tab
Alt +Tab M1
Laser M1 & M2
R
Mouse Right Button M1 & M2
L
Mouse Left Button M1 & M2
A) When switch to M1 mode. It functions as below:
z Outlook Express: press “ ” key to open outlook.
z Desktop: press “ ” key to go to desktop.
z Internet: press “ “key to go to internet.
z Page up: Press “ “ key to page up.
z Page down: Press “ “ key to page down.
z Alt / Tab: Press “Alt / Tab” key to switch screens.
z Laser: press “ ” key to generate red laser light
z Mouse Right button: Press “R “ key
z Mouse Left button: Press “L “ key
z Trackball: it works as a optical mouse
(The LED will be light when work)
Function
7
Working On
Mode
Mode: M2.
8
Corresponding
Key
Function
Working On
Close M2
My Computer M2
Favorite M2
Zoom Out M2
Zoom In M2
ESC
ESC M2
Laser M1 & M2
R
Mouse Right Button M1 & M2
L
Mouse Left Button M1 & M2
B) When switch to M2 mode. It functions as below:
z Close: press “ ” key to close current window.
z My computer : press “ ” key to open my computer.
z Favorite: press “ “key to open favorite.
z Zoom out: Press “ “ key to enlarge picture.
z Zoom in : Press “ “ key to dwindle picture.
z Laser: press “ ” key to generate red laser light
z Mouse Right button: Press “R “ key
z Mouse Left button: Press “ L “ key
z Trackball: it works as a optical mouse
(The LED will be light when work)
9
Mode
C) Built-in flash memory is optional
(No memory/64/128/256/512/1024 MB)
VI. Operating Hints
For optimal performance and RF reception:
Place the receiver at least 15 cm away from all electrical
devices, such as your monitor, speakers or external storage
devices.
The presenter will enter a sleep mode when no act. To
activate, press any key.
VII. Battery installation
z The unit is powered by AAAx2 battery.
z Push and remove the battery cover located on the
bottom of the device.
z Insert 2xAAA batteries into the battery holder and make
sure that the Positive (+) and Negative (-) ends of each
battery match the polarity indicators inside the battery
housing.
z Push the battery cover back into position until it “clicks”
firmly into place.
10
Push
Note
I. Do not insert battery into the device in the wrong direction.
2. Do not leave bad or exhausted battery in the device.
3. Never combine an alkaline with a Ni-MH/Ni-CD battery in a
device
4.If you do not use the device for a long period of time,
remove the battery to avoid possible damage from battery
corrosion.
5. If the device does not function correctly or if the operating
range becomes reduced, try to repl ace th e bat tery w ith new
one.
VIII. Troubleshooting
11
What should I do if the presenter does not work?
Make sure that the polarity of the batteries is correct. The
Positive (+) and Negative (-) ends of each battery must match
the Positive (+) and Negative (-) connections in the battery
housing.
Check to see if the receiver’s USB connector is firmly
attached to the USB port on your computer.
IX. Technical parameters
Presenter
Interface Wireless/Radio Frequency
Control distance Up to 15 meters
RF Frequency 2.453GHz
RF Power 0dbm
Trackball Resolution Up to 400 DPI
Battery AAAx2
Working voltage 3V Battery
Power consumption Working mode 40 mA
Laser distance Up to 200 meters
Wavelength 650nm
Max output < 1mW or <5mW(It’s optional)
Weight-without
batteries
Sleep mode <1 uA
55g
12
Receiver
Interface USB
Operation system Windows 98/Se, Me, 2000, XP,
Mac OS, Linux
Compatible plug USB1.1, USB2.0
Working voltage USB electricity supply (4.5-5.5V)
Power consumption <45 mA
Weight 16g
Safety Measures
z To avoid possible eye damage, never point the presenter
at people especially their faces, or look directly into the
presenter’s laser beam.
z Avoid pointing the presenter’s laser beam at a mirror or
other highly reflective surface.
z Keep the presenter away from young children.
z Never view the presenter’s laser beam using telescopic
devices, such as a microscope or binoculars.
z Any attempt to disassemble, adjust or repair the presenter
may result in exposure to laser light or other safety
hazards.
13
FCC Warning:
This equipment has been tested and found to com ply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protectio n against harmful interf erence in a
residential installation. This equipm ent generates us es and can rad iate rad io
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference wil l not occ ur in a par ticu lar
installation. If this equipment does ca use harmful interference to radio or
television reception, which can be determined by turnin g the equipment off
and on, the user is encouraged to try to correct the interf erence by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outl et on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Modifications not authorized by the manufacturer may void user’s authority to
operate this device.
