Page 1
TONE YOUR W AY
vsaudio.com
STRAIGHT FLUSH

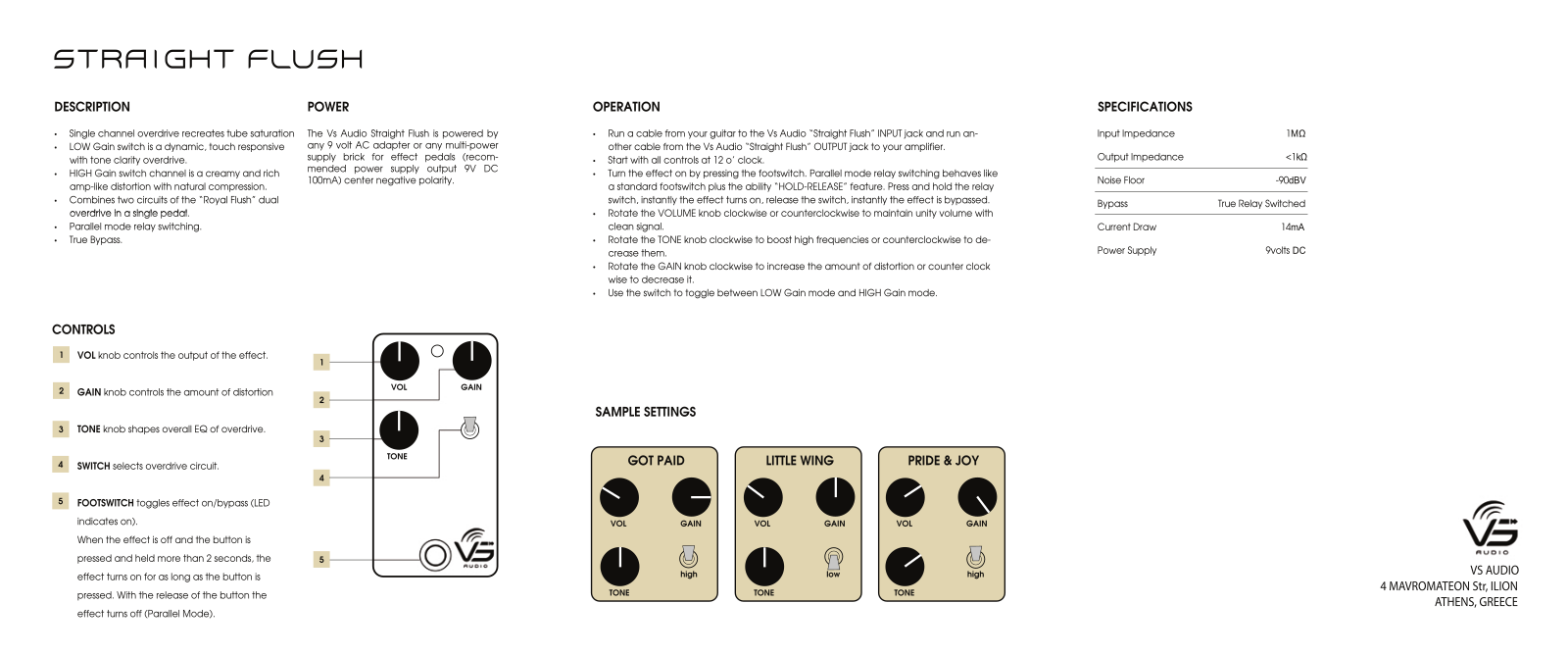

Page 2
STRAIGHT FLUSH
DESCRIPTION
• Single channel overdrive recreates tube saturation
• LOW Gain switch is a dynamic, touch responsive
with tone clarity overdrive.
• HIGH Gain switch channel is a creamy and rich
amp-like distortion with natural compression.
• Combines two circuits of the “Royal Flush” dual
overdrive in a single pedal. overdrive in a single pedal.
• Parallel mode relay switching.
• True Bypass.
CONTROLS
1
VOL knob controls the output of the effect.
2
GAIN knob controls the amount of distortion
3
TONE knob shapes overall EQ of overdrive.
4
SWITCH selects overdrive circuit.
5
FOOTSWITCH toggles effect on/bypass (LED
indicates on).
When the effect is off and the button is When the effect is off and the button is
pressed and held more than 2 seconds, the
effect turns on for as long as the button is
pressed. With the release of the button the
effect turns off (Parallel Mode).
POWER
The Vs Audio Straight Flush is powered by
any 9 volt AC adapter or any multi-power
supply brick for effect pedals (recom-
mended power supply output 9V DC
100mA) center negative polarity.
1
2
3
4
5
VOL GAIN
TONE
OPERATION
• Run a cable from your guitar to the Vs Audio “Straight Flush” INPUT jack and run an-
other cable from the Vs Audio “Straight Flush” OUTPUT jack to your amplifier.
• Start with all controls at 12 o’ clock.
• Turn the effect on by pressing the footswitch. Parallel mode relay switching behaves like
a standard footswitch plus the ability “HOLD-RELEASE” feature. Press and hold the relay
switch, instantly the effect turns on, release the switch, instantly the effect is bypassed.
•• Rotate the VOLUME knob clockwise or counterclockwise to maintain unity volume with
clean signal.
• Rotate the TONE knob clockwise to boost high frequencies or counterclockwise to de-
crease them.
• Rotate the GAIN knob clockwise to increase the amount of distortion or counter clock
wise to decrease it.
• Use the switch to toggle between LOW Gain mode and HIGH Gain mode.
SAMPLE SETTINGS
GOT PAID
VOL GAIN
high
TONE
LITTLE WING
VOL GAIN
low
TONE
PRIDE & JOY
VOL GAIN
high
TONE
SPECIFICATIONS
Input Impedance 1MΩ
Output Impedance <1kΩ
Noise Floor -90dBV
Bypass True Relay Switched
Current Draw 14mA
Power Supply 9volts DC
VS AUDIO
4 MAVROMATEON Str, ILION
ATHENS, GREECE
