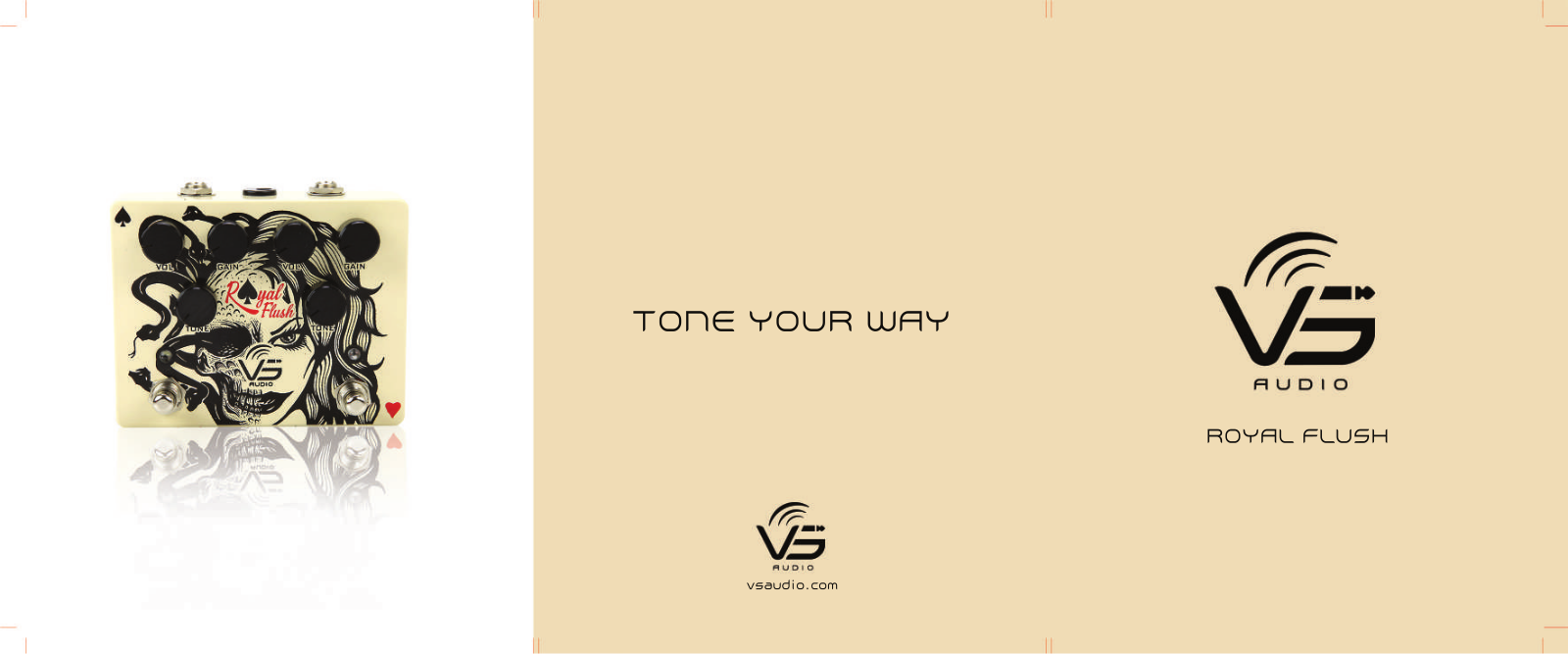

Page 1
TONE YOUR W AY
vsaudio.com
ROYAL FLUSH

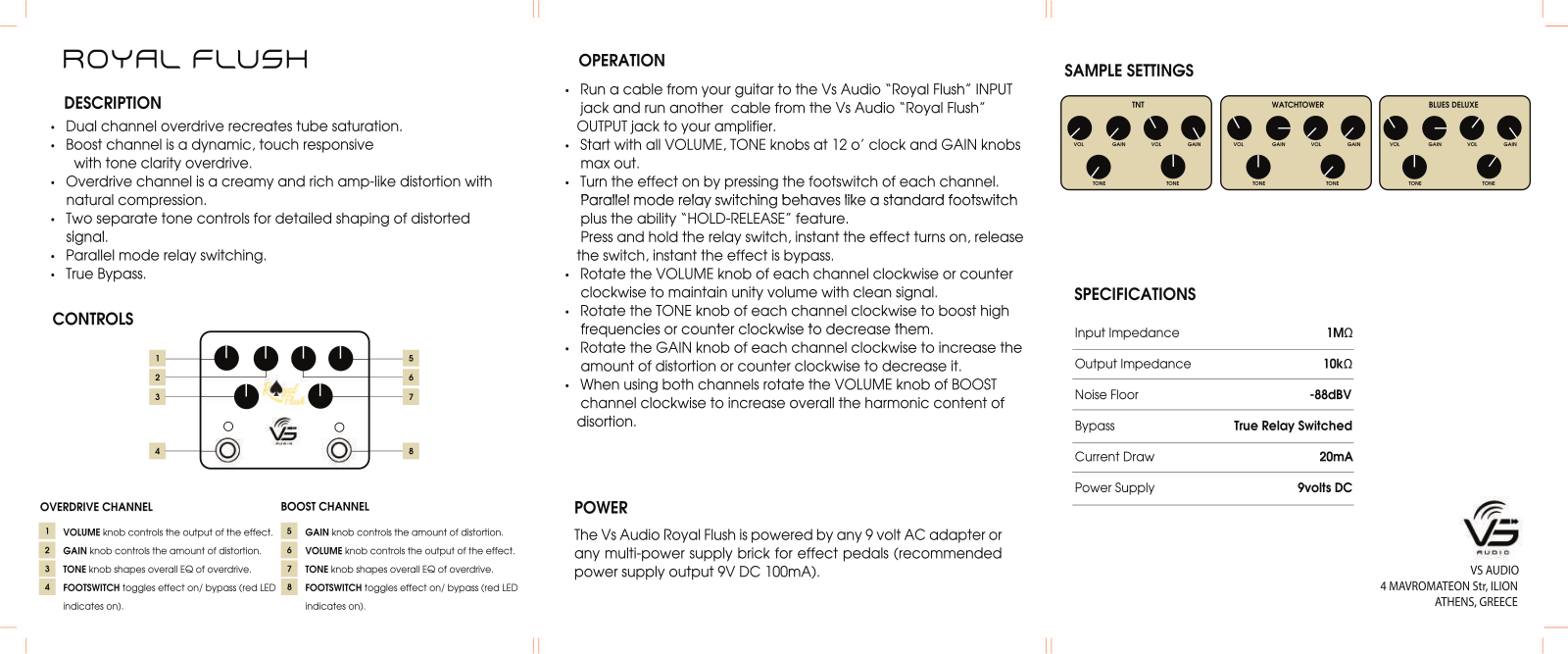

Page 2
ROYAL FLUSH
DESCRIPTION
• Dual channel overdrive recreates tube saturation.
• Boost channel is a dynamic, touch responsive
with tone clarity overdrive.
• Overdrive channel is a creamy and rich amp-like distortion with
natural compression.
• Two separate tone controls for detailed shaping of distorted
signal. signal.
• Parallel mode relay switching.
• True Bypass.
CONTROLS
1
2
3
4
OVERDRIVE CHANNEL
1
VOLUME knob controls the output of the effect.
2
GAIN knob controls the amount of distortion.
3
TONE knob shapes overall EQ of overdrive.
4
FOOTSWITCH toggles effect on/ bypass (red LED
indicates on).
BOOST CHANNEL
5
GAIN knob controls the amount of distortion.
6
VOLUME knob controls the output of the effect.
7
TONE knob shapes overall EQ of overdrive.
8
FOOTSWITCH toggles effect on/ bypass (red LED
indicates on).
5
6
7
8
OPERATION
• Run a cable from your guitar to the Vs Audio “Royal Flush” INPUT
jack and run another cable from the Vs Audio “Royal Flush”
OUTPUT jack to your amplifier.
• Start with all VOLUME, TONE knobs at 12 o’ clock and GAIN knobs
max out.
• Turn the effect on by pressing the footswitch of each channel.
Parallel mode relay switching behaves like a standard footswitch Parallel mode relay switching behaves like a standard footswitch
plus the ability “HOLD-RELEASE” feature.
Press and hold the relay switch, instant the effect turns on, release
the switch, instant the effect is bypass.
• Rotate the VOLUME knob of each channel clockwise or counter
clockwise to maintain unity volume with clean signal.
• Rotate the TONE knob of each channel clockwise to boost high
frequencies or counter clockwise to decrease them. frequencies or counter clockwise to decrease them.
• Rotate the GAIN knob of each channel clockwise to increase the
amount of distortion or counter clockwise to decrease it.
• When using both channels rotate the VOLUME knob of BOOST
channel clockwise to increase overall the harmonic content of
disortion.
POWER
The Vs Audio Royal Flush is powered by any 9 volt AC adapter or
any multi-power supply brick for effect pedals (recommended
power supply output 9V DC 100mA).
SAMPLE SETTINGS
VOL GAIN
TONE
TNT
VOL GAIN
TONE
WATCHTOWER
VOL GAIN
TONE
VOL GAIN
SPECIFICATIONS
Input Impedance 1MΩ
Output Impedance 10kΩ
Noise Floor -88dBV
Bypass True Relay Switched
Current Draw 20mA
Power Supply 9volts DC
VOL GAIN
TONE
4 MAVROMATEON Str, ILION
BLUES DELUXE
TONE
ATHENS, GREECE
VOL GAIN
TONE
VS AUDIO
