VS Audio Pandora User guide

TONE YOUR W AY

vsaudio.com

PANDORA

PANDORA

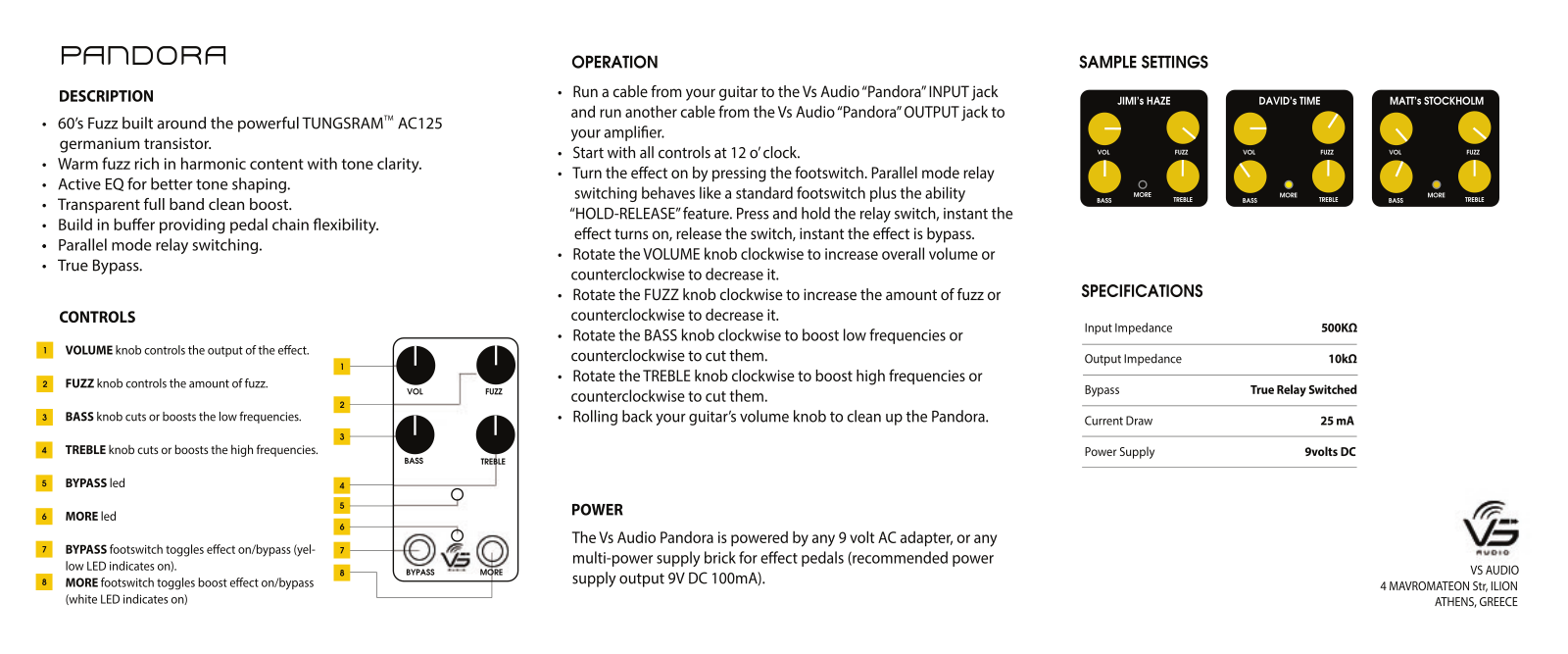

DESCRIPTION

• 60’s Fuzz built around the powerful TUNGSRAM AC125
germanium transistor.

• Warm fuzz rich in harmonic content with tone clarity.

• Active EQ for better tone shaping.

• Transparent full band clean boost.

• Build in buffer providing pedal chain exibility.

•

• Parallel mode relay switching.

• True Bypass.

CONTROLS

1

VOLUME knob controls the output of the effect.

2

FUZZ knob controls the amount of fuzz.

3

BASS knob cuts or boosts the low frequencies.

4

TREBLE knob cuts or boosts the high frequencies.

5

BYPASS led

6

MORE led

7

B

BYPASS footswitch toggles effect on/bypass (yel-

low LED indicates on).

8

MORE footswitch toggles boost effect on/bypass
(white LED indicates on)

TM

1

2

3

BASS

4

5

6

7

8

BYPASS MORE

FUZZVOL

TREBLE

OPERATION

• Run a cable from your guitar to the Vs Audio “Pandora” INPUT jack
and run another cable from the Vs Audio “Pandora” OUTPUT jack to
your amplier.

• Start with all controls at 12 o’ clock.

• Turn the effect on by pressing the footswitch. Parallel mode relay
switching behaves like a standard footswitch plus the ability
“HOLD-RELEASE” feature. Press and hold the relay switch, instant the
effect turns on, release the switch, instant the effect is bypass.

• Rotate the VOLUME knob clockwise to increase overall volume or
counterclockwise to decrease it.

• Rotate the FUZZ knob clockwise to increase the amount of fuzz or
counterclockwise to decrease it.

• Rotate the BASS knob clockwise to boost low frequencies or
counterclockwise to cut them.

• Rotate the TREBLE knob clockwise to boost high frequencies or
counterclockwise to cut them.

• Rolling back your guitar’s volume knob to clean up the Pandora.

POWER

The Vs Audio Pandora is powered by any 9 volt AC adapter, or any
multi-power supply brick for effect pedals (recommended power
supply output 9V DC 100mA).

SAMPLE SETTINGS

JIMI’s HAZE

BASS

MORE

FUZZVOL

TREBLE

DAVID’s TIME

BASS

MORE

FUZZVOL

TREBLE

SPECIFICATIONS

Input Impedance 500KΩ

Output Impedance 10kΩ

Bypass True Relay Switched

Current Draw 25 mA

Power Supply 9volts DC

MATT’s STOCKHOLM

FUZZVOL

MORE

BASS

TREBLE

VS AUDIO

4 MAVROMATEON Str, ILION

ATHENS, GREECE
