Page 1
TONE YOUR W AY
vsaudio.com
AFTERM ATH

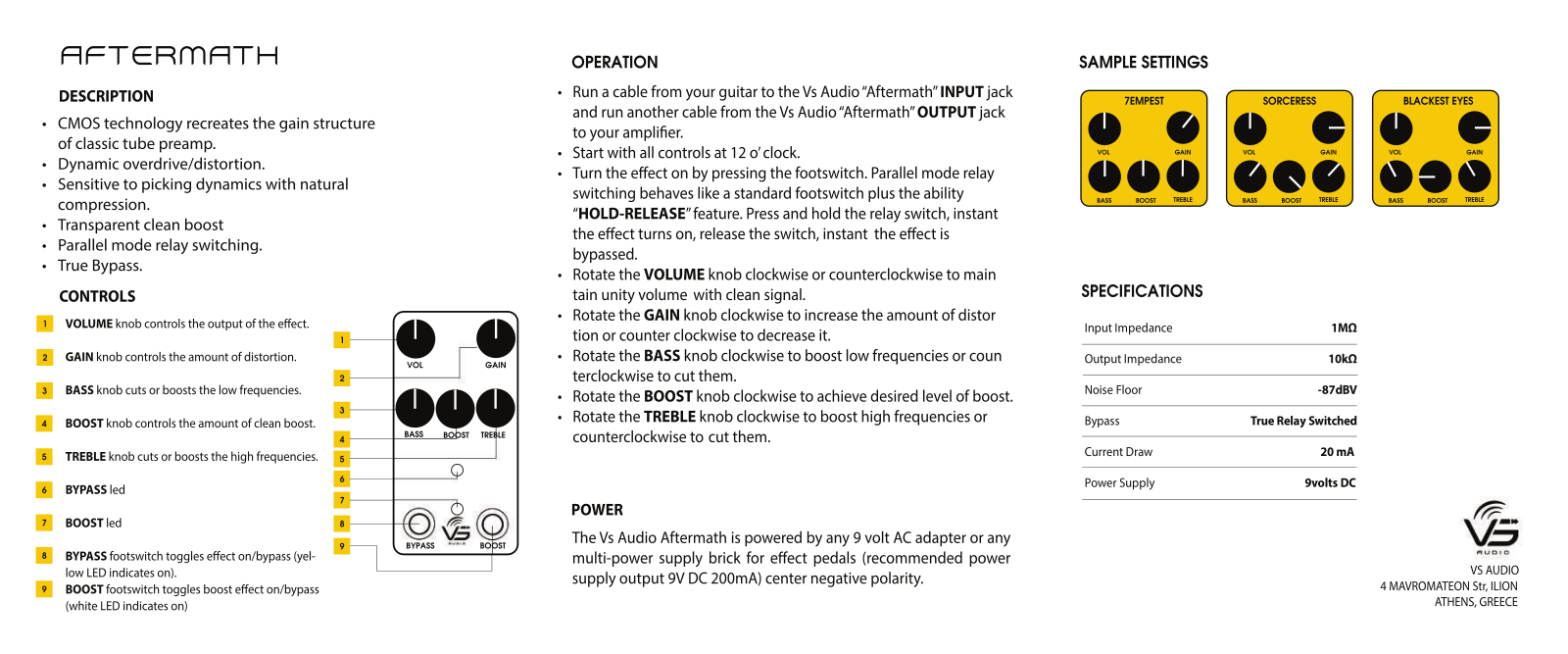

Page 2
AFTERM ATH
DESCRIPTION
• CMOS technology recreates the gain structure
of classic tube preamp.
• Dynamic overdrive/distortion.
• Sensitive to picking dynamics with natural
compression.
• Transparent clean boost
•
• Parallel mode relay switching.
• True Bypass.
CONTROLS
1
VOLUME knob controls the output of the effect.
2
GAIN knob controls the amount of distortion.
3
BASS knob cuts or boosts the low frequencies.
4
BOOST knob controls the amount of clean boost.
5
TREBLE knob cuts or boosts the high frequencies.
6
BYPASS led
7
BOOST
BOOST led
8
BYPASS footswitch toggles effect on/bypass (yel-
low LED indicates on).
9
BOOST footswitch toggles boost effect on/bypass
(white LED indicates on)
1
2
3
4
5
6
7
8
9
GAINVOL
BASS
BYPASS BOOST
BOOST
TREBLE
OPERATION
• Run a cable from your guitar to the Vs Audio “Aftermath” INPUT jack
and run another cable from the Vs Audio “Aftermath” OUTPUT jack
to your amplier.
• Start with all controls at 12 o’ clock.
• Turn the effect on by pressing the footswitch. Parallel mode relay
switching behaves like a standard footswitch plus the ability
“HOLD-RELEASE” feature. Press and hold the relay switch, instant
the effect turns on, release the switch, instant the effect is
bypassed.
• Rotate the VOLUME knob clockwise or counterclockwise to main
tain unity volume with clean signal.
• Rotate the GAIN knob clockwise to increase the amount of distor
tion or counter clockwise to decrease it.
•
• Rotate the BASS knob clockwise to boost low frequencies or coun
terclockwise to cut them.
• Rotate the BOOST knob clockwise to achieve desired level of boost.
• Rotate the TREBLE knob clockwise to boost high frequencies or
counterclockwise to cut them.
POWER
The Vs Audio Aftermath is powered by any 9 volt AC adapter or any
multi-power supply brick for effect pedals (recommended power
supply output 9V DC 200mA) center negative polarity.
SAMPLE SETTINGS
7EMPEST
BOOSTBASS
GAINVOL
TREBLE
SORCERESS
BOOSTBASS
GAINVOL
TREBLE
SPECIFICATIONS
Input Impedance 1MΩ
Output Impedance 10kΩ
Noise Floor -87dBV
Bypass True Relay Switched
Current Draw 20 mA
Power Supply 9volts DC
BLACKEST EYES
GAINVOL
TREBLE
BOOSTBASS
VS AUDIO
4 MAVROMATEON Str, ILION
ATHENS, GREECE
