VQ Radio Control Model KA-7, VQA058G Instruction Manual

Radio control model • R/CFlugmodell
KA-7
GLIDER
VQA058G
ARF BY
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
Instruction manual / Montageanleitung
TECHNISCHE DATEN
Spannweite 2540mm Lange 1300mm Fernsteuerung 4 Kanal / 5 Servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough. Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt, die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
SPECIFICATIONS
Wingspan 2540mm Length 1300mm Radio 4 Channel / 5 Servos
REQUIRED FOR OPERATION (Purchase separately) BENOTIGTE KOMPONENTEN (Nicht im Lieferumfang enthalten)
Kunststoff-Spinner (im Antriebsset KA7)
Extension cord
Servoverlangerungskabel
Minimum 4 channel radio for airplane
Minimum 4 Kanal Fernsteuerung
Klappluftschraube (im Antriebsset KA7)
Mini servo S1513 Best.Nr. C1085
Brushless Motor + Regler (im Antriebsset KA7)
Antriebsset KA7 # C4479
Battery / Flugakku # C2141 LEMONRC 3700-11.1V
EPOXY A
SILICON
Cyanoacrylate Glue Sekundenkleber
CA
Silicon Glue
Silikonkleber
Epoxy Glue (30 minutes type) Epoxy-Klebstoff (30min)
Tool Required/ Erfoderliches Werkzeug
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
The pre-covered film on ARF kit may wrinkle due to variations of temperature. Store model in a cool and dry place for awile. Then, staring with low heat, you may carefully use a hair dryer to smooth out wrinkels.
Die Bespannung des Modells kann durch Temeratureinflusse erschlaffen oder Falten werfen z.b bei zu starker Sonnenenstrahlung oder Hitze. Stellen Sie das Modell zunachst an einen kuhlen Platz fur eine bestimmte Zeit. Danach konnen Sie versuchen die restlichen Falten vorstichtig mit einem Haartrockner zu behandeln.
EPOXY B
!
Drill holes using the stated
1.5mm
size of drill (in this case 1.5 mm Ø)
A
B
Use epoxy glue
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
Take particular care here
!
Apply cyano glue
CA
10mm = 13/32” 12mm = 15/32” 15mm = 19/32” 20mm = 51/64”
Hatched-in areas: remove covering film carefully
Assemble left and right
L/R
sides the same way.
25mm = 1” 30mm = 1-3/16” 45mm = 1-51/64”
Check during assembly that these
parts move freely, without binding
Not included. These parts must be
X
purchased separately
1- Horizontal Tail / Hohenruder
Elevator control horn
A
B
5 min. Epoxy
CA
WARNING!: Securely glue together, if coming of during flights, you lose control of your plane which lead to accidents.
Fuhren Sie die Verkiebungen mit gro ter Sorgfalt aus.
Cut away only the covering on the bottom of the horizontal stabilizer
Bespannfolie an den Klebestellen vorsichtig entfernen.
A
B
5 min. Epoxy
BOTTOM - VIEW / Unteransicht
Elev. / Rudd.
Plastic control horn
2- Vertical Tail / Seitenruder
WARNING!: Securely glue together, if coming of during flights, you lose control of your plane which lead to accidents.
Fuhren Sie die Verkiebungen mit gro ter Sorgfalt aus.
3- Vertical Tail / Seitenruder
FUSELAGE - TOP-VIEW
Aufsicht
5 min. Epoxy
FUSELAGE - TOP-VIEW
Aufsicht
A
B
Cut away only the covering
WARNING!: Securely glue together, if coming of during flights, you lose control of your plane which lead to accidents.
Fuhren Sie die Verkiebungen mit gro ter Sorgfalt aus.
Cut away only the covering
Cut away only the covering
A
B
5 min. Epoxy

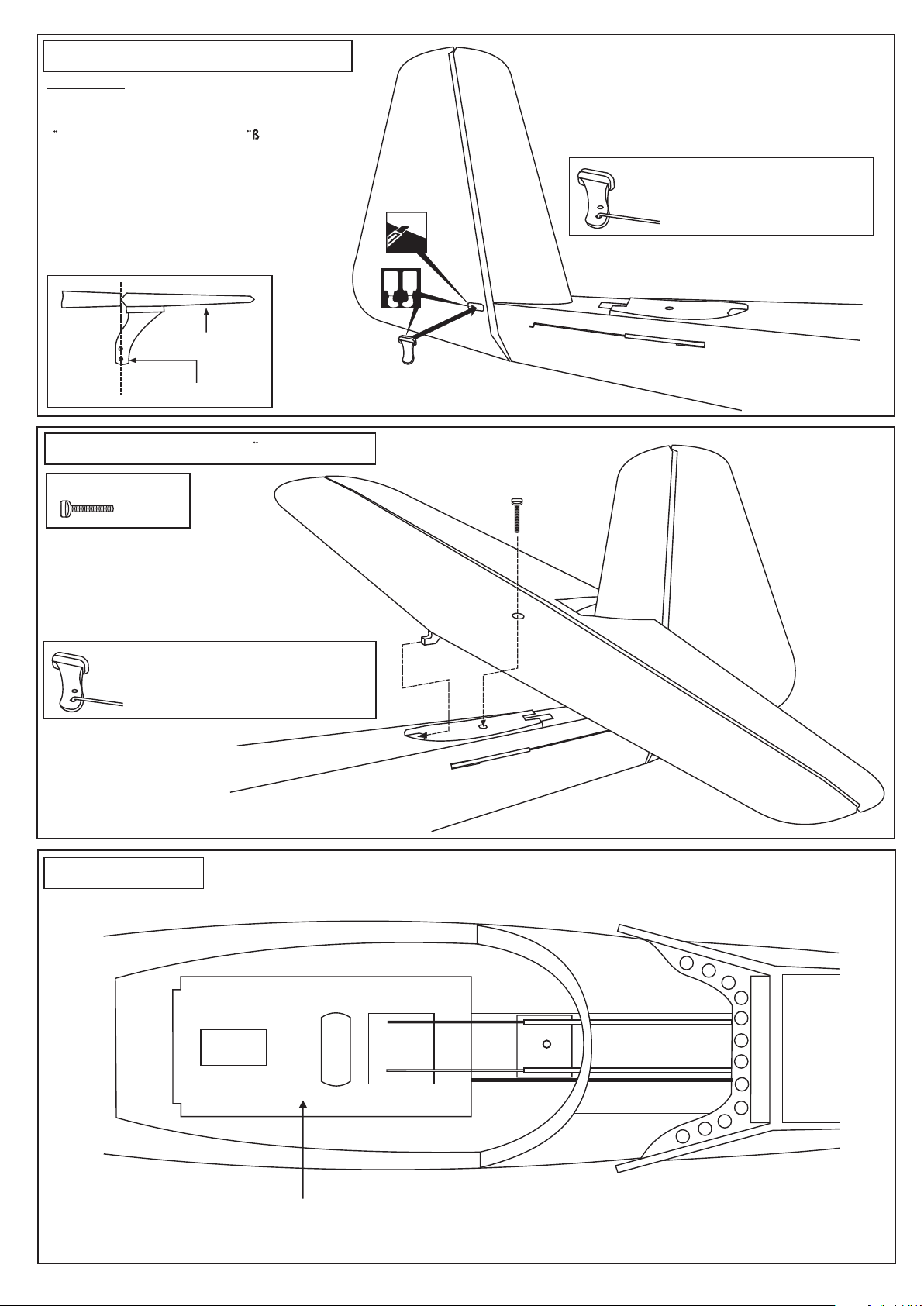

4- Vertical Tail / Seitenruder
WARNING!: Securely glue together, if coming of during flights, you lose control of your plane which lead to accidents.
Fuhren Sie die Verkiebungen mit gro ter Sorgfalt aus.
Cut away only the covering
A
B
FUSELAGE - TOP-VIEW
Aufsicht
Slide the rudder pushrod into the hole on the rudder control horn before glue the rudder control horn in place.
Elev. / Rudd.
Plastic control horn
5 min. Epoxy
5- Horizontal Tail / Hohenruder
30x4mm nylon bolt
............1
Slide the elevator pushrod into the hole on the elevator control horn before install the horizontal stabilizer onto the fuselage .
FUSELAGE - TOP-VIEW
Aufsicht
4x30mm nylon bolt
6- Servo tray
FUSELAGE - TOP-VIEW
3mm plywood servo tray
Aufsicht
S-R
The hole on the FBD2 for the hook installation.
FBD
Secure the servo tray in place using 5min. Epoxy or CA glue
Securely glue together. If coming off during flight, you lose control of your air plane.
FBD2

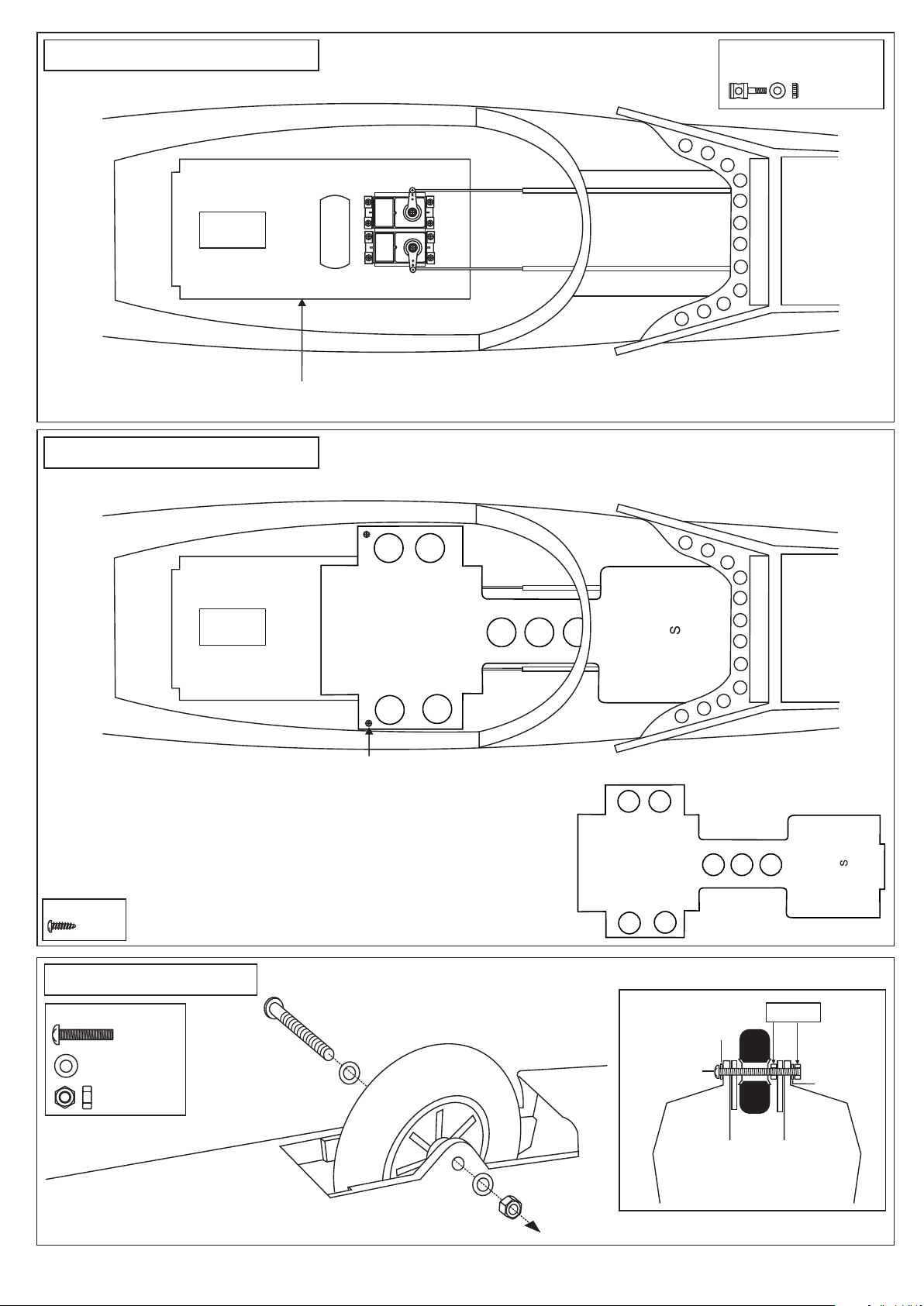

7- Linkage / Anlenkungen
FUSELAGE - TOP-VIEW
Aufsicht
Linkage Stopper set
Gestängeanschluss
..............2
Seitenruderservo
Höhenruderservo
3mm plywood servo tray
8- Pilot stand installation
S-R
S-R
Rudder servo
Elevator servo
FUSELAGE - TOP-VIEW
Aufsicht
Secure the pilot stand in place using two 2x10mm screws.
2.x10mm
........2
9- Wheel / Spornrad
4x40mm screw
...........1
....................2
................2
2x12mm screw
3mm plywood pilot stand
4mm nut
4mm washer
4x40mm screw
4mm washer
10- Aileron servo / Hohenruder servo
Linkage Stopper set
Gestängeanschluss
..............2
Aileron servo hatch (ply 3mm)
Included with the radio set
11- Wing Joiner / Flachenverbinder
L/R
A
B
5 min. Epoxy
20x6mm woden dowel.
CA
300mmx11mm aluminum tube.

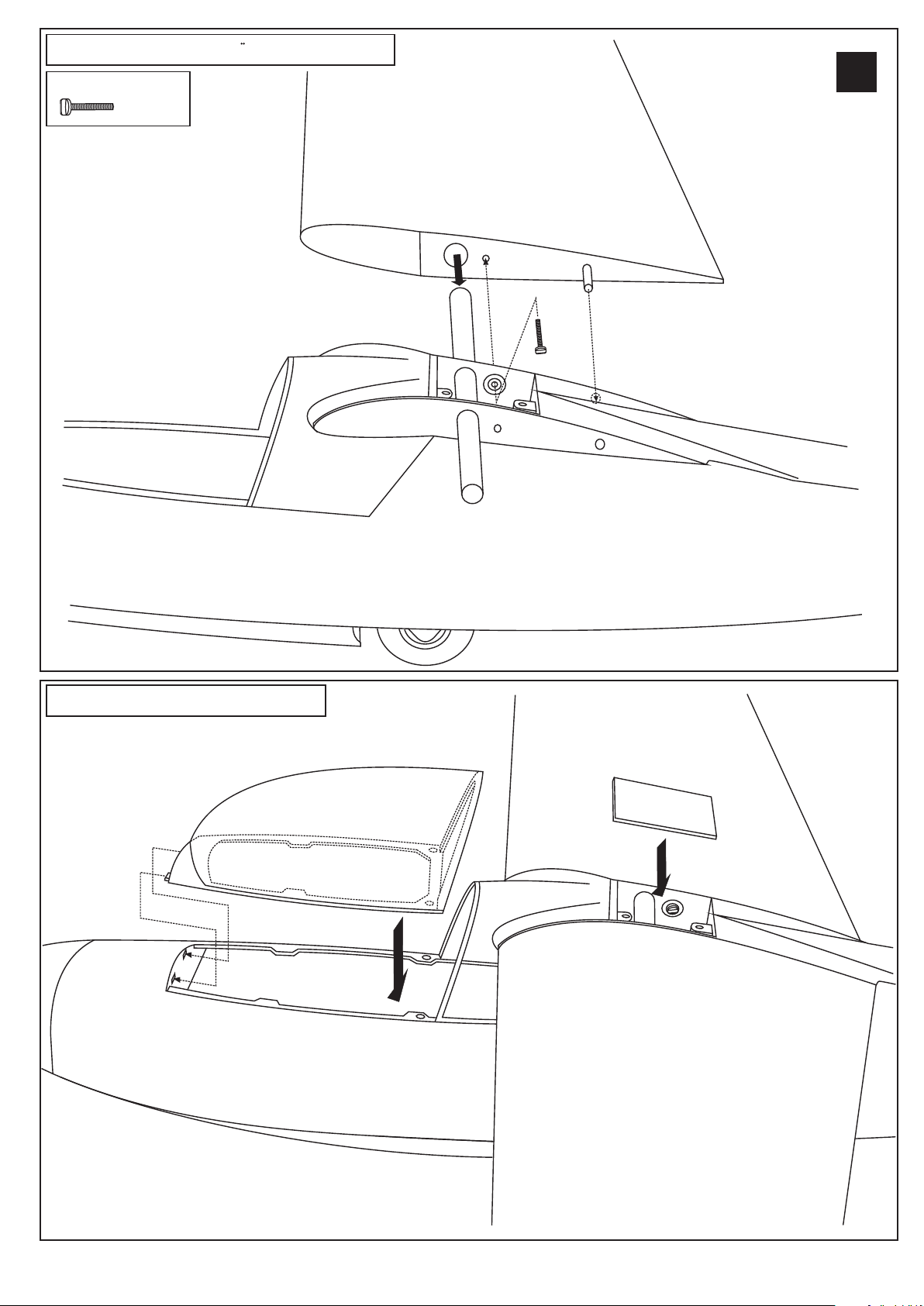

12- Wing Joiner / Flachenverbinder
20x4mm nylon bolt
............2
L/R
13- Canopy / Kabinenhaube
Magnetic canopy
Magnetic hatch.
14- Balance / Schwerpunkt
Note: If necessary, move the battery pack or add weight to either the tail or nose until the correct balance is achieved.
40 ~ 42mm
Wing center section
15- Control Surface / Ruderausschlage
DO NOT try to fly an out-of-balance model !
15/64”(6mm) 15/64”(6mm)
AILERON / QUERRUDER
RUDDER / SEITENRUDER
All details are subject to change without notice !
1-23/64”(30 mm)
1-23/64”(30 mm)
Technische Anderungen und Irrtumer vorbehalten !
13/32”(10mm)
13/32”(10mm)
ELEVATOR / HOHENRUDER
