VQ Models YAKOVLEV YAK-52 Instruction Manual

SPECIFICATIONS

Wingspan 60.6 in. Length 43.9 in. Electric Motor 870 Watt (PULSAR 60) Glow Engine .46 2-T / .70 4-T Radio 5 Channel / 5 Servos

TECHNISCHE DATEN

Spannweiter 1540mm Lange 1117mm Elektroantrieb 870 Watt (PULSAR 60) Verbrennerantrieb 7.5cc 2-T / 11cc 4-T Fernsteuerung 5 Kanal / 5 Servos

WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough. Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt, die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

45 Class

70 Class

2-cycle engine

4-cycle engine

INSTRUCTION MANUAL / Montageanleitung

All balsa, plywood construction and almost ready to fly

Or Electric equivalent

YAKOVLEV YAK-52

1.5mm

L/R

Assemble left and right sides the same way.

Drill holes using the stated

size of drill (in this case 1.5 mm Ø)

Use epoxy glue

Take particular care here

Hatched-in areas: remove covering film carefully

Not included. These parts must be

purchased separately

Check during assembly that these

parts move freely, without binding

Apply cyano glue

Low setting

SILICON

EPOXY A

EPOXY B

GLUE

Epoxy Glue ( 5 minute type)

Silicon sealer

Cyanoacrylate Glue

Minimum 5 channel radio for airplane with 5 servos

.60 ~.70 - 4 cycle

10.5x6 for .40 - 2 cycle engine 11x6 for .46 - 2 cycle engine 12x6 for .60 - 4 cycle engine 12x7 for .70 - 4 cycle engine 13x6 for Quantum 4120/05

Silicone tube

Extension for aileron servo, retract servo.

.46 ~ .50 - 2 cycle

Linkage Stopper x2 (for retract servo)

Epoxy Glue (30 minute type)

TOLLS REQUIRED

Hobby knife

Needle nose Pliers

Phillip screw driver

Awl

Scissors

Wire Cutters

(Purchase separately)

Hex Wrench

.........................................................

Sander

Masking tape - Straight Edged Ruler - Pen or pencil - Rubbing alcohol - Drill and Assorted Drill Bits

Read through the manual before you begin, so you will have an overall idea of what to do.

Symbols used throughout this instruction manual, comprise:

(Purchase separately)

Retract landing gear

VQAR04

Retract servo x1

.Motor control x1 .Aileron x2 .Elevator x1 .Rudder x1

Quantum 4120/05 Brushless Motor or equivalent.

Phoenix-60 Brushless Motor Control

Li-Po Battery, 14.8V, 4000mAH, 80A

CONVERSION TABLE

1.0mm = 3/64”

1.5mm = 1/16”

2.0mm = 5/64”

2.5mm = 3/32”

3.0mm = 1/8”

4.0mm = 5/32”

5.0mm = 13/64”

6.0mm = 15/64”

10mm = 13/32” 12mm = 15/32” 15mm = 19/32” 20mm = 51/64”

25mm = 1” 30mm = 1-3/16” 45mm = 1-51/64”

If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the model in a cool place will let the wrinkles disappear. Otherwise, remove wrinkles in covering film with a hair dryer, starting with low temperature. You can fix the corners by using a hot iron.

Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !

REQUIRED FOR OPERATION (Purchase separately)

BENOTIGTE KOMPONENTEN FUR DEN ABFLUG (Nicht enthalten)

L/R

2mm

3x12mm screw

Trial fit the push rod into the wing. Join the pushrod to the retract gear arm and trial fit the retract into the wing.

After checking that the retract works smoothly, fix the retract on the wing with 3x12mm screws

1- Using a pencil, mark the center of the brace. 2- Trial fit the wing joiner into one of the wing panels. It should insert smoothly up to the center line marked above. 3- Slide the other wing half onto the dihedral brace until the wing panel meet. If the fit is over tight, it may be necessary to lightly sand the dihedral brace. 4- Check for the correct dihedral angle. 5- Mix approximately 30 minute epoxy and apply a generous amount of epoxy into the wing joiner cavity of one wing half. 6- Coat one half of the dihedral brace with epoxy up to the center line. Install the epoxy-coated side of the dihedral brace into the wing joiner cavity up to the center line, marking sure that the “V” of the dihedral brace is positioned correctly 7- Do the same way with the other wing half. 8- Carefully slide the wing halves together, ensuring that they are accurately aligned. Firmly press the two halves together, allowing the excess epoxy to run out. Clear off the excess epoxy.

Center line

Aileron servo

Included with the radio set

Plastic control horn

....................2

2x20mm screw

...............4

2mm

Aileron extension cord

Secure one end of the aileron extension cord with adhesive tape

Querruder servo

Nehmen Sie Epoxykleber, um die Tragflachen fest miteinander zu Verbinden und streifen Sie den herausquellenden Kleber nach dem Verbinden mit einem fusselfreien Tuch SOFORT ab!

1- Retract landing gear / Fahwerk

2- Aileron servo / Querruder servo

3- Joining the wing / Flache

Use epoxy glue to bury the opening

Retract pushrod

3x12mm schraube

Servoverlangerungskabel

Ansicht von unten

Bottom view

Ansicht von unten

Bottom view /

3x12mm screw

................8

Steel clevis

.........2

40mm

15mm

Fahrwerkanlenkgestange

Wing joiner

Tragflachenverbinde

WARNING: Please do not clean off the excess epoxy on the wing with strong solvent or pure alcohol, only use kerosene to keep the colour of your model not fade.

5- Retract servo / Einziehfahrwerk servo

CENTER WING SECTION

BOTTOM

Retract servo

/ Retract servo

Link the servo and retract gear arm with push rod. Be sure to adjust the stroke so that the landing gear locks in both up and down position.

2” (~50mm)

1”(25mm)

19/64” (7.5mm)

8-5/16”(~210mm)

RETRACT PUSHROD (SIDE VIEW)

With the retract and retract servo in the retracted position, mark the position where each of the pushrod will attach to the servo arm, a small piece of masking tape works well for this. Cut off the excess length each rod.

(TOP VIEW)

Cut away only the covering

4- Servo mount / Servohalterung

FWU2

FWU1

CENTER WING SECTION

BOTTOM

Retract servo mount (plywood A,B,C)

Install the retract servo onto the retract servo mount and secure it in place with four screw (included with radio set).

Einbau des Servos fur das Einziehfahrwerk

Instruction how to build in the retracting landing gear (This Gearis OPTIONAL )

Einbauhilfe bei Anbringen eines Einziehfahrwerks (Optional bestellbar; nicht im Baukasten enthalten!)

Einbau des Servos fur das Einziehfahrwerk

6- Linkages / Ruderanlenkung

Fahrwerkanlenkgestänge

EINGEFAHREN

AUSGEFAHREN

Einziehfahrwerk servohalterung

Schneiden Sie etwas Folie weg

FWU2

FWU1

Plastic strap

Main landing gear

Gear mount (hard wood)

Ply gear mount plate

Square plastic

3x10mm

Ply gear mount plate

Square plastic

Main gear (left)

Main gear (right)

Gear mount (hard wood)

Plastic strap

3x10mm screw

ABS gear cover

1.5mm

ABS gear cover

2x6mm screw

Gear mount (hard wood)

ABS gear strap

ABS wheel well cover

7- Fixed gear / Landegestange

8- Fixed gear / Landegestange

Ansicht von unten

Bottom view /

..........4

..........8

Befestigungsklötze für Landegestänge

Landegestänge

Kunststoffstreifen

3x10mm schraube/screw

2x6mm schraube/screw

4mm stellring/collar

..........2

Landegestänge

Kunststoffstreifen

..............16

4mm stellring/collar

2mm

Bottom view /Ansicht von unten

ELECTRIC RETRACT LANDING GEAR

9- Electric retract landing gear / Einziehfahrwerk

RECEIVER

ELECTRIC RETRACT LANDING GEAR

OFF

GEAR

EXTENDED POSITION

RETRACTED POSITION

Cut away only the covering both side*

B = B’ C = C’

B’

C C’

Apply the epoxy both side

1-Trial fit the vertical stabilizer in place . Check the alignment of the vertical stabilizer. When you are satisfied with the alignment, use a pencil to trace around the right and left of the stabilizer where it meets the fuselage. 2-Remove the vertical stabilizer from the fuselage. Using the sharp hobby knife, carefully cut away the covering inside the lines which were marked above. 3-Spread epoxy (30 minute) onto the right and left and bottom of the vertical stabilizer along the area where the covering was removed and to the fuselage where the vertical stabilizer mounts.

4-Install the vertical stabilizer into the fuselage and adust the alignment as described in steep. 1

Control horn

................1

2x12mm screw

..........2

2.mm

5/64”

11- Vertical stabilizer / Hohenleitwer

3/8” (10mm)

Elev.

Stab.

* WARNING: When removing any covering from the airframe, please ensure that you secure the cut edge with CA or similar cement. This will ensure the covering remain tight.

Securely glue together. If coming off during flight, you lose control of your air plane!

10- Horizontal stabilizer / Hohenruder

Cut away only the covering both side

A’

90O90

Cut away only the covering both side *

Apply the epoxy both side

1-Trial fit the horizontal stabilizer in place . Check the alignment of the horizontal stabilizer. When you are satisfied with the alignment, use a pencil to trace around the top and bottom of the stabilizer where it meets the fuselage. 2-Remove the horizontal stabilizer from the fuselage. Using the sharp hobby knife, carefully cut away the covering inside the lines which were marked above. 3-Spread epoxy (30 minute) onto the top and bottom of the horizontal stabilizer along the area where the covering was removed and to the fuselage where the horizontal stabilizer mounts.

4-Install the horizontal stabilizer into the fuselage and adust the alignment as described in steep 1 5-Wipe off any excess epoxy using a paper towel and kerosene, do not use strong solvent or pure alcohol to keep the colour of your model not fade. Allow the epoxy to cure before proceeding to next step.

B’

A = A’ B = B’

Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Probleme mit der Flugeigenschaft auftreten!

* WARNING: When removing any covering from the airframe, please ensure that you secure the cut edge with CA or similar cement. This will ensure the covering remain tight.

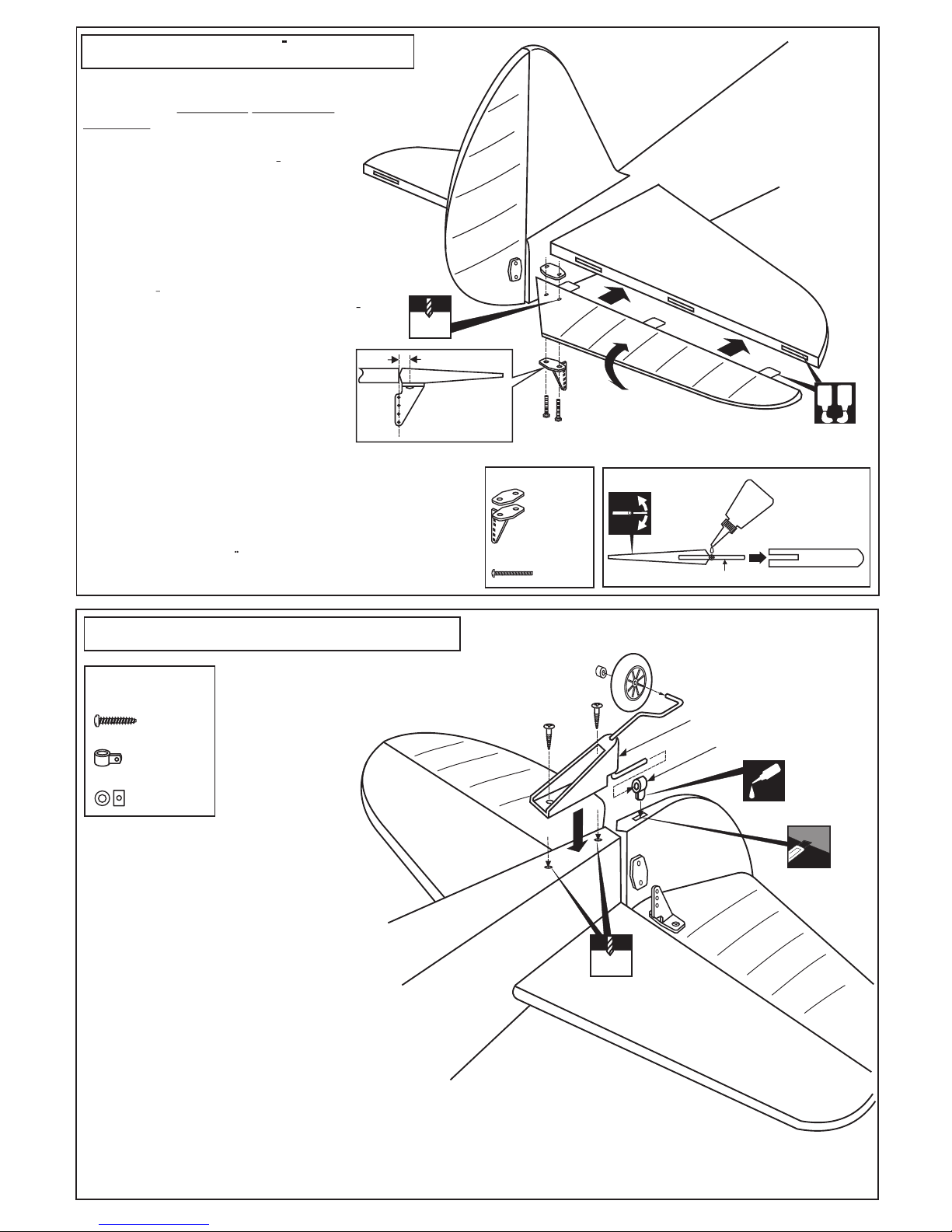

12- Elevator / Hohenruder

Apply the epoxy both side

Apply a thin layer of machine oil or petroleum jelly to only the pivot point of the hinges on the elevator, then push the elevator and its hinges into the hinge slots in the trailing edge of the horizontal stabilizer. When satisfied with the and alignment, hinge the elevator to the horizontal stabilizer using 5 minute epoxy. Make sure to apply a thin layer of epoxy to the top and bottom of both hinges and to inside the hinge slots. Repeat the previous procedures to hinge the second elevator to the other side of the horizontal stabilizer.

Hinge

Petroleum jelly

Control horn

................2

2x12mm screw

..........4

2.mm

5/64”

STABILIZER

3/8” (10mm)

Elev.

Stab.

Bottom view /Ansicht von unten

Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Probleme mit der Flugeigenschaft auftreten!

Securely glue together. If coming off during flight, you lose control of your air plane!

3x12mm screw

1.5mm

1/16

Tail gear horn

(3x12mm) screw

Tail gear horn

5/64”(2mm) collar

...........2

...............1

1-Place the tail gear mount on the bottom of the fuselage as show, mark the mounting hole positions with a pencil. 2-Remove the tail gear mount from the fuselage, Drill the two mounting holes as marked.

3-Cut a 5/64”(2mm) wide slot which is 5/16” (8mm) length and 5/16”(8mm) depth on the bottom of the rudder as shown.

4-Trial fit the tail gear horn into the slot. Do not glue at this time. 5-Slide the tail gear into the tail gear horn. Secure the tail gear mount in place using the two 3x12mm screw. 6-Secure the tail gear horn in place using CA glue as shown.

1/8x15/32”

5/64”(2mm) collar

Tail gear mount

13- Tail gear / Heckspornrad

To muffler

Filler tube

Rubber stopper

To engine

Aluminum stopper

Aluminum cap

14- Fuel tank / Kraftstofftank

Push the fuel tank forward until there are no gaps between the tank and firewall.

After confirming the direction . Insert and tighten the screw.

3x35 mm screw

5/32”(4mm)

Magnetic canopy

Magnetic piece.

INCASE OF BRUSHLESS MOTOR

INCASE OF GAS ENGINE

15- Electric Motor / Elektromotor

FRONT-VIEW

- Using a plywood motor mounting plate as a template, mark the fire wall where the four holes are to be drilled (1).

5mm

13/64”

! Align the mark on the plywood motor mount with the mark on the fuselage.

! Align the mark on the plywood motor mount with the center lines on aluminum motor mount.

- Remove the plywood motor mounting plate and drill a 13/64”(5mm) hole through the fire-wall at each of the four marks marked (2).

- Using a aluminum motor mounting plate as a template, mark the plywood motor mounting plate where the four holes are to be drilled (3).

- Remove the aluminum motor mounting plate and drill a 1/8”(3mm) hole through the plywood at each of the four marks marked (4).

3mm

1/8”

Plywood motor mounting plate (2pcs)

Aluminum motor mounting plate

Firewall

118 - 122mm

(4.7”)

B’

B=B’

A=A’

A’

TOP-VIEW

SIDE-VIEW

! Engine thrust on balk head is already adjust at factory

-Attach the aluminum motor mounting plate on to the motor and secure it in place with four screws ( included with motor set) (7).

-Push the four 5x70mm bolts through the fire-wall as shown (5).

- Reposition the plywood motor mounting plate (2pcs) and secure it in place with eight 5mm nuts and washers (6). Note: B=B’(Side-view) and A=A’(Top-view)

-Attach the motor on to the plywood motor mounting plate and secure it in place with four 3x15mm (1/8x19/32”) screws(8).

5x70mm.......4

5mm nut.......12

5mm washer...16

3mm screw/nut...4

7 - 8

3.mm

! Engine thrust on balk head is already adjust at factory

......4

............4

4x25mm screw

Blind-nut

4mm washer

.................4

! Engine thrust on balk head is already adjust at factory

! Align the mark on both mounts with the center mark on the fire wall

! Align the engine center with fire wall marked line

5mm

13/64”

18- Engine (four stroke) / 4T Motor

1/8

3mm

1/8

Determine the angle for the engine mounts so the muffler will not contact the fuselage

17- Engine (two stroke) / 2T Motor

6.5

With hang silencer

With side silencer

B=B’

FRONT-VIEW

B’

3x25mm screw

Nut

.............4

...4

16- Engine mount / Motortrager

5” ~ 5-1/32”

(127~128mm)

118 - 122mm

(4.7”)

118 - 122mm

(4.7”)

19- Cowling installation Motorhaube

6.5

116 - 118mm

Using a pencil or felt tipped pen trace around the cowl where it meet the fuselage.

Insert the cowl on to the fuselage so the distance from the fire-wall to the front of the cowl is 116 - 118mm.

120mm

Position the engine on to the engine mounts so the distance from the prop hub to the fire wall is 120mm.

Again, insert the cowl on to the fuselage so the rear edge of the cowl meet the pencil line and secure it in place with the adhesive tape. Drill four 2mm holes on the cowl as shown.

Pencil line

Adhesive tape

Pencil line

Ruler

2mm

Elevator pushrod

Rudder pushrod

Rudder servo

Elevator servo

Throttle servo

22- Linkages / Ruderanlenkung

NOTE: Place of the servos may be change depend of engine (Four-stoke or two-stroke engine)

21- Servo installation

Receiver area

Bottom view /Ansicht von unten

Connector

............1

............3

Gestangeanschluss

Rudergestange

Drosselservo

Seitenruderservo

Hohenruderservo

3mm set Screw

2 mm

Elevator pushrod

Rudergestange

Tail wheel pushrod

Bottom view /Ansicht von unten

20- Air scoop / Olkuhlerattrappe

ABS air-scoop

Note: Only one pilot in cockpit The second pilot must purchase separately. (VQAP09)

4-1/4”(107 mm)

Wing center section

DO NOT try to fly an out-of-balance model !

24- Balance / Schwerpunkt

Note: Adjust the location of the battery pack to achieve this C.G location.

(A + or - 5mm is fine)

1-3/16”(30) mm

1/4” (6mm)

25/64”(10mm)

1/4” (6mm)

25/64”(10mm)

1-3/16”(30) mm

23- Decor / Aufkleber

IMPORTANT: Flying your model at these throws will provide you with the greatest chance for successful first flights. If, after you have become accustomed to the way the Yak flies, you would like to change the throws to suit your taste that is fine. However, too much control throw could make the model difficult to control, so remember, “more is not always better”.

25- Control surface / Ruderausschlage

AILERON / QUERRUDER

ELEVATOR / HOHENRUDER

RUDDER / SEITENRUDER

Sticker

CHAMPION

A E R O S P A C E

N621TW

LYCOMING

TEXTRON

FUELS

Sticker

Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once. Peel off one corner of the backing and cut off with scissors. Arrange sticker on model and when satisfied adhere the corner without backing. Carefully peel back the rest of the backing while at the same time adhering the rest of the sticker. Try not to make air bubbles, if there are some, carefully puncture sticker (center of bubble) but not model surface with the tip of the knife or sharp pin and squeeze out the air. At curves stretch sticker and apply a little heat so that no ceases occur. Cut off the excess that is produced.

All details are subject to change without notice !

Technische Anderungen und Irrtumer vorbehalten !

WARNING:

Please do not clean your model with pure alcohol or strong solvent, only use liquid soap with water or use glass cleaner to clean on surface of your model to keep the colour not fade.

VQ Models YAKOVLEV YAK-52 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
