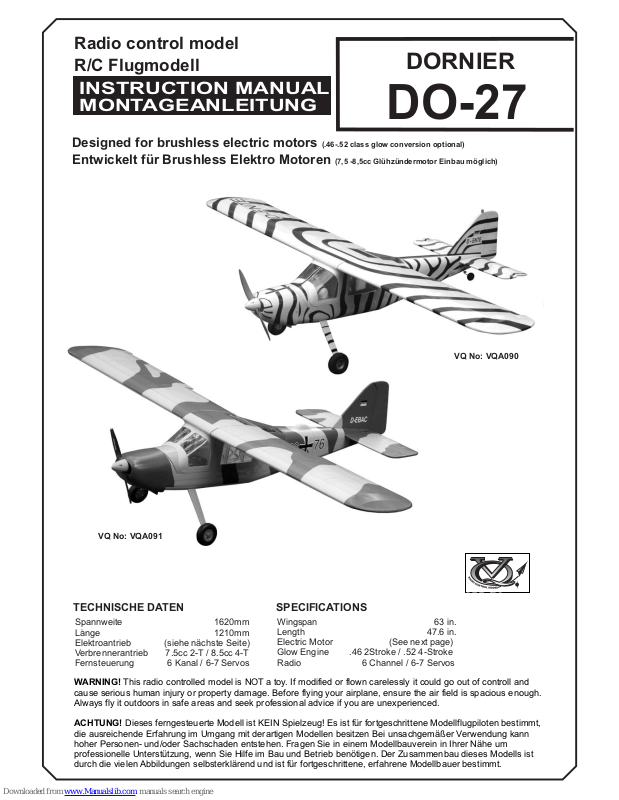

VQ Models VQA090, VQA091 Instruction Manual
DORNIER
Radio control model
R/C Flugmodell
MONTAGEANLEITUNG
INSTRUCTION MANUAL
SPECIFICATIONS
Wingspan 63 in.
Length 47.6 in.
Electric Motor (See next page)
Glow Engine .46 2Stroke / .52 4-Stroke
Radio 6 Channel / 6-7 Servos
WARNING!
ACHTUNG!
This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
TECHNISCHE DATEN
Spannweite 1620mm
Lange 1210mm
Elektroantrieb (siehe nächste Seite)
Verbrennerantrieb 7.5cc 2-T / 8.5cc 4-T
Fernsteuerung 6 Kanal / 6-7 Servos
PICHLER
ARF BY
DO-27
Designed for brushless electric motors
Entwickelt für Brushless Elektro Motoren
(.46-.52 class glow conversion optional)
(7,5 -8,5cc Glühzündermotor Einbau möglich)
VQ No: VQA090
VQ No: VQA091
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
1.5mm
A
B
!
CA
L/R
Assemble left and right
sides the same way.
X
Drill holes using the stated
size of drill
(in this case 1.5 mm Ø)
Use epoxy glue
Take particular care here
Hatched-in areas:
remove covering
film carefully
Not included.
These parts must be
purchased separately
Check during assembly that these
parts move freely, without binding
Apply cyano glue
SILICON
EPOXY A
EPOXY B
CA
Epoxy Glue (30 minutes type)
Silicon Glue
Cyanoacrylate Glue
Sekundenkleber
Epoxy-Klebstoff (30min)
6 - channel radio
RECOMMENDED ACCESSORIES (Purchase separately)
6 - Kanal
Fernsteuerung
Egänzungskit Verbrenner
(Tank + Motorträger)
Best.Nr. C4165
Empfohlenes Zubehör (Nicht im Lieferumfang enthalten)
Antrieb Standard:
Antrieb Tuning (Kraftvoller Kunstflug):
BOOST 40 Brushless Combo Set, Best.Nr. C2983
LiPo Battery RED POWER 3200-3S, Best.Nr. C3164
Luftschraube 12*6, Best.Nr. C1937
BOOST 60 Brushless Combo Set, Best.Nr. C3174
LiPO Akku RED POWER 4250-5S, Best.Nr. C4547
Luftschraube 13*8, Best.Nr. C2846
Silikonkleber
Tool Required/ Empfohlenes Werkzeug
The pre-covered film on ARF kit may wrinkle due to variations of temperature.
Store model in a cool and dry place for awile.
Then, staring with low heat, you may carefully use a hair dryer to smooth out wrinkels.
Die Bespannung des Modells kann durch Temeratureinflusse erschlaffen oder Falten
werfen z.b bei zu starker Sonnenenstrahlung oder Hitze.
Stellen Sie das Modell zunachst an einen kuhlen Platz fur eine bestimmte Zeit. Danach
konnen Sie versuchen die restlichen Falten vorstichtig mit einem Haartrockner zu behandeln.
!
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
10mm = 13/32”
12mm = 15/32”
15mm = 19/32”
20mm = 51/64”
25mm = 1”
30mm = 1-3/16”
45mm = 1-51/64”
1 x Servo S4020
(für Seitenruder)
Best.Nr. C1687
3 x Servo S4020
(für Höhen- und Querruder)
Best.Nr. C4995
2 X Servo DS3012
(Fur Landeklappen)
# C4995
Full the elevator out of the
horizontal stabilizer.
Cut away only
the film both side
1A
1B
1
When you are satisfied with the alignment,
use a pencil to trace around the top and
bottom of the stabilizer where it meets the
fuselage.
Cut away only
the covering
both side
B
B’
B=B’
Aluminum wing joiner
Remove the horizontal stabilizer from the
fuselage. Using the sharp hobby knife,
carefully cut away the covering inside the
lines which were marked above.
* WARNING: When removing any covering
from the airframe, please ensure that you
secure the cut edge with CA or similar
cement. This will ensure the covering
remain tight.
Stabilizer
A
A’
A=A’
Stabilizer
FUSELAGE
Again, Install the horizontal stabilizer into the
fuselage and adust the alignment as described
in steep 1C. Secure the horizontal stabilizer in
place using CA glue.
1C
1D
1E
Note: The slots for the control horn
installation are pre- cut at factory.
Control horn
...........2
CA
CA
Thin CA glue
Thin CA glue
Push the elevator and its hinges into the hinge slots in the trailing edge of the
horizontal stabilizer.
There should be a minimal hinge gap.
When satisfied with the and alignment, hinge the elevator to the horizontal stabilizer using CA glue.
Hinge
STABILIZER
CA
Apply thin CA to both
side of the hinge
Full the rudder out of the
vertical stabilizer.
1F
1G
1H
2
2A
2B
WARNING! Securely glue together.
If coming off during flights, you lose control
of your airplane which leads to accidents !
Vergewissern Sie sich, sauber geklebt zu haben.
Andernfalls konnen Probleme mit der Flugeigenschaft
auftreten!
CA
CA
First, reposition the elevator connector in place,
secure it in place using thin CA glue.
Elevator connector
CA
CA
