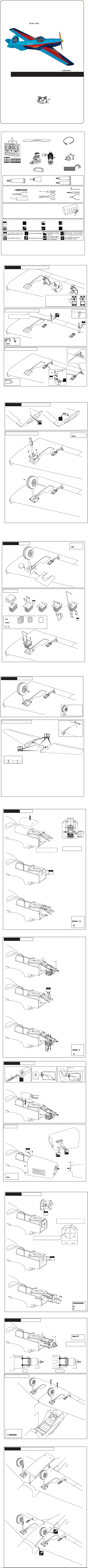

Page 1

Radio control model / Flugmodel

ZLIN

Z-526 Akrobat

VQ No: VQA153BL / VQA153R-W

ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY

Instruction manual / Montageanleitung

SPECIFICATIONS

Wingspan:......................................1610mm

Length:...........................................1190mm

Electric Motor:.....................See next pager

Glow Engine:.................... .46 2-T / .70 4-T

RTF Weight: 3.2Kg (will vary with equipment use)

Radio:....................7 Channel / 7 Servos

Function: Ailerons-Elevator-Rudder-Throttle Flaps-Optional Retractable Landing Gear.

WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough. Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt, die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

TECHNISCHE DATEN

Spannweite:...................................1610mm

Lange:............................................1190mm

Elektroantrieb.............(siehe nächste Seite)

Verbrennerantrieb:...............7.45cc - 11.5cc

Fluggewicht:.......................................3.2Kg

Fernsteuerung..........7 Kanal / 7 Servos

REQUIRED FOR OPERATION (Purchase separately)

11x6 for .46 - 2 cycle engine 12x6 for .60 - 4 cycle engine 12x7 for .70 - 4 cycle engine 13x7 - 12x8 for electric motor

Standard

Minimum 7 channel radio

Elevator : 1 standard servo Rudder: 1 standard servo Aileron: 2 mini servo

Flaps: 2 mini servo

Throttle: 1 mini servo (for glow engine only)

GLUE

Mini

(Purchase separately)

SILICON

Silicon sealer

.46 ~ .55 - 2 cycle

Silicone tube

.60 ~.70 - 4 cycle

Cyanoacrylate Glue (thin type)

Extension cord for aileron servos: 50cm(x2) Extension cord for flap servos: 50cm(x4) Extension cord for retract servos: 30cm(x2) Extension cord for Rx battery pack: 20cm(x1)

700-800W Brushless Motor

5 cell 4500mAh LiPo battery

EPOXY A

Epoxy Glue (30 minute type)

EPOXY B

TOLLS REQUIRED

Hobby knife

Needle nose Pliers

Sander

Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits

If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the model in a cool place will let the wrinkles disappear. Otherwise, remove wrinkles in covering film with a hair dryer, starting with low temperature. You can fix the corners by using a hot iron.

Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !

Symbols used throughout this instruction manual, comprise:

Drill holes using the stated

1.5mm

size of drill (in this case 1.5 mm )

Use epoxy glue

(Purchase separately)

.........................................................

Take particular care here

Apply cyano glue

Phillip screw driver

Scissors

L/R

Hatched-in areas:

remove covering film carefully

Assemble left and right sides the same way.

Hex Wrench

Awl

Wire Cutters

Check during assembly that these

parts move freely, without binding

Not included. These parts must be

purchased separately

Low seting

Read through the manual before you begin, so you will have an overall idea of what to do.

CONVERSION TABLE

1.0mm = 3/64”

1.5mm = 1/16”

2.0mm = 5/64”

2.5mm = 3/32”

ZLIN Z-526

3.0mm = 1/8”

4.0mm = 5/32”

5.0mm = 13/64”

6.0mm = 15/64”

1- Aileron and Flap servo

10mm = 13/32” 12mm = 15/32” 15mm = 19/32” 20mm = 51/64”

25mm = 1” 30mm = 1-3/16” 45mm = 1-51/64”

Adhesive tape

1-Cut away the covering of the wing bottom

where the aileron servo goes.

2-Connect the aileron and flap servo cord to the extension cords.

3-Install the aileron and flap servo on the servo mount.

Do the same way with second wing half

2- Aileron and Flap control horn

The rectangular hole on the bottom of the flap is pre-cut at factory

1-Depending on the position of the linkage, determine the location of aileron control horn.

....2

2x20mm....4

The horn holes must be perfectly aligned with the axis of articulation. 2-Mark the position of the “foot” of the horn on the aileron. Then, with the drill, make the 2

3-Install the aileron control horn as shown.

-Switch on the radio (trims centered) Then mount the ailerons servo horn In neutral position.

-The servo horn should be

Perpendicular to the servo

Thin CA

WING - BOTTOM VIEW

YES

Control horn Alignment

2x30mm

holes.

3- Aileron and Flap - Linkages

..........4

EZ link

...4

WING - BOTTOM VIEW

3mm

Aileron pushrod

2 mm

ZLIN Z-526

WING - TOP VIEW

4- Extension cord secured

Aileron extension cord exit hole

5- E-retract - Strut installation

Keep the aileron extension cord in place using sticker.

cut away only the covering

3x15mm screw

...4 / not include

ZLIN Z-526

6- Decor

2x6mm screw

...........5

7- Fixed gear

Gear mount

3x12mm screw

..........8

3x20mm screw

......16

Nylon gear strap

.......4

Square plastic

Ply gear mount flat

Gear mount x 2

3x20mm

2mm

Ply gear mount plate x 2

Square plastic x 2

Main landing gear

Nylon gear strap

2mm

ZLIN Z-526

8- Fixed gear

9- Joinning the wing halves

75mm whell ...x2

4mm collar...4

Nylon wing bolt

Rubber band (both the top and bottom)

Use epoxy glue to bury the opening

1- Using a pencil, mark the center of the brace. 2- Trial fit the wing joiner into one of the wing panels. It should insert smoothly up to the center line marked above. 3- Slide the other wing half onto the dihedral brace until the wing panel meet. If the fit is over tight, it may be necessary to lightly sand the dihedral brace. 4- Check for the correct dihedral angle. 5- Mix up some 30 minute epoxy and apply a generous amount of epoxy into the wing joiner cavity of one wing half. 6- Coat one half of the dihedral brace with epoxy up to the center line. Install the epoxy-coated side of the dihedral brace into the wing joiner cavity up to the center line, marking sure that the “V” of the dihedral brace is positioned correctly 7- Do the same way with the other wing half. 8- Carefully slide the wing halves together, ensuring that they are accurately aligned. Firmly press the two halves together, allowing the excess epoxy to run out. Clean off the excess epoxy with paper towel and kerosene.

IMPORTANT:

Please do not clean off the excess epoxy on the wing with strong solvent or pure alcohol, only use kerosene to keep the colour of your model not fade.

Center line

Top view

Binder clip

ZLIN Z-526

10- Engine

Pull the magnetic top hatch out of the fuselage.

- Using a pencil or felt tipped pen, mark the fire wall where the four holes are to be drilled

! Align the mark on both mounts with the mark on the fuselage

B=B’

B’

FRONT-VIEW

! Engine thrust on fire-wall is already adjust at factory

13/64”

5mm

- Remove the engine mount and drill a 13/64” (5mm) hole through the fire-wall at each of the four marks marked.

- Reposition the engine mounts on to the fire-wall. Secure them with four 4x25mm bolts

and blind-nuts.

ZLIN Z-526

11- Engine

132 - 133mm

5/32x1”

4x25mm bolt

...4

Blind-nut

.................4

- Reposition the engine on to the engine mounts so the distance from the prop hub to the fire wall is 132 to133mm.

- Mark the engine mounting plate where the four holes are to be drilled.

Note: Mark the mounting plate through the engine mounting flanges.

3mm

- Remove the engine and drill a 1/8”(3mm) holes through the beam at each of the four marks made above.

- Reposition the engine on the engine mount beams, aligning it with the holes. Secure the engine to the engine mount using four 1/8x51/64”(3x25mm) screws.

ZLIN Z-526

To muffler

Filler tube

Rubber stopper

3x25mm screw

To engine

After confirming the direction . Insert this assembly, clunk end first, into the fuel tank and tighten and screw the fuel tank cap on firmly.

Ensure that the fuel tank clunk does not touch the rear of the fuel tank.

12- Fuel tank

3x35 mm screw

4mm

1/8x5-1/64”

3x20mm bolt

...4

1/8”(3mm) nut

.................4

Blow

Water

Checking for leaks - block the vents and blow into the feed - if in doubt submersing the tank in a blow of water will show up any problems.

13- Cowling

Carefully install the fuel tank to ensure that they will not shift during flight (secure the fuel tank in place using zip tie).

2,5x10mm screw

...........5

ZLIN Z-526

1.5mm

Cut of shaded portion

3mm

Prop. hub

14- Electric motor

-Using a aluminum motor mounting plate as a

template, mark the plywood motor mounting plate where the four holes are to be drilled.

-Remove the aluminum motor mounting plate and

drill a 1/8”(3mm) hole through the plywood at each of the four marks marked .

Note: The aluminum motor mounting included with

3mm

! Align the mark on plywood motor mounting with the mark on the fire-wall.

electric motor set.

! Align the mark on plywood motor mounting with the mark on the fire-wall.

- Remove the plywood motor mounting and drill a

6mm holes through the beam at each of the four marks made above.

6mm

ZLIN Z-526

6x100mm..........4

6mm nut.........12

6mm washer...16

15- Electric motor

- Position the motor on to the plywood motor mounting so the distance from the prop hub to the fire wall is 132 to133mm.

- Secure the motor to the plywood motor mounting using the four 3x20mm screws.

132 - 133mm

3mm screw/nut...4

! Engine thrust on fire-wall is already adjust at factory

Firewall

B’

132-133mm

B=B’

16- Installing the wing

SIDE VIEW

C=C’

Firewall

B=B’

C’

132-133mm

TOP VIEW

6x50mm nylon bolt

ZLIN Z-526

.....2

17- Installing the bottom cover
