VQ Model Marchetti SF-260 User guide

Download

Page 1

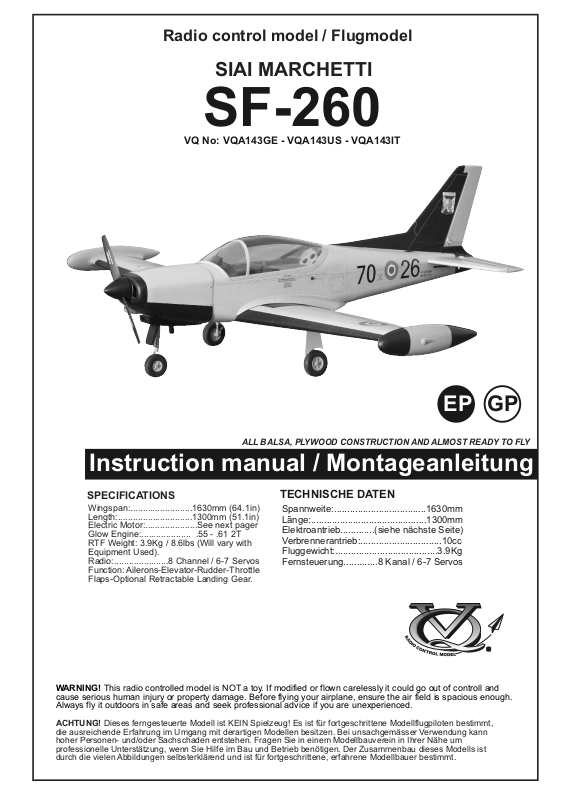

Radio control model / Flugmodel

SIAI MARCHETTI

SF-260

VQ No: VQA143GE - VQA143US - VQA143IT

EPGP

ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY

Instruction manual / Montageanleitung

SPECIFICATIONS

Wingspan:.........................1630mm (64.1in)

Length:..............................1300mm (51.1in)

Electric Motor:.....................See next pager

Glow Engine:.................... .55 - .61 2T

RTF Weight: 3.9Kg / 8.6lbs (Will vary with

Equipment Used).

Radio:......................8 Channel / 6-7 Servos

Function: Ailerons-Elevator-Rudder-Throttle

Flaps-Optional Retractable Landing Gear.

TECHNISCHE DATEN

Spannweite:...................................1630mm

Lange:............................................1300mm

Elektroantrieb.............(siehe nächste Seite)

Verbrennerantrieb:...............................10cc

Fluggewicht:.......................................3.9Kg

Fernsteuerung.............8 Kanal / 6-7 Servos

WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and

cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.

Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,

die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann

hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um

professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist

durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

Page 2

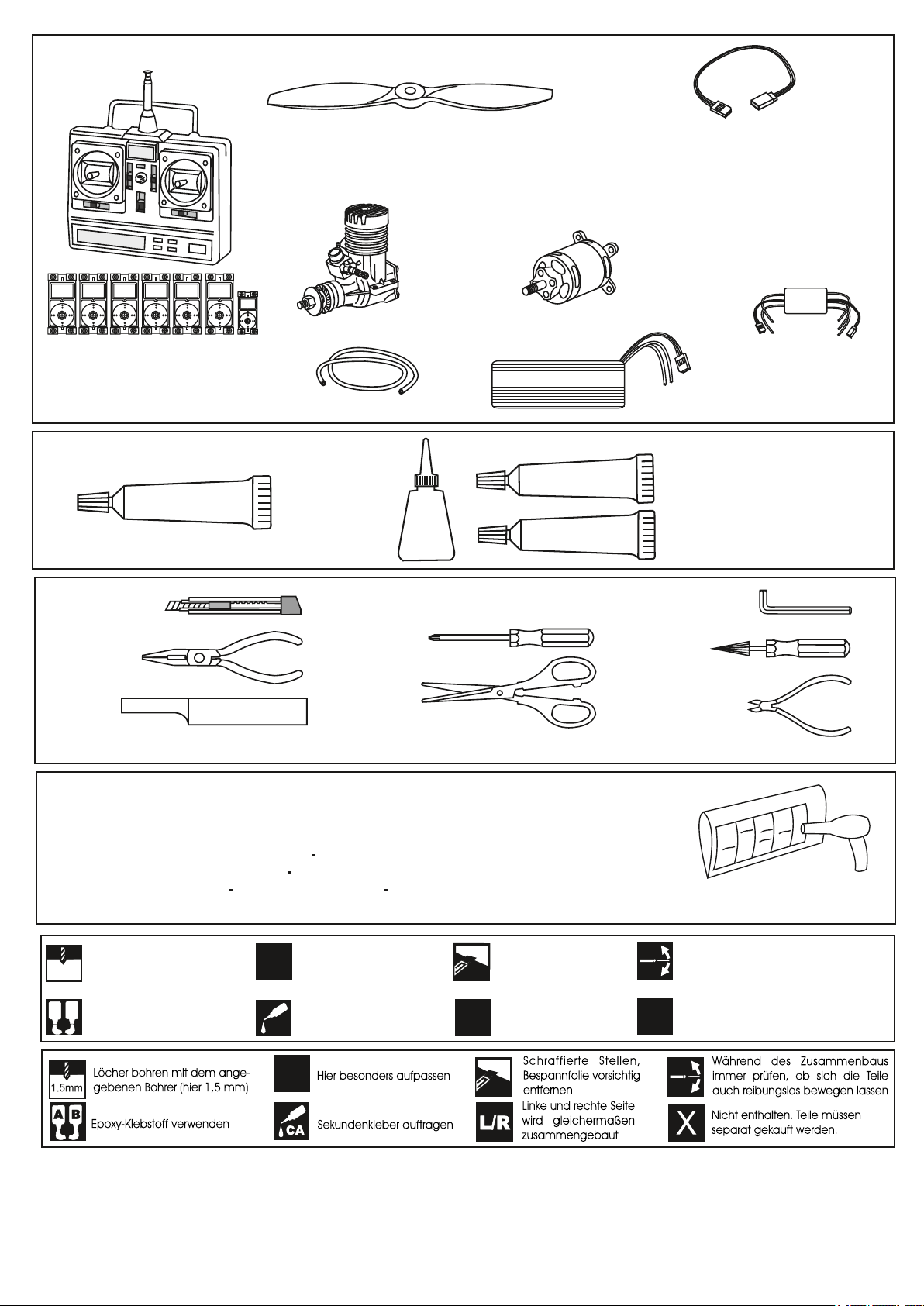

REQUIRED ITEMS / Zum Betrieb wird benotigt

Minimum 8 channel radio

for airplane with 7 servos

.Motor control x1 .Aileron x 2

.Flap x 2 .Elevator x1 .Rudder x1

GLUE /

KLEBSTOFF

SILICON

Silicon sealer

12x6 for .58 - 2 cycle engine

12x7 for .61 - 2 cycle engine

14x8 for Electric motor

.55 ~ .61 - 2 cycle

Silicone tube

Cyanoacrylate

Glue

Extension cord for aileron servos: 50cm(x2)

Extension cord for flap servos: 50cm(x4)

Extension cord for retract servos: 30cm(x2)

Extension cord for Rx battery pack: 20cm(x1)

EPOXY A

EPOXY B

Motor Brushless

1000 Watt

ESC 80A

Li-Po Battery

5.300 - 22.2v

Epoxy Glue ( 5 minute type)

Epoxy Glue (30 minute type)

Hobby knife

Phillip screw driver

Hex Wrench

Needle nose Pliers

Scissors

Sander

.........................................................

Wire Cutters

Masking tape - Straight Edged Ruler - Pen or pencil - Rubbing alcohol - Drill and Assorted Drill Bits

If exposed to direct sunlight and / or heat, wrinkles can appear. Storing the model in a coll

place will let the wrinkles disappear. Otherwise, remove wrinkles in covering film with a hair-

dryer, starting with low temperature. You can fix the corners by using a hot iron.

Bei Sonneneinstrahlung und / oder Warme kann die Folie erschlaffen bzw. Falten entstehen.

Verwenden Sie ein Warumluftgeblase (Haartrockner) um evtl. Falten aus der Folie zu

bekommen. Die Kanten konnen Sie mit einem Bugeleisen behandeln. Nicht zuviel Hitze

anwenden

Drill holes using the stated

1.5mm

size of drill

(in this case 1.5 mm Ø)

Use epoxy glue

Take particular care here

Apply cyano glue

Hatched-in areas:

remove covering

film carefully

Assemble left and right

L/R

sides the same way.

Awl

Check during assembly that these

parts move freely, without binding

Not included.

These parts must be

purchased separately

Read through the manual before you begin, so you will have an overall idea of what to do.

CONVERSION TABLE

1.0mm = 3/64”

1.5mm = 1/16”

2.0mm = 5/64”

2.5mm = 3/32”

3.0mm = 1/8”

4.0mm = 5/32”

5.0mm = 13/64”

6.0mm = 15/64”

10mm = 13/32”

12mm = 15/32”

15mm = 19/32”

20mm = 51/64”

25mm = 1”

30mm = 1-3/16”

45mm = 1-51/64”

Page 3

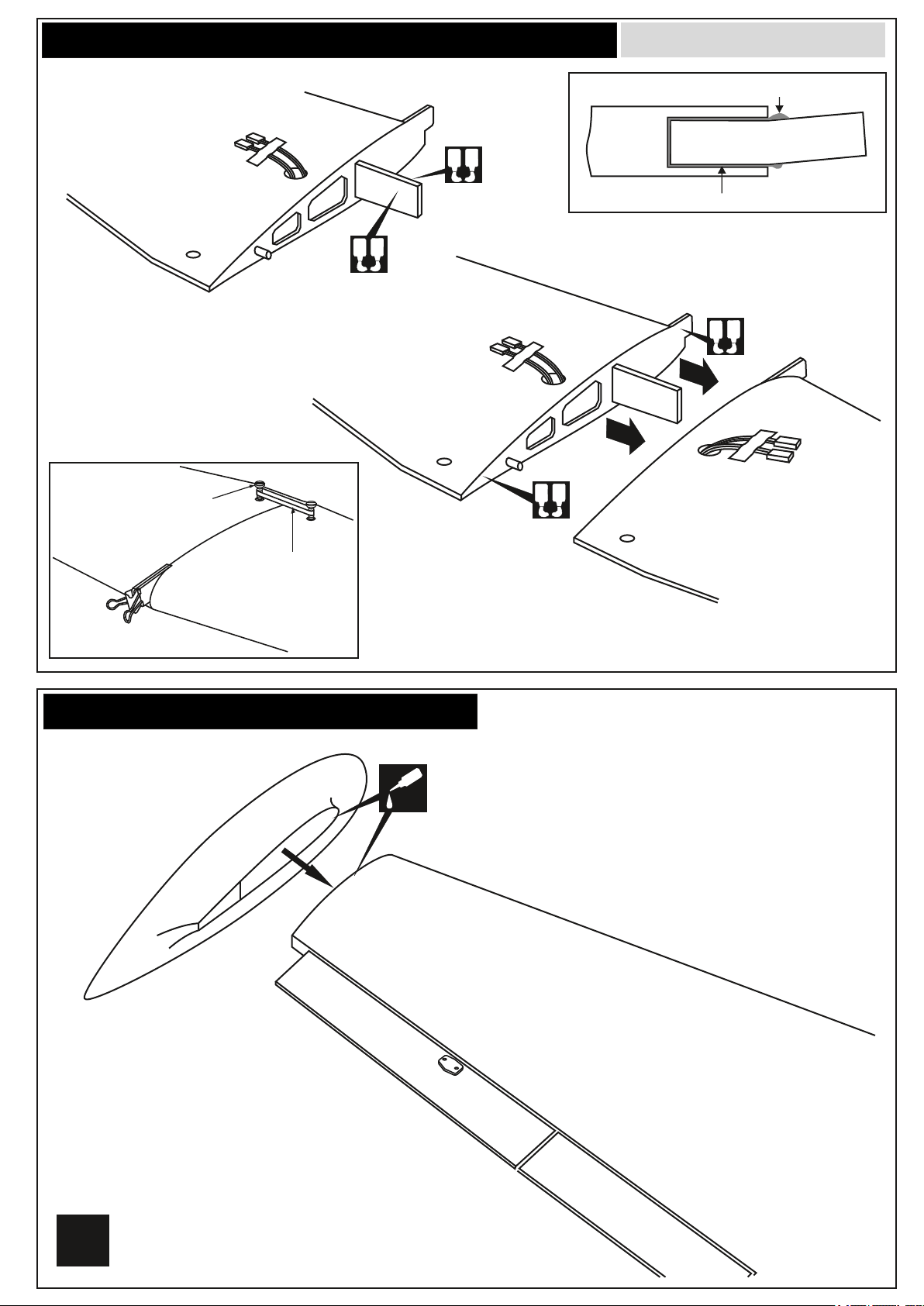

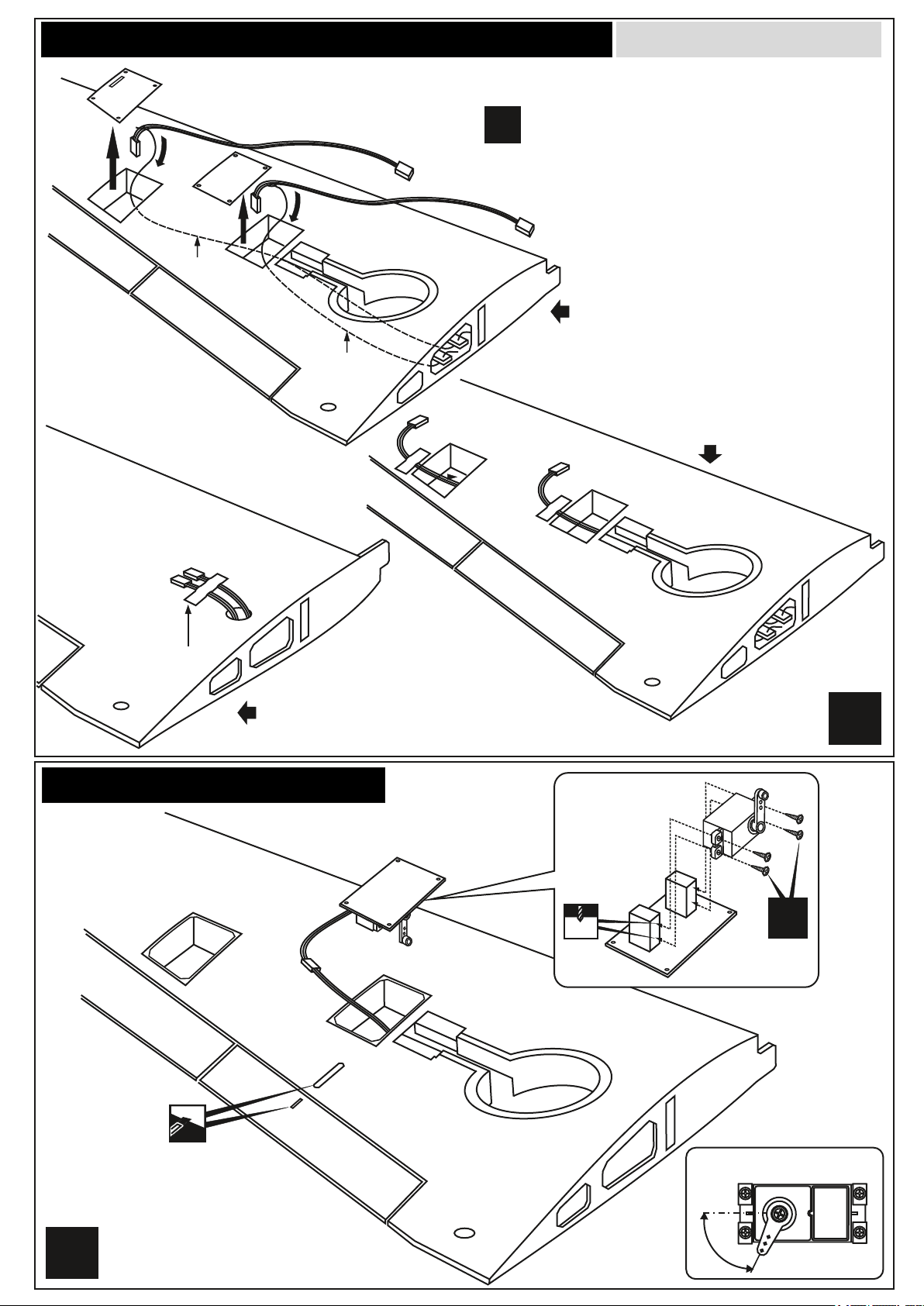

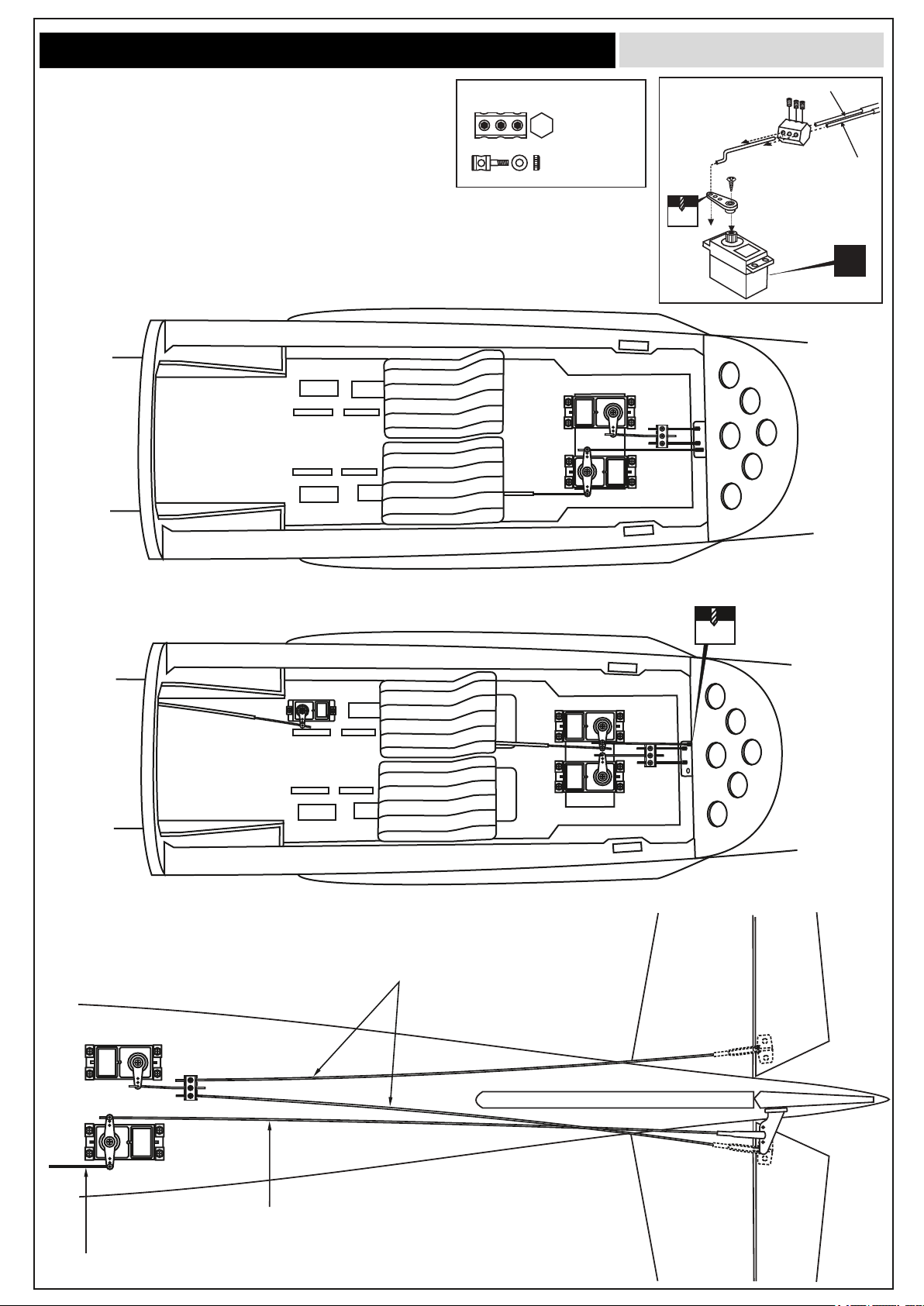

1-Aileron extension cord installation

Aileron servo hatch

Siai Marchetti SF-260

Flap servo

hatch

Thread

WING TOP-VIEW

30cm Extension cord

Thread

WING BOTTOM-VIEW

Turn the screws and full the aileron and

flap servo hatch out of the wing half.

Using the thread (pre-installed at factory)

to slide the aileron and flap extension cord

into the wing half.

Using the adhesive tape to secure

the one end of the aileron and flap

extension cord in place.

Adhesive tape

Using the adhesive tape to secure the one

end of the aileron and flap extension cord in place.

2- Flap servo installation

1.5mm

L/R

cut away only the covering

L/R

Flap servo

Page 4

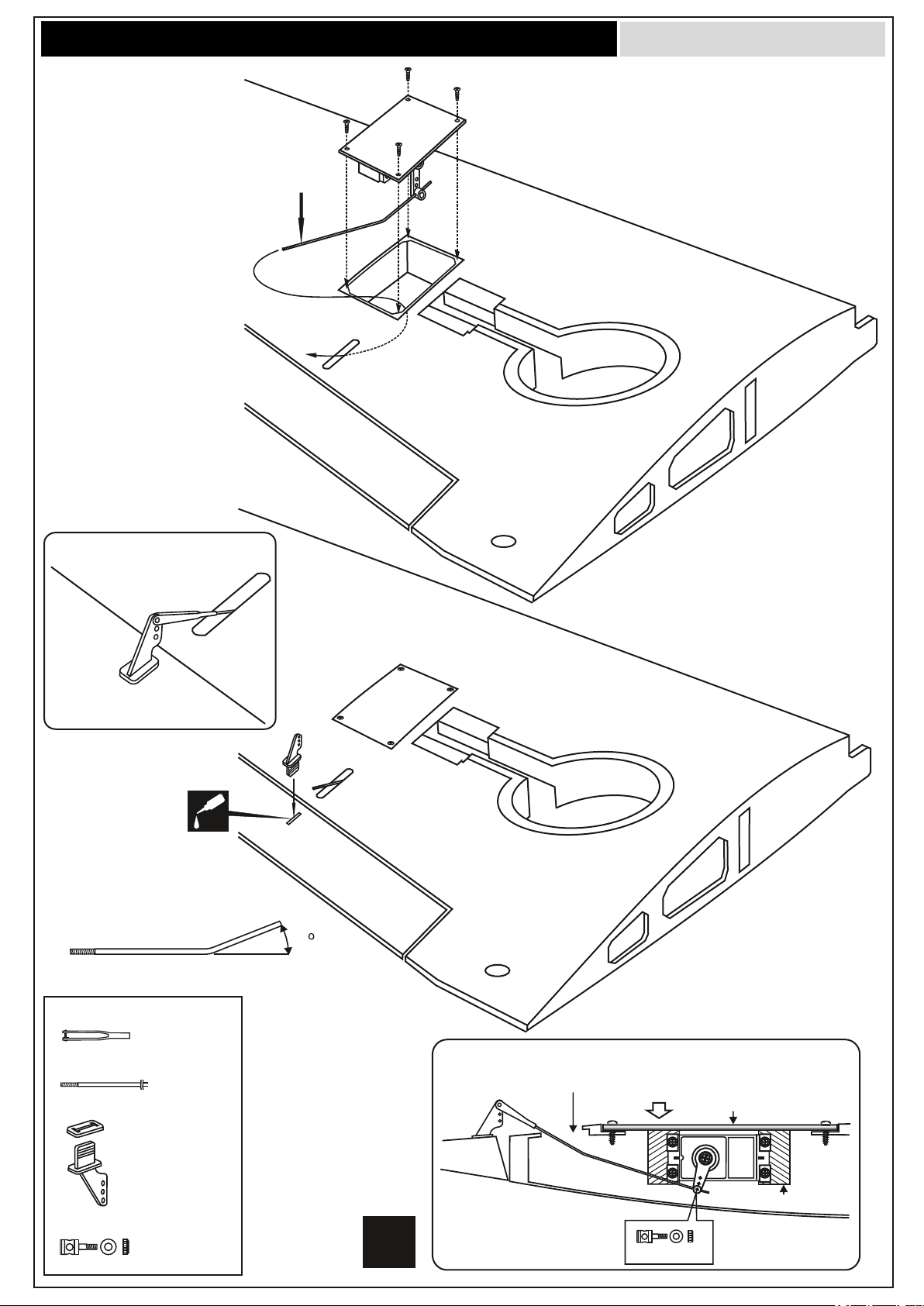

3- Flap servo installation

Flap pushrod

Siai Marchetti SF-260

Bend the flap pushrod 35o at shown

Steel clevis

......2

Flap push rod (2mm)

Plastic control horn

Connector

.....2

......2 set

2mm

............2

L/R

Installing the flap servo on to the hatch (side-view)

Pushrod exit hole

FLAP

WING BOTTOM

Connector

Flap servo Hatch

Servo mount

Page 5

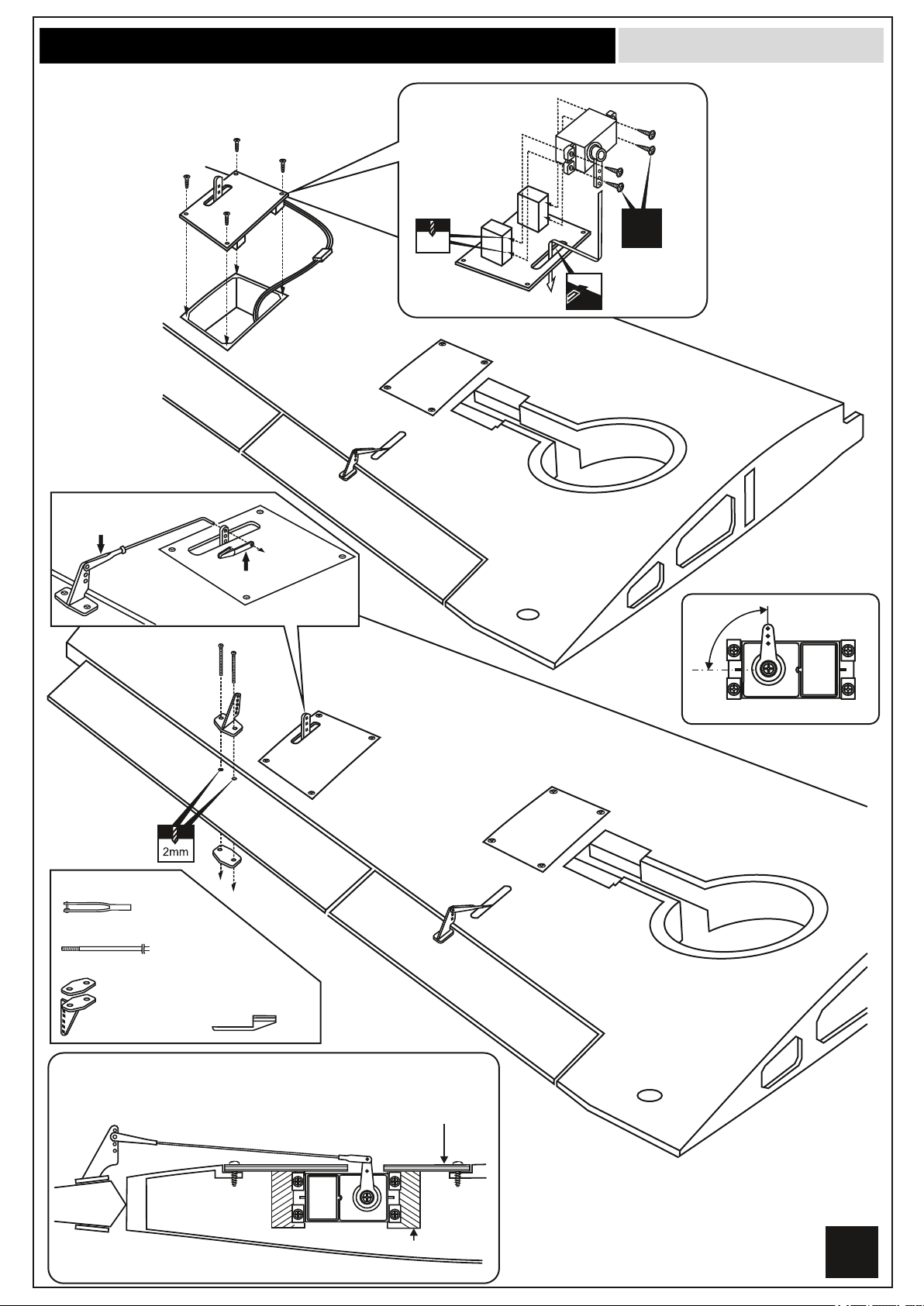

4- Aileron servo installation

Siai Marchetti SF-260

Aileron linkage

Steel Clevis

EZ link

1.5mm

cut away only

the covering

Steel clevis

......2

Aileron push rod (2mm)

Plastic control horn

............2 set

Installing the aileron servo on to the hatch (side-view)

.....2

EZ link

.....2

Aileron servo Hatch

WING BOTTOM

Aileron servo

AIL.

Servo mount

L/R

Page 6

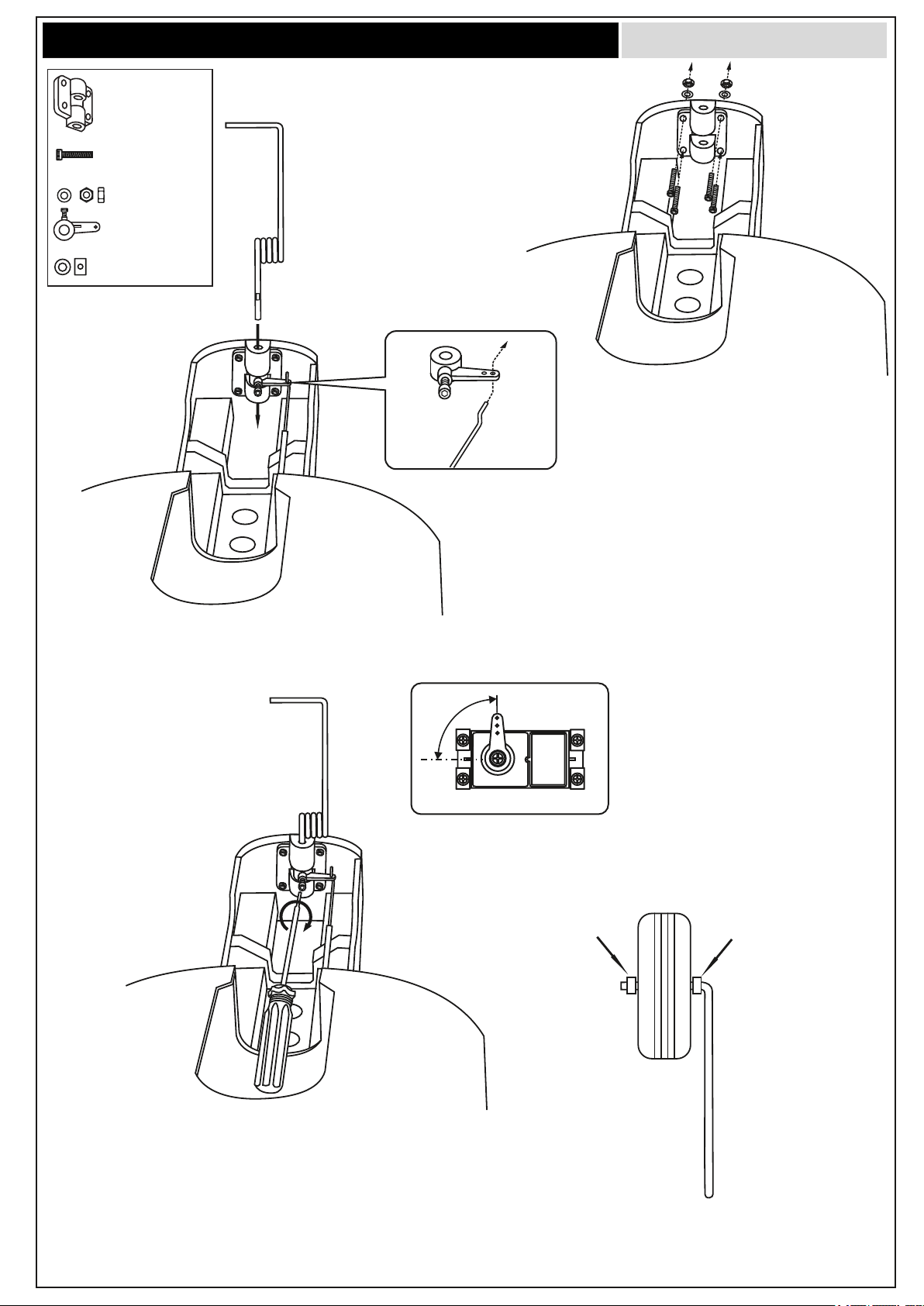

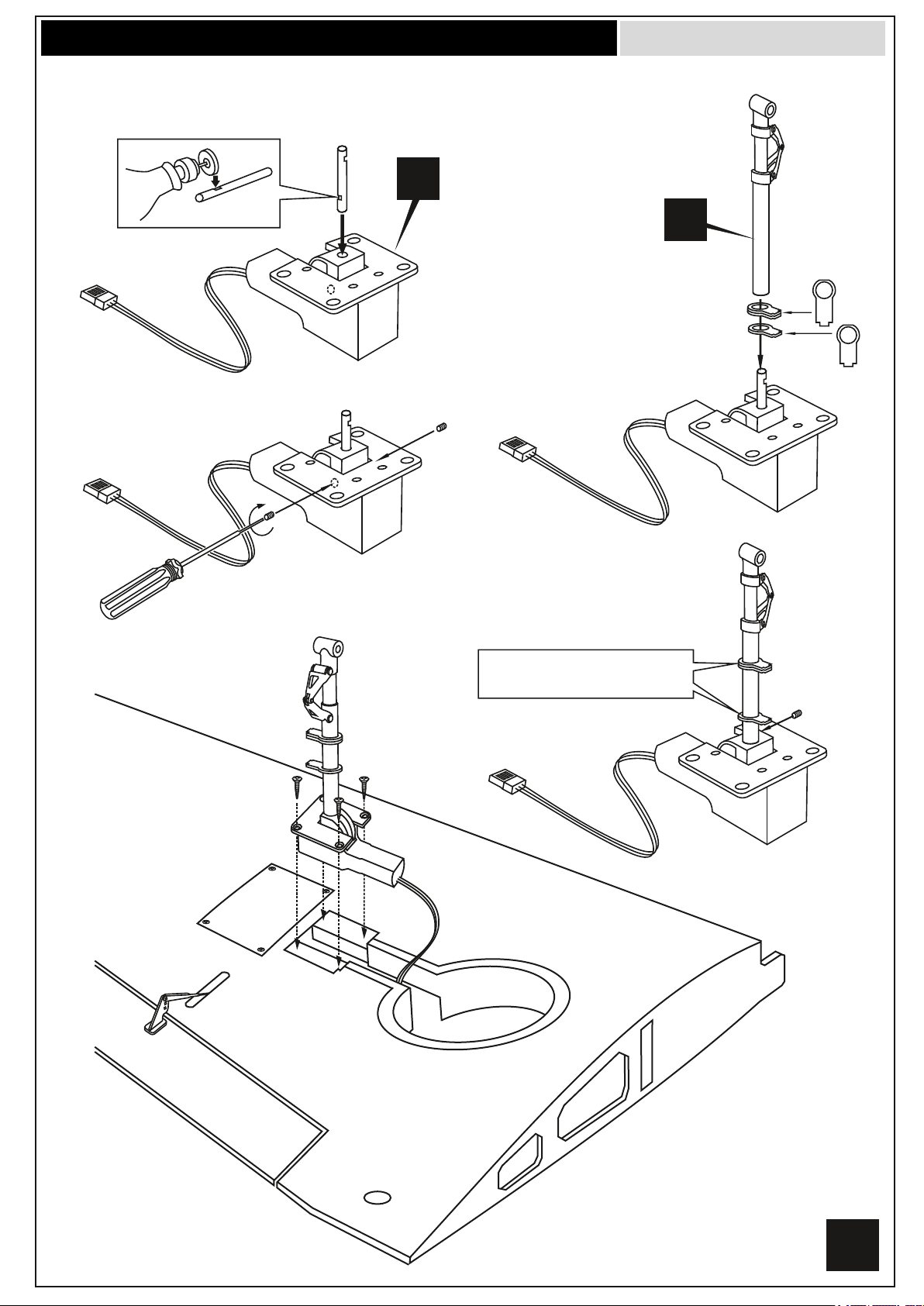

5- Electric retract and Strut installation

Siai Marchetti SF-260

Note: Do not glue the wooden

ring to the strut at this time.

L/R

Page 7

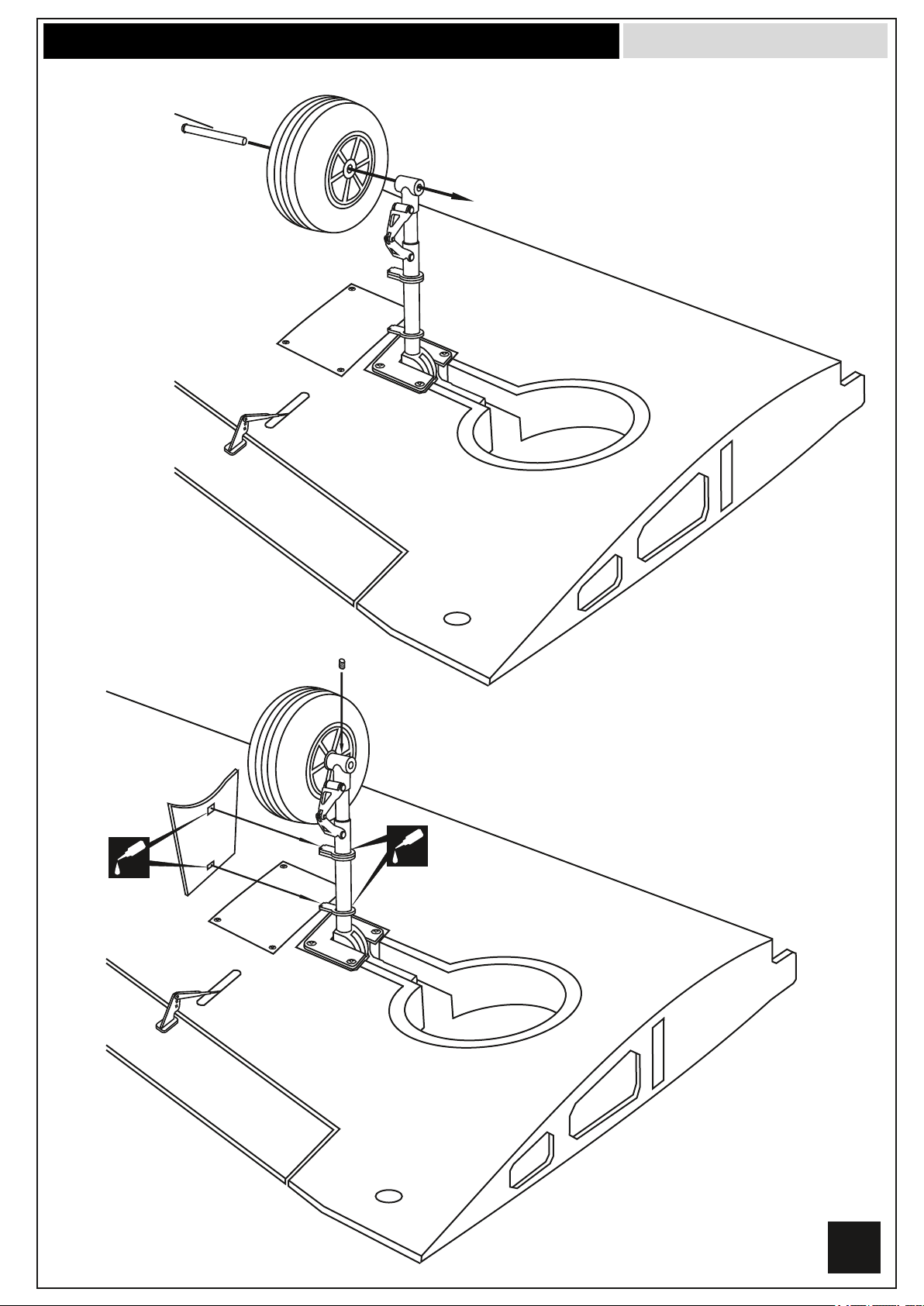

6- Electric retract and Strut installation

Siai Marchetti SF-260

L/R

Page 8

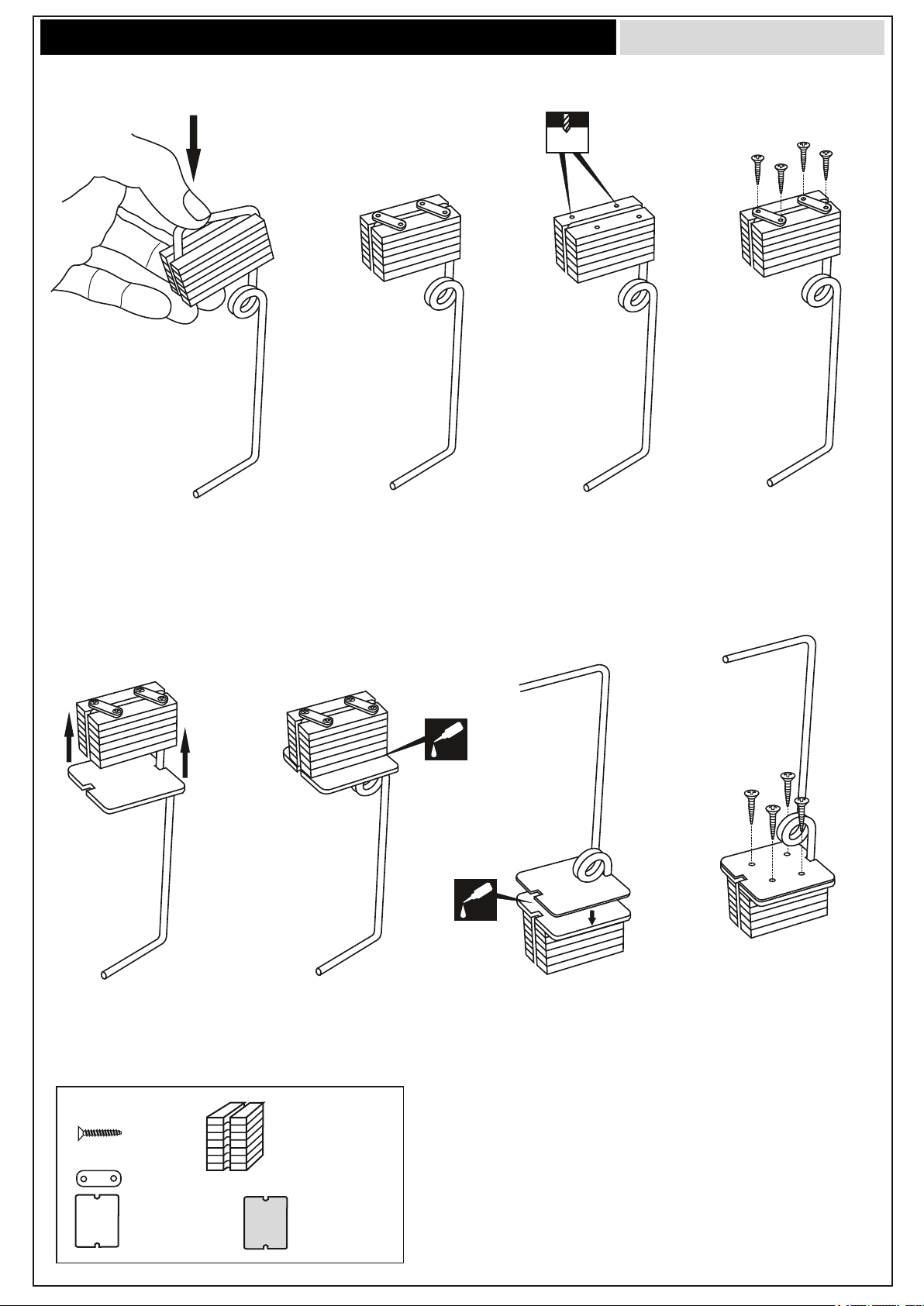

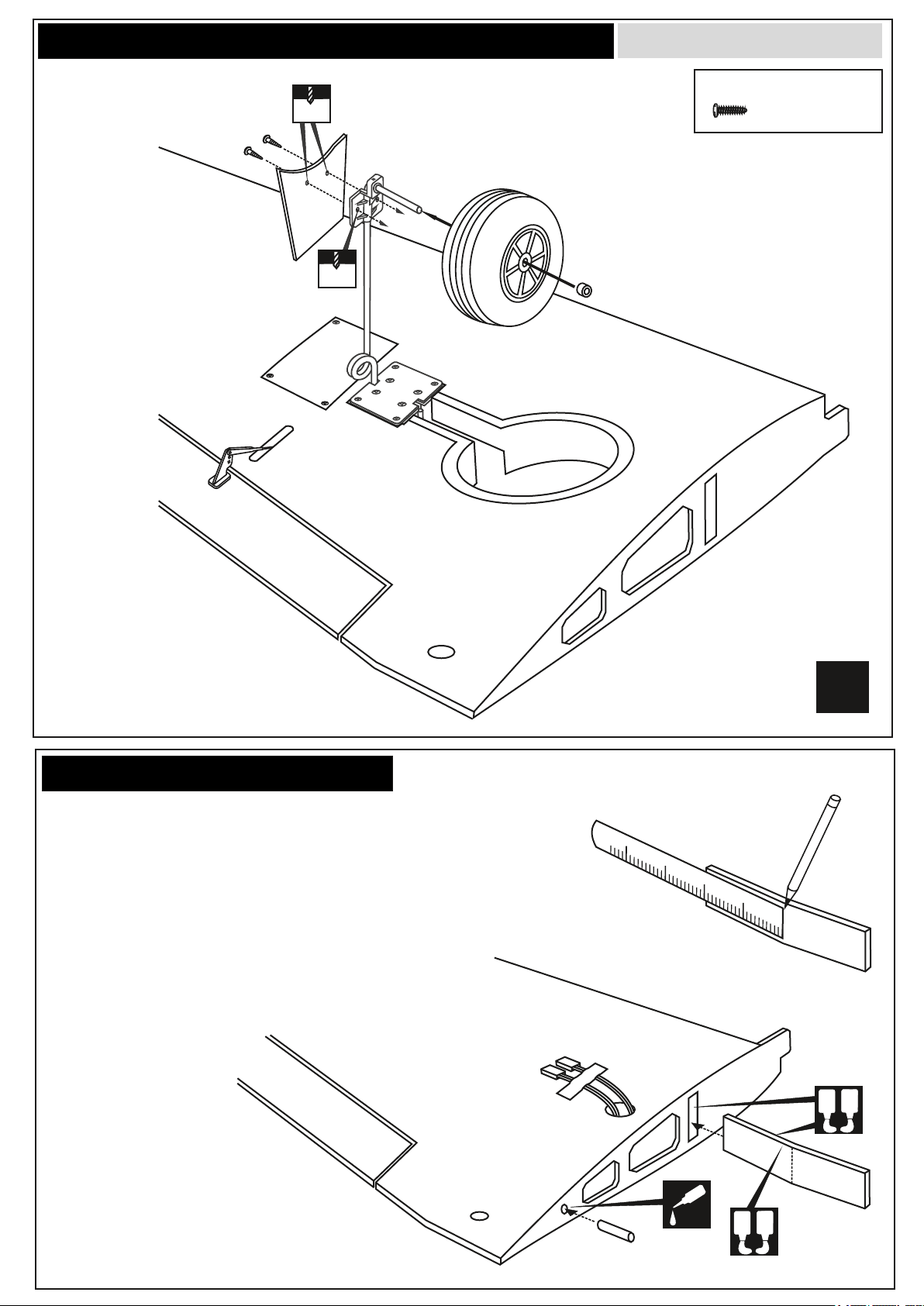

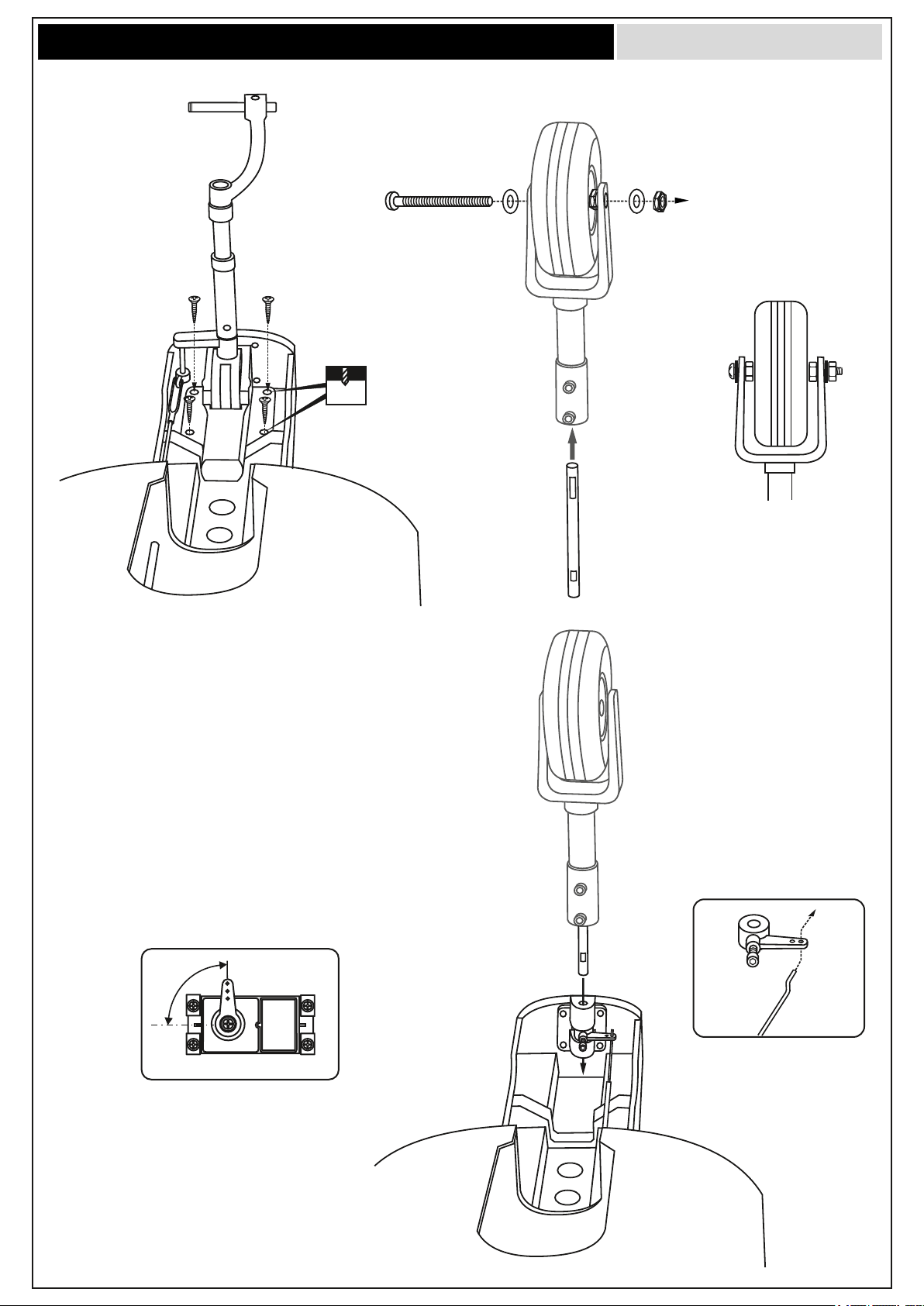

7- Fixed gear installation

Siai Marchetti SF-260

TOP VIEW

2mm

Slide the landing gear onto the

plywood gear mount and push

the landing gear as shown.

Using the nylon gear strap

as a template, mark the

plywood gear mount where

the four holes to be drill.

7C7D

Remove the nylon gear

strap and drill a 2mm hole

at each of the four marks

marked.

BOTTOM VIEW

Reposition the nylon gear

strap and secure them in

place using four 3x20mm

screws.

Attach the ply gear mount plate

to the plywood gear mount

3x20mm screw

.......16

Nylon gear strap

.......4

Square plastic

Secure the ply gear mount

plate in place using CA glue.

Plywood Gear mount

x 2

Ply gear mount

plate x 2

Attach the square plastic

onto the ply gear mount,

secure it in place using

CA glue.

Drill a 2mm holes through the

square plastic and ply gear

mount plate.

Secure the ply gear mount

using four 3x20mm screws.

Page 9

8- Fixed gear installation continued

3x12mm

Siai Marchetti SF-260

3x12mm self tapping screw

....................8

...........2

L/R

Page 10

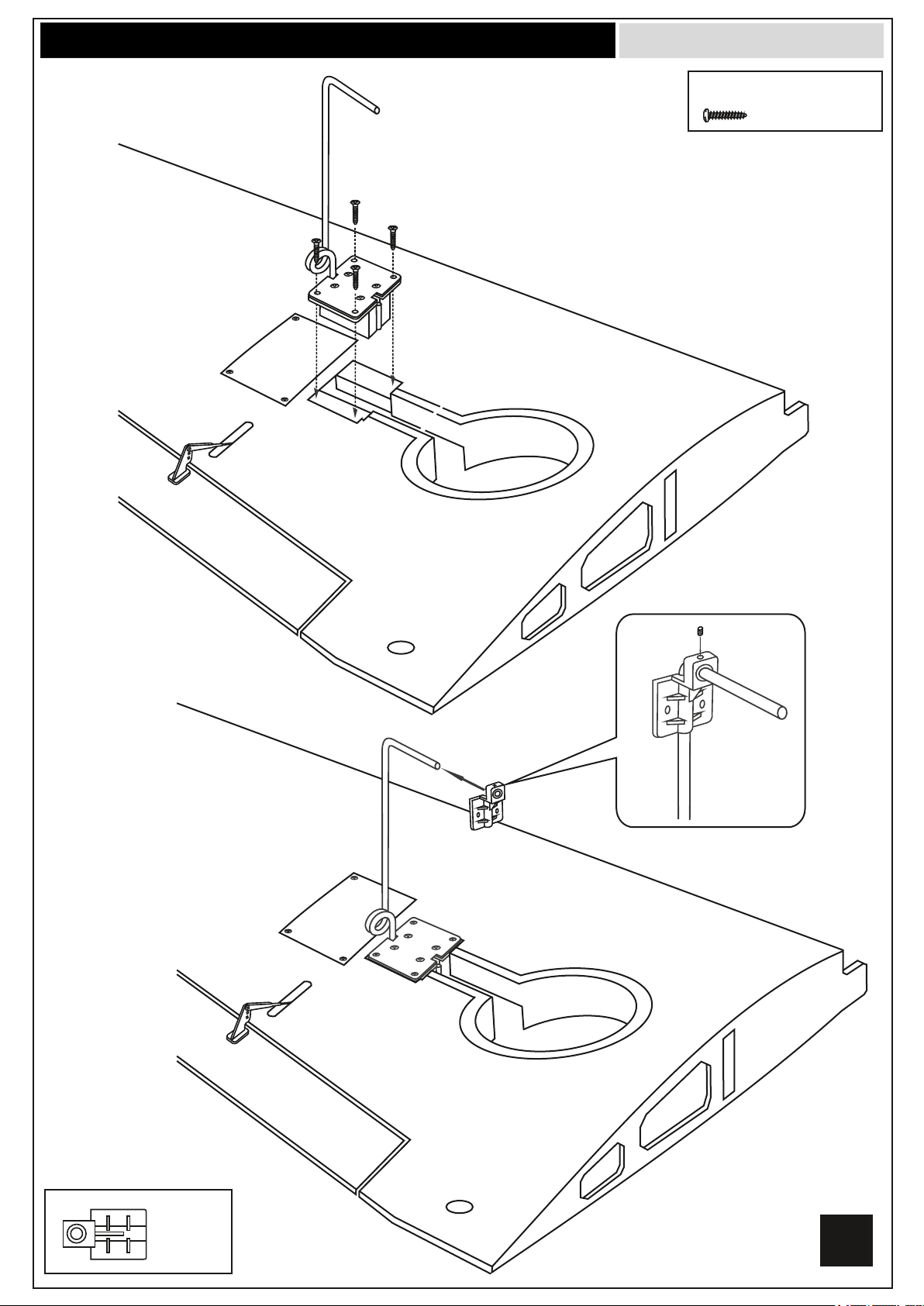

9- Fixed gear installation

1.5mm

2x6mm

1.5mm

Siai Marchetti SF-260

2x6mm self tapping screw

.....................4

10- Joining the wing halves

Before gluing:

- Draw the center line on the wing joiner.

- Trial fit each part before gluing . Be certain that there are no gaps.

If the parts will join, but with a gaps, sand or trim the parts a little at

a time until the parts meet exactly with no gaps.

- Check for the correct dihedral angle

Draw the center line

on the wing joiner

L/R

Coat one half of the dihedral brace with epoxy up

to the center line. Install the epoxy-coated side of

the dihedral brace into the wing joiner cavity up to

the center line.

6x20mm dowel

30 min. Epoxy

Page 11

11- Joining the wing halves

Siai Marchetti SF-260

Glue

WING TOP-VIEW

Carefully slide the wing halves together,

ensuring that they are accurately aligned.

Firmly press the two halves together,

allowing the excess epoxy to run out.

Note: The two wing halves roots must

fit together perfectly.

Clear off the excess epoxy.

Hold the wing halves together with paper

clamp and rubber band.

Nylon wing bolt

(included)

Rubber band

(not include)

30 min. Epoxy

WING TOP-VIEW

Wing half

! Make sure to glue securely, If not properly glued,

a failure in flight may occur.

Wing joiner

Glue must go inside

30 min. Epoxy

Paper clamp

(not include)

WING TOP-VIEW

12- Wing tip Tank

IMPORTANT:

Please do not clean off the excess epoxy on the

wing with strong solvent or pure alcohol, only use kerosene to

keep the colour of your model not fade.

L/R

Page 12

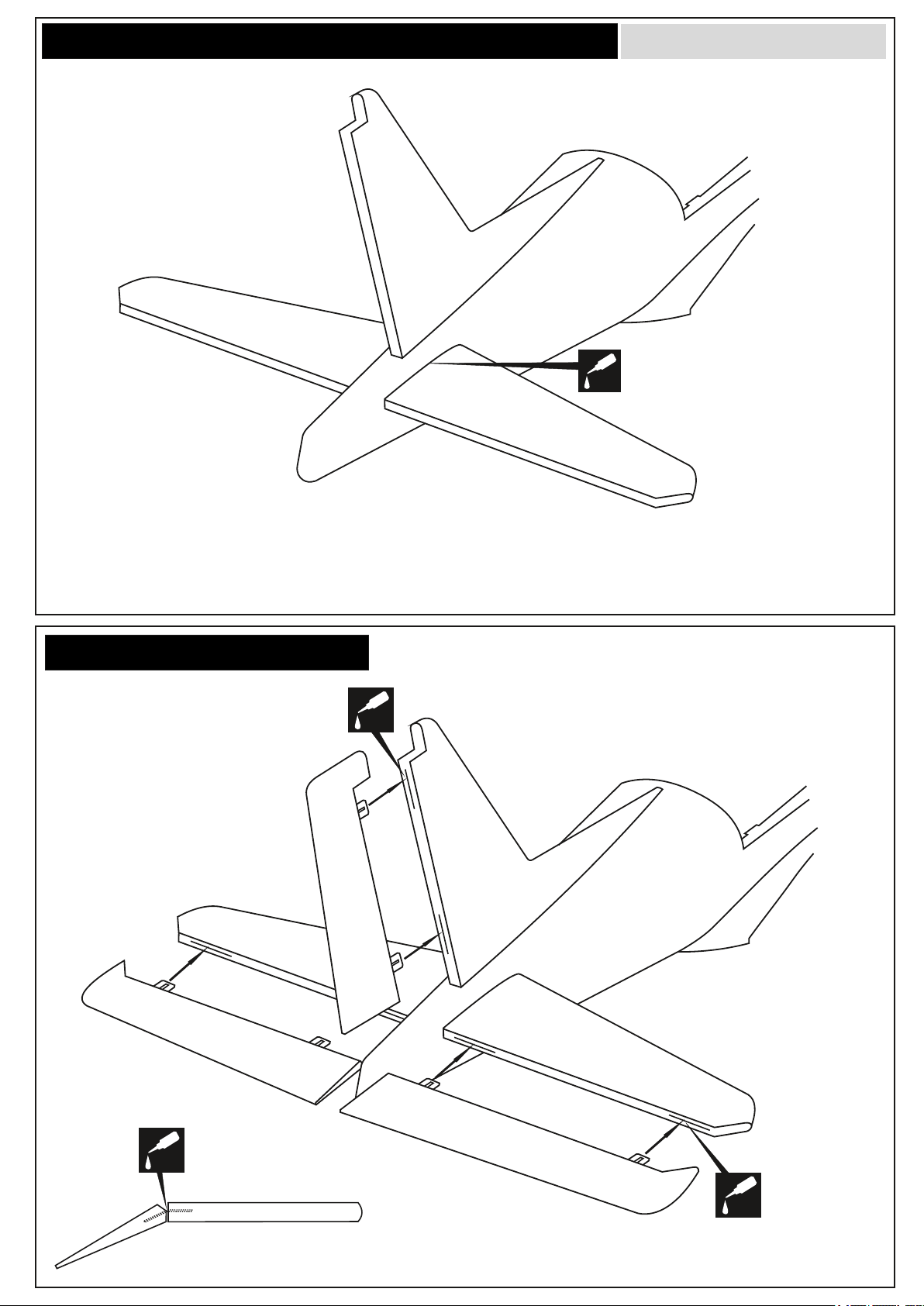

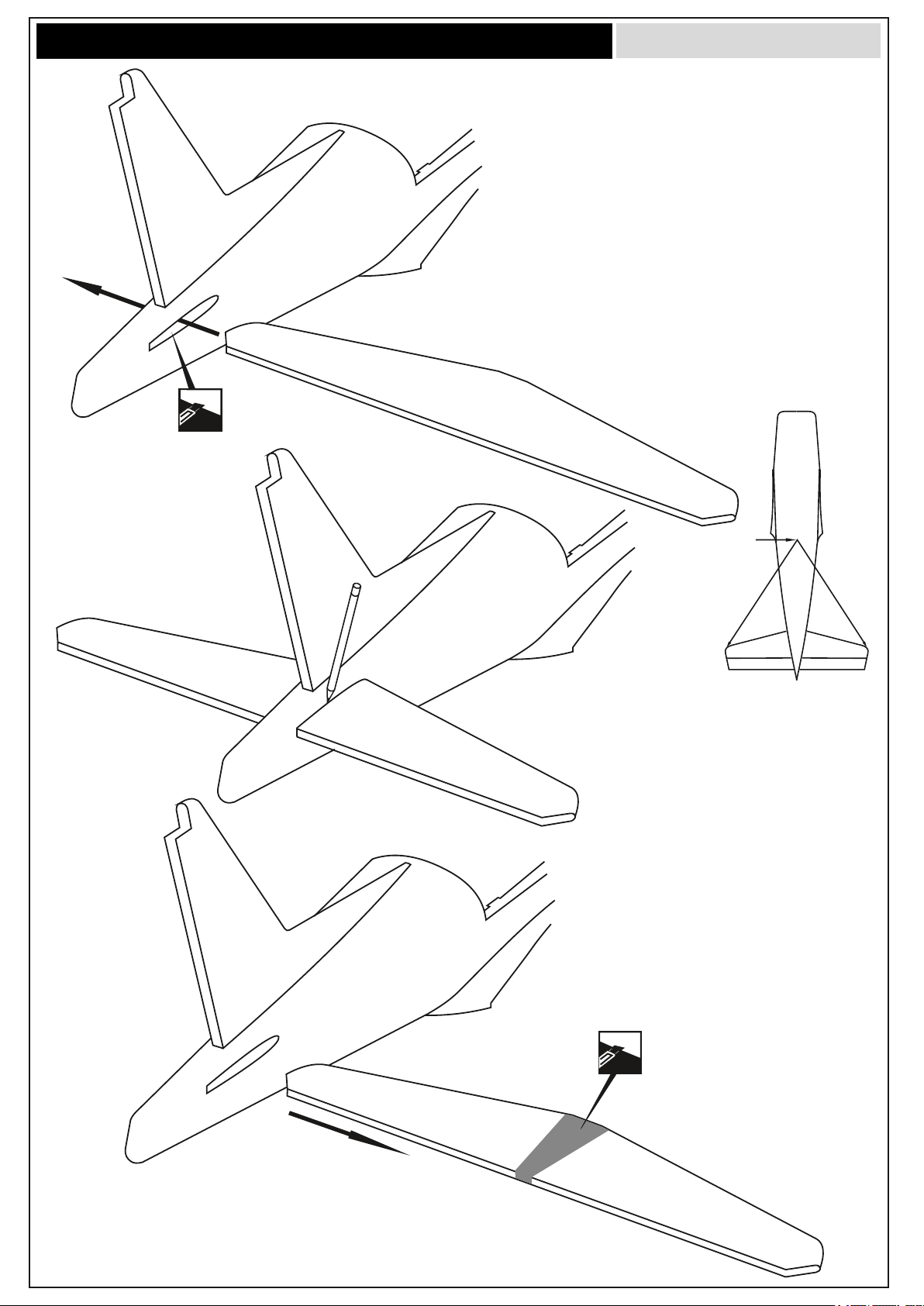

13- Horizontal Stabilizer installing

Cut away only

the covering

Siai Marchetti SF-260

13A

Using a sharp hobby knife, carefully cut away the covering

around of all slots for the horizontal stabilizer installation.

Pull the left and right elevator out of the horizontal stabilizer.

13B

Push the horizontal stabilizer into the slot on the fuselage

as show. Check the alignment of the horizontal stabilizer

by measuring from a fixed point along the center line of

the fuselage to the leading edge on each side of the

horizontal stabilizer. The distance must be equal on both

sides . If not, adjust the stabilizer until the measurements

are the same (see picture below: A=A’).

Center point

AA’

A=A’

13C

When you are satisfied with the alignment, use

a pencil to trace around the top and bottom of

the stabilizer where it meets the fuselage.

13D

Remove the horizontal stabilizer

from the fuselage. Using a straight edge

and a sharp hobby knife, carefully cut away

the covering inside the lines which were marked

above. Be cautious not to cut into the wood-this

will weaken the structure.

Cut away only

the covering

both sides.

Page 13

14- Horizontal Stabilizer installing continued

Siai Marchetti SF-260

Apply thin CA glue where the fuselage

meet the horizontal stabilizer (both sides).

Install the horizontal stabilizer onto the fuselage and adjust the alignment as described in steep 13B.

Note: it is important to ensure that the horizontal stabilizer is also level in regards to the fuselage.

Apply the thin CA along the area where the covering was removed in the previous step and to the

fuselage where the horizontal stabilizer mounts .

! Securely glue together. If coming off during fly, you lose control of your air plane.

15- Rudder and Elevator

Apply thin CA

glue on the top and

bottom of the hinge

HORIZONTAL STABILIZER

TOP-SIDE

Page 14

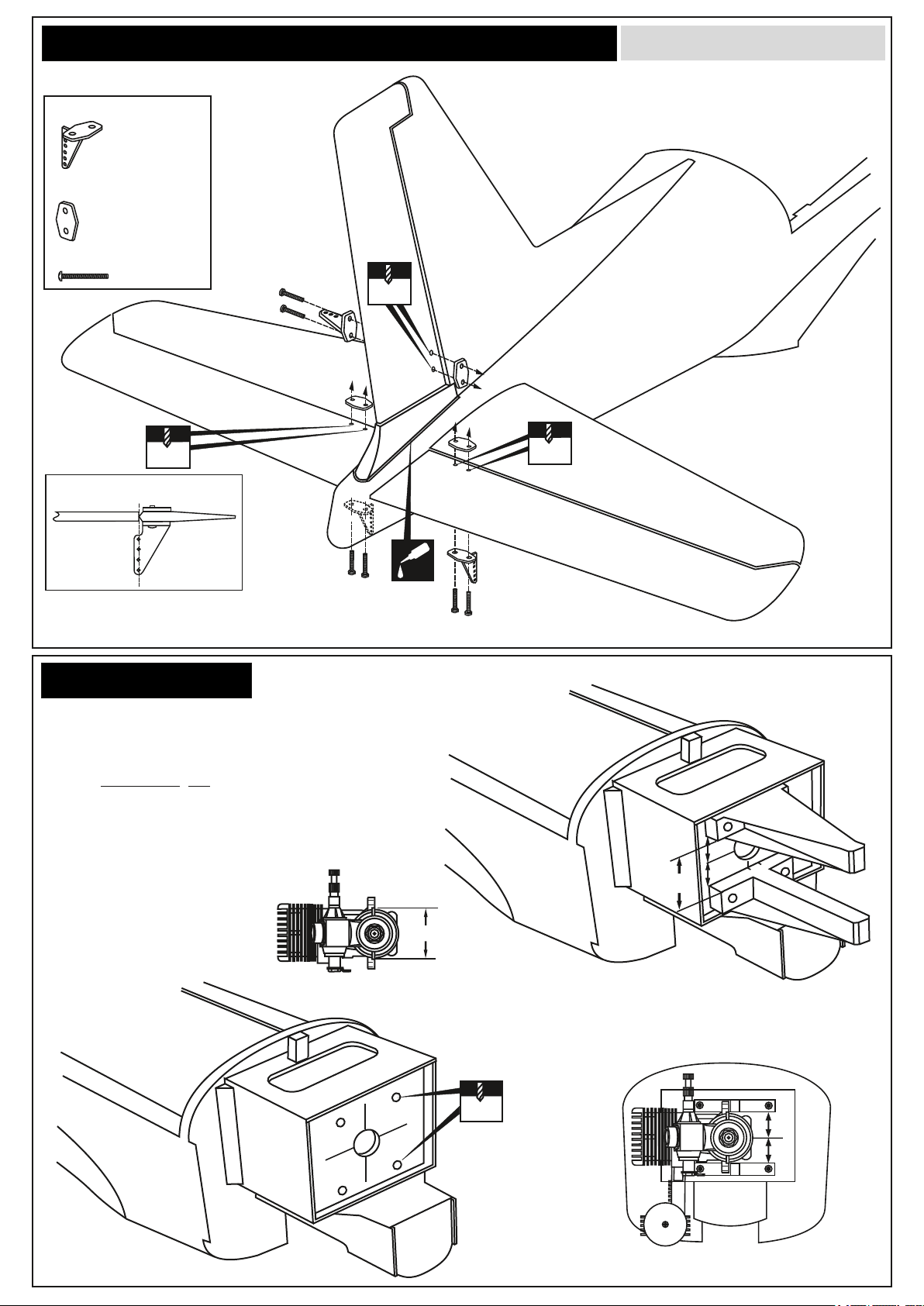

16- Control horn installation

Plastic control horn

............................3

Plastic back plate

...........................3

2x15mm screw

.....................6

2x12mm

Siai Marchetti SF-260

2mm

Control horn Alignment

STABILIZER

Attach the rudder control horn using the hardware provided

(two 2x15mm screws and a back plate).

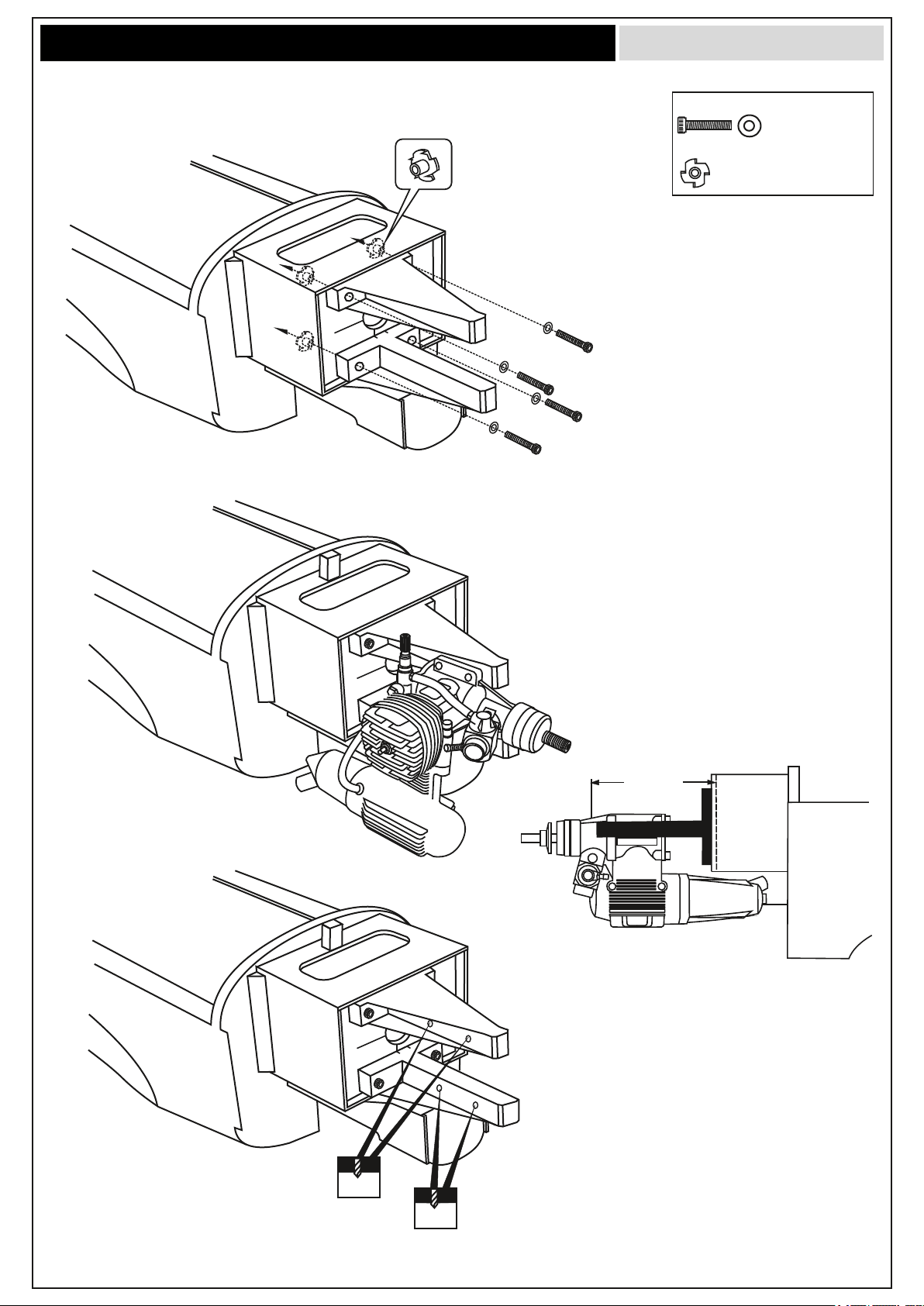

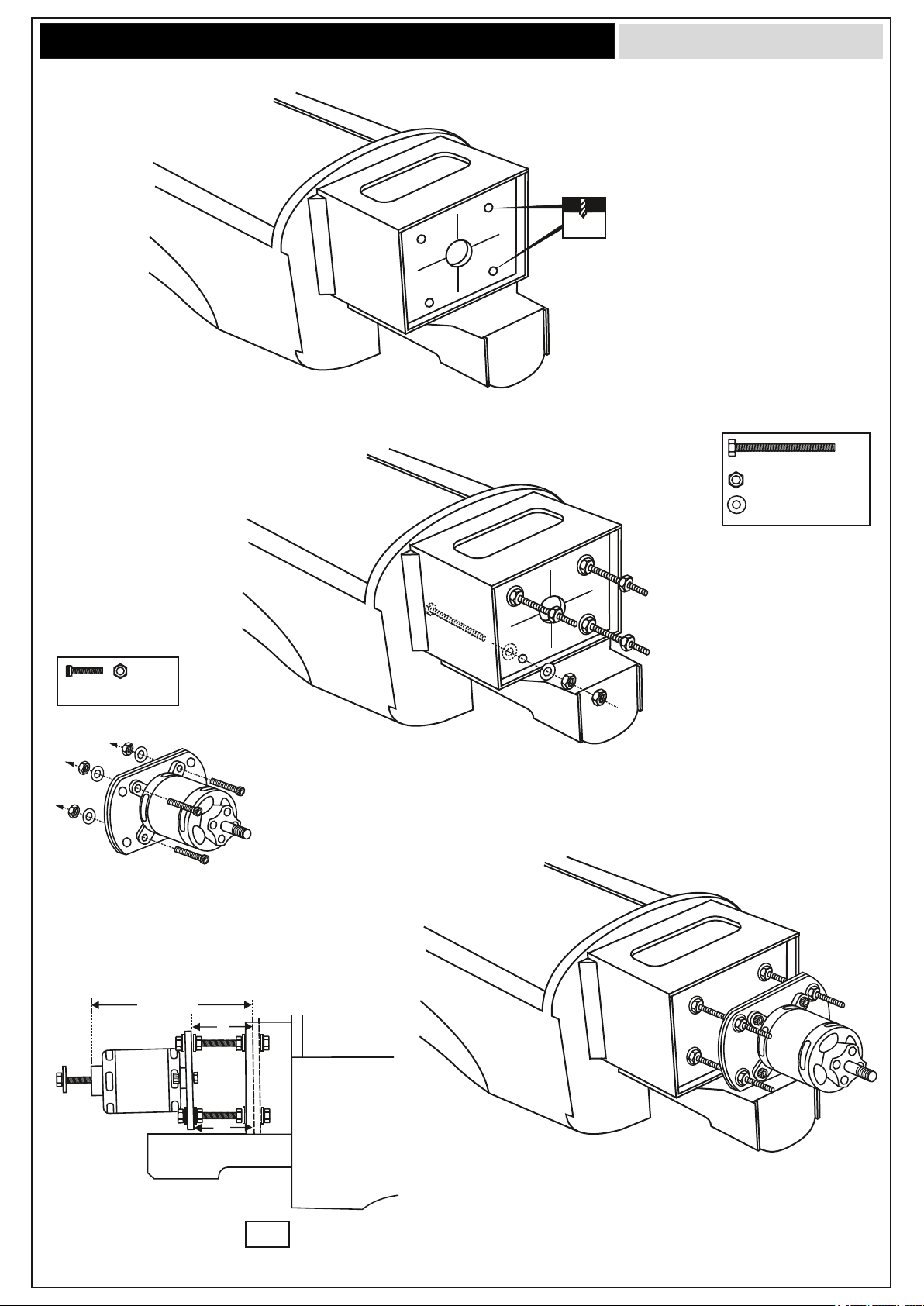

17- Engine

Attach the engine mount beams onto the fire-wall

so the distance between of two engine mount beams

is “A”,and B=B’ as show.

Secure the engine mount beams onto the fire-wall

with litter CA glue (1B)

! Align the mark on both engine mount

beams with the mark on the fuselage

Using a pencil or felt tipped pen, mark

the fire wall where the four holes are to

be drilled(1B))

2mm

B’

6mm

B=B’

B’

Page 15

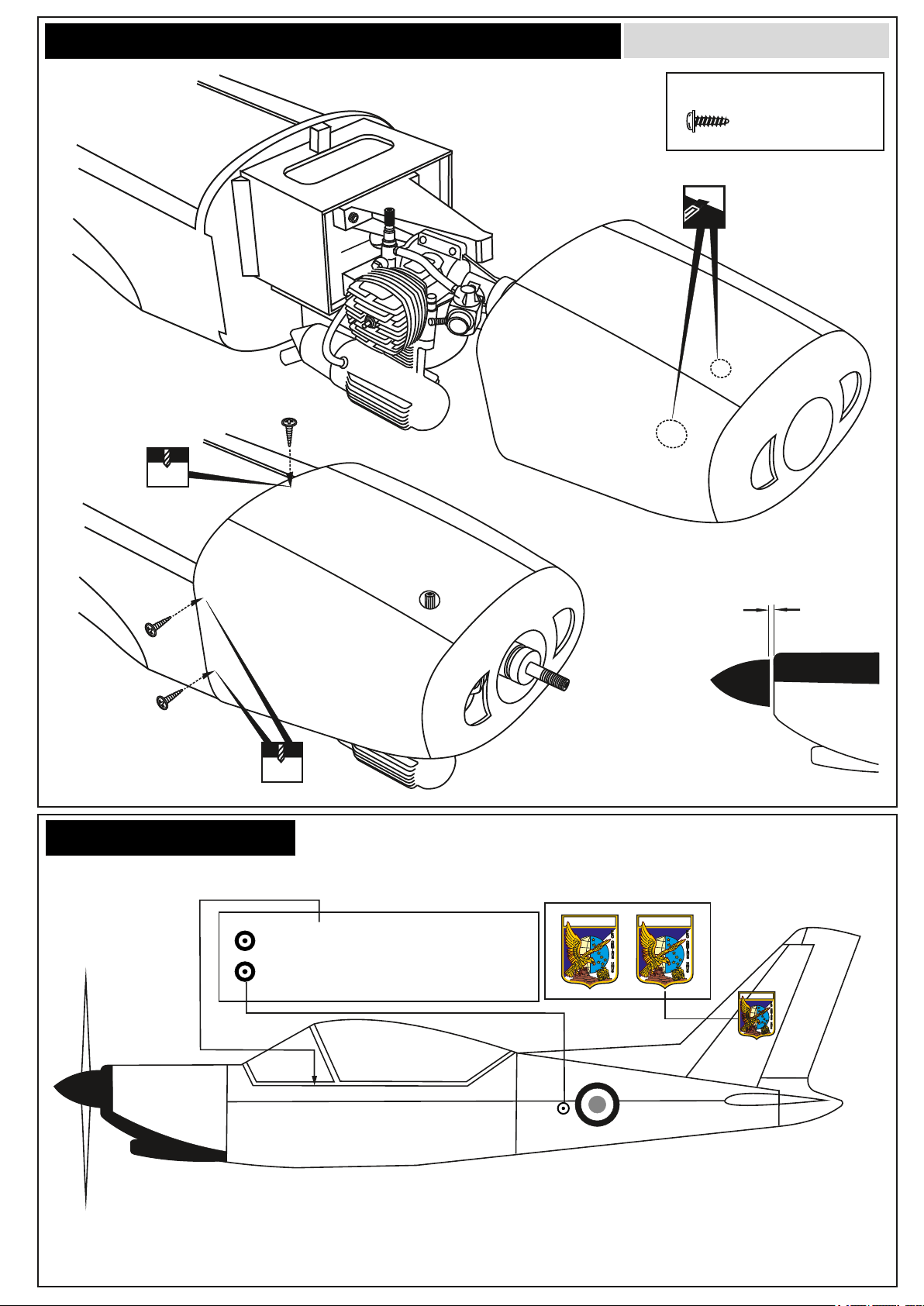

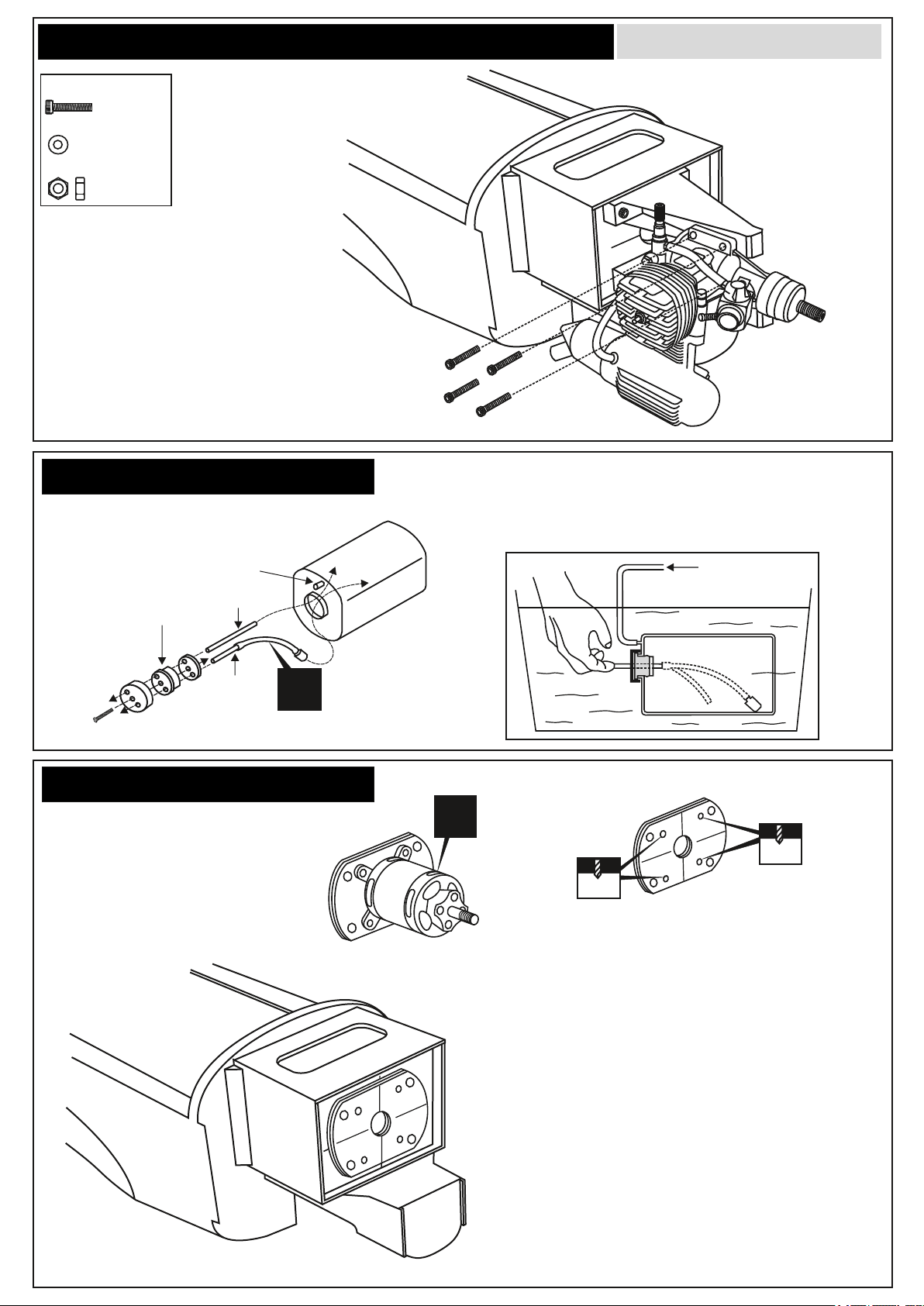

18- Engine continued

Siai Marchetti SF-260

4x25mm screw - washer

...................4

Blind-nut

....................4

18A

Insert the blind-nut onto each

of the four holes make above .

18B

Reposition the engine mount beams on to the fire-wall

and secure them with four 4x25mm screw.

! Engine thrust on balk head

is already adjust at factory

18C

Position the engine to the engine mounts so the distance

from the prop hub to the fire-wall is 140mm.

Mark the engine mounting plate where the four holes are

to be drilled.

140mm

FUSELAGE

SIDE-VIEW

3mm

18D

Remove the engine and drill a 3mm holes through the beam

at each of the four marks made above.

Marking sure that you drill the hole perpendicular to the beam

of the engine mount.

Page 16

19- Engine continued

3x25mm screw

.......4

Washer

.......4

3mm nut

.......4

Reposition the engine on the engine mount

beams, aligning it with the holes. Secure the

engine to the engine mount using four

3x25mm screws.

Note: Apply Silicon sealer to each of the

3x25mm screw and nut.

20- Fuel tank

Siai Marchetti SF-260

Checking for leaks - block the vents and blow into the

feed - if in doubt submersing the tank in a blow of

water will show up any problems.

To muffler

Filler tube

Rubber stopper

To engine

3x35mm screw

21- Electric Motor

21A

Using a aluminum motor mounting plate

as a template, mark the plywood motor

mounting plate where the four holes are

to be drilled.

Blow

Water

3mm

21B

Remove the aluminum motor mounting

plate and drill a 1/8”(3mm) hole through

the plywood at each of the four marks

marked .

! Align the mark on wooden motor mounting plate

with the mark on the fire-wall.

21C

Using a wooden motor mounting plate as a template,

mark the fire-wall where the four holes are to be drilled.

Page 17

22- Electric Motor continued

Siai Marchetti SF-260

5mm

22A

Remove the wooden motor mounting

plate and drill a 5mm hole through

the fire-wall at each of the four marks

marked .

6x100mm bolt.....4

6mm nut..........12

6mm washer...16

3mm bolt / nut...4

22B

Attach the four 6x100mm bolts

and nuts to the fire-wall as shown.

6x100mm bolt

22C

Secure the Motor to the wooden

motor mounting plate using the

four 3mm bolts.

22D

SIDE-VIEW

140mm

B’

! Motor thrust on balk head

is already adjust at factory

FUSELAGE

B=B’

Page 18

23- Nose Gear (Electric retract and strut)

1.5mm

Siai Marchetti SF-260

Rudder servo

Page 19

24- Nose Gear (Fixed gear)

Nose gear mount

..............1

Siai Marchetti SF-260

3x15mm screw...4

3mm nut, washer...4

Steering arm...1

4mm colar........2

24A

Place the nose gear mount onto the fire-wall

and secure it in place using the four 3x15mm

screws.

24B

Insert “z” bend of steering linkage inside the hole

of front landing gear steering arm

24C

Position the steering arm inside the front landing

gear mount already.

24D

Slide in the front gear leg with the flat to back through the bearing

and steering arm.

24E

Screw steering arm on the leg.

Rudder servo

4mm colar

65mm diameter wheel

4mm colar

Page 20

25- Servo and Linkage

Siai Marchetti SF-260

Connector

................1

2mm

....................2

LINKAGE - IN CASE OF ELECTRIC MOTOR USING

Elevator servo

Elevator pushrod

3mm set Screw

Elevator pushrod

2 mm

Rudder servo

LINKAGE - IN CASE OF GLOW ENGINE USING

Elevator push rod

5mm

Rudder servo

Elevator servo

Throttle push rod

Rudder push rod

Page 21

26- Servo and Linkage

1.5mm

Siai Marchetti SF-260

2.5x12mm self tapping screw

...........5

Cut off shaded portion

2.5mm

self tapping screw

27- Decal

1.5mm

SOCCORSO

RUOTARE LA MANOVELLA

FAR SCORRERE IL TETTUCCIO

RESCUE

TURN HANDLE

SLIDE CANOPY

SOCCORSO

RUOTARE LA MANOVELLA

FAR SCORRERE IL TETTUCCIO

RESCUE

TURN HANDLE

SLIDE CANOPY

70 STORMO

2mm

70 STORMO

SOCCORSO

RUOTARE LA MANOVELLA

FAR SCORRERE IL TETTUCCIO

ITALY AIR FORCE VERSION

STATIC PORT

KEEP CLEAN

Page 22

28- Decal continued

206

RESCUE

TURN HANDLE

SLIDE CANOPY

Siai Marchetti SF-260

STATIC PORT

KEEP CLEAN

STATIC PORT

USA. AIR COMBAT VERSION

KEEP CLEAN

RESCUE

TURN HANDLE

SLIDE CANOPY

206

Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once.

Peel off one corner of the backing and cut off with scissors.

Arrange sticker on model and when satisfied adhere the corner without backing.

Carefully peel back the rest of the backing while at the same time adhering the rest of the sticker.

Try not to make air bubbles, if there are some, carefully puncture sticker (center of bubble) but not model surface with

the tip of the knife or sharp pin and squeeze out the air.

At curves stretch sticker and apply a little heat so that no ceases occur.

206

MARCHETTI SF-260 AIR COMBAT USA VERSION

STATIC PORT

KEEP CLEAN

RESCUE

TURN HANDLE

SLIDE CANOPY

RESCUE

TURN HANDLE

SLIDE CANOPY

RESCUE

TURN HANDLE

SLIDE CANOPY

DRIVE WITH CONFIDENCE

ONE MARKET

GERMAN VERSION

See at www.sf-260.de

ONE MAGAZINE

ONE CHOICE

Deutsche Post

ST-26

ONE MARKET

DRIVE WITH CONFIDENCE

ONE MAGAZINE

ONE CHOICE

Page 23

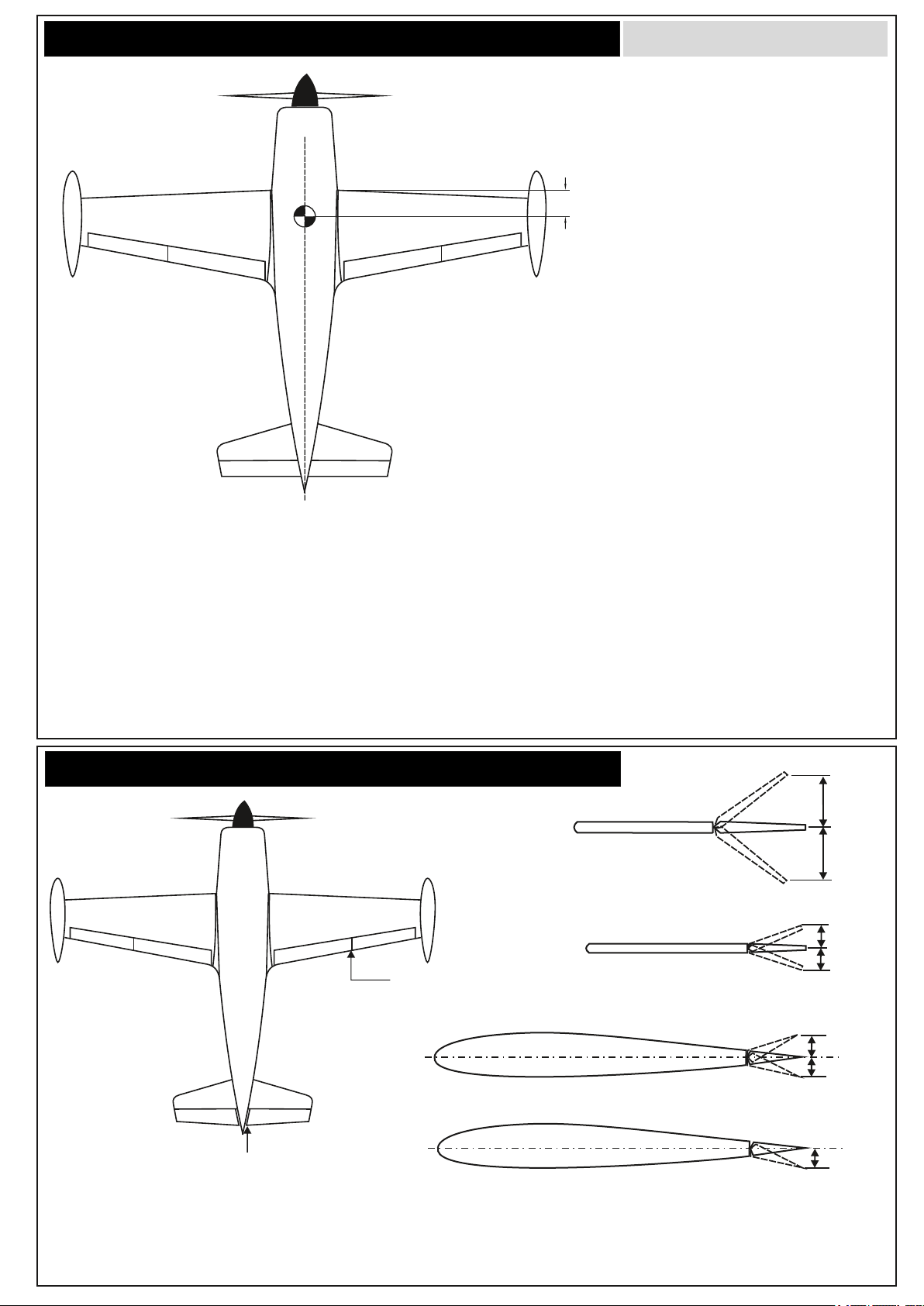

29- Balancing

Siai Marchetti SF-260

THE CENTER OF GRAVITY IS LOCATED BACK FROM

THE LEADING EDGE OF THE WING, AT THE FUSELAGE. BALANCE

THE PLANE UPSIDE DOWN WITH THE FUEL TANK EMPTY.

98mm

1- Mount the wing to the fuselage. Using a couple of pieces of masking tape,

place them on the top side of the wing (98mm) back from the leading

edge, at the fuselage sides.

2- Turn the plane upside down, lift the airplane. Place your fingers on the

masking tape and carefully lift the plane.

3- If the nose of the plane falls, the plane is heavy nose. To correct this, move the battery pack further back in the fuselage.

If the tail of plane falls, the plane is tail heavy. To correct this, move the battery forward or if this is not possible, stick weight onto the

firewall.

When balanced correctly, the airplane should level or slightly nose down when you lift it up with your fingers.

LATERAL BALANCE:

After you have balanced a plane on the CG, you should laterally balance it. Doing this will help the airplane track straighter.

1- Turn the airplane upside down. Attach one loop of heavy string to the engine crankshaft and one to the tail wheel wire.

With the wing level, carefully lift the airplane by the string. This may require two people to make easier.

2- If one side of the wing fall, that side is heavier than the opposite. Add small amounts of lead weight to the bottom side

of the lighter wing half’s wing tip. Follow this procedure until the wing stays level when you lift the airplane.

DO NOT try to fly an out-of-balance model !

30- Control throws

40mm

Position for

right diagram.

RUDDER

ELEVATOR

40mm

20mm

15mm

AILERON

Position for right diagram.

20mm

FLAP

IMPORTANT: Flying your model at these throws will provide you with the greatest chance for successful first flights.

If,after you have become accustomed to the way the Siai Marchetti SF-260 flies, you would like to change the throws to suit your

taste that is fine. However, too much control throw could make the model difficult to control, so remember, “more is not always better”.
