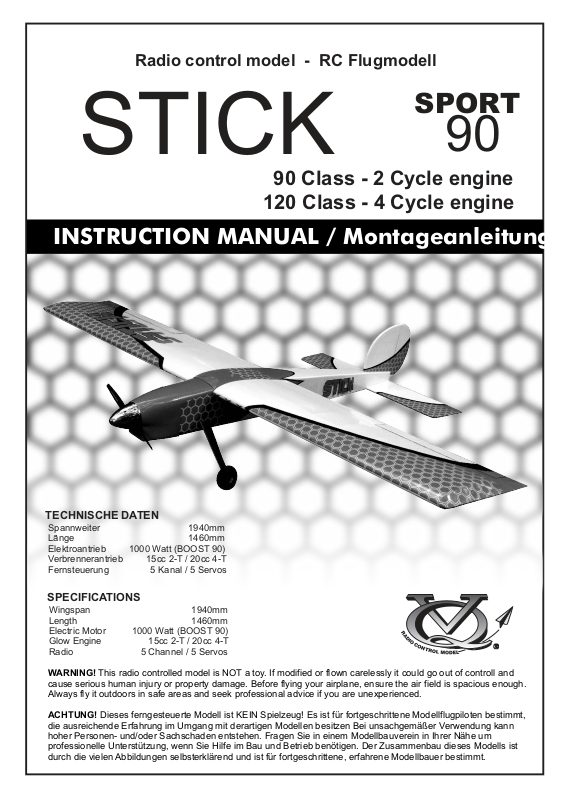

Radio control model - RC Flugmodell
SPORT
STICK
90
90 Class - 2 Cycle engine
120 Class - 4 Cycle engine
INSTRUCTION MANUAL / Montageanleitung
TECHNISCHE DATEN
Spannweiter 1940mm
Lange 1460mm
Elektroantrieb 1000 Watt (BOOST 90)
Verbrennerantrieb 15cc 2-T / 20cc 4-T
Fernsteuerung 5 Kanal / 5 Servos
SPECIFICATIONS
Wingspan 1940mm
Length 1460mm
Electric Motor 1000 Watt (BOOST 90)
Glow Engine 15cc 2-T / 20cc 4-T
Radio 5 Channel / 5 Servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Page 2

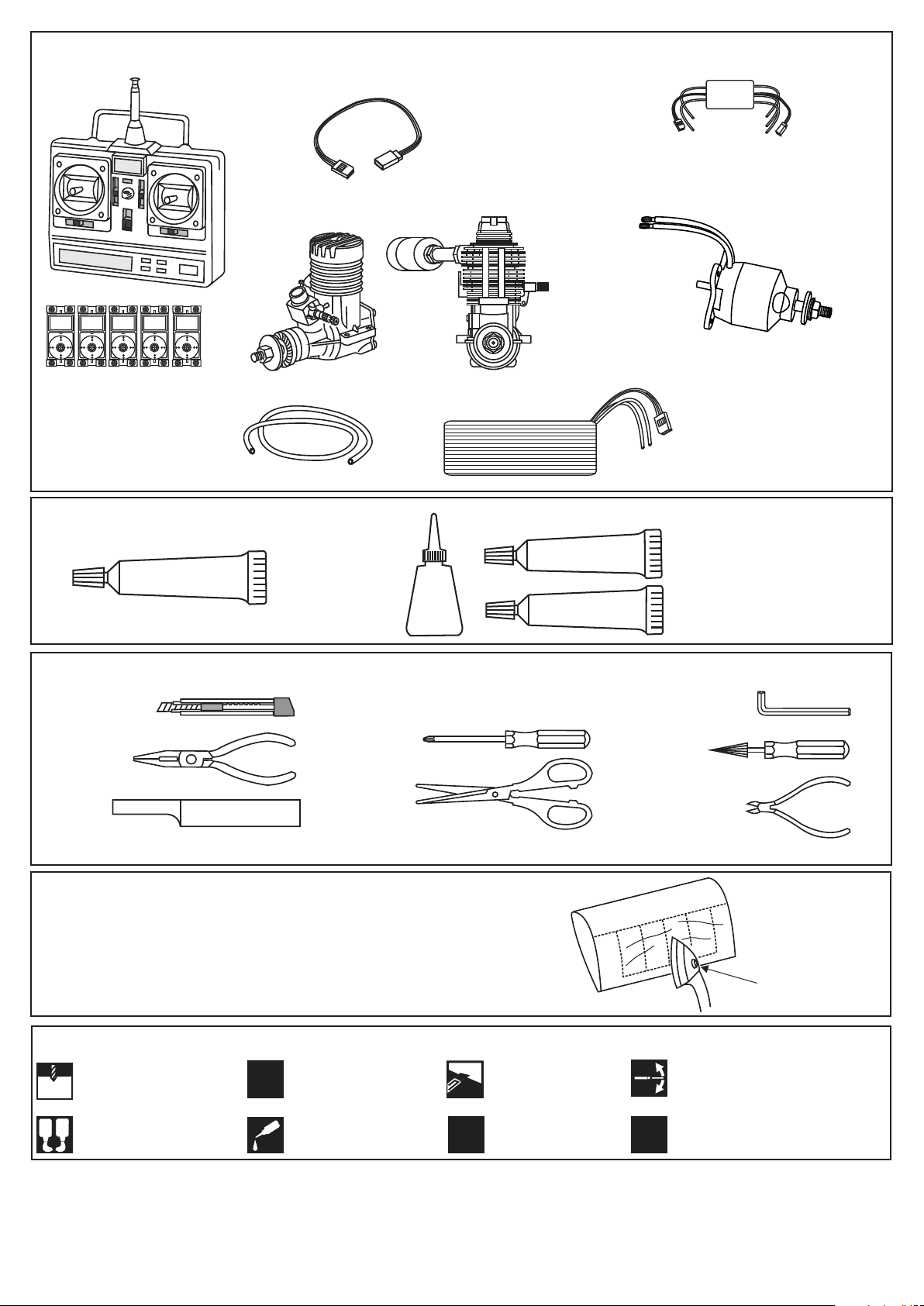

REQUIRED FOR OPERATION (Purchase separately)
Extension for aileron
servo, retract servo.
Minimum 5 channel radio
for airplane with 5 servos
.Motor control x1 .Aileron x2
.Elevator x1 .Rudder x1
.90 - 2 cycle
Silicone tube
.120 - 4 cycle
70A Regler
BOOST 90
Brushless Motor
or equivalent.
Li-Po Battery, 22.2V, 5300mAH
GLUE
TOLLS REQUIRED
Hobby knife
(Purchase separately)
SILICON
Silicon sealer
Cyanoacrylate
Glue
(Purchase separately)
CA
Phillip screw driver
Needle nose Pliers
Scissors
Sander
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Masking tape - Straight Edged Ruler - Pen or pencil - Rubbing alcohol - Drill and Assorted Drill Bits
The pre-covered film on ARF kit may wrinkle due to variations
of temperature. Smooth out as explained right.
* Use an iron or heat gun. Start as low setting. Increase the
setting if necsessary. If it is too high, you may damage the
film
EPOXY A
EPOXY B
Epoxy Glue ( 5 minute type)
Epoxy Glue (30 minute type)
Hex Wrench
Awl
Wire Cutters
Low setting
Symbols used throughout this instruction manual, comprise:
Drill holes using the stated
1.5mm
size of drill
(in this case 1.5 mm Ø)
A
B
Use epoxy glue
Take particular care here
!
Apply cyano glue
CA
Hatched-in areas:
remove covering
film carefully
Assemble left and right
L/R
sides the same way.
Check during assembly that these
parts move freely, without binding
Not included.
These parts must be
X
purchased separately
Read through the manual before you begin, so you will have an overall idea of what to do.
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
10mm = 13/32”
12mm = 15/32”
15mm = 19/32”
20mm = 51/64”
25mm = 1”
30mm = 1-3/16”
45mm = 1-51/64”
Page 3

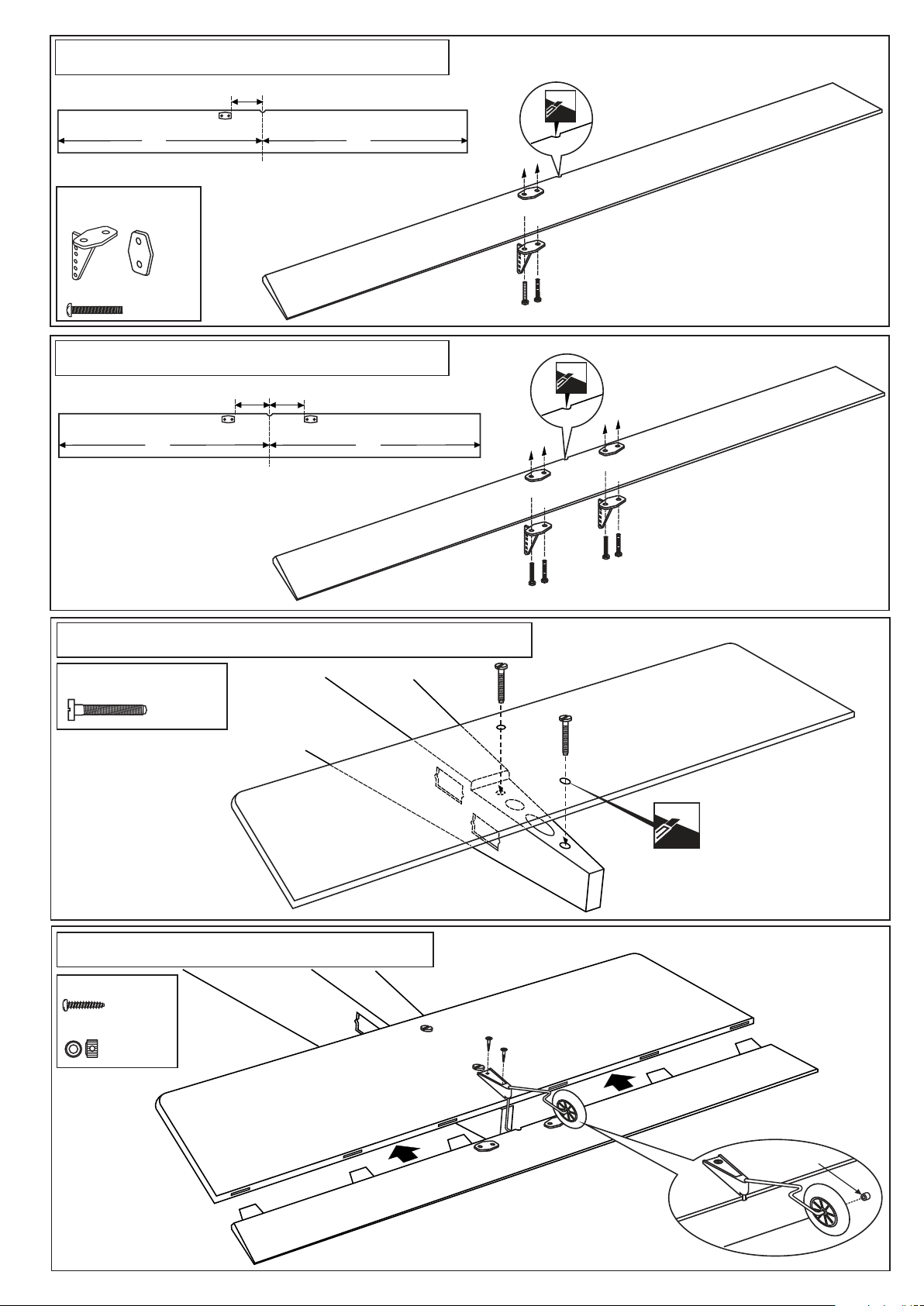

1- CONTROL HORN INSTALLATION
20mm
A
A’
A=A’
Plastic control horn
and back plate
.....2
2x20mm screw
...........4
2- CONTROL HORN INSTALLATION
40mm
40mm
A
A’
A=A’
IN CASE OF ONE ELEVATOR SERVO USING
3- HORIZONTAL STABILIZER INSTALLATION
6x45mm Nylon bolt
..........2
4- TAIL WHEEL INSTALLATION
3X12mm screw
2.7mm collar
.......2
3x12mm screw
.......1
IN CASE OF TWO ELEVATOR SERVO USING
Cut away only the covering
both side.
2.7mm collar
Page 4

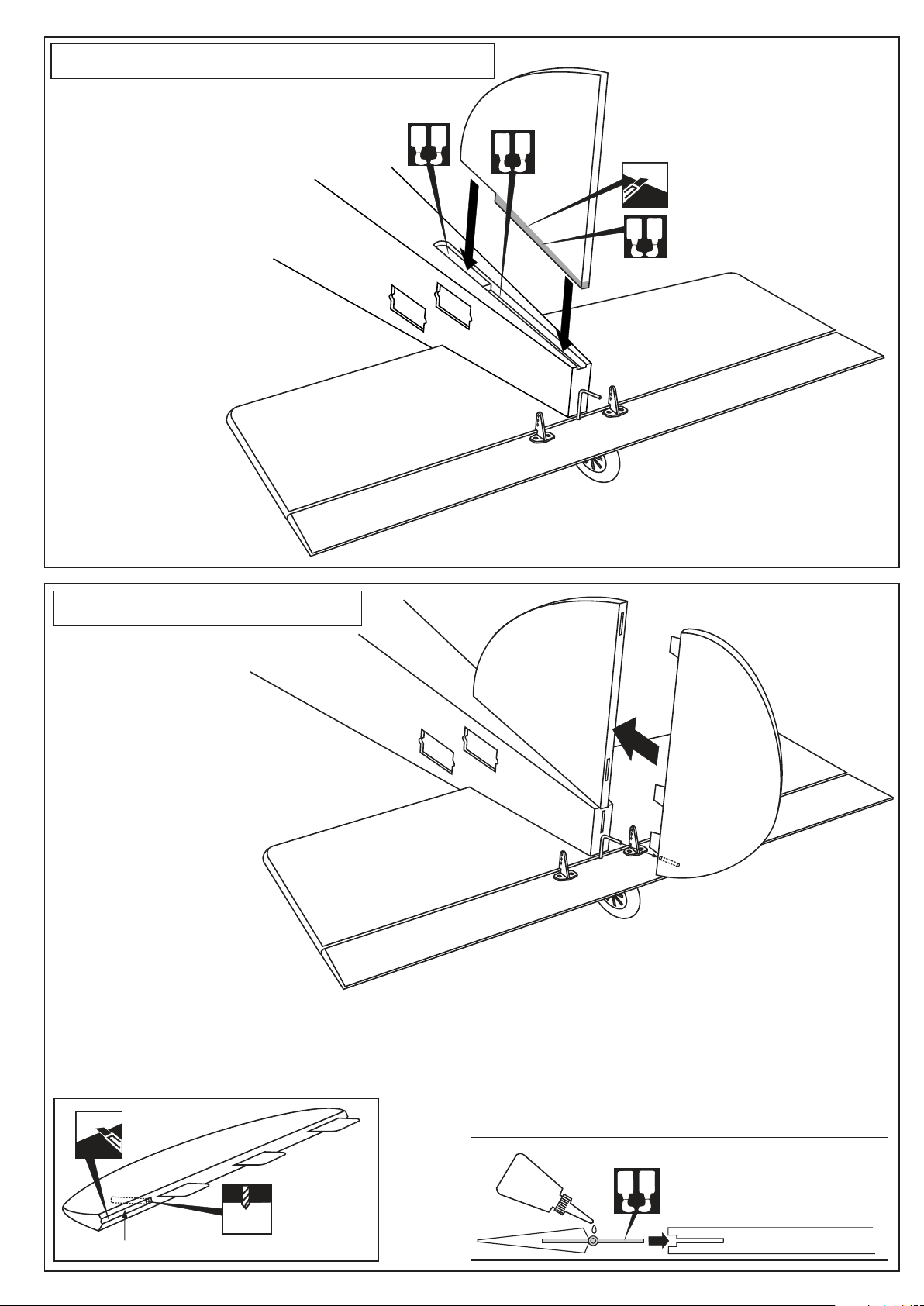

5- VERTICAL STABILIZER INSTALLATION
* WARNING: When removing any covering
from the airframe, please ensure that you
secure the cut edge with CA or similar cement.
This will ensure the covering remain tight.
A
B
A
B
Cut away only the covering
both side.
A
B
6- RUDDER INSTALLATION
Test-fit the hinges of ruder into the slots.
Using a pencil, mark the rudder where the
tail wheel gear meet the rudder.
Cut 1-3/16” (30mm) long slots along the hinge line in the
leading edge of the rudder.
Drill a 3/32”(2.5mm) diameter hole in tail wheel gear mounting
slot, marking sure that you drill the hole perpendicular to the
leading edge of the rudder.
Without using glue yet, push the rudder and its hinges into the hinge
slots in the trailing edge of the vertical stabilizer, marking sure that
the tail wheel gear is firmly seated in the slot in the rudder. There
should be a minimal hinge gap and the end of the rudder should not
rub against the vertical stabilizer.
When satisfied with the fit and alignment, hinge the rudder to the
vertical stabilizer, using 5 minute epoxy. Make sure to apply a thin
layer of epoxy to the right and left of both hinges and to the inside
the tail wheel gear mounting slot.
2.5mm
Tail wheel gear mounting slot
Petroleum jelly
A
B
Apply 5 min. Epoxy both the
right and left.
VERTICAL STAB.
Page 5

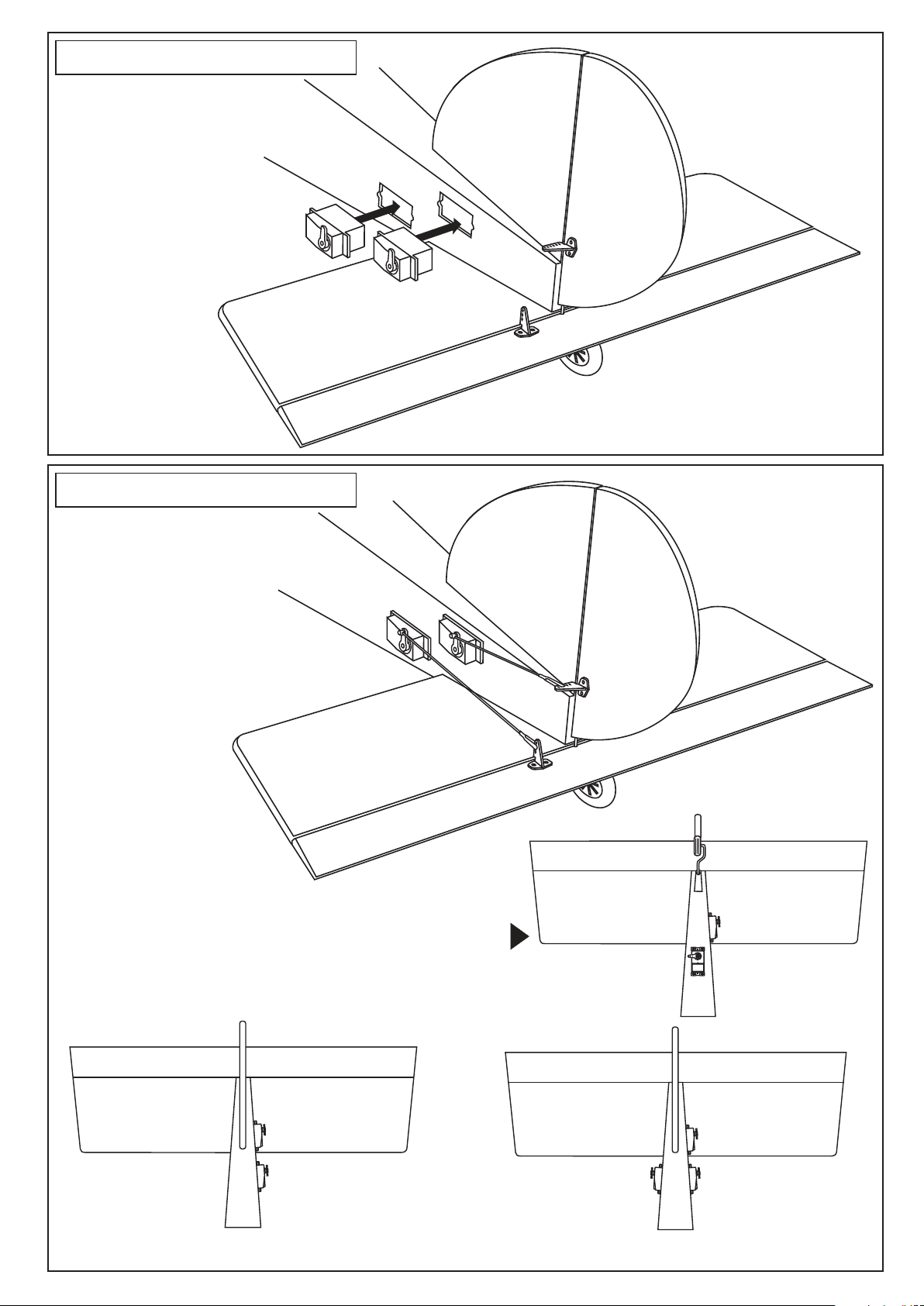

7- SERVO INSTALLATION
Elevator servo
8- LINKAGE
Rudder servo
IN CASE OF ONE RUDDER SERVO AND
ONE ELEVATOR SERVO (ON THE BOTTOM
OF THE FUSELAGE) USING.
RUDDER SERVO
ELEVATOR SERVO
IN CASE OF ONE RUDDER SERVO AND ONE
ELEVATOR SERVO ( ON THE SIDE) USING.
RUDDER SERVO
ELEVATOR SERVO
RUDDER SERVO
ELEVATOR SERVO
ELEVATOR SERVO
IN CASE OF ONE RUDDER SERVO AND TWO
ELEVATOR SERVO ( ON THE LEFT AND RIGHT SIDE) USING.
Page 6

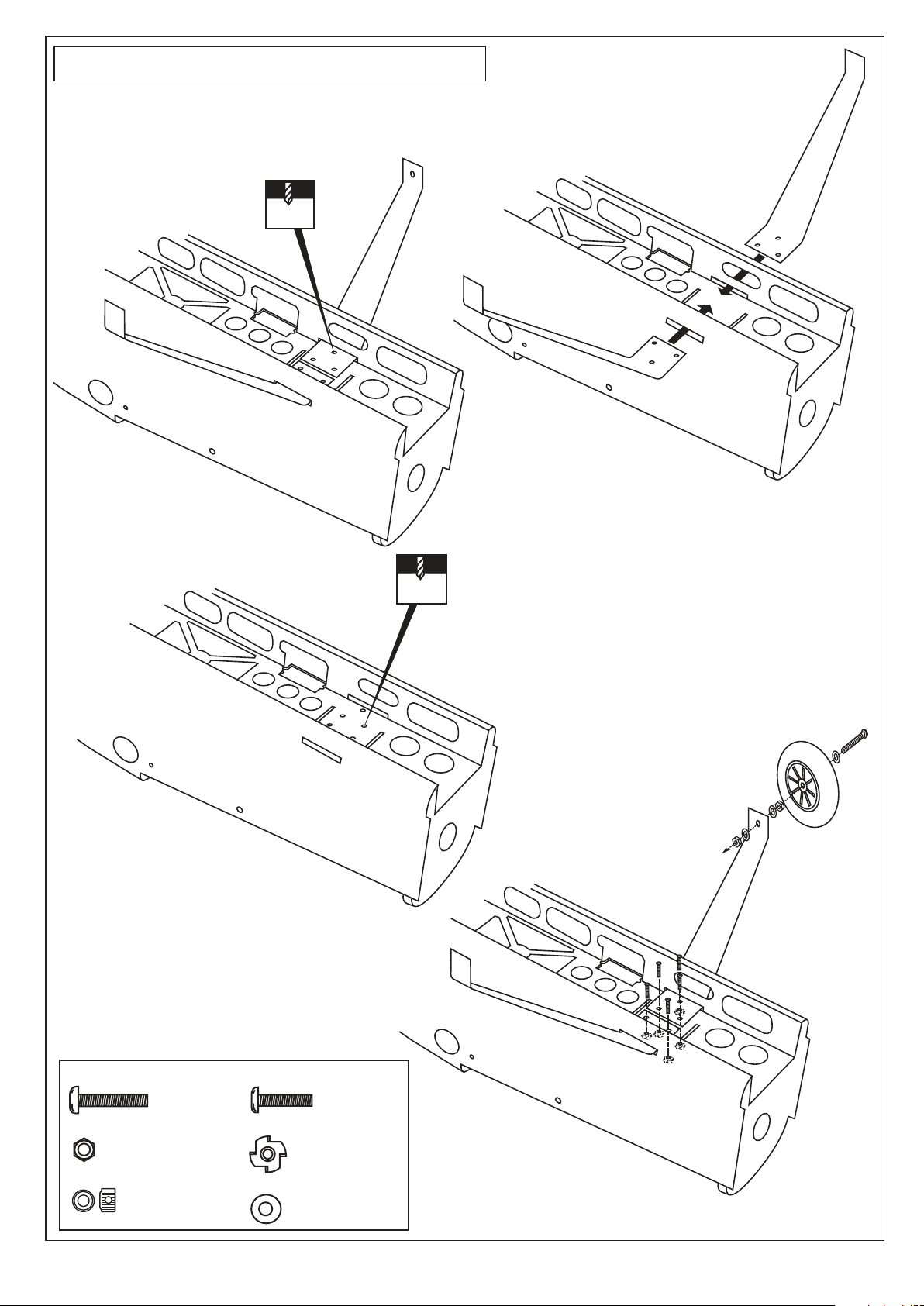

9- MAIN LANDING GEAR INSTALLATION
3mm
1
2
3
6mm
4X40mm screw
............2
4mm nut
.....................4
4.2mm collar
..................2
4x15mm screw
............6
Blind-nut
.....................6
4mm washer
.....................4
4
Page 7

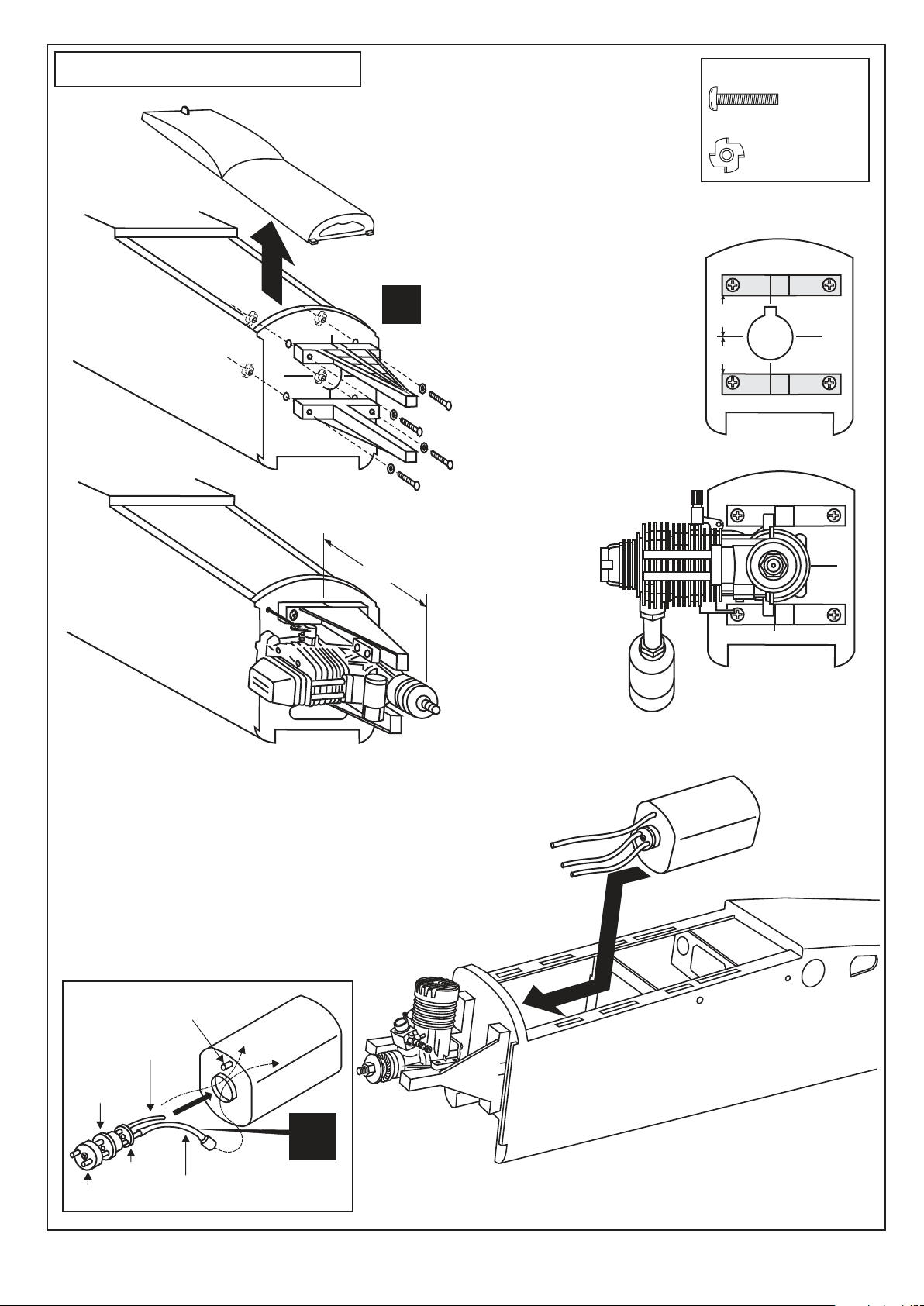

10- ENGINE INSTALLATION
Magnetic hatch
4x25mm screw
............4
Blind-nut
......................4
Align the mark on both
mounts with the center
mark on the fire-wall
!
B=133 - 135mm
B
FRONT VIEW
Align the engine center with fire-wall
marked line (A=A’)
A
A’
Using the four 3x20mm
screws securing the engine
to the engine-mount
Rubber
stopper
Cap
To muffler
Filler tube
Stopper
X
To engine
Page 8

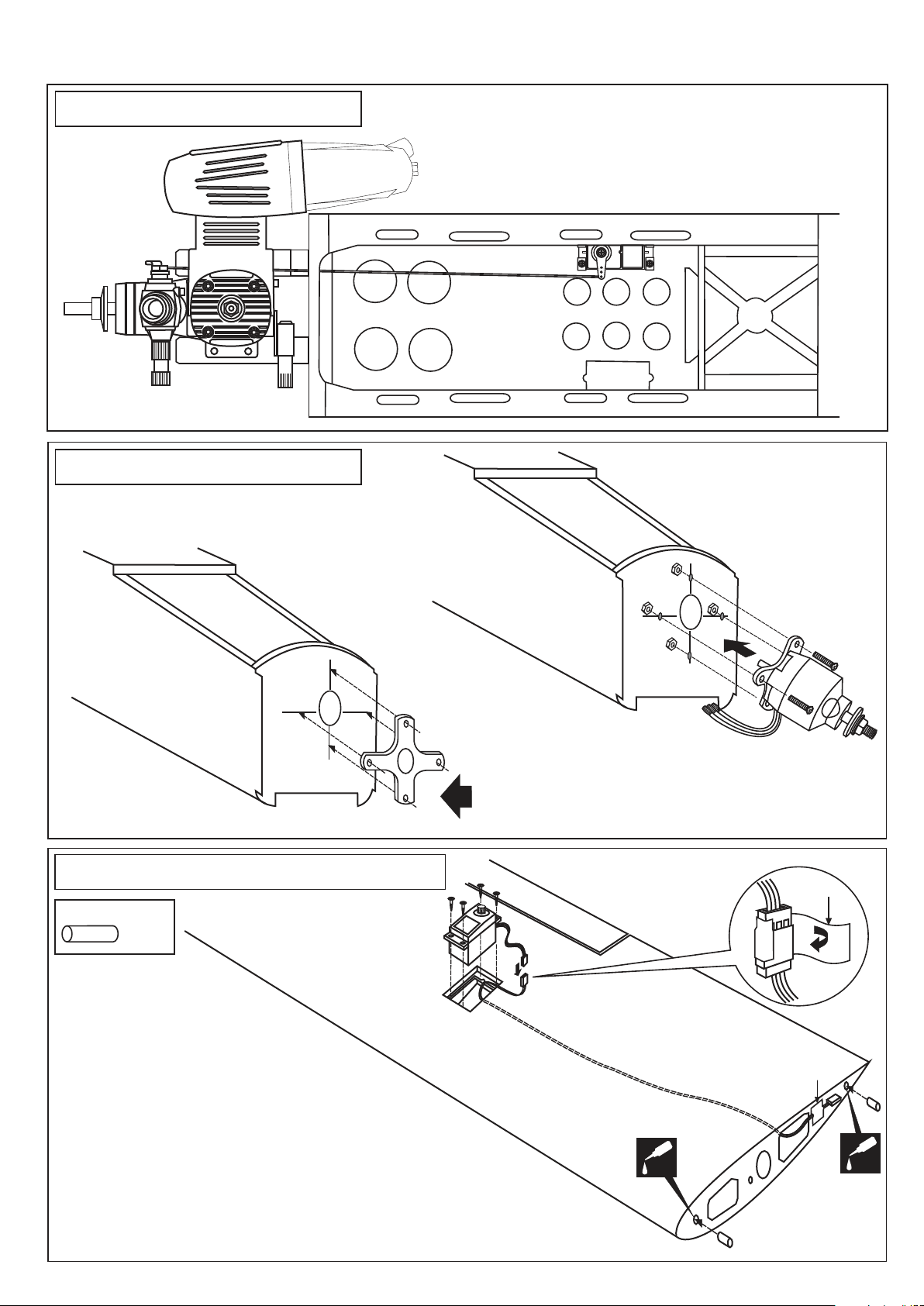

11- THROTTLE SERVO
12- BRUSHLESS MOTOR
13- AILERON SERVO INSTALLATION
7x20mm dowel
.......4
WING BOTTOM-VIEW
Using a aluminum motor mounting plate as a template, mark the
Fire-wall where the four holes are to be drilled .
Remove the aluminum motor mounting plate and drill a 1/8”(3mm)
hole through the fire-wall at each of the four marks marked .
Note: The aluminum motor mounting included with electric motor set.
Adhesive
tape
Adhesive tape
CA
CA
7x20mm dowel
Page 9
14- ALUMINUM TUBE INSTALLATION

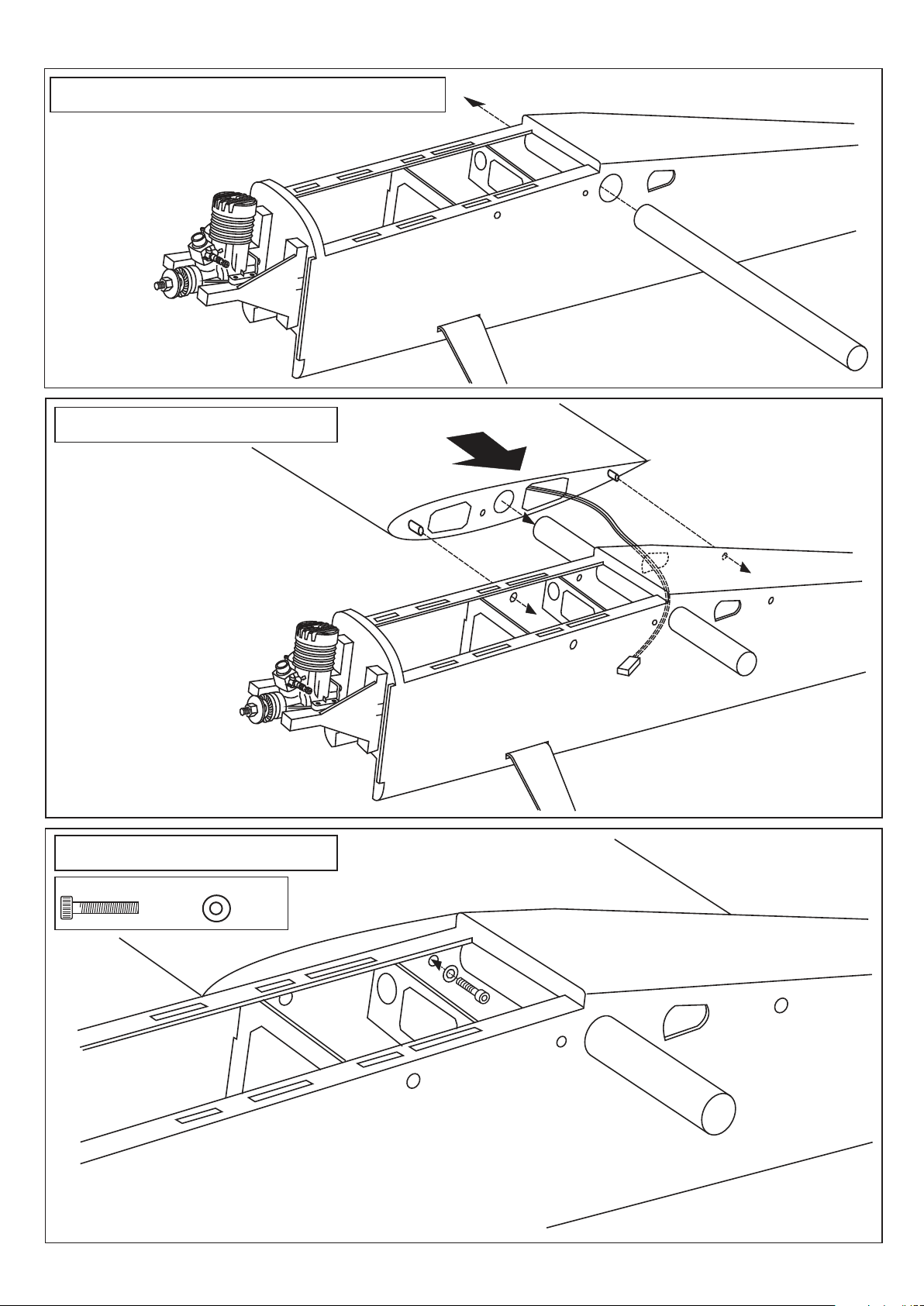

15- WING INSTALLATION
16- WING INSTALLATION
5x20mm screw 5mm washer
....2
....2
Page 10

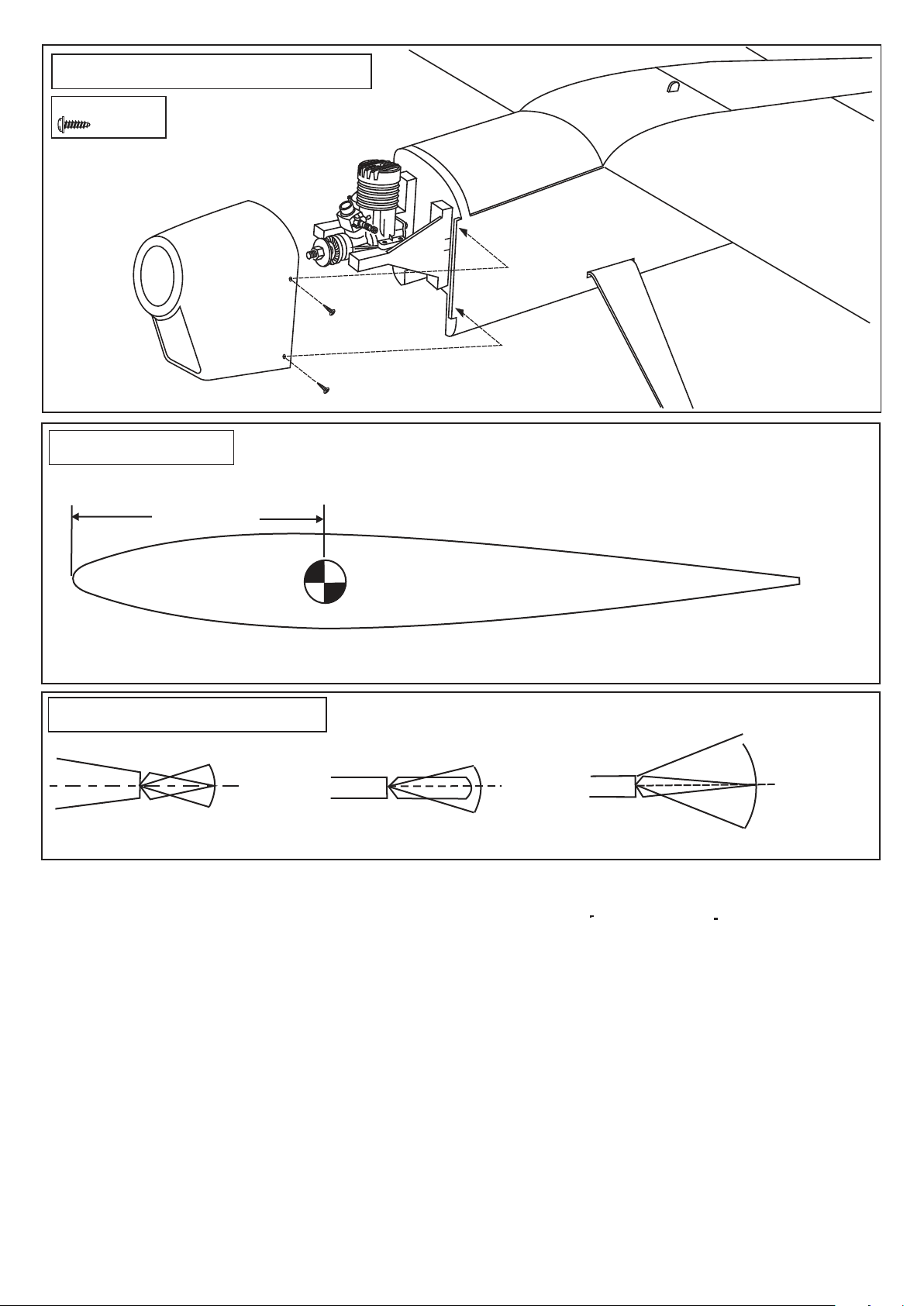

17- COWLING INSTALLATION
2.5x10mm screw
........4
18- BALANCE
99 ~ 106mm
The recommended C.G (Center of Gravity) location for the Stick is 89 ~ 91mm
Adjust the location of the battery pack as required to achieve this C.G location.
If necessary , add weight to either the tail or nose until the correct balance is achieve.
CG
WARNING ! Securely install the receiver and power pack, ensuring they will not come loose or rattle
during flight. Never fly before checking the Cg’s required position.
20- CONTROL SURFACE
51/64”(20mm)
51/64”(20mm)
RUDDER STROKE
Technische Anderungen und Irrtumer vorbehalten !
AILERON STROKE
WARNING:
Please do not clean your model with pure alcohol or strong solvent, only use liquid soap with water or use glass cleaner
to clean on surface of your model to keep the colour not fade.
All details are subject to change without notice !
19/32”(15mm)
19/32”(15mm)
ELEVATOR STROKE
1-3/16””(30mm)
1-3/16””(30mm)
