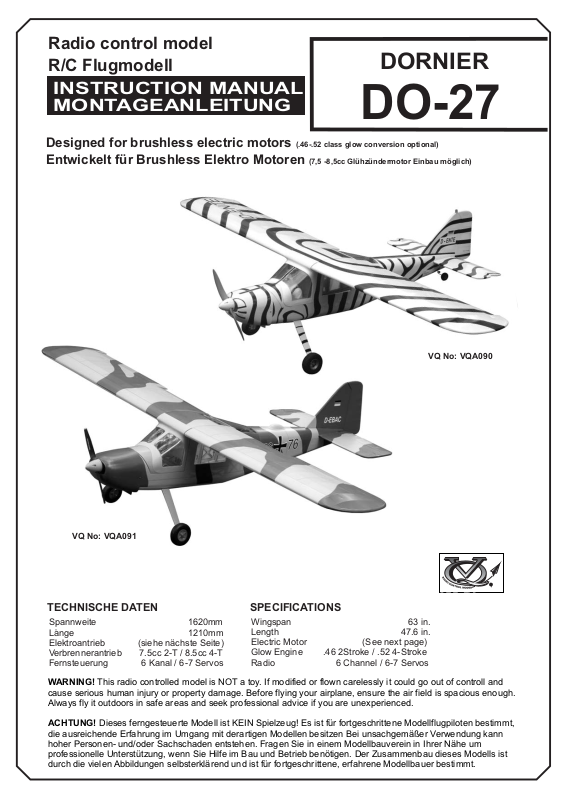

VQ Model Dornier Do-27 Heer User guide

Radio control model R/C Flugmodell

INSTRUCTION MANUAL MONTAGEANLEITUNG

Designed for brushless electric motors Entwickelt für Brushless Elektro Motoren

(.46-.52 class glow conversion optional)

DORNIER

DO-27

(7,5 -8,5cc Glühzündermotor Einbau möglich)

VQ No: VQA091

TECHNISCHE DATEN

Spannweite 1620mm Lange 1210mm Elektroantrieb (siehe nächste Seite) Verbrennerantrieb 7.5cc 2-T / 8.5cc 4-T Fernsteuerung 6 Kanal / 6-7 Servos

VQ No: VQA090

PICHLER

ARF BY

SPECIFICATIONS

Wingspan 63 in. Length 47.6 in. Electric Motor (See next page) Glow Engine .46 2Stroke / .52 4-Stroke Radio 6 Channel / 6-7 Servos

WARNING!

cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough. Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

ACHTUNG!

die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and

Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,

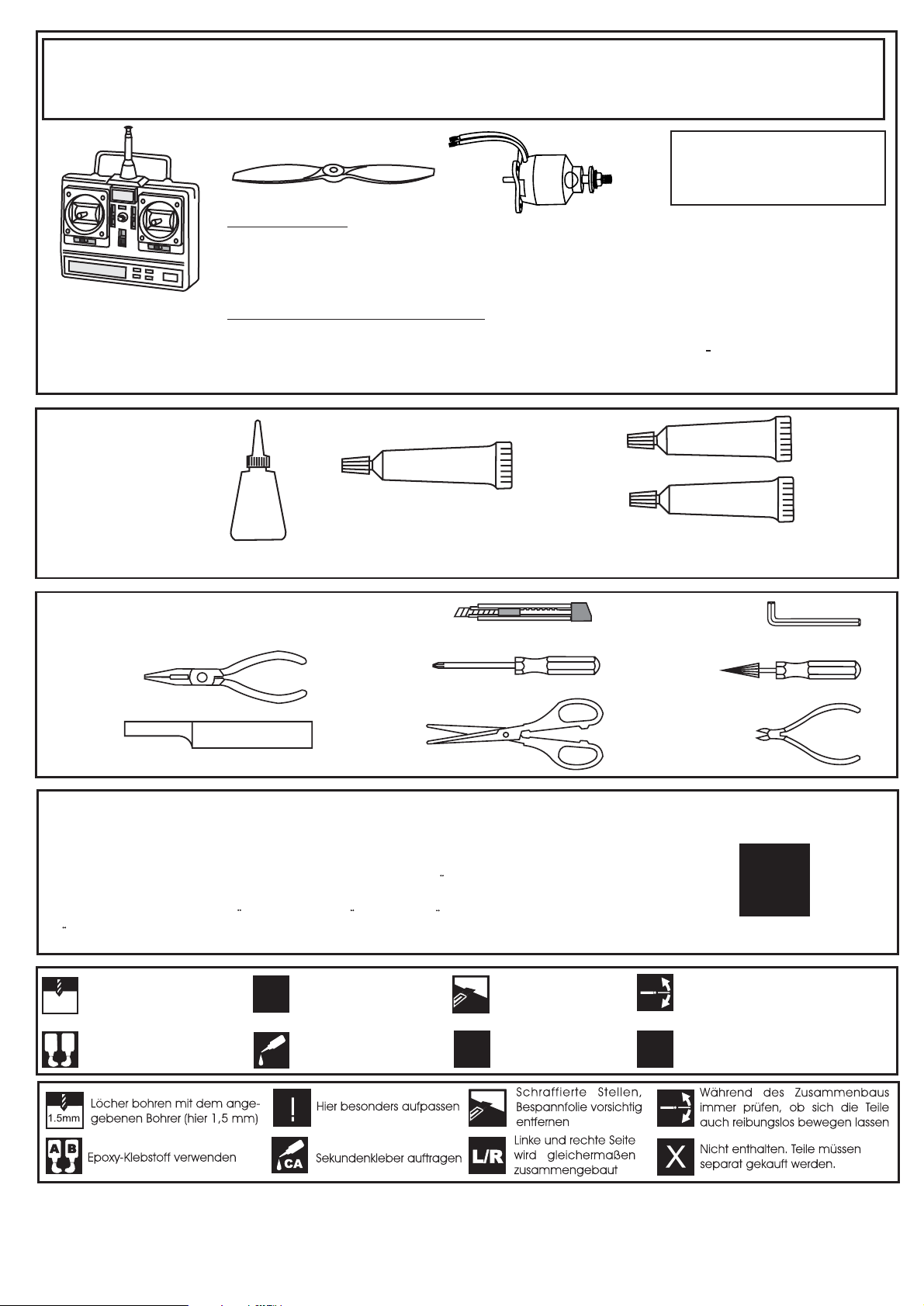

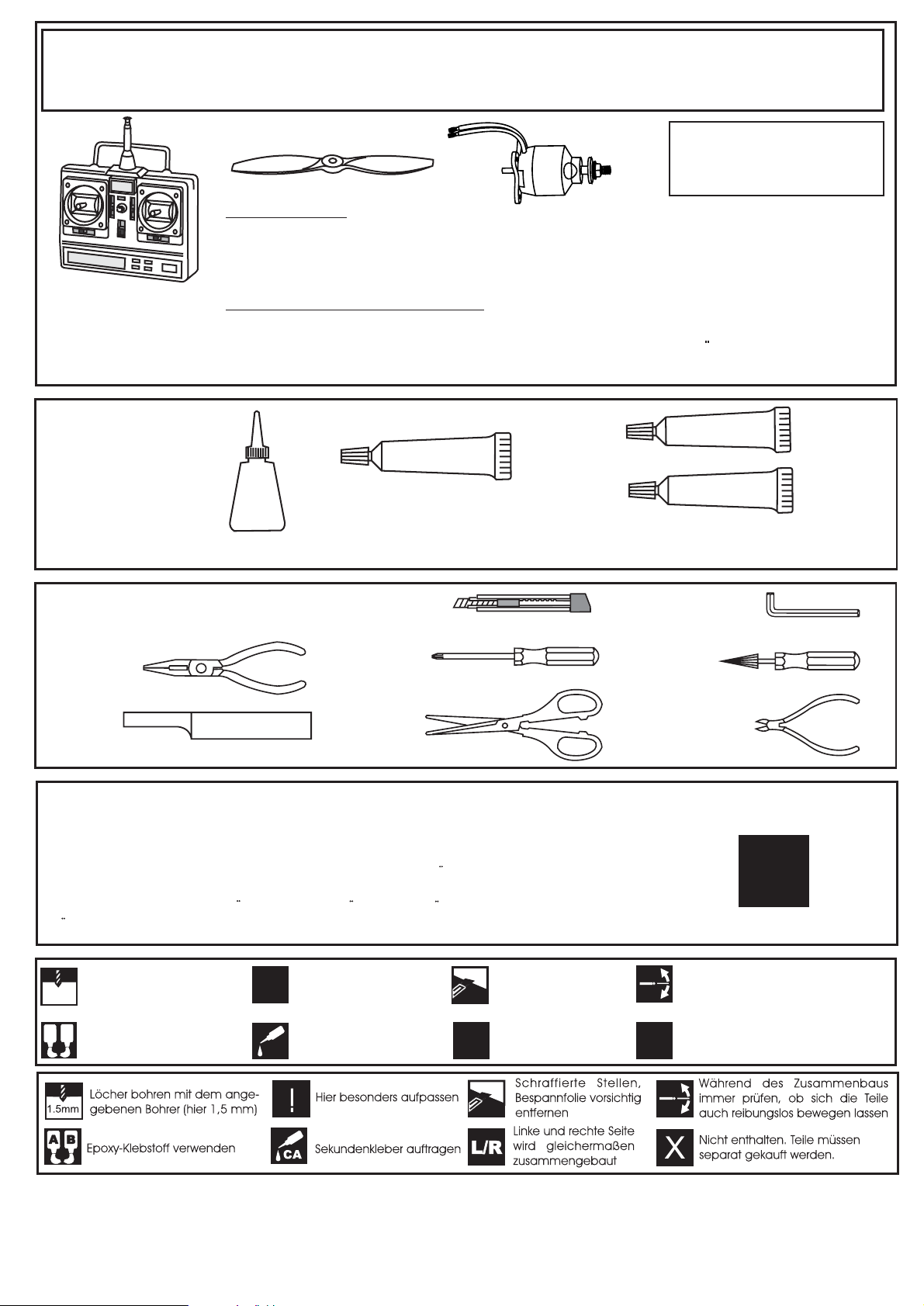

RECOMMENDED ACCESSORIES (Purchase separately) Empfohlenes Zubehör (Nicht im Lieferumfang enthalten)

Egänzungskit Verbrenner

(Tank + Motorträger) Best.Nr. C4165

Antrieb Standard: BOOST 40 Brushless Combo Set, Best.Nr. C2983 LiPo Battery RED POWER 3200-3S, Best.Nr. C3164 Luftschraube 12*6, Best.Nr. C1937

6 - channel radio 6 - Kanal

Fernsteuerung

Antrieb Tuning (Kraftvoller Kunstflug): BOOST 60 Brushless Combo Set, Best.Nr. C3174 LiPO Akku RED POWER 4250-5S, Best.Nr. C4547 Luftschraube 13*8, Best.Nr. C2846

Cyanoacrylate Glue

CA

Sekundenkleber

Tool Required/ Empfohlenes Werkzeug

SILICON

Silicon Glue Silikonkleber

1 x Servo S4020

(für Seitenruder) Best.Nr. C1687

3 x Servo S4020

(für Höhen- und Querruder) Best.Nr. C4995

2 X Servo DS3012

(Fur Landeklappen)

# C4995

EPOXY A

EPOXY B

Epoxy Glue (30 minutes type) Epoxy-Klebstoff (30min)

.........................................................

The pre-covered film on ARF kit may wrinkle due to variations of temperature. Store model in a cool and dry place for awile. Then, staring with low heat, you may carefully use a hair dryer to smooth out wrinkels.

Die Bespannung des Modells kann durch Temeratureinflusse erschlaffen oder Falten werfen z.b bei zu starker Sonnenenstrahlung oder Hitze. Stellen Sie das Modell zunachst an einen kuhlen Platz fur eine bestimmte Zeit. Danach konnen Sie versuchen die restlichen Falten vorstichtig mit einem Haartrockner zu behandeln.

Drill holes using the stated

1.5mm

size of drill (in this case 1.5 mm Ø)

A

B

Use epoxy glue

Take particular care here

!

Apply cyano glue

CA

Hatched-in areas:

remove covering

film carefully

Assemble left and right

L/R

sides the same way.

X

!

Check during assembly that these

parts move freely, without binding

Not included. These parts must be

purchased separately

CONVERSION TABLE

1.0mm = 3/64”

1.5mm = 1/16”

2.0mm = 5/64”

2.5mm = 3/32”

3.0mm = 1/8”

4.0mm = 5/32”

5.0mm = 13/64”

6.0mm = 15/64”

10mm = 13/32” 12mm = 15/32” 15mm = 19/32” 20mm = 51/64”

25mm = 1” 30mm = 1-3/16” 45mm = 1-51/64”

1

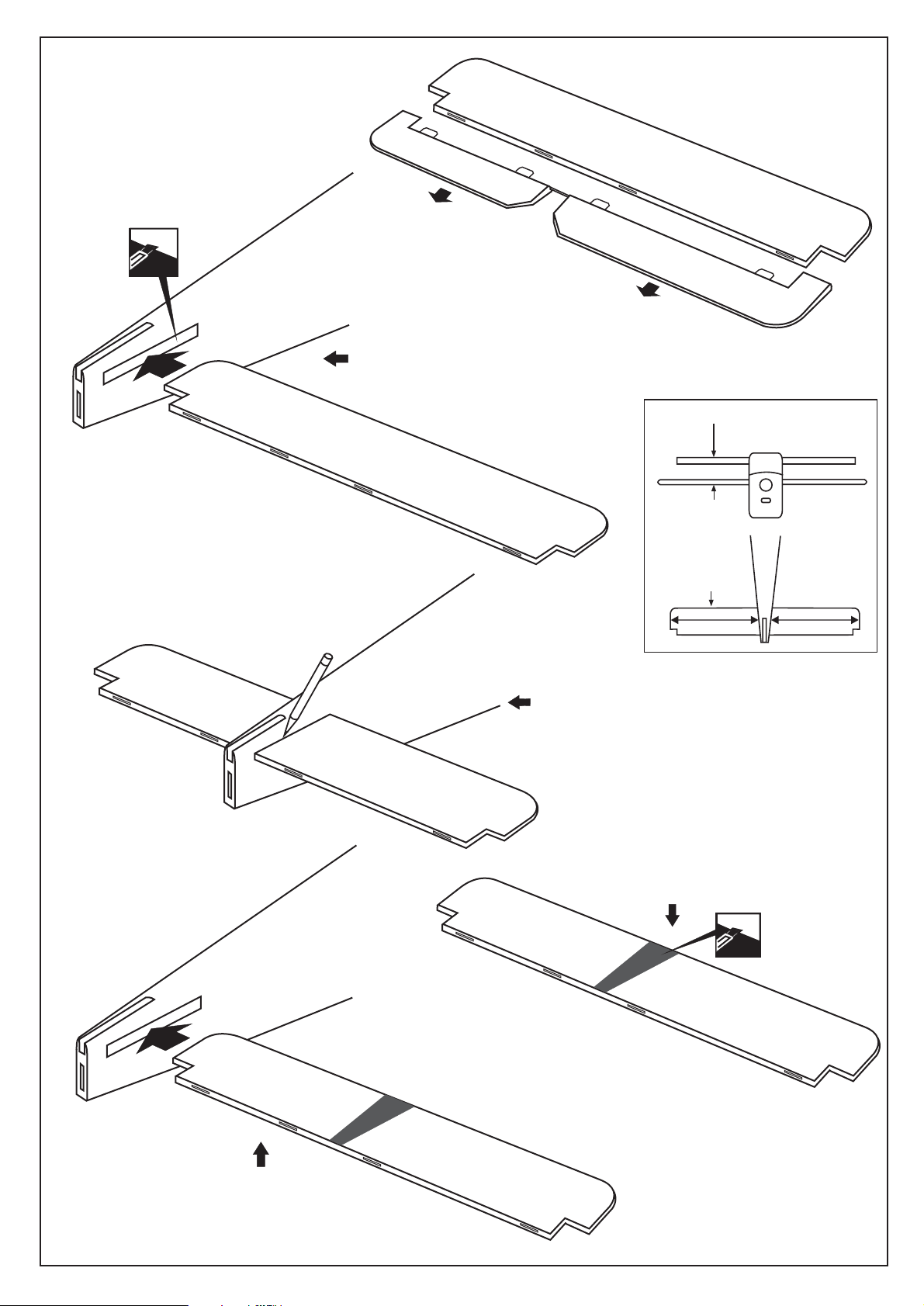

1A

Cut away only the film both side

Full the elevator out of the horizontal stabilizer.

1B

Aluminum wing joiner

B=B’

1C

B

Stabilizer

FUSELAGE

Stabilizer

A

When you are satisfied with the alignment, use a pencil to trace around the top and bottom of the stabilizer where it meets the fuselage.

Remove the horizontal stabilizer from the

1D

fuselage. Using the sharp hobby knife, carefully cut away the covering inside the lines which were marked above.

* WARNING: When removing any covering from the airframe, please ensure that you secure the cut edge with CA or similar cement. This will ensure the covering remain tight.

Cut away only the covering both side

B’

A=A’

A’

1E

Again, Install the horizontal stabilizer into the fuselage and adust the alignment as described in steep 1C. Secure the horizontal stabilizer in place using CA glue.

1F

Thin CA glue

CA

WARNING! Securely glue together. If coming off during flights, you lose control of your airplane which leads to accidents !

Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Probleme mit der Flugeigenschaft auftreten!

Thin CA glue

Apply thin CA to both side of the hinge

CA

Hinge

CA

Elevator connector

CA

STABILIZER

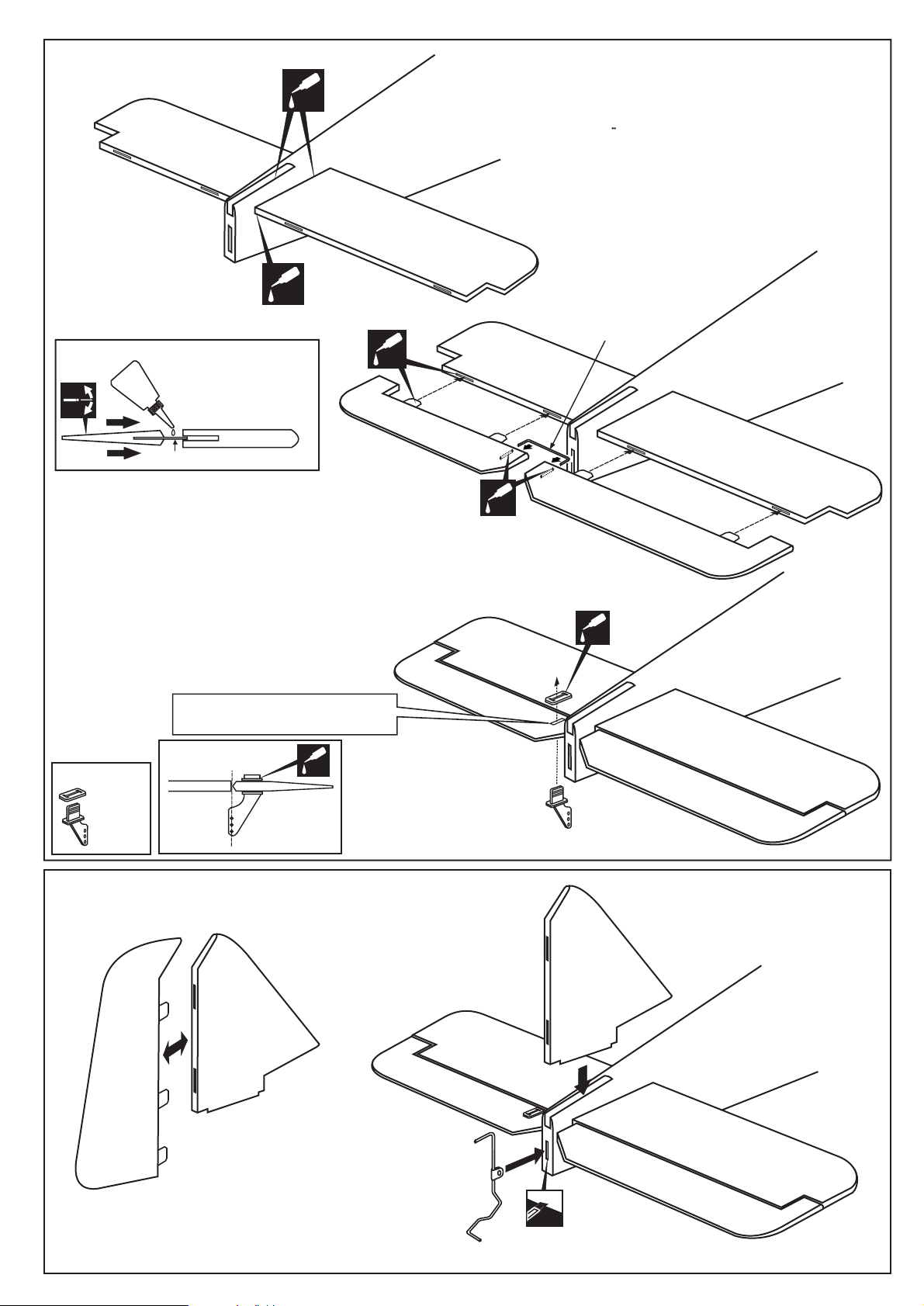

1G

First, reposition the elevator connector in place, secure it in place using thin CA glue.

Push the elevator and its hinges into the hinge slots in the trailing edge of the horizontal stabilizer. There should be a minimal hinge gap. When satisfied with the and alignment, hinge the elevator to the horizontal stabilizer using CA glue.

1H

Note: The slots for the control horn installation are pre- cut at factory.

CA

Control horn

...........2

2

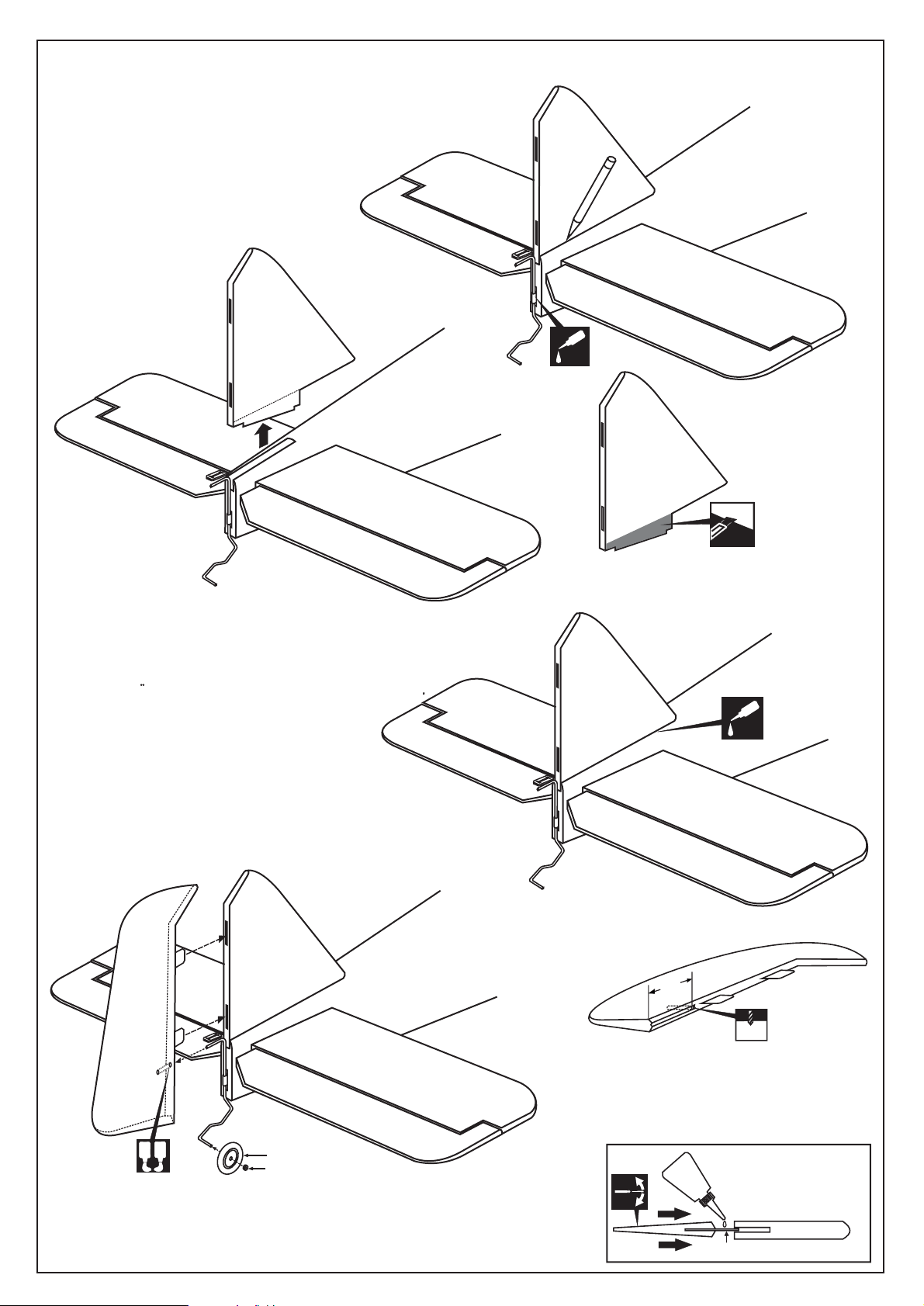

2A

Full the rudder out of the vertical stabilizer.

CA

2B

2C

When you are satisfied with the alignment, use a pencil to trace around the right and left of the stabilizer where it meets the fuselage.

CA

2D

WARNING! Securely glue together. If coming off during flights, you lose control of your airplane which leads to accidents !

Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Probleme mit der Flugeigenschaft auftreten!

Realign the vertical stabilizer, then glue the vertical stabilizer into the fuselage, using a generous amount of thin CA.

2F

2E

A=38mm

Cut away only the covering both side

Thin CA glue

CA

A

B

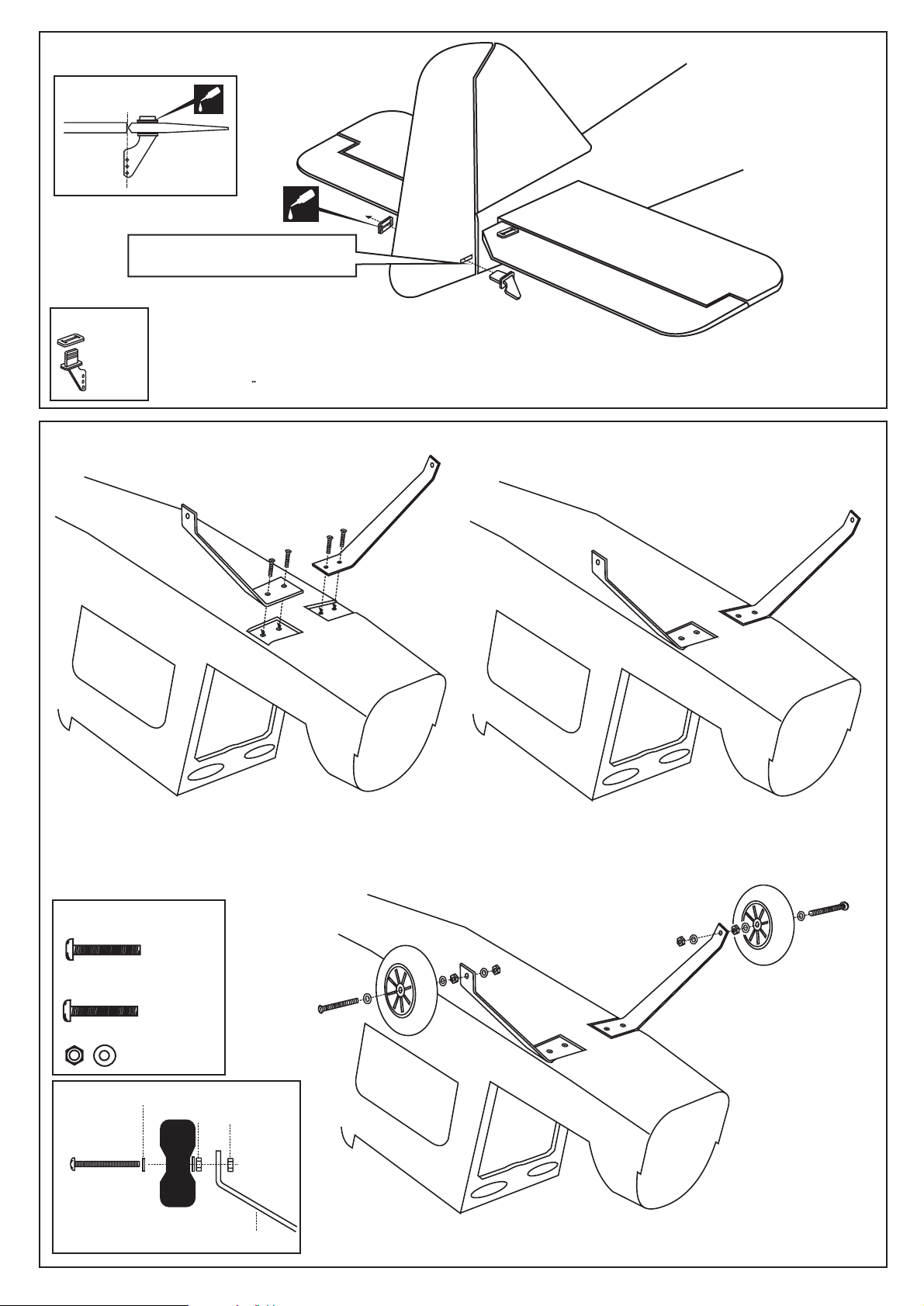

2H

Push the rudder and its hinges into the hinge slots in the trailing edge of the horizontal stabilizer. There should be a minimal hinge gap. When satisfied with the and alignment, hinge the elevator to the horizontal stabilizer using CA glue.

25mm tail wheel

2mm collar

A

2G

2mm

Drill a 2mm diameter hole in torque rod mounting slot, marking sure that you drill the hole perpendicular to the leading edge of the rudder.

Apply thin CA to both side of the hinge

CA

Hinge

STABILIZER

CA

Note: The slots for the control horn installation pre- cut at factory.

Control horn

...........1

3

WARNING! Securely glue together. If coming off during flights, you lose control of your airplane which leads to accidents !

Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Probleme mit der Flugeigenschaft auftreten!

2G

4X20mm screw

............4

4X30mm screw

............2

4mm nut-washer

4mm washer

4x30mm screw

3A

4mm nut

Aluminum landing gear

3B

3C

4C

5

5A

5B

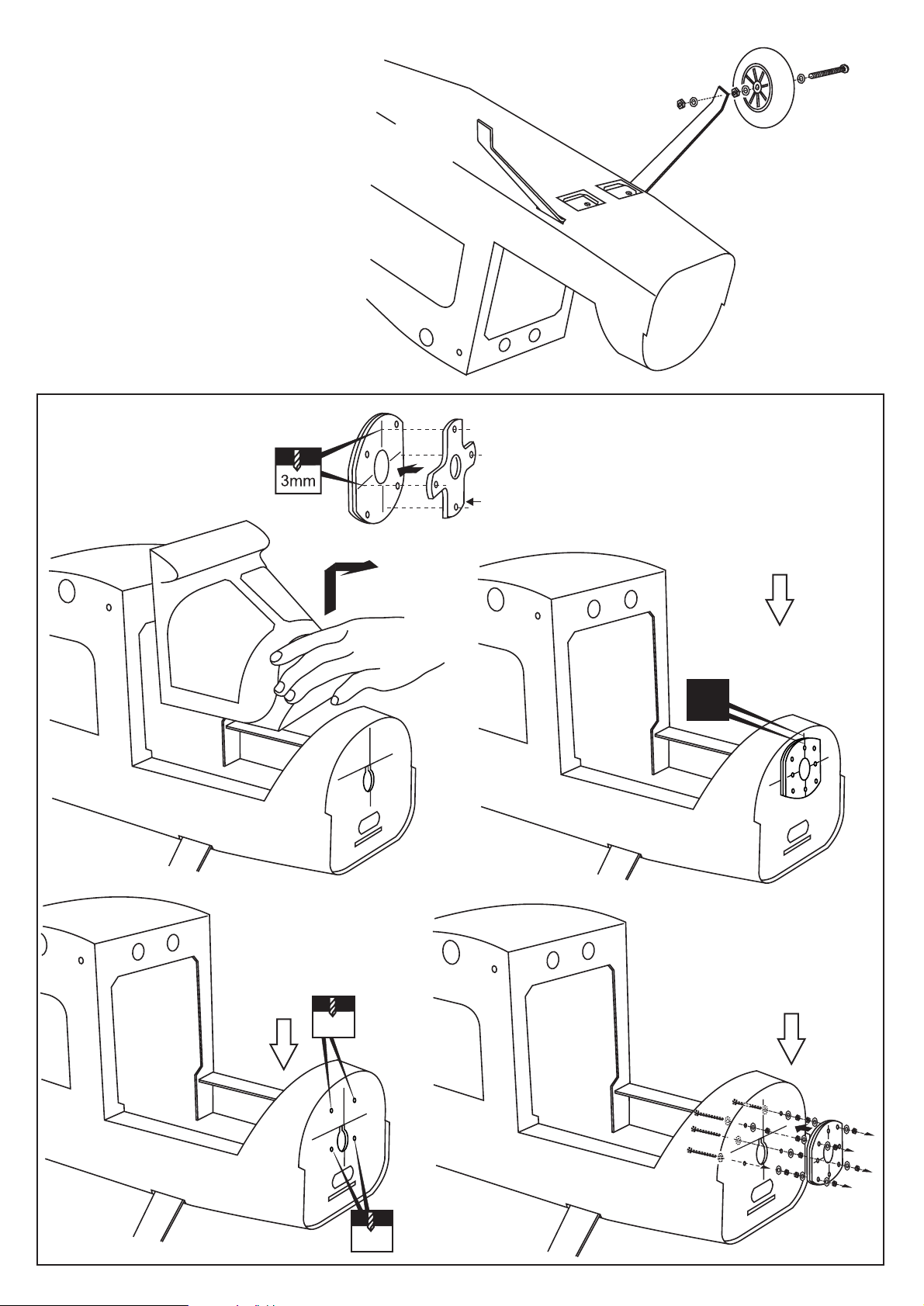

Pull the magnetic battery hatch out of the fuselage

Plywood motor mounting

B

A

Using a aluminum motor mounting plate as a template, mark the plywood motor mounting plate where the four holes are to be drilled (A). Remove the aluminum motor mounting plate and drill a 3mm hole through the plywood at each of the four marks marked (B).

Aluminum motor mounting plate (included with electric motor set)

Using a plywood motor mounting plate as a template, mark the firewall where the four holes are to be drilled (C) .

5C

! Align the mark on plywood motor mounting with the center mark on the fire-wall

C

!

Remove the plywood motor mounting plate and drill a 5mm hole through the fire-wall at each of the four marks marked above (D).

5D

13/64”

5mm

13/64”

5mm

Push the four 5x35mm bolts through the fire-wall as shown (E)

Reposition the plywood motor mounting plate and secure it in place with twelve 5xmm nuts and washers (E).

5E

E

SIDE-VIEW / Seitenansicht

B

5F

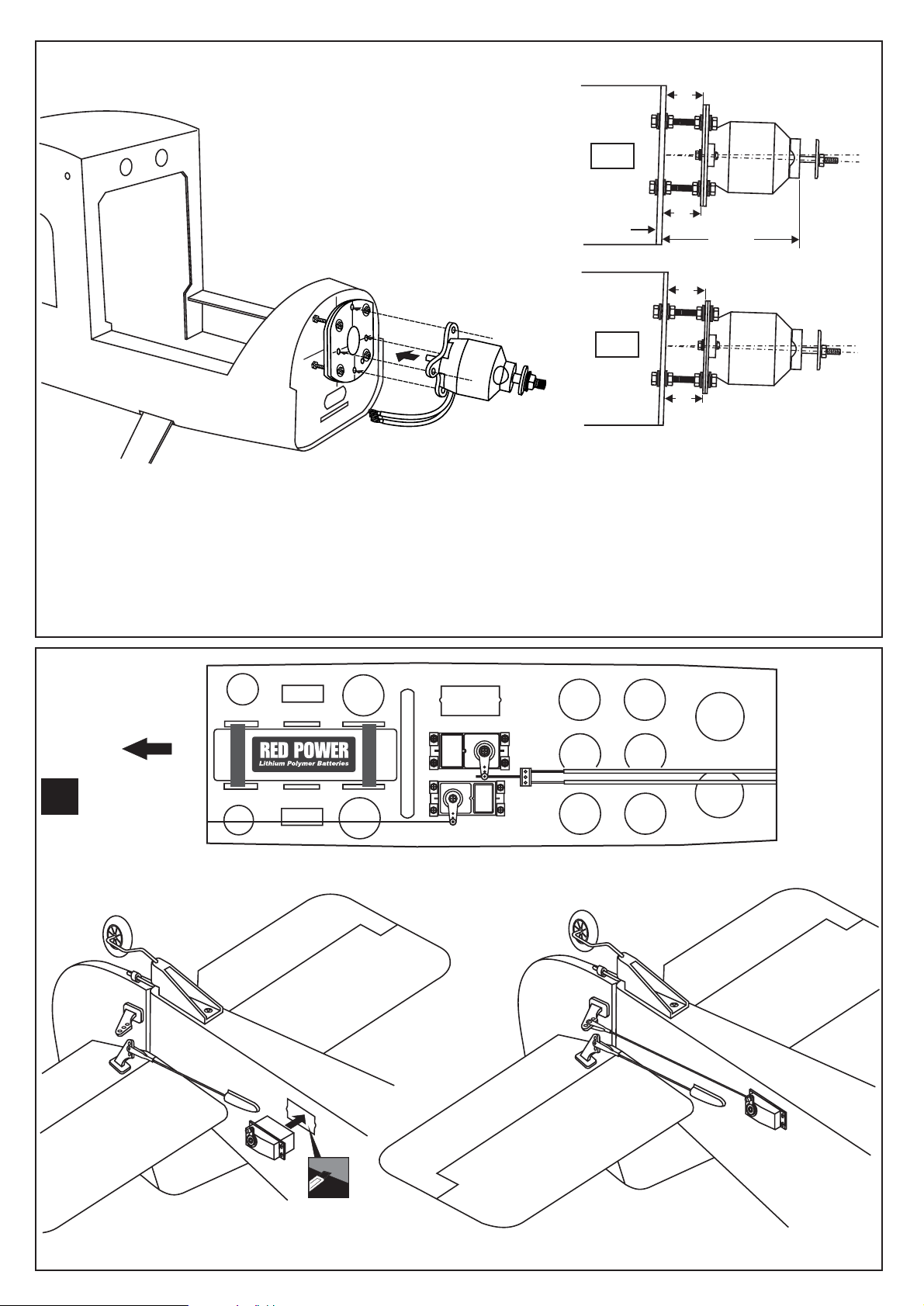

Attach the aluminum motor mounting plate on to the motor and secure it in place with four screws ( included with motor set) (F).

F

Sperrholztrager Platten zusammenkleben, wie gezeigt ausrichten und Locher bohren. Motor nach untenstehendem Schema einbauen. Fur optimale Leistung empfehlen wir folgende Komponenten:

-Brushless-Motor PICHLER BOOST 60

-Brushless Regler PICHLER XQ-70

-LiPO Akku LEMONRC 3700-5S

-Luftschraube 12*6 - 13*8

B=B’

Firewall

A=A’

For maximum performance, we recommended the following:

-Brushless-Motor PICHLER BOOST 60

-Brushless Regler PICHLER XQ-70

-LiPO Battery LEMONRC 3700-5S

-Propeller 12*6 - 13*8

B’

113mm

A

A’

! Engine thrust on balk head

is already adjust at factory

Sturz und Zug beachten!

TOP-VIEW / Draufsicht

6

FRONT

Tipp

X

Battery seat bell

Akku Kiettband aus dem PICHLER

Sortiment Best.Nr. C4739

Elevator servo

Elevator pushrod

Throttle servo

Throttle pushrod

BOARD - TOP VIEW

6B 6C

6A

Rudder servo (mini servo)

FUSELAGE - BOTTOM VIEW

The holes for the rudder servo are Pre-cut at factory (left and right side of the fuselage).

Cut away only the covering

FUSELAGE - BOTTOM VIEW

7

1/16

1.5mm

2mm

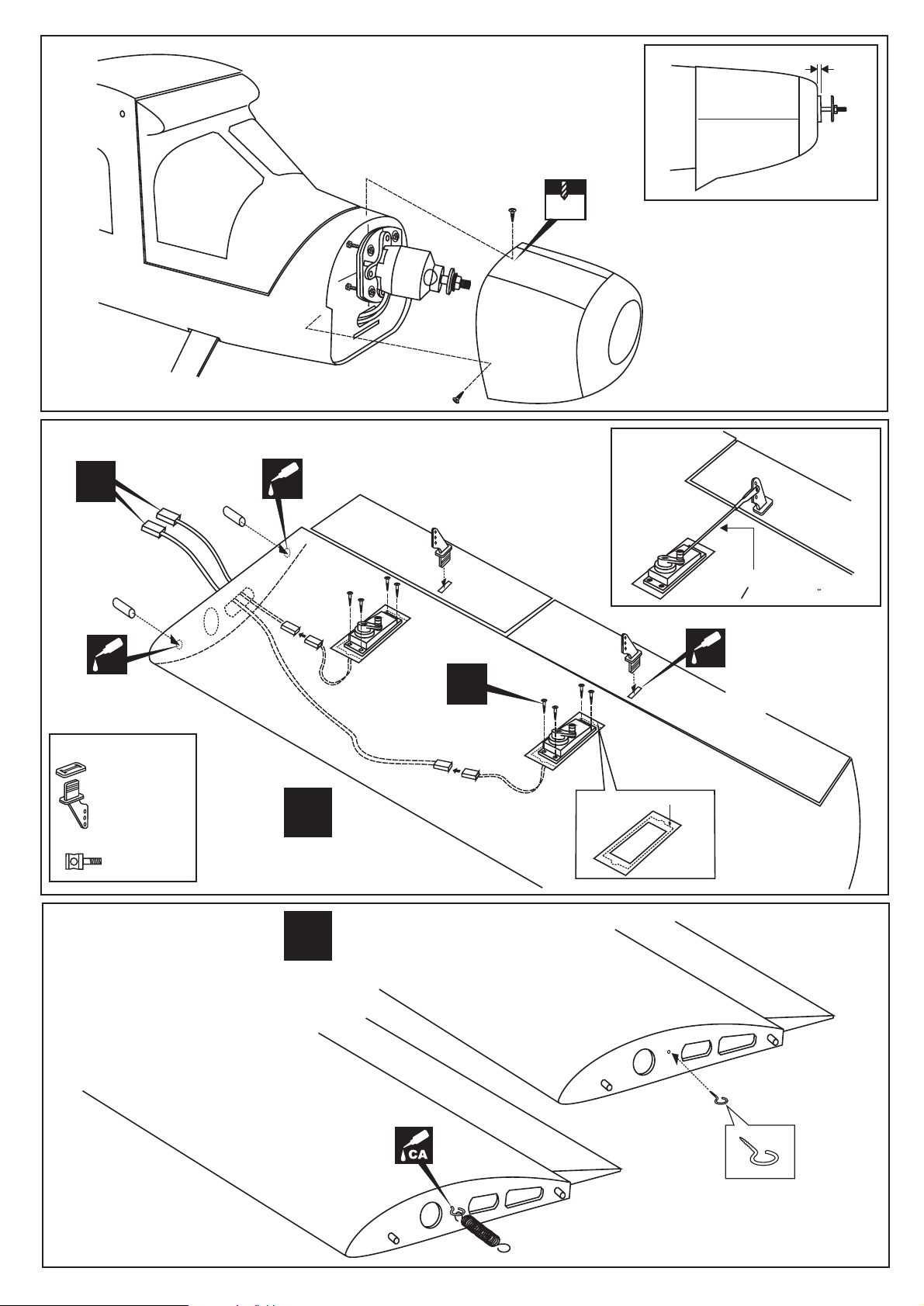

8

Plastic control horn

Linkage Stopper set

Aileron & flap extension cord

X

CA

.....................4

.................4

CA

L/R

Do the same way with other wing half

BOTTOM - VIEW / Unteransicht

X

1.2mm O Alenk-Gestange

CA

Cut here for standard servo

Aileron & flap pushrod

Trial fit the control horn into the slot. If the parts will join, but with a gaps, sand or trim the parts a little at a time until the parts meet exactly with no gaps.

9

L/R

Do the same way with other wing half

Metal hook (x2)

Spring (x1)

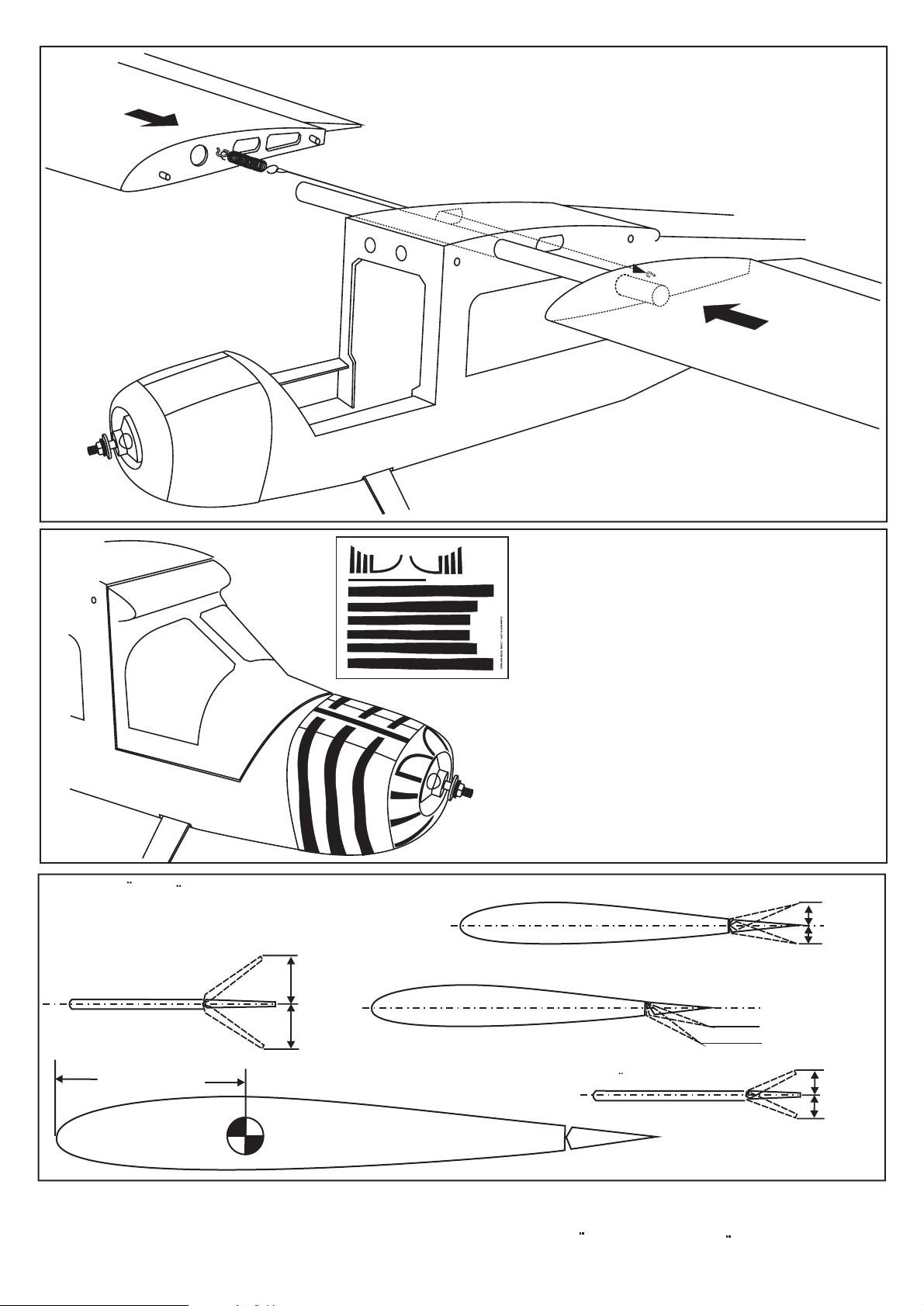

10

11

12

Uberprufen Sie vor dem Flug den Schwerpunkt.

Do not try to fly an out-of balance model!

Rudder

20mm

Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once. Peel off one corner of the backing and cut off with scissors. Arrange sticker on model and when satisfied adhere the corner without backing. Carefully peel back the rest of the backing while at the same time adhering the rest of the sticker.

Try not to make air bubbles, if there are some, carefully puncture sticker (center of bubble) but not model surface with the tip of the knife or sharp pin and squeeze out the air. At curves stretch sticker and apply a little heat so that no ceases occur. Cut off the excess that is produced.

Aileron /

Fflap / Landeklappen

Querruderausschlag

10mm 10mm

Seitenruderausschlag

65 ~ 70mm

CG

IMPORTANT:

All details are subject to change without notice !

Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner to clean on surface of your model to keep the colour not fade.

20mm

15mm Take off / Start

25mm Landing / Landung

Elevator /

Technische Anderungen und Irrtumer vorbehalten !

Hohenruderausschlag

10mm
